3-10 — BRAKE PEDAL AND CONTROL (#22833) — 72 parça

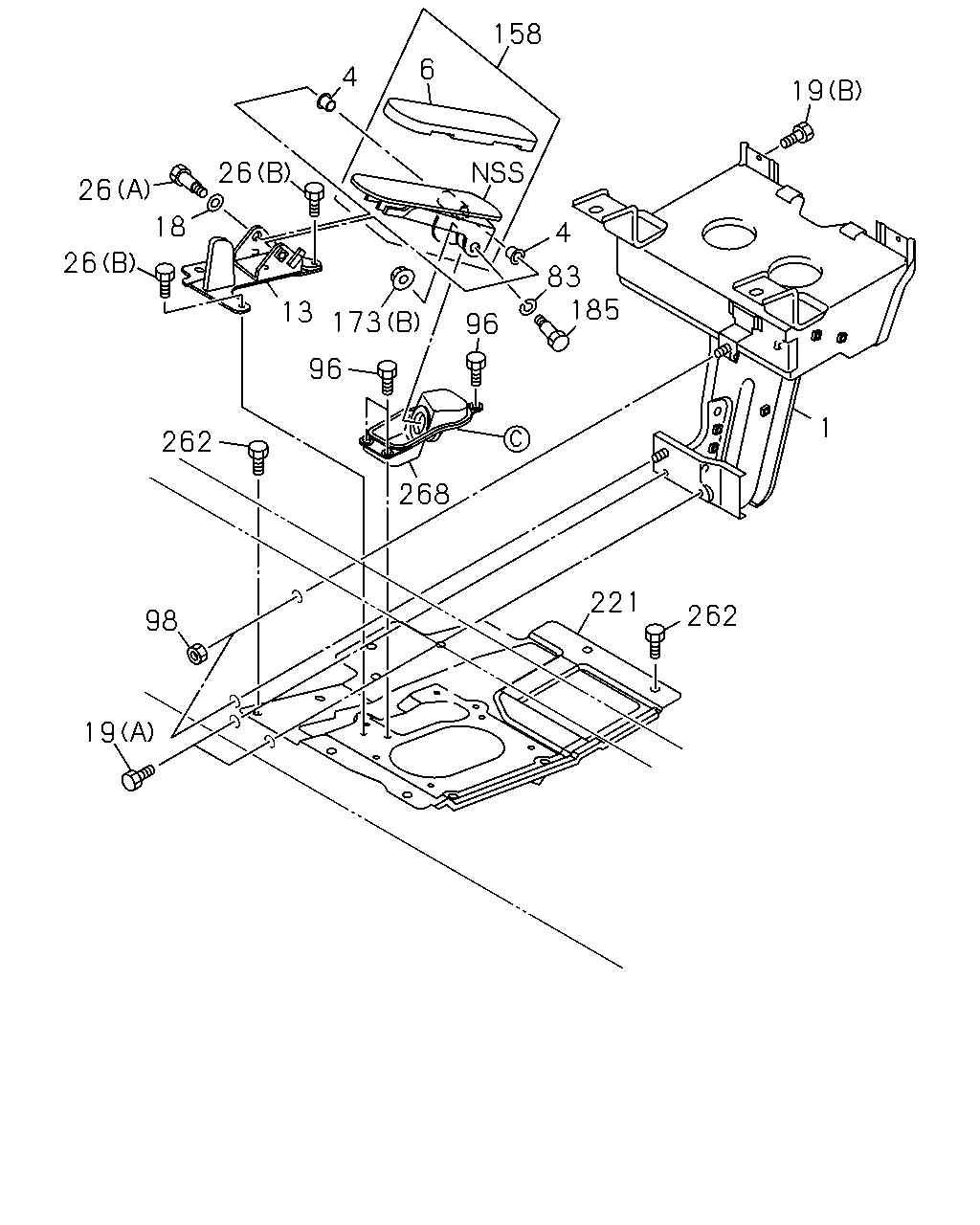

158 6 4 19 26 26 18 4 26 83 185 96 13 173 96 1 262 268 221 262 98 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET ASM; PEDAL AIR ASSIST CLUTCH<PK1>	1-73908-077-9	01	1	9601-0308	●	●
1	BRACKET ASM; PEDAL EXC. AIR ASSIST CLUTCH<PK1>	1-73908-076-9	01	1	9601-0103	●	●
1	BRACKET ASM; PEDAL EXC. AIR ASSIST CLUTCH<PK1>	1-73908-076-9	01	1	0106-0109	●	●
1	BRACKET ASM; PEDAL EXC. AIR ASSIST CLUTCH<PK1>	1-73908-412-0	01	1	0110-0308	●	●
1	BRACKET ASM; PEDAL	1-73908-412-0	01	1	0309-		●
4	BUSHING; BRK PEDAL	1-73908-201-1	02	1	9601-0308	●	●
4	BUSHING; BRK PEDAL	1-73908-201-1	02	1	0309-		●
6	COVER; BRK PEDAL	1-48119-333-0	01	1	9601-0308	●	●
6	COVER; BRK PEDAL	1-48119-333-0	01	1	0309-		●
13	BRACKET; BRK PEDAL	1-73908-203-1	01	1	9601-0308	●	●
13	BRACKET; BRK PEDAL	1-73908-203-1	01	1	0309-0906		●
13	BRACKET; BRK PEDAL	1-73908-069-6	01	1	0907-		●
18	WASHER; PL ID=12.5	9-09164-512-0	01	1	9601-0308	●	●
18	WASHER; PL ID=12.5	9-09164-512-0	01	1	0309-		●
19	BOLT; BRKT (A) M8X20	1-79198-002-0	02	1	9601-0308	●	●
19	BOLT; BRKT (A) M8X20	1-79198-002-0	02	1	0309-		●
19	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9601-0308	●	●
19	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0309-0904		●
19	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-		●
26	BOLT; PEDAL (A) M8X16	1-09980-614-0	01	1	9601-0308	●	●
26	BOLT; PEDAL (A) M8X16	1-09980-614-0	01	1	0309-		●
26	BOLT; PEDAL (B) M6X25	8-94279-204-0	02	1	9601-0308	●	●
26	BOLT; PEDAL (B) M6X25	8-94279-204-0	02	1	0309-		●
83	WASHER; LK,BRKT ID=14.2	9-09150-814-0	01	1	9601-0308	●	●
83	WASHER; LK,BRKT ID=14.2	9-09150-814-0	01	1	0309-0603		●
83	WASHER; LK,BRKT ID=14.2	0-91510-814-0	01	1	0604-		●
96	BOLT; COVER M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9601-0308	●	●
96	BOLT; COVER M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0309-		●
98	NUT; BRKT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	9601-0308	●	●
98	NUT; BRKT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0309-		●
158	PEDAL ASM; BRK	1-73908-068-5	01	1	9601-0308	●	●
158	PEDAL ASM; BRK	1-73908-068-5	01	1	0309-		●
173	NUT; JOINT LOCK (B) M10 FLANGE	0-91150-110-0	01	1	9601-0308	●	●
173	NUT; JOINT LOCK (B) M10 FLANGE	0-91150-110-0	01	1	0309-0602		●
173	NUT; JOINT LOCK (B) M10 FLANGE	0-91180-110-0	01	1	0603-		●
173	NUT; JOINT LOCK (A) M12	9-99110-412-0	01	1	9601-0308	●	●
173	NUT; JOINT LOCK (A) M12	9-99110-412-0	01	1	0309-0512		●
173	NUT; JOINT LOCK (A) M12	0-91110-512-0	01	1	0601-		●
185	BOLT; BRKT	1-73996-282-1	01	1	9601-0308	●	●
185	BOLT; BRKT	1-73996-282-1	01	1	0309-		●
221	PLATE ASM; SIDE	1-73908-114-7	01	1	9601-0308	●	●
221	PLATE ASM; SIDE	1-73908-114-7	01	1	0309-		●
262	BOLT; PLATE M8X24.5 W/LK&PL WASHER	8-94279-208-0	10	1	9601-0308	●	●
262	BOLT; PLATE M8X24.5 W/LK&PL WASHER	8-94279-208-0	10	1	0309-0904		●
262	BOLT; PLATE M8X24.5 W/LK&PL WASHER	8-98059-720-0	10	1	0905-		●
268	COVER; ROD	1-73908-192-1	01	1	9601-0308	●	●
268	COVER; ROD	1-73908-192-1	01	1	0309-		●

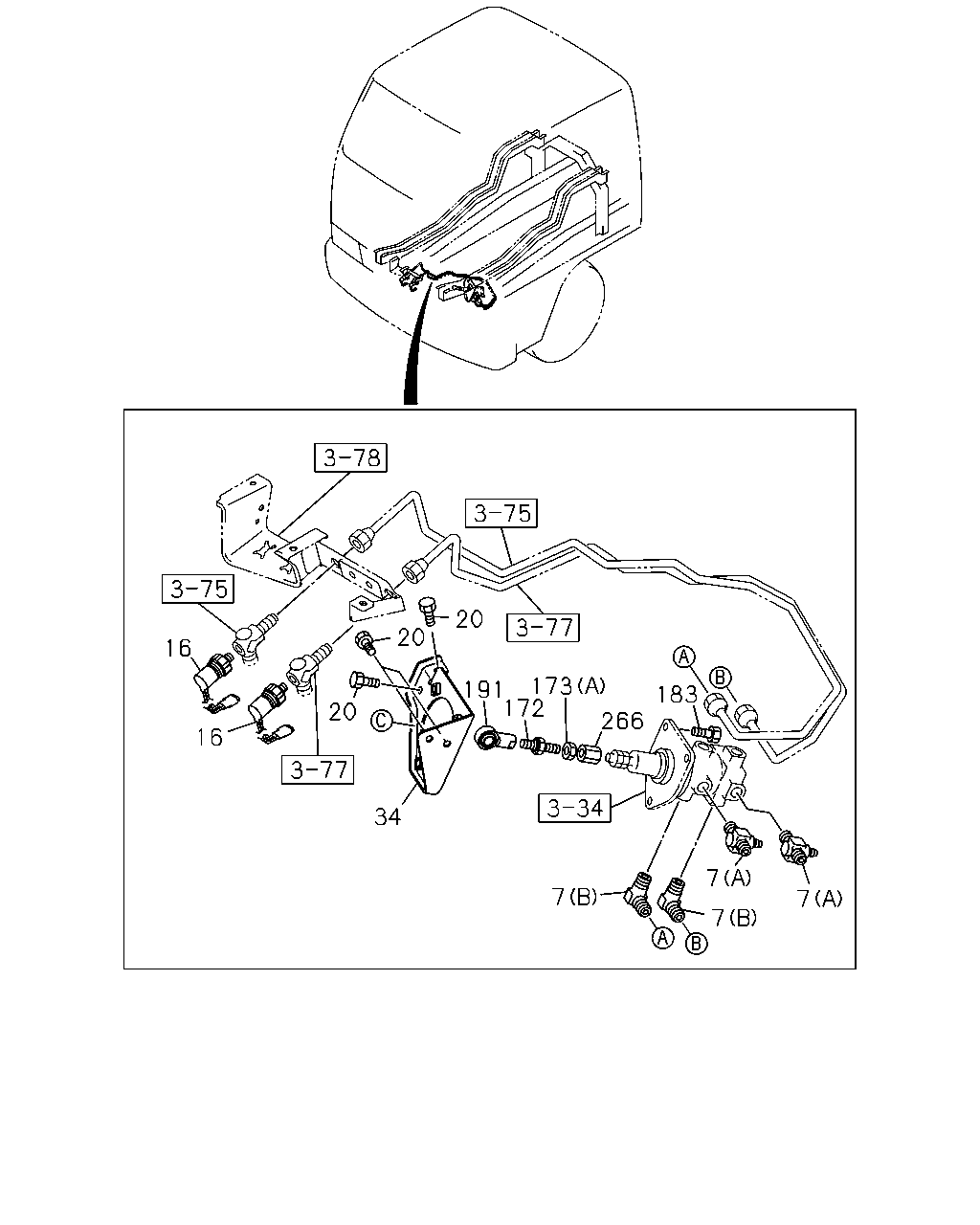

20 20 16 191 173 172 183 20 266 16 34 7 7 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	CONNECTOR; BRK VALVE (B) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	9601-0308	●	●
7	CONNECTOR; BRK VALVE (B) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0309-		●
7	CONNECTOR; BRK VALVE (A)	1-09656-701-0	02	1	9601-0308	●	●
7	CONNECTOR; BRK VALVE (A)	1-09656-701-0	02	1	0309-		●
16	SWITCH; STOP LAMP GREEN	1-82410-176-1	02	1	9601-0308	●	●
16	SWITCH; STOP LAMP GREEN	1-82410-176-1	02	1	0309-		●
20	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9601-0308	●	●
20	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0309-0904		●
20	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-		●
34	BRACKET ASM; BRK VLV	1-79738-808-3	01	1	9601-0308	●	●
34	BRACKET ASM; BRK VLV	1-79738-808-3	01	1	0309-		●
172	JOINT; JAW,BRK PEDAL	1-73908-167-1	01	1	9601-0308	●	●
172	JOINT; JAW,BRK PEDAL	1-73908-167-1	01	1	0309-		●
173	NUT; JOINT LOCK (B) M10 FLANGE	0-91150-110-0	01	1	9601-0308	●	●
173	NUT; JOINT LOCK (B) M10 FLANGE	0-91150-110-0	01	1	0309-0602		●
173	NUT; JOINT LOCK (B) M10 FLANGE	0-91180-110-0	01	1	0603-		●
173	NUT; JOINT LOCK (A) M12	9-99110-412-0	01	1	9601-0308	●	●
173	NUT; JOINT LOCK (A) M12	9-99110-412-0	01	1	0309-0512		●
173	NUT; JOINT LOCK (A) M12	0-91110-512-0	01	1	0601-		●
183	BOLT; BRK VLV M10X25 W/LK WASHER	1-09980-503-0	03	1	9601-0308	●	●
183	BOLT; BRK VLV M10X25 W/LK WASHER	1-09980-503-0	03	1	0309-		●
191	JOINT; BALL,PUSH ROD M10X16.5	1-47355-001-0	01	1	9601-0308	●	●
191	JOINT; BALL,PUSH ROD M10X16.5	1-47355-001-0	01	1	0309-		●
266	JOINT ROD	1-73908-166-3	01	1	9601-0308	●	●
266	JOINT ROD	1-73908-166-3	01	1	0309-		●
