◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#22832) — 685 parça

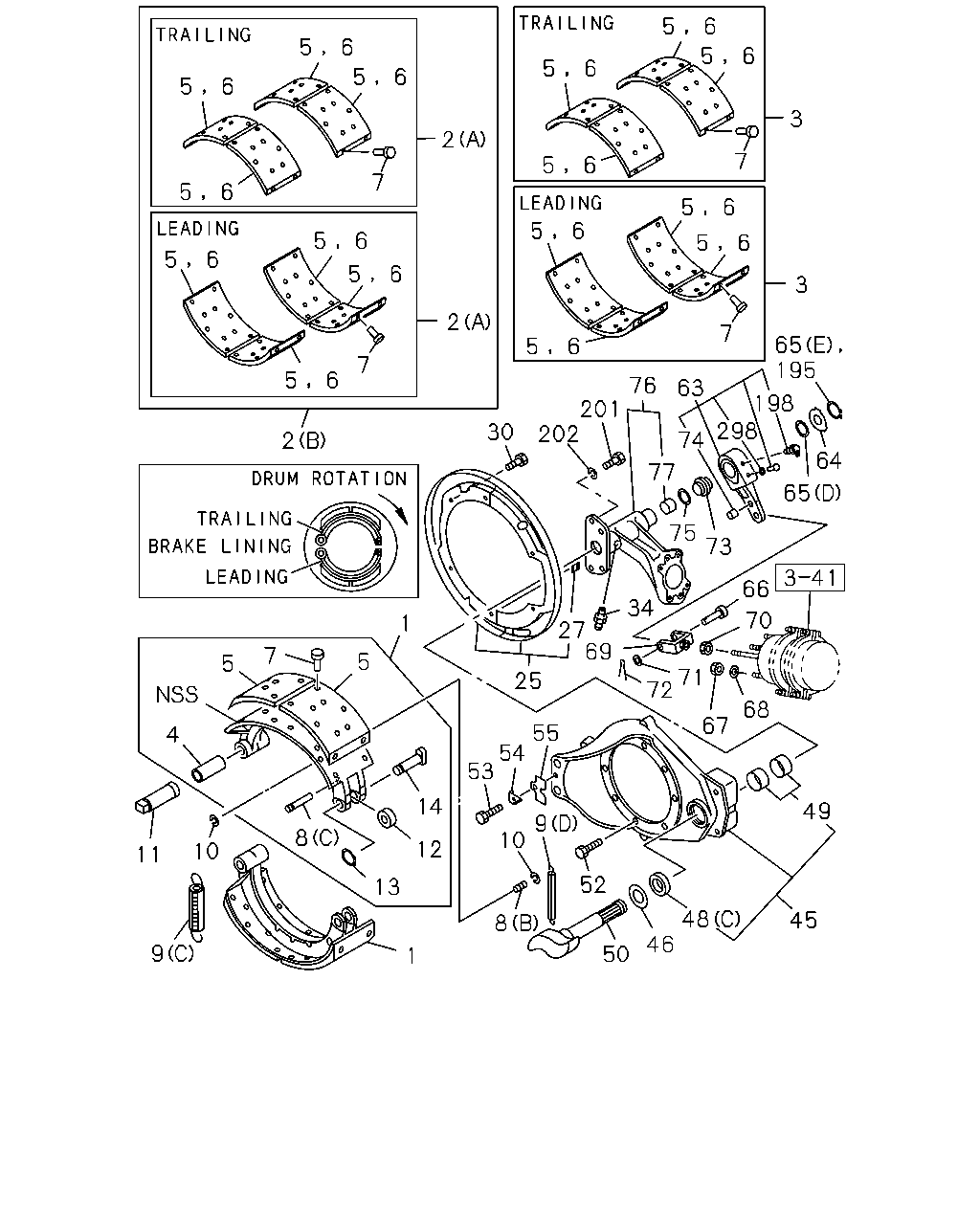

çizim 15516
5 6 5 6 5 6 5 6 7 2 5 6 5 6 5 6 3 7 5 6 6 5 6 5 5 6 5 6 7 3 5 6 5 6 5 6 2 5 6 7 2 1 5 7 5 4 11 9 10 14 12 8 13 1 65 195 198 298 63 76 201 202 30 74 77 75 73 64 65 66 70 34 27 69 25 71 72 68 67 55 54 53 10 9 8 52 49 45 48 46 50
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR 1-47120-401-0 04 1 9601-0004 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47120-401-0 04 1 0005-0112 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47120-401-0 04 1 0201-0206 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47120-401-0 04 1 0201-0206 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47120-401-0 04 1 0207-0208 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) LEADING 		1-47120-713-0 01 1 0212-0302 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) LEADING 		1-47120-713-0 01 1 0303-0308 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) LEADING 		1-47120-713-0 01 1 0309-0411 ●
1 SHOE; BRK,RR
LEADING 		1-47120-713-0 01 1 0412- ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) TRAILING 		1-47120-714-0 01 1 0212-0302 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) TRAILING 		1-47120-714-0 01 1 0303-0308 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) TRAILING 		1-47120-714-0 01 1 0309-0411 ●
1 SHOE; BRK,RR
TRAILING 		1-47120-714-0 01 1 0412- ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) LEADING 		1-47120-715-0 01 1 0212-0302 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) LEADING 		1-47120-715-0 01 1 0303-0308 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) LEADING 		1-47120-715-0 01 1 0309-0411 ●
1 SHOE; BRK,RR
LEADING 		1-47120-715-0 01 1 0412- ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) TRAILING 		1-47120-716-0 01 1 0212-0302 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) TRAILING 		1-47120-716-0 01 1 0303-0308 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) TRAILING 		1-47120-716-0 01 1 0309-0411 ●
1 SHOE; BRK,RR
TRAILING 		1-47120-716-0 01 1 0412- ●
1 SHOE; BRK,RR
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47170-241-0 04 1 0201-0206 ● ●
1 SHOE; BRK,RR
FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47170-241-0 04 1 0201-0206 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47170-241-0 04 1 0201-0206 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47170-241-0 04 1 0207-0208 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47170-241-0 04 1 0207-0208 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47170-241-0 04 1 0209-0411 ● ●
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (B) LEADING,TRAILING BEST VALUE PARTS 		1-87610-129-0 01 1 0212-0302 ● ●
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (B) LEADING,TRAILING BEST VALUE PARTS 		1-87610-129-0 01 1 0303-0308 ● ●
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (B) LEADING,TRAILING BEST VALUE PARTS 		1-87610-129-0 01 1 0309-0411 ●
2 LINING SET; RR BRK,STANDARD
(B) LEADING,TRAILING BEST VALUE PARTS 		1-87610-129-0 01 1 0412- ●
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (A) LEADING 		1-88310-521-0 01 1 0212-0302 ● ●
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (A) LEADING 		1-88310-521-0 01 1 0303-0308 ● ●
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (A) LEADING 		1-88310-521-0 01 1 0309-0411 ●
2 LINING SET; RR BRK,STANDARD
(A) LEADING 		1-88310-521-0 01 1 0412- ●
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (A) TRAILING 		1-88310-523-0 01 1 0212-0302 ● ●
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (A) TRAILING 		1-88310-523-0 01 1 0303-0308 ● ●
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (A) TRAILING 		1-88310-523-0 01 1 0309-0411 ●
2 LINING SET; RR BRK,STANDARD
(A) TRAILING 		1-88310-523-0 01 1 0412- ●
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) LEADING 		1-88310-522-0 01 1 0212-0302 ● ●
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) LEADING 		1-88310-522-0 01 1 0303-0308 ● ●
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) LEADING 		1-88310-522-0 01 1 0309-0411 ●
3 LINING SET; RR BRK,OVER SIZE
LEADING 		1-88310-522-0 01 1 0412- ●
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) TRAILING 		1-88310-524-0 01 1 0212-0302 ● ●
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) TRAILING 		1-88310-524-0 01 1 0303-0308 ● ●
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) TRAILING 		1-88310-524-0 01 1 0309-0411 ●
3 LINING SET; RR BRK,OVER SIZE
TRAILING 		1-88310-524-0 01 1 0412- ●
4 BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-47112-012-0 04 1 0212-0302 ● ●
4 BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47112-012-0 04 1 0303-0308 ● ●
4 BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47112-012-0 04 1 0309-0411 ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 0412- ●
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) LEADING 		1-47125-797-0 04 1 0212-0302 ● ●
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) LEADING 		1-47125-797-0 04 1 0303-0308 ● ●
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) LEADING 		1-47125-797-0 04 1 0309-0411 ●
5 LINING; RR BRK SHOE,STANDARD
LEADING 		1-47125-797-0 04 1 0412- ●
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) TRAILING 		1-47125-799-0 04 1 0212-0302 ● ●
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) TRAILING 		1-47125-799-0 04 1 0303-0308 ● ●
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) TRAILING 		1-47125-799-0 04 1 0309-0411 ●
5 LINING; RR BRK SHOE,STANDARD
TRAILING 		1-47125-799-0 04 1 0412- ●
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) LEADING 		1-47125-798-0 04 1 0212-0302 ● ●
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) LEADING 		1-47125-798-0 04 1 0303-0308 ● ●
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) LEADING 		1-47125-798-0 04 1 0309-0411 ●
6 LINING; RR BRK SHOE,OVER SIZE
LEADING 		1-47125-798-0 04 1 0412- ●
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) TRAILING 		1-47125-800-0 04 1 0212-0302 ● ●
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) TRAILING 		1-47125-800-0 04 1 0303-0308 ● ●
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) TRAILING 		1-47125-800-0 04 1 0309-0411 ●
6 LINING; RR BRK SHOE,OVER SIZE
TRAILING 		1-47125-800-0 04 1 0412- ●
7 RIVET; LINING,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) L=18.5 		1-09732-034-0 AR 1 0212-0302 ● ●
7 RIVET; LINING,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) L=18.5 		1-09732-034-0 AR 1 0303-0308 ● ●
7 RIVET; LINING,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) L=18.5 		1-09732-034-0 AR 1 0309-0411 ●
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 AR 1 0412- ●
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-47119-116-0 04 1 9601-0004 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) (A) 		1-47119-116-0 04 1 0005-0411 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (B) 		1-47119-021-0 04 1 0212-0302 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (B) 		1-47119-021-0 04 1 0303-0308 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (B) 		1-47119-021-0 04 1 0309-0411 ●
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-021-0 04 1 0412-1209 ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (C) 		1-47119-029-0 04 1 0212-0302 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (C) 		1-47119-029-0 04 1 0303-0308 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (C) 		1-47119-029-0 04 1 0309-0411 ●
8 PIN; RETURN SPRING,RR BRK SHOE
(C) 		1-47119-029-0 04 1 0412- ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 9601-0004 ● ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) (A) 		1-47119-114-0 04 1 0005-0411 ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 9601-0004 ● ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) (B) 		1-47119-115-0 02 1 0005-0411 ● ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (C) 		1-09583-175-0 02 1 0212-0302 ● ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (C) 		1-09583-175-0 02 1 0303-0308 ● ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (C) 		1-09583-175-0 02 1 0309-0411 ●
9 SPRING; RETURN,BRK SHOE
(C) 		1-09583-175-0 02 1 0412-1209 ●
9 SPRING; RETURN,BRK SHOE
(C) 		8-98219-175-0 02 1 1210- ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (D) 		1-09583-196-0 02 1 0212-0302 ● ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (D) 		1-09583-196-0 02 1 0303-0308 ● ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (D) 		1-09583-196-0 02 1 0309-0411 ●
9 SPRING; RETURN,BRK SHOE
(D) 		1-09583-196-0 02 1 0412-1209 ●
10 RING; SNAP,SPR PIN
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) ID=10 		9-09185-410-0 08 1 0212-0302 ● ●
10 RING; SNAP,SPR PIN
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) ID=10 		9-09185-410-0 08 1 0303-0308 ● ●
10 RING; SNAP,SPR PIN
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) ID=10 		9-09185-410-0 08 1 0309-0411 ●
10 RING; SNAP,SPR PIN
ID=10 		9-09185-410-0 08 1 0412-0604 ●
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 08 1 0605-1209 ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-046-0 04 1 9601-0004 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47131-046-0 04 1 0005-0112 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47131-046-0 04 1 0201-0206 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47131-046-0 04 1 0201-0206 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47131-046-0 04 1 0207-0208 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) L=121.5 		1-47131-039-0 04 1 0212-0302 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) L=121.5 		1-47131-039-0 04 1 0303-0308 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) L=121.5 		1-47131-039-0 04 1 0309-0411 ●
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 0412- ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47131-040-0 04 1 0201-0206 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47131-040-0 04 1 0201-0206 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47131-040-0 04 1 0201-0206 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47131-040-0 04 1 0207-0208 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47131-040-0 04 1 0207-0208 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47131-040-0 04 1 0209-0411 ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 04 1 9601-0004 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47119-117-0 04 1 0005-0112 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47119-117-0 04 1 0201-0206 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47119-117-0 04 1 0201-0206 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47119-117-0 04 1 0207-0208 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-47113-005-0 04 1 0212-0302 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47113-005-0 04 1 0303-0308 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47113-005-0 04 1 0309-0411 ●
12 ROLLER; CAM,BRK SHOE 1-47113-005-0 04 1 0412- ●

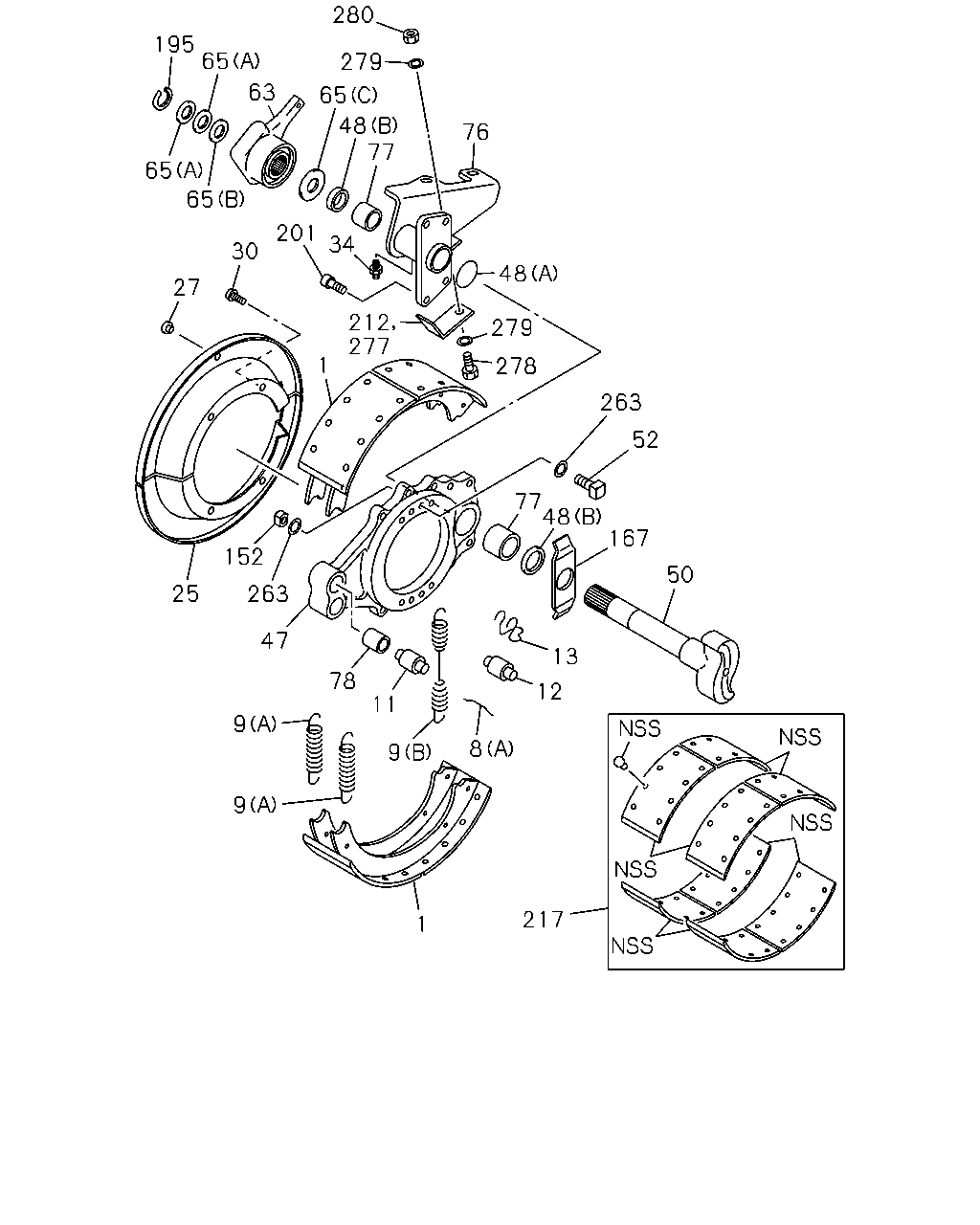

12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47119-141-0 04 1 0201-0206 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47119-141-0 04 1 0201-0206 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47119-141-0 04 1 0201-0206 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47119-141-0 04 1 0207-0208 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47119-141-0 04 1 0207-0208 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47119-141-0 04 1 0209-0411 ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 9601-0004 ● ●
13 CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47119-118-0 04 1 0005-0411 ● ●
13 CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		9-47119-022-0 04 1 0212-0302 ● ●
13 CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		9-47119-022-0 04 1 0303-0308 ● ●
13 CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		9-47119-022-0 04 1 0309-0411 ●
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 04 1 0412- ●
14 PIN; CAM ROLLER,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-09744-061-0 04 1 0212-0302 ● ●
14 PIN; CAM ROLLER,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-09744-061-0 04 1 0303-0308 ● ●
14 PIN; CAM ROLLER,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-09744-061-0 04 1 0309-0411 ●
14 PIN; CAM ROLLER,BRK SHOE 1-09744-061-0 04 1 0412- ●
25 COVER SET; RR BRK DRUM 1-47151-640-0 01 1 9601-0004 ● ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47151-640-0 01 1 0005-0411 ● ●
25 COVER SET; RR BRK DRUM 1-47151-641-0 01 1 9601-0004 ● ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47151-641-0 01 1 0005-0411 ● ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-47151-462-1 02 1 0212-0302 ● ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47151-462-1 02 1 0303-0308 ● ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47151-462-1 02 1 0309-0411 ●
25 COVER SET; RR BRK DRUM 1-47151-462-1 02 1 0412- ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 9601-0004 ● ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-87050-011-0 04 1 0005-0411 ● ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-09333-151-0 04 1 0212-0302 ● ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-09333-151-0 04 1 0303-0308 ● ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-09333-151-0 04 1 0309-0411 ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0412- ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 9601-0004 ● ●
30 BOLT; DRUM COVER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47159-176-0 12 1 0005-0411 ● ●
30 BOLT; DRUM COVER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) M10X16 W/LK WASHER 		0-50041-016-0 12 1 0212-0302 ● ●
30 BOLT; DRUM COVER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) M10X16 W/LK WASHER 		0-50041-016-0 12 1 0303-0308 ● ●
30 BOLT; DRUM COVER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) M10X16 W/LK WASHER 		0-50041-016-0 12 1 0309-0411 ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0412-0906 ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50541-016-0 12 1 0907-1209 ● ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1210- ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 9601-0004 ● ●
34 NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-48259-253-0 02 1 0005-0411 ● ●
34 NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0212-0302 ● ●
34 NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0303-0308 ● ●
34 NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0309-0411 ●
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0412-0512 ●
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
45 BRACKET; ANCHOR PIN,W/BUSHING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-47137-120-2 02 1 0212-0302 ● ●
45 BRACKET; ANCHOR PIN,W/BUSHING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47137-120-2 02 1 0303-0308 ● ●
45 BRACKET; ANCHOR PIN,W/BUSHING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47137-120-2 02 1 0309-0411 ●
45 BRACKET; ANCHOR PIN,W/BUSHING 1-47137-120-2 02 1 0412- ●
46 RING; SPACER,CM/SHF,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-47143-005-0 02 1 0212-0302 ● ●
46 RING; SPACER,CM/SHF,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47143-005-0 02 1 0303-0308 ● ●
46 RING; SPACER,CM/SHF,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47143-005-0 02 1 0309-0411 ●
46 RING; SPACER,CM/SHF,RR BRK 1-47143-005-0 02 1 0412- ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 9601-0004 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) (A) 		1-47149-056-0 02 1 0005-0411 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 9601-0004 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) (B) 		1-47149-057-0 04 1 0005-0411 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (C) 		1-09625-228-0 02 1 0212-0302 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (C) 		1-09625-228-0 02 1 0303-0308 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (C) 		1-09625-228-0 02 1 0309-0411 ●
48 SEAL; OIL,CM/SHF,RR BRK
(C) 		1-09625-228-0 02 1 0412- ●
49 BUSHING; CM/SHF,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-47146-003-1 02 1 0212-0302 ● ●
49 BUSHING; CM/SHF,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47146-003-1 02 1 0303-0308 ● ●
49 BUSHING; CM/SHF,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47146-003-1 02 1 0309-0411 ●
49 BUSHING; CM/SHF,RR BRK 1-47146-003-1 02 1 0412- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-098-0 01 1 9601-0004 ● ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47141-098-0 01 1 0005-0411 ● ●
50 CAMSHAFT; BRK,RR BRK 1-47141-099-0 01 1 9601-0004 ● ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47141-099-0 01 1 0005-0411 ● ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-47141-053-0 01 1 0212-0302 ● ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47141-053-0 01 1 0303-0308 ● ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47141-053-0 01 1 0309-0411 ●
50 CAMSHAFT; BRK,RR BRK 1-47141-053-0 01 1 0412- ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-47141-054-0 01 1 0212-0302 ● ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47141-054-0 01 1 0303-0308 ● ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47141-054-0 01 1 0309-0411 ●
50 CAMSHAFT; BRK,RR BRK 1-47141-054-0 01 1 0412- ●
52 BOLT; ANCHOR BRKT
M16X50 		1-42119-077-0 32 1 9601-0004 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) M16X50 		1-42119-077-0 32 1 0005-0112 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2> M16X50 		1-42119-077-0 32 1 0201-0206 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M16X50 		1-42119-077-0 32 1 0201-0206 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) M16X50 		1-42119-077-0 16 1 0207-0208 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> M16X50 		1-42119-077-0 16 1 0207-0208 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) M16X50 		1-42119-077-0 16 1 0209-0411 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) M14X50 		1-09040-066-0 02 1 0212-0302 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) M14X50 		1-09040-066-0 02 1 0303-0308 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) M14X50 		1-09040-066-0 02 1 0309-0411 ●
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 0412-1209 ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M16X50 		1-42119-077-0 16 1 0201-0206 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 45/8 18" ROCKWELL(W6B) M16X50 		1-42119-077-0 16 1 0201-0206 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> M16X50 		1-42119-077-0 16 1 0201-0206 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M16X50 		1-42119-077-0 32 1 0207-0208 ● ●
53 BOLT; LOCK PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) M10X16 		0-20801-016-0 02 1 0212-0302 ● ●
53 BOLT; LOCK PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) M10X16 		0-20801-016-0 02 1 0303-0308 ● ●
53 BOLT; LOCK PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) M10X16 		0-20801-016-0 02 1 0309-0411 ●
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 0412-0512 ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0601-1209 ●
53 BOLT; LOCK PLATE
M10X16 		1-47139-173-0 02 1 1210- ●
54 WASHER; LK,ANCHOR PIN,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-47133-011-0 02 1 0212-0302 ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47133-011-0 02 1 0303-0308 ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47133-011-0 02 1 0309-0411 ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0412- ●
55 PLATE; LK,RR WHEEL CYL
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-47133-005-0 02 1 0212-0302 ● ●
55 PLATE; LK,RR WHEEL CYL
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47133-005-0 02 1 0303-0308 ● ●
55 PLATE; LK,RR WHEEL CYL
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47133-005-0 02 1 0309-0411 ●
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 0412- ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-079-0 02 1 9601-0004 ● ●
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-48270-079-0 02 1 0005-0411 ● ●
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48270-045-0 01 1 0212-0302 ● ●
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48270-045-0 01 1 0303-0308 ● ●
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48270-045-0 01 1 0309-0411 ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-045-0 01 1 0412- ●
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48270-046-0 01 1 0212-0302 ● ●
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48270-046-0 01 1 0303-0308 ● ●
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48270-046-0 01 1 0309-0411 ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-046-0 01 1 0412- ●
64 PLATE; STOPPER,CM/SHF
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-47149-022-0 02 1 0212-0302 ● ●
64 PLATE; STOPPER,CM/SHF
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47149-022-0 02 1 0303-0308 ● ●
64 PLATE; STOPPER,CM/SHF
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47149-022-0 02 1 0309-0411 ●
64 PLATE; STOPPER,CM/SHF 1-47149-022-0 02 1 0412- ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-058-0 02 1 9601-0004 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) (C) 		1-47149-058-0 02 1 0005-0411 ● ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 9601-0004 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) (B) 		1-47149-059-0 02 1 0005-0411 ● ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.03" 		1-47149-060-0 04 1 9601-0004 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) (A) T=0.03" 		1-47149-060-0 04 1 0005-0112 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2> (A) T=0.03" 		1-47149-060-0 04 1 0201-0206 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) T=0.03" 		1-47149-060-0 04 1 0201-0206 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) (A) T=0.03" 		1-47149-060-0 02 1 0207-0208 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> (A) T=0.03" 		1-47149-060-0 02 1 0207-0208 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) (A) T=0.03" 		1-47149-060-0 02 1 0209-0411 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (D) 		1-47143-004-0 02 1 0212-0302 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (D) 		1-47143-004-0 02 1 0303-0308 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (D) 		1-47143-004-0 02 1 0309-0411 ●
65 SPACER; SLACK ADJ,BRK
(D) 		1-47143-004-0 02 1 0412- ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (E) 		9-09180-038-0 01 1 0212-0302 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (E) 		9-09180-038-0 01 1 0303-0308 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (E) 		9-09180-038-0 01 1 0309-0411 ●
65 SPACER; SLACK ADJ,BRK
(E) 		9-09180-038-0 01 1 0412- ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) T=0.03" 		1-47149-060-0 02 1 0201-0206 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 45/8 18" ROCKWELL(W6B) (A) T=0.03" 		1-47149-060-0 02 1 0201-0206 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> (A) T=0.03" 		1-47149-060-0 02 1 0201-0206 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) T=0.03" 		1-47149-060-0 04 1 0207-0208 ● ●
66 PIN; JAW JOINT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-09744-088-0 02 1 0212-0302 ● ●
66 PIN; JAW JOINT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-09744-088-0 02 1 0303-0308 ● ●
66 PIN; JAW JOINT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-09744-088-0 02 1 0309-0411 ●
66 PIN; JAW JOINT 1-09744-088-0 02 1 0412- ●
67 NUT; POWER CHAMBER FIX
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) M16 		9-99110-416-0 08 1 0212-0302 ● ●
67 NUT; POWER CHAMBER FIX
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) M16 		9-99110-416-0 08 1 0303-0308 ● ●
67 NUT; POWER CHAMBER FIX
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) M16 		9-99110-416-0 08 1 0309-0411 ●
67 NUT; POWER CHAMBER FIX
M16 		9-99110-416-0 08 1 0412-0512 ●
67 NUT; POWER CHAMBER FIX
M16 		0-91110-516-0 08 1 0601- ●
68 WASHER; LK,CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) ID=16.2 		9-09150-516-0 08 1 0212-0302 ● ●
68 WASHER; LK,CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) ID=16.2 		9-09150-516-0 08 1 0303-0308 ● ●
68 WASHER; LK,CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) ID=16.2 		9-09150-516-0 08 1 0309-0411 ●
68 WASHER; LK,CHAMBER
ID=16.2 		9-09150-516-0 08 1 0412-0603 ●
68 WASHER; LK,CHAMBER
ID=16.2 		0-91510-516-0 08 1 0604-0802 ●
68 WASHER; LK,CHAMBER
ID=16.2 		0-91510-816-0 08 1 0803- ● ●
69 JOINT; JAW
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-09768-060-1 02 1 0212-0302 ● ●
69 JOINT; JAW
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-09768-060-1 02 1 0303-0308 ● ●
69 JOINT; JAW
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-09768-060-1 02 1 0309-0411 ●
69 JOINT; JAW 1-09768-060-1 02 1 0412- ●
70 NUT; LK,JAW JOINT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) M16 		9-99111-416-0 02 1 0212-0302 ● ●
70 NUT; LK,JAW JOINT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) M16 		9-99111-416-0 02 1 0303-0308 ● ●
70 NUT; LK,JAW JOINT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) M16 		9-99111-416-0 02 1 0309-0411 ●
70 NUT; LK,JAW JOINT
M16 		9-99111-416-0 02 1 0412-0512 ●
70 NUT; LK,JAW JOINT
M16 		0-91111-516-0 02 1 0601- ●
71 WASHER; PL,JAW JOINT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) ID=17 OD=32 		9-09160-616-0 02 1 0212-0302 ● ●
71 WASHER; PL,JAW JOINT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) ID=17 OD=32 		9-09160-616-0 02 1 0303-0308 ● ●
71 WASHER; PL,JAW JOINT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) ID=17 OD=32 		9-09160-616-0 02 1 0309-0411 ●
71 WASHER; PL,JAW JOINT
ID=17 OD=32 		9-09160-616-0 02 1 0412- ●
72 PIN; SPLIT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) OD=3.7 L=28 		9-08114-028-0 02 1 0212-0302 ● ●
72 PIN; SPLIT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) OD=3.7 L=28 		9-08114-028-0 02 1 0303-0308 ● ●
72 PIN; SPLIT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) OD=3.7 L=28 		9-08114-028-0 02 1 0309-0411 ●
72 PIN; SPLIT
OD=3.7 L=28 		9-08114-028-0 02 1 0412-0606 ●
72 PIN; SPLIT
OD=3.7 L=28 		0-81124-028-0 02 1 0607- ●
73 COLLAR; FELT RING,CM/SHF
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-47143-016-0 02 1 0212-0302 ● ●
73 COLLAR; FELT RING,CM/SHF
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47143-016-0 02 1 0303-0308 ● ●
73 COLLAR; FELT RING,CM/SHF
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47143-016-0 02 1 0309-0411 ●
73 COLLAR; FELT RING,CM/SHF 1-47143-016-0 02 1 0412- ●
74 BUSHING; SLACK ADJ
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-09330-041-0 02 1 0212-0302 ● ●
74 BUSHING; SLACK ADJ
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-09330-041-0 02 1 0303-0308 ● ●
74 BUSHING; SLACK ADJ
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-09330-041-0 02 1 0309-0411 ●
74 BUSHING; SLACK ADJ 1-09330-041-0 02 1 0412- ●
75 RING; FELT,CM/SHF
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-09620-009-0 02 1 0212-0302 ● ●
75 RING; FELT,CM/SHF
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-09620-009-0 02 1 0303-0308 ● ●
75 RING; FELT,CM/SHF
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-09620-009-0 02 1 0309-0411 ●
75 RING; FELT,CM/SHF 1-09620-009-0 02 1 0412- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-158-0 01 1 9601-0004 ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-48258-158-0 01 1 0005-0411 ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-159-0 01 1 9601-0004 ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-48258-159-0 01 1 0005-0411 ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48258-083-0 01 1 0212-0302 ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48258-083-0 01 1 0303-0308 ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48258-083-0 01 1 0309-0411 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-083-0 01 1 0412-0906 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-248-0 01 1 0907- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48258-084-0 01 1 0212-0302 ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48258-084-0 01 1 0303-0308 ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48258-084-0 01 1 0309-0411 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-084-0 01 1 0412-0906 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-249-0 01 1 0907- ●
77 BUSHING 1-47146-014-0 04 1 9601-0004 ● ●
77 BUSHING
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47146-014-0 04 1 0005-0411 ● ●
77 BUSHING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-47146-003-1 02 1 0212-0302 ● ●
77 BUSHING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47146-003-1 02 1 0303-0308 ● ●
77 BUSHING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47146-003-1 02 1 0309-0411 ●
77 BUSHING 1-47146-003-1 02 1 0412- ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 9601-0004 ● ●
195 RING; SNAP,CM/SHF
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-87050-005-0 02 1 0005-0411 ● ●
195 RING; SNAP,CM/SHF
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		9-09180-038-0 01 1 0212-0302 ● ●
195 RING; SNAP,CM/SHF
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		9-09180-038-0 01 1 0303-0308 ● ●
195 RING; SNAP,CM/SHF
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		9-09180-038-0 01 1 0309-0411 ●
195 RING; SNAP,CM/SHF 9-09180-038-0 01 1 0412- ●
198 NIPPLE; GREASE,SLACK ADJ
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0212-0302 ● ●
198 NIPPLE; GREASE,SLACK ADJ
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0303-0308 ● ●
198 NIPPLE; GREASE,SLACK ADJ
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0309-0411 ●
198 NIPPLE; GREASE,SLACK ADJ
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0412-0512 ●
198 NIPPLE; GREASE,SLACK ADJ
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-116-0 08 1 9601-0004 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47139-116-0 08 1 0005-0112 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-116-0 08 1 0201-0206 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-116-0 08 1 0201-0206 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-116-0 08 1 0207-0208 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) M14X35 		0-28081-435-0 08 1 0212-0302 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) M14X35 		0-28081-435-0 08 1 0303-0308 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) M14X35 		0-28081-435-0 08 1 0309-0411 ●
201 BOLT; BRKT,POWER CHAMBER
M14X35 		0-28081-435-0 08 1 0412-1209 ●
201 BOLT; BRKT,POWER CHAMBER
M14X35 		0-20851-435-0 08 1 1210- ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-119-0 04 1 0201-0206 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47139-119-0 04 1 0201-0206 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-119-0 04 1 0201-0206 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47139-119-0 04 1 0207-0208 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-119-0 04 1 0207-0208 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47139-119-0 04 1 0209-0411 ● ●
202 WASHER; LK,BRKT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) ID=14.2 		9-09150-514-0 08 1 0212-0302 ● ●
202 WASHER; LK,BRKT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) ID=14.2 		9-09150-514-0 08 1 0303-0308 ● ●
202 WASHER; LK,BRKT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) ID=14.2 		9-09150-514-0 08 1 0309-0411 ●
202 WASHER; LK,BRKT
ID=14.2 		9-09150-514-0 08 1 0412-0603 ●
202 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 08 1 0604- ●
298 GASKET
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) ID=23.3 		9-09561-223-0 02 1 0212-0302 ● ●
298 GASKET
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) ID=23.3 		9-09561-223-0 02 1 0303-0308 ● ●
298 GASKET
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) ID=23.3 		9-09561-223-0 02 1 0309-0411 ●
298 GASKET
ID=23.3 		9-09561-223-0 02 1 0412- ●
çizim 15886
280 195 65 279 63 65 48 77 76 65 65 201 34 30 48 27 279 212 277 1 278 263 52 77 48 167 152 50 25 263 47 13 78 12 11 9 8 9 9 217 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR 1-47120-401-0 04 1 9601-0004 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47120-401-0 04 1 0005-0112 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47120-401-0 04 1 0201-0206 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47120-401-0 04 1 0201-0206 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47120-401-0 04 1 0207-0208 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) LEADING 		1-47120-713-0 01 1 0212-0302 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) LEADING 		1-47120-713-0 01 1 0303-0308 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) LEADING 		1-47120-713-0 01 1 0309-0411 ●
1 SHOE; BRK,RR
LEADING 		1-47120-713-0 01 1 0412- ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) TRAILING 		1-47120-714-0 01 1 0212-0302 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) TRAILING 		1-47120-714-0 01 1 0303-0308 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) TRAILING 		1-47120-714-0 01 1 0309-0411 ●
1 SHOE; BRK,RR
TRAILING 		1-47120-714-0 01 1 0412- ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) LEADING 		1-47120-715-0 01 1 0212-0302 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) LEADING 		1-47120-715-0 01 1 0303-0308 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) LEADING 		1-47120-715-0 01 1 0309-0411 ●
1 SHOE; BRK,RR
LEADING 		1-47120-715-0 01 1 0412- ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) TRAILING 		1-47120-716-0 01 1 0212-0302 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) TRAILING 		1-47120-716-0 01 1 0303-0308 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) TRAILING 		1-47120-716-0 01 1 0309-0411 ●
1 SHOE; BRK,RR
TRAILING 		1-47120-716-0 01 1 0412- ●
1 SHOE; BRK,RR
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47170-241-0 04 1 0201-0206 ● ●
1 SHOE; BRK,RR
FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47170-241-0 04 1 0201-0206 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47170-241-0 04 1 0201-0206 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47170-241-0 04 1 0207-0208 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47170-241-0 04 1 0207-0208 ● ●
1 SHOE; BRK,RR
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47170-241-0 04 1 0209-0411 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-47119-116-0 04 1 9601-0004 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) (A) 		1-47119-116-0 04 1 0005-0411 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (B) 		1-47119-021-0 04 1 0212-0302 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (B) 		1-47119-021-0 04 1 0303-0308 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (B) 		1-47119-021-0 04 1 0309-0411 ●
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-021-0 04 1 0412-1209 ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (C) 		1-47119-029-0 04 1 0212-0302 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (C) 		1-47119-029-0 04 1 0303-0308 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (C) 		1-47119-029-0 04 1 0309-0411 ●
8 PIN; RETURN SPRING,RR BRK SHOE
(C) 		1-47119-029-0 04 1 0412- ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 9601-0004 ● ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) (A) 		1-47119-114-0 04 1 0005-0411 ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 9601-0004 ● ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) (B) 		1-47119-115-0 02 1 0005-0411 ● ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (C) 		1-09583-175-0 02 1 0212-0302 ● ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (C) 		1-09583-175-0 02 1 0303-0308 ● ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (C) 		1-09583-175-0 02 1 0309-0411 ●
9 SPRING; RETURN,BRK SHOE
(C) 		1-09583-175-0 02 1 0412-1209 ●
9 SPRING; RETURN,BRK SHOE
(C) 		8-98219-175-0 02 1 1210- ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (D) 		1-09583-196-0 02 1 0212-0302 ● ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (D) 		1-09583-196-0 02 1 0303-0308 ● ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (D) 		1-09583-196-0 02 1 0309-0411 ●
9 SPRING; RETURN,BRK SHOE
(D) 		1-09583-196-0 02 1 0412-1209 ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-046-0 04 1 9601-0004 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47131-046-0 04 1 0005-0112 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47131-046-0 04 1 0201-0206 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47131-046-0 04 1 0201-0206 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47131-046-0 04 1 0207-0208 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) L=121.5 		1-47131-039-0 04 1 0212-0302 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) L=121.5 		1-47131-039-0 04 1 0303-0308 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) L=121.5 		1-47131-039-0 04 1 0309-0411 ●
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 0412- ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47131-040-0 04 1 0201-0206 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47131-040-0 04 1 0201-0206 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47131-040-0 04 1 0201-0206 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47131-040-0 04 1 0207-0208 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47131-040-0 04 1 0207-0208 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47131-040-0 04 1 0209-0411 ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 04 1 9601-0004 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47119-117-0 04 1 0005-0112 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47119-117-0 04 1 0201-0206 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47119-117-0 04 1 0201-0206 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47119-117-0 04 1 0207-0208 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-47113-005-0 04 1 0212-0302 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47113-005-0 04 1 0303-0308 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47113-005-0 04 1 0309-0411 ●
12 ROLLER; CAM,BRK SHOE 1-47113-005-0 04 1 0412- ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47119-141-0 04 1 0201-0206 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47119-141-0 04 1 0201-0206 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47119-141-0 04 1 0201-0206 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47119-141-0 04 1 0207-0208 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47119-141-0 04 1 0207-0208 ● ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47119-141-0 04 1 0209-0411 ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 9601-0004 ● ●
13 CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47119-118-0 04 1 0005-0411 ● ●
13 CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		9-47119-022-0 04 1 0212-0302 ● ●
13 CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		9-47119-022-0 04 1 0303-0308 ● ●
13 CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		9-47119-022-0 04 1 0309-0411 ●
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 04 1 0412- ●
25 COVER SET; RR BRK DRUM 1-47151-640-0 01 1 9601-0004 ● ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47151-640-0 01 1 0005-0411 ● ●
25 COVER SET; RR BRK DRUM 1-47151-641-0 01 1 9601-0004 ● ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47151-641-0 01 1 0005-0411 ● ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-47151-462-1 02 1 0212-0302 ● ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47151-462-1 02 1 0303-0308 ● ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47151-462-1 02 1 0309-0411 ●
25 COVER SET; RR BRK DRUM 1-47151-462-1 02 1 0412- ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 9601-0004 ● ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-87050-011-0 04 1 0005-0411 ● ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-09333-151-0 04 1 0212-0302 ● ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-09333-151-0 04 1 0303-0308 ● ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-09333-151-0 04 1 0309-0411 ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0412- ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 9601-0004 ● ●
30 BOLT; DRUM COVER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47159-176-0 12 1 0005-0411 ● ●
30 BOLT; DRUM COVER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) M10X16 W/LK WASHER 		0-50041-016-0 12 1 0212-0302 ● ●
30 BOLT; DRUM COVER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) M10X16 W/LK WASHER 		0-50041-016-0 12 1 0303-0308 ● ●
30 BOLT; DRUM COVER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) M10X16 W/LK WASHER 		0-50041-016-0 12 1 0309-0411 ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0412-0906 ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50541-016-0 12 1 0907-1209 ● ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1210- ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 9601-0004 ● ●
34 NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-48259-253-0 02 1 0005-0411 ● ●
34 NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0212-0302 ● ●
34 NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0303-0308 ● ●
34 NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0309-0411 ●
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0412-0512 ●
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-332-0 02 1 9601-0004 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47137-332-0 02 1 0005-0112 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47137-332-0 02 1 0201-0206 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47137-332-0 02 1 0201-0206 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47137-332-0 02 1 0207-0208 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47137-542-0 02 1 0201-0206 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47137-542-0 02 1 0201-0206 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47137-542-0 02 1 0201-0206 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47137-542-0 02 1 0207-0208 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47137-542-0 02 1 0207-0208 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47137-542-0 02 1 0209-0411 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 9601-0004 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) (A) 		1-47149-056-0 02 1 0005-0411 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 9601-0004 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) (B) 		1-47149-057-0 04 1 0005-0411 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (C) 		1-09625-228-0 02 1 0212-0302 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (C) 		1-09625-228-0 02 1 0303-0308 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (C) 		1-09625-228-0 02 1 0309-0411 ●
48 SEAL; OIL,CM/SHF,RR BRK
(C) 		1-09625-228-0 02 1 0412- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-098-0 01 1 9601-0004 ● ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47141-098-0 01 1 0005-0411 ● ●
50 CAMSHAFT; BRK,RR BRK 1-47141-099-0 01 1 9601-0004 ● ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47141-099-0 01 1 0005-0411 ● ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-47141-053-0 01 1 0212-0302 ● ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47141-053-0 01 1 0303-0308 ● ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47141-053-0 01 1 0309-0411 ●
50 CAMSHAFT; BRK,RR BRK 1-47141-053-0 01 1 0412- ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-47141-054-0 01 1 0212-0302 ● ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47141-054-0 01 1 0303-0308 ● ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47141-054-0 01 1 0309-0411 ●
50 CAMSHAFT; BRK,RR BRK 1-47141-054-0 01 1 0412- ●
52 BOLT; ANCHOR BRKT
M16X50 		1-42119-077-0 32 1 9601-0004 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) M16X50 		1-42119-077-0 32 1 0005-0112 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2> M16X50 		1-42119-077-0 32 1 0201-0206 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M16X50 		1-42119-077-0 32 1 0201-0206 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) M16X50 		1-42119-077-0 16 1 0207-0208 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> M16X50 		1-42119-077-0 16 1 0207-0208 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) M16X50 		1-42119-077-0 16 1 0209-0411 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) M14X50 		1-09040-066-0 02 1 0212-0302 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) M14X50 		1-09040-066-0 02 1 0303-0308 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) M14X50 		1-09040-066-0 02 1 0309-0411 ●
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 0412-1209 ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M16X50 		1-42119-077-0 16 1 0201-0206 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 45/8 18" ROCKWELL(W6B) M16X50 		1-42119-077-0 16 1 0201-0206 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> M16X50 		1-42119-077-0 16 1 0201-0206 ● ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M16X50 		1-42119-077-0 32 1 0207-0208 ● ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-079-0 02 1 9601-0004 ● ●
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-48270-079-0 02 1 0005-0411 ● ●
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48270-045-0 01 1 0212-0302 ● ●
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48270-045-0 01 1 0303-0308 ● ●
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48270-045-0 01 1 0309-0411 ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-045-0 01 1 0412- ●
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48270-046-0 01 1 0212-0302 ● ●
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48270-046-0 01 1 0303-0308 ● ●
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48270-046-0 01 1 0309-0411 ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-046-0 01 1 0412- ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-058-0 02 1 9601-0004 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) (C) 		1-47149-058-0 02 1 0005-0411 ● ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 9601-0004 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) (B) 		1-47149-059-0 02 1 0005-0411 ● ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.03" 		1-47149-060-0 04 1 9601-0004 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) (A) T=0.03" 		1-47149-060-0 04 1 0005-0112 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2> (A) T=0.03" 		1-47149-060-0 04 1 0201-0206 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) T=0.03" 		1-47149-060-0 04 1 0201-0206 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) (A) T=0.03" 		1-47149-060-0 02 1 0207-0208 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> (A) T=0.03" 		1-47149-060-0 02 1 0207-0208 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) (A) T=0.03" 		1-47149-060-0 02 1 0209-0411 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (D) 		1-47143-004-0 02 1 0212-0302 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (D) 		1-47143-004-0 02 1 0303-0308 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (D) 		1-47143-004-0 02 1 0309-0411 ●
65 SPACER; SLACK ADJ,BRK
(D) 		1-47143-004-0 02 1 0412- ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (E) 		9-09180-038-0 01 1 0212-0302 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (E) 		9-09180-038-0 01 1 0303-0308 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (E) 		9-09180-038-0 01 1 0309-0411 ●
65 SPACER; SLACK ADJ,BRK
(E) 		9-09180-038-0 01 1 0412- ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) T=0.03" 		1-47149-060-0 02 1 0201-0206 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 45/8 18" ROCKWELL(W6B) (A) T=0.03" 		1-47149-060-0 02 1 0201-0206 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> (A) T=0.03" 		1-47149-060-0 02 1 0201-0206 ● ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) T=0.03" 		1-47149-060-0 04 1 0207-0208 ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-158-0 01 1 9601-0004 ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-48258-158-0 01 1 0005-0411 ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-159-0 01 1 9601-0004 ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-48258-159-0 01 1 0005-0411 ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48258-083-0 01 1 0212-0302 ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48258-083-0 01 1 0303-0308 ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48258-083-0 01 1 0309-0411 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-083-0 01 1 0412-0906 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-248-0 01 1 0907- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48258-084-0 01 1 0212-0302 ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48258-084-0 01 1 0303-0308 ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48258-084-0 01 1 0309-0411 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-084-0 01 1 0412-0906 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-249-0 01 1 0907- ●
77 BUSHING 1-47146-014-0 04 1 9601-0004 ● ●
77 BUSHING
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47146-014-0 04 1 0005-0411 ● ●
77 BUSHING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-47146-003-1 02 1 0212-0302 ● ●
77 BUSHING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47146-003-1 02 1 0303-0308 ● ●
77 BUSHING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-47146-003-1 02 1 0309-0411 ●
77 BUSHING 1-47146-003-1 02 1 0412- ●
78 BUSHING; BRKT 1-47139-117-0 04 1 9601-0004 ● ●
78 BUSHING; BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47139-117-0 04 1 0005-0411 ● ●
152 NUT; ANCHOR BRKT 1-47139-126-0 32 1 9601-0004 ● ●
152 NUT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47139-126-0 32 1 0005-0112 ● ●
152 NUT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-126-0 32 1 0201-0206 ● ●
152 NUT; ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-126-0 32 1 0201-0206 ● ●
152 NUT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47139-126-0 16 1 0207-0208 ● ●
152 NUT; ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-126-0 16 1 0207-0208 ● ●
152 NUT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47139-126-0 16 1 0209-0411 ● ●
152 NUT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-126-0 16 1 0201-0206 ● ●
152 NUT; ANCHOR BRKT
FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47139-126-0 16 1 0201-0206 ● ●
152 NUT; ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-126-0 16 1 0201-0206 ● ●
152 NUT; ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-126-0 32 1 0207-0208 ● ●
167 WASHER; ADJ CAM 1-47149-061-0 02 1 9601-9608 ● ●
167 WASHER; ADJ CAM 1-47149-064-0 02 1 9610-0004 ● ●
167 WASHER; ADJ CAM
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47149-064-0 02 1 0005-0112 ● ●
167 WASHER; ADJ CAM
FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47149-064-0 02 1 0201-0206 ● ●
167 WASHER; ADJ CAM
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47149-064-0 02 1 0201-0206 ● ●
167 WASHER; ADJ CAM
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47149-064-0 02 1 0207-0208 ● ●
167 WASHER; ADJ CAM
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47149-077-0 02 1 0201-0206 ● ●
167 WASHER; ADJ CAM
FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47149-077-0 02 1 0201-0206 ● ●
167 WASHER; ADJ CAM
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47149-077-0 02 1 0201-0206 ● ●
167 WASHER; ADJ CAM
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47149-077-0 02 1 0207-0208 ● ●
167 WASHER; ADJ CAM
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47149-077-0 02 1 0207-0208 ● ●
167 WASHER; ADJ CAM
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47149-077-0 02 1 0209-0411 ● ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 9601-0004 ● ●
195 RING; SNAP,CM/SHF
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-87050-005-0 02 1 0005-0411 ● ●
195 RING; SNAP,CM/SHF
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		9-09180-038-0 01 1 0212-0302 ● ●
195 RING; SNAP,CM/SHF
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		9-09180-038-0 01 1 0303-0308 ● ●
195 RING; SNAP,CM/SHF
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		9-09180-038-0 01 1 0309-0411 ●
195 RING; SNAP,CM/SHF 9-09180-038-0 01 1 0412- ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-116-0 08 1 9601-0004 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47139-116-0 08 1 0005-0112 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-116-0 08 1 0201-0206 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-116-0 08 1 0201-0206 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-116-0 08 1 0207-0208 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) M14X35 		0-28081-435-0 08 1 0212-0302 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) M14X35 		0-28081-435-0 08 1 0303-0308 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) M14X35 		0-28081-435-0 08 1 0309-0411 ●
201 BOLT; BRKT,POWER CHAMBER
M14X35 		0-28081-435-0 08 1 0412-1209 ●
201 BOLT; BRKT,POWER CHAMBER
M14X35 		0-20851-435-0 08 1 1210- ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-119-0 04 1 0201-0206 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47139-119-0 04 1 0201-0206 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-119-0 04 1 0201-0206 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47139-119-0 04 1 0207-0208 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-119-0 04 1 0207-0208 ● ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47139-119-0 04 1 0209-0411 ● ●
212 STAY
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-48259-287-0 02 1 0201-0206 ● ●
212 STAY
FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-48259-287-0 02 1 0201-0206 ● ●
212 STAY
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-48259-287-0 02 1 0201-0206 ● ●
212 STAY
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-48259-287-0 02 1 0207-0208 ● ●
212 STAY
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-48259-287-0 02 1 0207-0208 ● ●
212 STAY
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-48259-287-0 02 1 0209-0411 ● ●
217 LINING KIT; RR BRK 1-87050-154-0 01 1 9601-0004 ● ●
217 LINING KIT; RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-87050-154-0 01 1 0005-0112 ● ●
217 LINING KIT; RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-87050-154-0 01 1 0201-0206 ● ●
217 LINING KIT; RR BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-87050-154-0 01 1 0201-0206 ● ●
217 LINING KIT; RR BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-87050-154-0 01 1 0207-0208 ● ●
217 LINING KIT; RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-87050-157-0 01 1 0201-0206 ● ●
217 LINING KIT; RR BRK
FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-87050-157-0 01 1 0201-0206 ● ●
217 LINING KIT; RR BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-87050-157-0 01 1 0201-0206 ● ●
217 LINING KIT; RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-87050-157-0 01 1 0207-0208 ● ●
217 LINING KIT; RR BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-87050-157-0 01 1 0207-0208 ● ●
217 LINING KIT; RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-87050-157-0 01 1 0209-0411 ● ●
263 WASHER; PL,ANCHOR BRKT 1-47139-125-0 64 1 9601-0004 ● ●
263 WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47139-125-0 64 1 0005-0112 ● ●
263 WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-125-0 64 1 0201-0206 ● ●
263 WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-125-0 64 1 0201-0206 ● ●
263 WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47139-125-0 16 1 0207-0208 ● ●
263 WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-125-0 16 1 0207-0208 ● ●
263 WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47139-125-0 16 1 0209-0411 ● ●
263 WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-125-0 16 1 0201-0206 ● ●
263 WASHER; PL,ANCHOR BRKT
FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47139-125-0 16 1 0201-0206 ● ●
263 WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-125-0 16 1 0201-0206 ● ●
263 WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-125-0 64 1 0207-0208 ● ●
277 SUPPORT; BRKT 1-48259-287-0 02 1 9601-0004 ● ●
277 SUPPORT; BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-48259-287-0 02 1 0005-0112 ● ●
277 SUPPORT; BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-48259-287-0 02 1 0201-0206 ● ●
277 SUPPORT; BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-48259-287-0 02 1 0201-0206 ● ●
277 SUPPORT; BRKT
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-48259-287-0 02 1 0207-0208 ● ●
278 BOLT; SUPPORT
M16X50 		1-42119-077-0 02 1 9601-0004 ● ●
278 BOLT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) M16X50 		1-42119-077-0 02 1 0005-0112 ● ●
278 BOLT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2> M16X50 		1-42119-077-0 02 1 0201-0206 ● ●
278 BOLT; SUPPORT
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M16X50 		1-42119-077-0 02 1 0201-0206 ● ●
278 BOLT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) M16X50 		1-42119-077-0 04 1 0207-0208 ● ●
278 BOLT; SUPPORT
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> M16X50 		1-42119-077-0 04 1 0207-0208 ● ●
278 BOLT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) M16X50 		1-42119-077-0 04 1 0209-0411 ● ●
278 BOLT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M16X50 		1-42119-077-0 04 1 0201-0206 ● ●
278 BOLT; SUPPORT
FINAL GEAR 45/8 18" ROCKWELL(W6B) M16X50 		1-42119-077-0 04 1 0201-0206 ● ●
278 BOLT; SUPPORT
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> M16X50 		1-42119-077-0 04 1 0201-0206 ● ●
278 BOLT; SUPPORT
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M16X50 		1-42119-077-0 02 1 0207-0208 ● ●
279 WASHER; SUPPORT 1-47139-125-0 04 1 9601-0004 ● ●
279 WASHER; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47139-125-0 04 1 0005-0411 ● ●
280 NUT; SUPPORT 1-47139-126-0 02 1 9601-0004 ● ●
280 NUT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47139-126-0 02 1 0005-0112 ● ●
280 NUT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-126-0 02 1 0201-0206 ● ●
280 NUT; SUPPORT
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-126-0 02 1 0201-0206 ● ●
280 NUT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47139-126-0 04 1 0207-0208 ● ●
280 NUT; SUPPORT
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-126-0 04 1 0207-0208 ● ●
280 NUT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47139-126-0 04 1 0209-0411 ● ●
280 NUT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-126-0 04 1 0201-0206 ● ●
280 NUT; SUPPORT
FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-47139-126-0 04 1 0201-0206 ● ●
280 NUT; SUPPORT
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-126-0 04 1 0201-0206 ● ●
280 NUT; SUPPORT
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47139-126-0 02 1 0207-0208 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
