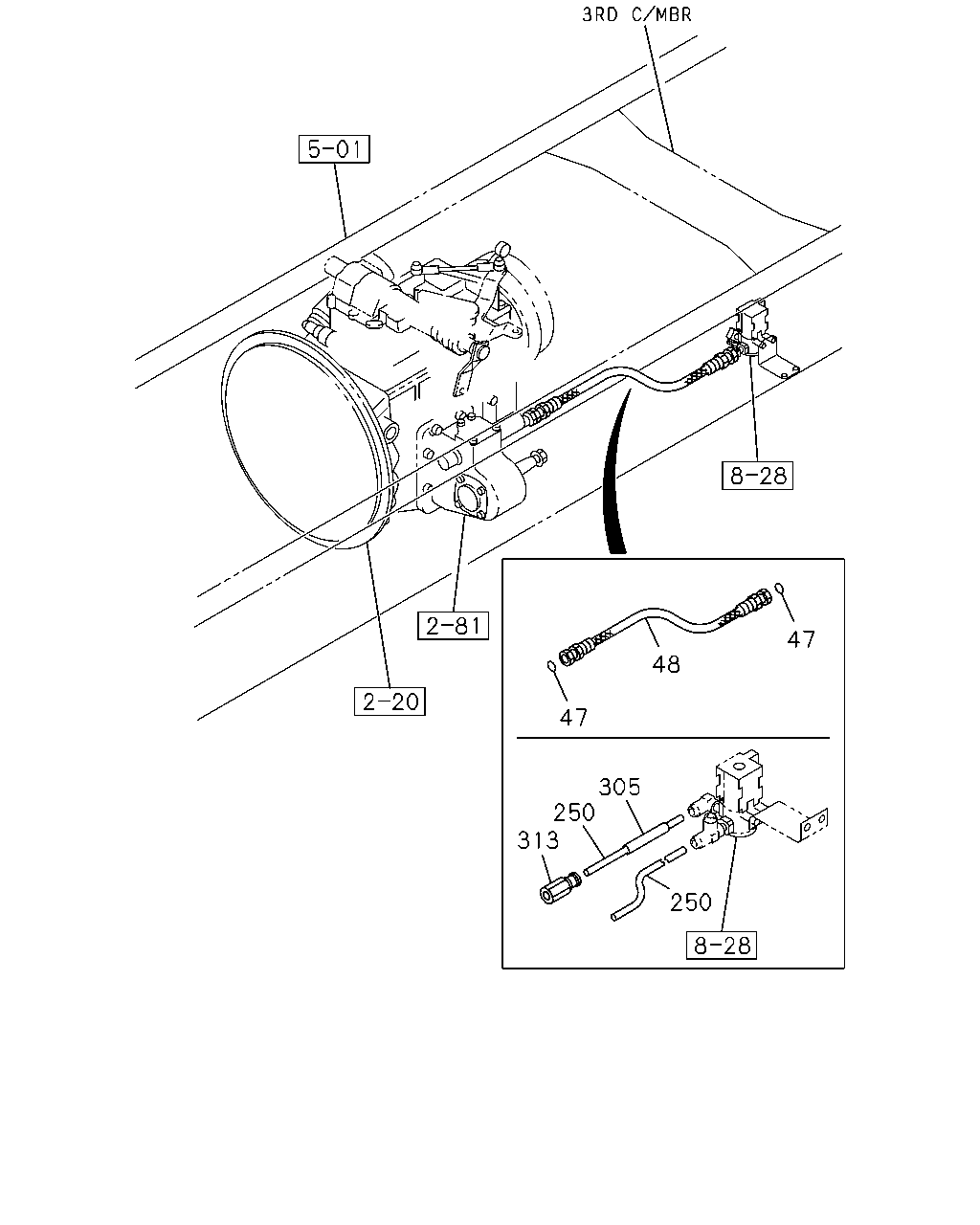

2-85 — POWER TAKE OFF CONTROL (#22830) — 49 parça

47 48 47 305 250 313 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	GASKET; FLEX HOSE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=11 OD=18	9-09572-510-0	02	1	9601-9903	●	●
47	GASKET; FLEX HOSE MAL6S M/T(Y1V) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=11 OD=18	9-09572-510-0	02	1	9904-0204	●	●
48	HOSE; FLEX,PTO MAL6S M/T(Y1V) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=650	0-07150-650-0	01	1	9605-0112	●	●
48	HOSE; FLEX,PTO MAL6S M/T(Y1V) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=550	0-07150-550-0	01	1	0201-0204	●	●
48	HOSE; FLEX,PTO MAL6S M/T(Y1V) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=580	1-09363-613-1	01	1	0205-0308	●	●
48	HOSE; FLEX,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=500	0-07150-500-0	01	1	9601-9604	●	●
48	HOSE; FLEX,PTO 6HH1 STD ENG(65L) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=500	0-07150-500-0	01	1	9605-9706	●	●
48	HOSE; FLEX,PTO 6HH1 STD ENG(65L) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=430	0-07150-430-0	01	1	9707-9803	●	●
250	TUBE; NYLON 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	9601-9803	●	●
250	TUBE; NYLON 6HH1 STD ENG(65L) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	9601-9803	●	●
250	TUBE; NYLON 6SD1 STD ENG(37L) PTO CONTROL<SV6> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	9804-9805	●	●
250	TUBE; NYLON 6HH1 STD ENG(65L) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-0308	●	●
250	TUBE; NYLON 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-0308	●	●
250	TUBE; NYLON 6HH1 STD ENG(65L) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-0308	●	●
250	TUBE; NYLON 6HH1 STD ENG(65L) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0309-		●
250	TUBE; NYLON 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0309-		●
250	TUBE; NYLON 6HH1 STD ENG(65L) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0309-		●
250	TUBE; NYLON 6HH1 STD ENG(65L) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9601-0308	●	●
250	TUBE; NYLON 6HH1 STD ENG(65L) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0309-		●
250	TUBE; NYLON 6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9601-9803	●	●
250	TUBE; NYLON 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9804-0004	●	●
250	TUBE; NYLON 6HH1 STD ENG(65L) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9804-0004	●	●
250	TUBE; NYLON 6HH1 STD ENG(65L) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9804-0004	●	●
250	TUBE; NYLON 6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0212	●	●
250	TUBE; NYLON 6HH1 STD ENG(65L) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0212	●	●
250	TUBE; NYLON 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0212	●	●
250	TUBE; NYLON 6HH1 STD ENG(65L) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0212	●	●
250	TUBE; NYLON 6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0301-0308	●	●
250	TUBE; NYLON 6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0309-		●
250	TUBE; NYLON 6SD1 STD ENG(37L) PTO CONTROL<SV6> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	9601-9709	●	●
305	TUBE; CORRUGATE PTO CONTROL<SV6> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9601-9709	●	●
305	TUBE; CORRUGATE 6HH1 STD ENG(65L) PTO CONTROL<SV6> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9710-0308	●	●
305	TUBE; CORRUGATE 6HH1 STD ENG(65L) PTO CONTROL<SV6> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0309-		●
313	ADAPTER 6HH1 STD ENG(65L) PTO CONTROL<SV6> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9804-0004	●	●
313	ADAPTER 6HH1 STD ENG(65L) PTO CONTROL<SV6> DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	0005-0005	●	●
313	ADAPTER 6HH1 STD ENG(65L) PTO CONTROL<SV6> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-0308	●	●
313	ADAPTER 6HH1 STD ENG(65L) PTO CONTROL<SV6> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0309-		●

3 3 1 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER ASM; PTO & DUMP CONT DUMP CONTROL LEVER<RC4>	1-79996-092-0	01	1	9601-9705	●
1	LEVER ASM; PTO & DUMP CONT DUMP CONTROL LEVER<RC4>	1-79996-092-0	01	1	9706-9803	●	●
1	LEVER ASM; PTO & DUMP CONT DUMP CONTROL LEVER<RC4>	1-79996-092-0	01	1	9804-9804	●
1	LEVER ASM; PTO & DUMP CONT DUMP CONTROL LEVER<RC4>	1-79996-092-0	01	1	9805-0308	●	●
1	LEVER ASM; PTO & DUMP CONT DUMP CONTROL LEVER<RC4>	1-79996-092-0	01	1	0309-		●
3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9601-9705	●
3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9706-9803	●	●
3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9804-9804	●
3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9805-0308	●	●
3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0309-		●
55	GROMMET; CABLE	1-09983-068-0	01	1	9601-0308	●	●
55	GROMMET; CABLE	1-09983-068-0	01	1	0309-		●
