Sayfa 0-14B - Isuzu EPC

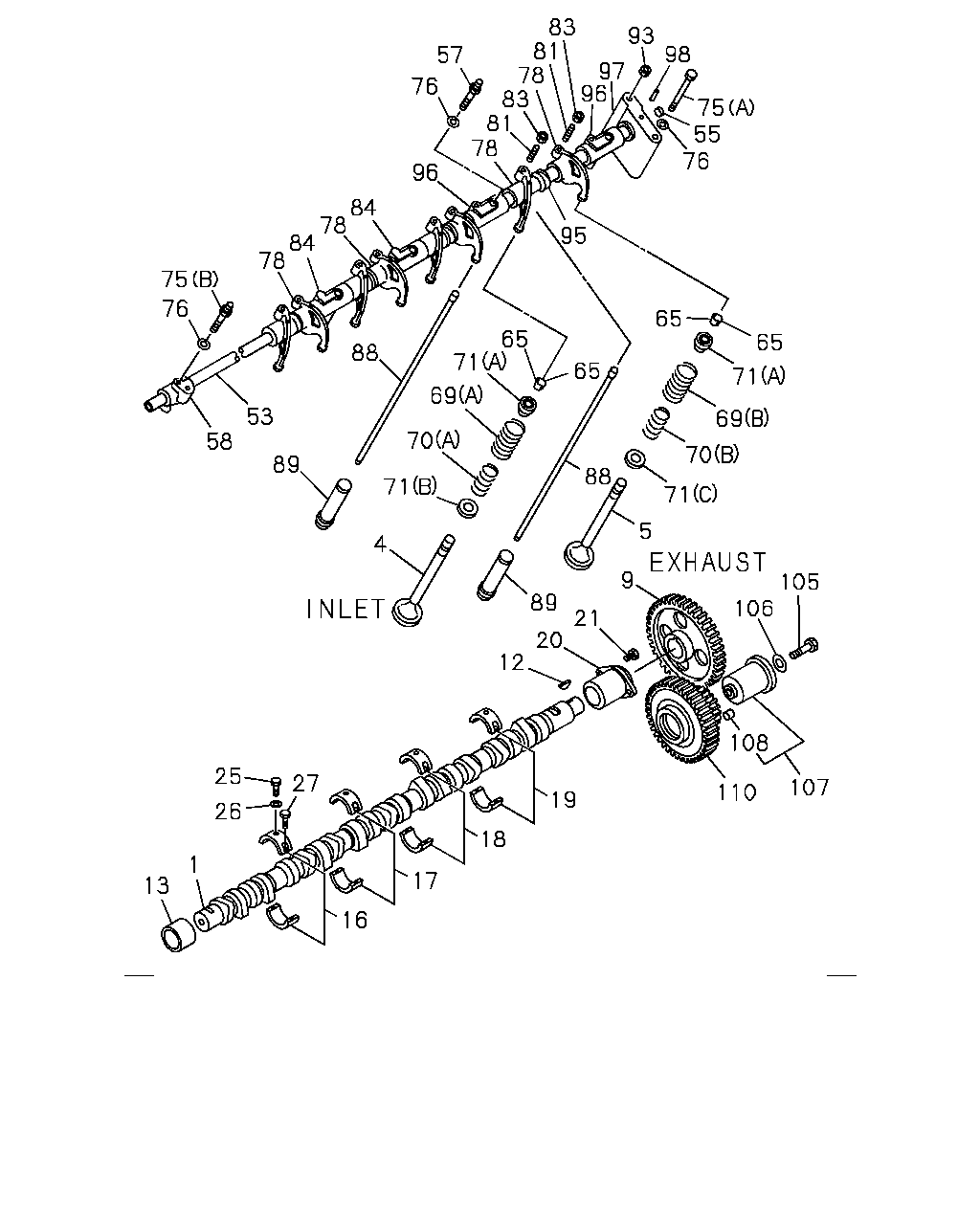

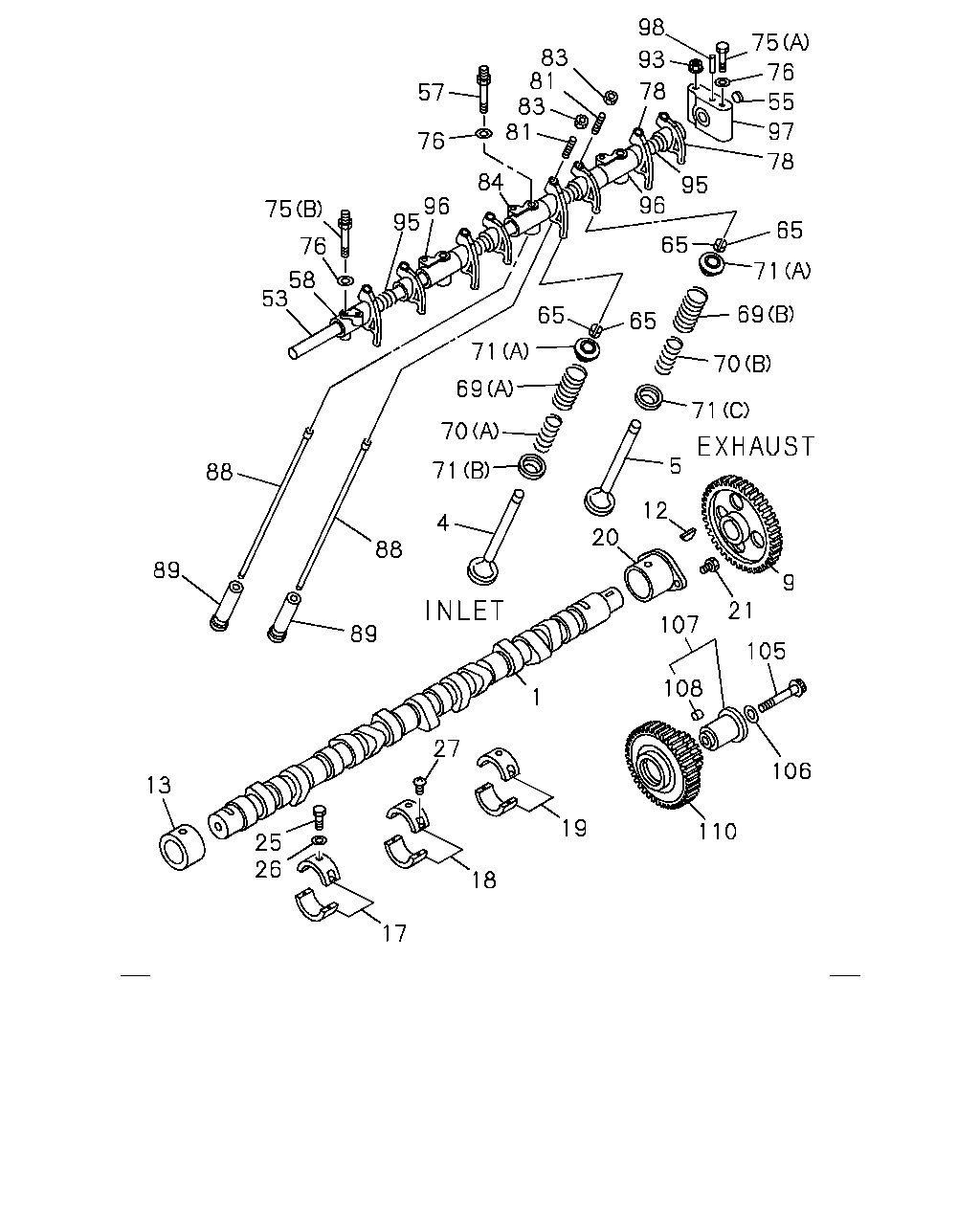

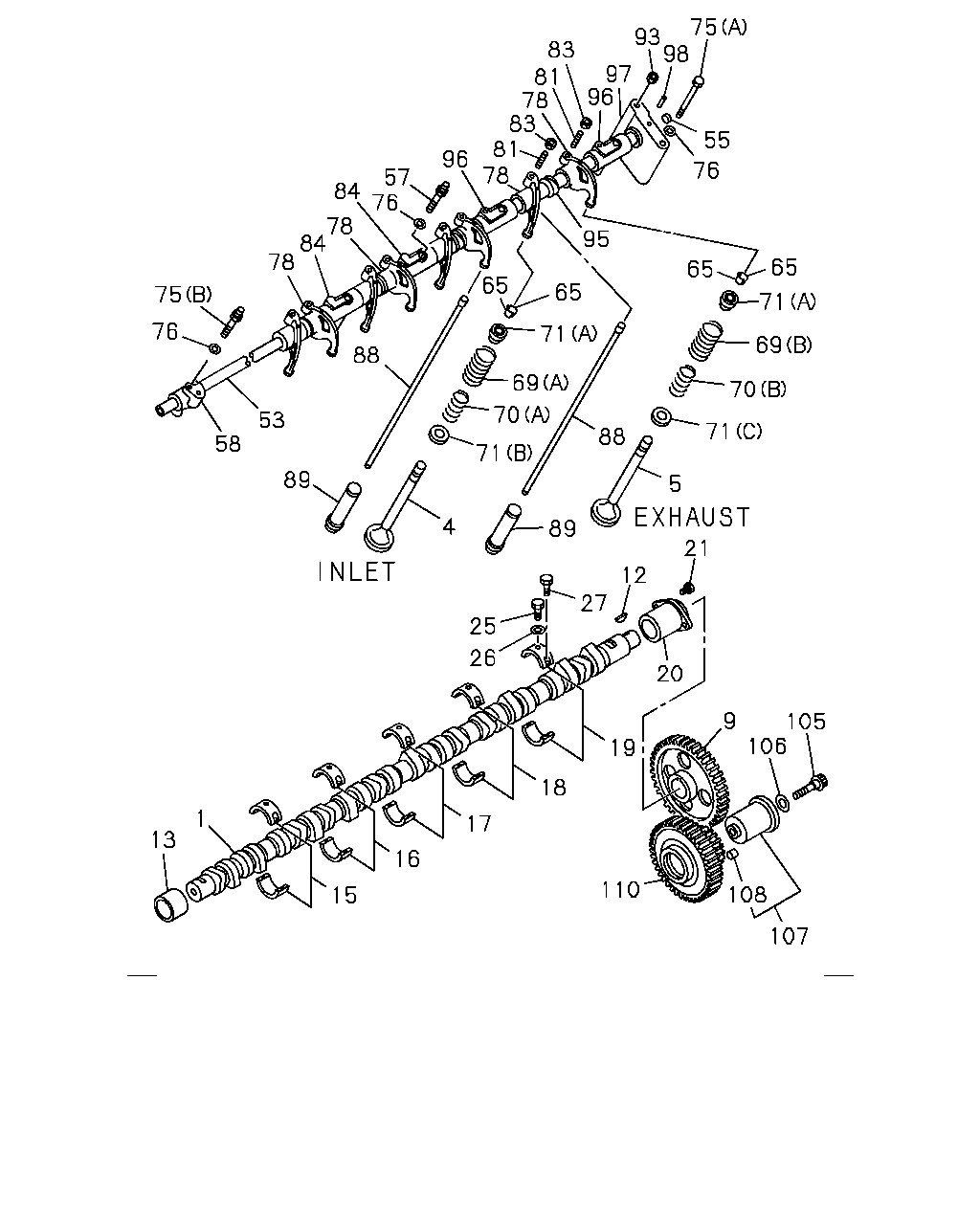

0-14B — CAMSHAFT AND VALVE (#2283) — 324 parça

75 93 98 97 83 81 78 83 81 78 96 57 76 84 78 84 78 75 76 58 89 53 88 65 65 95 76 55 65 65 71 69 70 71 5 88 71 69 70 71 4 89 12 21 27 25 26 20 9 106 105 105 19 96 107 108 110 18 17 16 15 1 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CAMSHAFT	1-12511-190-2	01	1	9002-9306	●
1	CAMSHAFT	1-12511-191-2	01	1	9307-		●
1	CAMSHAFT	1-12511-189-3	01	1	9002-			●
4	VALVE; INL	1-12551-127-0	12	1	9002-9306	●
4	VALVE; INL	1-12551-136-1	08	1	9307-		●
4	VALVE; INL	1-12551-127-0	10	1	9002-9405			●
4	VALVE; INL	1-12551-136-1	10	1	9406-			●
5	VALVE; EXH	1-12552-064-0	12	1	9002-9306	●
5	VALVE; EXH	1-12552-064-0	10	1	9002-9408			●
5	VALVE; EXH	1-12552-092-0	10	1	9409-9601			●
5	VALVE; EXH	1-12552-097-0	10	1	9602-			●
5	VALVE; EXH	1-12552-064-0	08	1	9307-9408		●
5	VALVE; EXH	1-12552-092-0	08	1	9409-9601		●
5	VALVE; EXH	1-12552-097-0	08	1	9602-		●
9	GEAR; CM/SHF	1-12522-019-1	01	1	9002-	●	●	●
12	KEY; CAM GEAR SET	9-08055-516-0	01	1	9002-	●	●	●
13	METAL; CM/SHF,NO 1	1-11611-003-2	01	1	9002-	●	●	●
15	METAL; CM/SHF,NO 2	1-11616-006-0	01	1	9002-9306	●
16	METAL; CM/SHF,NO 3	1-11617-007-1	01	1	9002-	●		●
17	METAL; CM/SHF,NO 4	1-11618-006-1	01	1	9002-	●	●	●
18	METAL; CM/SHF,NO 5	1-11619-015-1	01	1	9002-	●	●	●
19	METAL; CM/SHF,NO 6	1-11619-018-1	01	1	9002-	●	●	●
20	METAL; CM/SHF,NO 7	1-11619-059-1	01	1	9002-	●	●	●
21	BOLT; CM/SHF METAL,NO 7 M10X22 FLANGE	0-28181-022-0	02	1	9002-	●	●	●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	06	1	9002-9306	●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	05	1	9002-			●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	04	1	9307-		●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	06	1	9002-9306	●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	05	1	9002-			●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	04	1	9307-		●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	10	1	9002-9306	●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	08	1	9002-			●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	06	1	9307-		●
53	SHAFT; ROCKER ARM	1-12621-012-0	02	1	9002-9306	●
53	SHAFT; ROCKER ARM	1-12621-005-2	02	1	9307-		●
53	SHAFT; ROCKER ARM	1-12621-011-0	02	1	9002-			●
55	PLUG; ROCKER SHAFT END OD=16	9-11129-081-0	04	1	9002-	●	●	●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-1	10	1	9002-9306	●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-1	08	1	9002-			●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-1	06	1	9307-		●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-048-0	02	1	9002-	●	●	●
65	COLLAR; SPLIT	1-12565-007-0	48	1	9002-9306	●
65	COLLAR; SPLIT	1-12565-007-0	40	1	9002-			●
65	COLLAR; SPLIT	1-12565-007-0	32	1	9307-		●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-074-0	12	1	9002-9306	●
69	SPRING; VLV,OUTER (A) INLET	1-12561-075-0	12	1	9002-9306	●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-074-0	10	1	9002-			●
69	SPRING; VLV,OUTER (A) INLET	1-12561-075-0	10	1	9002-			●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-074-0	08	1	9307-		●
69	SPRING; VLV,OUTER (A) INLET	1-12561-075-0	08	1	9307-		●
70	SPRING; VLV,INNER (B) EXHAUST	1-12562-046-0	12	1	9002-9306	●
70	SPRING; VLV,INNER (A) INLET	1-12562-047-0	12	1	9002-9306	●
70	SPRING; VLV,INNER (B) EXHAUST	1-12562-046-0	10	1	9002-			●
70	SPRING; VLV,INNER (A) INLET	1-12562-047-0	10	1	9002-			●
70	SPRING; VLV,INNER (B) EXHAUST	1-12562-046-0	08	1	9307-		●
70	SPRING; VLV,INNER (A) INLET	1-12562-047-0	08	1	9307-		●
71	SEAT; SPR (B) INLET	1-12563-027-0	12	1	9002-9306	●
71	SEAT; SPR (C) EXHAUST	1-12563-034-1	12	1	9002-9306	●
71	SEAT; SPR (A)	1-12563-049-0	24	1	9002-9306	●
71	SEAT; SPR (B) INLET	1-12563-027-0	10	1	9002-			●
71	SEAT; SPR (C) EXHAUST	1-12563-034-1	10	1	9002-			●
71	SEAT; SPR (A)	1-12563-049-0	20	1	9002-			●
71	SEAT; SPR (B) INLET	1-12563-027-0	08	1	9307-		●
71	SEAT; SPR (C) EXHAUST	1-12563-034-1	08	1	9307-		●
71	SEAT; SPR (A)	1-12563-049-0	16	1	9307-		●
75	BOLT; BRKT (B) M8X13,M10X70 L=90	1-09029-024-1	02	1	9002-	●	●	●
75	BOLT; BRKT (A) M10X70	9-01661-070-0	02	1	9002-	●	●	●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	14	1	9002-9306	●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	12	1	9002-			●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	10	1	9307-		●
78	ARM; ROCKER INLET	1-12611-184-0	12	1	9002-9306	●
78	ARM; ROCKER EXHAUST	1-12611-186-0	12	1	9002-9306	●
78	ARM; ROCKER INLET	1-12611-184-0	10	1	9002-9401			●
78	ARM; ROCKER INLET	1-12611-266-0	10	1	9402-			●
78	ARM; ROCKER EXHAUST	1-12611-186-0	10	1	9002-9401			●
78	ARM; ROCKER EXHAUST	1-12611-267-0	10	1	9402-			●
78	ARM; ROCKER INLET	1-12611-184-0	08	1	9307-9401		●
78	ARM; ROCKER INLET	1-12611-266-0	08	1	9402-		●
78	ARM; ROCKER EXHAUST	1-12611-186-0	08	1	9307-9401		●
78	ARM; ROCKER EXHAUST	1-12611-267-0	08	1	9402-		●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	24	1	9002-9306	●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	20	1	9002-			●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	16	1	9307-		●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	24	1	9002-9306	●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	20	1	9002-			●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	16	1	9307-		●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-012-1	04	1	9002-	●		●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-012-1	02	1	9307-		●
88	ROD; PUSH	1-12575-048-1	24	1	9002-9306	●
88	ROD; PUSH	1-12575-048-1	20	1	9002-			●
88	ROD; PUSH	1-12575-048-1	16	1	9307-		●
89	TAPPET; VLV	1-12571-221-0	24	1	9002-9306	●
89	TAPPET; VLV	1-12571-221-0	20	1	9002-9505			●
89	TAPPET; VLV	1-12571-228-4	20	1	9506-			●
89	TAPPET; VLV	1-12571-221-0	16	1	9307-9505		●
89	TAPPET; VLV	1-12571-228-4	16	1	9506-		●
93	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9002-	●	●	●
95	SPRING; ROCKER SHAFT	9-09941-218-0	12	1	9002-9306	●
95	SPRING; ROCKER SHAFT	9-09941-218-0	10	1	9002-			●
95	SPRING; ROCKER SHAFT	9-09941-218-0	08	1	9307-		●
96	BRACKET; ROCKER ARM SHAFT	1-12628-011-1	06	1	9002-9306	●
96	BRACKET; ROCKER ARM SHAFT	1-12628-011-1	04	1	9002-		●	●
97	BRACKET; ROCKER SHAFT,RR	1-12628-006-2	02	1	9002-	●	●	●
98	PIN; SHAFT SET	9-08160-430-0	02	1	9002-	●	●	●
105	BOLT; IDLE GEAR SHAFT M16X94 FLANGE	1-09070-031-0	01	1	9002-	●	●	●
106	WASHER; IDLE GEAR SHAFT ID=16.2	1-09503-022-1	01	1	9002-	●	●	●
107	SHAFT; IDLE GEAR	1-12531-015-1	01	1	9002-	●	●	●
108	DOWEL; SHAFT	9-12539-079-0	01	1	9002-	●	●	●
110	GEAR ASM; IDLE	1-12523-123-0	01	1	9002-	●	●	●

17 18 19 110 106 108 105 107 21 9 20 12 5 71 4 88 89 89 1 27 25 26 13 88 70 69 71 65 65 71 70 69 71 65 65 96 95 78 97 55 76 75 98 93 78 83 81 83 81 84 96 95 76 57 75 76 58 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CAMSHAFT	1-12511-190-2	01	1	9002-9306	●
1	CAMSHAFT	1-12511-191-2	01	1	9307-		●
1	CAMSHAFT	1-12511-189-3	01	1	9002-			●
4	VALVE; INL	1-12551-127-0	12	1	9002-9306	●
4	VALVE; INL	1-12551-136-1	08	1	9307-		●
4	VALVE; INL	1-12551-127-0	10	1	9002-9405			●
4	VALVE; INL	1-12551-136-1	10	1	9406-			●
5	VALVE; EXH	1-12552-064-0	12	1	9002-9306	●
5	VALVE; EXH	1-12552-064-0	10	1	9002-9408			●
5	VALVE; EXH	1-12552-092-0	10	1	9409-9601			●
5	VALVE; EXH	1-12552-097-0	10	1	9602-			●
5	VALVE; EXH	1-12552-064-0	08	1	9307-9408		●
5	VALVE; EXH	1-12552-092-0	08	1	9409-9601		●
5	VALVE; EXH	1-12552-097-0	08	1	9602-		●
9	GEAR; CM/SHF	1-12522-019-1	01	1	9002-	●	●	●
12	KEY; CAM GEAR SET	9-08055-516-0	01	1	9002-	●	●	●
13	METAL; CM/SHF,NO 1	1-11611-003-2	01	1	9002-	●	●	●
17	METAL; CM/SHF,NO 4	1-11618-006-1	01	1	9002-	●	●	●
18	METAL; CM/SHF,NO 5	1-11619-015-1	01	1	9002-	●	●	●
19	METAL; CM/SHF,NO 6	1-11619-018-1	01	1	9002-	●	●	●
20	METAL; CM/SHF,NO 7	1-11619-059-1	01	1	9002-	●	●	●
21	BOLT; CM/SHF METAL,NO 7 M10X22 FLANGE	0-28181-022-0	02	1	9002-	●	●	●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	06	1	9002-9306	●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	05	1	9002-			●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	04	1	9307-		●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	06	1	9002-9306	●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	05	1	9002-			●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	04	1	9307-		●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	10	1	9002-9306	●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	08	1	9002-			●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	06	1	9307-		●
53	SHAFT; ROCKER ARM	1-12621-012-0	02	1	9002-9306	●
53	SHAFT; ROCKER ARM	1-12621-005-2	02	1	9307-		●
53	SHAFT; ROCKER ARM	1-12621-011-0	02	1	9002-			●
55	PLUG; ROCKER SHAFT END OD=16	9-11129-081-0	04	1	9002-	●	●	●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-1	10	1	9002-9306	●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-1	08	1	9002-			●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-1	06	1	9307-		●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-048-0	02	1	9002-	●	●	●
65	COLLAR; SPLIT	1-12565-007-0	48	1	9002-9306	●
65	COLLAR; SPLIT	1-12565-007-0	40	1	9002-			●
65	COLLAR; SPLIT	1-12565-007-0	32	1	9307-		●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-074-0	12	1	9002-9306	●
69	SPRING; VLV,OUTER (A) INLET	1-12561-075-0	12	1	9002-9306	●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-074-0	10	1	9002-			●
69	SPRING; VLV,OUTER (A) INLET	1-12561-075-0	10	1	9002-			●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-074-0	08	1	9307-		●
69	SPRING; VLV,OUTER (A) INLET	1-12561-075-0	08	1	9307-		●
70	SPRING; VLV,INNER (B) EXHAUST	1-12562-046-0	12	1	9002-9306	●
70	SPRING; VLV,INNER (A) INLET	1-12562-047-0	12	1	9002-9306	●
70	SPRING; VLV,INNER (B) EXHAUST	1-12562-046-0	10	1	9002-			●
70	SPRING; VLV,INNER (A) INLET	1-12562-047-0	10	1	9002-			●
70	SPRING; VLV,INNER (B) EXHAUST	1-12562-046-0	08	1	9307-		●
70	SPRING; VLV,INNER (A) INLET	1-12562-047-0	08	1	9307-		●
71	SEAT; SPR (B) INLET	1-12563-027-0	12	1	9002-9306	●
71	SEAT; SPR (C) EXHAUST	1-12563-034-1	12	1	9002-9306	●
71	SEAT; SPR (A)	1-12563-049-0	24	1	9002-9306	●
71	SEAT; SPR (B) INLET	1-12563-027-0	10	1	9002-			●
71	SEAT; SPR (C) EXHAUST	1-12563-034-1	10	1	9002-			●
71	SEAT; SPR (A)	1-12563-049-0	20	1	9002-			●
71	SEAT; SPR (B) INLET	1-12563-027-0	08	1	9307-		●
71	SEAT; SPR (C) EXHAUST	1-12563-034-1	08	1	9307-		●
71	SEAT; SPR (A)	1-12563-049-0	16	1	9307-		●
75	BOLT; BRKT (B) M8X13,M10X70 L=90	1-09029-024-1	02	1	9002-	●	●	●
75	BOLT; BRKT (A) M10X70	9-01661-070-0	02	1	9002-	●	●	●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	14	1	9002-9306	●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	12	1	9002-			●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	10	1	9307-		●
78	ARM; ROCKER INLET	1-12611-184-0	12	1	9002-9306	●
78	ARM; ROCKER EXHAUST	1-12611-186-0	12	1	9002-9306	●
78	ARM; ROCKER INLET	1-12611-184-0	10	1	9002-9401			●
78	ARM; ROCKER INLET	1-12611-266-0	10	1	9402-			●
78	ARM; ROCKER EXHAUST	1-12611-186-0	10	1	9002-9401			●
78	ARM; ROCKER EXHAUST	1-12611-267-0	10	1	9402-			●
78	ARM; ROCKER INLET	1-12611-184-0	08	1	9307-9401		●
78	ARM; ROCKER INLET	1-12611-266-0	08	1	9402-		●
78	ARM; ROCKER EXHAUST	1-12611-186-0	08	1	9307-9401		●
78	ARM; ROCKER EXHAUST	1-12611-267-0	08	1	9402-		●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	24	1	9002-9306	●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	20	1	9002-			●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	16	1	9307-		●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	24	1	9002-9306	●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	20	1	9002-			●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	16	1	9307-		●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-012-1	04	1	9002-	●		●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-012-1	02	1	9307-		●
88	ROD; PUSH	1-12575-048-1	24	1	9002-9306	●
88	ROD; PUSH	1-12575-048-1	20	1	9002-			●
88	ROD; PUSH	1-12575-048-1	16	1	9307-		●
89	TAPPET; VLV	1-12571-221-0	24	1	9002-9306	●
89	TAPPET; VLV	1-12571-221-0	20	1	9002-9505			●
89	TAPPET; VLV	1-12571-228-4	20	1	9506-			●
89	TAPPET; VLV	1-12571-221-0	16	1	9307-9505		●
89	TAPPET; VLV	1-12571-228-4	16	1	9506-		●
93	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9002-	●	●	●
95	SPRING; ROCKER SHAFT	9-09941-218-0	12	1	9002-9306	●
95	SPRING; ROCKER SHAFT	9-09941-218-0	10	1	9002-			●
95	SPRING; ROCKER SHAFT	9-09941-218-0	08	1	9307-		●
96	BRACKET; ROCKER ARM SHAFT	1-12628-011-1	06	1	9002-9306	●
96	BRACKET; ROCKER ARM SHAFT	1-12628-011-1	04	1	9002-		●	●
97	BRACKET; ROCKER SHAFT,RR	1-12628-006-2	02	1	9002-	●	●	●
98	PIN; SHAFT SET	9-08160-430-0	02	1	9002-	●	●	●
105	BOLT; IDLE GEAR SHAFT M16X94 FLANGE	1-09070-031-0	01	1	9002-	●	●	●
106	WASHER; IDLE GEAR SHAFT ID=16.2	1-09503-022-1	01	1	9002-	●	●	●
107	SHAFT; IDLE GEAR	1-12531-015-1	01	1	9002-	●	●	●
108	DOWEL; SHAFT	9-12539-079-0	01	1	9002-	●	●	●
110	GEAR ASM; IDLE	1-12523-123-0	01	1	9002-	●	●	●

13 1 26 25 27 16 17 18 19 110 107 108 12 20 21 89 9 106 105 5 71 70 88 71 4 89 69 71 65 65 65 65 71 69 70 88 53 58 76 75 78 84 78 84 96 78 76 57 81 83 78 81 83 96 97 93 98 75 55 76 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CAMSHAFT	1-12511-190-2	01	1	9002-9306	●
1	CAMSHAFT	1-12511-191-2	01	1	9307-		●
1	CAMSHAFT	1-12511-189-3	01	1	9002-			●
4	VALVE; INL	1-12551-127-0	12	1	9002-9306	●
4	VALVE; INL	1-12551-136-1	08	1	9307-		●
4	VALVE; INL	1-12551-127-0	10	1	9002-9405			●
4	VALVE; INL	1-12551-136-1	10	1	9406-			●
5	VALVE; EXH	1-12552-064-0	12	1	9002-9306	●
5	VALVE; EXH	1-12552-064-0	10	1	9002-9408			●
5	VALVE; EXH	1-12552-092-0	10	1	9409-9601			●
5	VALVE; EXH	1-12552-097-0	10	1	9602-			●
5	VALVE; EXH	1-12552-064-0	08	1	9307-9408		●
5	VALVE; EXH	1-12552-092-0	08	1	9409-9601		●
5	VALVE; EXH	1-12552-097-0	08	1	9602-		●
9	GEAR; CM/SHF	1-12522-019-1	01	1	9002-	●	●	●
12	KEY; CAM GEAR SET	9-08055-516-0	01	1	9002-	●	●	●
13	METAL; CM/SHF,NO 1	1-11611-003-2	01	1	9002-	●	●	●
16	METAL; CM/SHF,NO 3	1-11617-007-1	01	1	9002-	●		●
17	METAL; CM/SHF,NO 4	1-11618-006-1	01	1	9002-	●	●	●
18	METAL; CM/SHF,NO 5	1-11619-015-1	01	1	9002-	●	●	●
19	METAL; CM/SHF,NO 6	1-11619-018-1	01	1	9002-	●	●	●
20	METAL; CM/SHF,NO 7	1-11619-059-1	01	1	9002-	●	●	●
21	BOLT; CM/SHF METAL,NO 7 M10X22 FLANGE	0-28181-022-0	02	1	9002-	●	●	●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	06	1	9002-9306	●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	05	1	9002-			●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	04	1	9307-		●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	06	1	9002-9306	●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	05	1	9002-			●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	04	1	9307-		●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	10	1	9002-9306	●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	08	1	9002-			●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	06	1	9307-		●
53	SHAFT; ROCKER ARM	1-12621-012-0	02	1	9002-9306	●
53	SHAFT; ROCKER ARM	1-12621-005-2	02	1	9307-		●
53	SHAFT; ROCKER ARM	1-12621-011-0	02	1	9002-			●
55	PLUG; ROCKER SHAFT END OD=16	9-11129-081-0	04	1	9002-	●	●	●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-1	10	1	9002-9306	●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-1	08	1	9002-			●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-1	06	1	9307-		●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-048-0	02	1	9002-	●	●	●
65	COLLAR; SPLIT	1-12565-007-0	48	1	9002-9306	●
65	COLLAR; SPLIT	1-12565-007-0	40	1	9002-			●
65	COLLAR; SPLIT	1-12565-007-0	32	1	9307-		●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-074-0	12	1	9002-9306	●
69	SPRING; VLV,OUTER (A) INLET	1-12561-075-0	12	1	9002-9306	●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-074-0	10	1	9002-			●
69	SPRING; VLV,OUTER (A) INLET	1-12561-075-0	10	1	9002-			●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-074-0	08	1	9307-		●
69	SPRING; VLV,OUTER (A) INLET	1-12561-075-0	08	1	9307-		●
70	SPRING; VLV,INNER (B) EXHAUST	1-12562-046-0	12	1	9002-9306	●
70	SPRING; VLV,INNER (A) INLET	1-12562-047-0	12	1	9002-9306	●
70	SPRING; VLV,INNER (B) EXHAUST	1-12562-046-0	10	1	9002-			●
70	SPRING; VLV,INNER (A) INLET	1-12562-047-0	10	1	9002-			●
70	SPRING; VLV,INNER (B) EXHAUST	1-12562-046-0	08	1	9307-		●
70	SPRING; VLV,INNER (A) INLET	1-12562-047-0	08	1	9307-		●
71	SEAT; SPR (B) INLET	1-12563-027-0	12	1	9002-9306	●
71	SEAT; SPR (C) EXHAUST	1-12563-034-1	12	1	9002-9306	●
71	SEAT; SPR (A)	1-12563-049-0	24	1	9002-9306	●
71	SEAT; SPR (B) INLET	1-12563-027-0	10	1	9002-			●
71	SEAT; SPR (C) EXHAUST	1-12563-034-1	10	1	9002-			●
71	SEAT; SPR (A)	1-12563-049-0	20	1	9002-			●
71	SEAT; SPR (B) INLET	1-12563-027-0	08	1	9307-		●
71	SEAT; SPR (C) EXHAUST	1-12563-034-1	08	1	9307-		●
71	SEAT; SPR (A)	1-12563-049-0	16	1	9307-		●
75	BOLT; BRKT (B) M8X13,M10X70 L=90	1-09029-024-1	02	1	9002-	●	●	●
75	BOLT; BRKT (A) M10X70	9-01661-070-0	02	1	9002-	●	●	●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	14	1	9002-9306	●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	12	1	9002-			●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	10	1	9307-		●
78	ARM; ROCKER INLET	1-12611-184-0	12	1	9002-9306	●
78	ARM; ROCKER EXHAUST	1-12611-186-0	12	1	9002-9306	●
78	ARM; ROCKER INLET	1-12611-184-0	10	1	9002-9401			●
78	ARM; ROCKER INLET	1-12611-266-0	10	1	9402-			●
78	ARM; ROCKER EXHAUST	1-12611-186-0	10	1	9002-9401			●
78	ARM; ROCKER EXHAUST	1-12611-267-0	10	1	9402-			●
78	ARM; ROCKER INLET	1-12611-184-0	08	1	9307-9401		●
78	ARM; ROCKER INLET	1-12611-266-0	08	1	9402-		●
78	ARM; ROCKER EXHAUST	1-12611-186-0	08	1	9307-9401		●
78	ARM; ROCKER EXHAUST	1-12611-267-0	08	1	9402-		●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	24	1	9002-9306	●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	20	1	9002-			●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	16	1	9307-		●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	24	1	9002-9306	●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	20	1	9002-			●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	16	1	9307-		●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-012-1	04	1	9002-	●		●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-012-1	02	1	9307-		●
88	ROD; PUSH	1-12575-048-1	24	1	9002-9306	●
88	ROD; PUSH	1-12575-048-1	20	1	9002-			●
88	ROD; PUSH	1-12575-048-1	16	1	9307-		●
89	TAPPET; VLV	1-12571-221-0	24	1	9002-9306	●
89	TAPPET; VLV	1-12571-221-0	20	1	9002-9505			●
89	TAPPET; VLV	1-12571-228-4	20	1	9506-			●
89	TAPPET; VLV	1-12571-221-0	16	1	9307-9505		●
89	TAPPET; VLV	1-12571-228-4	16	1	9506-		●
93	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9002-	●	●	●
95	SPRING; ROCKER SHAFT	9-09941-218-0	12	1	9002-9306	●
95	SPRING; ROCKER SHAFT	9-09941-218-0	10	1	9002-			●
95	SPRING; ROCKER SHAFT	9-09941-218-0	08	1	9307-		●
96	BRACKET; ROCKER ARM SHAFT	1-12628-011-1	06	1	9002-9306	●
96	BRACKET; ROCKER ARM SHAFT	1-12628-011-1	04	1	9002-		●	●
97	BRACKET; ROCKER SHAFT,RR	1-12628-006-2	02	1	9002-	●	●	●
98	PIN; SHAFT SET	9-08160-430-0	02	1	9002-	●	●	●
105	BOLT; IDLE GEAR SHAFT M16X94 FLANGE	1-09070-031-0	01	1	9002-	●	●	●
106	WASHER; IDLE GEAR SHAFT ID=16.2	1-09503-022-1	01	1	9002-	●	●	●
107	SHAFT; IDLE GEAR	1-12531-015-1	01	1	9002-	●	●	●
108	DOWEL; SHAFT	9-12539-079-0	01	1	9002-	●	●	●
110	GEAR ASM; IDLE	1-12523-123-0	01	1	9002-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
