◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#22827) — 255 parça

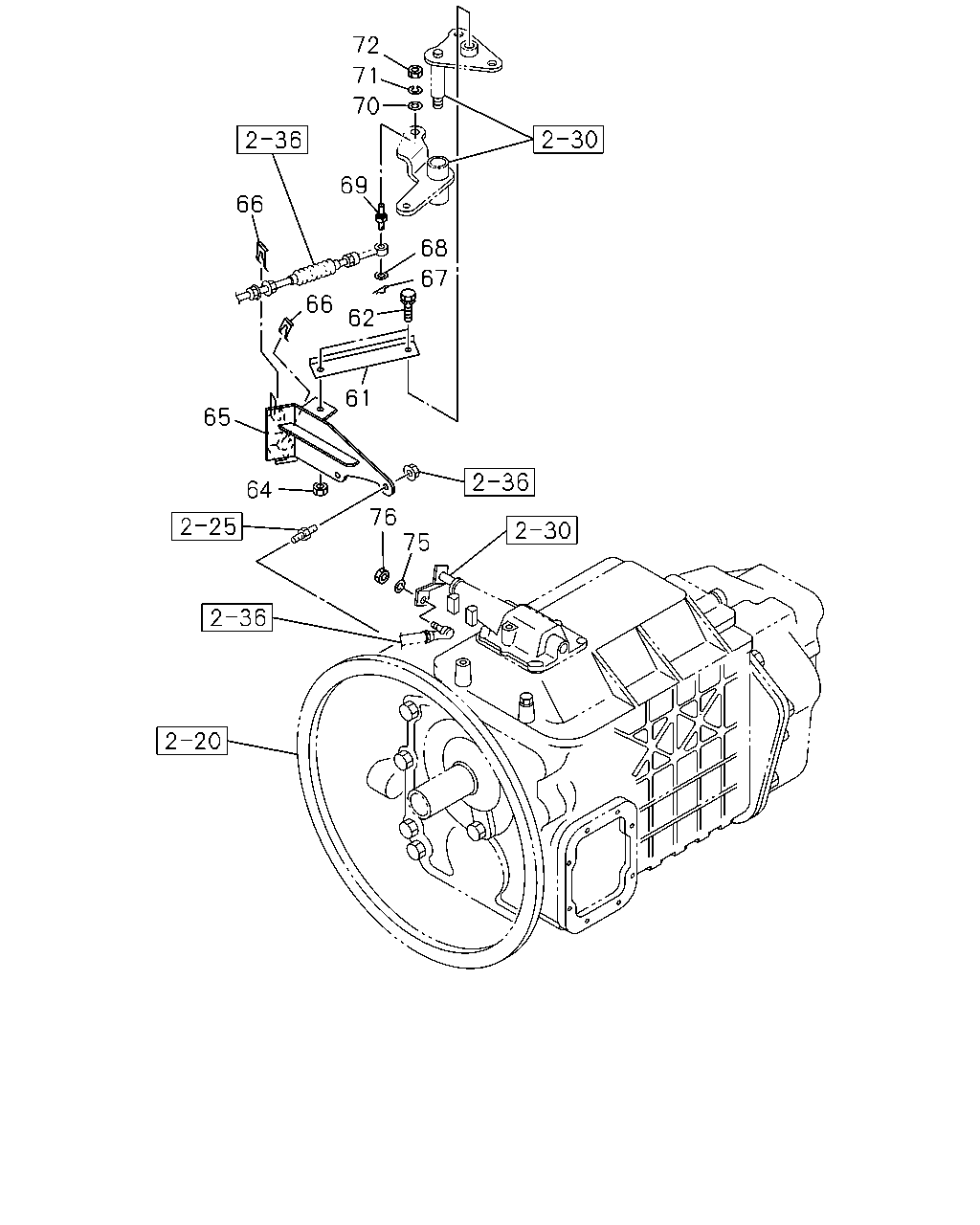

çizim 65278
72 71 70 69 66 68 67 66 62 61 65 64 76 75
BalonParca AdiParca NoAdetTipApplied Date A B
61 STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 9601-0308 ● ●
61 STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 0309- ●
61 STAY; BRKT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 9601-0308 ● ●
61 STAY; BRKT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 0309- ●
62 BOLT; STAY
M10X20 FLANGE 		0-28681-020-0 01 1 9601-9605 ● ●
62 BOLT; STAY
M10X25 FLANGE 		0-28681-025-0 01 1 9606-9804 ● ●
62 BOLT; STAY
MAL6 M/T<X9G> M10X30 FLANGE 		0-28681-030-0 01 1 9601-9803 ● ●
62 BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> M10X30 FLANGE 		0-28681-030-0 01 1 9804-9804 ● ●
62 BOLT; STAY
MAL6 M/T<X9G> M10X30 FLANGE 		0-28681-030-0 01 1 9804-9804 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9805-0308 ● ●
62 BOLT; STAY
MAL6 M/T<X9G> M10X30 FLANGE 		0-28681-030-0 01 1 9805-0308 ● ●
62 BOLT; STAY
MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28681-030-0 01 1 9805-0308 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 0309-0512 ●
62 BOLT; STAY
MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28681-030-0 01 1 0309-0512 ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 01 1 0601- ●
62 BOLT; STAY
MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 01 1 0601- ●
64 NUT; STAY
MAL6 M/T<X9G> M10 FLANGE 		0-91150-210-0 01 1 9601-0308 ● ●
64 NUT; STAY
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> M10 FLANGE 		0-91150-210-0 02 1 9601-0308 ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 0309-0602 ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-554-2 01 1 9601-9803 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD7 M/T<X9Z> ASSISTOR SHIFT CONTROL<WX8> 		1-33657-554-2 01 1 9804-0308 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD7 M/T<X9Z> ASSISTOR SHIFT CONTROL<WX8> 		1-33657-554-2 01 1 0309- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> 		1-33657-677-0 01 1 9804-0308 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> 		1-33657-677-0 01 1 0309- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MAL6 M/T<X9G> 		1-33657-646-1 01 1 9601-0308 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-534-2 01 1 9601-0308 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-534-2 01 1 0309- ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 9601-9803 ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 9804-0308 ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 9804-0308 ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 0309- ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 0309- ●
67 PIN; SNAP,SELECT WIRE
L=27.7 		8-94157-841-0 01 1 9601-9803 ● ●
67 PIN; SNAP,SELECT WIRE
EXC. MLD6 M/T<X9Y> L=27.7 		8-94157-841-0 01 1 9804-0308 ● ●
67 PIN; SNAP,SELECT WIRE
EXC. MLD6 M/T<X9Y> L=27.7 		8-94157-841-0 01 1 0309-1102 ●
67 PIN; SNAP,SELECT WIRE
MLD7R M/T(X5L) L=27.7 		8-94157-841-0 01 1 1103-1509 ●
67 PIN; SNAP,SELECT WIRE
MLD7R M/T(X5L) L=27.7 		1-09987-141-0 01 1 1510- ●
68 WASHER; PL,TRANS CONT,SELECT
ID=8.4 OD=18 		9-09164-608-0 01 1 9601-9702 ● ●
69 PIN; TRANS CONT,SELECT 1-33659-116-1 01 1 9601-9803 ● ●
69 PIN; TRANS CONT,SELECT
EXC. MLD6 M/T<X9Y> 		1-33659-116-1 01 1 9804-0308 ● ●
69 PIN; TRANS CONT,SELECT
EXC. MLD6 M/T<X9Y> 		1-33659-116-1 01 1 0309-1102 ●
69 PIN; TRANS CONT,SELECT
MLD7R M/T(X5L) 		1-33659-116-1 01 1 1103- ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		9-09164-608-0 01 1 9601-9803 ● ●
70 WASHER; PL,SELECT WIRE
EXC. MLD6 M/T<X9Y> ID=8.4 OD=18 		9-09164-608-0 01 1 9804-0308 ● ●
70 WASHER; PL,SELECT WIRE
EXC. MLD6 M/T<X9Y> ID=8.4 OD=18 		9-09164-608-0 01 1 0309-0605 ●
70 WASHER; PL,SELECT WIRE
EXC. MLD6 M/T<X9Y> ID=8.4 OD=18 		0-91614-608-0 01 1 0606-1102 ●
70 WASHER; PL,SELECT WIRE
MLD7R M/T(X5L) ID=8.4 OD=18 		0-91614-608-0 01 1 1103- ●
71 WASHER; LK,TRANS CONT,SELECT
ID=8.2 		9-09150-508-0 01 1 9601-9702 ● ●
72 NUT; TRANS CONT,SELECT
M8 		9-09110-408-0 01 1 9601-9609 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9610-9810 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-062-1 01 1 9811-0308 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-062-1 01 1 0309- ●
75 WASHER; LK,BALL JOINT,SELECT WIRE
ID=10.2 		9-09150-510-0 01 1 9601-9803 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 		9-09110-510-0 01 1 9601-9803 ● ●
76 NUT; BALL JOINT,SELECT WIRE
MLD6 M/T<X9Y> M8 FLANGE 		1-09440-049-0 01 1 9804-9810 ● ●
76 NUT; BALL JOINT,SELECT WIRE
MLD6 M/T<X9Y> M8 FLANGE 		1-09440-062-1 01 1 9811-0308 ● ●
76 NUT; BALL JOINT,SELECT WIRE
MLD6 M/T<X9Y> M8 FLANGE 		1-09440-062-1 01 1 0309- ●
76 NUT; BALL JOINT,SELECT WIRE
EXC. MLD6 M/T<X9Y> M10 FLANGE 		1-09440-056-0 01 1 9804-9810 ● ●
76 NUT; BALL JOINT,SELECT WIRE
EXC. MLD6 M/T<X9Y> M10 FLANGE 		1-09440-061-0 01 1 9811-0308 ● ●
76 NUT; BALL JOINT,SELECT WIRE
EXC. MLD6 M/T<X9Y> M10 FLANGE 		1-09440-061-0 01 1 0309- ●

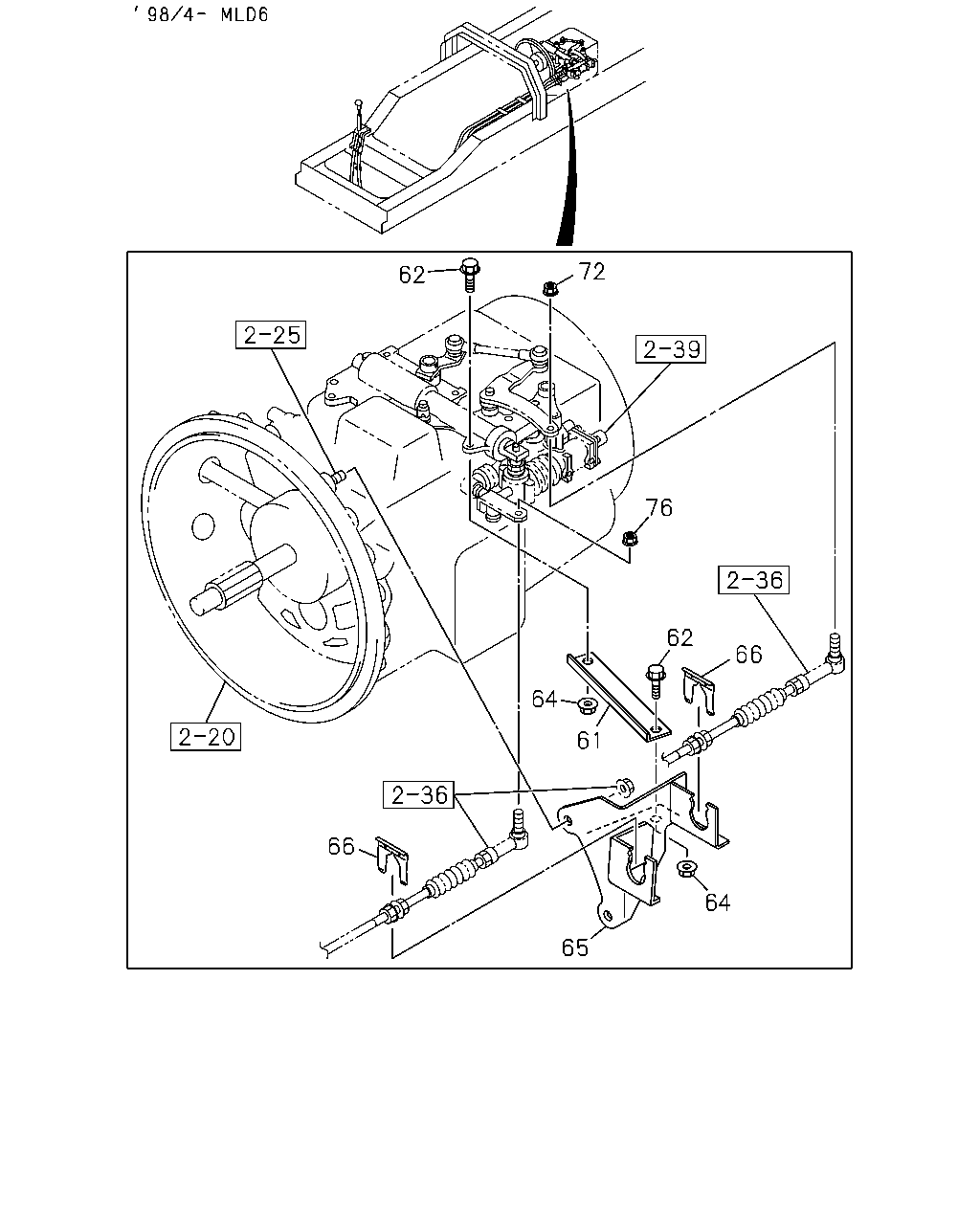

çizim 65399
72 62 76 62 66 64 61 66 64 65
BalonParca AdiParca NoAdetTipApplied Date A B
61 STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 9601-0308 ● ●
61 STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 0309- ●
61 STAY; BRKT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 9601-0308 ● ●
61 STAY; BRKT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 0309- ●
62 BOLT; STAY
M10X20 FLANGE 		0-28681-020-0 01 1 9601-9605 ● ●
62 BOLT; STAY
M10X25 FLANGE 		0-28681-025-0 01 1 9606-9804 ● ●
62 BOLT; STAY
MAL6 M/T<X9G> M10X30 FLANGE 		0-28681-030-0 01 1 9601-9803 ● ●
62 BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> M10X30 FLANGE 		0-28681-030-0 01 1 9804-9804 ● ●
62 BOLT; STAY
MAL6 M/T<X9G> M10X30 FLANGE 		0-28681-030-0 01 1 9804-9804 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9805-0308 ● ●
62 BOLT; STAY
MAL6 M/T<X9G> M10X30 FLANGE 		0-28681-030-0 01 1 9805-0308 ● ●
62 BOLT; STAY
MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28681-030-0 01 1 9805-0308 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 0309-0512 ●
62 BOLT; STAY
MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28681-030-0 01 1 0309-0512 ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 01 1 0601- ●
62 BOLT; STAY
MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 01 1 0601- ●
64 NUT; STAY
MAL6 M/T<X9G> M10 FLANGE 		0-91150-210-0 01 1 9601-0308 ● ●
64 NUT; STAY
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> M10 FLANGE 		0-91150-210-0 02 1 9601-0308 ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 0309-0602 ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-554-2 01 1 9601-9803 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD7 M/T<X9Z> ASSISTOR SHIFT CONTROL<WX8> 		1-33657-554-2 01 1 9804-0308 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD7 M/T<X9Z> ASSISTOR SHIFT CONTROL<WX8> 		1-33657-554-2 01 1 0309- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> 		1-33657-677-0 01 1 9804-0308 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> 		1-33657-677-0 01 1 0309- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MAL6 M/T<X9G> 		1-33657-646-1 01 1 9601-0308 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-534-2 01 1 9601-0308 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-534-2 01 1 0309- ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 9601-9803 ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 9804-0308 ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 9804-0308 ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 0309- ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 0309- ●
72 NUT; TRANS CONT,SELECT
M8 		9-09110-408-0 01 1 9601-9609 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9610-9810 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-062-1 01 1 9811-0308 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-062-1 01 1 0309- ●
76 NUT; BALL JOINT,SELECT WIRE
M10 		9-09110-510-0 01 1 9601-9803 ● ●
76 NUT; BALL JOINT,SELECT WIRE
MLD6 M/T<X9Y> M8 FLANGE 		1-09440-049-0 01 1 9804-9810 ● ●
76 NUT; BALL JOINT,SELECT WIRE
MLD6 M/T<X9Y> M8 FLANGE 		1-09440-062-1 01 1 9811-0308 ● ●
76 NUT; BALL JOINT,SELECT WIRE
MLD6 M/T<X9Y> M8 FLANGE 		1-09440-062-1 01 1 0309- ●
76 NUT; BALL JOINT,SELECT WIRE
EXC. MLD6 M/T<X9Y> M10 FLANGE 		1-09440-056-0 01 1 9804-9810 ● ●
76 NUT; BALL JOINT,SELECT WIRE
EXC. MLD6 M/T<X9Y> M10 FLANGE 		1-09440-061-0 01 1 9811-0308 ● ●
76 NUT; BALL JOINT,SELECT WIRE
EXC. MLD6 M/T<X9Y> M10 FLANGE 		1-09440-061-0 01 1 0309- ●

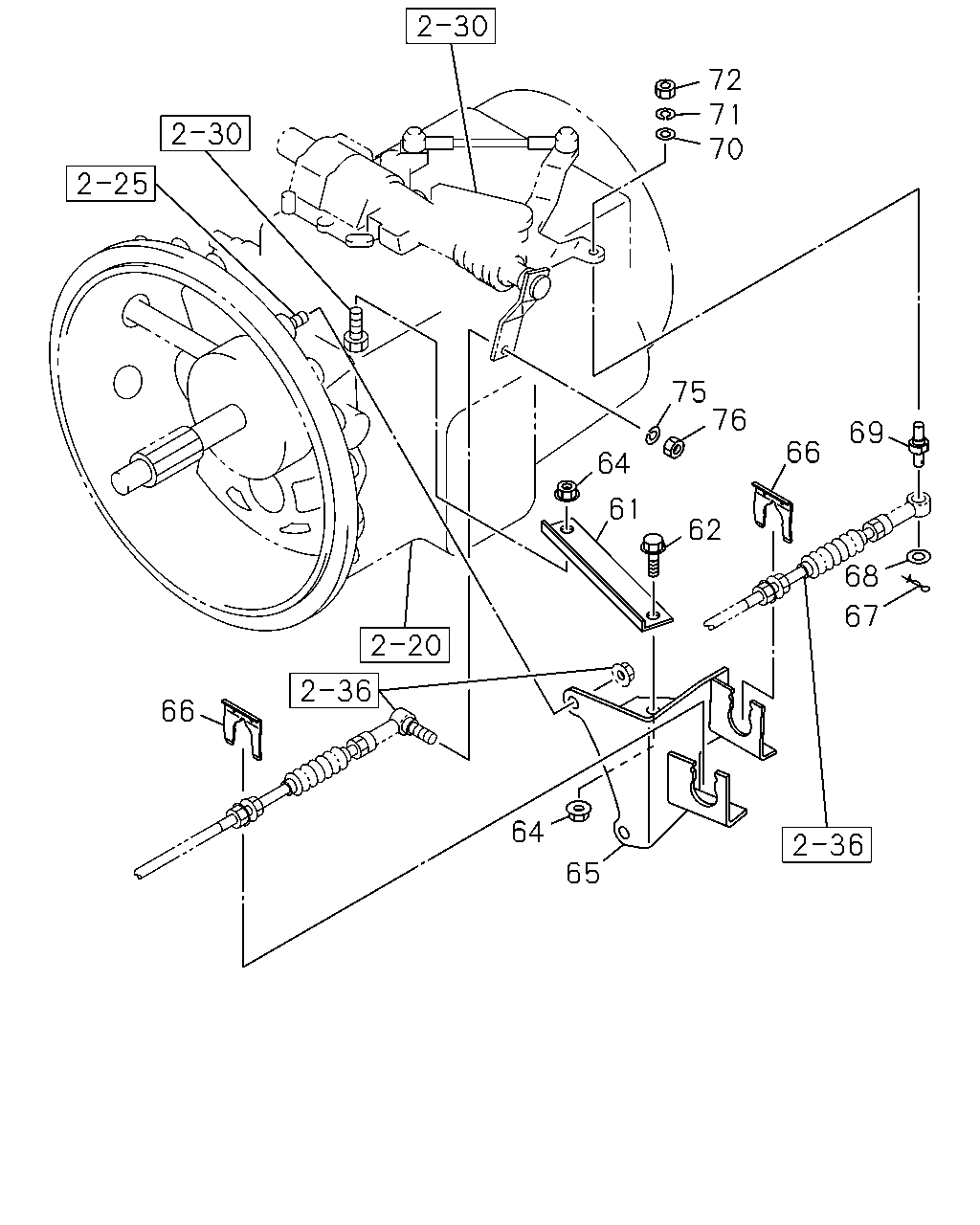

çizim 65926
72 71 70 75 76 69 66 64 61 62 68 67 66 64 65
BalonParca AdiParca NoAdetTipApplied Date A B
61 STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 9601-0308 ● ●
61 STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 0309- ●
61 STAY; BRKT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 9601-0308 ● ●
61 STAY; BRKT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 0309- ●
62 BOLT; STAY
M10X20 FLANGE 		0-28681-020-0 01 1 9601-9605 ● ●
62 BOLT; STAY
M10X25 FLANGE 		0-28681-025-0 01 1 9606-9804 ● ●
62 BOLT; STAY
MAL6 M/T<X9G> M10X30 FLANGE 		0-28681-030-0 01 1 9601-9803 ● ●
62 BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> M10X30 FLANGE 		0-28681-030-0 01 1 9804-9804 ● ●
62 BOLT; STAY
MAL6 M/T<X9G> M10X30 FLANGE 		0-28681-030-0 01 1 9804-9804 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9805-0308 ● ●
62 BOLT; STAY
MAL6 M/T<X9G> M10X30 FLANGE 		0-28681-030-0 01 1 9805-0308 ● ●
62 BOLT; STAY
MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28681-030-0 01 1 9805-0308 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 0309-0512 ●
62 BOLT; STAY
MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28681-030-0 01 1 0309-0512 ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 01 1 0601- ●
62 BOLT; STAY
MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 01 1 0601- ●
64 NUT; STAY
MAL6 M/T<X9G> M10 FLANGE 		0-91150-210-0 01 1 9601-0308 ● ●
64 NUT; STAY
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> M10 FLANGE 		0-91150-210-0 02 1 9601-0308 ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 0309-0602 ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-554-2 01 1 9601-9803 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD7 M/T<X9Z> ASSISTOR SHIFT CONTROL<WX8> 		1-33657-554-2 01 1 9804-0308 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD7 M/T<X9Z> ASSISTOR SHIFT CONTROL<WX8> 		1-33657-554-2 01 1 0309- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> 		1-33657-677-0 01 1 9804-0308 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> 		1-33657-677-0 01 1 0309- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MAL6 M/T<X9G> 		1-33657-646-1 01 1 9601-0308 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-534-2 01 1 9601-0308 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-534-2 01 1 0309- ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 9601-9803 ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 9804-0308 ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 9804-0308 ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 0309- ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 0309- ●
67 PIN; SNAP,SELECT WIRE
L=27.7 		8-94157-841-0 01 1 9601-9803 ● ●
67 PIN; SNAP,SELECT WIRE
EXC. MLD6 M/T<X9Y> L=27.7 		8-94157-841-0 01 1 9804-0308 ● ●
67 PIN; SNAP,SELECT WIRE
EXC. MLD6 M/T<X9Y> L=27.7 		8-94157-841-0 01 1 0309-1102 ●
67 PIN; SNAP,SELECT WIRE
MLD7R M/T(X5L) L=27.7 		8-94157-841-0 01 1 1103-1509 ●
67 PIN; SNAP,SELECT WIRE
MLD7R M/T(X5L) L=27.7 		1-09987-141-0 01 1 1510- ●
68 WASHER; PL,TRANS CONT,SELECT
ID=8.4 OD=18 		9-09164-608-0 01 1 9601-9702 ● ●
69 PIN; TRANS CONT,SELECT 1-33659-116-1 01 1 9601-9803 ● ●
69 PIN; TRANS CONT,SELECT
EXC. MLD6 M/T<X9Y> 		1-33659-116-1 01 1 9804-0308 ● ●
69 PIN; TRANS CONT,SELECT
EXC. MLD6 M/T<X9Y> 		1-33659-116-1 01 1 0309-1102 ●
69 PIN; TRANS CONT,SELECT
MLD7R M/T(X5L) 		1-33659-116-1 01 1 1103- ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		9-09164-608-0 01 1 9601-9803 ● ●
70 WASHER; PL,SELECT WIRE
EXC. MLD6 M/T<X9Y> ID=8.4 OD=18 		9-09164-608-0 01 1 9804-0308 ● ●
70 WASHER; PL,SELECT WIRE
EXC. MLD6 M/T<X9Y> ID=8.4 OD=18 		9-09164-608-0 01 1 0309-0605 ●
70 WASHER; PL,SELECT WIRE
EXC. MLD6 M/T<X9Y> ID=8.4 OD=18 		0-91614-608-0 01 1 0606-1102 ●
70 WASHER; PL,SELECT WIRE
MLD7R M/T(X5L) ID=8.4 OD=18 		0-91614-608-0 01 1 1103- ●
71 WASHER; LK,TRANS CONT,SELECT
ID=8.2 		9-09150-508-0 01 1 9601-9702 ● ●
72 NUT; TRANS CONT,SELECT
M8 		9-09110-408-0 01 1 9601-9609 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9610-9810 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-062-1 01 1 9811-0308 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-062-1 01 1 0309- ●
75 WASHER; LK,BALL JOINT,SELECT WIRE
ID=10.2 		9-09150-510-0 01 1 9601-9803 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 		9-09110-510-0 01 1 9601-9803 ● ●
76 NUT; BALL JOINT,SELECT WIRE
MLD6 M/T<X9Y> M8 FLANGE 		1-09440-049-0 01 1 9804-9810 ● ●
76 NUT; BALL JOINT,SELECT WIRE
MLD6 M/T<X9Y> M8 FLANGE 		1-09440-062-1 01 1 9811-0308 ● ●
76 NUT; BALL JOINT,SELECT WIRE
MLD6 M/T<X9Y> M8 FLANGE 		1-09440-062-1 01 1 0309- ●
76 NUT; BALL JOINT,SELECT WIRE
EXC. MLD6 M/T<X9Y> M10 FLANGE 		1-09440-056-0 01 1 9804-9810 ● ●
76 NUT; BALL JOINT,SELECT WIRE
EXC. MLD6 M/T<X9Y> M10 FLANGE 		1-09440-061-0 01 1 9811-0308 ● ●
76 NUT; BALL JOINT,SELECT WIRE
EXC. MLD6 M/T<X9Y> M10 FLANGE 		1-09440-061-0 01 1 0309- ●

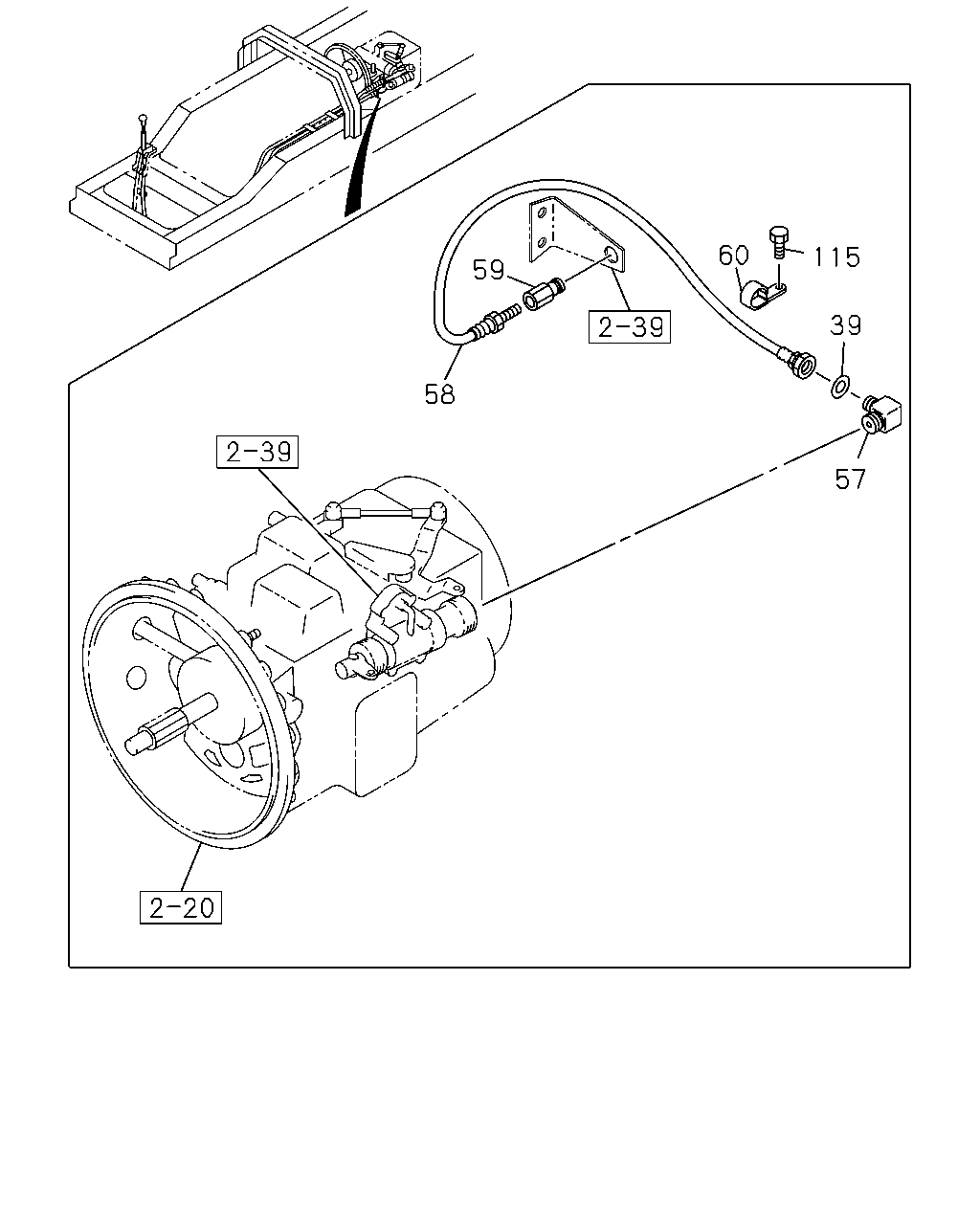

çizim 66018
60 115 59 39 58 57
BalonParca AdiParca NoAdetTipApplied Date A B
39 GASKET; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> ID=11 OD=18 		9-09572-510-0 01 1 9601-0108 ● ●
39 GASKET; FLEX HOSE
AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> ID=11 OD=18 		9-09572-510-0 02 1 9601-9609 ●
39 GASKET; FLEX HOSE
AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> ID=11 OD=18 		9-09572-510-0 02 1 9610-9803 ● ●
57 NIPPLE; POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> 		1-09660-704-0 01 1 9601-9803 ● ●
57 NIPPLE; POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> M12 & PT1/8 		9-09224-306-2 01 1 9804-9910 ● ●
57 NIPPLE; POWER ASSISTOR
MLD7 M/T<X9Z> M12 & PT1/4 ELBOW 		1-09661-001-1 01 1 9804-0004 ● ●
57 NIPPLE; POWER ASSISTOR
MLD7 M/T<X9Z> ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/4 ELBOW 		1-09661-001-1 01 1 0005-0308 ● ●
57 NIPPLE; POWER ASSISTOR
MLD7 M/T<X9Z> ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/4 ELBOW 		1-09661-001-1 01 1 0309- ●
58 HOSE; FLEX,POWER ASSISTOR
AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> MLD7 M/T<X9Z> L=780 		1-09363-620-0 01 1 9804-0308 ● ●
58 HOSE; FLEX,POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> L=790 		0-07120-790-0 01 1 9601-9803 ● ●
58 HOSE; FLEX,POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> L=800 		1-09363-695-0 01 1 9804-0105 ● ●
58 HOSE; FLEX,POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> L=660 		1-09363-719-0 01 1 0106-0308 ● ●
58 HOSE; FLEX,POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> L=660 		1-09363-719-0 01 1 0309- ●
58 HOSE; FLEX,POWER ASSISTOR
AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> L=820 		1-09363-565-1 01 1 9601-9609 ●
58 HOSE; FLEX,POWER ASSISTOR
AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y>,MLD7 M/T<X9Z> L=820 		1-09363-565-1 01 1 9610-9803 ● ●
58 HOSE; FLEX,POWER ASSISTOR
AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> L=740 		1-09363-675-0 01 1 9804-0308 ● ●
59 CONNECTOR; AIR HOSE,SHIFT POWER ASSIST
ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9601-0004 ● ●
59 CONNECTOR; AIR HOSE,SHIFT POWER ASSIST
ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0005 ● ●
59 CONNECTOR; AIR HOSE,SHIFT POWER ASSIST
ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006-0308 ● ●
59 CONNECTOR; AIR HOSE,SHIFT POWER ASSIST
ASSISTOR SHIFT CONTROL<WX8> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0309- ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> ID=13 L=20 		9-09525-235-0 02 1 9601-0308 ● ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> ID=13 L=20 		9-09525-235-0 02 1 0309-0606 ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> ID=13 L=20 		0-95235-235-0 02 1 0607- ●
115 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28080-816-0 02 1 9601-9703 ● ●
115 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28680-820-0 02 1 9704-9812 ● ●
115 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28080-816-0 02 1 9901-0308 ● ●
115 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28080-816-0 02 1 0309-0512 ●
115 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●

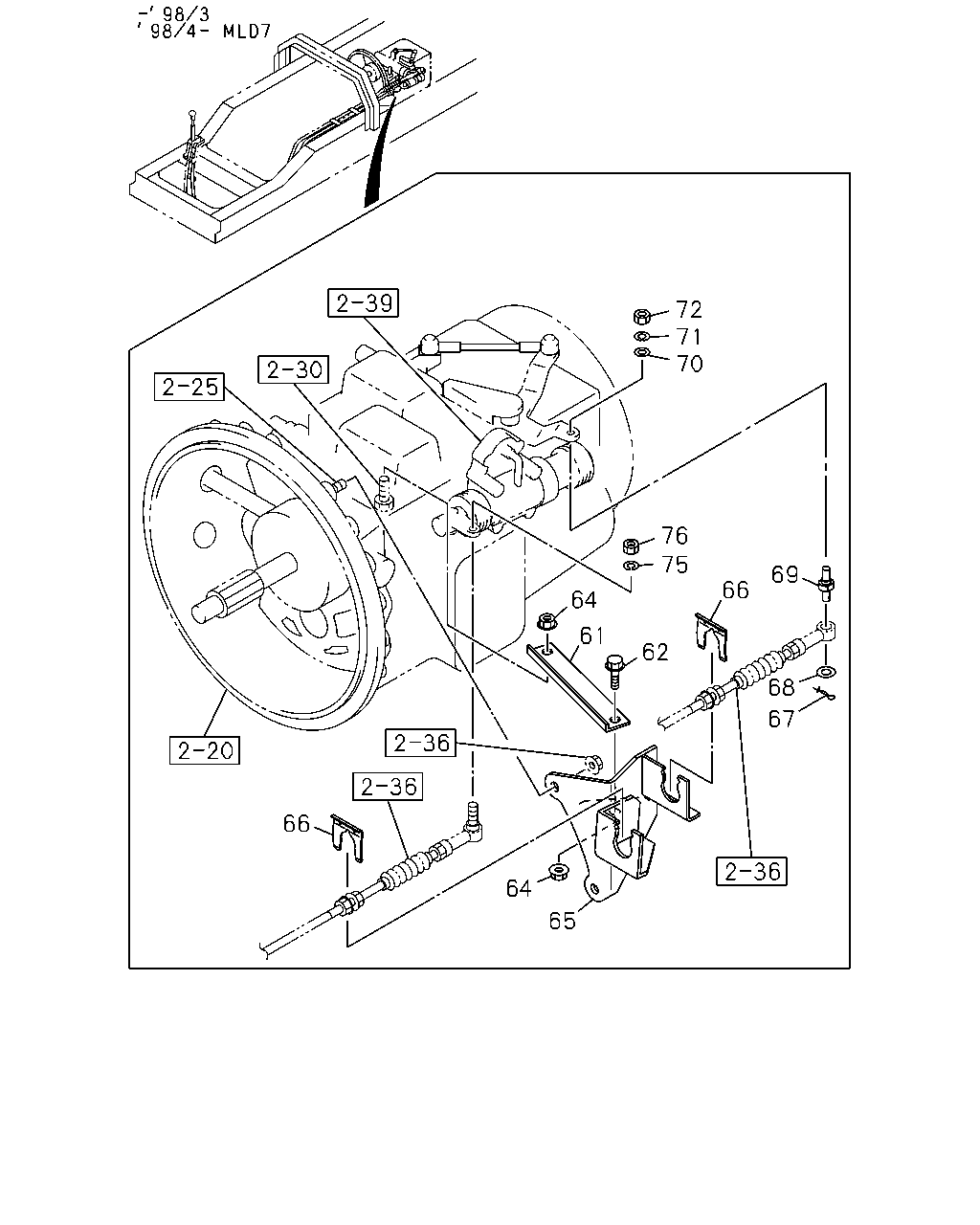

çizim 66567
72 71 70 76 75 69 66 64 61 62 68 67 66 64 65
BalonParca AdiParca NoAdetTipApplied Date A B
61 STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 9601-0308 ● ●
61 STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 0309- ●
61 STAY; BRKT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 9601-0308 ● ●
61 STAY; BRKT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 0309- ●
62 BOLT; STAY
M10X20 FLANGE 		0-28681-020-0 01 1 9601-9605 ● ●
62 BOLT; STAY
M10X25 FLANGE 		0-28681-025-0 01 1 9606-9804 ● ●
62 BOLT; STAY
MAL6 M/T<X9G> M10X30 FLANGE 		0-28681-030-0 01 1 9601-9803 ● ●
62 BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> M10X30 FLANGE 		0-28681-030-0 01 1 9804-9804 ● ●
62 BOLT; STAY
MAL6 M/T<X9G> M10X30 FLANGE 		0-28681-030-0 01 1 9804-9804 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9805-0308 ● ●
62 BOLT; STAY
MAL6 M/T<X9G> M10X30 FLANGE 		0-28681-030-0 01 1 9805-0308 ● ●
62 BOLT; STAY
MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28681-030-0 01 1 9805-0308 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 0309-0512 ●
62 BOLT; STAY
MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28681-030-0 01 1 0309-0512 ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 01 1 0601- ●
62 BOLT; STAY
MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 01 1 0601- ●
64 NUT; STAY
MAL6 M/T<X9G> M10 FLANGE 		0-91150-210-0 01 1 9601-0308 ● ●
64 NUT; STAY
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> M10 FLANGE 		0-91150-210-0 02 1 9601-0308 ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 0309-0602 ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-554-2 01 1 9601-9803 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD7 M/T<X9Z> ASSISTOR SHIFT CONTROL<WX8> 		1-33657-554-2 01 1 9804-0308 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD7 M/T<X9Z> ASSISTOR SHIFT CONTROL<WX8> 		1-33657-554-2 01 1 0309- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> 		1-33657-677-0 01 1 9804-0308 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> 		1-33657-677-0 01 1 0309- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MAL6 M/T<X9G> 		1-33657-646-1 01 1 9601-0308 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-534-2 01 1 9601-0308 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-534-2 01 1 0309- ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 9601-9803 ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 9804-0308 ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 9804-0308 ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 0309- ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 0309- ●
67 PIN; SNAP,SELECT WIRE
L=27.7 		8-94157-841-0 01 1 9601-9803 ● ●
67 PIN; SNAP,SELECT WIRE
EXC. MLD6 M/T<X9Y> L=27.7 		8-94157-841-0 01 1 9804-0308 ● ●
67 PIN; SNAP,SELECT WIRE
EXC. MLD6 M/T<X9Y> L=27.7 		8-94157-841-0 01 1 0309-1102 ●
67 PIN; SNAP,SELECT WIRE
MLD7R M/T(X5L) L=27.7 		8-94157-841-0 01 1 1103-1509 ●
67 PIN; SNAP,SELECT WIRE
MLD7R M/T(X5L) L=27.7 		1-09987-141-0 01 1 1510- ●
68 WASHER; PL,TRANS CONT,SELECT
ID=8.4 OD=18 		9-09164-608-0 01 1 9601-9702 ● ●
69 PIN; TRANS CONT,SELECT 1-33659-116-1 01 1 9601-9803 ● ●
69 PIN; TRANS CONT,SELECT
EXC. MLD6 M/T<X9Y> 		1-33659-116-1 01 1 9804-0308 ● ●
69 PIN; TRANS CONT,SELECT
EXC. MLD6 M/T<X9Y> 		1-33659-116-1 01 1 0309-1102 ●
69 PIN; TRANS CONT,SELECT
MLD7R M/T(X5L) 		1-33659-116-1 01 1 1103- ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		9-09164-608-0 01 1 9601-9803 ● ●
70 WASHER; PL,SELECT WIRE
EXC. MLD6 M/T<X9Y> ID=8.4 OD=18 		9-09164-608-0 01 1 9804-0308 ● ●
70 WASHER; PL,SELECT WIRE
EXC. MLD6 M/T<X9Y> ID=8.4 OD=18 		9-09164-608-0 01 1 0309-0605 ●
70 WASHER; PL,SELECT WIRE
EXC. MLD6 M/T<X9Y> ID=8.4 OD=18 		0-91614-608-0 01 1 0606-1102 ●
70 WASHER; PL,SELECT WIRE
MLD7R M/T(X5L) ID=8.4 OD=18 		0-91614-608-0 01 1 1103- ●
71 WASHER; LK,TRANS CONT,SELECT
ID=8.2 		9-09150-508-0 01 1 9601-9702 ● ●
72 NUT; TRANS CONT,SELECT
M8 		9-09110-408-0 01 1 9601-9609 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9610-9810 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-062-1 01 1 9811-0308 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-062-1 01 1 0309- ●
75 WASHER; LK,BALL JOINT,SELECT WIRE
ID=10.2 		9-09150-510-0 01 1 9601-9803 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 		9-09110-510-0 01 1 9601-9803 ● ●
76 NUT; BALL JOINT,SELECT WIRE
MLD6 M/T<X9Y> M8 FLANGE 		1-09440-049-0 01 1 9804-9810 ● ●
76 NUT; BALL JOINT,SELECT WIRE
MLD6 M/T<X9Y> M8 FLANGE 		1-09440-062-1 01 1 9811-0308 ● ●
76 NUT; BALL JOINT,SELECT WIRE
MLD6 M/T<X9Y> M8 FLANGE 		1-09440-062-1 01 1 0309- ●
76 NUT; BALL JOINT,SELECT WIRE
EXC. MLD6 M/T<X9Y> M10 FLANGE 		1-09440-056-0 01 1 9804-9810 ● ●
76 NUT; BALL JOINT,SELECT WIRE
EXC. MLD6 M/T<X9Y> M10 FLANGE 		1-09440-061-0 01 1 9811-0308 ● ●
76 NUT; BALL JOINT,SELECT WIRE
EXC. MLD6 M/T<X9Y> M10 FLANGE 		1-09440-061-0 01 1 0309- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
