2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#22826) — 158 parça

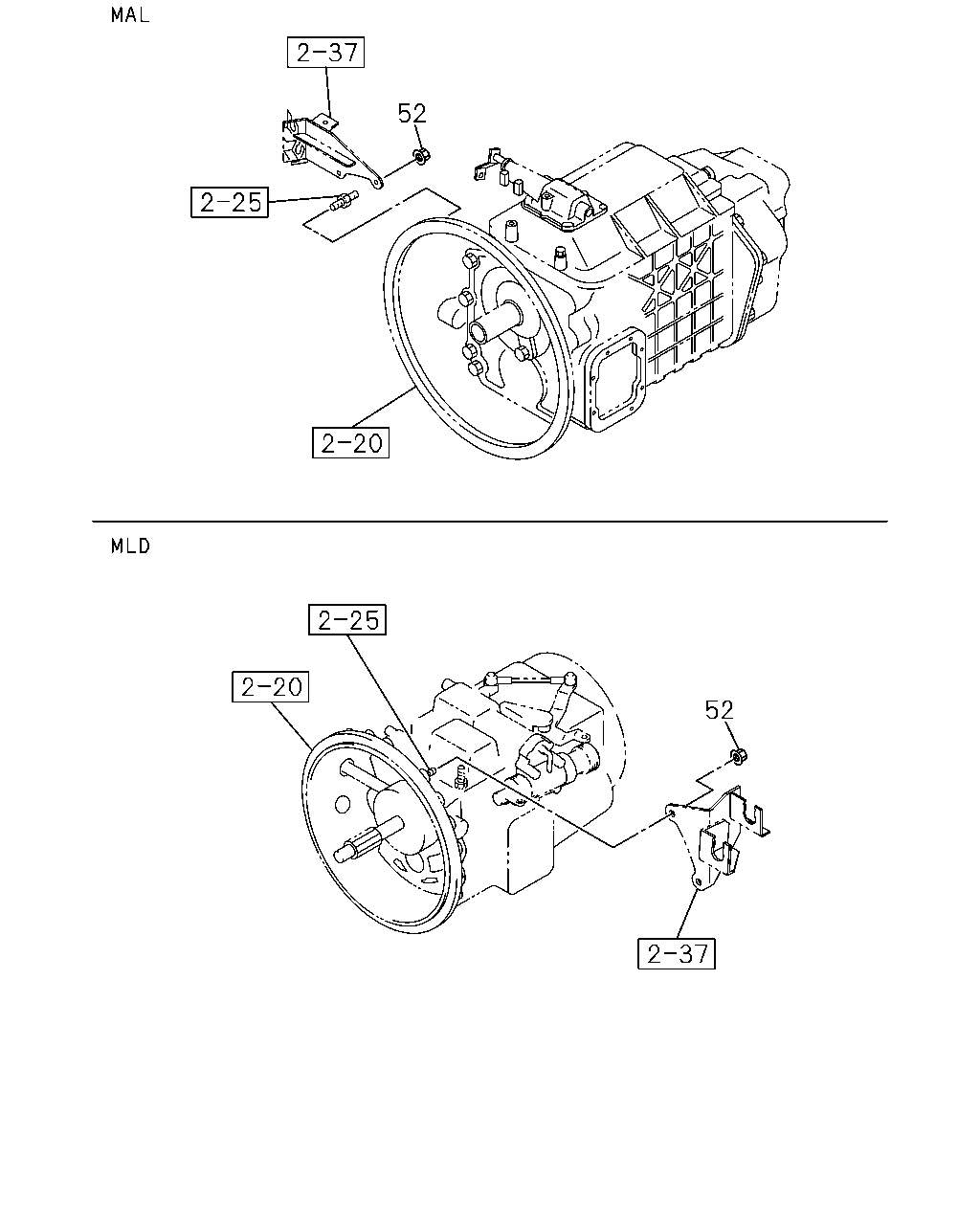

52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	9601-9605	●	●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9606-0308	●	●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0309-0602		●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-		●

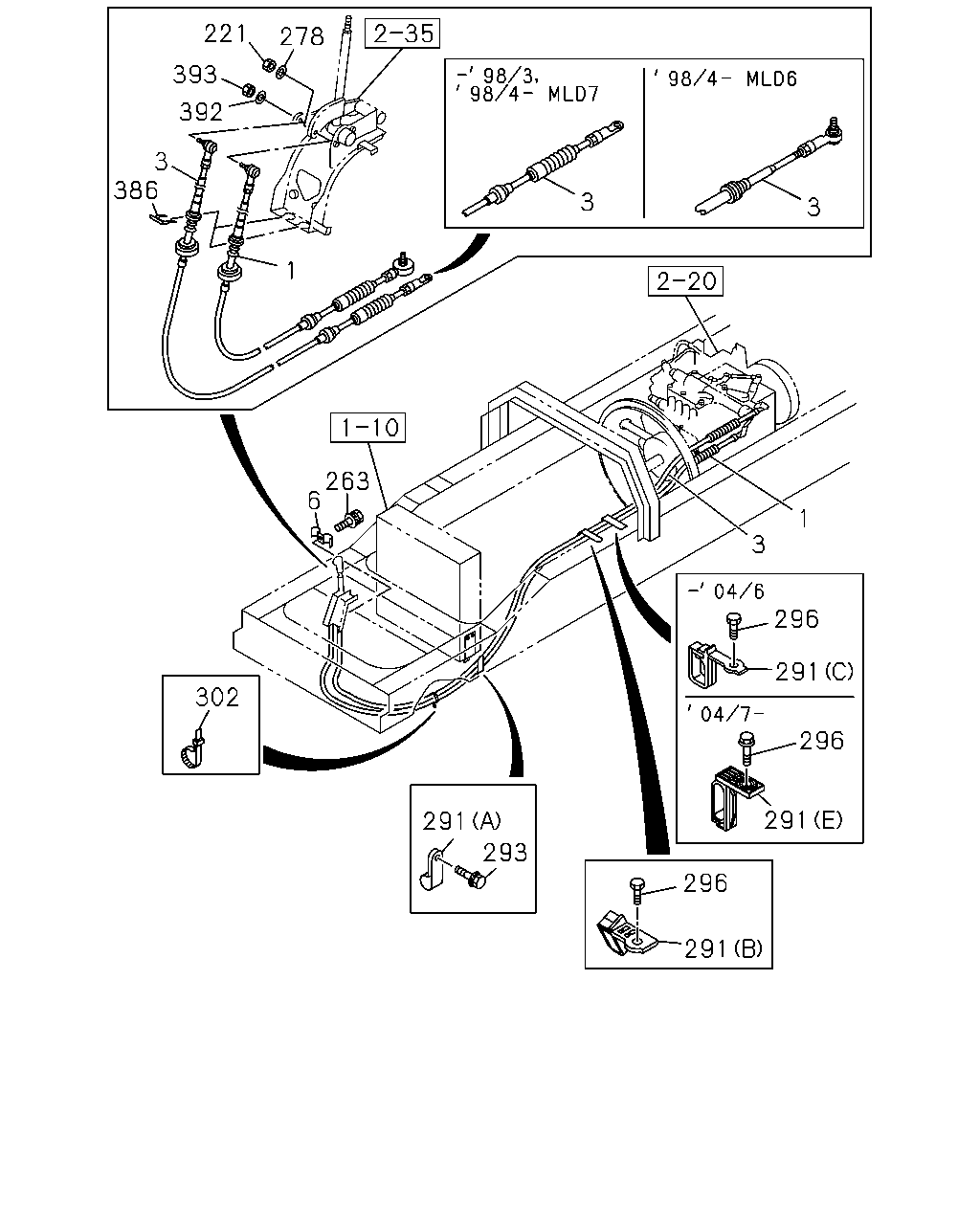

221 278 393 392 3 386 3 3 1 263 6 1 3 296 291 302 296 291 291 293 296 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT MAL6 M/T<X9G> AIR CONDITIONER MANUAL CONTROL(C60) L=3532.5	1-33671-895-0	01	1	0301-0308	●	●
1	CABLE; SHIFT,TRANS CONT MAL6S M/T(Y1V) L=3532.5	1-33670-951-0	01	1	9601-9803	●	●
1	CABLE; SHIFT,TRANS CONT MAL6 M/T<X9G> L=3532.5	1-33670-951-1	01	1	9804-0212	●	●
1	CABLE; SHIFT,TRANS CONT MAL6 M/T<X9G> EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=3532.5	1-33670-951-1	01	1	0301-0308	●	●
1	CABLE; SHIFT,TRANS CONT MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> L=3357	1-33670-852-0	01	1	9601-9803	●	●
1	CABLE; SHIFT,TRANS CONT MLD7 M/T<X9Z> L=3357	1-33670-852-0	01	1	9601-9803	●	●
1	CABLE; SHIFT,TRANS CONT MLD7 M/T<X9Z> L=3357	1-33670-852-0	01	1	9804-0308	●	●
1	CABLE; SHIFT,TRANS CONT MLD7 M/T<X9Z> L=3357	1-33670-852-0	01	1	0309-		●
1	CABLE; SHIFT,TRANS CONT MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> L=3445	1-33671-145-0	01	1	9804-0308	●	●
1	CABLE; SHIFT,TRANS CONT MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> L=3445	1-33671-145-0	01	1	0309-		●
1	CABLE; SHIFT,TRANS CONT MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3484	1-33670-853-0	01	1	9601-9803	●	●
1	CABLE; SHIFT,TRANS CONT MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3485	1-33671-146-0	01	1	9804-0308	●	●
1	CABLE; SHIFT,TRANS CONT MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3485	1-33671-146-0	01	1	0309-		●
3	CABLE; SELECT,TRANS CONT MAL6 M/T<X9G> AIR CONDITIONER MANUAL CONTROL(C60) L=3428.5	1-33671-896-0	01	1	0301-0308	●	●
3	CABLE; SELECT,TRANS CONT MAL6S M/T(Y1V) L=3428.5	1-33670-955-1	01	1	9601-0011	●	●
3	CABLE; SELECT,TRANS CONT MAL6 M/T<X9G> L=3428.5	1-33670-955-1	01	1	0012-0212	●	●
3	CABLE; SELECT,TRANS CONT MAL6 M/T<X9G> EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=3428.5	1-33670-955-1	01	1	0301-0308	●	●
3	CABLE; SELECT,TRANS CONT MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> L=3564	1-33670-864-1	01	1	9601-9803	●	●
3	CABLE; SELECT,TRANS CONT MLD7 M/T<X9Z> L=3564	1-33670-864-1	01	1	9601-9803	●	●
3	CABLE; SELECT,TRANS CONT MLD7 M/T<X9Z> L=3564	1-33670-864-1	01	1	9804-0308	●	●
3	CABLE; SELECT,TRANS CONT MLD7 M/T<X9Z> L=3564	1-33670-864-1	01	1	0309-		●
3	CABLE; SELECT,TRANS CONT MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> L=3525	1-33671-152-0	01	1	9804-0308	●	●
3	CABLE; SELECT,TRANS CONT MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> L=3525	1-33671-152-0	01	1	0309-		●
3	CABLE; SELECT,TRANS CONT MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3546	1-33670-865-1	01	1	9601-9803	●	●
3	CABLE; SELECT,TRANS CONT MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3545	1-33671-153-0	01	1	9804-0308	●	●
3	CABLE; SELECT,TRANS CONT MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3545	1-33671-153-0	01	1	0309-		●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9601-0308	●	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0309-		●
221	NUT; SHIFT WIRE TO LEVER M8	9-09110-408-0	01	1	9601-9803	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	9804-0308	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0309-1011		●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1012-		●
263	BOLT; CLIP,TRANS CONT WIRE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-9812	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9901-0308	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0309-		●
278	WASHER; LK,SHIFT WIRE ID=8.2	9-09150-508-0	01	1	9601-9803	●	●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=10 & 10 M8	1-09701-220-0	01	1	9601-0308	●	●
291	CLIP; SHIFT TO SELECT,FRAME 6HH1 STD ENG(65L) (C) ID=10 & 10 M8	1-09701-220-0	01	1	0309-0406		●
291	CLIP; SHIFT TO SELECT,FRAME 6HH1 STD ENG(65L) (E)	1-09701-307-2	01	1	0407-		●
291	CLIP; SHIFT TO SELECT,FRAME 6HH1 STD ENG(65L) (B)	1-09700-621-2	01	1	9601-9602	●	●
291	CLIP; SHIFT TO SELECT,FRAME 6HH1 STD ENG(65L) (B) ID=13X2 L=32	1-09701-245-0	01	1	9603-9701	●	●
291	CLIP; SHIFT TO SELECT,FRAME 6HH1 STD ENG(65L) (B)	1-09701-258-0	01	1	9702-9702	●	●
291	CLIP; SHIFT TO SELECT,FRAME 6HH1 STD ENG(65L) (B) ID=13X2 L=32	1-09701-245-0	01	1	9703-0308	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13X2 L=32	1-09701-245-0	01	1	0309-0506		●
291	CLIP; SHIFT TO SELECT,FRAME 6HH1 STD ENG(65L) (B) ID=13X2 L=32	1-09701-312-0	01	1	0507-		●
291	CLIP; SHIFT TO SELECT,FRAME 6HH1 STD ENG(65L) (A) ID=11X2 L=16	9-09535-026-0	01	1	9601-0308	●	●
291	CLIP; SHIFT TO SELECT,FRAME 6HH1 STD ENG(65L) (A) ID=11X2 L=16	9-09535-026-0	01	1	0309-0606		●
291	CLIP; SHIFT TO SELECT,FRAME 6HH1 STD ENG(65L) (A) ID=11X2 L=16	0-95325-026-0	01	1	0607-		●
291	CLIP; SHIFT TO SELECT,FRAME 6SD1 STD ENG(37L) (D)	8-97028-508-2	01	1	9601-9809	●	●
293	BOLT; CLIP,SHIFT TO SELECT 6HH1 STD ENG(65L) M8X16 FLANGE	0-28080-816-0	01	1	9601-0308	●	●
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28080-816-0	01	1	0309-0512		●
293	BOLT; CLIP,SHIFT TO SELECT 6HH1 STD ENG(65L) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
296	BOLT; CLIP,SHIFT & SELECT 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	02	1	9601-0308	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X30 FLANGE	0-28680-830-0	02	1	0309-0512		●
296	BOLT; CLIP,SHIFT & SELECT 6HH1 STD ENG(65L) M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
296	BOLT; CLIP,SHIFT & SELECT 6SD1 STD ENG(37L) M8X16 FLANGE	0-28080-816-0	01	1	9601-0308	●	●
296	BOLT; CLIP,SHIFT & SELECT 6SD1 STD ENG(37L) M8X16 FLANGE	0-28080-816-0	02	1	9601-0004	●	●
296	BOLT; CLIP,SHIFT & SELECT 6SD1 STD ENG(37L) M8X16 FLANGE	0-28080-816-0	02	1	0005-0308	●	●
296	BOLT; CLIP,SHIFT & SELECT 6SD1 STD ENG(37L) M8X25 FLANGE	0-28080-825-0	01	1	9601-9606	●	●
296	BOLT; CLIP,SHIFT & SELECT 6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	01	1	9607-9809	●	●
302	CLIP; BAND 6HH1 STD ENG(65L) L=300	1-09707-001-1	01	1	9601-0103	●	●
302	CLIP; BAND 6HH1 STD ENG(65L) L=300	1-09707-001-1	02	1	0104-0308	●	●
302	CLIP; BAND L=300	1-09707-001-1	02	1	0309-		●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	9601-0308	●	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	0309-		●
392	WASHER; LK,SELECT CABLE,CAB ID=8.2	9-09150-508-0	01	1	9601-9803	●	●
393	NUT; SELECT CABLE,CAB M8	9-09110-408-0	01	1	9601-9803	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	9804-0308	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	0309-1011		●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-062-1	01	1	1012-		●

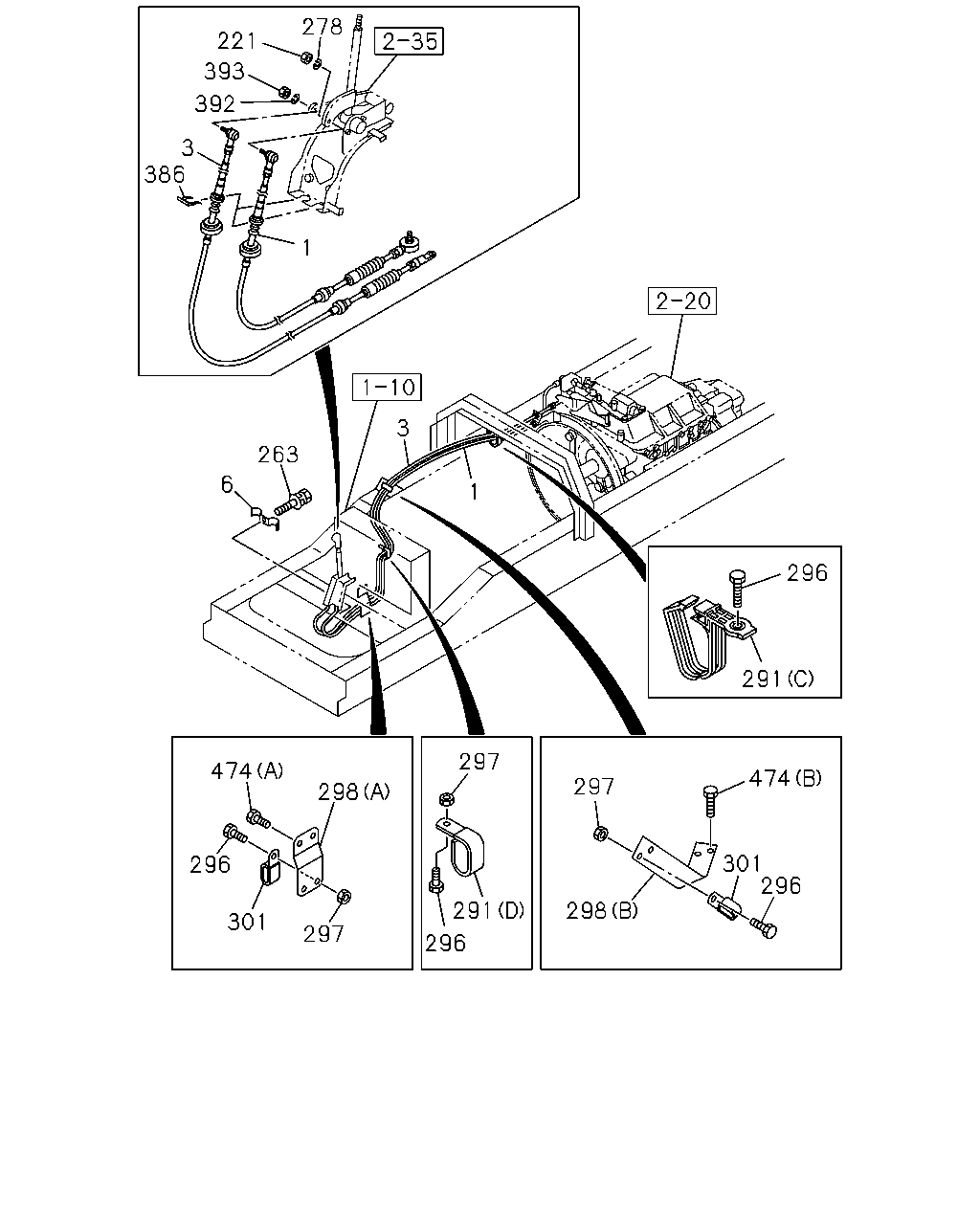

278 221 393 392 3 386 1 3 263 6 1 296 291 297 474 474 297 298 301 296 296 291 298 301 297 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT MAL6 M/T<X9G> AIR CONDITIONER MANUAL CONTROL(C60) L=3532.5	1-33671-895-0	01	1	0301-0308	●	●
1	CABLE; SHIFT,TRANS CONT MAL6S M/T(Y1V) L=3532.5	1-33670-951-0	01	1	9601-9803	●	●
1	CABLE; SHIFT,TRANS CONT MAL6 M/T<X9G> L=3532.5	1-33670-951-1	01	1	9804-0212	●	●
1	CABLE; SHIFT,TRANS CONT MAL6 M/T<X9G> EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=3532.5	1-33670-951-1	01	1	0301-0308	●	●
1	CABLE; SHIFT,TRANS CONT MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> L=3357	1-33670-852-0	01	1	9601-9803	●	●
1	CABLE; SHIFT,TRANS CONT MLD7 M/T<X9Z> L=3357	1-33670-852-0	01	1	9601-9803	●	●
1	CABLE; SHIFT,TRANS CONT MLD7 M/T<X9Z> L=3357	1-33670-852-0	01	1	9804-0308	●	●
1	CABLE; SHIFT,TRANS CONT MLD7 M/T<X9Z> L=3357	1-33670-852-0	01	1	0309-		●
1	CABLE; SHIFT,TRANS CONT MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> L=3445	1-33671-145-0	01	1	9804-0308	●	●
1	CABLE; SHIFT,TRANS CONT MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> L=3445	1-33671-145-0	01	1	0309-		●
1	CABLE; SHIFT,TRANS CONT MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3484	1-33670-853-0	01	1	9601-9803	●	●
1	CABLE; SHIFT,TRANS CONT MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3485	1-33671-146-0	01	1	9804-0308	●	●
1	CABLE; SHIFT,TRANS CONT MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3485	1-33671-146-0	01	1	0309-		●
3	CABLE; SELECT,TRANS CONT MAL6 M/T<X9G> AIR CONDITIONER MANUAL CONTROL(C60) L=3428.5	1-33671-896-0	01	1	0301-0308	●	●
3	CABLE; SELECT,TRANS CONT MAL6S M/T(Y1V) L=3428.5	1-33670-955-1	01	1	9601-0011	●	●
3	CABLE; SELECT,TRANS CONT MAL6 M/T<X9G> L=3428.5	1-33670-955-1	01	1	0012-0212	●	●
3	CABLE; SELECT,TRANS CONT MAL6 M/T<X9G> EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=3428.5	1-33670-955-1	01	1	0301-0308	●	●
3	CABLE; SELECT,TRANS CONT MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> L=3564	1-33670-864-1	01	1	9601-9803	●	●
3	CABLE; SELECT,TRANS CONT MLD7 M/T<X9Z> L=3564	1-33670-864-1	01	1	9601-9803	●	●
3	CABLE; SELECT,TRANS CONT MLD7 M/T<X9Z> L=3564	1-33670-864-1	01	1	9804-0308	●	●
3	CABLE; SELECT,TRANS CONT MLD7 M/T<X9Z> L=3564	1-33670-864-1	01	1	0309-		●
3	CABLE; SELECT,TRANS CONT MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> L=3525	1-33671-152-0	01	1	9804-0308	●	●
3	CABLE; SELECT,TRANS CONT MLD6 M/T<X9Y> ASSISTOR SHIFT CONTROL<WX8> L=3525	1-33671-152-0	01	1	0309-		●
3	CABLE; SELECT,TRANS CONT MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3546	1-33670-865-1	01	1	9601-9803	●	●
3	CABLE; SELECT,TRANS CONT MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3545	1-33671-153-0	01	1	9804-0308	●	●
3	CABLE; SELECT,TRANS CONT MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3545	1-33671-153-0	01	1	0309-		●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9601-0308	●	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0309-		●
221	NUT; SHIFT WIRE TO LEVER M8	9-09110-408-0	01	1	9601-9803	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	9804-0308	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0309-1011		●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1012-		●
263	BOLT; CLIP,TRANS CONT WIRE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-9812	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9901-0308	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0309-		●
278	WASHER; LK,SHIFT WIRE ID=8.2	9-09150-508-0	01	1	9601-9803	●	●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=10 & 10 M8	1-09701-220-0	01	1	9601-0308	●	●
291	CLIP; SHIFT TO SELECT,FRAME 6HH1 STD ENG(65L) (C) ID=10 & 10 M8	1-09701-220-0	01	1	0309-0406		●
291	CLIP; SHIFT TO SELECT,FRAME 6HH1 STD ENG(65L) (E)	1-09701-307-2	01	1	0407-		●
291	CLIP; SHIFT TO SELECT,FRAME 6HH1 STD ENG(65L) (B)	1-09700-621-2	01	1	9601-9602	●	●
291	CLIP; SHIFT TO SELECT,FRAME 6HH1 STD ENG(65L) (B) ID=13X2 L=32	1-09701-245-0	01	1	9603-9701	●	●
291	CLIP; SHIFT TO SELECT,FRAME 6HH1 STD ENG(65L) (B)	1-09701-258-0	01	1	9702-9702	●	●
291	CLIP; SHIFT TO SELECT,FRAME 6HH1 STD ENG(65L) (B) ID=13X2 L=32	1-09701-245-0	01	1	9703-0308	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13X2 L=32	1-09701-245-0	01	1	0309-0506		●
291	CLIP; SHIFT TO SELECT,FRAME 6HH1 STD ENG(65L) (B) ID=13X2 L=32	1-09701-312-0	01	1	0507-		●
291	CLIP; SHIFT TO SELECT,FRAME 6HH1 STD ENG(65L) (A) ID=11X2 L=16	9-09535-026-0	01	1	9601-0308	●	●
291	CLIP; SHIFT TO SELECT,FRAME 6HH1 STD ENG(65L) (A) ID=11X2 L=16	9-09535-026-0	01	1	0309-0606		●
291	CLIP; SHIFT TO SELECT,FRAME 6HH1 STD ENG(65L) (A) ID=11X2 L=16	0-95325-026-0	01	1	0607-		●
291	CLIP; SHIFT TO SELECT,FRAME 6SD1 STD ENG(37L) (D)	8-97028-508-2	01	1	9601-9809	●	●
296	BOLT; CLIP,SHIFT & SELECT 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	02	1	9601-0308	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X30 FLANGE	0-28680-830-0	02	1	0309-0512		●
296	BOLT; CLIP,SHIFT & SELECT 6HH1 STD ENG(65L) M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
296	BOLT; CLIP,SHIFT & SELECT 6SD1 STD ENG(37L) M8X16 FLANGE	0-28080-816-0	01	1	9601-0308	●	●
296	BOLT; CLIP,SHIFT & SELECT 6SD1 STD ENG(37L) M8X16 FLANGE	0-28080-816-0	02	1	9601-0004	●	●
296	BOLT; CLIP,SHIFT & SELECT 6SD1 STD ENG(37L) M8X16 FLANGE	0-28080-816-0	02	1	0005-0308	●	●
296	BOLT; CLIP,SHIFT & SELECT 6SD1 STD ENG(37L) M8X25 FLANGE	0-28080-825-0	01	1	9601-9606	●	●
296	BOLT; CLIP,SHIFT & SELECT 6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	01	1	9607-9809	●	●
297	NUT; CLIP 6SD1 STD ENG(37L) M8	9-09110-408-0	02	1	9601-9606	●	●
297	NUT; CLIP 6SD1 STD ENG(37L) M8	9-09110-408-0	02	1	9601-9606	●	●
297	NUT; CLIP 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	9607-9809	●	●
297	NUT; CLIP 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	9607-9809	●	●
297	NUT; CLIP 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	01	1	9810-0004	●	●
297	NUT; CLIP 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	0005-0308	●	●
297	NUT; CLIP 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	9810-0004	●	●
297	NUT; CLIP 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	01	1	0005-0308	●	●
298	BRACKET 6SD1 STD ENG(37L) (A)	1-47477-519-2	01	1	9601-0212	●	●
298	BRACKET 6SD1 STD ENG(37L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-47477-519-2	01	1	0301-0308	●	●
298	BRACKET 6SD1 STD ENG(37L) (B)	1-47477-520-0	01	1	9601-0308	●	●
298	BRACKET 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-36183-236-0	01	1	0301-0308	●	●
301	CLIP; WIRE 6SD1 STD ENG(37L) ID=11X2 L=16	9-09535-026-0	02	1	9601-0308	●	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	9601-0308	●	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	0309-		●
392	WASHER; LK,SELECT CABLE,CAB ID=8.2	9-09150-508-0	01	1	9601-9803	●	●
393	NUT; SELECT CABLE,CAB M8	9-09110-408-0	01	1	9601-9803	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	9804-0308	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	0309-1011		●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-062-1	01	1	1012-		●
474	BOLT; BRKT 6SD1 STD ENG(37L) (A) M8X16 FLANGE	0-28080-816-0	02	1	9601-9606	●	●
474	BOLT; BRKT 6SD1 STD ENG(37L) (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9610	●	●
474	BOLT; BRKT 6SD1 STD ENG(37L) (A) M8X25 FLANGE	0-28080-825-0	02	1	9611-9803	●	●
474	BOLT; BRKT 6SD1 STD ENG(37L) (A) M8X30 FLANGE	0-28680-830-0	02	1	9804-0308	●	●
474	BOLT; BRKT 6SD1 STD ENG(37L) (A) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●
474	BOLT; BRKT 6SD1 STD ENG(37L) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9607-0004	●	●
474	BOLT; BRKT 6SD1 STD ENG(37L) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0005-0308	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
