Sayfa 2-30 - Isuzu EPC

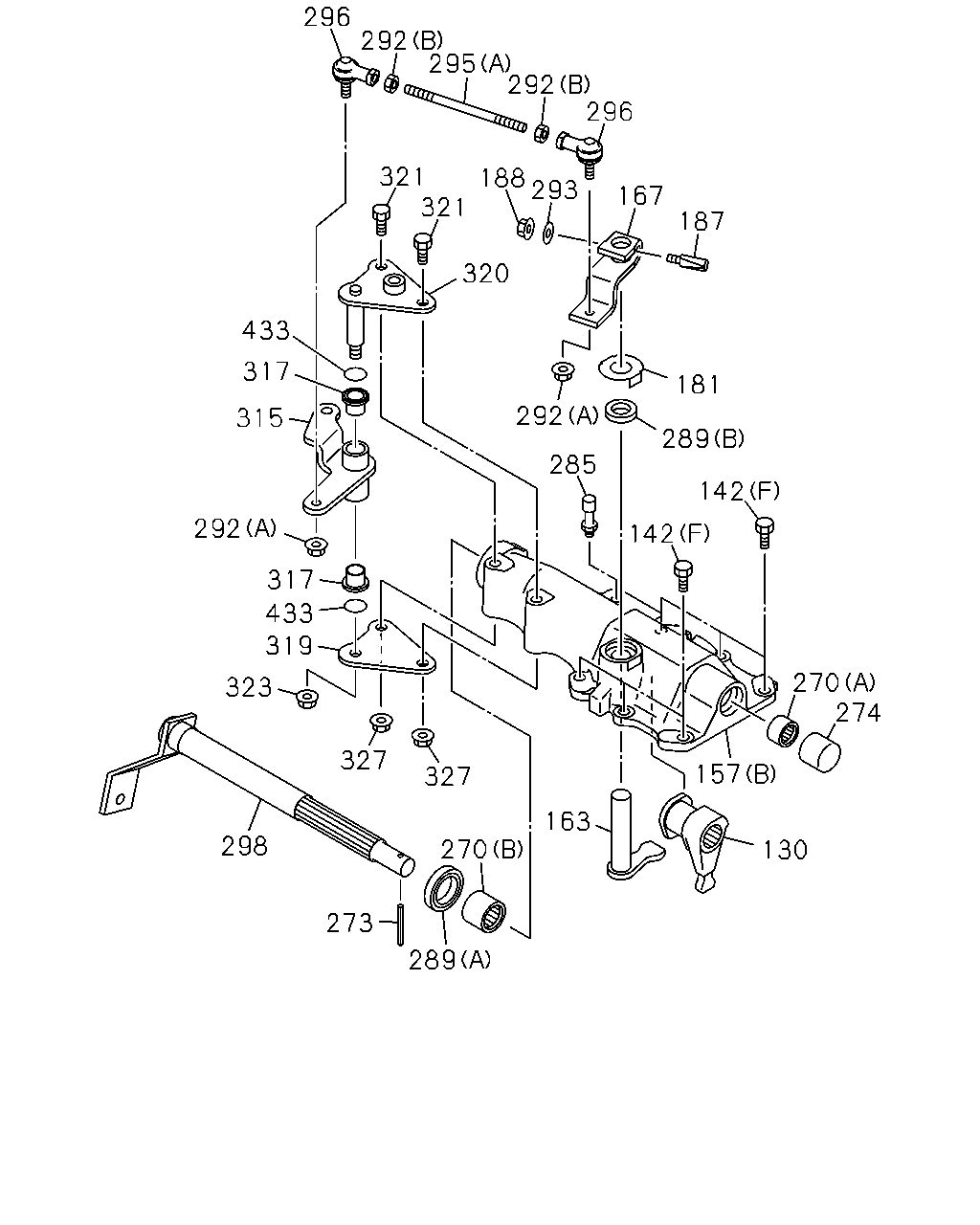

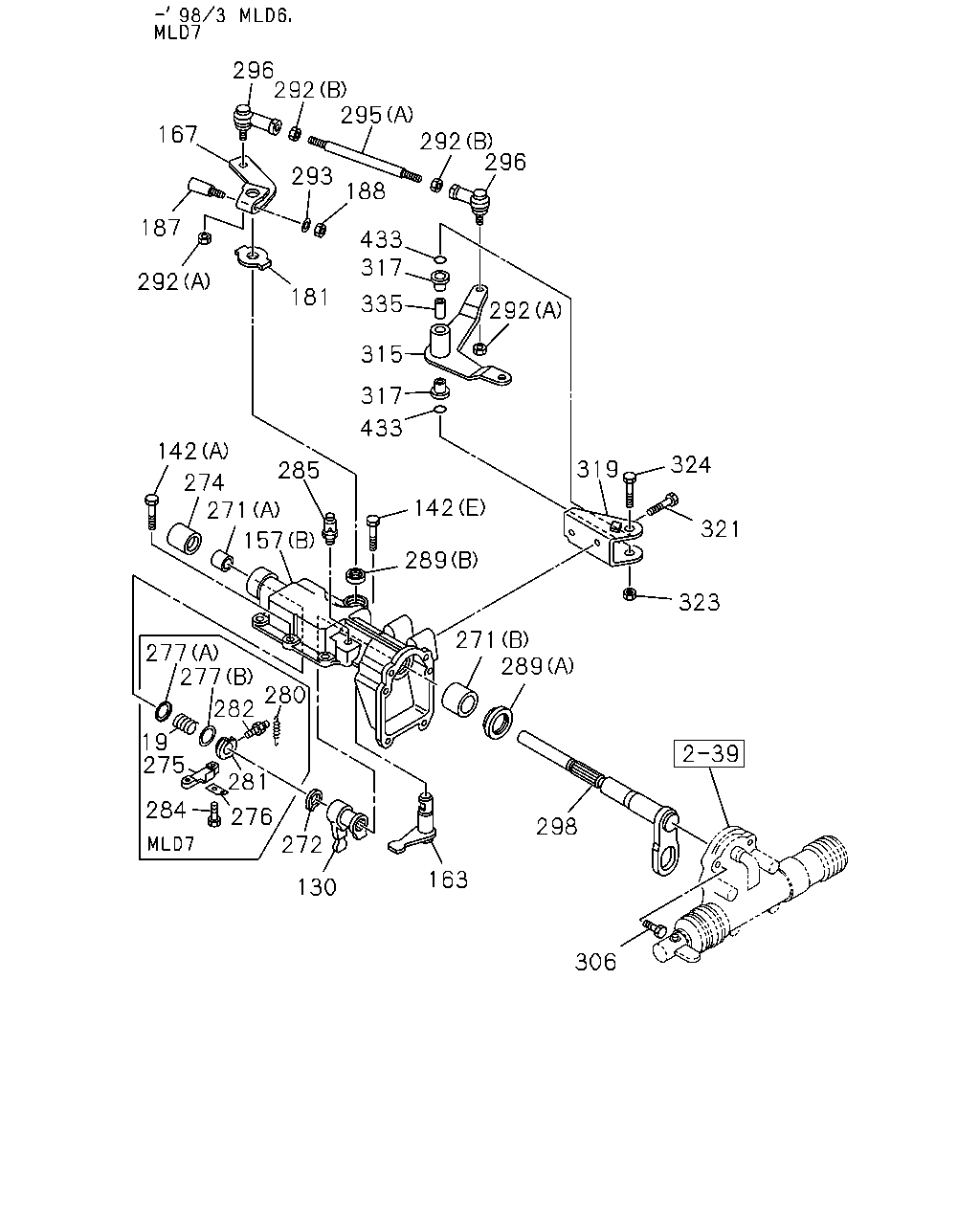

2-30 — GEAR SHIFTER AND QUADRANT BOX (#22824) — 1088 parça

296 292 295 292 296 167 293 188 187 433 317 292 292 181 335 315 317 433 142 324 319 285 274 271 142 321 157 289 323 271 289 277 277 280 282 19 275 281 284 276 272 298 163 130 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	SPRING; COIL COMP	1-09580-438-0	01	1	9601-0308	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	9601-		●
19	SPRING; COIL COMP	1-09580-531-0	01	1	9601-			●
130	LEVER; SHIFT,INTERNAL	1-33521-119-0	01	1	9601-0308	●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9601-9803		●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	9804-		●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-165-0	01	1	9804-		●
130	LEVER; SHIFT,INTERNAL	1-33521-146-0	01	1	9601-			●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	9601-0308	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	9601-0308	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9601-0308	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	9601-0308	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9601-0308	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9601-0308	●	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0309-0805		●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-		●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	04	1	9804-0512		●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28151-060-0	04	1	0601-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9601-0805		●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-		●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9601-9803		●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	03	1	9804-0512		●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9804-0512			●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-		●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-			●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9601-9803		●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9804-		●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9804-			●
157	BOX; QUAD,TRANS (B)	1-33541-256-2	01	1	9601-0308	●
157	BOX; QUAD,TRANS (A)	1-33541-345-2	01	1	9601-0308	●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9601-9601		●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	9602-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-444-0	01	1	9601-9803		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	9804-		●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-365-0	01	1	9601-9603		●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	9604-		●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9601-9601			●
157	BOX; QUAD,TRANS (A)	1-33541-482-0	01	1	9602-			●
157	BOX; QUAD,TRANS (B)	1-33541-451-0	01	1	9601-			●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	9601-0308	●		●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	9601-0308		●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	0309-		●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0309-			●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-133-0	01	1	9601-9803		●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-153-0	01	1	9804-		●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9601-0308	●		●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-0	01	1	9601-0308		●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	0309-		●
167	LEVER; SELECT,EXTERNAL	1-33521-064-1	01	1	0309-			●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-145-0	01	1	9601-9803		●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	9804-		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9601-9803	●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9804-0308	●		●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	9804-0308		●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0309-		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0309-			●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	9804-		●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9601-9803	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9804-0308	●		●
187	BOLT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X42	1-33659-045-0	01	1	9804-0308		●
187	BOLT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X42	1-33659-045-0	01	1	0309-		●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0309-			●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9601-9803	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9804-9804	●		●
188	NUT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	9804-9804		●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9805-0308	●		●
188	NUT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	01	1	9805-0308		●
188	NUT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	01	1	0309-		●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0309-			●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	9601-9803		●	●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	9804-		●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	9804-			●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	9601-9803		●	●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	9804-		●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	9804-			●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	9601-9803		●	●
272	RING; SNAP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09588-175-0	01	1	9804-		●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	9804-			●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9601-9803	●	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9804-0308	●		●
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	9-33545-017-1	01	1	9804-0308		●
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	9-33545-017-1	01	1	0309-		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0309-			●
275	BLOCK; OBSTRUCT,QUAD BOX	1-33529-063-0	01	1	9601-			●
276	PLATE; SPRING RET	1-33529-010-0	01	1	9601-			●
277	PLATE; SPRING SEAT (A)	1-33529-061-0	01	1	9601-			●
277	PLATE; SPRING SEAT (B)	9-38216-008-0	01	1	9601-9803			●
277	PLATE; SPRING SEAT (B)	1-09503-198-0	01	1	9804-			●
280	SPRING; COIL TENSION	1-09583-227-0	01	1	9601-			●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-060-0	01	1	9601-			●
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	9601-			●
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	9601-			●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9601-0308	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	9601-		●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9601-9803	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	1-09625-334-0	01	1	9804-0307	●		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-334-0	01	1	9804-0307		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	1-09625-647-0	01	1	0308-0308	●		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-647-0	01	1	0308-0308		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>. (A) OD=41	1-09625-647-0	01	1	0309-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0309-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9601-9803	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	1-09625-386-0	01	1	9804-0308	●		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30	1-09625-386-0	01	1	9804-0308		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>. (B) OD=30	1-09625-386-0	01	1	0309-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0309-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	9804-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	9804-		●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9601-9803	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9804-9804	●		●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-049-0	02	1	9804-9804		●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	9805-0308	●		●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	9805-0308		●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	0309-		●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0309-			●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9601-0308	●	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0309-0512		●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-0705		●	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8	0-91111-508-0	02	1	0706-		●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0706-			●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9601-9803	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9804-0308	●		●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	9-09160-708-0	01	1	9804-0308		●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	9-09160-708-0	01	1	0309-0605		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0309-0605			●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	0-91610-708-0	01	1	0606-		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-			●
295	ROD; LINK,RELAY LEVER (A) L=130	1-09765-262-0	01	1	9601-9803	●	●
295	ROD; LINK,RELAY LEVER (A) L=130	1-09765-262-0	01	1	9804-0308	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=130	1-09765-262-0	01	1	9804-0308		●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=130	1-09765-262-0	01	1	0309-		●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> (A)	9-08400-808-0	01	1	9804-0705		●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> (B)	8-98023-095-0	01	1	0706-		●
295	ROD; LINK,RELAY LEVER (A) L=222	9-08400-818-0	01	1	9601-			●
296	ROD END L=48	1-09760-038-1	02	1	9601-0308	●	●	●
296	ROD END L=48	1-09760-038-1	02	1	0309-0309		●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-0705		●	●
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8> L=45.5	1-09760-118-1	02	1	0706-		●
296	ROD END L=45.5	1-09760-118-1	02	1	0706-			●
298	SHAFT; SHIFT LEVER	1-33522-145-1	01	1	9601-0308	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-125-0	01	1	9601-9803		●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	9804-		●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-122-0	01	1	9601-9803		●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-166-0	01	1	9804-0307		●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-187-0	01	1	0308-		●
298	SHAFT; SHIFT LEVER	1-33522-136-0	01	1	9601-0307			●
298	SHAFT; SHIFT LEVER	1-33522-188-0	01	1	0308-			●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE	0-28181-045-0	02	1	9601-9803		●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	9601-9803			●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	9804-0512			●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28151-045-0	02	1	0601-			●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X70 FLANGE	0-28181-070-0	04	1	9601-9803		●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28181-070-0	04	1	9601-9803			●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28181-070-0	04	1	9804-0512			●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28151-070-0	04	1	0601-			●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28081-050-0	03	1	9804-0512		●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0601-		●
315	LEVER; SELECT	1-33651-669-0	01	1	9601-0308	●
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-650-0	01	1	9601-9803		●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-648-1	01	1	9601-9803		●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-702-0	01	1	9804-		●
315	LEVER; SELECT	1-33651-640-1	01	1	9601-			●
317	BUSHING; LEVER	1-09330-119-0	02	1	9601-0308	●	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0309-		●	●
319	BRACKET; SELECT LEVER	1-33657-628-0	01	1	9601-0308	●
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-603-0	01	1	9601-9803		●
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	9601-9803			●
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	9804-			●
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-515-0	01	1	9601-		●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9601-0308	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9601-0308		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	0309-0512		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10856-080-0	02	1	0601-		●
321	BOLT; BRKT,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9601-9803		●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9601-9803			●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9804-			●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9601-9803	●	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9804-0308	●		●
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-110-0	01	1	9804-0308		●
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-110-0	01	1	0309-		●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0309-			●
324	BOLT; SHAFT ASSISTOR SHIFT CONTROL<WX8> M10X60	0-10811-060-0	01	1	9601-9803		●
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	9601-			●
335	COLLAR; DIST,RELAY LEVER ASM ASSISTOR SHIFT CONTROL<WX8>	1-33659-192-0	01	1	9601-9803		●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-192-0	01	1	9601-9803			●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-192-0	01	1	9804-			●
433	GASKET; BUSHING	1-09623-594-0	02	1	9601-9803	●	●	●
433	GASKET; BUSHING	1-09623-594-0	02	1	9804-0308	●		●
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	9804-0308		●
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0309-		●
433	GASKET; BUSHING	1-09623-594-0	02	1	0309-			●

296 292 295 292 296 167 293 188 321 187 320 292 181 289 433 315 274 142 142 317 292 285 433 271 317 319 327 323 157 271 289 305 272 130 163 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
130	LEVER; SHIFT,INTERNAL	1-33521-119-0	01	1	9601-0308	●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9601-9803		●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	9804-		●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-165-0	01	1	9804-		●
130	LEVER; SHIFT,INTERNAL	1-33521-146-0	01	1	9601-			●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	9601-0308	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	9601-0308	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9601-0308	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	9601-0308	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9601-0308	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9601-0308	●	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0309-0805		●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-		●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	04	1	9804-0512		●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28151-060-0	04	1	0601-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9601-0805		●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-		●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9601-9803		●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	03	1	9804-0512		●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9804-0512			●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-		●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-			●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9601-9803		●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9804-		●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9804-			●
157	BOX; QUAD,TRANS (B)	1-33541-256-2	01	1	9601-0308	●
157	BOX; QUAD,TRANS (A)	1-33541-345-2	01	1	9601-0308	●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9601-9601		●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	9602-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-444-0	01	1	9601-9803		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	9804-		●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-365-0	01	1	9601-9603		●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	9604-		●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9601-9601			●
157	BOX; QUAD,TRANS (A)	1-33541-482-0	01	1	9602-			●
157	BOX; QUAD,TRANS (B)	1-33541-451-0	01	1	9601-			●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	9601-0308	●		●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	9601-0308		●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	0309-		●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0309-			●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-133-0	01	1	9601-9803		●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-153-0	01	1	9804-		●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9601-0308	●		●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-0	01	1	9601-0308		●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	0309-		●
167	LEVER; SELECT,EXTERNAL	1-33521-064-1	01	1	0309-			●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-145-0	01	1	9601-9803		●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	9804-		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9601-9803	●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9804-0308	●		●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	9804-0308		●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0309-		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0309-			●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	9804-		●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9601-9803	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9804-0308	●		●
187	BOLT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X42	1-33659-045-0	01	1	9804-0308		●
187	BOLT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X42	1-33659-045-0	01	1	0309-		●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0309-			●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9601-9803	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9804-9804	●		●
188	NUT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	9804-9804		●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9805-0308	●		●
188	NUT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	01	1	9805-0308		●
188	NUT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	01	1	0309-		●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0309-			●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	9601-9803		●	●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	9804-		●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	9804-			●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	9601-9803		●	●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	9804-		●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	9804-			●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	9601-9803		●	●
272	RING; SNAP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09588-175-0	01	1	9804-		●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	9804-			●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9601-9803	●	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9804-0308	●		●
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	9-33545-017-1	01	1	9804-0308		●
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	9-33545-017-1	01	1	0309-		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0309-			●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9601-0308	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	9601-		●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9601-9803	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	1-09625-334-0	01	1	9804-0307	●		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-334-0	01	1	9804-0307		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	1-09625-647-0	01	1	0308-0308	●		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-647-0	01	1	0308-0308		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>. (A) OD=41	1-09625-647-0	01	1	0309-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0309-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9601-9803	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	1-09625-386-0	01	1	9804-0308	●		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30	1-09625-386-0	01	1	9804-0308		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>. (B) OD=30	1-09625-386-0	01	1	0309-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0309-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	9804-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	9804-		●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9601-9803	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9804-9804	●		●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-049-0	02	1	9804-9804		●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	9805-0308	●		●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	9805-0308		●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	0309-		●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0309-			●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9601-0308	●	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0309-0512		●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-0705		●	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8	0-91111-508-0	02	1	0706-		●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0706-			●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9601-9803	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9804-0308	●		●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	9-09160-708-0	01	1	9804-0308		●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	9-09160-708-0	01	1	0309-0605		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0309-0605			●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	0-91610-708-0	01	1	0606-		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-			●
295	ROD; LINK,RELAY LEVER (A) L=130	1-09765-262-0	01	1	9601-9803	●	●
295	ROD; LINK,RELAY LEVER (A) L=130	1-09765-262-0	01	1	9804-0308	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=130	1-09765-262-0	01	1	9804-0308		●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=130	1-09765-262-0	01	1	0309-		●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> (A)	9-08400-808-0	01	1	9804-0705		●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> (B)	8-98023-095-0	01	1	0706-		●
295	ROD; LINK,RELAY LEVER (A) L=222	9-08400-818-0	01	1	9601-			●
296	ROD END L=48	1-09760-038-1	02	1	9601-0308	●	●	●
296	ROD END L=48	1-09760-038-1	02	1	0309-0309		●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-0705		●	●
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8> L=45.5	1-09760-118-1	02	1	0706-		●
296	ROD END L=45.5	1-09760-118-1	02	1	0706-			●
298	SHAFT; SHIFT LEVER	1-33522-145-1	01	1	9601-0308	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-125-0	01	1	9601-9803		●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	9804-		●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-122-0	01	1	9601-9803		●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-166-0	01	1	9804-0307		●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-187-0	01	1	0308-		●
298	SHAFT; SHIFT LEVER	1-33522-136-0	01	1	9601-0307			●
298	SHAFT; SHIFT LEVER	1-33522-188-0	01	1	0308-			●
305	BOOT; LEVER SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33529-028-0	01	1	9601-		●
315	LEVER; SELECT	1-33651-669-0	01	1	9601-0308	●
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-650-0	01	1	9601-9803		●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-648-1	01	1	9601-9803		●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-702-0	01	1	9804-		●
315	LEVER; SELECT	1-33651-640-1	01	1	9601-			●
317	BUSHING; LEVER	1-09330-119-0	02	1	9601-0308	●	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0309-		●	●
319	BRACKET; SELECT LEVER	1-33657-628-0	01	1	9601-0308	●
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-603-0	01	1	9601-9803		●
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	9601-9803			●
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	9804-			●
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-515-0	01	1	9601-		●
320	SHAFT; LEVER	1-33619-537-0	01	1	9601-0308	●
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-474-0	01	1	9601-		●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9601-0308	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9601-0308		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	0309-0512		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10856-080-0	02	1	0601-		●
321	BOLT; BRKT,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9601-9803		●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9601-9803			●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9804-			●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9601-9803	●	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9804-0308	●		●
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-110-0	01	1	9804-0308		●
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-110-0	01	1	0309-		●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0309-			●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	9601-0308	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	9601-0308		●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	0309-0602		●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	02	1	0603-		●
433	GASKET; BUSHING	1-09623-594-0	02	1	9601-9803	●	●	●
433	GASKET; BUSHING	1-09623-594-0	02	1	9804-0308	●		●
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	9804-0308		●
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0309-		●
433	GASKET; BUSHING	1-09623-594-0	02	1	0309-			●

142 218 142 142 221 218 158 398 223 225 142 171 142 224 162 22 21 54 2 18 28 162 17 133 38 39 157 142 16 30 53 19 20 217 17 16 1 25 53 54 28 29 16 26 30 219 227 16 53 49 53 1 54 28 34 53 16 30 28 53 50 16 16 53 15 13 5 2 3 4 4 9 11 16 53 6 12 440 10 7 521

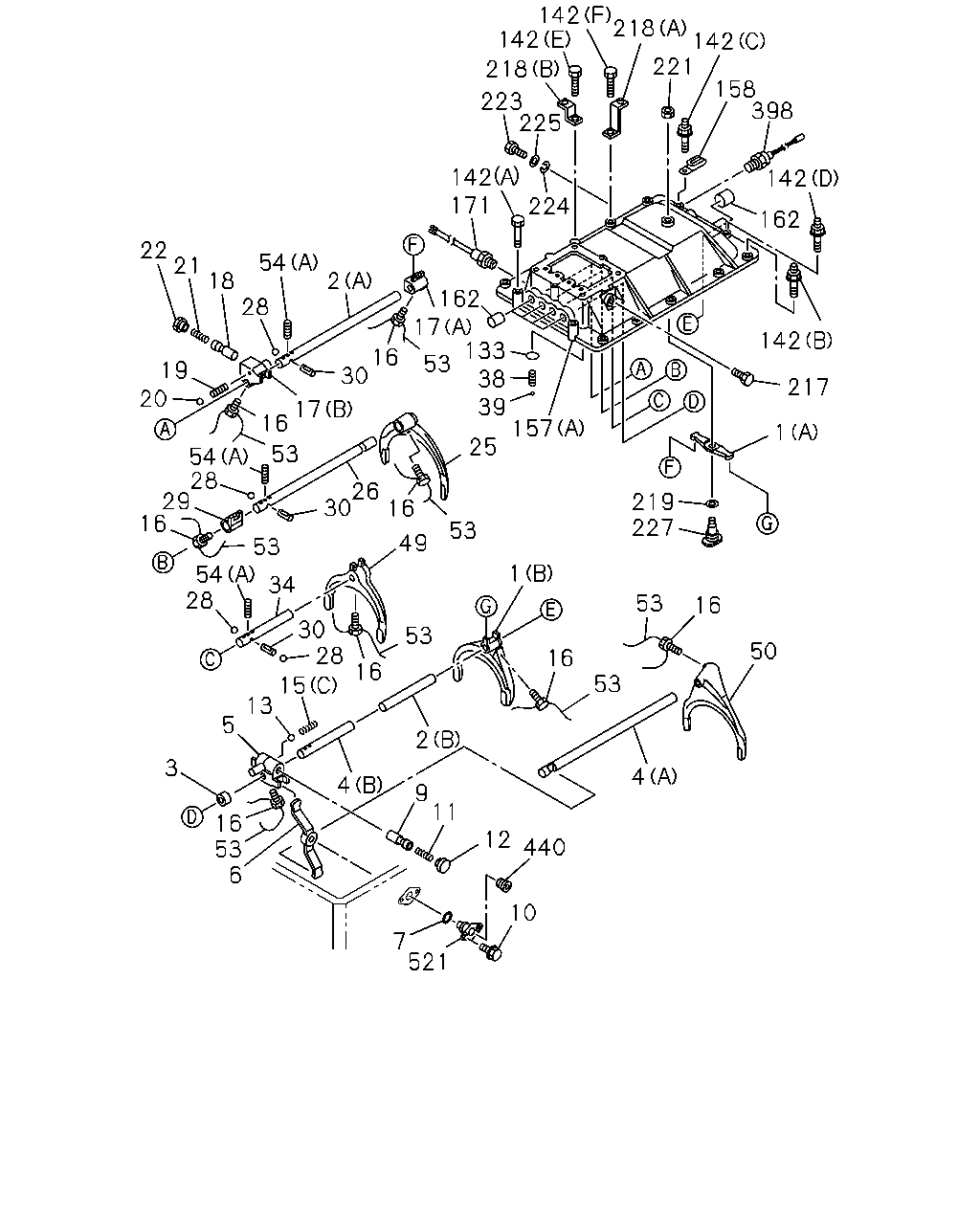

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ARM; SHIFT,1ST & REV (A)	1-33511-082-0	01	1	9601-9610	●
1	ARM; SHIFT,1ST & REV (A)	1-33511-541-0	01	1	9611-0308	●
1	ARM; SHIFT,1ST & REV (B)	1-33511-458-0	01	1	9601-0308	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-298-1	01	1	9601-9603	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-400-1	01	1	9604-0308	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-366-1	01	1	9601-9603	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-399-1	01	1	9604-9610	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-415-1	01	1	9611-0308	●
3	STOPPER; 6TH SHIFT ROD	9-33537-018-0	01	1	9601-0308	●
4	ROD; SHIFT,6TH (B)	1-33531-328-1	01	1	9601-9603	●
4	ROD; SHIFT,6TH (B)	1-33531-405-1	01	1	9604-0308	●
4	ROD; SHIFT,6TH (A)	1-33531-336-1	01	1	9601-9603	●
4	ROD; SHIFT,6TH (A)	1-33531-407-1	01	1	9604-0308	●
5	BLOCK; SHIFT,6TH	1-33511-372-2	01	1	9601-0308	●
6	LEVER; RELAY	9-33511-402-1	01	1	9601-0308	●
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33651-686-2	01	1	9804-		●
6	LEVER; RELAY	1-33511-009-1	01	1	9601-			●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	9601-0308	●		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0309-			●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-022-1	01	1	9601-0308	●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	9601-0308	●		●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	0309-			●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9601-0308	●	●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9601-0308			●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0309-		●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0309-			●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9601-9604	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9605-0308	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9601-9604			●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9605-		●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9601-0308	●	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0309-		●	●
15	SPRING; LK,SHIFT SLEEVE (C)	9-09941-007-0	01	1	9601-0308	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	9601-9702		●	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	9703-		●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-440-0	01	1	9601-			●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-553-0	01	1	9703-			●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 NO-HOLE	1-09052-032-1	08	1	9601-9601	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20	1-09052-039-0	08	1	9601-9803	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	08	1	9804-0308	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-038-2	01	1	9601-9610	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-540-0	01	1	9611-0308	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-4	01	1	9601-0308	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	9601-0308	●
19	SPRING; COIL COMP	1-09580-438-0	01	1	9601-0308	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	9601-		●
19	SPRING; COIL COMP	1-09580-531-0	01	1	9601-			●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9601-0308	●	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0309-		●	●
21	SPRING; COIL COMP SLEEVE	1-09580-444-0	01	1	9601-0308	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	9601-		●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9601-0308	●		●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0309-			●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9601-		●
25	ARM; SHIFT,2ND & 3RD	1-33511-440-0	01	1	9601-0308	●
26	ROD; SHIFT,2ND & 3RD	1-33531-365-1	01	1	9601-9603	●
26	ROD; SHIFT,2ND & 3RD	1-33531-401-1	01	1	9604-0308	●
28	BALL; INTER LK	9-00097-501-0	04	1	9601-0308	●	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	0309-		●	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	9601-0308	●
30	PIN; INTER LK	9-33534-003-0	03	1	9601-0308	●	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	0309-		●	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-368-1	01	1	9601-9603	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-402-1	01	1	9604-0308	●
38	SPRING; DETENT	1-09580-379-0	04	1	9601-9803	●		●
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8>	1-09580-379-0	04	1	9601-9803		●
38	SPRING; DETENT	1-09580-379-0	04	1	9804-9904	●		●
38	SPRING; DETENT	1-09580-379-0	04	1	9905-0308	●		●
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8>	1-09580-379-0	04	1	9905-0308		●
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8>	1-09580-379-0	04	1	0309-		●
38	SPRING; DETENT	1-09580-379-0	04	1	0309-			●
38	SPRING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09580-419-0	04	1	9601-9803		●
38	SPRING; DETENT	1-09580-419-0	04	1	9804-9904		●
38	SPRING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09580-419-0	04	1	9905-		●
39	BALL; DETENT	1-09843-012-0	04	1	9601-0308	●	●	●
39	BALL; DETENT	1-09843-012-0	04	1	0309-		●	●
49	ARM; SHIFT,4TH & 5TH	1-33511-461-0	01	1	9601-0308	●
50	ARM; SHIFT,6TH	1-33511-185-3	01	1	9601-0308	●
53	WIRE; BOLT L=180	1-09780-024-0	06	1	9804-0308	●
53	WIRE; BOLT L=200	9-08351-020-0	02	1	9804-0308	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9601-0308	●	●	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	0309-		●	●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9601-0201		●
133	SEAT; SPR	1-33549-072-0	04	1	9601-0308	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	9601-0308	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	9601-0308	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9601-0308	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	9601-0308	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9601-0308	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9601-0308	●	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0309-0805		●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-		●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	04	1	9804-0512		●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28151-060-0	04	1	0601-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9601-0805		●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-		●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9601-9803		●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	03	1	9804-0512		●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9804-0512			●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-		●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-			●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9601-9803		●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9804-		●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9804-			●
157	BOX; QUAD,TRANS (B)	1-33541-256-2	01	1	9601-0308	●
157	BOX; QUAD,TRANS (A)	1-33541-345-2	01	1	9601-0308	●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9601-9601		●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	9602-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-444-0	01	1	9601-9803		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	9804-		●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-365-0	01	1	9601-9603		●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	9604-		●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9601-9601			●
157	BOX; QUAD,TRANS (A)	1-33541-482-0	01	1	9602-			●
157	BOX; QUAD,TRANS (B)	1-33541-451-0	01	1	9601-			●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	9601-0308	●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	9601-0308	●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9601-0308	●	●	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0309-0702		●	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801		●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104		●	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109		●	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-		●	●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	9601-0308	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	9601-0308	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	9601-0308	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-639-1	01	1	9601-		●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (D)	1-82699-663-1	01	1	9601-		●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (E)	1-82699-733-0	01	1	9601-		●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9601-0308	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0309-		●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9601-0308	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0309-0602		●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-		●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9601-0308	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0309-		●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9601-0308	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0309-0605		●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-		●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9601-0308	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0309-0603		●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-		●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9601-0308	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0309-		●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	9601-0308	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9601-0602		●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209		●	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-		●	●
440	PLUG; OIL PT1/4	9-99204-513-0	01	1	9601-0308	●
521	SPINDLE; 6TH	1-33119-255-0	01	1	9601-0308	●

142 218 142 218 398 218 142 413 223 225 224 142 221 42 171 142 219 227 42 78 157 42 38 54 89 39 28 85 82 38 22 21 13 54 39 33 30 28 30 28 86 86 54 65 38 62 39 31 15 20 86 54 66 11 38 30 86 39 28 68 12 86 80 67 86 86 78 61 19 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9601-0308	●	●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9601-0308			●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0309-		●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0309-			●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9601-9604	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9605-0308	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9601-9604			●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9605-		●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9601-0308	●	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0309-		●	●
15	SPRING; LK,SHIFT SLEEVE (C)	9-09941-007-0	01	1	9601-0308	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	9601-9702		●	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	9703-		●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-440-0	01	1	9601-			●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-553-0	01	1	9703-			●
19	SPRING; COIL COMP	1-09580-438-0	01	1	9601-0308	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	9601-		●
19	SPRING; COIL COMP	1-09580-531-0	01	1	9601-			●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9601-0308	●	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0309-		●	●
21	SPRING; COIL COMP SLEEVE	1-09580-444-0	01	1	9601-0308	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	9601-		●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9601-0308	●		●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0309-			●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9601-		●
28	BALL; INTER LK	9-00097-501-0	04	1	9601-0308	●	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	0309-		●	●
30	PIN; INTER LK	9-33534-003-0	03	1	9601-0308	●	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	0309-		●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	9601-		●
31	ARM; SHIFT,LOW & 2ND	1-33511-426-0	01	1	9601-			●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	9601-1202		●
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-		●
33	ROD; SHIFT,LOW & 2ND	1-33531-246-2	01	1	9601-1202			●
33	ROD; SHIFT,LOW & 2ND	8-98207-577-0	01	1	1203-			●
38	SPRING; DETENT	1-09580-379-0	04	1	9601-9803	●		●
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8>	1-09580-379-0	04	1	9601-9803		●
38	SPRING; DETENT	1-09580-379-0	04	1	9804-9904	●		●
38	SPRING; DETENT	1-09580-379-0	04	1	9905-0308	●		●
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8>	1-09580-379-0	04	1	9905-0308		●
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8>	1-09580-379-0	04	1	0309-		●
38	SPRING; DETENT	1-09580-379-0	04	1	0309-			●
38	SPRING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09580-419-0	04	1	9601-9803		●
38	SPRING; DETENT	1-09580-419-0	04	1	9804-9904		●
38	SPRING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09580-419-0	04	1	9905-		●
39	BALL; DETENT	1-09843-012-0	04	1	9601-0308	●	●	●
39	BALL; DETENT	1-09843-012-0	04	1	0309-		●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9601-		●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9601-			●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9601-0308	●	●	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	0309-		●	●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9601-0201		●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	9601-		●
61	ARM; SHIFT,3RD & 4TH	1-33511-491-2	01	1	9601-			●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	9601-1202		●
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-		●
62	ROD; SHIFT,3RD & 4TH	1-33531-247-0	01	1	9601-1202			●
62	ROD; SHIFT,3RD & 4TH	8-98207-585-0	01	1	1203-			●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-357-1	01	1	9601-9602		●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-513-0	01	1	9603-		●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-331-3	01	1	9601-			●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	9601-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-489-1	01	1	9601-			●
67	ROD; SHIFT,5TH & 6TH L=278	1-33531-255-1	01	1	9601-1202		●
67	ROD; SHIFT,5TH & 6TH L=278	8-98207-589-0	01	1	1203-		●
67	ROD; SHIFT,5TH & 6TH L=407	1-33531-248-0	01	1	9601-1202			●
67	ROD; SHIFT,5TH & 6TH L=407	8-98207-588-0	01	1	1203-			●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	9601-		●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9601-		●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	9601-		●
78	ARM; SHIFT,REV (C)	1-33511-232-5	01	1	9601-			●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	9601-1202		●
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-		●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	9601-		●
84	SLEEVE; REV	1-33516-025-0	01	1	9601-		●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	9601-		●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	07	1	9601-9601		●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	07	1	9601-		●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	09	1	9601-9601			●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	9601-			●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	9601-1202		●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-		●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	9601-0308	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	9601-0308	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9601-0308	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	9601-0308	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9601-0308	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9601-0308	●	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0309-0805		●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-		●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	04	1	9804-0512		●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28151-060-0	04	1	0601-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9601-0805		●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-		●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9601-9803		●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	03	1	9804-0512		●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9804-0512			●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-		●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-			●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9601-9803		●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9804-		●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9804-			●
157	BOX; QUAD,TRANS (B)	1-33541-256-2	01	1	9601-0308	●
157	BOX; QUAD,TRANS (A)	1-33541-345-2	01	1	9601-0308	●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9601-9601		●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	9602-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-444-0	01	1	9601-9803		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	9804-		●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-365-0	01	1	9601-9603		●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	9604-		●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9601-9601			●
157	BOX; QUAD,TRANS (A)	1-33541-482-0	01	1	9602-			●
157	BOX; QUAD,TRANS (B)	1-33541-451-0	01	1	9601-			●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9601-0308	●	●	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0309-0702		●	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801		●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104		●	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109		●	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-		●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	9601-0308	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	9601-0308	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-639-1	01	1	9601-		●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (D)	1-82699-663-1	01	1	9601-		●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (E)	1-82699-733-0	01	1	9601-		●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9601-0308	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0309-		●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9601-0308	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0309-0602		●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-		●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9601-0308	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0309-		●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9601-0308	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0309-0605		●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-		●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9601-0308	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0309-0603		●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-		●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9601-0308	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0309-		●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	9601-0308	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9601-0602		●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209		●	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-		●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9601-		●	●

296 292 295 292 296 321 321 188 293 167 187 320 433 317 181 292 315 289 285 142 292 142 317 433 319 270 274 323 327 157 327 163 298 270 130 273 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
130	LEVER; SHIFT,INTERNAL	1-33521-119-0	01	1	9601-0308	●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9601-9803		●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	9804-		●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-165-0	01	1	9804-		●
130	LEVER; SHIFT,INTERNAL	1-33521-146-0	01	1	9601-			●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	9601-0308	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	9601-0308	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9601-0308	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	9601-0308	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9601-0308	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9601-0308	●	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0309-0805		●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-		●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	04	1	9804-0512		●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28151-060-0	04	1	0601-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9601-0805		●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-		●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9601-9803		●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	03	1	9804-0512		●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9804-0512			●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-		●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-			●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9601-9803		●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9804-		●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9804-			●
157	BOX; QUAD,TRANS (B)	1-33541-256-2	01	1	9601-0308	●
157	BOX; QUAD,TRANS (A)	1-33541-345-2	01	1	9601-0308	●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9601-9601		●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	9602-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-444-0	01	1	9601-9803		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	9804-		●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-365-0	01	1	9601-9603		●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	9604-		●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9601-9601			●
157	BOX; QUAD,TRANS (A)	1-33541-482-0	01	1	9602-			●
157	BOX; QUAD,TRANS (B)	1-33541-451-0	01	1	9601-			●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	9601-0308	●		●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	9601-0308		●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	0309-		●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0309-			●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-133-0	01	1	9601-9803		●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-153-0	01	1	9804-		●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9601-0308	●		●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-0	01	1	9601-0308		●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	0309-		●
167	LEVER; SELECT,EXTERNAL	1-33521-064-1	01	1	0309-			●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-145-0	01	1	9601-9803		●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	9804-		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9601-9803	●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9804-0308	●		●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	9804-0308		●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0309-		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0309-			●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	9804-		●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9601-9803	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9804-0308	●		●
187	BOLT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X42	1-33659-045-0	01	1	9804-0308		●
187	BOLT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X42	1-33659-045-0	01	1	0309-		●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0309-			●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9601-9803	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9804-9804	●		●
188	NUT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	9804-9804		●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9805-0308	●		●
188	NUT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	01	1	9805-0308		●
188	NUT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	01	1	0309-		●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0309-			●
270	BEARING; NEEDLE,QUAD BOX (A) NTN	1-09811-006-0	01	1	9601-0308	●
270	BEARING; NEEDLE,QUAD BOX (A) NSK	1-09811-057-0	01	1	9601-0308	●
270	BEARING; NEEDLE,QUAD BOX (B) NTN	1-09811-260-0	01	1	9601-0308	●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	9601-0308	●
273	PIN; SPR,STOPPER ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4	1-09748-031-0	01	1	9804-		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9601-9803	●	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9804-0308	●		●
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	9-33545-017-1	01	1	9804-0308		●
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	9-33545-017-1	01	1	0309-		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0309-			●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9601-0308	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	9601-		●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9601-9803	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	1-09625-334-0	01	1	9804-0307	●		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-334-0	01	1	9804-0307		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	1-09625-647-0	01	1	0308-0308	●		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-647-0	01	1	0308-0308		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>. (A) OD=41	1-09625-647-0	01	1	0309-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0309-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9601-9803	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	1-09625-386-0	01	1	9804-0308	●		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30	1-09625-386-0	01	1	9804-0308		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>. (B) OD=30	1-09625-386-0	01	1	0309-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0309-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	9804-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	9804-		●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9601-9803	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9804-9804	●		●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-049-0	02	1	9804-9804		●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	9805-0308	●		●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	9805-0308		●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	0309-		●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0309-			●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9601-0308	●	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0309-0512		●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-0705		●	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8	0-91111-508-0	02	1	0706-		●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0706-			●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9601-9803	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9804-0308	●		●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	9-09160-708-0	01	1	9804-0308		●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	9-09160-708-0	01	1	0309-0605		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0309-0605			●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	0-91610-708-0	01	1	0606-		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-			●
295	ROD; LINK,RELAY LEVER (A) L=130	1-09765-262-0	01	1	9601-9803	●	●
295	ROD; LINK,RELAY LEVER (A) L=130	1-09765-262-0	01	1	9804-0308	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=130	1-09765-262-0	01	1	9804-0308		●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=130	1-09765-262-0	01	1	0309-		●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> (A)	9-08400-808-0	01	1	9804-0705		●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> (B)	8-98023-095-0	01	1	0706-		●
295	ROD; LINK,RELAY LEVER (A) L=222	9-08400-818-0	01	1	9601-			●
296	ROD END L=48	1-09760-038-1	02	1	9601-0308	●	●	●
296	ROD END L=48	1-09760-038-1	02	1	0309-0309		●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-0705		●	●
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8> L=45.5	1-09760-118-1	02	1	0706-		●
296	ROD END L=45.5	1-09760-118-1	02	1	0706-			●
298	SHAFT; SHIFT LEVER	1-33522-145-1	01	1	9601-0308	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-125-0	01	1	9601-9803		●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	9804-		●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-122-0	01	1	9601-9803		●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-166-0	01	1	9804-0307		●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-187-0	01	1	0308-		●
298	SHAFT; SHIFT LEVER	1-33522-136-0	01	1	9601-0307			●
298	SHAFT; SHIFT LEVER	1-33522-188-0	01	1	0308-			●
315	LEVER; SELECT	1-33651-669-0	01	1	9601-0308	●
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-650-0	01	1	9601-9803		●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-648-1	01	1	9601-9803		●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-702-0	01	1	9804-		●
315	LEVER; SELECT	1-33651-640-1	01	1	9601-			●
317	BUSHING; LEVER	1-09330-119-0	02	1	9601-0308	●	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0309-		●	●
319	BRACKET; SELECT LEVER	1-33657-628-0	01	1	9601-0308	●
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-603-0	01	1	9601-9803		●
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	9601-9803			●
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	9804-			●
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-515-0	01	1	9601-		●
320	SHAFT; LEVER	1-33619-537-0	01	1	9601-0308	●
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-474-0	01	1	9601-		●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9601-0308	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9601-0308		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	0309-0512		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10856-080-0	02	1	0601-		●
321	BOLT; BRKT,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9601-9803		●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9601-9803			●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9804-			●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9601-9803	●	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9804-0308	●		●
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-110-0	01	1	9804-0308		●
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-110-0	01	1	0309-		●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0309-			●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	9601-0308	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	9601-0308		●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	0309-0602		●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	02	1	0603-		●
433	GASKET; BUSHING	1-09623-594-0	02	1	9601-9803	●	●	●
433	GASKET; BUSHING	1-09623-594-0	02	1	9804-0308	●		●
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	9804-0308		●
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0309-		●
433	GASKET; BUSHING	1-09623-594-0	02	1	0309-			●

142 218 218 142 398 42 42 42 42 413 171 142 218 142 142 42 42 157 42 38 38 39 54 12 31 11 55 39 54 33 30 28 28 66 38 30 39 28 67 54 51 15 20 62 30 28 38 86 39 75 61 15 76 65 13 77 11 22 75 87 78 88 6 7 10 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	LEVER; RELAY	9-33511-402-1	01	1	9601-0308	●
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33651-686-2	01	1	9804-		●
6	LEVER; RELAY	1-33511-009-1	01	1	9601-			●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	9601-0308	●		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0309-			●
8	SPINDLE; REV & 7TH	9-33513-022-1	01	1	9601-			●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	9601-0308	●		●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	0309-			●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9601-0308	●	●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9601-0308			●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0309-		●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0309-			●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9601-9604	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9605-0308	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9601-9604			●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9605-		●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9601-0308	●	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0309-		●	●
15	SPRING; LK,SHIFT SLEEVE (C)	9-09941-007-0	01	1	9601-0308	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	9601-9702		●	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	9703-		●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-440-0	01	1	9601-			●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-553-0	01	1	9703-			●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9601-0308	●	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0309-		●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9601-0308	●		●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0309-			●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9601-		●
28	BALL; INTER LK	9-00097-501-0	04	1	9601-0308	●	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	0309-		●	●
30	PIN; INTER LK	9-33534-003-0	03	1	9601-0308	●	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	0309-		●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	9601-		●
31	ARM; SHIFT,LOW & 2ND	1-33511-426-0	01	1	9601-			●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	9601-1202		●
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-		●
33	ROD; SHIFT,LOW & 2ND	1-33531-246-2	01	1	9601-1202			●
33	ROD; SHIFT,LOW & 2ND	8-98207-577-0	01	1	1203-			●
38	SPRING; DETENT	1-09580-379-0	04	1	9601-9803	●		●
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8>	1-09580-379-0	04	1	9601-9803		●
38	SPRING; DETENT	1-09580-379-0	04	1	9804-9904	●		●
38	SPRING; DETENT	1-09580-379-0	04	1	9905-0308	●		●
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8>	1-09580-379-0	04	1	9905-0308		●
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8>	1-09580-379-0	04	1	0309-		●
38	SPRING; DETENT	1-09580-379-0	04	1	0309-			●
38	SPRING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09580-419-0	04	1	9601-9803		●
38	SPRING; DETENT	1-09580-419-0	04	1	9804-9904		●
38	SPRING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09580-419-0	04	1	9905-		●
39	BALL; DETENT	1-09843-012-0	04	1	9601-0308	●	●	●
39	BALL; DETENT	1-09843-012-0	04	1	0309-		●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9601-		●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9601-			●
51	BLOCK; SHIFT,1ST & 2ND	1-33511-311-2	01	1	9601-			●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9601-0308	●	●	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	0309-		●	●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9601-0201		●
55	SLEEVE; 1ST & 2ND	1-33516-025-0	01	1	9601-			●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	9601-		●
61	ARM; SHIFT,3RD & 4TH	1-33511-491-2	01	1	9601-			●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	9601-1202		●
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-		●
62	ROD; SHIFT,3RD & 4TH	1-33531-247-0	01	1	9601-1202			●
62	ROD; SHIFT,3RD & 4TH	8-98207-585-0	01	1	1203-			●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-357-1	01	1	9601-9602		●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-513-0	01	1	9603-		●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-331-3	01	1	9601-			●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	9601-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-489-1	01	1	9601-			●
67	ROD; SHIFT,5TH & 6TH L=278	1-33531-255-1	01	1	9601-1202		●
67	ROD; SHIFT,5TH & 6TH L=278	8-98207-589-0	01	1	1203-		●
67	ROD; SHIFT,5TH & 6TH L=407	1-33531-248-0	01	1	9601-1202			●
67	ROD; SHIFT,5TH & 6TH L=407	8-98207-588-0	01	1	1203-			●
75	BLOCK ASM; SHIFT,REV & 7TH (A)	1-33511-202-3	01	1	9601-			●
75	BLOCK ASM; SHIFT,REV & 7TH (B)	1-33511-309-1	01	1	9601-			●
76	ROD; SHIFT,REV & 7TH BLOCK	1-33531-249-0	01	1	9601-1202			●
76	ROD; SHIFT,REV & 7TH BLOCK	8-98207-591-0	01	1	1203-			●
77	SLEEVE; REV & 7TH	1-33516-025-0	01	1	9601-			●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9601-		●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	9601-		●
78	ARM; SHIFT,REV (C)	1-33511-232-5	01	1	9601-			●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	07	1	9601-9601		●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	07	1	9601-		●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	09	1	9601-9601			●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	9601-			●
87	ARM; SHIFT,7TH	1-33511-229-4	01	1	9601-			●
88	ROD; SHIFT,REV & 7TH ARM	1-33531-250-0	01	1	9601-1202			●
88	ROD; SHIFT,REV & 7TH ARM	8-98207-592-0	01	1	1203-			●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	9601-0308	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	9601-0308	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9601-0308	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	9601-0308	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9601-0308	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9601-0308	●	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0309-0805		●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-		●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	04	1	9804-0512		●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28151-060-0	04	1	0601-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9601-0805		●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-		●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9601-9803		●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	03	1	9804-0512		●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9804-0512			●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-		●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-			●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9601-9803		●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9804-		●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9804-			●
157	BOX; QUAD,TRANS (B)	1-33541-256-2	01	1	9601-0308	●
157	BOX; QUAD,TRANS (A)	1-33541-345-2	01	1	9601-0308	●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9601-9601		●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	9602-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-444-0	01	1	9601-9803		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	9804-		●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-365-0	01	1	9601-9603		●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	9604-		●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9601-9601			●
157	BOX; QUAD,TRANS (A)	1-33541-482-0	01	1	9602-			●
157	BOX; QUAD,TRANS (B)	1-33541-451-0	01	1	9601-			●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9601-0308	●	●	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0309-0702		●	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801		●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104		●	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109		●	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-		●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	9601-0308	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	9601-0308	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-639-1	01	1	9601-		●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (D)	1-82699-663-1	01	1	9601-		●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (E)	1-82699-733-0	01	1	9601-		●	●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	9601-0308	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9601-0602		●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209		●	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-		●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9601-		●	●

295 296 292 292 296 167 295 166 59 181 289 59 285 6 142 157 189 142 306 317 142 273 289 298 59 322 317 189 333 58 130 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	LEVER; RELAY	9-33511-402-1	01	1	9601-0308	●
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33651-686-2	01	1	9804-		●
6	LEVER; RELAY	1-33511-009-1	01	1	9601-			●
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-110-0	01	1	9804-0602		●
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	0603-		●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	0-91150-108-0	02	1	9804-0602		●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	0-91180-108-0	02	1	0603-		●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M12	9-99110-412-0	01	1	9804-0512		●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M12	0-91110-512-0	01	1	0601-		●
130	LEVER; SHIFT,INTERNAL	1-33521-119-0	01	1	9601-0308	●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9601-9803		●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	9804-		●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-165-0	01	1	9804-		●
130	LEVER; SHIFT,INTERNAL	1-33521-146-0	01	1	9601-			●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	9601-0308	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	9601-0308	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9601-0308	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	9601-0308	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9601-0308	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9601-0308	●	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0309-0805		●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-		●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	04	1	9804-0512		●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28151-060-0	04	1	0601-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9601-0805		●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-		●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9601-9803		●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	03	1	9804-0512		●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28181-060-0	03	1	9804-0512			●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-		●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-			●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9601-9803		●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9804-		●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	9804-			●
157	BOX; QUAD,TRANS (B)	1-33541-256-2	01	1	9601-0308	●
157	BOX; QUAD,TRANS (A)	1-33541-345-2	01	1	9601-0308	●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9601-9601		●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	9602-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-444-0	01	1	9601-9803		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	9804-		●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-365-0	01	1	9601-9603		●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	9604-		●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9601-9601			●
157	BOX; QUAD,TRANS (A)	1-33541-482-0	01	1	9602-			●
157	BOX; QUAD,TRANS (B)	1-33541-451-0	01	1	9601-			●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	9601-0308	●		●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	9601-0308		●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	0309-		●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0309-			●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-133-0	01	1	9601-9803		●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-153-0	01	1	9804-		●
166	PIN; SPR,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8> L=25 OD=5	1-09748-032-0	01	1	9804-		●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9601-0308	●		●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-0	01	1	9601-0308		●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	0309-		●
167	LEVER; SELECT,EXTERNAL	1-33521-064-1	01	1	0309-			●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-145-0	01	1	9601-9803		●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	9804-		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9601-9803	●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9804-0308	●		●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	9804-0308		●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0309-		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0309-			●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	9804-		●
189	GASKET; SELECT LEVER,CONT BOX ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	9804-		●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	9601-0308	●
273	PIN; SPR,STOPPER ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4	1-09748-031-0	01	1	9804-		●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9601-0308	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	9601-		●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9601-9803	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	1-09625-334-0	01	1	9804-0307	●		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-334-0	01	1	9804-0307		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	1-09625-647-0	01	1	0308-0308	●		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-647-0	01	1	0308-0308		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>. (A) OD=41	1-09625-647-0	01	1	0309-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0309-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9601-9803	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	1-09625-386-0	01	1	9804-0308	●		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30	1-09625-386-0	01	1	9804-0308		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>. (B) OD=30	1-09625-386-0	01	1	0309-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0309-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	9804-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	9804-		●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9601-9803	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9804-9804	●		●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-049-0	02	1	9804-9804		●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	9805-0308	●		●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	9805-0308		●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	0309-		●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0309-			●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9601-0308	●	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0309-0512		●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-0705		●	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8	0-91111-508-0	02	1	0706-		●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0706-			●
295	ROD; LINK,RELAY LEVER (A) L=130	1-09765-262-0	01	1	9601-9803	●	●
295	ROD; LINK,RELAY LEVER (A) L=130	1-09765-262-0	01	1	9804-0308	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=130	1-09765-262-0	01	1	9804-0308		●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=130	1-09765-262-0	01	1	0309-		●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> (A)	9-08400-808-0	01	1	9804-0705		●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> (B)	8-98023-095-0	01	1	0706-		●
295	ROD; LINK,RELAY LEVER (A) L=222	9-08400-818-0	01	1	9601-			●
296	ROD END L=48	1-09760-038-1	02	1	9601-0308	●	●	●
296	ROD END L=48	1-09760-038-1	02	1	0309-0309		●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-0705		●	●
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8> L=45.5	1-09760-118-1	02	1	0706-		●
296	ROD END L=45.5	1-09760-118-1	02	1	0706-			●
298	SHAFT; SHIFT LEVER	1-33522-145-1	01	1	9601-0308	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-125-0	01	1	9601-9803		●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	9804-		●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-122-0	01	1	9601-9803		●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-166-0	01	1	9804-0307		●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-187-0	01	1	0308-		●
298	SHAFT; SHIFT LEVER	1-33522-136-0	01	1	9601-0307			●
298	SHAFT; SHIFT LEVER	1-33522-188-0	01	1	0308-			●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE	0-28181-045-0	02	1	9601-9803		●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	9601-9803			●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	9804-0512			●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28151-045-0	02	1	0601-			●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X70 FLANGE	0-28181-070-0	04	1	9601-9803		●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28181-070-0	04	1	9601-9803			●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28181-070-0	04	1	9804-0512			●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28151-070-0	04	1	0601-			●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28081-050-0	03	1	9804-0512		●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0601-		●
317	BUSHING; LEVER	1-09330-119-0	02	1	9601-0308	●	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0309-		●	●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	9804-0603		●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0604-0705		●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0706-		●
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5 OD=26	9-09160-710-0	01	1	9804-0705		●
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5	0-91610-710-0	01	1	0706-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
