◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-10 - REPAIR KIT; TRANSMISSION OVERHAUL ▶
2-10 — REPAIR KIT; TRANSMISSION OVERHAUL (#22820) — 15 parça

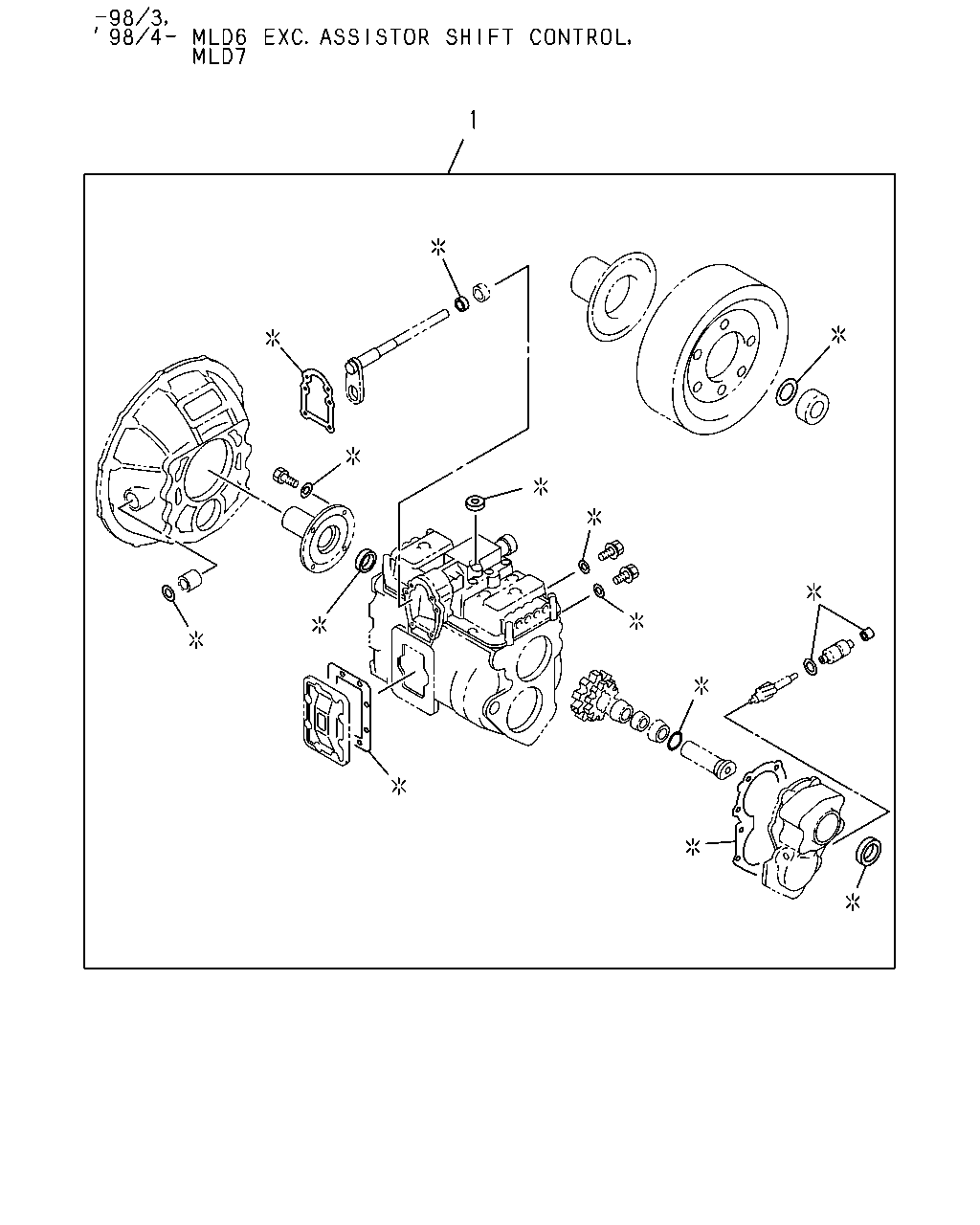

çizim 16425
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; TRANS OVERHAUL 1-87831-133-1 01 1 9601-0308 ●
1 GASKET SET; TRANS OVERHAUL
ASSISTOR SHIFT CONTROL<WX8> 		1-87830-943-0 01 1 9804- ●
1 GASKET SET; TRANS OVERHAUL 1-87830-734-0 01 1 9601-9803 ● ●
1 GASKET SET; TRANS OVERHAUL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-87830-734-2 01 1 9804- ●
1 GASKET SET; TRANS OVERHAUL 1-87830-734-2 01 1 9804- ●

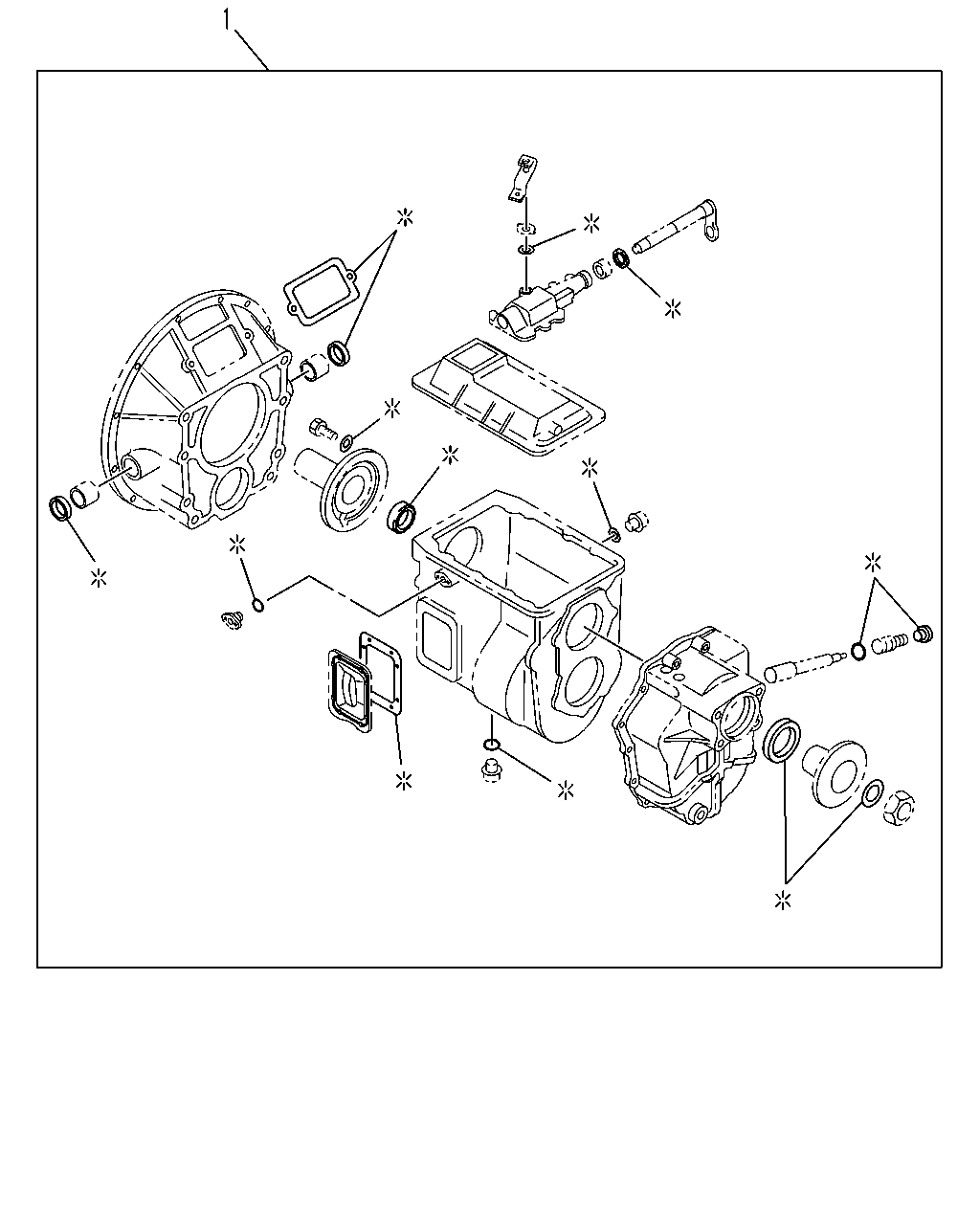

çizim 16831
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; TRANS OVERHAUL 1-87831-133-1 01 1 9601-0308 ●
1 GASKET SET; TRANS OVERHAUL
ASSISTOR SHIFT CONTROL<WX8> 		1-87830-943-0 01 1 9804- ●
1 GASKET SET; TRANS OVERHAUL 1-87830-734-0 01 1 9601-9803 ● ●
1 GASKET SET; TRANS OVERHAUL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-87830-734-2 01 1 9804- ●
1 GASKET SET; TRANS OVERHAUL 1-87830-734-2 01 1 9804- ●

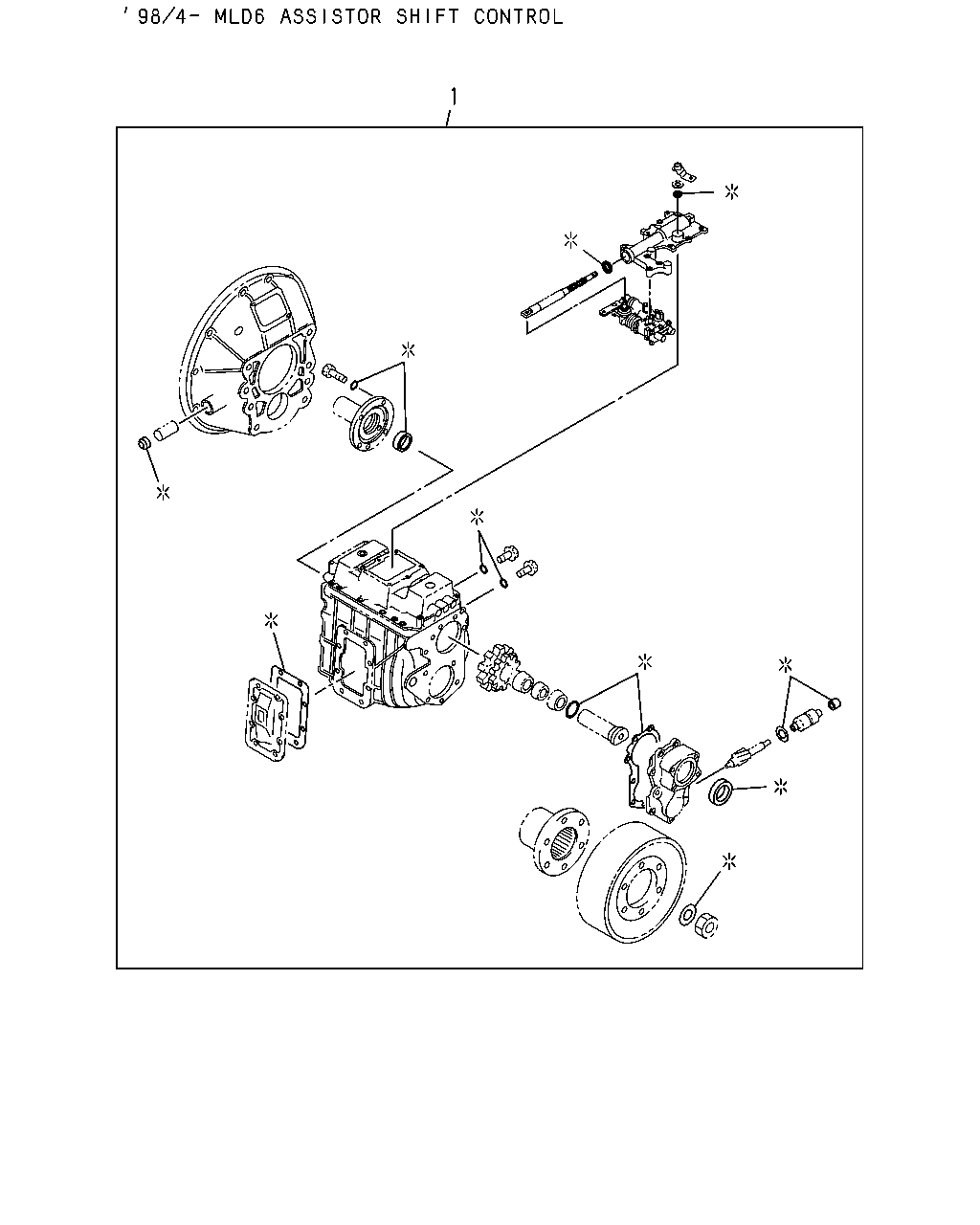

çizim 65604
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; TRANS OVERHAUL 1-87831-133-1 01 1 9601-0308 ●
1 GASKET SET; TRANS OVERHAUL
ASSISTOR SHIFT CONTROL<WX8> 		1-87830-943-0 01 1 9804- ●
1 GASKET SET; TRANS OVERHAUL 1-87830-734-0 01 1 9601-9803 ● ●
1 GASKET SET; TRANS OVERHAUL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-87830-734-2 01 1 9804- ●
1 GASKET SET; TRANS OVERHAUL 1-87830-734-2 01 1 9804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
