◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#22819) — 20 parça

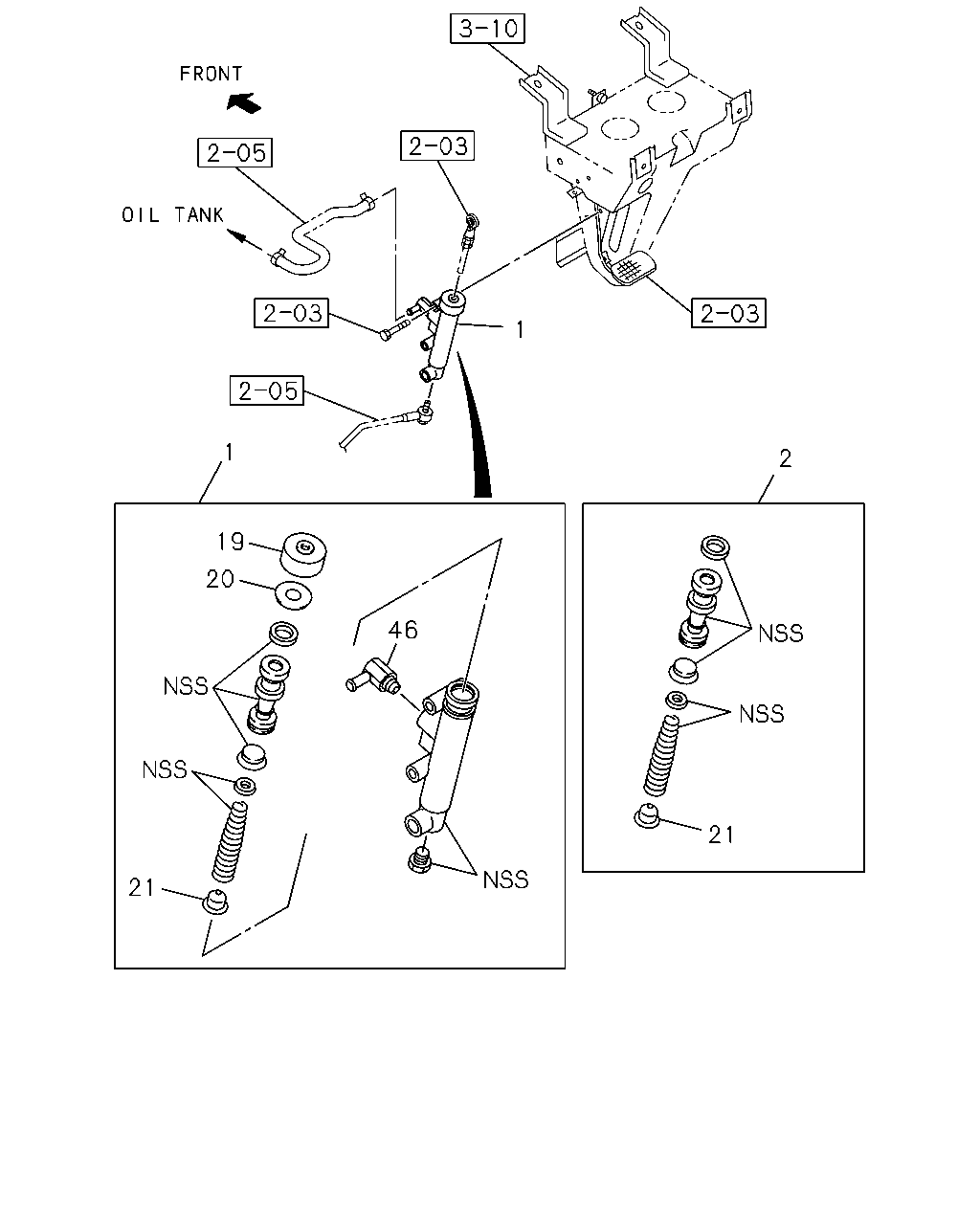

çizim 66050
1 1 2 19 20 46 21 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER 1-47500-239-2 01 1 9601-0103 ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-239-2 01 1 0106-0308 ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-239-2 01 1 0309-0512 ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-256-0 01 1 0601- ●
2 REPAIR KIT; CLU M/CYL 1-85572-010-0 01 1 9601-0103 ● ●
2 REPAIR KIT; CLU M/CYL 1-85572-010-0 01 1 0106-0308 ● ●
2 REPAIR KIT; CLU M/CYL 1-85572-010-0 01 1 0309-0512 ●
2 REPAIR KIT; CLU M/CYL 1-85576-418-0 01 1 0601- ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 9601-0103 ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 0106-0308 ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 0309- ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9601-0103 ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 0106-0308 ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 0309- ●
21 VALVE; CHECK 1-47565-004-0 01 1 9601-0103 ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 0106-0308 ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 0309-0512 ●
46 CONNECTOR; PIPE 1-47559-016-0 01 1 9601-0103 ● ●
46 CONNECTOR; PIPE 1-47559-016-0 01 1 0106-0308 ● ●
46 CONNECTOR; PIPE 1-47559-016-0 01 1 0309- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
