2-05 — CLUTCH PIPING (#22816) — 217 parça

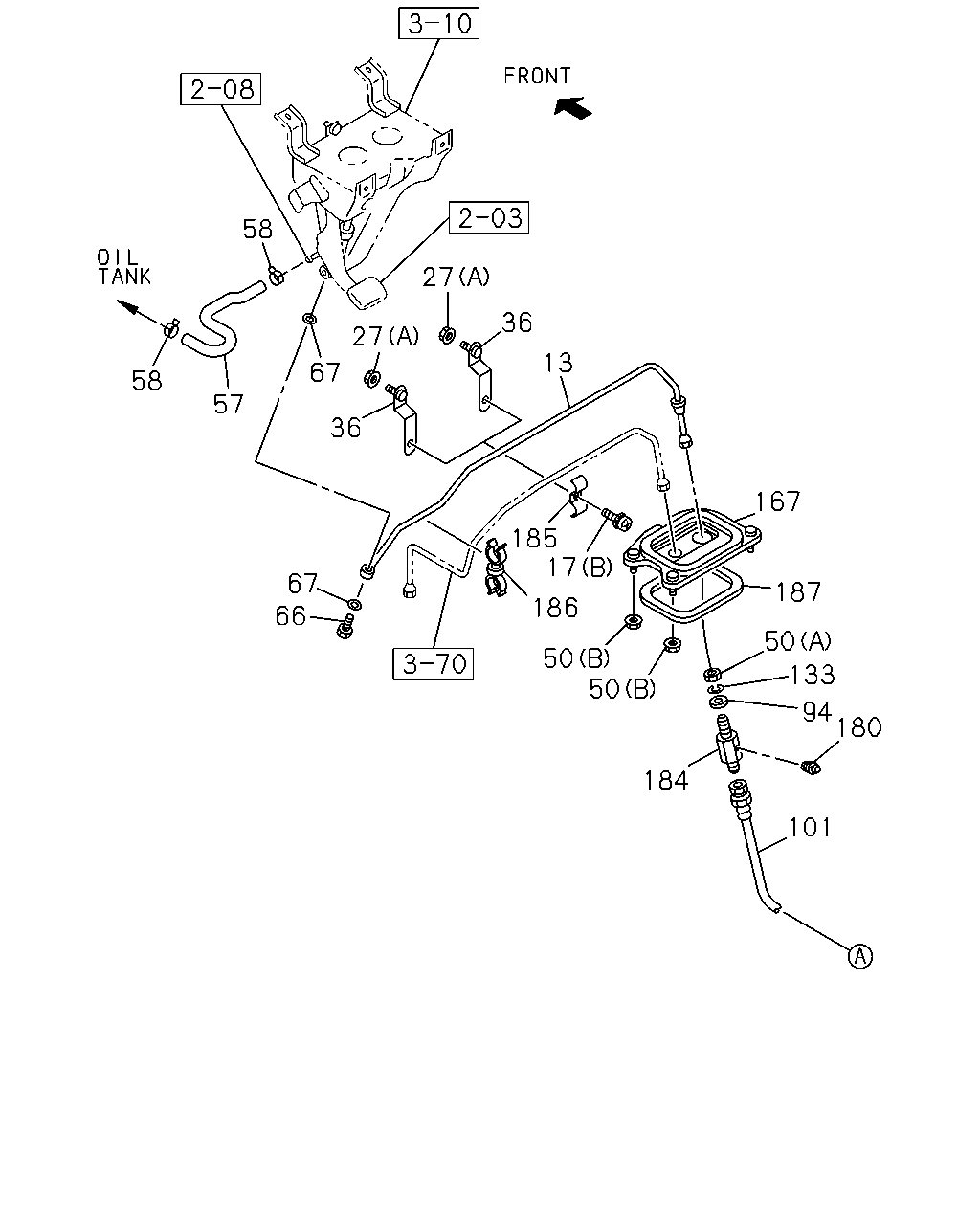

58 27 36 27 13 67 58 57 36 167 185 17 67 66 187 186 50 50 50 133 94 180 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47429-143-0	01	1	9601-0308	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47429-143-0	01	1	0309-		●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-0308	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0309-0512		●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-0308	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0309-		●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-0308	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0309-		●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-0308	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0309-0602		●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-		●
36	BRACKET; CLIP	1-79738-186-1	02	1	9601-0308	●	●
36	BRACKET; CLIP	1-79738-186-1	02	1	0309-		●
50	NUT; UNION (B) M8 FLANGE	8-94279-517-0	03	1	9601-9611	●	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0308	●	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0309-		●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9601-0308	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0309-0512		●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-		●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9601-0308	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0309-		●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9601-0308	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0309-		●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9601-0308	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0309-0805		●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-		●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-0308	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0309-1312		●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9601-0308	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0309-0605		●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	9601-0308	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0309-0703		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-		●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9601-0308	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0309-0603		●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-		●
167	BRACKET; UNION	1-79738-204-2	01	1	9601-9911	●	●
167	BRACKET; UNION	1-79738-845-1	01	1	9912-0308	●	●
167	BRACKET; UNION	1-79738-845-1	01	1	0309-		●
180	PLUG; PIPE	9-09204-510-0	01	1	9601-0308	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0309-0804		●
184	UNION; FLEX HOSE STRAIGHT 3WAY	1-09656-679-0	01	1	9601-0308	●	●
184	UNION; FLEX HOSE STRAIGHT 3WAY	1-09656-679-0	01	1	0309-0804		●
184	UNION; FLEX HOSE STRAIGHT 2WAY	1-09654-435-0	01	1	0805-		●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	9601-0308	●	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	0309-		●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=4.75 & 6	8-94165-403-0	01	1	9601-9706	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	01	1	9707-0308	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	01	1	0309-		●
187	SEAL; BRKT	1-79738-190-0	01	1	9601-0308	●	●
187	SEAL; BRKT	1-79738-190-0	01	1	0309-		●

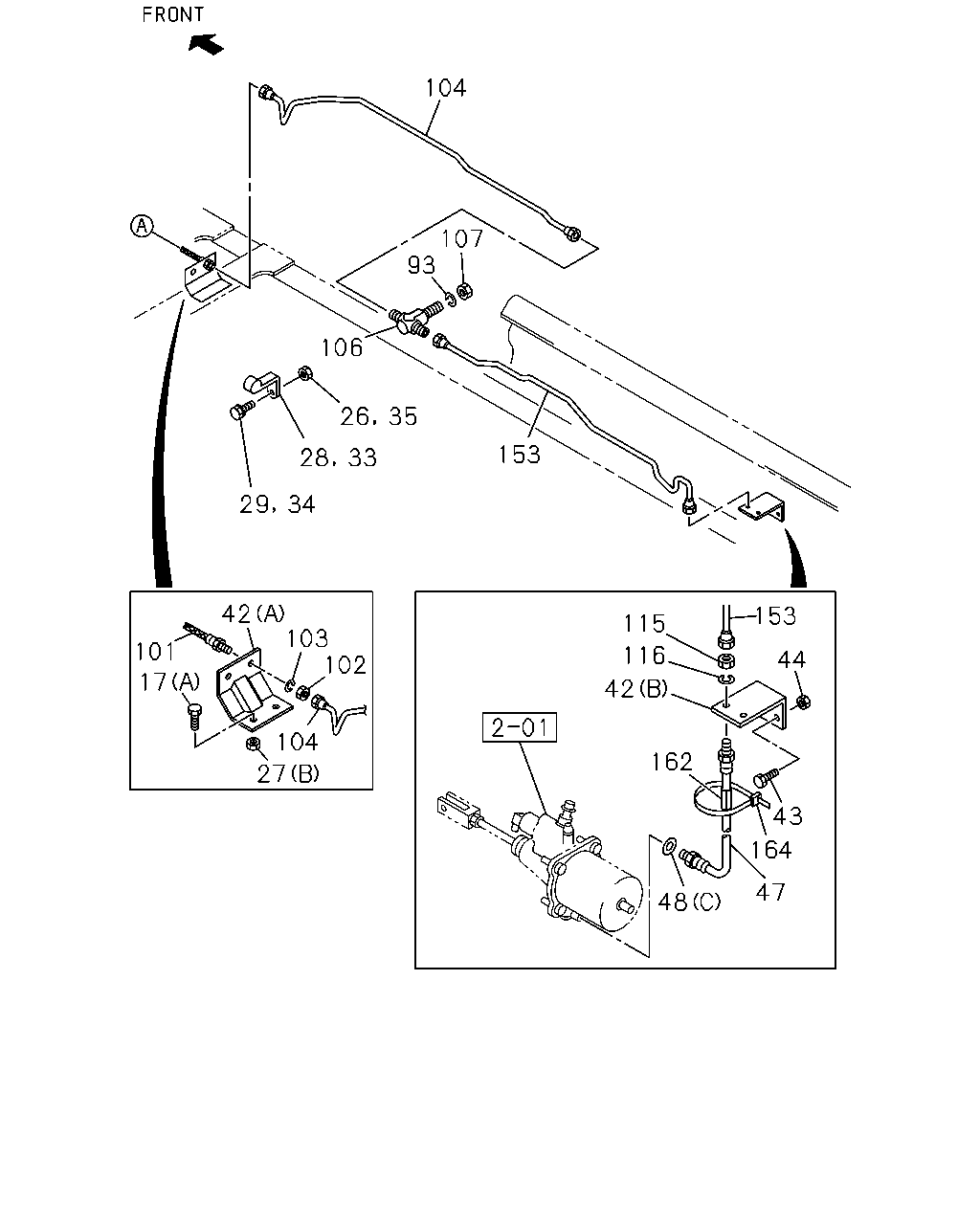

104 107 93 106 26 35 153 33 28 29 34 42 103 102 153 115 101 116 44 17 42 104 162 27 43 164 47 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-0308	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0309-0512		●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-0308	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0309-		●
26	NUT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8	9-09110-408-0	04	1	9601-9606	●	●
26	NUT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	04	1	9607-0308	●	●
26	NUT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	04	1	0309-0602		●
26	NUT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	04	1	0603-		●
26	NUT; CLIP,OIL PIPE 6SD1 STD ENG(37L) M8	9-09110-408-0	02	1	9601-9606	●	●
26	NUT; CLIP,OIL PIPE 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	9607-0308	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-0308	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0309-		●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-0308	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0309-0602		●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-		●
28	CLIP; OIL PIPE 6HH1 STD ENG(65L) ID=8 H=20 L=20	1-09700-604-0	04	1	9601-0308	●	●
28	CLIP; OIL PIPE 6HH1 STD ENG(65L) ID=8 H=20 L=20	1-09700-604-0	04	1	0309-		●
28	CLIP; OIL PIPE 6SD1 STD ENG(37L) ID=8 H=20 L=20	1-09700-604-0	02	1	9601-0308	●	●
29	BOLT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8X16 FLANGE	0-28080-816-0	01	1	9601-9704	●	●
29	BOLT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8X25 FLANGE	0-28080-825-0	03	1	9601-9606	●	●
29	BOLT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	03	1	9607-9704	●	●
29	BOLT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	04	1	9705-0308	●	●
29	BOLT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	04	1	0309-0512		●
29	BOLT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8X30 FLANGE	0-28650-830-0	04	1	0601-		●
29	BOLT; CLIP,OIL PIPE 6SD1 STD ENG(37L) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
29	BOLT; CLIP,OIL PIPE 6SD1 STD ENG(37L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9807	●	●
29	BOLT; CLIP,OIL PIPE 6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	02	1	9808-0308	●	●
33	CLIP; OIL PIPE 6SD1 STD ENG(37L) ID=8 H=20 L=20	1-09700-604-0	03	1	9601-9702	●	●
33	CLIP; OIL PIPE 6SD1 STD ENG(37L) ID=8 H=20 L=20	1-09700-604-0	02	1	9703-0308	●	●
34	BOLT; PIPE CLIP 6SD1 STD ENG(37L) M8X25 FLANGE	0-28080-825-0	03	1	9601-9606	●	●
34	BOLT; PIPE CLIP 6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	03	1	9607-9702	●	●
34	BOLT; PIPE CLIP 6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	02	1	9703-0308	●	●
35	NUT; PIPE CLIP 6SD1 STD ENG(37L) M8	9-09110-408-0	03	1	9601-9606	●	●
35	NUT; PIPE CLIP 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	03	1	9607-9702	●	●
35	NUT; PIPE CLIP 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	9703-0308	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9601-0308	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0309-		●
42	BRACKET; FLEX HOSE,CLU CONT 6HH1 STD ENG(65L) (B)	1-47475-709-0	01	1	9601-0308	●	●
42	BRACKET; FLEX HOSE,CLU CONT 6HH1 STD ENG(65L) (B)	1-47475-709-0	01	1	0309-		●
42	BRACKET; FLEX HOSE,CLU CONT 6SD1 STD ENG(37L) (B)	1-47476-047-0	01	1	9601-9702	●	●
42	BRACKET; FLEX HOSE,CLU CONT 6SD1 STD ENG(37L) (B)	1-47477-944-0	01	1	9703-0308	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6HH1 STD ENG(65L) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	02	1	9607-0308	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0309-0512		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6HH1 STD ENG(65L) M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6SD1 STD ENG(37L) M8X30 FLANGE	0-28080-830-0	02	1	9601-9606	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6SD1 STD ENG(37L) M8X35 FLANGE	0-28680-835-0	02	1	9607-0308	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9601-9606	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-0308	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0309-0602		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-		●
47	HOSE; FLEX,CLU CONT 6SD1 STD ENG(37L) L=430	1-09364-725-0	01	1	9601-0308	●	●
48	GASKET; FLEX HOSE,CLU CONT 6HH1 STD ENG(65L) (A) ID=10.5	1-09630-074-1	01	1	9601-0308	●	●
48	GASKET; FLEX HOSE,CLU CONT 6HH1 STD ENG(65L) (A) ID=10.5	1-09630-074-1	01	1	0309-		●
48	GASKET; FLEX HOSE,CLU CONT 6HH1 STD ENG(65L) (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9601-0308	●	●
48	GASKET; FLEX HOSE,CLU CONT 6HH1 STD ENG(65L) (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	0309-		●
48	GASKET; FLEX HOSE,CLU CONT 6SD1 STD ENG(37L) (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9601-0308	●	●
93	WASHER; LK,UNION,OIL PIPE 6SD1 STD ENG(37L) ID=12.2	9-09150-512-0	01	1	9601-0308	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	9601-0308	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0309-0703		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-		●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-0308	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0309-0512		●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-		●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-0308	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0309-0603		●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6SD1 STD ENG(37L) L=1492 SERVICED BY L=1550	1-47426-390-0	01	1	9601-0109	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6SD1 STD ENG(37L) L=1498 SERVICED BY L=1550	1-47428-766-0	01	1	0110-0205	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6SD1 STD ENG(37L) L=1492 SERVICED BY L=1550	1-47426-390-0	01	1	0206-0308	●	●
106	UNION; OIL PIPE 6SD1 STD ENG(37L) M14 2WAY	1-09654-176-2	01	1	9601-0308	●	●
107	NUT; UNION,OIL PIPE 6SD1 STD ENG(37L) M12	9-99111-412-0	01	1	9601-0308	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-0308	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0309-0512		●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-0308	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0309-0603		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-		●
153	PIPE ASM; CLU,UNION TO FLEX 6SD1 STD ENG(37L) L=1334 SERVICED BY L=1400	1-47426-389-0	01	1	9601-0109	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6SD1 STD ENG(37L) L=1335 SERVICED BY L=1400	1-47426-389-0	01	1	0110-0308	●	●
162	COVER; RUBBER,FLEX HOSE 6SD1 STD ENG(37L) AIR ASSIST CLUTCH<PK1> ID=17 OD=21 L=40	1-09337-012-0	01	1	9705-9807	●	●
162	COVER; RUBBER,FLEX HOSE 6SD1 STD ENG(37L) AIR ASSIST CLUTCH<PK1> ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	9705-9807	●	●
164	CLIP; BAND,FLEX HOSE 6SD1 STD ENG(37L) AIR ASSIST CLUTCH<PK1> L=140	5-09707-031-0	01	1	9705-9807	●	●

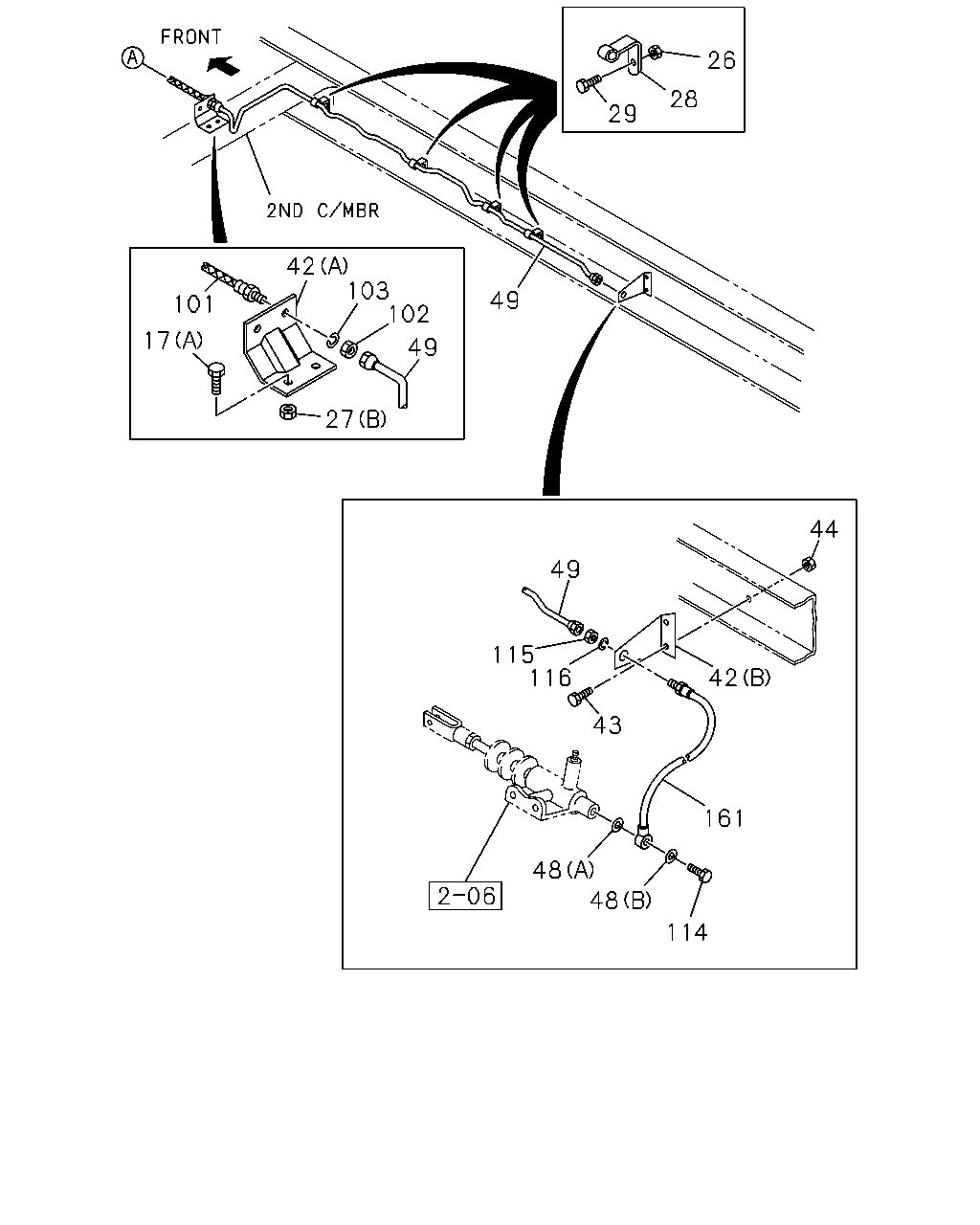

26 28 29 42 103 102 49 101 17 49 27 44 49 115 116 42 43 161 48 48 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-0308	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0309-0512		●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-0308	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0309-		●
26	NUT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8	9-09110-408-0	04	1	9601-9606	●	●
26	NUT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	04	1	9607-0308	●	●
26	NUT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	04	1	0309-0602		●
26	NUT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	04	1	0603-		●
26	NUT; CLIP,OIL PIPE 6SD1 STD ENG(37L) M8	9-09110-408-0	02	1	9601-9606	●	●
26	NUT; CLIP,OIL PIPE 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	9607-0308	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-0308	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0309-		●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-0308	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0309-0602		●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-		●
28	CLIP; OIL PIPE 6HH1 STD ENG(65L) ID=8 H=20 L=20	1-09700-604-0	04	1	9601-0308	●	●
28	CLIP; OIL PIPE 6HH1 STD ENG(65L) ID=8 H=20 L=20	1-09700-604-0	04	1	0309-		●
28	CLIP; OIL PIPE 6SD1 STD ENG(37L) ID=8 H=20 L=20	1-09700-604-0	02	1	9601-0308	●	●
29	BOLT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8X16 FLANGE	0-28080-816-0	01	1	9601-9704	●	●
29	BOLT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8X25 FLANGE	0-28080-825-0	03	1	9601-9606	●	●
29	BOLT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	03	1	9607-9704	●	●
29	BOLT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	04	1	9705-0308	●	●
29	BOLT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	04	1	0309-0512		●
29	BOLT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8X30 FLANGE	0-28650-830-0	04	1	0601-		●
29	BOLT; CLIP,OIL PIPE 6SD1 STD ENG(37L) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
29	BOLT; CLIP,OIL PIPE 6SD1 STD ENG(37L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9807	●	●
29	BOLT; CLIP,OIL PIPE 6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	02	1	9808-0308	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9601-0308	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0309-		●
42	BRACKET; FLEX HOSE,CLU CONT 6HH1 STD ENG(65L) (B)	1-47475-709-0	01	1	9601-0308	●	●
42	BRACKET; FLEX HOSE,CLU CONT 6HH1 STD ENG(65L) (B)	1-47475-709-0	01	1	0309-		●
42	BRACKET; FLEX HOSE,CLU CONT 6SD1 STD ENG(37L) (B)	1-47476-047-0	01	1	9601-9702	●	●
42	BRACKET; FLEX HOSE,CLU CONT 6SD1 STD ENG(37L) (B)	1-47477-944-0	01	1	9703-0308	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6HH1 STD ENG(65L) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	02	1	9607-0308	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0309-0512		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6HH1 STD ENG(65L) M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6SD1 STD ENG(37L) M8X30 FLANGE	0-28080-830-0	02	1	9601-9606	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6SD1 STD ENG(37L) M8X35 FLANGE	0-28680-835-0	02	1	9607-0308	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9601-9606	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-0308	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0309-0602		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-		●
48	GASKET; FLEX HOSE,CLU CONT 6HH1 STD ENG(65L) (A) ID=10.5	1-09630-074-1	01	1	9601-0308	●	●
48	GASKET; FLEX HOSE,CLU CONT 6HH1 STD ENG(65L) (A) ID=10.5	1-09630-074-1	01	1	0309-		●
48	GASKET; FLEX HOSE,CLU CONT 6HH1 STD ENG(65L) (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9601-0308	●	●
48	GASKET; FLEX HOSE,CLU CONT 6HH1 STD ENG(65L) (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	0309-		●
48	GASKET; FLEX HOSE,CLU CONT 6SD1 STD ENG(37L) (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9601-0308	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HH1 STD ENG(65L) L=2263 SERVICED BY L=2400	1-47426-395-0	01	1	9601-0308	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HH1 STD ENG(65L) L=2263 SERVICED BY L=2400	1-47426-395-0	01	1	0309-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	9601-0308	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0309-0703		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-		●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-0308	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0309-0512		●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-		●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-0308	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0309-0603		●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-		●
114	BOLT; EYE,FLEX HOSE 6HH1 STD ENG(65L)	1-09675-158-0	01	1	9601-0308	●	●
114	BOLT; EYE,FLEX HOSE 6HH1 STD ENG(65L)	1-09675-158-0	01	1	0309-		●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-0308	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0309-0512		●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-0308	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0309-0603		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-		●
161	HOSE; FLEX,SLAVE CYL 6HH1 STD ENG(65L) L=400	1-09364-597-0	01	1	9601-0308	●	●
161	HOSE; FLEX,SLAVE CYL 6HH1 STD ENG(65L) L=400	1-09364-597-0	01	1	0309-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
