◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#22815) — 86 parça

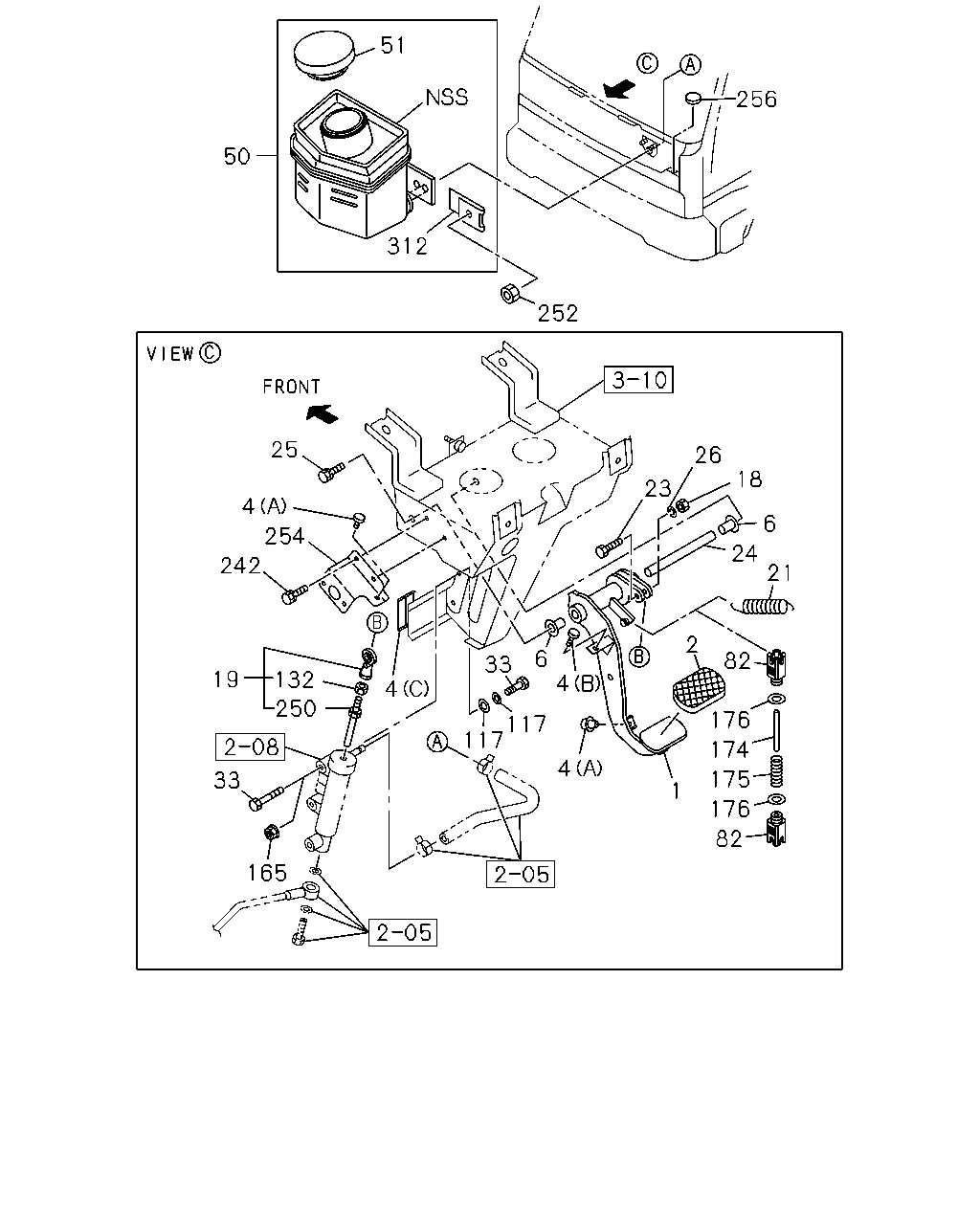

çizim 16225
51 256 50 312 252 25 26 18 23 4 6 254 24 21 242 2 6 4 82 33 19 132 4 250 176 117 117 174 4 175 33 1 176 82 165
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU
EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-342-2 01 1 9804-0308 ● ●
1 PEDAL; CLU 1-73908-342-2 01 1 0309- ●
1 PEDAL; CLU
AIR ASSIST CLUTCH<PK1> 		1-73908-079-3 01 1 9601-0308 ● ●
1 PEDAL; CLU
EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-078-3 01 1 9601-9803 ● ●
2 COVER; CLU PEDAL 8-94204-810-0 01 1 9601-0103 ● ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0104-0308 ● ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0309- ●
4 STOPPER; CLU PEDAL
(B) 		5-31419-003-0 01 1 9601-9904 ● ●
4 STOPPER; CLU PEDAL
AIR ASSIST CLUTCH<PK1> (A) 		1-47319-014-1 04 1 9601-0308 ● ●
4 STOPPER; CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1> (A) 		1-47319-014-1 02 1 9601-0308 ● ●
4 STOPPER; CLU PEDAL
(A) 		1-47319-014-1 02 1 0309- ●
4 STOPPER; CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1> (C) 		1-73908-088-0 01 1 9601-9612 ● ●
4 STOPPER; CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1> (C) 		1-73908-088-1 01 1 0106-0308 ● ●
4 STOPPER; CLU PEDAL
(C) 		1-73908-088-1 01 1 0309- ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 9601-0103 ● ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0106-0308 ● ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0309- ●
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 9601-9803 ● ●
18 NUT; PUSH ROD
AIR ASSIST CLUTCH<PK1> M8 		0-91110-508-0 01 1 9804-0308 ● ●
18 NUT; PUSH ROD
EXC. AIR ASSIST CLUTCH<PK1> M8 		9-09110-508-0 01 1 9804-0308 ● ●
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 0309- ●
19 ROD ASM; PUSH,CLU
EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-332-0 01 1 9905-0308 ● ●
19 ROD ASM; PUSH,CLU 1-73908-332-0 01 1 0309- ●
19 ROD ASM; PUSH,CLU 1-73996-144-0 01 1 9601-9803 ● ●
19 ROD ASM; PUSH,CLU
AIR ASSIST CLUTCH<PK1> 		1-73996-144-0 01 1 9804-9809 ● ●
19 ROD ASM; PUSH,CLU
AIR ASSIST CLUTCH<PK1> 		1-73996-144-0 01 1 9905-0308 ● ●
19 ROD ASM; PUSH,CLU
EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-332-0 01 1 9804-9809 ● ●
19 ROD ASM; PUSH,CLU 1-73908-332-0 01 1 9810-9904 ● ●
21 SPRING; RETURN,CLU PEDAL
AIR ASSIST CLUTCH<PK1> 		1-73998-820-0 01 1 9601-9608 ● ●
21 SPRING; RETURN,CLU PEDAL
AIR ASSIST CLUTCH<PK1> 		1-73908-265-0 01 1 9609-0308 ● ●
23 BOLT; PUSH ROD
M8X35 		9-01060-835-0 01 1 9601-9803 ● ●
23 BOLT; PUSH ROD
AIR ASSIST CLUTCH<PK1> M8X35 		0-10960-835-0 01 1 9804-0308 ● ●
23 BOLT; PUSH ROD
EXC. AIR ASSIST CLUTCH<PK1> M8X43.7 		1-73908-333-0 01 1 9804-0308 ● ●
23 BOLT; PUSH ROD
M8X43.7 		1-73908-333-0 01 1 0309- ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 9601-0103 ● ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 0106-0308 ● ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 0309- ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 9601-0103 ● ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 0106-0308 ● ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 0309- ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 9601-9803 ● ●
26 WASHER; LK,PUSH ROD
AIR ASSIST CLUTCH<PK1> ID=8.2 		0-91510-608-0 01 1 9804-0308 ● ●
26 WASHER; LK,PUSH ROD
EXC. AIR ASSIST CLUTCH<PK1> ID=8.2 		9-09150-608-0 01 1 9804-0308 ● ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 0309- ●
33 BOLT; CLU M/CYL TO BRKT
EXC. AIR ASSIST CLUTCH<PK1> M10X65 		5-09030-024-1 02 1 9804-0308 ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X65 		5-09030-024-1 02 1 0309- ●
33 BOLT; CLU M/CYL TO BRKT
M10X65 		5-09030-024-1 02 1 9601-9703 ● ●
33 BOLT; CLU M/CYL TO BRKT
EXC. AIR ASSIST CLUTCH<PK1> M10X65 		5-09030-024-1 02 1 9704-9803 ● ●
33 BOLT; CLU M/CYL TO BRKT
AIR ASSIST CLUTCH<PK1> M10X60 FLANGE 		0-28081-060-0 02 1 9704-0308 ● ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 9601-0308 ● ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 0309- ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 9601-0308 ● ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 0309- ●
82 CLEVIS; HELPER,CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1> 		1-73998-472-1 02 1 9601-0103 ● ●
82 CLEVIS; HELPER,CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1> 		1-73998-472-1 02 1 0106-0308 ● ●
82 CLEVIS; HELPER,CLU PEDAL 1-73998-472-1 02 1 0309- ●
117 WASHER; PL,CLU M/CYL
EXC. AIR ASSIST CLUTCH<PK1> ID=10.5 OD=18 		1-09985-173-0 04 1 9601-9601 ● ●
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 9601-9803 ● ●
132 NUT; LK,PUSH ROD
AIR ASSIST CLUTCH<PK1> M8 		0-91110-508-0 01 1 9804-0308 ● ●
132 NUT; LK,PUSH ROD
EXC. AIR ASSIST CLUTCH<PK1> M8 		9-09110-408-0 01 1 9804-0308 ● ●
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 0309- ●
165 NUT; CLU M/CYL
EXC. AIR ASSIST CLUTCH<PK1> M10 FLANGE 		0-91150-210-0 02 1 9601-0308 ● ●
165 NUT; CLU M/CYL
M10 FLANGE 		0-91150-210-0 02 1 0309-0602 ●
165 NUT; CLU M/CYL
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
174 PIN; STRAIGHT,CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1> 		1-73998-474-0 01 1 9601-0308 ● ●
174 PIN; STRAIGHT,CLU PEDAL 1-73998-474-0 01 1 0309- ●
175 SPRING; HELPER
EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-052-0 01 1 9601-0308 ● ●
175 SPRING; HELPER 1-73908-052-0 01 1 0309- ●
176 SEAT; SPRING
EXC. AIR ASSIST CLUTCH<PK1> 		1-09503-114-0 02 1 9601-0308 ● ●
176 SEAT; SPRING 1-09503-114-0 02 1 0309- ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 02 1 9601-9803 ● ●
242 BOLT; BRKT,CLUTCH
AIR ASSIST CLUTCH<PK1> M6X16 W/LK WASHER 		0-50540-616-0 02 1 9804-0308 ● ●
242 BOLT; BRKT,CLUTCH
EXC. AIR ASSIST CLUTCH<PK1> M6X16 W/LK WASHER 		0-50040-616-0 02 1 9804-0308 ● ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 02 1 0309- ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 9601-0103 ● ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0106-0308 ● ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0309- ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 9601-0308 ● ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0309- ●
254 BRACKET; CLU SENSOR 1-73998-979-4 01 1 9601-0103 ● ●
254 BRACKET; CLU SENSOR 1-73998-979-4 01 1 0106-0308 ● ●
254 BRACKET; CLU SENSOR 1-73998-979-5 01 1 0309- ●
256 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 9601-0308 ● ●
256 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0309- ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 9601-0308 ● ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 0309- ●
