Sayfa 2-01 - Isuzu EPC

2-01 — CLUTCH (#22814) — 244 parça

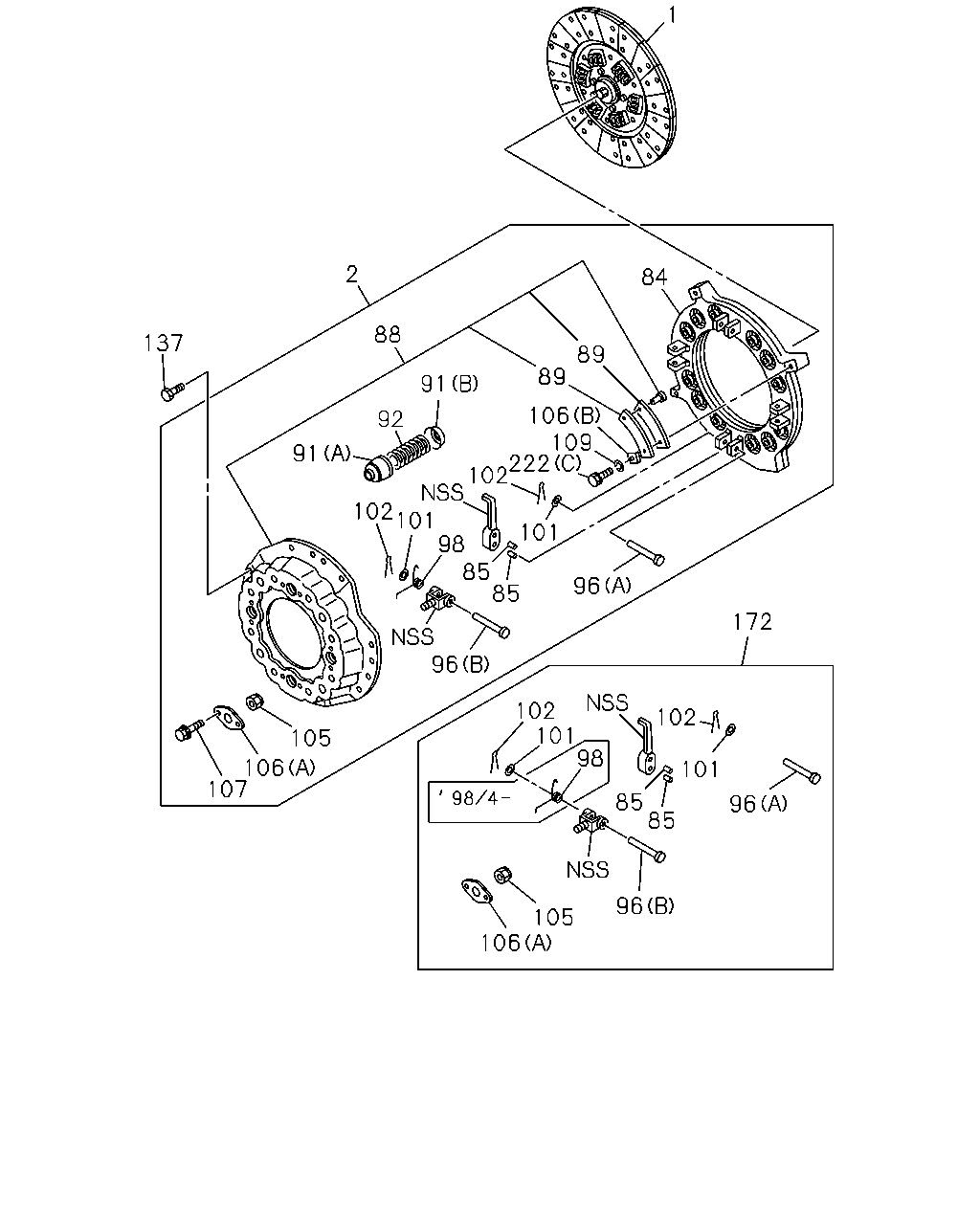

1 2 84 88 137 89 89 91 106 109 222 102 102 101 98 85 85 92 91 101 96 172 96 102 101 98 102 105 106 107 101 85 85 96 96 105 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH 15"	1-31240-657-0	01	1	9601-0106	●
1	DISC; CLUTCH 15"	1-31240-889-0	01	1	0107-0308	●
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	9601-0105		●	●
1	DISC; CLUTCH 14"	1-31240-901-0	01	1	0106-		●	●
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-142-0	01	1	0107-0308	●
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-139-0	01	1	0106-		●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-144-0	01	1	1006-		●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-207-2	01	1	9601-0109	●
2	PLATE ASM; PRESSURE,CLU	1-31220-374-0	01	1	0110-0308	●
2	PLATE ASM; PRESSURE,CLU 14"	1-31220-291-0	01	1	9601-0109		●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-364-2	01	1	0110-1005		●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-447-0	01	1	1006-		●	●
84	PLATE; PRESSURE 15"	1-31221-067-0	01	1	9601-9810	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	9811-0308	●
84	PLATE; PRESSURE 14"	1-31221-082-0	01	1	9601-		●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9601-0308	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0309-		●	●
88	COVER SUB ASM; CLU	1-31211-036-0	01	1	9601-		●	●
89	PLATE; STRAP	1-31229-001-0	12	1	9601-9810	●
89	PLATE; STRAP	1-31229-050-0	16	1	9811-0308	●
89	PLATE; STRAP	1-31229-001-0	08	1	9601-		●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9601-0308	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0309-1005		●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	08	1	1006-		●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9601-0308	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0309-1005		●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	08	1	1006-		●	●
92	SPRING; CLU	1-31214-019-0	12	1	9601-0308	●
92	SPRING; CLU 14"	1-09580-234-0	12	1	9601-0308		●	●
92	SPRING; CLU	1-31214-088-0	12	1	0309-1005		●	●
92	SPRING; CLU	1-31214-060-0	08	1	1006-		●	●
96	PIN; RELEASE LEVER (A) L=57	1-31232-004-0	04	1	9601-9810	●
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	9601-0308	●	●	●
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	0309-		●	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-014-0	04	1	9601-9810		●	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-014-0	04	1	9811-0308	●	●	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-014-0	04	1	0309-		●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9601-0308	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0309-		●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0110-0308	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9601-0109	●	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	0110-		●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9601-0308	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9601-		●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9601-0109	●	●	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0308	●	●	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0309-0309		●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-		●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9601-0308	●	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0309-		●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	9601-		●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9601-0308	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0309-0309		●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-		●	●
109	WASHER; LK,STRAP ID=10.2	9-09150-510-0	04	1	9601-0603		●	●
109	WASHER; LK,STRAP ID=10.2	0-91510-510-0	04	1	0604-		●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9601-0308	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0309-0512		●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-		●	●
172	LEVER KIT; RELEASE,CLU 15"	1-87830-760-2	01	1	9601-0004	●
172	LEVER KIT; RELEASE,CLU	1-87830-513-0	01	1	0005-0109	●
172	LEVER KIT; RELEASE,CLU 15"	1-87830-760-3	01	1	0110-0307	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-0	01	1	0308-0308	●
172	LEVER KIT; RELEASE,CLU	1-87830-620-0	01	1	9601-9803		●	●
172	LEVER KIT; RELEASE,CLU	1-87830-902-1	01	1	9804-0306		●	●
172	LEVER KIT; RELEASE,CLU	1-87831-173-1	01	1	0307-		●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9601-0308	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9601-0308	●
222	BOLT; STRAP (C) M10X26 HEX SOCKET	1-09040-101-0	04	1	9601-0109		●	●
222	BOLT; STRAP (C)	1-31239-059-0	04	1	0110-		●	●

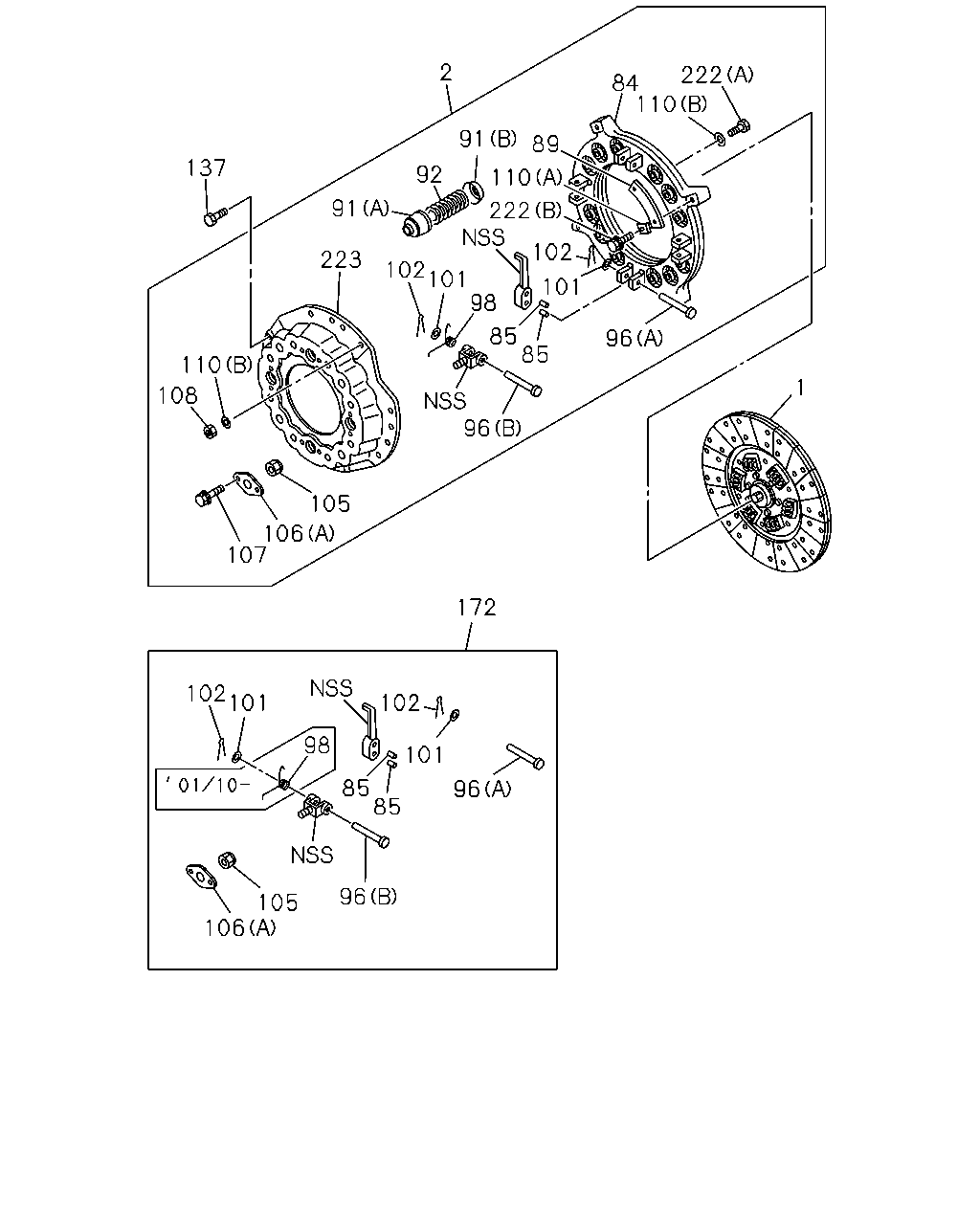

2 222 84 110 91 89 137 92 110 91 222 102 223 102 101 98 101 85 85 96 110 1 108 96 105 106 107 172 102 101 102 98 101 85 85 96 96 105 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH 15"	1-31240-657-0	01	1	9601-0106	●
1	DISC; CLUTCH 15"	1-31240-889-0	01	1	0107-0308	●
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	9601-0105		●	●
1	DISC; CLUTCH 14"	1-31240-901-0	01	1	0106-		●	●
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-142-0	01	1	0107-0308	●
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-139-0	01	1	0106-		●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-144-0	01	1	1006-		●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-207-2	01	1	9601-0109	●
2	PLATE ASM; PRESSURE,CLU	1-31220-374-0	01	1	0110-0308	●
2	PLATE ASM; PRESSURE,CLU 14"	1-31220-291-0	01	1	9601-0109		●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-364-2	01	1	0110-1005		●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-447-0	01	1	1006-		●	●
84	PLATE; PRESSURE 15"	1-31221-067-0	01	1	9601-9810	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	9811-0308	●
84	PLATE; PRESSURE 14"	1-31221-082-0	01	1	9601-		●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9601-0308	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0309-		●	●
89	PLATE; STRAP	1-31229-001-0	12	1	9601-9810	●
89	PLATE; STRAP	1-31229-050-0	16	1	9811-0308	●
89	PLATE; STRAP	1-31229-001-0	08	1	9601-		●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9601-0308	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0309-1005		●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	08	1	1006-		●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9601-0308	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0309-1005		●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	08	1	1006-		●	●
92	SPRING; CLU	1-31214-019-0	12	1	9601-0308	●
92	SPRING; CLU 14"	1-09580-234-0	12	1	9601-0308		●	●
92	SPRING; CLU	1-31214-088-0	12	1	0309-1005		●	●
92	SPRING; CLU	1-31214-060-0	08	1	1006-		●	●
96	PIN; RELEASE LEVER (A) L=57	1-31232-004-0	04	1	9601-9810	●
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	9601-0308	●	●	●
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	0309-		●	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-014-0	04	1	9601-9810		●	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-014-0	04	1	9811-0308	●	●	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-014-0	04	1	0309-		●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9601-0308	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0309-		●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0110-0308	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9601-0109	●	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	0110-		●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9601-0308	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9601-		●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9601-0109	●	●	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0308	●	●	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0309-0309		●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-		●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9601-0308	●	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0309-		●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	9601-		●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9601-0308	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0309-0309		●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-		●	●
108	NUT; STRAP	1-09449-036-0	04	1	9601-0308	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	9601-0308	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	9601-0308	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9601-0308	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0309-0512		●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-		●	●
172	LEVER KIT; RELEASE,CLU 15"	1-87830-760-2	01	1	9601-0004	●
172	LEVER KIT; RELEASE,CLU	1-87830-513-0	01	1	0005-0109	●
172	LEVER KIT; RELEASE,CLU 15"	1-87830-760-3	01	1	0110-0307	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-0	01	1	0308-0308	●
172	LEVER KIT; RELEASE,CLU	1-87830-620-0	01	1	9601-9803		●	●
172	LEVER KIT; RELEASE,CLU	1-87830-902-1	01	1	9804-0306		●	●
172	LEVER KIT; RELEASE,CLU	1-87831-173-1	01	1	0307-		●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9601-0308	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9601-0308	●
222	BOLT; STRAP (C) M10X26 HEX SOCKET	1-09040-101-0	04	1	9601-0109		●	●
222	BOLT; STRAP (C)	1-31239-059-0	04	1	0110-		●	●
223	COVER; CLU	1-31211-019-1	01	1	9601-0308	●

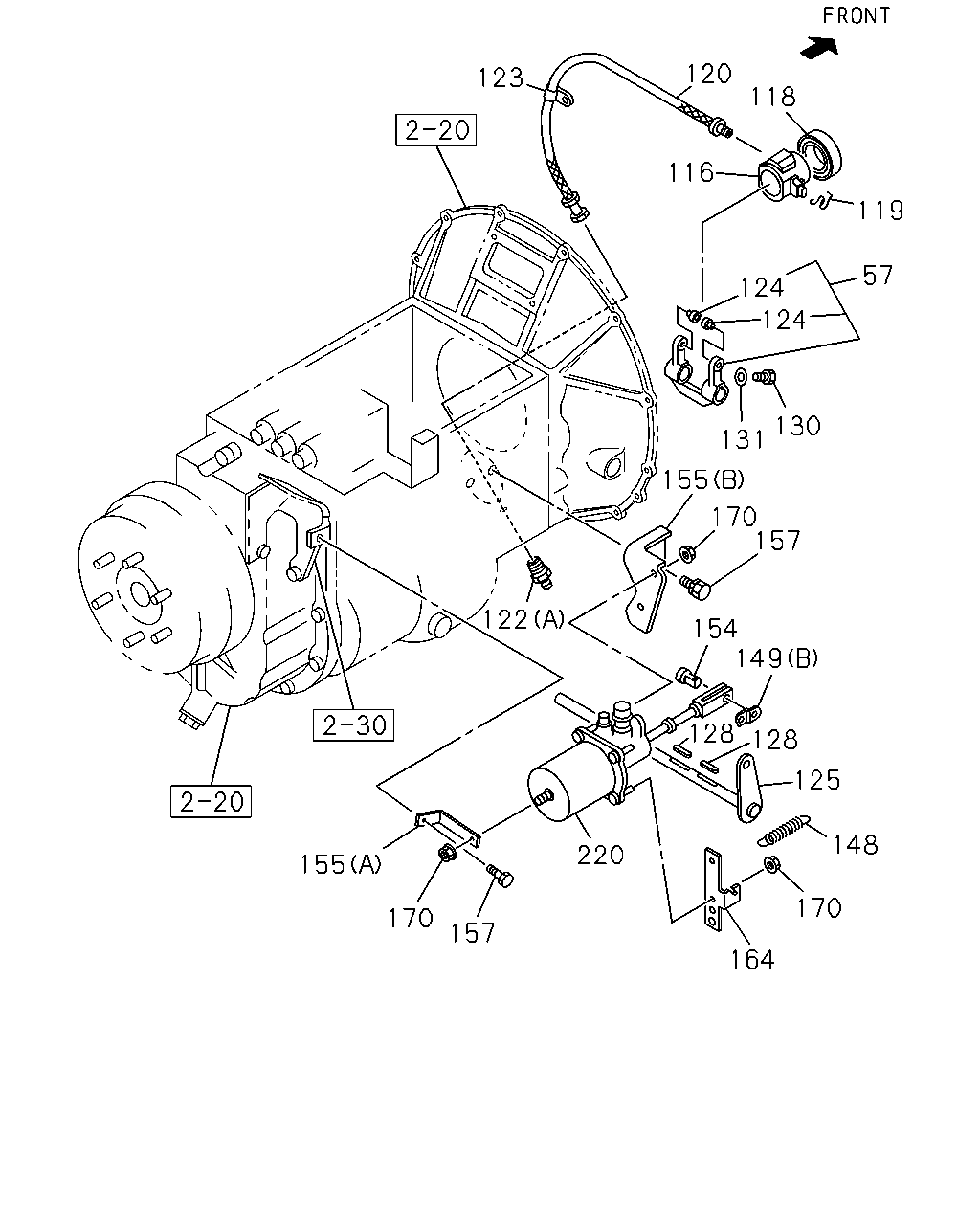

120 123 118 116 119 57 124 124 130 131 155 170 157 122 154 149 128 128 125 148 220 155 170 170 157 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	9601-0308	●
57	FORK; SHIFT,CLU	1-31340-056-1	01	1	9601-		●	●
116	BLOCK; SHIFT,CLU	1-31321-075-0	01	1	9601-0308	●
116	BLOCK; SHIFT,CLU	1-31321-052-3	01	1	9601-		●	●
118	BEARING; CLU RELEASE	1-09820-081-0	01	1	9601-0110	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0111-0308	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9601-0111		●	●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-		●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-148-0	01	1	0112-		●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0111-0308	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9601-0308	●	●	●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	0309-		●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9601-0308	●	●	●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	0309-		●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=405	1-09364-449-0	01	1	9601-0308	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9601-0003		●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-		●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9601-0308	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	0309-0512		●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-		●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	9601-		●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=22	1-09700-644-1	01	1	9601-0308	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=15.5	9-09917-613-0	01	1	9601-0308	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9601-0606		●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0607-		●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9601-0308	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0309-		●	●
125	SHAFT; CLU	1-31342-169-1	01	1	9601-0308	●
125	SHAFT; CLU	1-31342-271-0	01	1	9601-9803		●	●
125	SHAFT; CLU	1-31342-298-1	01	1	9804-		●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9601-0308	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0309-		●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9601-0308	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0309-0512		●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-		●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9601-0308	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0309-0603		●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-		●	●
148	SPRING; CLU RETURN	1-09583-212-0	01	1	9601-0308	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9601-		●	●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-019-1	01	1	9601-0308	●	●	●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-019-1	01	1	0309-		●	●
149	EYE; SPRING,RETURN SPRING (A) T=2.3	1-47324-005-1	01	1	9601-		●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9601-0308	●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0309-		●	●
155	BRACKET; MINIPACK (B)	1-31429-368-0	01	1	9601-0308	●
155	BRACKET; MINIPACK (A)	1-31429-369-0	01	1	9601-0308	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9601-0308	●
164	EYE; SPRING	1-47475-372-0	01	1	9601-0308	●
170	NUT; BOOSTER FIX M10 FLANGE	0-91150-210-0	03	1	9601-0308	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-387-2	01	1	9601-0308	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-088-0	01	1	9601-0308	●

120 123 118 116 13 119 122 57 124 124 131 130 149 148 149 154 128 128 122 145 146 125 146 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9601-0512		●	●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-		●	●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	9601-0308	●
57	FORK; SHIFT,CLU	1-31340-056-1	01	1	9601-		●	●
116	BLOCK; SHIFT,CLU	1-31321-075-0	01	1	9601-0308	●
116	BLOCK; SHIFT,CLU	1-31321-052-3	01	1	9601-		●	●
118	BEARING; CLU RELEASE	1-09820-081-0	01	1	9601-0110	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0111-0308	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9601-0111		●	●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-		●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-148-0	01	1	0112-		●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0111-0308	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9601-0308	●	●	●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	0309-		●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9601-0308	●	●	●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	0309-		●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=405	1-09364-449-0	01	1	9601-0308	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9601-0003		●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-		●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9601-0308	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	0309-0512		●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-		●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	9601-		●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=22	1-09700-644-1	01	1	9601-0308	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=15.5	9-09917-613-0	01	1	9601-0308	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9601-0606		●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0607-		●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9601-0308	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0309-		●	●
125	SHAFT; CLU	1-31342-169-1	01	1	9601-0308	●
125	SHAFT; CLU	1-31342-271-0	01	1	9601-9803		●	●
125	SHAFT; CLU	1-31342-298-1	01	1	9804-		●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9601-0308	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0309-		●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9601-0308	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0309-0512		●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-		●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9601-0308	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0309-0603		●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-		●	●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-052-0	01	1	9601-9803		●	●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-058-0	01	1	9804-		●	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28181-025-0	04	1	9601-0512		●	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28151-025-0	04	1	0601-		●	●
148	SPRING; CLU RETURN	1-09583-212-0	01	1	9601-0308	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9601-		●	●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-019-1	01	1	9601-0308	●	●	●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-019-1	01	1	0309-		●	●
149	EYE; SPRING,RETURN SPRING (A) T=2.3	1-47324-005-1	01	1	9601-		●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9601-0308	●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0309-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
