1-56 — EXHAUST BRAKE SYSTEM (#22813) — 24 parça

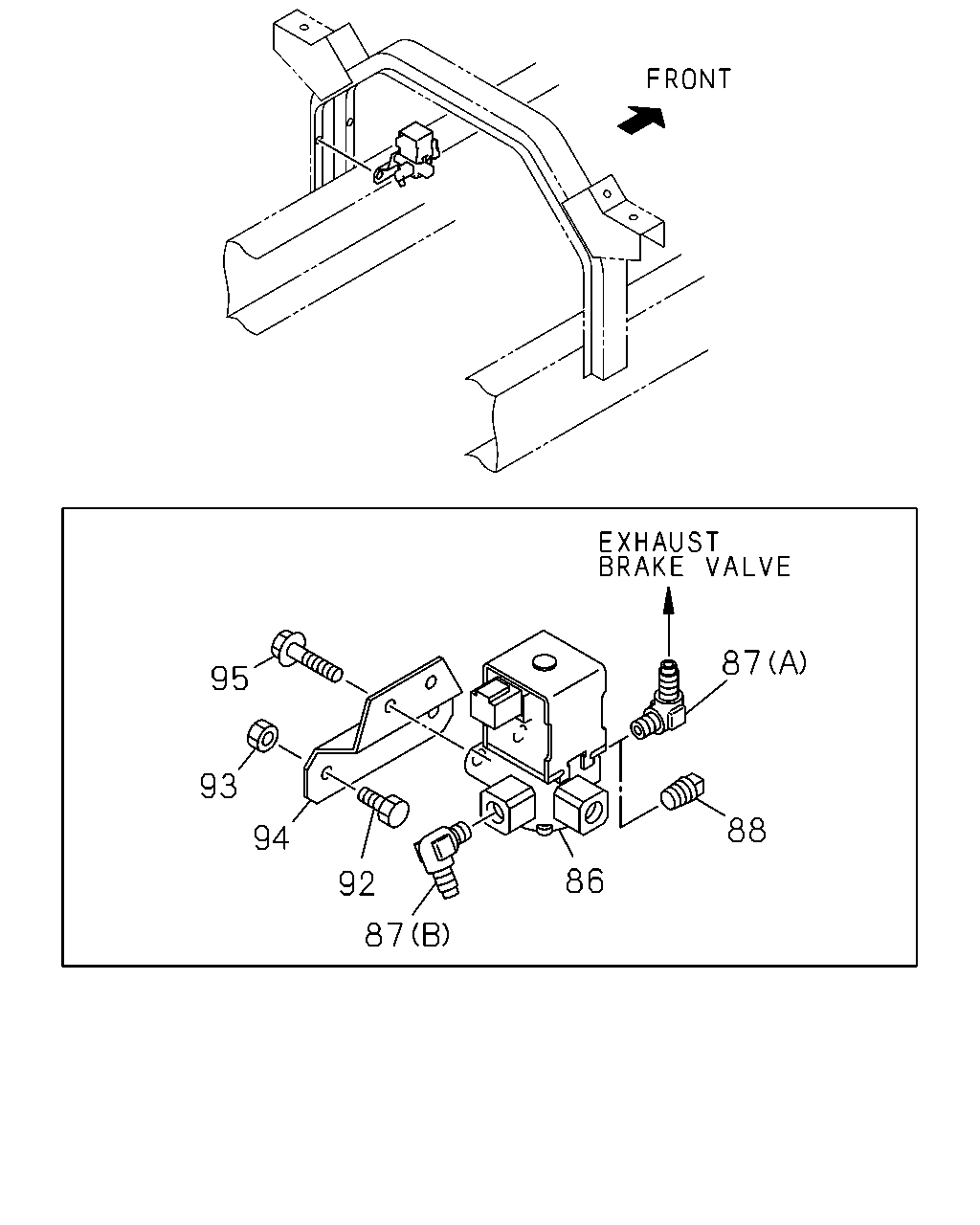

çizim 16224
87 95 93 88 94 86 92 87
BalonParca AdiParca NoAdetTipApplied Date A B
86 VALVE; MAG,EXH BRK 1-82563-602-5 01 1 9601-0212 ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-6 01 1 0301- ●
86 VALVE; MAG,EXH BRK 1-82563-600-4 01 1 0301-0308 ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9601-0308 ● ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0309- ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9803 ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9804-0308 ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0309- ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 0301-0308 ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ● ●
92 BOLT; MAG VLV
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9712 ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 9801-0308 ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 0309-0512 ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
93 NUT; MAG VLV
M8 		9-09110-408-0 02 1 9601-9606 ● ●
93 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 9607-0308 ● ●
93 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 0309-0602 ●
93 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47477-266-0 01 1 9601-0308 ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47477-266-0 01 1 0309- ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28080-820-0 02 1 9601-9902 ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28680-820-0 02 1 9903-0308 ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28680-820-0 02 1 0309-0512 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
