Sayfa 1-55 - Isuzu EPC

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#22812) — 276 parça

82 45 44 42 80 81 43 42 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE (B)	1-22181-133-0	01	1	9601-9609	●
6	VALVE; EXH BRAKE (B)	8-94391-042-0	01	1	9610-9809	●
6	VALVE; EXH BRAKE (B)	1-22181-158-0	01	1	9810-0211	●
6	VALVE; EXH BRAKE (B)	8-97600-870-0	01	1	0212-	●
6	VALVE; EXH BRAKE (A)	8-94395-759-0	01	1	9601-9609	●
6	VALVE; EXH BRAKE (A)	8-94391-044-0	01	1	9610-9803	●
6	VALVE; EXH BRAKE (A)	8-94391-043-1	01	1	9804-0211	●
6	VALVE; EXH BRAKE (A)	8-97602-529-0	01	1	0212-	●
6	VALVE; EXH BRAKE (B)	1-22181-134-0	01	1	9601-0211		●
6	VALVE; EXH BRAKE (A)	8-94395-246-2	01	1	9601-0211		●
6	VALVE; EXH BRAKE (C)	8-97602-527-0	01	1	0212-0308		●
42	HOSE; FLEX,EXH BRK L=400	0-07120-400-0	01	1	9601-9803	●
42	HOSE; FLEX,EXH BRK L=370	1-09363-621-0	01	1	9804-	●
42	HOSE; FLEX,EXH BRK L=520	1-09363-589-1	01	1	9601-0212		●
42	HOSE; FLEX,EXH BRK L=560	1-09363-914-0	01	1	0301-0308		●
43	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9601-9806	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	9601-0308	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0309-0603	●
44	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0604-	●
45	NUT; FLEX HOSE M12	9-09840-280-0	01	1	9601-0308	●
45	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0309-	●
80	BRACKET; FLEX HOSE	1-47476-355-0	01	1	9601-	●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
81	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-9712	●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28680-820-0	02	1	9801-0004	●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
82	NUT; HOSE BRKT M8	9-09110-408-0	02	1	9601-9606	●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0004	●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
82	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●

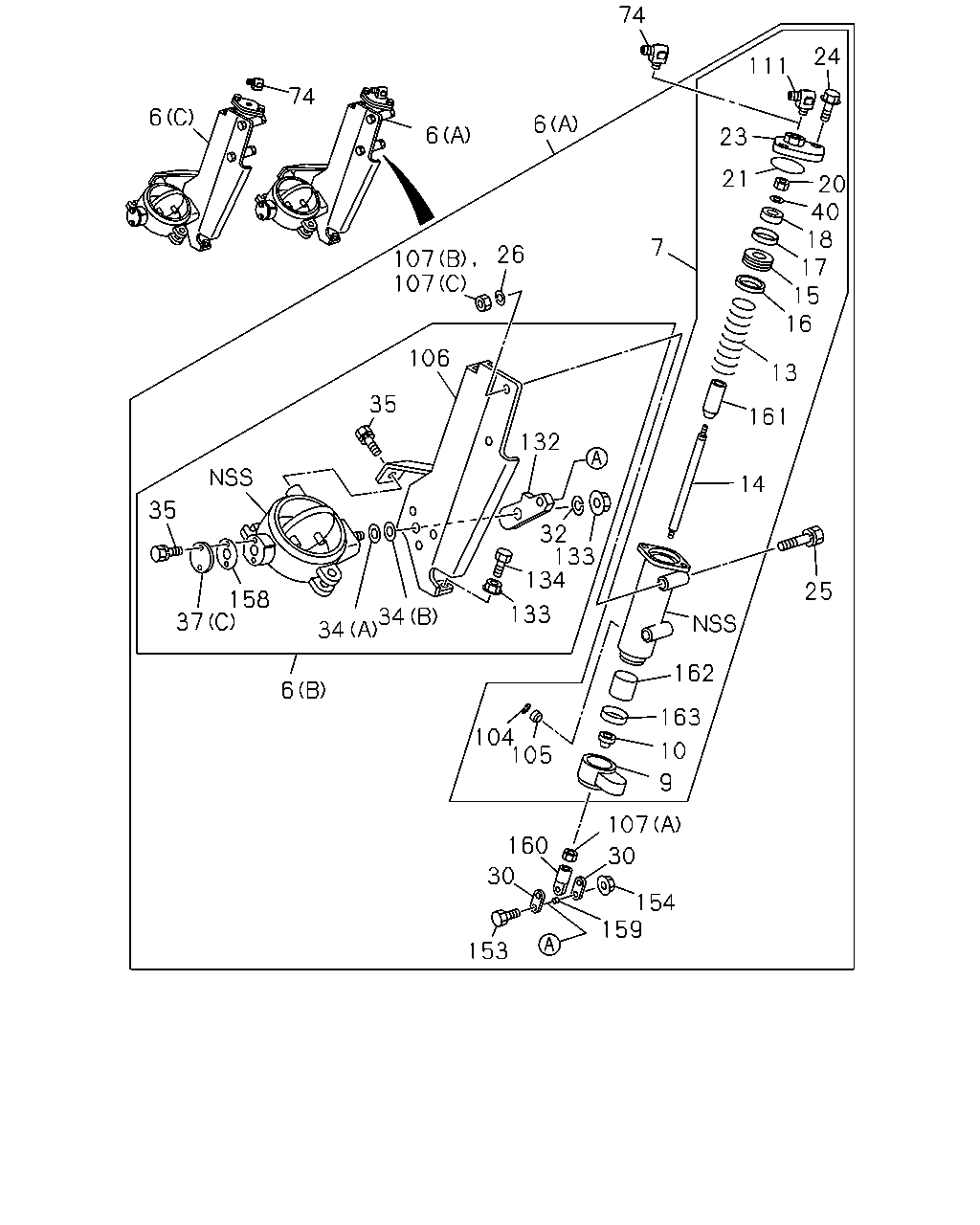

74 24 111 74 6 6 6 23 21 20 40 18 17 15 16 7 26 107 107 106 13 35 161 132 14 35 32 133 134 25 158 37 133 34 34 162 6 163 104 105 10 9 107 160 30 30 154 159 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE (B)	1-22181-133-0	01	1	9601-9609	●
6	VALVE; EXH BRAKE (B)	8-94391-042-0	01	1	9610-9809	●
6	VALVE; EXH BRAKE (B)	1-22181-158-0	01	1	9810-0211	●
6	VALVE; EXH BRAKE (B)	8-97600-870-0	01	1	0212-	●
6	VALVE; EXH BRAKE (A)	8-94395-759-0	01	1	9601-9609	●
6	VALVE; EXH BRAKE (A)	8-94391-044-0	01	1	9610-9803	●
6	VALVE; EXH BRAKE (A)	8-94391-043-1	01	1	9804-0211	●
6	VALVE; EXH BRAKE (A)	8-97602-529-0	01	1	0212-	●
6	VALVE; EXH BRAKE (B)	1-22181-134-0	01	1	9601-0211		●
6	VALVE; EXH BRAKE (A)	8-94395-246-2	01	1	9601-0211		●
6	VALVE; EXH BRAKE (C)	8-97602-527-0	01	1	0212-0308		●
7	CYLINDER ASM; CONT	1-22190-631-0	01	1	9601-9809	●
7	CYLINDER ASM; CONT	1-22190-655-0	01	1	9810-0211	●
7	CYLINDER ASM; CONT	1-22190-656-0	01	1	0212-	●
7	CYLINDER ASM; CONT	1-22190-632-0	01	1	9601-0211		●
9	COVER; CYL	1-22199-070-0	01	1	9601-0211		●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	9601-0211	●	●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	0212-	●
13	SPRING; CONT CYL	1-09580-517-0	01	1	9601-9609	●
13	SPRING; CONT CYL	1-22199-157-0	01	1	9601-9609		●
13	SPRING; CONT CYL	1-22199-157-0	01	1	9610-9807	●	●
13	SPRING; CONT CYL	1-22199-157-0	01	1	9808-9809	●
13	SPRING; CONT CYL	1-09580-517-0	01	1	9808-9809		●
13	SPRING; CONT CYL	1-09580-517-0	01	1	9810-0211	●	●
13	SPRING; CONT CYL	1-09580-517-0	01	1	0212-	●
14	SHAFT; CONT CYL	1-22199-145-0	01	1	9601-	●
14	SHAFT; CONT CYL	1-22199-158-0	01	1	9601-0211		●
15	PLATE; CONT CYL	8-97600-316-0	01	1	9810-	●
15	PLATE; CONT CYL	1-22199-156-0	01	1	9601-9809	●	●
15	PLATE; CONT CYL	1-22199-156-0	01	1	9810-0211		●
16	RING; WEAR,CONT CYL	8-97600-317-0	01	1	9810-	●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9601-9809	●	●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9810-0211		●
17	GASKET; CONT CYL	8-97600-318-0	01	1	9810-	●
17	GASKET; CONT CYL	1-22199-103-0	01	1	9601-9809	●	●
17	GASKET; CONT CYL	1-22199-103-0	01	1	9810-0211		●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9601-9809	●	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9810-0211		●
20	NUT; CONT CYL M8 W/LK WASHER	8-94279-050-0	01	1	9601-9809	●
20	NUT; CONT CYL M8 FLANGE	0-91150-108-0	01	1	9810-	●
20	NUT; CONT CYL	9-83315-085-0	01	1	9601-0211		●
21	GASKET; COVER	1-22199-072-0	01	1	9601-0211	●	●
21	GASKET; COVER	1-22199-072-0	01	1	0212-	●
23	COVER; CONT CYL	8-97600-319-0	01	1	9810-	●
23	COVER; CONT CYL	1-22199-066-0	01	1	9601-9809	●	●
23	COVER; CONT CYL	1-22199-066-0	01	1	9810-0211		●
24	BOLT; COVER	1-22199-174-0	02	1	9810-	●
24	BOLT; COVER	1-22199-155-0	02	1	9601-9809	●	●
24	BOLT; COVER	1-22199-155-0	02	1	9810-0211		●
25	BOLT; CONT CYL M10X55 FLANGE	8-94399-863-0	02	1	9601-9609	●
25	BOLT; CONT CYL M10X60 FLANGE	0-28081-060-0	02	1	9610-9803	●
25	BOLT; CONT CYL M10X60 FLANGE	0-28081-060-0	02	1	9804-9807	●
25	BOLT; CONT CYL M10X60 FLANGE	0-28081-060-0	02	1	9808-9809	●	●
25	BOLT; CONT CYL M10X60 FLANGE	0-28081-060-0	02	1	9810-0211		●
25	BOLT; CONT CYL M10X60 FLANGE	1-22199-160-0	02	1	9810-	●
25	BOLT; CONT CYL M10X60	9-01056-060-0	02	1	9601-9807		●
26	WASHER; LK,CONT CYL ID=10.2	9-09150-510-0	02	1	9601-9807		●
30	ROD; LINK,CONT CYL	1-22199-124-0	02	1	9601-0211		●
32	WASHER; LK ID=8.2	9-09150-508-0	06	1	9601-9609	●
32	WASHER; LK ID=10.2	9-09150-510-0	01	1	9601-9807		●
32	WASHER; LK ID=8.4 OD=18	9-09164-608-0	01	1	9601-9807		●
34	RING; SEAL (A) ID=15	8-94397-184-0	02	1	9601-0211	●	●
34	RING; SEAL (A) ID=15	8-94397-184-0	02	1	0212-	●
34	RING; SEAL (B) ID=13.7	9-22189-124-0	02	1	9601-0211	●	●
34	RING; SEAL (B) ID=13.7	9-22189-124-0	02	1	0212-	●
35	BOLT; PLATE FIX M8X16	9-02050-816-0	05	1	9601-9609	●
35	BOLT; PLATE FIX	1-22199-154-0	05	1	9610-9809	●
35	BOLT; PLATE FIX	1-22199-174-0	05	1	9810-	●
35	BOLT; PLATE FIX M8X16 W/LK WASHER	0-50040-816-0	05	1	9601-9807		●
35	BOLT; PLATE FIX M8X16 W/LK WASHER	0-50040-816-0	02	1	9808-0211		●
35	BOLT; PLATE FIX M10X20	9-02051-020-0	01	1	9601-9807		●
35	BOLT; PLATE FIX M10X20	0-28021-020-0	01	1	9808-0211		●
35	BOLT; PLATE FIX	1-22199-174-0	02	1	9808-0211		●
35	BOLT; PLATE FIX	1-22199-188-0	01	1	9808-0211		●
37	COVER; BODY (B)	1-22199-130-0	01	1	9601-	●
37	COVER; BODY (A)	9-22189-160-0	01	1	9601-	●
37	COVER; BODY (C)	1-22189-274-0	01	1	9601-9807		●
37	COVER; BODY (C)	1-22189-327-0	01	1	9808-0211		●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	01	1	9601-0211		●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0212-0308	●	●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0309-	●
104	RING; RET	9-88510-331-0	01	1	9601-0211	●	●
104	RING; RET	9-88510-331-0	01	1	0212-	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9601-0211	●	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	0212-	●
106	BRACKET; CONT CYL	8-94396-192-0	01	1	9601-9609	●
106	BRACKET; CONT CYL	8-94391-038-0	01	1	9610-9809	●
106	BRACKET; CONT CYL	8-97600-313-0	01	1	9810-0211	●
106	BRACKET; CONT CYL	8-97600-869-0	01	1	0212-	●
106	BRACKET; CONT CYL	8-94395-578-0	01	1	9601-0211		●
107	NUT; CONT CYL (C) M10 FLANGE	0-91150-110-0	01	1	9610-	●
107	NUT; CONT CYL (B)	9-83315-080-0	02	1	9601-9807		●
107	NUT; CONT CYL (C) M10 FLANGE	0-91150-110-0	02	1	9808-0211		●
107	NUT; CONT CYL (A)	9-83315-085-0	01	1	9601-0211		●
111	ELBOW; CONT CYL	8-94393-086-1	01	1	9601-9803	●
111	ELBOW; CONT CYL	1-09650-358-0	01	1	9601-9803		●
111	ELBOW; CONT CYL	1-09650-358-1	01	1	9804-0211	●	●
132	LEVER; BRK VLV	8-94397-185-0	01	1	9601-	●
132	LEVER; BRK VLV	1-22196-342-0	01	1	9601-0211		●
133	NUT; LK	8-94311-428-0	03	1	9601-9809	●
133	NUT; LK	1-47829-069-0	01	1	9610-9809	●
133	NUT; LK M8 FLANGE	0-91150-108-0	03	1	9601-9809		●
133	NUT; LK M8 FLANGE	0-91150-108-0	03	1	9810-0211	●	●
133	NUT; LK M8 FLANGE	0-91150-108-0	03	1	0212-	●
134	BOLT; STOPPER	1-22199-121-0	05	1	9610-9809	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9601-9609	●	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9610-9809		●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9810-0211	●	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	0212-	●
153	BOLT; CLEVIS,CONT CYL M6X30	1-09000-559-0	02	1	9601-9809	●
153	BOLT; CLEVIS,CONT CYL	8-97600-320-0	02	1	9810-	●
153	BOLT; CLEVIS,CONT CYL	1-33739-200-0	02	1	9601-0211		●
154	NUT; CLEVIS,CONT CYL M6	9-09110-406-0	04	1	9601-	●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9601-0211		●
158	GASKET; COVER	1-22189-286-0	01	1	9601-0211		●
159	COLLAR; CONT CYL	1-22199-138-0	02	1	9601-0211		●
160	JOINT; CONT CYL	1-22199-137-0	01	1	9601-0211		●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	9601-0211	●	●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	0212-	●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	9601-0211	●	●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	0212-	●
163	WASHER; CONT CYL	1-22199-148-0	01	1	9601-0211	●	●
163	WASHER; CONT CYL	1-22199-148-0	01	1	0212-	●

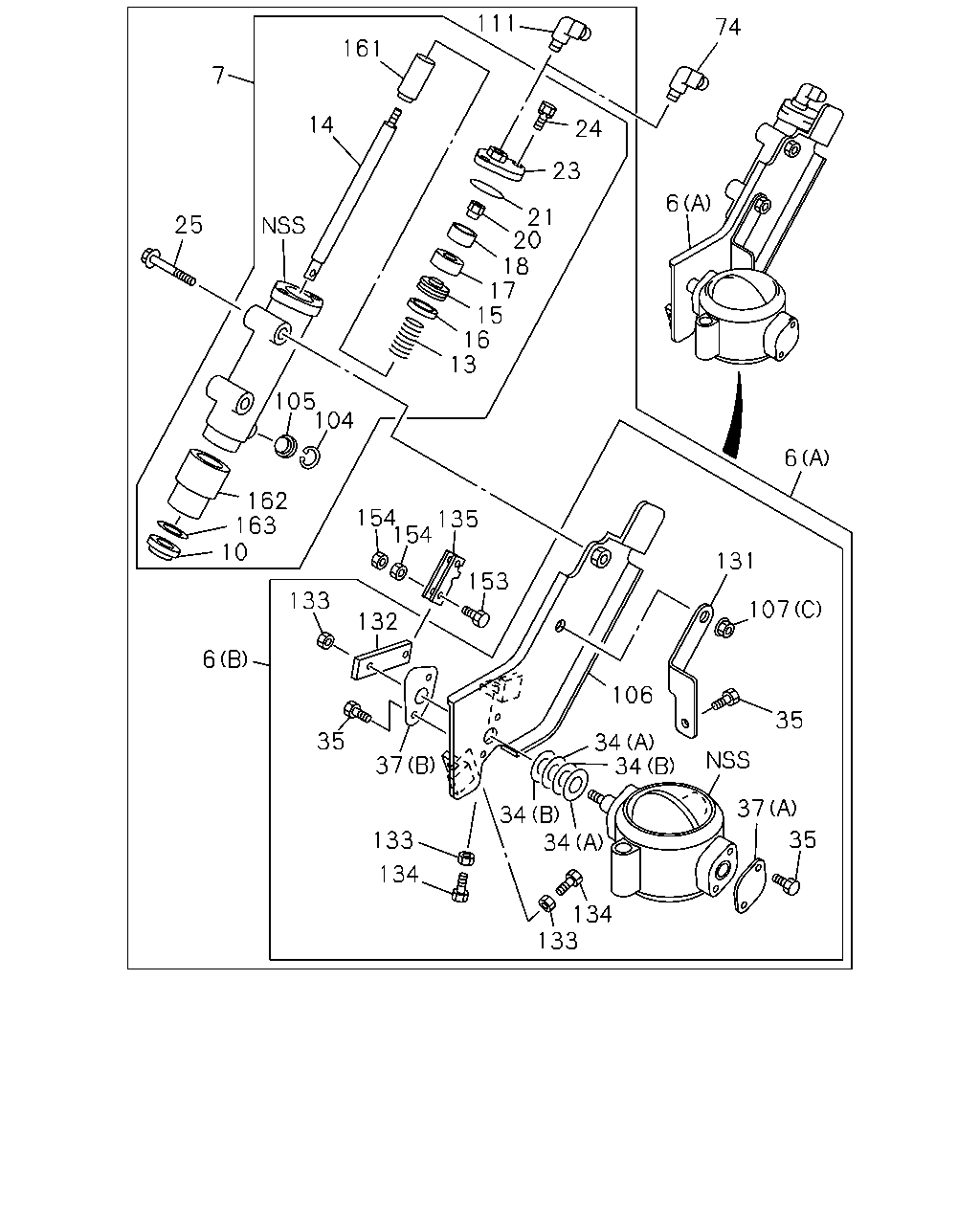

111 74 161 7 14 24 23 6 21 20 18 17 15 16 13 25 105 104 6 162 163 10 154 135 154 131 153 133 107 132 6 106 35 35 34 34 37 37 34 34 35 133 134 134 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE (B)	1-22181-133-0	01	1	9601-9609	●
6	VALVE; EXH BRAKE (B)	8-94391-042-0	01	1	9610-9809	●
6	VALVE; EXH BRAKE (B)	1-22181-158-0	01	1	9810-0211	●
6	VALVE; EXH BRAKE (B)	8-97600-870-0	01	1	0212-	●
6	VALVE; EXH BRAKE (A)	8-94395-759-0	01	1	9601-9609	●
6	VALVE; EXH BRAKE (A)	8-94391-044-0	01	1	9610-9803	●
6	VALVE; EXH BRAKE (A)	8-94391-043-1	01	1	9804-0211	●
6	VALVE; EXH BRAKE (A)	8-97602-529-0	01	1	0212-	●
6	VALVE; EXH BRAKE (B)	1-22181-134-0	01	1	9601-0211		●
6	VALVE; EXH BRAKE (A)	8-94395-246-2	01	1	9601-0211		●
6	VALVE; EXH BRAKE (C)	8-97602-527-0	01	1	0212-0308		●
7	CYLINDER ASM; CONT	1-22190-631-0	01	1	9601-9809	●
7	CYLINDER ASM; CONT	1-22190-655-0	01	1	9810-0211	●
7	CYLINDER ASM; CONT	1-22190-656-0	01	1	0212-	●
7	CYLINDER ASM; CONT	1-22190-632-0	01	1	9601-0211		●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	9601-0211	●	●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	0212-	●
13	SPRING; CONT CYL	1-09580-517-0	01	1	9601-9609	●
13	SPRING; CONT CYL	1-22199-157-0	01	1	9601-9609		●
13	SPRING; CONT CYL	1-22199-157-0	01	1	9610-9807	●	●
13	SPRING; CONT CYL	1-22199-157-0	01	1	9808-9809	●
13	SPRING; CONT CYL	1-09580-517-0	01	1	9808-9809		●
13	SPRING; CONT CYL	1-09580-517-0	01	1	9810-0211	●	●
13	SPRING; CONT CYL	1-09580-517-0	01	1	0212-	●
14	SHAFT; CONT CYL	1-22199-145-0	01	1	9601-	●
14	SHAFT; CONT CYL	1-22199-158-0	01	1	9601-0211		●
15	PLATE; CONT CYL	8-97600-316-0	01	1	9810-	●
15	PLATE; CONT CYL	1-22199-156-0	01	1	9601-9809	●	●
15	PLATE; CONT CYL	1-22199-156-0	01	1	9810-0211		●
16	RING; WEAR,CONT CYL	8-97600-317-0	01	1	9810-	●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9601-9809	●	●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9810-0211		●
17	GASKET; CONT CYL	8-97600-318-0	01	1	9810-	●
17	GASKET; CONT CYL	1-22199-103-0	01	1	9601-9809	●	●
17	GASKET; CONT CYL	1-22199-103-0	01	1	9810-0211		●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9601-9809	●	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9810-0211		●
20	NUT; CONT CYL M8 W/LK WASHER	8-94279-050-0	01	1	9601-9809	●
20	NUT; CONT CYL M8 FLANGE	0-91150-108-0	01	1	9810-	●
20	NUT; CONT CYL	9-83315-085-0	01	1	9601-0211		●
21	GASKET; COVER	1-22199-072-0	01	1	9601-0211	●	●
21	GASKET; COVER	1-22199-072-0	01	1	0212-	●
23	COVER; CONT CYL	8-97600-319-0	01	1	9810-	●
23	COVER; CONT CYL	1-22199-066-0	01	1	9601-9809	●	●
23	COVER; CONT CYL	1-22199-066-0	01	1	9810-0211		●
24	BOLT; COVER	1-22199-174-0	02	1	9810-	●
24	BOLT; COVER	1-22199-155-0	02	1	9601-9809	●	●
24	BOLT; COVER	1-22199-155-0	02	1	9810-0211		●
25	BOLT; CONT CYL M10X55 FLANGE	8-94399-863-0	02	1	9601-9609	●
25	BOLT; CONT CYL M10X60 FLANGE	0-28081-060-0	02	1	9610-9803	●
25	BOLT; CONT CYL M10X60 FLANGE	0-28081-060-0	02	1	9804-9807	●
25	BOLT; CONT CYL M10X60 FLANGE	0-28081-060-0	02	1	9808-9809	●	●
25	BOLT; CONT CYL M10X60 FLANGE	0-28081-060-0	02	1	9810-0211		●
25	BOLT; CONT CYL M10X60 FLANGE	1-22199-160-0	02	1	9810-	●
25	BOLT; CONT CYL M10X60	9-01056-060-0	02	1	9601-9807		●
34	RING; SEAL (A) ID=15	8-94397-184-0	02	1	9601-0211	●	●
34	RING; SEAL (A) ID=15	8-94397-184-0	02	1	0212-	●
34	RING; SEAL (B) ID=13.7	9-22189-124-0	02	1	9601-0211	●	●
34	RING; SEAL (B) ID=13.7	9-22189-124-0	02	1	0212-	●
35	BOLT; PLATE FIX M8X16	9-02050-816-0	05	1	9601-9609	●
35	BOLT; PLATE FIX	1-22199-154-0	05	1	9610-9809	●
35	BOLT; PLATE FIX	1-22199-174-0	05	1	9810-	●
35	BOLT; PLATE FIX M8X16 W/LK WASHER	0-50040-816-0	05	1	9601-9807		●
35	BOLT; PLATE FIX M8X16 W/LK WASHER	0-50040-816-0	02	1	9808-0211		●
35	BOLT; PLATE FIX M10X20	9-02051-020-0	01	1	9601-9807		●
35	BOLT; PLATE FIX M10X20	0-28021-020-0	01	1	9808-0211		●
35	BOLT; PLATE FIX	1-22199-174-0	02	1	9808-0211		●
35	BOLT; PLATE FIX	1-22199-188-0	01	1	9808-0211		●
37	COVER; BODY (B)	1-22199-130-0	01	1	9601-	●
37	COVER; BODY (A)	9-22189-160-0	01	1	9601-	●
37	COVER; BODY (C)	1-22189-274-0	01	1	9601-9807		●
37	COVER; BODY (C)	1-22189-327-0	01	1	9808-0211		●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0212-0308	●	●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0309-	●
104	RING; RET	9-88510-331-0	01	1	9601-0211	●	●
104	RING; RET	9-88510-331-0	01	1	0212-	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9601-0211	●	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	0212-	●
106	BRACKET; CONT CYL	8-94396-192-0	01	1	9601-9609	●
106	BRACKET; CONT CYL	8-94391-038-0	01	1	9610-9809	●
106	BRACKET; CONT CYL	8-97600-313-0	01	1	9810-0211	●
106	BRACKET; CONT CYL	8-97600-869-0	01	1	0212-	●
106	BRACKET; CONT CYL	8-94395-578-0	01	1	9601-0211		●
107	NUT; CONT CYL (C) M10 FLANGE	0-91150-110-0	01	1	9610-	●
107	NUT; CONT CYL (B)	9-83315-080-0	02	1	9601-9807		●
107	NUT; CONT CYL (C) M10 FLANGE	0-91150-110-0	02	1	9808-0211		●
107	NUT; CONT CYL (A)	9-83315-085-0	01	1	9601-0211		●
111	ELBOW; CONT CYL	8-94393-086-1	01	1	9601-9803	●
111	ELBOW; CONT CYL	1-09650-358-0	01	1	9601-9803		●
111	ELBOW; CONT CYL	1-09650-358-1	01	1	9804-0211	●	●
131	PLATE; BODY	8-94391-039-0	01	1	9610-	●
132	LEVER; BRK VLV	8-94397-185-0	01	1	9601-	●
132	LEVER; BRK VLV	1-22196-342-0	01	1	9601-0211		●
133	NUT; LK	8-94311-428-0	03	1	9601-9809	●
133	NUT; LK	1-47829-069-0	01	1	9610-9809	●
133	NUT; LK M8 FLANGE	0-91150-108-0	03	1	9601-9809		●
133	NUT; LK M8 FLANGE	0-91150-108-0	03	1	9810-0211	●	●
133	NUT; LK M8 FLANGE	0-91150-108-0	03	1	0212-	●
134	BOLT; STOPPER	1-22199-121-0	05	1	9610-9809	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9601-9609	●	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9610-9809		●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9810-0211	●	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	0212-	●
135	CLEVIS; CONT CYL	1-22199-053-0	01	1	9601-	●
153	BOLT; CLEVIS,CONT CYL M6X30	1-09000-559-0	02	1	9601-9809	●
153	BOLT; CLEVIS,CONT CYL	8-97600-320-0	02	1	9810-	●
153	BOLT; CLEVIS,CONT CYL	1-33739-200-0	02	1	9601-0211		●
154	NUT; CLEVIS,CONT CYL M6	9-09110-406-0	04	1	9601-	●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9601-0211		●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	9601-0211	●	●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	0212-	●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	9601-0211	●	●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	0212-	●
163	WASHER; CONT CYL	1-22199-148-0	01	1	9601-0211	●	●
163	WASHER; CONT CYL	1-22199-148-0	01	1	0212-	●

42 83 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	HOSE; FLEX,EXH BRK L=400	0-07120-400-0	01	1	9601-9803	●
42	HOSE; FLEX,EXH BRK L=370	1-09363-621-0	01	1	9804-	●
42	HOSE; FLEX,EXH BRK L=520	1-09363-589-1	01	1	9601-0212		●
42	HOSE; FLEX,EXH BRK L=560	1-09363-914-0	01	1	0301-0308		●
47	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9601-9606		●
47	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-0308		●
83	CLIP; FLEX HOSE ID=11 H=20 L=20	5-09700-351-0	01	1	9601-0308		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
