1-50 — EXHAUST PIPE AND SILENCER (#22811) — 787 parça

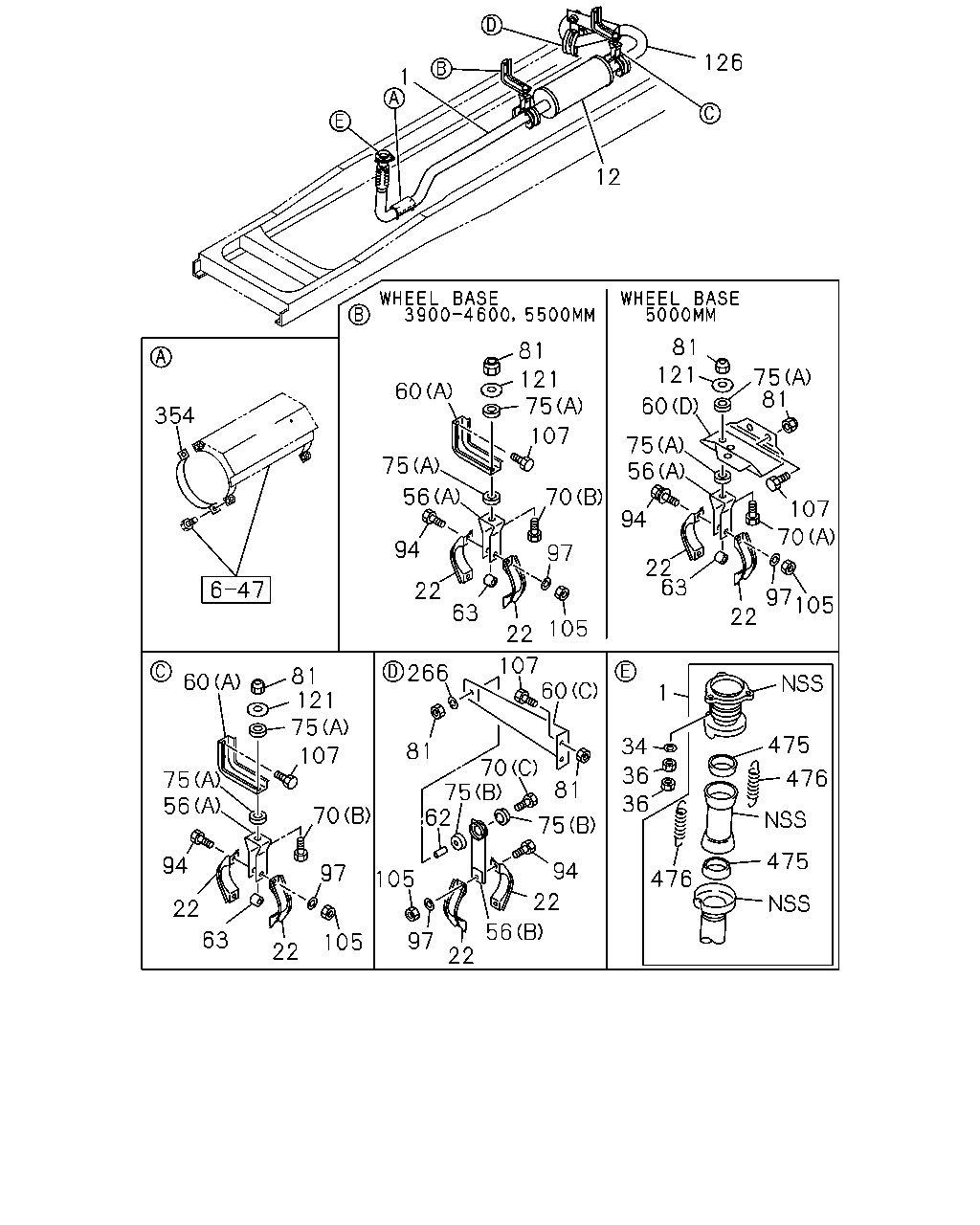

çizim 16632
126 1 12 81 121 81 75 81 121 75 60 60 354 107 75 56 75 56 70 107 70 94 94 97 22 63 22 97 105 22 63 105 22 107 60 266 81 121 75 60 1 475 34 81 107 70 75 62 36 476 75 56 81 36 70 75 475 94 94 97 476 105 22 22 56 63 97 105 22 22
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
6HH1 STD ENG(65L) 		1-22122-646-1 01 1 9601-0209 ● ●
1 PIPE; EXH
6HH1 STD ENG(65L) EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-646-1 01 1 0210-0308 ● ●
1 PIPE; EXH
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> 		1-22123-644-0 01 1 0210-0308 ● ●
1 PIPE; EXH 1-22123-644-0 01 1 0309- ●
1 PIPE; EXH
6SD1 STD ENG(37L) 		1-22122-616-0 01 1 9601-0308 ● ●
12 SILENCER ASM; EXH
6HH1 STD ENG(65L) 		1-22140-752-0 01 1 9601-9807 ● ●
12 SILENCER ASM; EXH
6HH1 STD ENG(65L) 		1-22140-873-0 01 1 9808-0205 ● ●
12 SILENCER ASM; EXH
6HH1 STD ENG(65L) 		1-22140-880-0 01 1 0206-0209 ● ●
12 SILENCER ASM; EXH
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> 		1-22141-074-0 01 1 0210-0308 ● ●
12 SILENCER ASM; EXH 1-22141-074-0 01 1 0309- ●
12 SILENCER ASM; EXH
6SD1 STD ENG(37L) 		1-22140-649-1 01 1 9601-0308 ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9601-9608 ● ●
22 CLAMP; EXH PIPE
6SD1 STD ENG(37L) ID=80-84 		1-22133-233-0 04 1 9609-9803 ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9804-0006 ● ●
22 CLAMP; EXH PIPE
6SD1 STD ENG(37L) ID=80-84 		1-22133-233-0 02 1 0007-0007 ● ●
22 CLAMP; EXH PIPE
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) ID=80-84 		1-22133-233-0 02 1 0007-0007 ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0007-0011 ●
22 CLAMP; EXH PIPE
6SD1 STD ENG(37L) ID=80-84 		1-22133-233-0 02 1 0007-0011 ●
22 CLAMP; EXH PIPE
6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) ID=80-84 		1-22133-233-0 02 1 0007-0011 ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0012-0209 ● ●
22 CLAMP; EXH PIPE
6SD1 STD ENG(37L) ID=80-84 		1-22133-233-0 04 1 0210-0308 ● ●
22 CLAMP; EXH PIPE
6HH1 STD ENG(65L) ID=80-84 		1-22133-233-0 02 1 0309- ●
22 CLAMP; EXH PIPE
6HH1 STD ENG(65L) ID=80-84 		1-22133-233-0 02 1 0309- ●
22 CLAMP; EXH PIPE
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ID=80-84 		1-22133-233-0 02 1 0309- ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 04 1 9601-9608 ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9609-9803 ● ●
22 CLAMP; EXH PIPE
6HH1 STD ENG(65L) ID=80-84 		1-22133-233-0 02 1 9609-9803 ● ●
22 CLAMP; EXH PIPE
6HH1 STD ENG(65L) ID=80-84 		1-22133-233-0 02 1 9609-9803 ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 04 1 9804-0209 ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0210-0308 ● ●
22 CLAMP; EXH PIPE
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> ID=80-84 		1-22133-233-0 02 1 0210-0308 ● ●
22 CLAMP; EXH PIPE
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) ID=80-84 		1-22133-233-0 02 1 0210-0308 ●
22 CLAMP; EXH PIPE
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> ID=80-84 		1-22133-233-0 02 1 0210-0308 ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9601-0308 ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 0309-0410 ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0411- ●
36 NUT; EXH PIPE
6HH1 STD ENG(65L) M12 		1-09400-010-0 06 1 9601-9608 ● ●
36 NUT; EXH PIPE
6SD1 STD ENG(37L) M12 		1-09400-010-0 03 1 9601-9608 ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 9609-0308 ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 0309- ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) (B) L=254 		1-22131-527-1 01 1 9601-0308 ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) L=254 		1-22131-527-1 01 1 0309- ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) (A) H=112 		1-22139-043-0 01 1 9601-9803 ● ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) (A) H=112 		1-22139-043-0 01 1 9601-9803 ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (A) H=112 		1-22139-043-0 01 1 9601-9803 ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) (A) H=112 		1-22139-043-0 01 1 9804-0006 ● ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) (A) H=112 		1-22139-043-0 01 1 9804-0006 ● ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) (A) H=112 		1-22139-043-0 01 1 0007-0007 ● ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) (A) H=112 		1-22139-043-0 01 1 0007-0011 ● ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) (A) H=112 		1-22139-043-0 01 1 0007-0011 ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (A) H=112 		1-22139-043-0 01 1 0007-0011 ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) (A) H=112 		1-22139-043-0 01 1 0012-0209 ● ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) (A) H=112 		1-22139-043-0 01 1 0012-0209 ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (A) H=112 		1-22139-043-0 01 1 0012-0209 ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (A) H=125 		1-22139-048-0 01 1 0210-0308 ● ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (A) H=125 		1-22139-048-0 01 1 0210-0308 ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> (A) H=125 		1-22139-048-0 01 1 0210-0308 ●
56 BRACKET; CLAMP,EXH PIPE
(A) H=125 		1-22139-048-0 01 1 0309- ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (A) H=125 		1-22139-048-0 01 1 0309- ●
56 BRACKET; CLAMP,EXH PIPE
6SD1 STD ENG(37L) (B) L=204 		1-22131-520-1 01 1 9601-0308 ● ●
56 BRACKET; CLAMP,EXH PIPE
6SD1 STD ENG(37L) (A) 		8-94301-523-0 01 1 9601-0308 ● ●
56 BRACKET; CLAMP,EXH PIPE
6SD1 STD ENG(37L) (A) 		8-94301-523-0 01 1 9601-0308 ● ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (A) H=67 		1-22139-041-0 01 1 9601-9803 ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (A) H=67 		1-22139-041-0 01 1 0007-0308 ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) (C) 		1-22131-514-0 01 1 9601-0308 ● ●
60 BRACKET; FRAME TO BRKT
(C) 		1-22131-514-0 01 1 0309- ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) (A) 		1-22151-512-2 01 1 9601-9803 ● ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) (A) 		1-22151-512-2 01 1 9601-9803 ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (A) 		1-22151-512-2 01 1 9601-9803 ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) (A) 		1-22151-512-2 01 1 9804-0006 ● ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) (A) 		1-22151-512-2 01 1 9804-0006 ● ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) (A) 		1-22151-512-2 01 1 0007-0007 ● ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) (A) 		1-22151-512-2 01 1 0007-0011 ● ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) (A) 		1-22151-512-2 01 1 0007-0011 ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (A) 		1-22151-512-2 01 1 0007-0011 ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) (A) 		1-22151-512-2 01 1 0012-0209 ● ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) (A) 		1-22151-512-2 01 1 0012-0209 ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (A) 		1-22151-512-2 01 1 0012-0209 ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (A) 		1-22151-512-3 01 1 0210-0308 ● ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (A) 		1-22151-512-3 01 1 0210-0308 ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> (A) 		1-22151-512-3 01 1 0210-0308 ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22151-512-3 01 1 0309- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (A) 		1-22151-512-3 01 1 0309- ●
60 BRACKET; FRAME TO BRKT
6SD1 STD ENG(37L) (C) 		1-22131-741-0 01 1 9601-0308 ● ●
60 BRACKET; FRAME TO BRKT
6SD1 STD ENG(37L) (B) 		1-22151-681-0 01 1 9601-0308 ● ●
60 BRACKET; FRAME TO BRKT
6SD1 STD ENG(37L) (B) 		1-22151-681-0 01 1 9601-0308 ● ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (D) 		1-22151-534-3 01 1 9601-9803 ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (D) 		1-22151-534-3 01 1 0007-0308 ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 9601-0308 ● ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 0309- ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9601-9803 ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9601-9803 ●
63 TUBE; DIST,BRKT
6SD1 STD ENG(37L) L=11 		1-22139-026-0 01 1 9601-9803 ●
63 TUBE; DIST,BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) L=11 		1-22139-026-0 01 1 9601-9803 ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9804-0006 ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9804-0006 ● ●
63 TUBE; DIST,BRKT
6SD1 STD ENG(37L) L=11 		1-22139-026-0 01 1 0007-0007 ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0007-0007 ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0007-0011 ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0007-0011 ●
63 TUBE; DIST,BRKT
6SD1 STD ENG(37L) L=11 		1-22139-026-0 01 1 0007-0011 ●
63 TUBE; DIST,BRKT
6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) L=11 		1-22139-026-0 01 1 0007-0011 ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0012-0209 ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0012-0209 ●
63 TUBE; DIST,BRKT
6SD1 STD ENG(37L) L=11 		1-22139-026-0 01 1 0012-0209 ●
63 TUBE; DIST,BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) L=11 		1-22139-026-0 01 1 0012-0209 ●
63 TUBE; DIST,BRKT
6SD1 STD ENG(37L) L=11 		1-22139-026-0 01 1 0210-0308 ● ●
63 TUBE; DIST,BRKT
6SD1 STD ENG(37L) L=11 		1-22139-026-0 01 1 0210-0308 ● ●
63 TUBE; DIST,BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> L=11 		1-22139-026-0 01 1 0210-0308 ● ●
63 TUBE; DIST,BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> L=11 		1-22139-026-0 01 1 0210-0308 ●
63 TUBE; DIST,BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> L=11 		1-22139-026-0 01 1 0210-0308 ●
63 TUBE; DIST,BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> L=11 		1-22139-026-0 01 1 0210-0308 ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0309- ●
63 TUBE; DIST,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) L=11 		1-22139-026-0 01 1 0309- ●
63 TUBE; DIST,BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) L=8.5 		1-22139-057-0 01 1 9601-9803 ●
63 TUBE; DIST,BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) L=8.5 		1-22139-057-0 01 1 0007-0308 ●
70 BOLT; BRKT
6HH1 STD ENG(65L) (B) M10X50 FLANGE 		0-28081-050-0 01 1 9607-9612 ● ●
70 BOLT; BRKT
6HH1 STD ENG(65L) (B) M10X50 FLANGE 		0-28081-050-0 01 1 9607-9612 ●
70 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10X50 FLANGE 		0-28081-050-0 01 1 9607-9612 ●
70 BOLT; BRKT
6HH1 STD ENG(65L) (B) M10X60 FLANGE 		0-28081-060-0 01 1 9607-9705 ● ●
70 BOLT; BRKT
6SD1 STD ENG(37L) (B) M10X50 		0-10806-050-0 01 1 9601-9612 ● ●
70 BOLT; BRKT
6SD1 STD ENG(37L) (B) M10X50 		0-10806-050-0 01 1 9601-9612 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 9701-9803 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 9701-9803 ●
70 BOLT; BRKT
6SD1 STD ENG(37L) (B) M10X50 		0-10806-050-0 01 1 9701-9803 ●
70 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10X50 		0-10806-050-0 01 1 9701-9803 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 9804-0006 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 9804-0006 ● ●
70 BOLT; BRKT
6SD1 STD ENG(37L) (B) M10X50 		0-10806-050-0 01 1 0007-0007 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0007-0007 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0007-0011 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0007-0011 ●
70 BOLT; BRKT
6SD1 STD ENG(37L) (B) M10X50 		0-10806-050-0 01 1 0007-0011 ●
70 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (B) M10X50 		0-10806-050-0 01 1 0007-0011 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0012-0204 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0012-0204 ●
70 BOLT; BRKT
6SD1 STD ENG(37L) (B) M10X50 		0-10806-050-0 01 1 0012-0204 ●
70 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10X50 		0-10806-050-0 01 1 0012-0204 ●

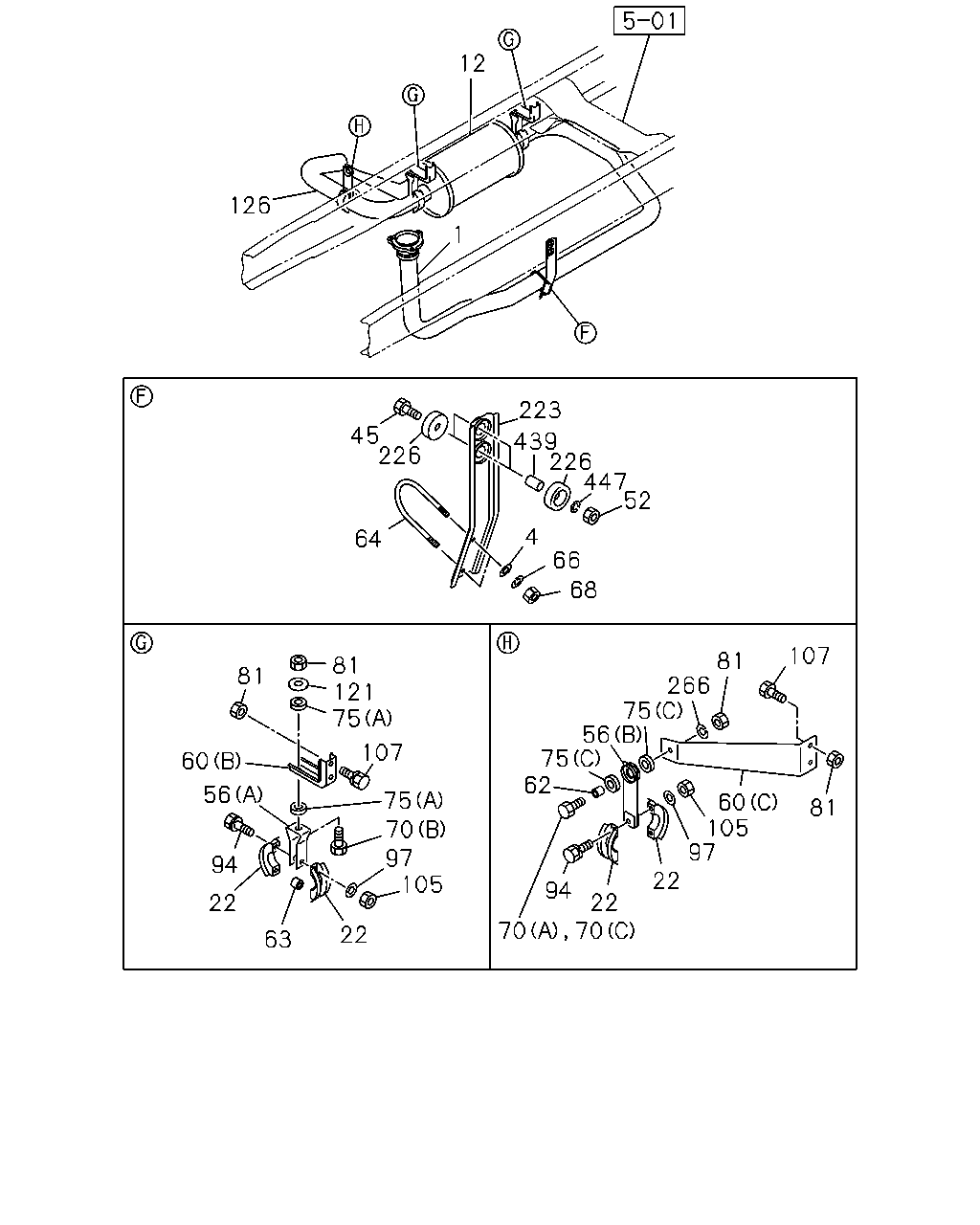

70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0205-0205 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0205-0209 ●
70 BOLT; BRKT
6SD1 STD ENG(37L) (B) M10X50 		0-10806-050-0 01 1 0205-0209 ●
70 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10X50 		0-10806-050-0 01 1 0205-0209 ●
70 BOLT; BRKT
6SD1 STD ENG(37L) (B) M10X50 		0-10806-050-0 02 1 0210-0308 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0309-0512 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0309-0512 ●
70 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (B) M10X50 		0-10806-050-0 01 1 0309-0512 ●
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 01 1 0601- ●
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 01 1 0601- ●
70 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (B) M10X50 		0-10856-050-0 01 1 0601- ●
70 BOLT; BRKT
6SD1 STD ENG(37L) (C) M10X55 		0-10806-055-0 01 1 9601-9705 ● ●
70 BOLT; BRKT
(C) M10X55 		0-10806-055-0 01 1 9706-0204 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 02 1 0205-0209 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0210-0308 ● ●
70 BOLT; BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (B) M10X50 		0-10806-050-0 01 1 0210-0308 ● ●
70 BOLT; BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (B) M10X50 		0-10806-050-0 01 1 0210-0308 ●
70 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> (B) M10X50 		0-10806-050-0 01 1 0210-0308 ●
70 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (A) M10X45 FLANGE 		0-28081-045-0 01 1 9607-9612 ●
70 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (A) M10X45 		0-10806-045-0 01 1 9701-9803 ●
70 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (A) M10X45 		0-10806-045-0 01 1 0007-0204 ●
70 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (A) M10X45 		0-10806-045-0 01 1 0205-0308 ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9601-9803 ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9601-9803 ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9804-0006 ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9804-0006 ● ●
75 RUBBER; SUPPORT,BRKT
6SD1 STD ENG(37L) (A) OD=30 		1-22159-106-1 02 1 0007-0007 ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0007-0007 ● ●
75 RUBBER; SUPPORT,BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (A) OD=30 		1-22159-106-1 02 1 0007-0007 ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0007-0011 ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0007-0011 ●
75 RUBBER; SUPPORT,BRKT
6SD1 STD ENG(37L) (A) OD=30 		1-22159-106-1 02 1 0007-0011 ●
75 RUBBER; SUPPORT,BRKT
6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) (A) OD=30 		1-22159-106-1 02 1 0007-0011 ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0012-0209 ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0012-0209 ● ●
75 RUBBER; SUPPORT,BRKT
6SD1 STD ENG(37L) (A) OD=30 		1-22159-106-1 02 1 0210-0308 ● ●
75 RUBBER; SUPPORT,BRKT
6SD1 STD ENG(37L) (A) OD=30 		1-22159-106-1 02 1 0210-0308 ● ●
75 RUBBER; SUPPORT,BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (A) OD=30 		1-22159-106-1 02 1 0210-0308 ● ●
75 RUBBER; SUPPORT,BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (A) OD=30 		1-22159-106-1 02 1 0210-0308 ●
75 RUBBER; SUPPORT,BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (A) OD=30 		1-22159-106-1 02 1 0210-0308 ●
75 RUBBER; SUPPORT,BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> (A) OD=30 		1-22159-106-1 02 1 0210-0308 ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0309- ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (A) OD=30 		1-22159-106-1 02 1 0309- ●
75 RUBBER; SUPPORT,BRKT
6HH1 STD ENG(65L) (B) OD=40 		1-22159-193-0 02 1 9601-0308 ● ●
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-193-0 02 1 0309- ●
75 RUBBER; SUPPORT,BRKT
6SD1 STD ENG(37L) (C) OD=40 		1-22159-094-0 02 1 9601-0308 ● ●
81 NUT; BRKT
M10 		9-09110-510-0 02 1 9601-9606 ● ●
81 NUT; BRKT
6SD1 STD ENG(37L) M10 		9-09110-510-0 02 1 9601-9606 ● ●
81 NUT; BRKT
M10 		9-09110-510-0 02 1 9601-9606 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9607-0308 ● ●
81 NUT; BRKT
6SD1 STD ENG(37L) M10 FLANGE 		0-91150-210-0 02 1 9607-0308 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9607-0308 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0309-0602 ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0309-0602 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
81 NUT; BRKT
M10 		9-09110-510-0 01 1 9601-9606 ● ●
81 NUT; BRKT
6SD1 STD ENG(37L) M10 		9-09110-510-0 01 1 9607-0204 ● ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 9601-9803 ● ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 9601-9803 ● ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 9804-0006 ● ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 9804-0006 ● ●
81 NUT; BRKT
6SD1 STD ENG(37L) M10 LOCK NUT 		9-09131-510-0 01 1 0007-0007 ● ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 0007-0007 ● ●
81 NUT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10 LOCK NUT 		9-09131-510-0 01 1 0007-0007 ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 0007-0011 ● ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 0007-0011 ●
81 NUT; BRKT
6SD1 STD ENG(37L) M10 LOCK NUT 		9-09131-510-0 01 1 0007-0011 ●
81 NUT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) M10 LOCK NUT 		9-09131-510-0 01 1 0007-0011 ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 0012-0209 ● ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 0012-0209 ● ●
81 NUT; BRKT
6SD1 STD ENG(37L) M10 LOCK NUT 		9-09131-510-0 01 1 0210-0308 ● ●
81 NUT; BRKT
6SD1 STD ENG(37L) M10 LOCK NUT 		9-09131-510-0 01 1 0210-0308 ● ●
81 NUT; BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> M10 LOCK NUT 		9-09131-510-0 01 1 0210-0308 ● ●
81 NUT; BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> M10 LOCK NUT 		9-09131-510-0 01 1 0210-0308 ●
81 NUT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10 LOCK NUT 		9-09131-510-0 01 1 0210-0308 ●
81 NUT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> M10 LOCK NUT 		9-09131-510-0 01 1 0210-0308 ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 0309-0603 ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) M10 LOCK NUT 		9-09131-510-0 01 1 0309-0603 ●
81 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
81 NUT; BRKT
6HH1 STD ENG(65L) M10 FLANGE 		0-91150-210-0 01 1 9607-0204 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 01 1 0205-0205 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 01 1 0206-0308 ● ●
81 NUT; BRKT
6HH1 STD ENG(65L) M10 FLANGE 		0-91150-210-0 01 1 0206-0308 ●
81 NUT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91150-210-0 01 1 0206-0308 ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 01 1 0309-0602 ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91150-210-0 01 1 0309-0602 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0603- ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 01 1 0603- ●
81 NUT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10 		9-09110-510-0 03 1 9601-9606 ●
81 NUT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10 FLANGE 		0-91150-210-0 03 1 9607-9803 ●
81 NUT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10 FLANGE 		0-91150-210-0 03 1 0012-0308 ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) M10X40 FLANGE 		0-28681-040-0 02 1 9607-9608 ● ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) M10X40 FLANGE 		0-28681-040-0 04 1 9607-9608 ● ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) M10X40 FLANGE 		0-28681-040-0 02 1 9609-9612 ● ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) M10X40 FLANGE 		0-28681-040-0 02 1 9609-9612 ● ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) M10X40 FLANGE 		0-28681-040-0 02 1 9609-9612 ● ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) M10X40 FLANGE 		0-28681-040-0 02 1 9701-9705 ● ●
94 BOLT; CLAMP
6SD1 STD ENG(37L) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9601-9612 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9701-9705 ● ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9701-9705 ● ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9706-9803 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9706-9803 ● ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 3900MM(39W) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9706-9803 ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9706-9803 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 9804-0004 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0006 ● ●
94 BOLT; CLAMP
6SD1 STD ENG(37L) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0007-0007 ● ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0007-0007 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0007-0011 ●
94 BOLT; CLAMP
6SD1 STD ENG(37L) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0007-0011 ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0007-0011 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0012-0209 ● ●
94 BOLT; CLAMP
6SD1 STD ENG(37L) M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0210-0308 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0309-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0309-0805 ●
94 BOLT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0309-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ●
94 BOLT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ●
94 BOLT; CLAMP
6SD1 STD ENG(37L) M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 9601-9803 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9804-0004 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0005-0209 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0210-0308 ● ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0210-0308 ● ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0210-0308 ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0210-0308 ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) ID=10.5 		9-09164-510-0 06 1 0005-0209 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9601-9606 ● ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) ID=10.5 		9-09164-510-0 02 1 9601-9606 ● ●
97 WASHER; PL,CLAMP
6SD1 STD ENG(37L) ID=10.5 		9-09164-510-0 02 1 9607-9612 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9701-9705 ● ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) ID=10.5 		9-09164-510-0 02 1 9701-9705 ● ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) ID=10.5 		9-09164-510-0 02 1 9706-9803 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9706-9803 ● ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) WHEEL BASE 3900MM(39W) ID=10.5 		9-09164-510-0 02 1 9706-9803 ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) ID=10.5 		9-09164-510-0 02 1 9706-9803 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 9804-0004 ● ●
97 WASHER; PL,CLAMP
6SD1 STD ENG(37L) ID=10.5 		9-09164-510-0 04 1 0005-0209 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 0210-0308 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0309-0812 ●
97 WASHER; PL,CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ID=10.5 		9-09164-510-0 02 1 0309-0812 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0901- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0901- ●
97 WASHER; PL,CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ID=10.5 		9-09164-510-0 02 1 0901- ●
97 WASHER; PL,CLAMP
6SD1 STD ENG(37L) ID=10.5 		9-09164-510-0 04 1 9601-9803 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9804-0006 ● ●
97 WASHER; PL,CLAMP
6SD1 STD ENG(37L) ID=10.5 		9-09164-510-0 02 1 0007-0007 ● ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) ID=10.5 		9-09164-510-0 02 1 0007-0007 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0007-0011 ●
97 WASHER; PL,CLAMP
6SD1 STD ENG(37L) ID=10.5 		9-09164-510-0 02 1 0007-0011 ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) ID=10.5 		9-09164-510-0 02 1 0007-0011 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0012-0209 ● ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 		9-09164-510-0 02 1 0210-0308 ● ●
97 WASHER; PL,CLAMP
6SD1 STD ENG(37L) ID=10.5 		9-09164-510-0 02 1 0210-0308 ● ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) WHEEL BASE 3900MM(39W) ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 		9-09164-510-0 02 1 0210-0308 ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) ID=10.5 		9-09164-510-0 02 1 0210-0308 ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 		9-09164-510-0 02 1 0210-0308 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 0309-0812 ●
97 WASHER; PL,CLAMP
ID=10.5 		0-91614-510-0 02 1 0901-0907 ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 9601-9606 ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9607-9612 ● ●
105 NUT; CLAMP
6HH1 STD ENG(65L) M10 		9-09110-510-0 02 1 9701-9803 ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9701-9803 ● ●
105 NUT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 3900MM(39W) M10 		9-09110-510-0 02 1 9701-9803 ●
105 NUT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) M10 		9-09110-510-0 02 1 9701-9803 ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 9804-0209 ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0210-0308 ● ●
105 NUT; CLAMP
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> M10 		9-09110-510-0 02 1 0210-0308 ● ●
105 NUT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10 		9-09110-510-0 02 1 0210-0308 ●
105 NUT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> M10 		9-09110-510-0 02 1 0210-0308 ●
105 NUT; CLAMP
6HH1 STD ENG(65L) M10 FLANGE 		0-91150-210-0 02 1 9607-9608 ● ●
105 NUT; CLAMP
6HH1 STD ENG(65L) M10 FLANGE 		0-91150-210-0 04 1 9607-9608 ● ●
105 NUT; CLAMP
6HH1 STD ENG(65L) M10 FLANGE 		0-91150-210-0 02 1 9609-9612 ● ●
105 NUT; CLAMP
6HH1 STD ENG(65L) M10 FLANGE 		0-91150-210-0 02 1 9609-9612 ● ●
105 NUT; CLAMP
6HH1 STD ENG(65L) M10 FLANGE 		0-91150-210-0 02 1 9609-9612 ● ●
105 NUT; CLAMP
6HH1 STD ENG(65L) M10 FLANGE 		0-91150-210-0 02 1 9701-9810 ● ●
105 NUT; CLAMP
6SD1 STD ENG(37L) M10 		9-09110-510-0 02 1 9601-9606 ● ●
105 NUT; CLAMP
6SD1 STD ENG(37L) M10 		9-09110-510-0 04 1 9607-9803 ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9804-0006 ● ●
105 NUT; CLAMP
6SD1 STD ENG(37L) M10 		9-09110-510-0 02 1 0007-0007 ● ●
105 NUT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10 		9-09110-510-0 02 1 0007-0007 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0007-0011 ●
105 NUT; CLAMP
6SD1 STD ENG(37L) M10 		9-09110-510-0 02 1 0007-0011 ●
105 NUT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) M10 		9-09110-510-0 02 1 0007-0011 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0012-0209 ● ●
105 NUT; CLAMP
6SD1 STD ENG(37L) M10 		9-09110-510-0 04 1 0210-0308 ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0309-0512 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0309-0512 ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) M10 		9-09110-510-0 02 1 0309-0512 ●
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0601- ●
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0601- ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) M10 		0-91110-510-0 02 1 0601- ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28081-030-0 02 1 9601-9606 ● ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28081-030-0 02 1 9601-9606 ● ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28081-030-0 02 1 9601-9606 ●
107 BOLT; BRKT
6SD1 STD ENG(37L) M10X30 FLANGE 		0-28081-030-0 02 1 9601-9606 ●
107 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M10X30 FLANGE 		0-28081-030-0 02 1 9601-9606 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 9607-9803 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 9607-9803 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 9607-9803 ●
107 BOLT; BRKT
6SD1 STD ENG(37L) M10X35 FLANGE 		0-28681-035-0 02 1 9607-9803 ●
107 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M10X35 FLANGE 		0-28681-035-0 02 1 9607-9803 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 9804-0011 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 9804-0011 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 9804-0011 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 0012-0308 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 0012-0308 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 0012-0308 ●
107 BOLT; BRKT
6SD1 STD ENG(37L) M10X35 FLANGE 		0-28681-035-0 02 1 0012-0308 ●
107 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M10X35 FLANGE 		0-28681-035-0 02 1 0012-0308 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 0309-0512 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 0309-0512 ●
107 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) M10X35 FLANGE 		0-28681-035-0 02 1 0309-0512 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
107 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
107 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10X30 FLANGE 		0-28081-030-0 03 1 9601-9606 ●
107 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10X35 FLANGE 		0-28681-035-0 03 1 9607-9803 ●
107 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10X35 FLANGE 		0-28681-035-0 03 1 0012-0308 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9601-9803 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9601-9803 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9804-0006 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9804-0006 ● ●
121 WASHER; PL,BRKT
6SD1 STD ENG(37L) ID=10.5 OD=32 		9-09164-810-0 01 1 0007-0007 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0007-0007 ● ●
121 WASHER; PL,BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) ID=10.5 OD=32 		9-09164-810-0 01 1 0007-0007 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0007-0011 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0007-0011 ●
121 WASHER; PL,BRKT
6SD1 STD ENG(37L) ID=10.5 OD=32 		9-09164-810-0 01 1 0007-0011 ●
121 WASHER; PL,BRKT
6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) ID=10.5 OD=32 		9-09164-810-0 01 1 0007-0011 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0012-0209 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0012-0209 ● ●
121 WASHER; PL,BRKT
6SD1 STD ENG(37L) ID=10.5 OD=32 		9-09164-810-0 01 1 0210-0308 ● ●
121 WASHER; PL,BRKT
6SD1 STD ENG(37L) ID=10.5 OD=32 		9-09164-810-0 01 1 0210-0308 ● ●
121 WASHER; PL,BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 OD=32 		9-09164-810-0 01 1 0210-0308 ● ●
121 WASHER; PL,BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 OD=32 		9-09164-810-0 01 1 0210-0308 ●
121 WASHER; PL,BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) ID=10.5 OD=32 		9-09164-810-0 01 1 0210-0308 ●
121 WASHER; PL,BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 OD=32 		9-09164-810-0 01 1 0210-0308 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0309-0605 ●
121 WASHER; PL,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ID=10.5 OD=32 		9-09164-810-0 01 1 0309-0605 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
121 WASHER; PL,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
126 PIPE; EXH,RR
6HH1 STD ENG(65L) 		1-22126-030-1 01 1 9601-0308 ● ●
126 PIPE; EXH,RR 1-22126-030-1 01 1 0309- ●
126 PIPE; EXH,RR
6SD1 STD ENG(37L) 		1-22122-617-0 01 1 9601-0308 ● ●
266 WASHER; LK,BRKT
6SD1 STD ENG(37L) ID=10.2 		9-09150-510-0 01 1 9601-9705 ● ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9706-0204 ● ●
354 CLAMP; HEAT PROTECTOR
6HH1 STD ENG(65L) 		1-22119-347-0 02 1 9602-0301 ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
6HH1 STD ENG(65L) 		1-22119-277-0 02 1 9601-0209 ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
6HH1 STD ENG(65L) EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22119-277-0 02 1 0210-0305 ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
6HH1 STD ENG(65L) 		1-22119-277-0 02 1 0306-0308 ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE 1-22119-277-1 02 1 0309- ●
476 SPRING; VIBNON,EXH PIPE
6HH1 STD ENG(65L) 		1-09583-298-0 02 1 9601-0209 ● ●
476 SPRING; VIBNON,EXH PIPE
6HH1 STD ENG(65L) EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-09583-298-0 02 1 0210-0210 ● ●
476 SPRING; VIBNON,EXH PIPE
6HH1 STD ENG(65L) 		1-09583-298-0 02 1 0211-0308 ● ●
476 SPRING; VIBNON,EXH PIPE 1-09583-298-0 02 1 0309- ●
çizim 17752
12 126 1 223 45 226 439 226 447 52 4 64 66 68 107 81 266 75 56 75 62 81 121 75 81 107 60 56 75 70 97 105 60 105 97 22 81 94 94 22 70 22 70 22 63
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
6HH1 STD ENG(65L) 		1-22122-646-1 01 1 9601-0209 ● ●
1 PIPE; EXH
6HH1 STD ENG(65L) EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-646-1 01 1 0210-0308 ● ●
1 PIPE; EXH
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> 		1-22123-644-0 01 1 0210-0308 ● ●
1 PIPE; EXH 1-22123-644-0 01 1 0309- ●
1 PIPE; EXH
6SD1 STD ENG(37L) 		1-22122-616-0 01 1 9601-0308 ● ●
4 WASHER; PL,U BOLT
6SD1 STD ENG(37L) ID=8.4 		9-09160-508-0 02 1 9601-0308 ● ●
12 SILENCER ASM; EXH
6HH1 STD ENG(65L) 		1-22140-752-0 01 1 9601-9807 ● ●
12 SILENCER ASM; EXH
6HH1 STD ENG(65L) 		1-22140-873-0 01 1 9808-0205 ● ●
12 SILENCER ASM; EXH
6HH1 STD ENG(65L) 		1-22140-880-0 01 1 0206-0209 ● ●
12 SILENCER ASM; EXH
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> 		1-22141-074-0 01 1 0210-0308 ● ●
12 SILENCER ASM; EXH 1-22141-074-0 01 1 0309- ●
12 SILENCER ASM; EXH
6SD1 STD ENG(37L) 		1-22140-649-1 01 1 9601-0308 ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9601-9608 ● ●
22 CLAMP; EXH PIPE
6SD1 STD ENG(37L) ID=80-84 		1-22133-233-0 04 1 9609-9803 ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9804-0006 ● ●
22 CLAMP; EXH PIPE
6SD1 STD ENG(37L) ID=80-84 		1-22133-233-0 02 1 0007-0007 ● ●
22 CLAMP; EXH PIPE
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) ID=80-84 		1-22133-233-0 02 1 0007-0007 ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0007-0011 ●
22 CLAMP; EXH PIPE
6SD1 STD ENG(37L) ID=80-84 		1-22133-233-0 02 1 0007-0011 ●
22 CLAMP; EXH PIPE
6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) ID=80-84 		1-22133-233-0 02 1 0007-0011 ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0012-0209 ● ●
22 CLAMP; EXH PIPE
6SD1 STD ENG(37L) ID=80-84 		1-22133-233-0 04 1 0210-0308 ● ●
22 CLAMP; EXH PIPE
6HH1 STD ENG(65L) ID=80-84 		1-22133-233-0 02 1 0309- ●
22 CLAMP; EXH PIPE
6HH1 STD ENG(65L) ID=80-84 		1-22133-233-0 02 1 0309- ●
22 CLAMP; EXH PIPE
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ID=80-84 		1-22133-233-0 02 1 0309- ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 04 1 9601-9608 ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9609-9803 ● ●
22 CLAMP; EXH PIPE
6HH1 STD ENG(65L) ID=80-84 		1-22133-233-0 02 1 9609-9803 ● ●
22 CLAMP; EXH PIPE
6HH1 STD ENG(65L) ID=80-84 		1-22133-233-0 02 1 9609-9803 ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 04 1 9804-0209 ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0210-0308 ● ●
22 CLAMP; EXH PIPE
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> ID=80-84 		1-22133-233-0 02 1 0210-0308 ● ●
22 CLAMP; EXH PIPE
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) ID=80-84 		1-22133-233-0 02 1 0210-0308 ●
22 CLAMP; EXH PIPE
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> ID=80-84 		1-22133-233-0 02 1 0210-0308 ●
45 BOLT; BRKT
6SD1 STD ENG(37L) M10X60 FLANGE 		0-28081-060-0 02 1 9601-0308 ● ●
52 NUT; BRKT
6SD1 STD ENG(37L) M10 		9-09110-510-0 02 1 9601-9606 ● ●
52 NUT; BRKT
6SD1 STD ENG(37L) M10 FLANGE 		0-91150-210-0 02 1 9607-0308 ● ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) (B) L=254 		1-22131-527-1 01 1 9601-0308 ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) L=254 		1-22131-527-1 01 1 0309- ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) (A) H=112 		1-22139-043-0 01 1 9601-9803 ● ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) (A) H=112 		1-22139-043-0 01 1 9601-9803 ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (A) H=112 		1-22139-043-0 01 1 9601-9803 ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) (A) H=112 		1-22139-043-0 01 1 9804-0006 ● ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) (A) H=112 		1-22139-043-0 01 1 9804-0006 ● ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) (A) H=112 		1-22139-043-0 01 1 0007-0007 ● ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) (A) H=112 		1-22139-043-0 01 1 0007-0011 ● ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) (A) H=112 		1-22139-043-0 01 1 0007-0011 ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (A) H=112 		1-22139-043-0 01 1 0007-0011 ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) (A) H=112 		1-22139-043-0 01 1 0012-0209 ● ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) (A) H=112 		1-22139-043-0 01 1 0012-0209 ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (A) H=112 		1-22139-043-0 01 1 0012-0209 ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (A) H=125 		1-22139-048-0 01 1 0210-0308 ● ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (A) H=125 		1-22139-048-0 01 1 0210-0308 ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> (A) H=125 		1-22139-048-0 01 1 0210-0308 ●
56 BRACKET; CLAMP,EXH PIPE
(A) H=125 		1-22139-048-0 01 1 0309- ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (A) H=125 		1-22139-048-0 01 1 0309- ●
56 BRACKET; CLAMP,EXH PIPE
6SD1 STD ENG(37L) (B) L=204 		1-22131-520-1 01 1 9601-0308 ● ●
56 BRACKET; CLAMP,EXH PIPE
6SD1 STD ENG(37L) (A) 		8-94301-523-0 01 1 9601-0308 ● ●
56 BRACKET; CLAMP,EXH PIPE
6SD1 STD ENG(37L) (A) 		8-94301-523-0 01 1 9601-0308 ● ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (A) H=67 		1-22139-041-0 01 1 9601-9803 ●
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (A) H=67 		1-22139-041-0 01 1 0007-0308 ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) (C) 		1-22131-514-0 01 1 9601-0308 ● ●
60 BRACKET; FRAME TO BRKT
(C) 		1-22131-514-0 01 1 0309- ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) (A) 		1-22151-512-2 01 1 9601-9803 ● ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) (A) 		1-22151-512-2 01 1 9601-9803 ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (A) 		1-22151-512-2 01 1 9601-9803 ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) (A) 		1-22151-512-2 01 1 9804-0006 ● ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) (A) 		1-22151-512-2 01 1 9804-0006 ● ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) (A) 		1-22151-512-2 01 1 0007-0007 ● ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) (A) 		1-22151-512-2 01 1 0007-0011 ● ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) (A) 		1-22151-512-2 01 1 0007-0011 ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (A) 		1-22151-512-2 01 1 0007-0011 ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) (A) 		1-22151-512-2 01 1 0012-0209 ● ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) (A) 		1-22151-512-2 01 1 0012-0209 ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (A) 		1-22151-512-2 01 1 0012-0209 ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (A) 		1-22151-512-3 01 1 0210-0308 ● ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (A) 		1-22151-512-3 01 1 0210-0308 ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> (A) 		1-22151-512-3 01 1 0210-0308 ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22151-512-3 01 1 0309- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (A) 		1-22151-512-3 01 1 0309- ●
60 BRACKET; FRAME TO BRKT
6SD1 STD ENG(37L) (C) 		1-22131-741-0 01 1 9601-0308 ● ●
60 BRACKET; FRAME TO BRKT
6SD1 STD ENG(37L) (B) 		1-22151-681-0 01 1 9601-0308 ● ●
60 BRACKET; FRAME TO BRKT
6SD1 STD ENG(37L) (B) 		1-22151-681-0 01 1 9601-0308 ● ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (D) 		1-22151-534-3 01 1 9601-9803 ●
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (D) 		1-22151-534-3 01 1 0007-0308 ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 9601-0308 ● ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 0309- ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9601-9803 ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9601-9803 ●
63 TUBE; DIST,BRKT
6SD1 STD ENG(37L) L=11 		1-22139-026-0 01 1 9601-9803 ●
63 TUBE; DIST,BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) L=11 		1-22139-026-0 01 1 9601-9803 ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9804-0006 ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9804-0006 ● ●
63 TUBE; DIST,BRKT
6SD1 STD ENG(37L) L=11 		1-22139-026-0 01 1 0007-0007 ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0007-0007 ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0007-0011 ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0007-0011 ●
63 TUBE; DIST,BRKT
6SD1 STD ENG(37L) L=11 		1-22139-026-0 01 1 0007-0011 ●
63 TUBE; DIST,BRKT
6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) L=11 		1-22139-026-0 01 1 0007-0011 ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0012-0209 ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0012-0209 ●
63 TUBE; DIST,BRKT
6SD1 STD ENG(37L) L=11 		1-22139-026-0 01 1 0012-0209 ●
63 TUBE; DIST,BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) L=11 		1-22139-026-0 01 1 0012-0209 ●
63 TUBE; DIST,BRKT
6SD1 STD ENG(37L) L=11 		1-22139-026-0 01 1 0210-0308 ● ●
63 TUBE; DIST,BRKT
6SD1 STD ENG(37L) L=11 		1-22139-026-0 01 1 0210-0308 ● ●
63 TUBE; DIST,BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> L=11 		1-22139-026-0 01 1 0210-0308 ● ●
63 TUBE; DIST,BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> L=11 		1-22139-026-0 01 1 0210-0308 ●
63 TUBE; DIST,BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> L=11 		1-22139-026-0 01 1 0210-0308 ●
63 TUBE; DIST,BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> L=11 		1-22139-026-0 01 1 0210-0308 ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0309- ●
63 TUBE; DIST,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) L=11 		1-22139-026-0 01 1 0309- ●
63 TUBE; DIST,BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) L=8.5 		1-22139-057-0 01 1 9601-9803 ●
63 TUBE; DIST,BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) L=8.5 		1-22139-057-0 01 1 0007-0308 ●
64 U-BOLT; EXH PIPE,RR
6SD1 STD ENG(37L) 		1-22139-033-1 01 1 9601-0308 ● ●
66 WASHER; LK,U BOLT
6SD1 STD ENG(37L) ID=8.2 		9-09150-508-0 02 1 9601-0308 ● ●
68 NUT; U BOLT
6SD1 STD ENG(37L) M8 		9-09110-408-0 02 1 9601-0308 ● ●
70 BOLT; BRKT
6HH1 STD ENG(65L) (B) M10X50 FLANGE 		0-28081-050-0 01 1 9607-9612 ● ●
70 BOLT; BRKT
6HH1 STD ENG(65L) (B) M10X50 FLANGE 		0-28081-050-0 01 1 9607-9612 ●
70 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10X50 FLANGE 		0-28081-050-0 01 1 9607-9612 ●
70 BOLT; BRKT
6HH1 STD ENG(65L) (B) M10X60 FLANGE 		0-28081-060-0 01 1 9607-9705 ● ●
70 BOLT; BRKT
6SD1 STD ENG(37L) (B) M10X50 		0-10806-050-0 01 1 9601-9612 ● ●
70 BOLT; BRKT
6SD1 STD ENG(37L) (B) M10X50 		0-10806-050-0 01 1 9601-9612 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 9701-9803 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 9701-9803 ●
70 BOLT; BRKT
6SD1 STD ENG(37L) (B) M10X50 		0-10806-050-0 01 1 9701-9803 ●
70 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10X50 		0-10806-050-0 01 1 9701-9803 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 9804-0006 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 9804-0006 ● ●
70 BOLT; BRKT
6SD1 STD ENG(37L) (B) M10X50 		0-10806-050-0 01 1 0007-0007 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0007-0007 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0007-0011 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0007-0011 ●
70 BOLT; BRKT
6SD1 STD ENG(37L) (B) M10X50 		0-10806-050-0 01 1 0007-0011 ●
70 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (B) M10X50 		0-10806-050-0 01 1 0007-0011 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0012-0204 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0012-0204 ●
70 BOLT; BRKT
6SD1 STD ENG(37L) (B) M10X50 		0-10806-050-0 01 1 0012-0204 ●
70 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10X50 		0-10806-050-0 01 1 0012-0204 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0205-0205 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0205-0209 ●
70 BOLT; BRKT
6SD1 STD ENG(37L) (B) M10X50 		0-10806-050-0 01 1 0205-0209 ●
70 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10X50 		0-10806-050-0 01 1 0205-0209 ●
70 BOLT; BRKT
6SD1 STD ENG(37L) (B) M10X50 		0-10806-050-0 02 1 0210-0308 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0309-0512 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0309-0512 ●
70 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (B) M10X50 		0-10806-050-0 01 1 0309-0512 ●
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 01 1 0601- ●
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 01 1 0601- ●
70 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (B) M10X50 		0-10856-050-0 01 1 0601- ●
70 BOLT; BRKT
6SD1 STD ENG(37L) (C) M10X55 		0-10806-055-0 01 1 9601-9705 ● ●
70 BOLT; BRKT
(C) M10X55 		0-10806-055-0 01 1 9706-0204 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 02 1 0205-0209 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0210-0308 ● ●
70 BOLT; BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (B) M10X50 		0-10806-050-0 01 1 0210-0308 ● ●
70 BOLT; BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (B) M10X50 		0-10806-050-0 01 1 0210-0308 ●
70 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> (B) M10X50 		0-10806-050-0 01 1 0210-0308 ●
70 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (A) M10X45 FLANGE 		0-28081-045-0 01 1 9607-9612 ●
70 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (A) M10X45 		0-10806-045-0 01 1 9701-9803 ●
70 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (A) M10X45 		0-10806-045-0 01 1 0007-0204 ●
70 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (A) M10X45 		0-10806-045-0 01 1 0205-0308 ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9601-9803 ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9601-9803 ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9804-0006 ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9804-0006 ● ●
75 RUBBER; SUPPORT,BRKT
6SD1 STD ENG(37L) (A) OD=30 		1-22159-106-1 02 1 0007-0007 ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0007-0007 ● ●
75 RUBBER; SUPPORT,BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (A) OD=30 		1-22159-106-1 02 1 0007-0007 ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0007-0011 ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0007-0011 ●
75 RUBBER; SUPPORT,BRKT
6SD1 STD ENG(37L) (A) OD=30 		1-22159-106-1 02 1 0007-0011 ●
75 RUBBER; SUPPORT,BRKT
6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) (A) OD=30 		1-22159-106-1 02 1 0007-0011 ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0012-0209 ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0012-0209 ● ●
75 RUBBER; SUPPORT,BRKT
6SD1 STD ENG(37L) (A) OD=30 		1-22159-106-1 02 1 0210-0308 ● ●
75 RUBBER; SUPPORT,BRKT
6SD1 STD ENG(37L) (A) OD=30 		1-22159-106-1 02 1 0210-0308 ● ●
75 RUBBER; SUPPORT,BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (A) OD=30 		1-22159-106-1 02 1 0210-0308 ● ●
75 RUBBER; SUPPORT,BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (A) OD=30 		1-22159-106-1 02 1 0210-0308 ●
75 RUBBER; SUPPORT,BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (A) OD=30 		1-22159-106-1 02 1 0210-0308 ●
75 RUBBER; SUPPORT,BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> (A) OD=30 		1-22159-106-1 02 1 0210-0308 ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0309- ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (A) OD=30 		1-22159-106-1 02 1 0309- ●
75 RUBBER; SUPPORT,BRKT
6HH1 STD ENG(65L) (B) OD=40 		1-22159-193-0 02 1 9601-0308 ● ●
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-193-0 02 1 0309- ●
75 RUBBER; SUPPORT,BRKT
6SD1 STD ENG(37L) (C) OD=40 		1-22159-094-0 02 1 9601-0308 ● ●
81 NUT; BRKT
M10 		9-09110-510-0 02 1 9601-9606 ● ●
81 NUT; BRKT
6SD1 STD ENG(37L) M10 		9-09110-510-0 02 1 9601-9606 ● ●
81 NUT; BRKT
M10 		9-09110-510-0 02 1 9601-9606 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9607-0308 ● ●
81 NUT; BRKT
6SD1 STD ENG(37L) M10 FLANGE 		0-91150-210-0 02 1 9607-0308 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9607-0308 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0309-0602 ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0309-0602 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
81 NUT; BRKT
M10 		9-09110-510-0 01 1 9601-9606 ● ●
81 NUT; BRKT
6SD1 STD ENG(37L) M10 		9-09110-510-0 01 1 9607-0204 ● ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 9601-9803 ● ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 9601-9803 ● ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 9804-0006 ● ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 9804-0006 ● ●
81 NUT; BRKT
6SD1 STD ENG(37L) M10 LOCK NUT 		9-09131-510-0 01 1 0007-0007 ● ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 0007-0007 ● ●
81 NUT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10 LOCK NUT 		9-09131-510-0 01 1 0007-0007 ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 0007-0011 ● ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 0007-0011 ●
81 NUT; BRKT
6SD1 STD ENG(37L) M10 LOCK NUT 		9-09131-510-0 01 1 0007-0011 ●
81 NUT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) M10 LOCK NUT 		9-09131-510-0 01 1 0007-0011 ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 0012-0209 ● ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 0012-0209 ● ●
81 NUT; BRKT
6SD1 STD ENG(37L) M10 LOCK NUT 		9-09131-510-0 01 1 0210-0308 ● ●
81 NUT; BRKT
6SD1 STD ENG(37L) M10 LOCK NUT 		9-09131-510-0 01 1 0210-0308 ● ●
81 NUT; BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> M10 LOCK NUT 		9-09131-510-0 01 1 0210-0308 ● ●
81 NUT; BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> M10 LOCK NUT 		9-09131-510-0 01 1 0210-0308 ●
81 NUT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10 LOCK NUT 		9-09131-510-0 01 1 0210-0308 ●
81 NUT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> M10 LOCK NUT 		9-09131-510-0 01 1 0210-0308 ●
81 NUT; BRKT
M10 LOCK NUT 		9-09131-510-0 01 1 0309-0603 ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) M10 LOCK NUT 		9-09131-510-0 01 1 0309-0603 ●
81 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
81 NUT; BRKT
6HH1 STD ENG(65L) M10 FLANGE 		0-91150-210-0 01 1 9607-0204 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 01 1 0205-0205 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 01 1 0206-0308 ● ●
81 NUT; BRKT
6HH1 STD ENG(65L) M10 FLANGE 		0-91150-210-0 01 1 0206-0308 ●
81 NUT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91150-210-0 01 1 0206-0308 ●
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 01 1 0309-0602 ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91150-210-0 01 1 0309-0602 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0603- ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 01 1 0603- ●
81 NUT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10 		9-09110-510-0 03 1 9601-9606 ●
81 NUT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10 FLANGE 		0-91150-210-0 03 1 9607-9803 ●
81 NUT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10 FLANGE 		0-91150-210-0 03 1 0012-0308 ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) M10X40 FLANGE 		0-28681-040-0 02 1 9607-9608 ● ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) M10X40 FLANGE 		0-28681-040-0 04 1 9607-9608 ● ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) M10X40 FLANGE 		0-28681-040-0 02 1 9609-9612 ● ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) M10X40 FLANGE 		0-28681-040-0 02 1 9609-9612 ● ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) M10X40 FLANGE 		0-28681-040-0 02 1 9609-9612 ● ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) M10X40 FLANGE 		0-28681-040-0 02 1 9701-9705 ● ●
94 BOLT; CLAMP
6SD1 STD ENG(37L) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9601-9612 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9701-9705 ● ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9701-9705 ● ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9706-9803 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9706-9803 ● ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 3900MM(39W) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9706-9803 ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9706-9803 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 9804-0004 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0006 ● ●
94 BOLT; CLAMP
6SD1 STD ENG(37L) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0007-0007 ● ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0007-0007 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0007-0011 ●
94 BOLT; CLAMP
6SD1 STD ENG(37L) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0007-0011 ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0007-0011 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0012-0209 ● ●
94 BOLT; CLAMP
6SD1 STD ENG(37L) M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0210-0308 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0309-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0309-0805 ●
94 BOLT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0309-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ●
94 BOLT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ●
94 BOLT; CLAMP
6SD1 STD ENG(37L) M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 9601-9803 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9804-0004 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0005-0209 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0210-0308 ● ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0210-0308 ● ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0210-0308 ●
94 BOLT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0210-0308 ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) ID=10.5 		9-09164-510-0 06 1 0005-0209 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9601-9606 ● ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) ID=10.5 		9-09164-510-0 02 1 9601-9606 ● ●
97 WASHER; PL,CLAMP
6SD1 STD ENG(37L) ID=10.5 		9-09164-510-0 02 1 9607-9612 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9701-9705 ● ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) ID=10.5 		9-09164-510-0 02 1 9701-9705 ● ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) ID=10.5 		9-09164-510-0 02 1 9706-9803 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9706-9803 ● ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) WHEEL BASE 3900MM(39W) ID=10.5 		9-09164-510-0 02 1 9706-9803 ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) ID=10.5 		9-09164-510-0 02 1 9706-9803 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 9804-0004 ● ●
97 WASHER; PL,CLAMP
6SD1 STD ENG(37L) ID=10.5 		9-09164-510-0 04 1 0005-0209 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 0210-0308 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0309-0812 ●
97 WASHER; PL,CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ID=10.5 		9-09164-510-0 02 1 0309-0812 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0901- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0901- ●
97 WASHER; PL,CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ID=10.5 		9-09164-510-0 02 1 0901- ●
97 WASHER; PL,CLAMP
6SD1 STD ENG(37L) ID=10.5 		9-09164-510-0 04 1 9601-9803 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9804-0006 ● ●
97 WASHER; PL,CLAMP
6SD1 STD ENG(37L) ID=10.5 		9-09164-510-0 02 1 0007-0007 ● ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) ID=10.5 		9-09164-510-0 02 1 0007-0007 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0007-0011 ●
97 WASHER; PL,CLAMP
6SD1 STD ENG(37L) ID=10.5 		9-09164-510-0 02 1 0007-0011 ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) ID=10.5 		9-09164-510-0 02 1 0007-0011 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0012-0209 ● ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 		9-09164-510-0 02 1 0210-0308 ● ●
97 WASHER; PL,CLAMP
6SD1 STD ENG(37L) ID=10.5 		9-09164-510-0 02 1 0210-0308 ● ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) WHEEL BASE 3900MM(39W) ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 		9-09164-510-0 02 1 0210-0308 ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) ID=10.5 		9-09164-510-0 02 1 0210-0308 ●
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 		9-09164-510-0 02 1 0210-0308 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 0309-0812 ●
97 WASHER; PL,CLAMP
ID=10.5 		0-91614-510-0 02 1 0901-0907 ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 9601-9606 ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9607-9612 ● ●
105 NUT; CLAMP
6HH1 STD ENG(65L) M10 		9-09110-510-0 02 1 9701-9803 ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9701-9803 ● ●
105 NUT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 3900MM(39W) M10 		9-09110-510-0 02 1 9701-9803 ●
105 NUT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) M10 		9-09110-510-0 02 1 9701-9803 ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 9804-0209 ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0210-0308 ● ●
105 NUT; CLAMP
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> M10 		9-09110-510-0 02 1 0210-0308 ● ●
105 NUT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10 		9-09110-510-0 02 1 0210-0308 ●
105 NUT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> M10 		9-09110-510-0 02 1 0210-0308 ●
105 NUT; CLAMP
6HH1 STD ENG(65L) M10 FLANGE 		0-91150-210-0 02 1 9607-9608 ● ●
105 NUT; CLAMP
6HH1 STD ENG(65L) M10 FLANGE 		0-91150-210-0 04 1 9607-9608 ● ●
105 NUT; CLAMP
6HH1 STD ENG(65L) M10 FLANGE 		0-91150-210-0 02 1 9609-9612 ● ●
105 NUT; CLAMP
6HH1 STD ENG(65L) M10 FLANGE 		0-91150-210-0 02 1 9609-9612 ● ●
105 NUT; CLAMP
6HH1 STD ENG(65L) M10 FLANGE 		0-91150-210-0 02 1 9609-9612 ● ●
105 NUT; CLAMP
6HH1 STD ENG(65L) M10 FLANGE 		0-91150-210-0 02 1 9701-9810 ● ●
105 NUT; CLAMP
6SD1 STD ENG(37L) M10 		9-09110-510-0 02 1 9601-9606 ● ●
105 NUT; CLAMP
6SD1 STD ENG(37L) M10 		9-09110-510-0 04 1 9607-9803 ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9804-0006 ● ●
105 NUT; CLAMP
6SD1 STD ENG(37L) M10 		9-09110-510-0 02 1 0007-0007 ● ●
105 NUT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10 		9-09110-510-0 02 1 0007-0007 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0007-0011 ●
105 NUT; CLAMP
6SD1 STD ENG(37L) M10 		9-09110-510-0 02 1 0007-0011 ●
105 NUT; CLAMP
6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) M10 		9-09110-510-0 02 1 0007-0011 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0012-0209 ● ●
105 NUT; CLAMP
6SD1 STD ENG(37L) M10 		9-09110-510-0 04 1 0210-0308 ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0309-0512 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0309-0512 ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) M10 		9-09110-510-0 02 1 0309-0512 ●
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0601- ●
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0601- ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) M10 		0-91110-510-0 02 1 0601- ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28081-030-0 02 1 9601-9606 ● ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28081-030-0 02 1 9601-9606 ● ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28081-030-0 02 1 9601-9606 ●
107 BOLT; BRKT
6SD1 STD ENG(37L) M10X30 FLANGE 		0-28081-030-0 02 1 9601-9606 ●
107 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M10X30 FLANGE 		0-28081-030-0 02 1 9601-9606 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 9607-9803 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 9607-9803 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 9607-9803 ●
107 BOLT; BRKT
6SD1 STD ENG(37L) M10X35 FLANGE 		0-28681-035-0 02 1 9607-9803 ●
107 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M10X35 FLANGE 		0-28681-035-0 02 1 9607-9803 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 9804-0011 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 9804-0011 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 9804-0011 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 0012-0308 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 0012-0308 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 0012-0308 ●
107 BOLT; BRKT
6SD1 STD ENG(37L) M10X35 FLANGE 		0-28681-035-0 02 1 0012-0308 ●
107 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M10X35 FLANGE 		0-28681-035-0 02 1 0012-0308 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 0309-0512 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 0309-0512 ●
107 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) M10X35 FLANGE 		0-28681-035-0 02 1 0309-0512 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
107 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
107 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10X30 FLANGE 		0-28081-030-0 03 1 9601-9606 ●
107 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10X35 FLANGE 		0-28681-035-0 03 1 9607-9803 ●
107 BOLT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M10X35 FLANGE 		0-28681-035-0 03 1 0012-0308 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9601-9803 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9601-9803 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9804-0006 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9804-0006 ● ●
121 WASHER; PL,BRKT
6SD1 STD ENG(37L) ID=10.5 OD=32 		9-09164-810-0 01 1 0007-0007 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0007-0007 ● ●
121 WASHER; PL,BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) ID=10.5 OD=32 		9-09164-810-0 01 1 0007-0007 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0007-0011 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0007-0011 ●
121 WASHER; PL,BRKT
6SD1 STD ENG(37L) ID=10.5 OD=32 		9-09164-810-0 01 1 0007-0011 ●
121 WASHER; PL,BRKT
6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) ID=10.5 OD=32 		9-09164-810-0 01 1 0007-0011 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0012-0209 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0012-0209 ● ●
121 WASHER; PL,BRKT
6SD1 STD ENG(37L) ID=10.5 OD=32 		9-09164-810-0 01 1 0210-0308 ● ●
121 WASHER; PL,BRKT
6SD1 STD ENG(37L) ID=10.5 OD=32 		9-09164-810-0 01 1 0210-0308 ● ●
121 WASHER; PL,BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 OD=32 		9-09164-810-0 01 1 0210-0308 ● ●
121 WASHER; PL,BRKT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 OD=32 		9-09164-810-0 01 1 0210-0308 ●
121 WASHER; PL,BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) ID=10.5 OD=32 		9-09164-810-0 01 1 0210-0308 ●
121 WASHER; PL,BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 OD=32 		9-09164-810-0 01 1 0210-0308 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0309-0605 ●
121 WASHER; PL,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ID=10.5 OD=32 		9-09164-810-0 01 1 0309-0605 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
121 WASHER; PL,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
126 PIPE; EXH,RR
6HH1 STD ENG(65L) 		1-22126-030-1 01 1 9601-0308 ● ●
126 PIPE; EXH,RR 1-22126-030-1 01 1 0309- ●
126 PIPE; EXH,RR
6SD1 STD ENG(37L) 		1-22122-617-0 01 1 9601-0308 ● ●
223 BRACKET; EXH PIPE
6SD1 STD ENG(37L) 		1-22131-727-0 01 1 9601-0308 ● ●
226 RUBBER; CUSHION
6SD1 STD ENG(37L) OD=40 		1-22159-094-0 04 1 9601-0308 ● ●
266 WASHER; LK,BRKT
6SD1 STD ENG(37L) ID=10.2 		9-09150-510-0 01 1 9601-9705 ● ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9706-0204 ● ●
439 TUBE; DIST,SUPPORT RUBBER
6SD1 STD ENG(37L) L=22 		9-22159-024-0 02 1 9601-0308 ● ●
447 WASHER; LK,BRKT
6SD1 STD ENG(37L) ID=10.2 		9-09150-510-0 02 1 9601-0004 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
