0-13B — OIL PAN AND LEVEL GAUGE (#2281) — 105 parça

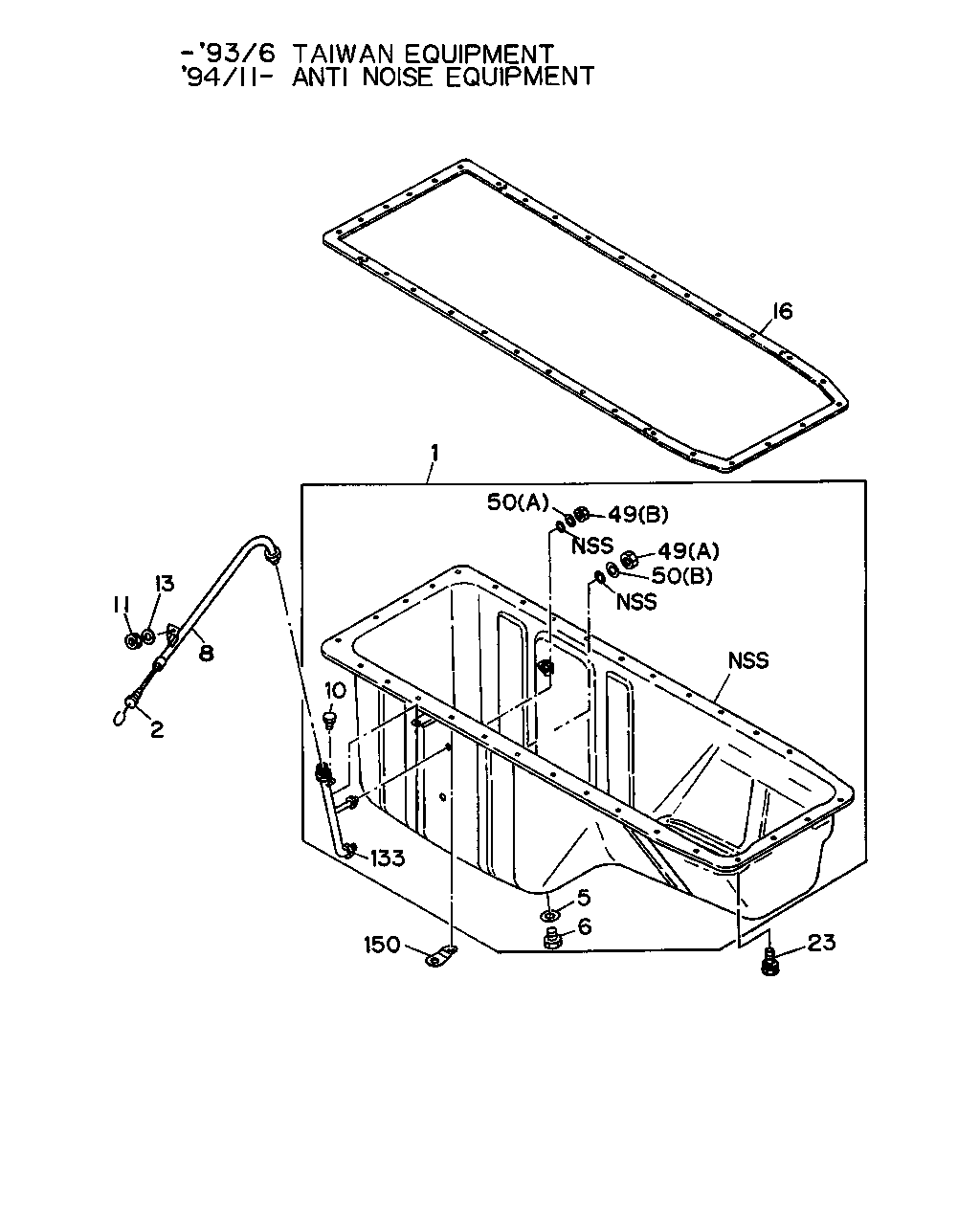

11 13 8 2 10 133 150 5 6 23 50 49 49 50 1 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PAN ASM; OIL	1-11360-716-0	01	1	9002-9306	●
1	PAN ASM; OIL	1-11360-715-1	01	1	9307-9410		●
1	PAN ASM; OIL EXC. ANTI NOISE EQUIPMENT<SV9>	1-11360-715-2	01	1	9411-		●
1	PAN ASM; OIL ANTI NOISE EQUIPMENT<SV9>	1-11360-694-2	01	1	9411-		●
1	PAN ASM; OIL TAIWAN EQUIPMENT(WW5)	1-11360-694-1	01	1	9002-9306		●
1	PAN ASM; OIL EXC. TAIWAN EQUIPMENT(WW5)	1-11360-715-0	01	1	9002-9306		●
1	PAN ASM; OIL	1-11360-724-2	01	1	9307-			●
2	GAUGE; OIL LEVEL	1-11760-300-2	01	1	9002-9509	●	●	●
2	GAUGE; OIL LEVEL	1-11760-300-2	01	1	9510-		●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	9002-	●	●	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	9002-	●	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-320-1	01	1	9002-9306	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-296-1	01	1	9307-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-293-1	01	1	9002-		●
10	BOLT; GUIDE TUBE ANTI NOISE EQUIPMENT<SV9> M8X16 W/LK WASHER	0-50040-816-0	01	1	9411-		●
11	NUT; GUIDE,OIL LEVEL GAUGE M8 FLANGE	0-91150-108-0	01	1	9002-	●	●	●
13	WASHER; PL,GUIDE TUBE,OIL LEVEL GAUGE ID=8.4 OD=18	9-09164-608-0	01	1	9002-9306		●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-092-1	01	1	9002-9306	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-090-1	01	1	9307-9505			●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-107-0	01	1	9506-			●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-091-1	01	1	9002-9504		●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-105-0	01	1	9505-		●
23	BOLT; OIL PAN M8X18 W/LK&PL WASHER	1-09030-004-0	26	1	9002-9306	●
23	BOLT; OIL PAN M8X18 W/LK&PL WASHER	1-09030-004-0	22	1	9002-		●
23	BOLT; OIL PAN M8X90 W/LK&PL WASHER	1-09030-078-0	10	1	9002-	●	●	●
23	BOLT; OIL PAN M8X18 W/LK&PL WASHER	1-09030-004-0	18	1	9307-			●
49	NUT; GUIDE TUBE ANTI NOISE EQUIPMENT<SV9> (A) M22	9-09111-422-0	01	1	9411-		●
49	NUT; GUIDE TUBE ANTI NOISE EQUIPMENT<SV9> (B) M14	9-99111-414-0	01	1	9411-		●
50	WASHER; PL,GUIDE TUBE ANTI NOISE EQUIPMENT<SV9> (A) ID=15 OD=30	9-09160-614-0	01	1	9411-		●
50	WASHER; PL,GUIDE TUBE ANTI NOISE EQUIPMENT<SV9> (B) ID=23 OD=44	9-09160-622-0	01	1	9411-		●
133	TUBE ASM; OIL PAN ANTI NOISE EQUIPMENT<SV9>	1-11766-300-0	01	1	9411-		●
150	CLIP; WATER,OIL DRAIN	9-11229-070-0	01	1	9002-	●	●	●

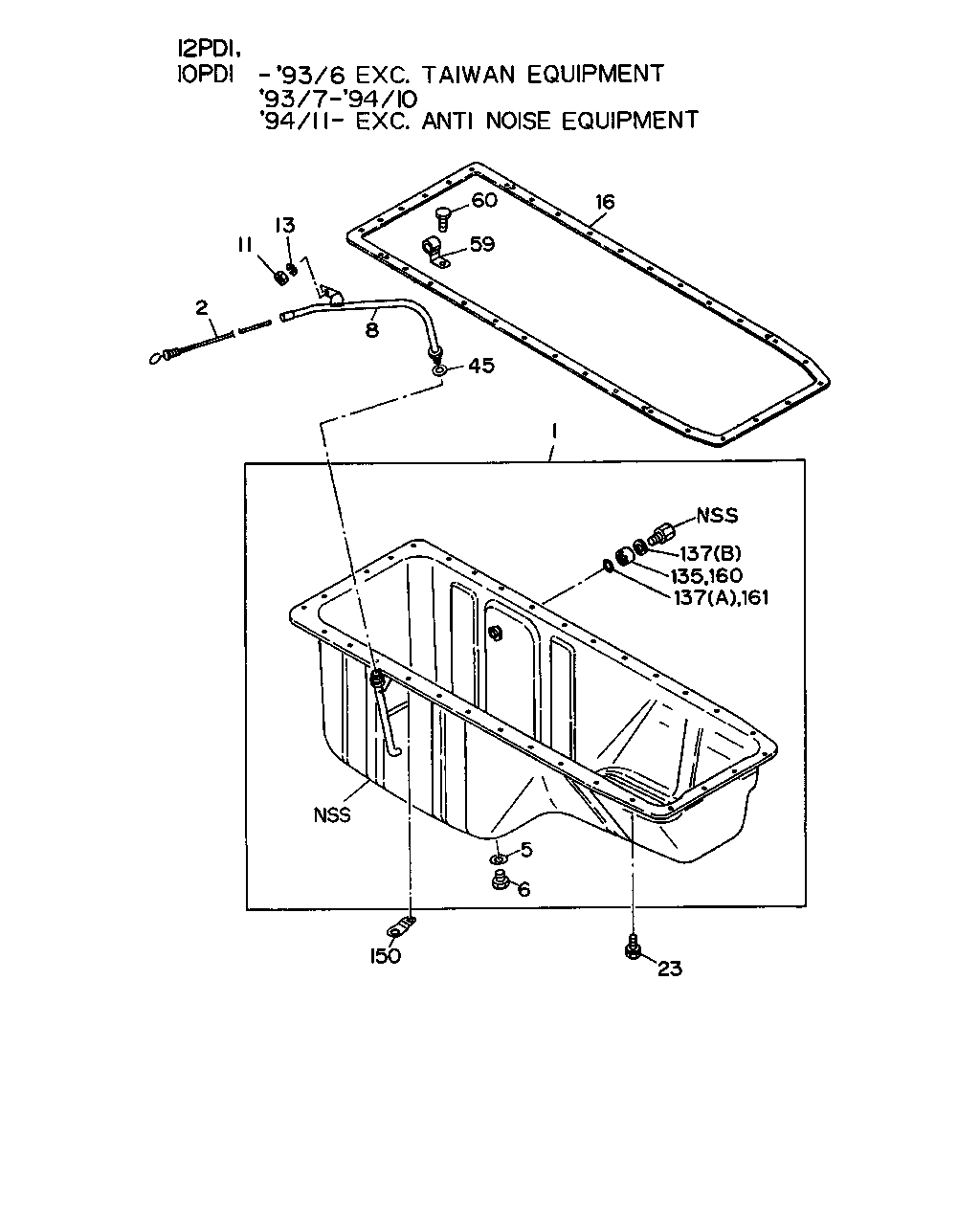

2 11 13 60 59 16 1 45 8 23 6 5 150 137 135 160 137 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PAN ASM; OIL	1-11360-716-0	01	1	9002-9306	●
1	PAN ASM; OIL	1-11360-715-1	01	1	9307-9410		●
1	PAN ASM; OIL EXC. ANTI NOISE EQUIPMENT<SV9>	1-11360-715-2	01	1	9411-		●
1	PAN ASM; OIL ANTI NOISE EQUIPMENT<SV9>	1-11360-694-2	01	1	9411-		●
1	PAN ASM; OIL TAIWAN EQUIPMENT(WW5)	1-11360-694-1	01	1	9002-9306		●
1	PAN ASM; OIL EXC. TAIWAN EQUIPMENT(WW5)	1-11360-715-0	01	1	9002-9306		●
1	PAN ASM; OIL	1-11360-724-2	01	1	9307-			●
2	GAUGE; OIL LEVEL	1-11760-300-2	01	1	9002-9509	●	●	●
2	GAUGE; OIL LEVEL	1-11760-300-2	01	1	9510-		●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	9002-	●	●	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	9002-	●	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-320-1	01	1	9002-9306	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-296-1	01	1	9307-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-293-1	01	1	9002-		●
11	NUT; GUIDE,OIL LEVEL GAUGE M8 FLANGE	0-91150-108-0	01	1	9002-	●	●	●
13	WASHER; PL,GUIDE TUBE,OIL LEVEL GAUGE ID=8.4 OD=18	9-09164-608-0	01	1	9002-9306		●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-092-1	01	1	9002-9306	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-090-1	01	1	9307-9505			●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-107-0	01	1	9506-			●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-091-1	01	1	9002-9504		●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-105-0	01	1	9505-		●
23	BOLT; OIL PAN M8X18 W/LK&PL WASHER	1-09030-004-0	26	1	9002-9306	●
23	BOLT; OIL PAN M8X18 W/LK&PL WASHER	1-09030-004-0	22	1	9002-		●
23	BOLT; OIL PAN M8X90 W/LK&PL WASHER	1-09030-078-0	10	1	9002-	●	●	●
23	BOLT; OIL PAN M8X18 W/LK&PL WASHER	1-09030-004-0	18	1	9307-			●
45	GASKET; GUIDE TUBE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ANTI NOISE EQUIPMENT<SV9> ID=10.8	1-09623-274-0	01	1	9411-		●
59	CLIP; HARNESS ID=11 H=20 L=17.5	1-09700-562-1	07	1	9002-9306	●
59	CLIP; HARNESS ID=11 H=20 L=17.5	1-09700-562-1	04	1	9307-			●
60	BOLT; CLIP HARNESS M10X16 W/LK WASHER	9-01931-016-0	04	1	9002-9004	●
60	BOLT; CLIP HARNESS M10X16 W/LK WASHER	1-09033-012-0	04	1	9005-9306	●
60	BOLT; CLIP HARNESS M10X16 W/LK WASHER	1-09033-012-0	03	1	9307-			●
135	ADAPTER; GUIDE TUBE	1-11369-126-0	01	1	9307-9410		●
135	ADAPTER; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT<SV9>	1-11369-126-0	01	1	9411-		●
137	GASKET; ADAPTER (A)	1-09623-185-0	01	1	9307-9410		●
137	GASKET; ADAPTER EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-09623-185-0	01	1	9411-		●
137	GASKET; ADAPTER (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	9307-9410		●
137	GASKET; ADAPTER EXC. ANTI NOISE EQUIPMENT<SV9> (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	9411-		●
150	CLIP; WATER,OIL DRAIN	9-11229-070-0	01	1	9002-	●	●	●
160	ADAPTER ANTI NOISE EQUIPMENT<SV9>	1-11369-126-0	01	1	9411-		●
160	ADAPTER TAIWAN EQUIPMENT(WW5)	1-11369-126-0	01	1	9002-9306		●
161	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ANTI NOISE EQUIPMENT<SV9>	1-09623-588-0	01	1	9411-		●
161	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). TAIWAN EQUIPMENT(WW5)	1-09623-185-0	01	1	9002-9203		●
161	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). TAIWAN EQUIPMENT(WW5)	1-09623-588-0	01	1	9204-9306		●

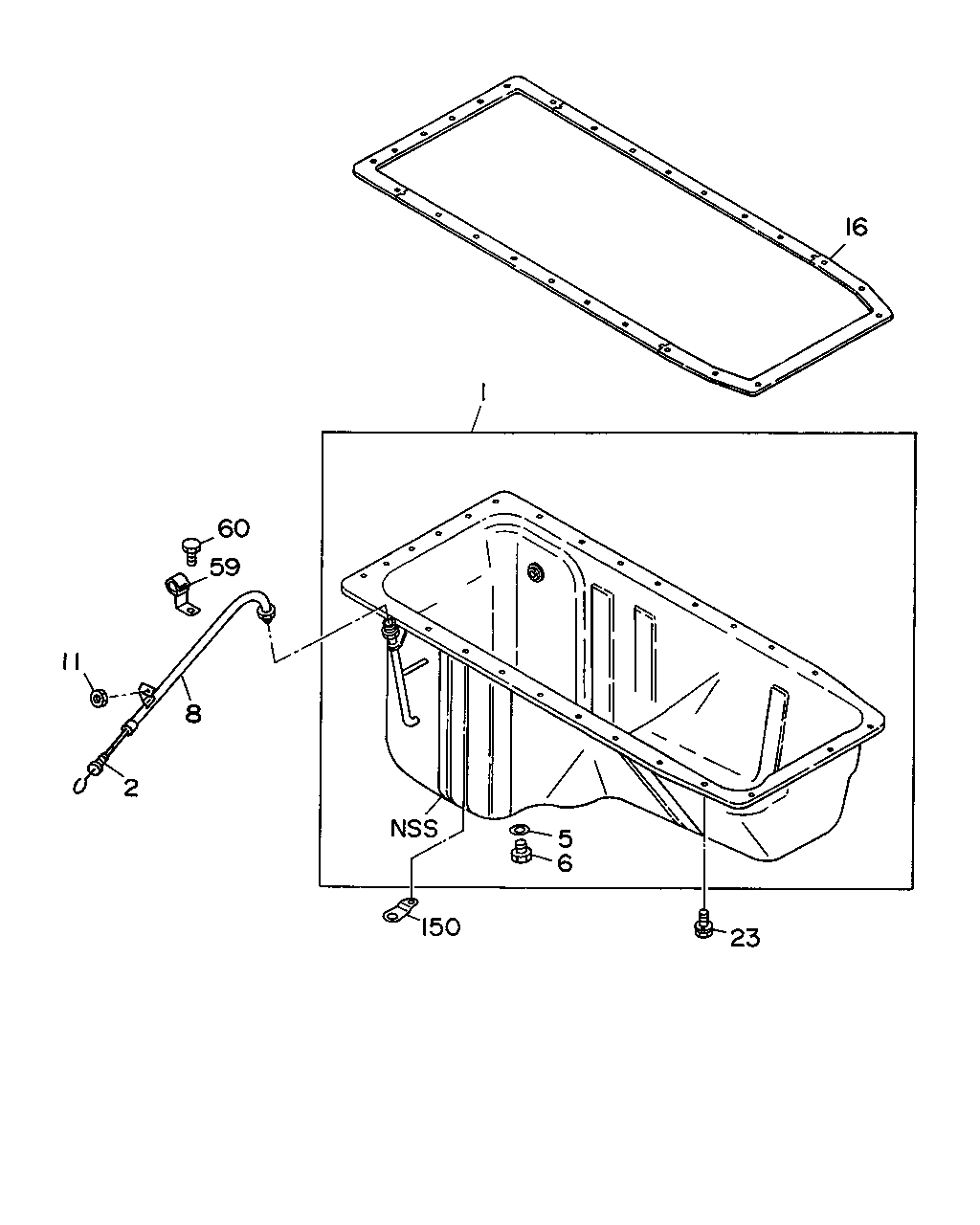

16 1 60 59 11 8 2 150 6 5 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PAN ASM; OIL	1-11360-716-0	01	1	9002-9306	●
1	PAN ASM; OIL	1-11360-715-1	01	1	9307-9410		●
1	PAN ASM; OIL EXC. ANTI NOISE EQUIPMENT<SV9>	1-11360-715-2	01	1	9411-		●
1	PAN ASM; OIL ANTI NOISE EQUIPMENT<SV9>	1-11360-694-2	01	1	9411-		●
1	PAN ASM; OIL TAIWAN EQUIPMENT(WW5)	1-11360-694-1	01	1	9002-9306		●
1	PAN ASM; OIL EXC. TAIWAN EQUIPMENT(WW5)	1-11360-715-0	01	1	9002-9306		●
1	PAN ASM; OIL	1-11360-724-2	01	1	9307-			●
2	GAUGE; OIL LEVEL	1-11760-300-2	01	1	9002-9509	●	●	●
2	GAUGE; OIL LEVEL	1-11760-300-2	01	1	9510-		●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	9002-	●	●	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	9002-	●	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-320-1	01	1	9002-9306	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-296-1	01	1	9307-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-293-1	01	1	9002-		●
11	NUT; GUIDE,OIL LEVEL GAUGE M8 FLANGE	0-91150-108-0	01	1	9002-	●	●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-092-1	01	1	9002-9306	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-090-1	01	1	9307-9505			●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-107-0	01	1	9506-			●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-091-1	01	1	9002-9504		●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-105-0	01	1	9505-		●
23	BOLT; OIL PAN M8X18 W/LK&PL WASHER	1-09030-004-0	26	1	9002-9306	●
23	BOLT; OIL PAN M8X18 W/LK&PL WASHER	1-09030-004-0	22	1	9002-		●
23	BOLT; OIL PAN M8X90 W/LK&PL WASHER	1-09030-078-0	10	1	9002-	●	●	●
23	BOLT; OIL PAN M8X18 W/LK&PL WASHER	1-09030-004-0	18	1	9307-			●
59	CLIP; HARNESS ID=11 H=20 L=17.5	1-09700-562-1	07	1	9002-9306	●
59	CLIP; HARNESS ID=11 H=20 L=17.5	1-09700-562-1	04	1	9307-			●
60	BOLT; CLIP HARNESS M10X16 W/LK WASHER	9-01931-016-0	04	1	9002-9004	●
60	BOLT; CLIP HARNESS M10X16 W/LK WASHER	1-09033-012-0	04	1	9005-9306	●
60	BOLT; CLIP HARNESS M10X16 W/LK WASHER	1-09033-012-0	03	1	9307-			●
150	CLIP; WATER,OIL DRAIN	9-11229-070-0	01	1	9002-	●	●	●
