Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#22809) — 267 parça

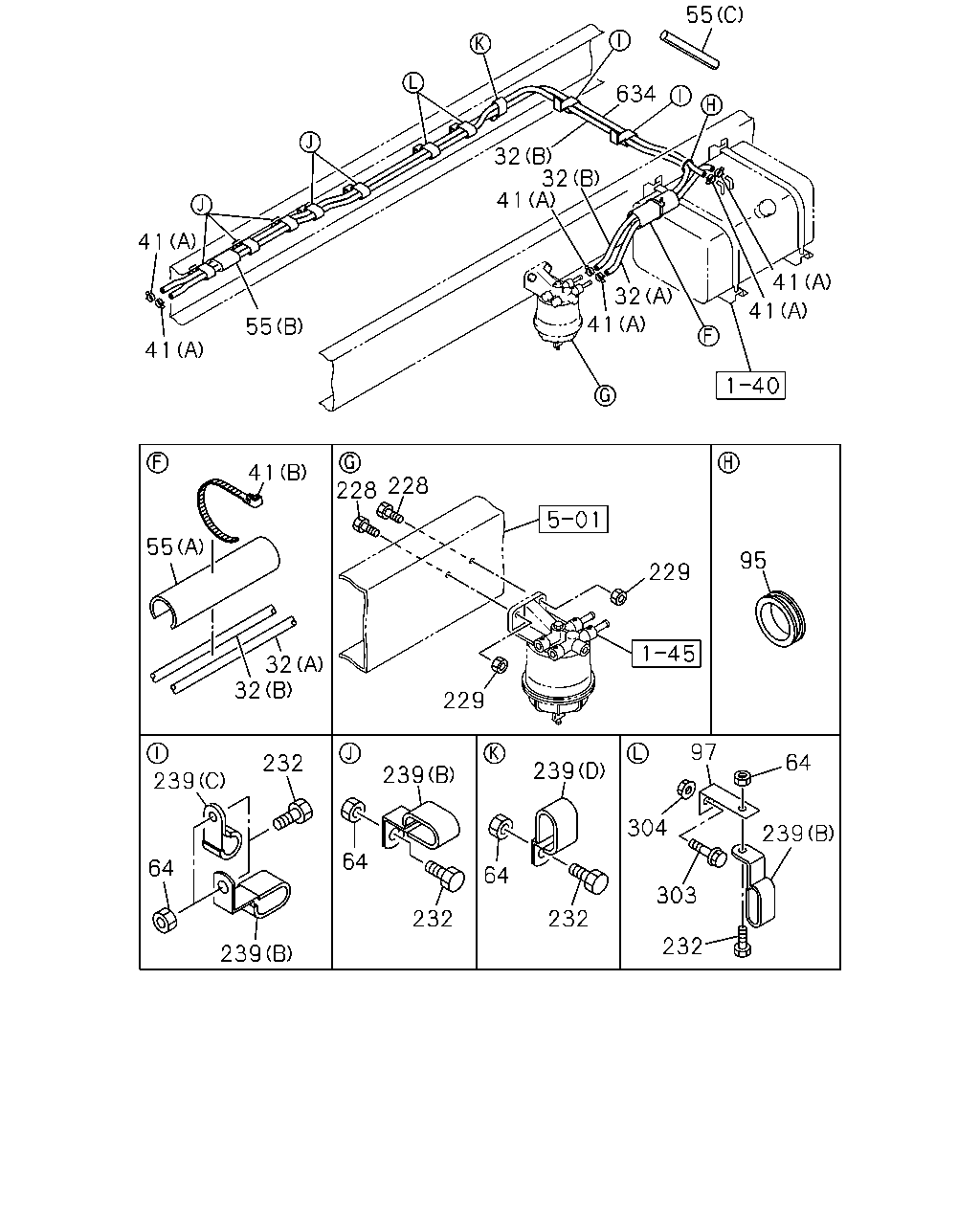

55 634 32 32 41 41 32 41 41 41 55 41 41 228 228 55 95 229 32 32 229 97 64 232 239 239 239 304 239 64 64 64 303 232 232 232 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK 6HH1 STD ENG(65L) (A) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	9601-0004	●
32	PIPE; DELIVERY,FUEL TANK 6HH1 STD ENG(65L) (A) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0006	●	●
32	PIPE; DELIVERY,FUEL TANK 6HH1 STD ENG(65L) (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	0007-0209	●	●
32	PIPE; DELIVERY,FUEL TANK 6HH1 STD ENG(65L) (A) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	0210-0308	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	0309-		●
32	PIPE; DELIVERY,FUEL TANK 6HH1 STD ENG(65L) (B) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	9601-0004	●
32	PIPE; DELIVERY,FUEL TANK 6HH1 STD ENG(65L) (B) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0006	●	●
32	PIPE; DELIVERY,FUEL TANK 6HH1 STD ENG(65L) (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0007-0209	●	●
32	PIPE; DELIVERY,FUEL TANK 6HH1 STD ENG(65L) (B) L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	0210-0308	●	●
32	PIPE; DELIVERY,FUEL TANK (B) L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	0309-		●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) (B) L=3600 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9701	●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) (B) L=3600 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9701		●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) (B) L=3600 SERVICED BY L=8000	0-01260-800-0	01	1	9702-0004		●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) (A) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9701	●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	9702-0004	●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0308	●	●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) (B) L=4500 SERVICED BY L=8000	0-01260-800-0	01	1	9702-0004	●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0308	●	●
32	PIPE; DELIVERY,FUEL TANK 6HH1 STD ENG(65L) (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9601-0004		●
32	PIPE; DELIVERY,FUEL TANK 6HH1 STD ENG(65L) (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	9601-0004		●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) (A) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9901		●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (A) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	9902-0004		●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) (B) L=3750 SERVICED BY L=8000	0-01260-800-0	01	1	9601-0004		●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (B) L=5050 SERVICED BY L=8000	0-01260-800-0	01	1	9601-0004		●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9803		●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) (B) L=3850 SERVICED BY L=8000	0-01260-800-0	01	1	9601-0004		●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9805-9901		●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9902-0004		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9601-0308	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0309-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	9601-9903	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6SD1 STD ENG(37L) (B) L=250	5-09707-030-1	01	1	9904-0011	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	9904-0011		●
41	CLIP; FUEL PIPE,FUEL TANK 6SD1 STD ENG(37L) (B) L=250	5-09707-030-1	04	1	0012-0201	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6SD1 STD ENG(37L) (B) L=250	5-09707-030-1	05	1	0202-0308	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HH1 STD ENG(65L) (B) L=250	5-09707-030-1	01	1	0012-0201		●
41	CLIP; FUEL PIPE,FUEL TANK 6HH1 STD ENG(65L) (B) L=250	5-09707-030-1	02	1	0202-		●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9601-9903	●	●
55	COVER; PIPE,FUEL TANK 6SD1 STD ENG(37L) (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9904-0308	●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9904-0308		●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0309-		●
55	COVER; PIPE,FUEL TANK 6SD1 STD ENG(37L) (B) L=350	1-09360-460-1	01	1	9607-0308	●	●
55	COVER; PIPE,FUEL TANK 6SD1 STD ENG(37L) (C) L=800	1-09361-018-0	01	1	0006-0308	●	●
64	NUT; CLIP 6HH1 STD ENG(65L) M8	9-09110-408-0	05	1	9601-9606	●
64	NUT; CLIP 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	05	1	9607-0004	●
64	NUT; CLIP 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	05	1	0005-0109	●	●
64	NUT; CLIP 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	03	1	0110-0308	●	●
64	NUT; CLIP 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	03	1	0309-0602		●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0603-		●
64	NUT; CLIP 6SD1 STD ENG(37L) M8	9-09110-408-0	13	1	9601-9606	●
64	NUT; CLIP 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	13	1	9607-0004	●
64	NUT; CLIP 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	11	1	0005-0308	●	●
64	NUT; CLIP 6HH1 STD ENG(65L) M8	9-09110-408-0	03	1	9601-9606		●
64	NUT; CLIP 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	03	1	9607-0004		●
64	NUT; CLIP 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M8	9-09110-408-0	09	1	9601-9606		●
64	NUT; CLIP 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M8 FLANGE	0-91150-108-0	09	1	9607-0004		●
64	NUT; CLIP 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) M8	9-09110-408-0	11	1	9601-9606		●
64	NUT; CLIP 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	11	1	9607-0004		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	02	1	9601-9609	●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 3900MM(39W) ID=28 OD=35 T=25	1-09332-011-1	02	1	9610-9701	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9702-9903	●	●
95	BUSHING; PIPE,FUEL TANK 6SD1 STD ENG(37L) ID=28 OD=35 T=25	1-09332-011-1	01	1	9904-0308	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9904-0308		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0309-		●
95	BUSHING; PIPE,FUEL TANK 6HH1 STD ENG(65L) ID=28 OD=35 T=25	1-09332-011-1	02	1	9904-0308	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9601-9701		●
97	BRACKET; CLIP 6SD1 STD ENG(37L) L=95	1-82699-085-0	02	1	0007-0308	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28081-040-0	02	1	9601-9606	●	●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	9607-0004	●	●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	0005-0209	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	0210-0308	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	0309-0512		●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28651-040-0	02	1	0601-		●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9601-9606		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9607-9610		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9611-0308	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0309-0602		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-		●
232	BOLT; CLIP,PIPE 6HH1 STD ENG(65L) M8X30 FLANGE	0-28080-830-0	05	1	9601-9606	●
232	BOLT; CLIP,PIPE 6HH1 STD ENG(65L) M8X35 FLANGE	0-28680-835-0	05	1	9607-9807	●
232	BOLT; CLIP,PIPE 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	05	1	9808-0004	●
232	BOLT; CLIP,PIPE 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	05	1	0005-0109	●	●
232	BOLT; CLIP,PIPE 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	03	1	0110-0308	●	●
232	BOLT; CLIP,PIPE 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	03	1	0309-0512		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28650-830-0	03	1	0601-		●
232	BOLT; CLIP,PIPE 6SD1 STD ENG(37L) M8X30 FLANGE	0-28080-830-0	13	1	9601-9606	●
232	BOLT; CLIP,PIPE 6SD1 STD ENG(37L) M8X35 FLANGE	0-28680-835-0	13	1	9607-9807	●
232	BOLT; CLIP,PIPE 6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	13	1	9808-0004	●
232	BOLT; CLIP,PIPE 6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	11	1	0005-0308	●	●
232	BOLT; CLIP,PIPE 6HH1 STD ENG(65L) M8X30 FLANGE	0-28080-830-0	03	1	9601-9606		●
232	BOLT; CLIP,PIPE 6HH1 STD ENG(65L) M8X35 FLANGE	0-28680-835-0	03	1	9607-9807		●
232	BOLT; CLIP,PIPE 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	03	1	9808-0004		●
232	BOLT; CLIP,PIPE 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M8X30 FLANGE	0-28080-830-0	09	1	9601-9606		●
232	BOLT; CLIP,PIPE 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M8X35 FLANGE	0-28680-835-0	09	1	9607-9807		●
232	BOLT; CLIP,PIPE 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M8X30 FLANGE	0-28680-830-0	09	1	9808-0004		●
232	BOLT; CLIP,PIPE 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) M8X30 FLANGE	0-28080-830-0	11	1	9601-9606		●
232	BOLT; CLIP,PIPE 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) M8X35 FLANGE	0-28680-835-0	11	1	9607-9807		●
232	BOLT; CLIP,PIPE 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) M8X30 FLANGE	0-28680-830-0	11	1	9808-0004		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	04	1	9601-9807	●
239	CLIP; FUEL PIPE 6HH1 STD ENG(65L) (B) ID=14X29 H=30 L=25	1-09701-101-0	04	1	9808-0004	●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) (D) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9601-0004	●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (D) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9601-0004		●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) (C) ID=32 L=50	1-09701-055-1	02	1	0005-0308	●	●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) (B) ID=14X29 H=30 L=25	1-09701-101-0	09	1	9601-0004	●
239	CLIP; FUEL PIPE 6HH1 STD ENG(65L) (B) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0005-0006	●	●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0007-0109	●	●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) (B) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0110-0308	●	●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	9601-9901	●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	9601-9901		●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) (B) ID=14X29 H=30 L=25	1-09701-101-0	01	1	9902-0004	●	●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0005-0006	●	●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) (C) ID=16X2 L=20	9-09535-536-0	02	1	0007-0308	●	●
239	CLIP; FUEL PIPE 6HH1 STD ENG(65L) (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9601-9907	●	●
239	CLIP; FUEL PIPE 6HH1 STD ENG(65L) (A) M13X2 H=20 L=60	1-09701-280-0	01	1	9908-0308	●	●
239	CLIP; FUEL PIPE (A) M13X2 H=20 L=60	1-09701-280-0	01	1	0309-		●
239	CLIP; FUEL PIPE 6HH1 STD ENG(65L) (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0110-0308	●	●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0309-		●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) (B) ID=16X2 H=76 L=50	1-09700-902-0	01	1	9902-0004	●	●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) (B) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0005-0308	●	●
239	CLIP; FUEL PIPE 6HH1 STD ENG(65L) (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	9902-0004		●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9601-0004		●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	9601-0004		●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (B) ID=14X29 H=30 L=25	1-09701-101-0	07	1	9601-0004		●
303	BOLT; BRKT 6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	02	1	0007-0308	●	●
304	NUT; BRKT 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	0007-0308	●	●
634	HOSE; RUBBER RETURN 6HH1 STD ENG(65L) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	9601-0004	●
634	HOSE; RUBBER RETURN 6HH1 STD ENG(65L) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0308	●	●
634	HOSE; RUBBER RETURN 6HH1 STD ENG(65L) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	0309-		●
634	HOSE; RUBBER RETURN 6SD1 STD ENG(37L) L=4350 SERVICED BY L=8000	0-01260-800-0	01	1	9601-0004	●
634	HOSE; RUBBER RETURN 6HH1 STD ENG(65L) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9601-0004		●
634	HOSE; RUBBER RETURN 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) L=3250 SERVICED BY L=8000	0-01260-800-0	01	1	9601-0004		●
634	HOSE; RUBBER RETURN 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) L=3450 SERVICED BY L=8000	0-01260-800-0	01	1	9601-0004		●
634	HOSE; RUBBER RETURN 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) L=4250 SERVICED BY L=8000	0-01260-800-0	01	1	9601-0004		●
634	HOSE; RUBBER RETURN 6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	9601-0004		●
634	HOSE; RUBBER RETURN 6SD1 STD ENG(37L) L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0308	●	●

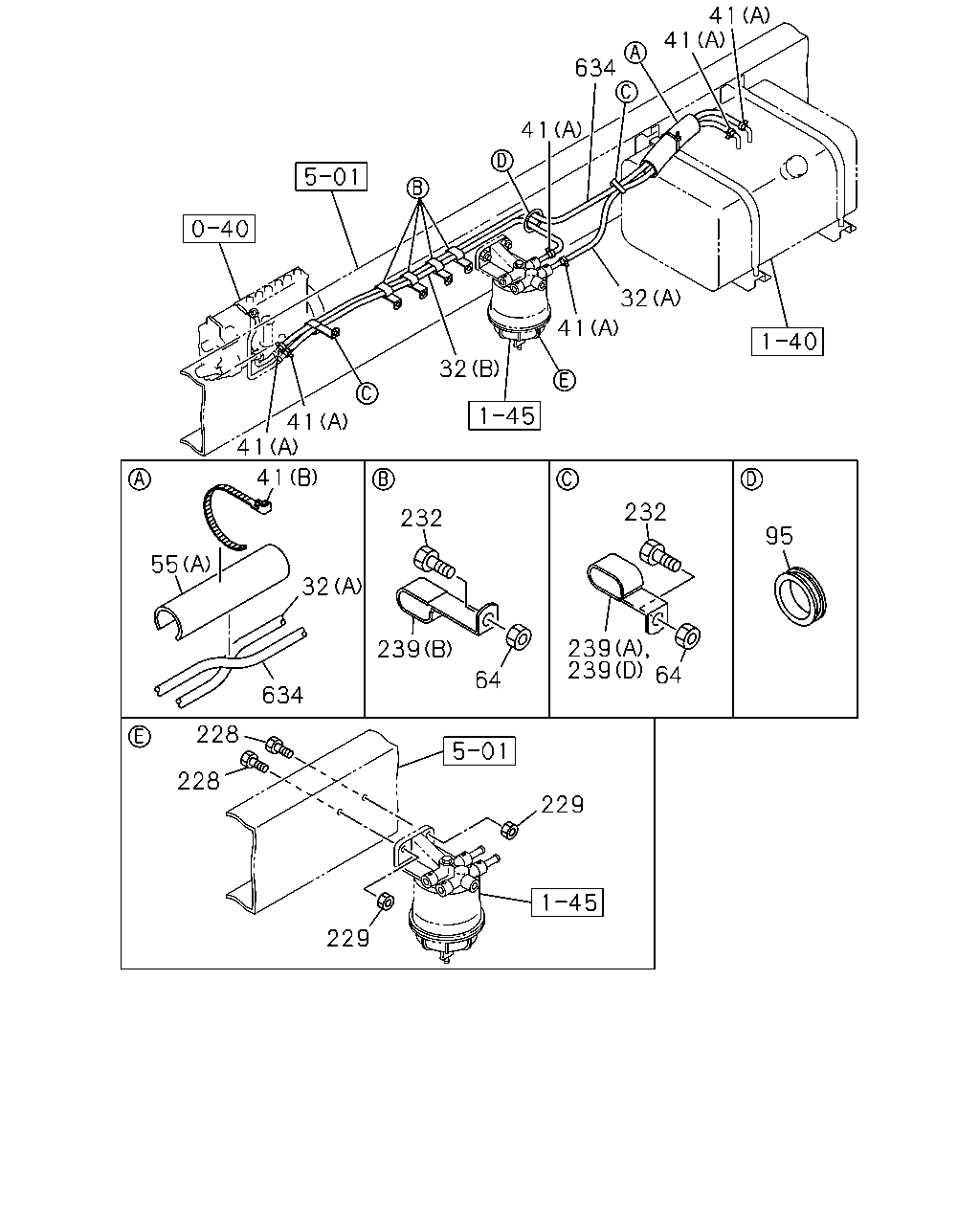

41 41 634 41 32 41 32 41 41 41 232 232 95 55 32 239 239 64 239 64 634 228 228 229 229

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK 6HH1 STD ENG(65L) (A) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	9601-0004	●
32	PIPE; DELIVERY,FUEL TANK 6HH1 STD ENG(65L) (A) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0006	●	●
32	PIPE; DELIVERY,FUEL TANK 6HH1 STD ENG(65L) (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	0007-0209	●	●
32	PIPE; DELIVERY,FUEL TANK 6HH1 STD ENG(65L) (A) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	0210-0308	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	0309-		●
32	PIPE; DELIVERY,FUEL TANK 6HH1 STD ENG(65L) (B) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	9601-0004	●
32	PIPE; DELIVERY,FUEL TANK 6HH1 STD ENG(65L) (B) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0006	●	●
32	PIPE; DELIVERY,FUEL TANK 6HH1 STD ENG(65L) (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0007-0209	●	●
32	PIPE; DELIVERY,FUEL TANK 6HH1 STD ENG(65L) (B) L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	0210-0308	●	●
32	PIPE; DELIVERY,FUEL TANK (B) L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	0309-		●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) (B) L=3600 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9701	●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) (B) L=3600 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9701		●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) (B) L=3600 SERVICED BY L=8000	0-01260-800-0	01	1	9702-0004		●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) (A) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9701	●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	9702-0004	●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0308	●	●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) (B) L=4500 SERVICED BY L=8000	0-01260-800-0	01	1	9702-0004	●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0308	●	●
32	PIPE; DELIVERY,FUEL TANK 6HH1 STD ENG(65L) (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9601-0004		●
32	PIPE; DELIVERY,FUEL TANK 6HH1 STD ENG(65L) (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	9601-0004		●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) (A) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9901		●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (A) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	9902-0004		●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) (B) L=3750 SERVICED BY L=8000	0-01260-800-0	01	1	9601-0004		●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (B) L=5050 SERVICED BY L=8000	0-01260-800-0	01	1	9601-0004		●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9803		●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) (B) L=3850 SERVICED BY L=8000	0-01260-800-0	01	1	9601-0004		●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9805-9901		●
32	PIPE; DELIVERY,FUEL TANK 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9902-0004		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9601-0308	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0309-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	9601-9903	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6SD1 STD ENG(37L) (B) L=250	5-09707-030-1	01	1	9904-0011	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	9904-0011		●
41	CLIP; FUEL PIPE,FUEL TANK 6SD1 STD ENG(37L) (B) L=250	5-09707-030-1	04	1	0012-0201	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6SD1 STD ENG(37L) (B) L=250	5-09707-030-1	05	1	0202-0308	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HH1 STD ENG(65L) (B) L=250	5-09707-030-1	01	1	0012-0201		●
41	CLIP; FUEL PIPE,FUEL TANK 6HH1 STD ENG(65L) (B) L=250	5-09707-030-1	02	1	0202-		●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9601-9903	●	●
55	COVER; PIPE,FUEL TANK 6SD1 STD ENG(37L) (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9904-0308	●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9904-0308		●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0309-		●
55	COVER; PIPE,FUEL TANK 6SD1 STD ENG(37L) (B) L=350	1-09360-460-1	01	1	9607-0308	●	●
55	COVER; PIPE,FUEL TANK 6SD1 STD ENG(37L) (C) L=800	1-09361-018-0	01	1	0006-0308	●	●
64	NUT; CLIP 6HH1 STD ENG(65L) M8	9-09110-408-0	05	1	9601-9606	●
64	NUT; CLIP 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	05	1	9607-0004	●
64	NUT; CLIP 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	05	1	0005-0109	●	●
64	NUT; CLIP 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	03	1	0110-0308	●	●
64	NUT; CLIP 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	03	1	0309-0602		●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0603-		●
64	NUT; CLIP 6SD1 STD ENG(37L) M8	9-09110-408-0	13	1	9601-9606	●
64	NUT; CLIP 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	13	1	9607-0004	●
64	NUT; CLIP 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	11	1	0005-0308	●	●
64	NUT; CLIP 6HH1 STD ENG(65L) M8	9-09110-408-0	03	1	9601-9606		●
64	NUT; CLIP 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	03	1	9607-0004		●
64	NUT; CLIP 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M8	9-09110-408-0	09	1	9601-9606		●
64	NUT; CLIP 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M8 FLANGE	0-91150-108-0	09	1	9607-0004		●
64	NUT; CLIP 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) M8	9-09110-408-0	11	1	9601-9606		●
64	NUT; CLIP 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	11	1	9607-0004		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	02	1	9601-9609	●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 3900MM(39W) ID=28 OD=35 T=25	1-09332-011-1	02	1	9610-9701	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9702-9903	●	●
95	BUSHING; PIPE,FUEL TANK 6SD1 STD ENG(37L) ID=28 OD=35 T=25	1-09332-011-1	01	1	9904-0308	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9904-0308		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0309-		●
95	BUSHING; PIPE,FUEL TANK 6HH1 STD ENG(65L) ID=28 OD=35 T=25	1-09332-011-1	02	1	9904-0308	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9601-9701		●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28081-040-0	02	1	9601-9606	●	●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	9607-0004	●	●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	0005-0209	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	0210-0308	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	0309-0512		●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28651-040-0	02	1	0601-		●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9601-9606		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9607-9610		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9611-0308	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0309-0602		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-		●
232	BOLT; CLIP,PIPE 6HH1 STD ENG(65L) M8X30 FLANGE	0-28080-830-0	05	1	9601-9606	●
232	BOLT; CLIP,PIPE 6HH1 STD ENG(65L) M8X35 FLANGE	0-28680-835-0	05	1	9607-9807	●
232	BOLT; CLIP,PIPE 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	05	1	9808-0004	●
232	BOLT; CLIP,PIPE 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	05	1	0005-0109	●	●
232	BOLT; CLIP,PIPE 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	03	1	0110-0308	●	●
232	BOLT; CLIP,PIPE 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	03	1	0309-0512		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28650-830-0	03	1	0601-		●
232	BOLT; CLIP,PIPE 6SD1 STD ENG(37L) M8X30 FLANGE	0-28080-830-0	13	1	9601-9606	●
232	BOLT; CLIP,PIPE 6SD1 STD ENG(37L) M8X35 FLANGE	0-28680-835-0	13	1	9607-9807	●
232	BOLT; CLIP,PIPE 6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	13	1	9808-0004	●
232	BOLT; CLIP,PIPE 6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	11	1	0005-0308	●	●
232	BOLT; CLIP,PIPE 6HH1 STD ENG(65L) M8X30 FLANGE	0-28080-830-0	03	1	9601-9606		●
232	BOLT; CLIP,PIPE 6HH1 STD ENG(65L) M8X35 FLANGE	0-28680-835-0	03	1	9607-9807		●
232	BOLT; CLIP,PIPE 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	03	1	9808-0004		●
232	BOLT; CLIP,PIPE 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M8X30 FLANGE	0-28080-830-0	09	1	9601-9606		●
232	BOLT; CLIP,PIPE 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M8X35 FLANGE	0-28680-835-0	09	1	9607-9807		●
232	BOLT; CLIP,PIPE 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M8X30 FLANGE	0-28680-830-0	09	1	9808-0004		●
232	BOLT; CLIP,PIPE 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) M8X30 FLANGE	0-28080-830-0	11	1	9601-9606		●
232	BOLT; CLIP,PIPE 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) M8X35 FLANGE	0-28680-835-0	11	1	9607-9807		●
232	BOLT; CLIP,PIPE 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) M8X30 FLANGE	0-28680-830-0	11	1	9808-0004		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	04	1	9601-9807	●
239	CLIP; FUEL PIPE 6HH1 STD ENG(65L) (B) ID=14X29 H=30 L=25	1-09701-101-0	04	1	9808-0004	●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) (D) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9601-0004	●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (D) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9601-0004		●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) (C) ID=32 L=50	1-09701-055-1	02	1	0005-0308	●	●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) (B) ID=14X29 H=30 L=25	1-09701-101-0	09	1	9601-0004	●
239	CLIP; FUEL PIPE 6HH1 STD ENG(65L) (B) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0005-0006	●	●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0007-0109	●	●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) (B) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0110-0308	●	●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	9601-9901	●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	9601-9901		●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) (B) ID=14X29 H=30 L=25	1-09701-101-0	01	1	9902-0004	●	●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0005-0006	●	●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) (C) ID=16X2 L=20	9-09535-536-0	02	1	0007-0308	●	●
239	CLIP; FUEL PIPE 6HH1 STD ENG(65L) (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9601-9907	●	●
239	CLIP; FUEL PIPE 6HH1 STD ENG(65L) (A) M13X2 H=20 L=60	1-09701-280-0	01	1	9908-0308	●	●
239	CLIP; FUEL PIPE (A) M13X2 H=20 L=60	1-09701-280-0	01	1	0309-		●
239	CLIP; FUEL PIPE 6HH1 STD ENG(65L) (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0110-0308	●	●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0309-		●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) (B) ID=16X2 H=76 L=50	1-09700-902-0	01	1	9902-0004	●	●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) (B) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0005-0308	●	●
239	CLIP; FUEL PIPE 6HH1 STD ENG(65L) (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	9902-0004		●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9601-0004		●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	9601-0004		●
239	CLIP; FUEL PIPE 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (B) ID=14X29 H=30 L=25	1-09701-101-0	07	1	9601-0004		●
634	HOSE; RUBBER RETURN 6HH1 STD ENG(65L) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	9601-0004	●
634	HOSE; RUBBER RETURN 6HH1 STD ENG(65L) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0308	●	●
634	HOSE; RUBBER RETURN 6HH1 STD ENG(65L) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	0309-		●
634	HOSE; RUBBER RETURN 6SD1 STD ENG(37L) L=4350 SERVICED BY L=8000	0-01260-800-0	01	1	9601-0004	●
634	HOSE; RUBBER RETURN 6HH1 STD ENG(65L) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9601-0004		●
634	HOSE; RUBBER RETURN 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) L=3250 SERVICED BY L=8000	0-01260-800-0	01	1	9601-0004		●
634	HOSE; RUBBER RETURN 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) L=3450 SERVICED BY L=8000	0-01260-800-0	01	1	9601-0004		●
634	HOSE; RUBBER RETURN 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) L=4250 SERVICED BY L=8000	0-01260-800-0	01	1	9601-0004		●
634	HOSE; RUBBER RETURN 6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	9601-0004		●
634	HOSE; RUBBER RETURN 6SD1 STD ENG(37L) L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0308	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
