◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#22808) — 111 parça

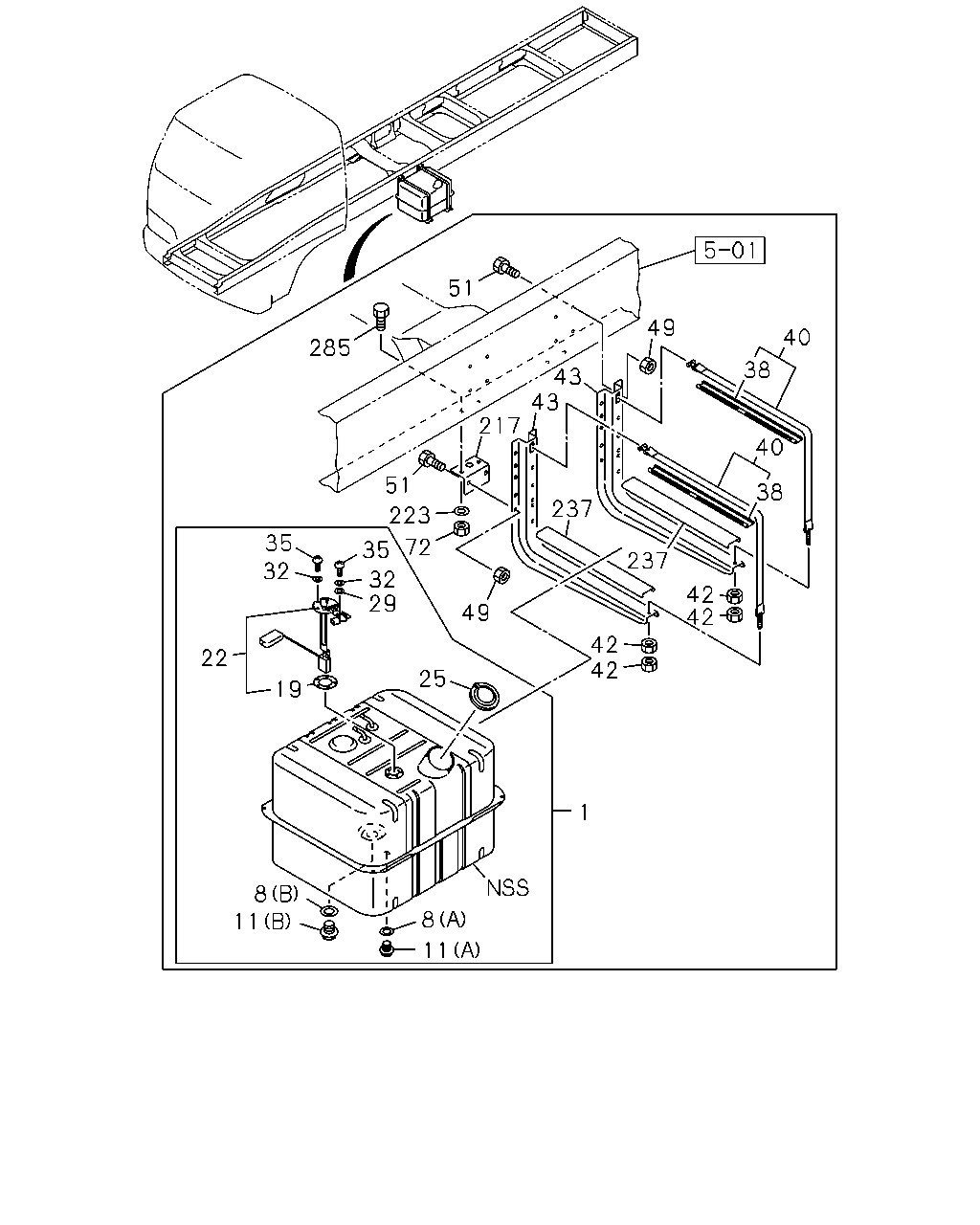

çizim 65391
51 43 43 49 40 285 38 217 40 51 38 237 223 35 32 72 35 237 32 29 42 42 49 42 42 22 25 19 1 8 11 8 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
720X610X496 200L 		1-22400-996-0 01 1 9601-0003 ● ●
1 TANK; FUEL
720X610X496 200L 		1-22401-120-1 01 1 0004-0112 ● ●
1 TANK; FUEL
720X610X496 200L 		1-22401-192-2 01 1 0201-0308 ● ●
1 TANK; FUEL
720X610X496 200L 		1-22401-192-2 01 1 0309-1505 ●
1 TANK; FUEL
720X610X496 200L 		8-98299-274-0 01 1 1506- ●
8 GASKET; DRAIN PLUG,FUEL TANK
(A) T=1.60 		1-22416-001-0 01 1 9601-0112 ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(B) T=2.0 		9-09923-030-0 01 1 9601-0004 ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(B) T=2.0 		9-09923-030-0 01 1 0005-0106 ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0107-0112 ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=14.2 OD=23.0 		9-09572-014-0 02 1 0201-0308 ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=14.2 OD=23.0 		9-09572-014-0 02 1 0309- ●
11 PLUG; DRAIN,FUEL TANK
(B) M36 		1-09604-052-0 01 1 9601-0003 ● ●
11 PLUG; DRAIN,FUEL TANK
(B) M36 		1-09604-052-0 01 1 0004-0004 ● ●
11 PLUG; DRAIN,FUEL TANK
(B) M36 		1-09604-052-0 01 1 0005-0106 ● ●
11 PLUG; DRAIN,FUEL TANK
(B) M14X14 		9-09862-156-0 01 1 0107-0112 ● ●
11 PLUG; DRAIN,FUEL TANK
(B) M14X14 		9-09862-156-0 02 1 0201-0308 ● ●
11 PLUG; DRAIN,FUEL TANK
(B) M14X14 		9-09862-156-0 02 1 0309- ●
11 PLUG; DRAIN,FUEL TANK
(A) M18X12 		1-09604-081-0 01 1 9601-0112 ● ●
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 9601-0308 ● ●
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0309- ●
19 GASKET; FUEL TANK UNIT 9-83135-003-0 01 1 9601-0308 ● ●
19 GASKET; FUEL TANK UNIT 9-83135-003-0 01 1 0309- ●
22 UNIT; FUEL TANK 1-83141-124-0 01 1 9601-0308 ● ●
22 UNIT; FUEL TANK 1-83141-124-0 01 1 0309-1505 ●
22 UNIT; FUEL TANK 8-98296-671-0 01 1 1506- ●
25 CAP; FILLER,FUEL TANK 1-22440-033-2 01 1 9601-0003 ● ●
25 CAP; FILLER,FUEL TANK 1-22440-067-0 01 1 0004-0004 ● ●
25 CAP; FILLER,FUEL TANK 1-22440-067-0 01 1 0005-0109 ● ●
25 CAP; FILLER,FUEL TANK 1-22440-069-0 01 1 0110-0112 ● ●
25 CAP; FILLER,FUEL TANK 1-22440-067-0 01 1 0201-0308 ● ●
25 CAP; FILLER,FUEL TANK 1-22440-067-0 01 1 0309-0309 ●
25 CAP; FILLER,FUEL TANK 1-22440-070-0 01 1 0310-0404 ●
25 CAP; FILLER,FUEL TANK 1-22440-046-1 01 1 0405- ●
29 WASHER; PL,FUEL TANK UNIT
ID=5.3 		9-09160-505-0 01 1 9601-0308 ● ●
29 WASHER; PL,FUEL TANK UNIT
ID=5.3 		9-09160-505-0 01 1 0309-0605 ●
29 WASHER; PL,FUEL TANK UNIT
ID=5.3 		0-91610-505-0 01 1 0606- ●
32 WASHER; LK,FUEL TANK UNIT
ID=5.1 		9-09150-505-0 05 1 9601-0308 ● ●
32 WASHER; LK,FUEL TANK UNIT
ID=5.1 		9-09150-505-0 05 1 0309-0603 ●
32 WASHER; LK,FUEL TANK UNIT
ID=5.1 		0-91510-505-0 05 1 0604- ●
35 SCREW; FUEL TANK UNIT
M5X10 		9-93497-510-0 05 1 9601-0308 ● ●
35 SCREW; FUEL TANK UNIT
M5X10 		9-93497-510-0 05 1 0309-0604 ●
35 SCREW; FUEL TANK UNIT
M5X10 		0-34218-510-0 05 1 0605- ●
38 INSULATION; SUPPORT BELT
L=650 		1-22553-022-1 02 1 9601-0308 ● ●
38 INSULATION; SUPPORT BELT
L=650 		1-22553-022-1 02 1 0309- ●
40 BELT; SUPPORT,FUEL TANK
L=1030 		1-22550-204-2 02 1 9601-0308 ● ●
40 BELT; SUPPORT,FUEL TANK
L=1030 		1-22550-204-2 02 1 0309- ●
42 NUT; SUPPORT BELT
M10 		9-09110-510-0 04 1 9601-0308 ● ●
42 NUT; SUPPORT BELT
M10 		9-09110-510-0 04 1 0309-0512 ●
42 NUT; SUPPORT BELT
M10 		0-91110-510-0 04 1 0601- ●
43 BRACKET; FUEL TANK 1-53461-279-4 02 1 9601-0308 ● ●
43 BRACKET; FUEL TANK 1-53461-279-4 02 1 0309- ●
49 NUT; BRKT
M12 		9-99110-512-0 12 1 9601-9612 ●
49 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12 		9-99110-512-0 12 1 9601-9612 ●
49 NUT; BRKT
M12 		9-99110-512-0 11 1 9701-9702 ●
49 NUT; BRKT
WHEEL BASE 5000MM(50W) M12 		9-99110-512-0 11 1 9701-9702 ●
49 NUT; BRKT
M12 FLANGE 		0-91150-212-0 11 1 9703-9803 ●
49 NUT; BRKT
WHEEL BASE 5000MM(50W) M12 FLANGE 		0-91150-212-0 11 1 9703-9803 ●
49 NUT; BRKT
M12 		9-99110-512-0 11 1 9804-9806 ●
49 NUT; BRKT
WHEEL BASE 5000MM(50W) M12 		9-99110-512-0 11 1 9804-9806 ●
49 NUT; BRKT
M12 		9-99110-512-0 12 1 9807-9808 ●
49 NUT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12 		9-99110-512-0 12 1 9807-9808 ●
49 NUT; BRKT
6SD1 STD ENG(37L) M12 		9-99110-512-0 12 1 9807-9808 ●
49 NUT; BRKT
M12 		9-99110-512-0 12 1 9809-0004 ●
49 NUT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12 		9-99110-512-0 12 1 9809-0004 ●
49 NUT; BRKT
6SD1 STD ENG(37L) M12 		9-99110-512-0 12 1 9809-0004 ●
49 NUT; BRKT
6SD1 STD ENG(37L) M12 		9-99110-512-0 12 1 9809-0004 ●
49 NUT; BRKT
6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) M12 		9-99110-512-0 12 1 9809-0004 ●
49 NUT; BRKT
M12 		9-99110-512-0 12 1 0005-0308 ● ●
49 NUT; BRKT
M12 		9-99110-512-0 12 1 0309-0512 ●
49 NUT; BRKT
M12 		0-91110-512-0 12 1 0601- ●
49 NUT; BRKT
WHEEL BASE 5000MM(50W) M12 		9-99110-512-0 11 1 9601-9612 ●
49 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12 		9-99110-512-0 12 1 9701-9702 ●
49 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12 FLANGE 		0-91150-212-0 12 1 9703-9803 ●
49 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12 		9-99110-512-0 12 1 9804-9806 ●
49 NUT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M12 		9-99110-512-0 11 1 9807-9808 ●
49 NUT; BRKT
6SD1 STD ENG(37L) M12 		9-99110-512-0 11 1 9809-0004 ●
49 NUT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M12 		9-99110-512-0 11 1 9809-0004 ●
51 BOLT; BRKT TO FRAME
M12X35 FLANGE 		0-28081-235-0 12 1 9601-9606 ● ●
51 BOLT; BRKT TO FRAME
M12X40 FLANGE 		0-28681-240-0 12 1 9607-9612 ● ●
51 BOLT; BRKT TO FRAME
M12X35 FLANGE 		0-28681-235-0 12 1 9701-9805 ● ●
51 BOLT; BRKT TO FRAME
M12X40 FLANGE 		0-28681-240-0 12 1 9806-0308 ● ●
51 BOLT; BRKT TO FRAME
M12X40 FLANGE 		0-28681-240-0 12 1 0309-0512 ●
51 BOLT; BRKT TO FRAME
M12X40 FLANGE 		0-28651-240-0 12 1 0601- ●
72 NUT; BRKT
M12 		9-99110-512-0 04 1 9601-9702 ●
72 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12 		9-99110-512-0 04 1 9601-9702 ●
72 NUT; BRKT
M12 FLANGE 		0-91150-212-0 04 1 9703-9803 ●
72 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12 FLANGE 		0-91150-212-0 04 1 9703-9803 ●
72 NUT; BRKT
M12 		9-99110-512-0 04 1 9804-9806 ●
72 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12 		9-99110-512-0 04 1 9804-9806 ●
72 NUT; BRKT
M12 		9-99110-512-0 04 1 9807-0004 ●
72 NUT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12 		9-99110-512-0 04 1 9807-0004 ●
72 NUT; BRKT
6SD1 STD ENG(37L) M12 		9-99110-512-0 04 1 9807-0004 ●
72 NUT; BRKT
M12 		9-99110-512-0 04 1 0005-0308 ● ●
72 NUT; BRKT
M12 		9-99110-512-0 04 1 0309-0512 ●
72 NUT; BRKT
M12 		0-91110-512-0 04 1 0601- ●
72 NUT; BRKT
WHEEL BASE 5000MM(50W) M12 		9-99110-512-0 03 1 9601-9702 ●
72 NUT; BRKT
WHEEL BASE 5000MM(50W) M12 FLANGE 		0-91150-212-0 03 1 9703-9803 ●
72 NUT; BRKT
WHEEL BASE 5000MM(50W) M12 		9-99110-512-0 03 1 9804-9806 ●
72 NUT; BRKT
6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) M12 		9-99110-512-0 03 1 9807-0004 ●
217 BRACKET; FUEL TANK,LOW 1-53461-283-2 02 1 9601-0308 ● ●
217 BRACKET; FUEL TANK,LOW 1-53461-283-2 02 1 0309- ●
223 WASHER; PL,LWR BRKT FIX
ID=12.5 OD=26 		9-09160-612-0 04 1 9601-9702 ● ●
223 WASHER; PL,LWR BRKT FIX
ID=12.5 OD=26 		9-09160-612-0 04 1 9804-0004 ● ●
223 WASHER; PL,LWR BRKT FIX
ID=12.5 OD=26 		9-09160-612-0 04 1 0005-0006 ● ●
237 GASKET; BRKT TO FUEL TANK
L=580 		1-22553-003-0 02 1 9601-0308 ● ●
237 GASKET; BRKT TO FUEL TANK
L=580 		1-22553-003-0 02 1 0309- ●
285 BOLT; BRKT
M12X35 FLANGE 		0-28081-235-0 04 1 9601-9606 ● ●
285 BOLT; BRKT
M12X40 FLANGE 		0-28681-240-0 04 1 9607-0004 ● ●
285 BOLT; BRKT
M12X40 FLANGE 		0-28681-240-0 04 1 0005-0308 ● ●
285 BOLT; BRKT
M12X40 FLANGE 		0-28681-240-0 04 1 0309-0512 ●
285 BOLT; BRKT
M12X40 FLANGE 		0-28651-240-0 04 1 0601- ●
