◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#22805) — 92 parça

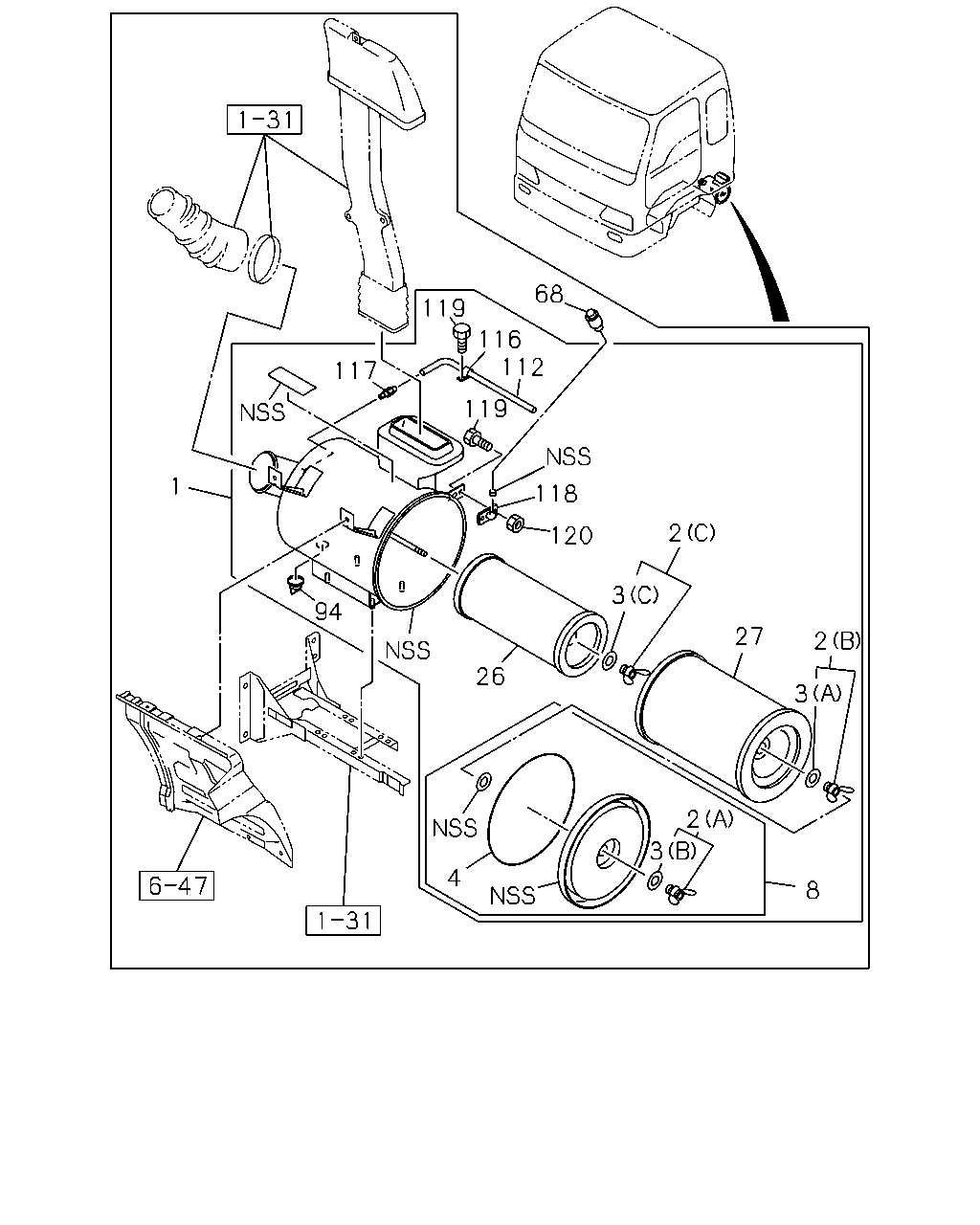

çizim 65261
68 119 116 112 117 119 1 118 2 120 3 94 27 2 26 3 2 3 4 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-778-3 01 1 9601-9803 ● ●
1 CLEANER ASM; AIR 1-14210-778-4 01 1 9804-0308 ● ●
1 CLEANER ASM; AIR 1-14210-778-4 01 1 0309- ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-773-2 01 1 9601-9803 ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9601-0308 ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0309- ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9601-0308 ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0309- ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 9601-9803 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 9804-0308 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 0309- ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9601-0308 ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0309- ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9601-0308 ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0309- ●
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 9601-9803 ● ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 9804-0308 ● ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 0309- ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9601-0308 ● ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0309- ●
8 COVER ASM; ACL 1-14212-084-0 01 1 9601-0308 ● ●
8 COVER ASM; ACL 1-14212-084-0 01 1 0309- ●
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14215-111-0 01 1 9601-9803 ● ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 9804-0308 ● ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 0309- ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-118-0 01 1 9804-0308 ● ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-118-0 01 1 0309- ●
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) BEST VALUE PARTS 		1-87610-118-0 01 1 9601-9803 ● ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14215-172-0 01 1 9601-9803 ● ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 9804-0308 ● ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 0309- ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-117-0 01 1 9804-0308 ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-117-0 01 1 0309- ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) BEST VALUE PARTS 		1-87610-117-0 01 1 9601-9803 ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9601-0308 ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0309- ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9601-0308 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0309- ●
112 HOSE; INDICATOR 1-09360-879-0 01 1 9601-9607 ● ●
112 HOSE; INDICATOR 1-14219-260-0 01 1 9608-0308 ● ●
112 HOSE; INDICATOR 1-14219-260-0 01 1 0309- ●
116 CLIP; INDICATOR HOSE 1-09701-145-0 01 1 9601-9607 ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9601-0308 ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0309- ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9601-0308 ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0309- ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 03 1 9601-9607 ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9608-0308 ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0309- ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9601-0308 ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0309- ●

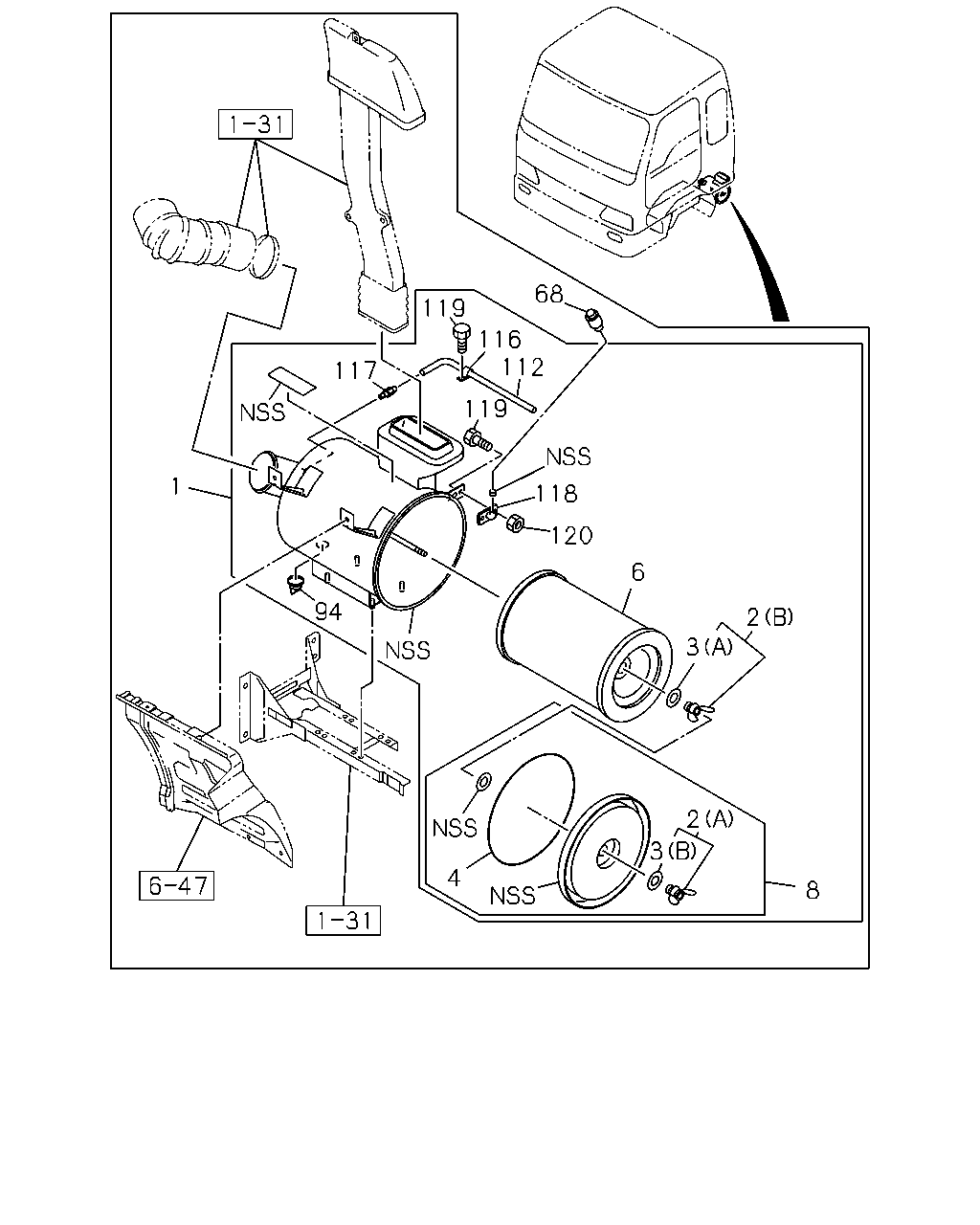

çizim 66912
68 119 116 112 117 119 1 118 120 6 94 2 3 2 3 4 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-778-3 01 1 9601-9803 ● ●
1 CLEANER ASM; AIR 1-14210-778-4 01 1 9804-0308 ● ●
1 CLEANER ASM; AIR 1-14210-778-4 01 1 0309- ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-773-2 01 1 9601-9803 ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9601-0308 ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0309- ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9601-0308 ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0309- ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 9601-9803 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 9804-0308 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 0309- ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9601-0308 ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0309- ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9601-0308 ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0309- ●
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 9601-9803 ● ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 9804-0308 ● ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 0309- ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9601-0308 ● ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0309- ●
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14215-172-0 01 1 9601-9803 ● ●
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 11"(WG8) BEST VALUE PARTS 		1-87610-117-0 01 1 9601-9803 ● ●
8 COVER ASM; ACL 1-14212-084-0 01 1 9601-0308 ● ●
8 COVER ASM; ACL 1-14212-084-0 01 1 0309- ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9601-0308 ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0309- ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9601-0308 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0309- ●
112 HOSE; INDICATOR 1-09360-879-0 01 1 9601-9607 ● ●
112 HOSE; INDICATOR 1-14219-260-0 01 1 9608-0308 ● ●
112 HOSE; INDICATOR 1-14219-260-0 01 1 0309- ●
116 CLIP; INDICATOR HOSE 1-09701-145-0 01 1 9601-9607 ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9601-0308 ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0309- ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9601-0308 ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0309- ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 03 1 9601-9607 ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9608-0308 ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0309- ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9601-0308 ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0309- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
