Isuzu WW
▶
TRUCKS
▶
FVR
▶
11352 - FVR(MIDDLE EAST)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

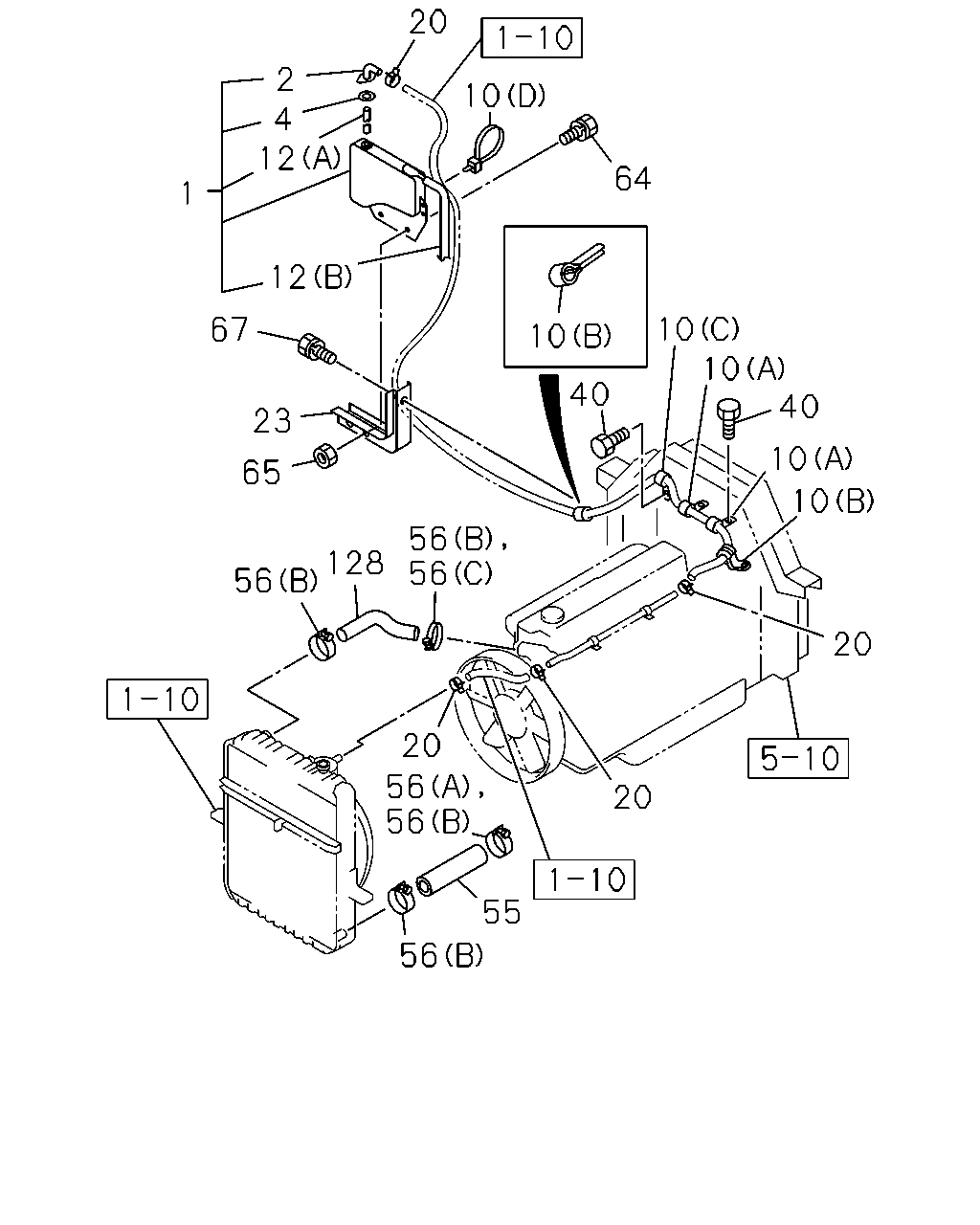

1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#22804) — 57 parça
Tümü
A - 6SD1 STD ENG
B - 6HH1 STD ENG
20
2
4
12
10
64
1
12
10
10
67
10
40
40
23
10
65
10
56
56
128
56
20
20
56
56
20
55
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
1-21480-077-2
01
1
9601-9812
●
●
1
TANK; SURGE,RAD
1-21480-104-1
01
1
9901-0308
●
●
1
TANK; SURGE,RAD
1-21480-104-1
01
1
0309-
●
2
CAP; SURGE TANK
5-21483-001-1
01
1
9601-9812
●
●
2
CAP; SURGE TANK
1-21483-008-0
01
1
9901-0308
●
●
2
CAP; SURGE TANK
1-21483-008-0
01
1
0309-
●
4
GASKET; SURGE TANK
5-21489-006-0
01
1
9601-0308
●
●
4
GASKET; SURGE TANK
5-21489-006-0
01
1
0309-
●
10
CLIP; RUBBER HOSE
(C) ID=12 L=70
1-09700-097-1
01
1
0005-
●
10
CLIP; RUBBER HOSE
(A) ID=14.5 L=40
1-09701-014-0
02
1
9601-0308
●
●
10
CLIP; RUBBER HOSE
(A) ID=14.5 L=40
1-09701-014-0
02
1
0309-
●
10
CLIP; RUBBER HOSE
(D) L=140
5-09707-031-1
01
1
9601-0308
●
●
10
CLIP; RUBBER HOSE
(D) L=140
5-09707-031-1
01
1
0309-
●
10
CLIP; RUBBER HOSE
(C) ID=13 L=50
9-09525-286-0
01
1
9601-0004
●
●
10
CLIP; RUBBER HOSE
(C) ID=15 H=24 L=20
1-09700-606-0
01
1
0005-0308
●
10
CLIP; RUBBER HOSE
(B) ID=14 L=44
9-09917-427-0
01
1
9601-0004
●
●
10
CLIP; RUBBER HOSE
(B) ID=13 L=20
9-09525-235-0
01
1
0005-0308
●
●
10
CLIP; RUBBER HOSE
(B) ID=13 L=20
9-09525-235-0
01
1
0309-0606
●
10
CLIP; RUBBER HOSE
(B) ID=13 L=20
0-95235-235-0
01
1
0607-
●
10
CLIP; RUBBER HOSE
(B) ID=14 L=44
9-09917-427-0
01
1
0201-0308
●
●
10
CLIP; RUBBER HOSE
(B) ID=14 L=44
9-09917-427-0
01
1
0309-
●
12
HOSE; SURGE TANK
(B) L=300
1-09366-199-0
01
1
9601-0308
●
●
12
HOSE; SURGE TANK
(B) L=300
1-09366-199-0
01
1
0309-
●
12
HOSE; SURGE TANK
(A)
1-21489-203-0
01
1
9901-0308
●
●
12
HOSE; SURGE TANK
(A)
1-21489-203-0
01
1
0309-
●
20
CLIP; HOSE,RAD
ID=12
8-94238-610-0
04
1
9601-0308
●
●
20
CLIP; HOSE,RAD
ID=12
8-94238-610-0
04
1
0309-
●
23
BRACKET; RESERVE TANK
1-21489-128-0
01
1
9601-0308
●
●
23
BRACKET; RESERVE TANK
1-21489-128-0
01
1
0309-
●
40
BOLT; CLIP
M8X20 FLANGE
0-28080-820-0
03
1
9601-9606
●
●
40
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
03
1
9607-0004
●
●
40
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
04
1
0005-0308
●
●
40
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
04
1
0309-0512
●
40
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
04
1
0601-
●
55
HOSE; WATER,RAD OUTLET
1-21437-560-2
01
1
9601-
●
55
HOSE; WATER,RAD OUTLET
1-21437-554-0
01
1
9601-0004
●
55
HOSE; WATER,RAD OUTLET
1-21437-543-0
01
1
0005-0010
●
55
HOSE; WATER,RAD OUTLET
1-21437-554-0
01
1
0011-0308
●
56
CLIP; WATER HOSE,RAD
(B) ID=63
1-09704-067-0
04
1
9601-
●
56
CLIP; WATER HOSE,RAD
(B) ID=63
1-09704-067-0
02
1
9601-9803
●
56
CLIP; WATER HOSE,RAD
(C) ID=76
1-09704-069-0
01
1
9601-0308
●
56
CLIP; WATER HOSE,RAD
(A) ID=70
1-09704-078-0
01
1
9601-0308
●
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-074-0
04
1
9601-0308
●
●
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-074-0
04
1
0309-0707
●
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
04
1
0708-
●
65
NUT; BRKT,SUB TANK
M8
9-09110-408-0
04
1
9601-9606
●
●
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91150-108-0
04
1
9607-0308
●
●
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91150-108-0
04
1
0309-0602
●
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91180-108-0
04
1
0603-
●
67
BOLT; BRKT
M10X20 FLANGE
0-28081-020-0
02
1
9601-9606
●
●
67
BOLT; BRKT
M10X20 FLANGE
0-28681-020-0
02
1
9607-0308
●
●
67
BOLT; BRKT
M10X20 FLANGE
0-28681-020-0
02
1
0309-0512
●
67
BOLT; BRKT
M10X20 FLANGE
0-28651-020-0
02
1
0601-
●
128
HOSE; WATER,RAD INL
1-21437-450-0
01
1
9601-9708
●
128
HOSE; WATER,RAD INL
1-21437-675-0
01
1
9709-0707
●
128
HOSE; WATER,RAD INL
1-21437-450-0
01
1
0708-
●
128
HOSE; WATER,RAD INL
1-21437-544-0
01
1
9601-0308
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
