Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#22803) — 339 parça

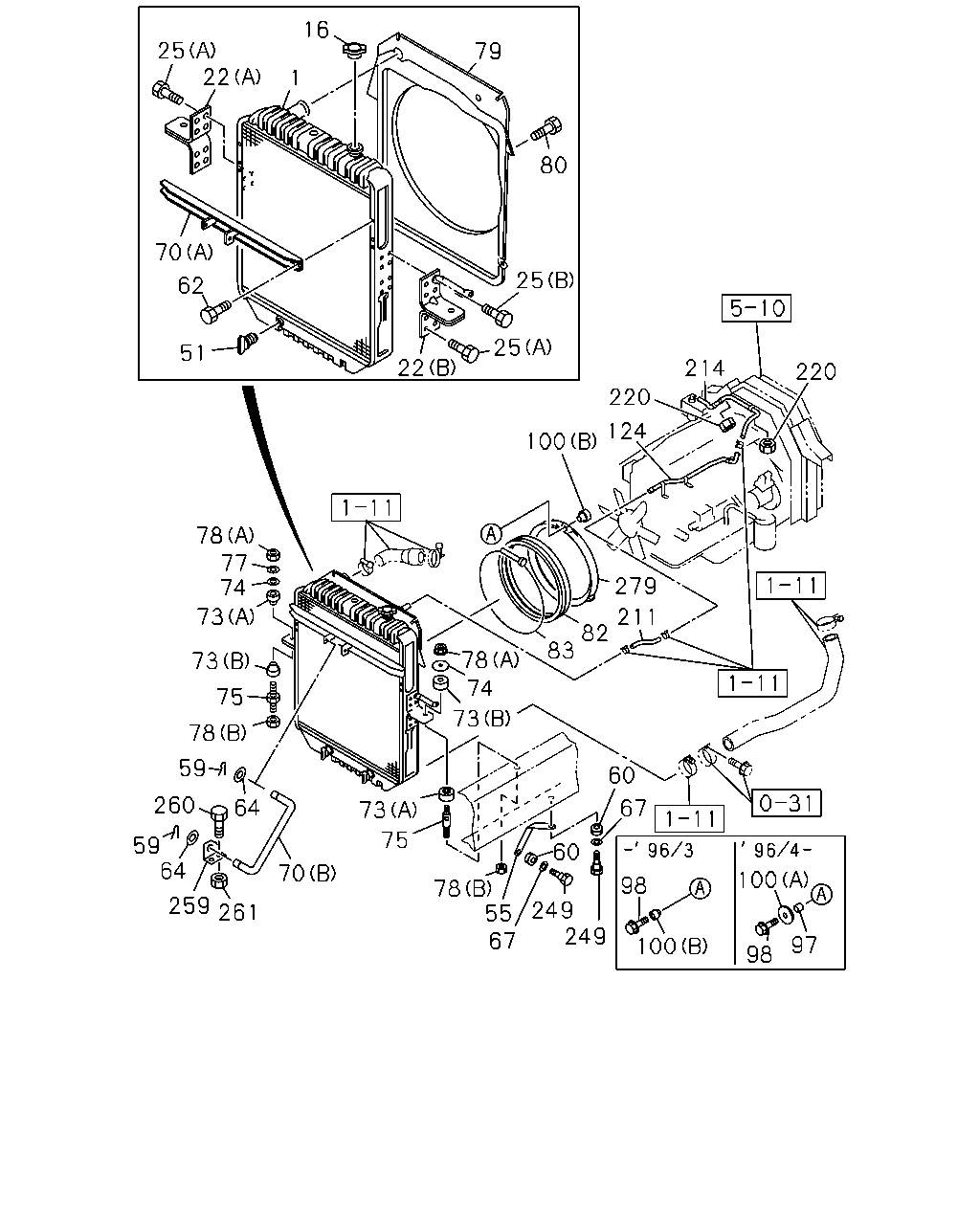

16 25 22 79 1 80 70 25 62 25 51 22 214 220 220 124 100 78 77 74 279 211 82 83 73 78 74 73 75 73 78 60 59 260 64 67 73 75 59 64 60 78 55 67 70 100 98 259 261 249 249 97 100 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RADIATOR ASM	1-21410-725-1	01	1	9601-9712	●
1	RADIATOR ASM EXC. RADIATOR HEAVY DUTY<V05>	1-21410-725-1	01	1	9801-0004	●
1	RADIATOR ASM RADIATOR HEAVY DUTY<V05>	1-21410-711-1	01	1	9801-0004	●
1	RADIATOR ASM	1-21410-711-1	01	1	0005-	●
1	RADIATOR ASM	1-21410-675-1	01	1	9601-0004		●
1	RADIATOR ASM	1-21410-708-0	01	1	0005-0007		●
1	RADIATOR ASM	1-21410-675-1	01	1	0008-0308		●
16	CAP; RAD	1-21450-053-1	01	1	9601-0308	●	●
16	CAP; RAD	1-21450-053-2	01	1	0309-0309	●
16	CAP; RAD	1-21450-142-0	01	1	0310-	●
22	BRACKET; RAD MTG (B)	1-21464-462-0	01	1	9601-9601	●
22	BRACKET; RAD MTG (B)	1-21464-491-2	01	1	9602-9704	●
22	BRACKET; RAD MTG (B)	1-21464-546-0	01	1	9705-0309	●
22	BRACKET; RAD MTG (B)	1-21464-491-2	01	1	0310-	●
22	BRACKET; RAD MTG (A)	1-21464-463-1	01	1	9601-	●
22	BRACKET; RAD MTG (B)	1-21464-459-0	01	1	9601-0004		●
22	BRACKET; RAD MTG (B)	1-21464-520-0	01	1	0005-0007		●
22	BRACKET; RAD MTG (A)	1-21464-492-0	01	1	0008-0308		●
22	BRACKET; RAD MTG (A)	1-21464-492-0	01	1	9601-0004		●
22	BRACKET; RAD MTG (A)	1-21464-458-0	01	1	0005-0007		●
22	BRACKET; RAD MTG (B)	1-21464-459-0	01	1	0008-0308		●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	15	1	0005-0007	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	15	1	9601-0004	●	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	17	1	0005-0007		●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	15	1	0008-0308	●	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	15	1	0309-0309	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	17	1	0310-	●
25	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	9601-0004	●	●
25	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	0005-0007	●
25	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	0008-0308	●	●
25	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	0309-	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9601-0308	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0309-	●
55	STAY; RAD TO UPR MBR	1-21464-452-0	01	1	0005-0007		●
55	STAY; RAD TO UPR MBR	1-21464-453-0	01	1	0005-0007		●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	9601-0004	●	●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	0005-0007	●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	0008-0308	●	●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	0309-	●
60	GROMMET	1-09332-117-0	04	1	0005-0007		●
62	BOLT; STAY M8X12 FLANGE	0-28080-812-0	02	1	9601-	●
62	BOLT; STAY M8X12 FLANGE	0-28080-812-0	03	1	9601-0004		●
62	BOLT; STAY M8X12 FLANGE	0-28080-812-0	03	1	0008-0308		●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	9601-0004	●	●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	0005-0007	●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	0008-0308	●	●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	0309-0605	●
64	WASHER; STAY TO RAD ID=12.5 OD=22	0-91610-512-0	02	1	0606-	●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	0005-0007		●
70	STAY; RAD (A)	1-21522-064-0	01	1	9601-0004	●	●
70	STAY; RAD (A)	1-21522-064-0	01	1	0005-0007	●
70	STAY; RAD (A)	1-21522-064-0	01	1	0008-0308	●	●
70	STAY; RAD (A)	1-21522-064-0	01	1	0309-	●
70	STAY; RAD (B)	1-21522-070-0	01	1	9601-0004	●	●
70	STAY; RAD (B)	1-21522-070-0	01	1	0005-0007	●
70	STAY; RAD (B)	1-21522-070-0	01	1	0008-0308	●	●
70	STAY; RAD (B)	1-21522-070-0	01	1	0309-	●
70	STAY; RAD (C)	1-83571-875-0	01	1	9601-0308		●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	9601-0308	●	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	0309-	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	9601-0308	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	0309-	●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-1	02	1	9601-9604	●	●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	9605-0308	●	●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	0309-	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	9601-0308	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	0309-	●
77	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	02	1	9601-9702	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	9601-0308	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	0309-	●
78	NUT; CUSHION RUBBER (B) M12	9-99110-512-0	02	1	9601-9702	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	9703-0308	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	0309-0602	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●
79	GUIDE; FAN,RAD	1-21551-374-4	01	1	9601-	●
79	GUIDE; FAN,RAD	1-21551-409-0	01	1	9601-0004		●
79	GUIDE; FAN,RAD	1-21551-397-1	01	1	0005-0007		●
79	GUIDE; FAN,RAD	1-21551-409-0	01	1	0008-0308		●
80	BOLT; FAN GUIDE M6X12 FLANGE	0-28080-612-0	04	1	9601-0004	●
80	BOLT; FAN GUIDE M6X12 FLANGE	0-28080-612-0	04	1	0005-0007	●	●
80	BOLT; FAN GUIDE M6X12 FLANGE	0-28080-612-0	04	1	0008-	●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	04	1	9601-0004		●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	04	1	0008-0308		●
82	COVER; FAN,RAD	1-21559-340-0	01	1	9601-0212	●
82	COVER; FAN,RAD	1-21559-211-0	01	1	9601-0212		●
82	COVER; FAN,RAD	1-21559-211-0	01	1	0301-0308	●	●
82	COVER; FAN,RAD	1-21559-211-0	01	1	0309-	●
83	CLIP; FAN COVER	1-09707-177-2	01	1	9601-0308	●	●
83	CLIP; FAN COVER	1-09707-177-2	01	1	0309-	●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	9604-9606	●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	9607-0308	●	●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	0309-	●
98	BOLT; RAD FAN GUIDE M8X25 FLANGE	0-28080-825-0	03	1	9601-9601	●	●
98	BOLT; RAD FAN GUIDE M8X25 FLANGE	0-28080-825-0	03	1	9602-9606	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28080-830-0	03	1	9602-9606		●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	9607-9612	●	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	9701-0512	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28650-830-0	03	1	0601-	●
98	BOLT; RAD FAN GUIDE M8X45 FLANGE	0-28080-845-0	03	1	9701-0308		●
100	RUBBER; MTG (B)	1-09337-027-0	06	1	9601-9603	●	●
100	RUBBER; MTG (B)	1-09337-027-0	06	1	9604-9606		●
100	RUBBER; MTG (A) OD=32	8-94395-766-0	06	1	9603-9603	●	●
100	RUBBER; MTG (A) OD=32	8-94395-766-0	06	1	9604-9606	●	●
100	RUBBER; MTG (A) OD=32	8-94395-766-0	06	1	9604-9606	●
100	RUBBER; MTG (A) OD=32	8-94395-766-0	06	1	9607-9803	●	●
100	RUBBER; MTG (A) OD=32	8-94395-766-0	06	1	9607-9803	●	●
100	RUBBER; MTG (A) OD=32	8-94395-766-0	06	1	9804-0308	●	●
100	RUBBER; MTG (A) OD=32	8-94395-766-0	06	1	0309-	●
124	PIPE; WATER,TANK TO RAD	8-94396-222-1	01	1	9601-0209	●
124	PIPE; WATER,TANK TO RAD EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-222-2	01	1	0210-0308	●
124	PIPE; WATER,TANK TO RAD EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-461-4	01	1	0210-0308	●
124	PIPE; WATER,TANK TO RAD	8-94394-461-4	01	1	0309-	●
211	HOSE; RAD TO PIPE EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=430 SERVICED BY L=3000	0-03257-300-0	01	1	9601-0004	●
211	HOSE; RAD TO PIPE EXC. EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=290 SERVICED BY L=3000	0-03257-300-0	01	1	9601-0004	●
211	HOSE; RAD TO PIPE L=290 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109	●
211	HOSE; RAD TO PIPE L=290 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0209	●
211	HOSE; RAD TO PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=290 SERVICED BY L=3000	0-03557-300-0	01	1	0210-0308	●
211	HOSE; RAD TO PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=430 SERVICED BY L=3000	0-03557-300-0	01	1	0210-0308	●
211	HOSE; RAD TO PIPE MIDDLE CHASSIS(FV***F) L=430 SERVICED BY L=3000	0-03557-300-0	01	1	0309-	●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03257-300-0	01	1	9601-0109		●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0308		●
214	HOSE; PIPE TO RESERVE TANK EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=1300 SERVICED BY L=3000	0-03257-300-0	01	1	9601-0004	●
214	HOSE; PIPE TO RESERVE TANK EXC. EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=1200 SERVICED BY L=3000	0-03257-300-0	01	1	9601-0004	●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03257-300-0	01	1	9601-0004		●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109	●	●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0209	●	●
214	HOSE; PIPE TO RESERVE TANK EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1200 SERVICED BY L=3000	0-03557-300-0	01	1	0210-0308	●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03557-300-0	01	1	0210-0308		●
214	HOSE; PIPE TO RESERVE TANK EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000	0-03557-300-0	01	1	0210-0308	●
214	HOSE; PIPE TO RESERVE TANK L=1300 SERVICED BY L=3000	0-03557-300-0	01	1	0309-	●
220	NUT; CLIP M8	9-09110-408-0	03	1	9601-9606	●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9607-0004	●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	04	1	0005-0308	●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	04	1	0309-0602	●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0603-	●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	0005-0007		●
259	BRACKET; RAD STAY	1-21523-025-0	01	1	9601-0004	●	●
259	BRACKET; RAD STAY	1-21523-025-0	01	1	0005-0007	●
259	BRACKET; RAD STAY	1-21523-025-0	01	1	0008-0308	●	●
259	BRACKET; RAD STAY	1-21523-025-0	01	1	0309-	●
260	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
260	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9607-0004	●	●
260	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0005-0007	●
260	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0008-0308	●	●
260	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0309-0512	●
260	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
261	NUT; BRKT M8	9-09110-408-0	02	1	9601-9606	●	●
261	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●
261	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0007	●
261	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0008-0308	●	●
261	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0309-0602	●
261	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●
279	BELL MOUTH	8-94394-808-2	01	1	9601-0212	●
279	BELL MOUTH	8-94394-174-1	01	1	9601-0212		●
279	BELL MOUTH	8-94394-174-1	01	1	0301-0308	●	●
279	BELL MOUTH	8-94394-174-1	01	1	0309-	●

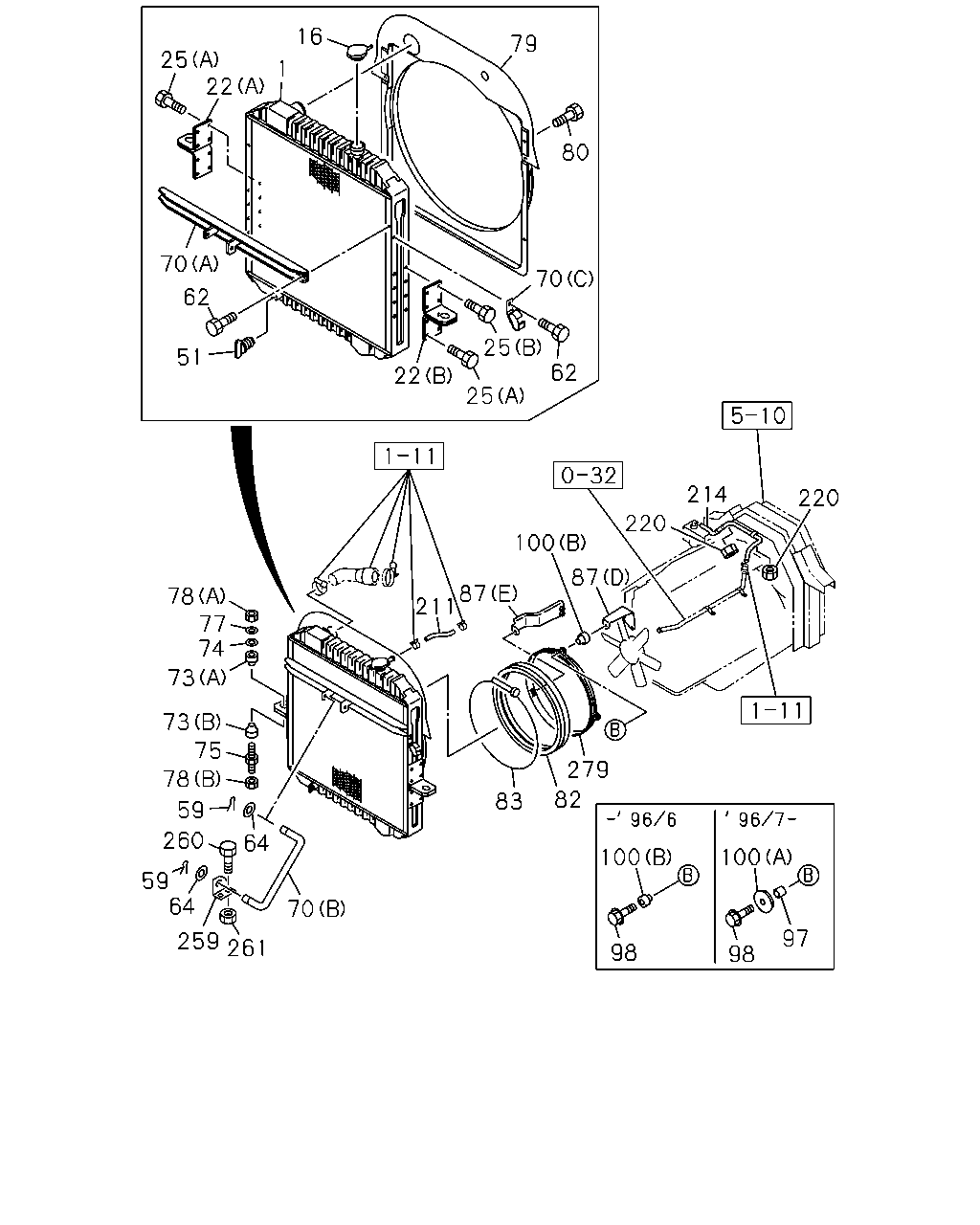

16 79 25 22 1 80 70 70 62 25 62 51 22 25 214 220 220 100 87 87 211 78 77 74 73 73 75 78 279 82 83 59 260 64 100 100 59 64 70 97 259 261 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RADIATOR ASM	1-21410-725-1	01	1	9601-9712	●
1	RADIATOR ASM EXC. RADIATOR HEAVY DUTY<V05>	1-21410-725-1	01	1	9801-0004	●
1	RADIATOR ASM RADIATOR HEAVY DUTY<V05>	1-21410-711-1	01	1	9801-0004	●
1	RADIATOR ASM	1-21410-711-1	01	1	0005-	●
1	RADIATOR ASM	1-21410-675-1	01	1	9601-0004		●
1	RADIATOR ASM	1-21410-708-0	01	1	0005-0007		●
1	RADIATOR ASM	1-21410-675-1	01	1	0008-0308		●
16	CAP; RAD	1-21450-053-1	01	1	9601-0308	●	●
16	CAP; RAD	1-21450-053-2	01	1	0309-0309	●
16	CAP; RAD	1-21450-142-0	01	1	0310-	●
22	BRACKET; RAD MTG (B)	1-21464-462-0	01	1	9601-9601	●
22	BRACKET; RAD MTG (B)	1-21464-491-2	01	1	9602-9704	●
22	BRACKET; RAD MTG (B)	1-21464-546-0	01	1	9705-0309	●
22	BRACKET; RAD MTG (B)	1-21464-491-2	01	1	0310-	●
22	BRACKET; RAD MTG (A)	1-21464-463-1	01	1	9601-	●
22	BRACKET; RAD MTG (B)	1-21464-459-0	01	1	9601-0004		●
22	BRACKET; RAD MTG (B)	1-21464-520-0	01	1	0005-0007		●
22	BRACKET; RAD MTG (A)	1-21464-492-0	01	1	0008-0308		●
22	BRACKET; RAD MTG (A)	1-21464-492-0	01	1	9601-0004		●
22	BRACKET; RAD MTG (A)	1-21464-458-0	01	1	0005-0007		●
22	BRACKET; RAD MTG (B)	1-21464-459-0	01	1	0008-0308		●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	15	1	0005-0007	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	15	1	9601-0004	●	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	17	1	0005-0007		●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	15	1	0008-0308	●	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	15	1	0309-0309	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	17	1	0310-	●
25	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	9601-0004	●	●
25	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	0005-0007	●
25	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	0008-0308	●	●
25	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	0309-	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9601-0308	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0309-	●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	9601-0004	●	●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	0005-0007	●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	0008-0308	●	●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	0309-	●
62	BOLT; STAY M8X12 FLANGE	0-28080-812-0	02	1	9601-	●
62	BOLT; STAY M8X12 FLANGE	0-28080-812-0	03	1	9601-0004		●
62	BOLT; STAY M8X12 FLANGE	0-28080-812-0	03	1	0008-0308		●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	9601-0004	●	●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	0005-0007	●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	0008-0308	●	●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	0309-0605	●
64	WASHER; STAY TO RAD ID=12.5 OD=22	0-91610-512-0	02	1	0606-	●
70	STAY; RAD (A)	1-21522-064-0	01	1	9601-0004	●	●
70	STAY; RAD (A)	1-21522-064-0	01	1	0005-0007	●
70	STAY; RAD (A)	1-21522-064-0	01	1	0008-0308	●	●
70	STAY; RAD (A)	1-21522-064-0	01	1	0309-	●
70	STAY; RAD (B)	1-21522-070-0	01	1	9601-0004	●	●
70	STAY; RAD (B)	1-21522-070-0	01	1	0005-0007	●
70	STAY; RAD (B)	1-21522-070-0	01	1	0008-0308	●	●
70	STAY; RAD (B)	1-21522-070-0	01	1	0309-	●
70	STAY; RAD (C)	1-83571-875-0	01	1	9601-0308		●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	9601-0308	●	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	0309-	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	9601-0308	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	0309-	●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-1	02	1	9601-9604	●	●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	9605-0308	●	●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	0309-	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	9601-0308	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	0309-	●
77	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	02	1	9601-9702	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	9601-0308	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	0309-	●
78	NUT; CUSHION RUBBER (B) M12	9-99110-512-0	02	1	9601-9702	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	9703-0308	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	0309-0602	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●
79	GUIDE; FAN,RAD	1-21551-374-4	01	1	9601-	●
79	GUIDE; FAN,RAD	1-21551-409-0	01	1	9601-0004		●
79	GUIDE; FAN,RAD	1-21551-397-1	01	1	0005-0007		●
79	GUIDE; FAN,RAD	1-21551-409-0	01	1	0008-0308		●
80	BOLT; FAN GUIDE M6X12 FLANGE	0-28080-612-0	04	1	9601-0004	●
80	BOLT; FAN GUIDE M6X12 FLANGE	0-28080-612-0	04	1	0005-0007	●	●
80	BOLT; FAN GUIDE M6X12 FLANGE	0-28080-612-0	04	1	0008-	●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	04	1	9601-0004		●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	04	1	0008-0308		●
82	COVER; FAN,RAD	1-21559-340-0	01	1	9601-0212	●
82	COVER; FAN,RAD	1-21559-211-0	01	1	9601-0212		●
82	COVER; FAN,RAD	1-21559-211-0	01	1	0301-0308	●	●
82	COVER; FAN,RAD	1-21559-211-0	01	1	0309-	●
83	CLIP; FAN COVER	1-09707-177-2	01	1	9601-0308	●	●
83	CLIP; FAN COVER	1-09707-177-2	01	1	0309-	●
87	STAY; FAN GUIDE (C)	8-94394-775-0	01	1	9601-0209	●
87	STAY; FAN GUIDE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94394-775-0	01	1	0210-0308	●
87	STAY; FAN GUIDE (A)	8-94396-496-1	01	1	9601-0209	●
87	STAY; FAN GUIDE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94396-496-1	01	1	0210-0308	●
87	STAY; FAN GUIDE (B)	8-94397-395-1	01	1	9601-0209	●
87	STAY; FAN GUIDE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B)	8-94397-395-1	01	1	0210-0308	●
87	STAY; FAN GUIDE ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94393-119-2	01	1	0210-0308	●
87	STAY; FAN GUIDE (C)	8-94393-119-2	01	1	0309-	●
87	STAY; FAN GUIDE ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94393-726-0	01	1	0210-0308	●
87	STAY; FAN GUIDE (A)	8-94393-726-0	01	1	0309-	●
87	STAY; FAN GUIDE ANTI NOISE EQUIPMENT ECE<SLK> (B)	8-97601-016-0	01	1	0210-0308	●
87	STAY; FAN GUIDE (B)	8-97601-016-0	01	1	0309-	●
87	STAY; FAN GUIDE (D)	1-21559-365-0	01	1	9601-9612		●
87	STAY; FAN GUIDE (D)	1-21559-394-0	01	1	9701-0308		●
87	STAY; FAN GUIDE (E)	1-21559-366-0	01	1	9601-9612		●
87	STAY; FAN GUIDE (E)	1-21559-395-0	01	1	9701-0308		●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	9604-9606	●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	9607-0308	●	●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	0309-	●
98	BOLT; RAD FAN GUIDE M8X25 FLANGE	0-28080-825-0	03	1	9601-9601	●	●
98	BOLT; RAD FAN GUIDE M8X25 FLANGE	0-28080-825-0	03	1	9602-9606	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28080-830-0	03	1	9602-9606		●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	9607-9612	●	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	9701-0512	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28650-830-0	03	1	0601-	●
98	BOLT; RAD FAN GUIDE M8X45 FLANGE	0-28080-845-0	03	1	9701-0308		●
100	RUBBER; MTG (B)	1-09337-027-0	06	1	9601-9603	●	●
100	RUBBER; MTG (B)	1-09337-027-0	06	1	9604-9606		●
100	RUBBER; MTG (A) OD=32	8-94395-766-0	06	1	9603-9603	●	●
100	RUBBER; MTG (A) OD=32	8-94395-766-0	06	1	9604-9606	●	●
100	RUBBER; MTG (A) OD=32	8-94395-766-0	06	1	9604-9606	●
100	RUBBER; MTG (A) OD=32	8-94395-766-0	06	1	9607-9803	●	●
100	RUBBER; MTG (A) OD=32	8-94395-766-0	06	1	9607-9803	●	●
100	RUBBER; MTG (A) OD=32	8-94395-766-0	06	1	9804-0308	●	●
100	RUBBER; MTG (A) OD=32	8-94395-766-0	06	1	0309-	●
211	HOSE; RAD TO PIPE EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=430 SERVICED BY L=3000	0-03257-300-0	01	1	9601-0004	●
211	HOSE; RAD TO PIPE EXC. EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=290 SERVICED BY L=3000	0-03257-300-0	01	1	9601-0004	●
211	HOSE; RAD TO PIPE L=290 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109	●
211	HOSE; RAD TO PIPE L=290 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0209	●
211	HOSE; RAD TO PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=290 SERVICED BY L=3000	0-03557-300-0	01	1	0210-0308	●
211	HOSE; RAD TO PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=430 SERVICED BY L=3000	0-03557-300-0	01	1	0210-0308	●
211	HOSE; RAD TO PIPE MIDDLE CHASSIS(FV***F) L=430 SERVICED BY L=3000	0-03557-300-0	01	1	0309-	●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03257-300-0	01	1	9601-0109		●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0308		●
214	HOSE; PIPE TO RESERVE TANK EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=1300 SERVICED BY L=3000	0-03257-300-0	01	1	9601-0004	●
214	HOSE; PIPE TO RESERVE TANK EXC. EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=1200 SERVICED BY L=3000	0-03257-300-0	01	1	9601-0004	●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03257-300-0	01	1	9601-0004		●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109	●	●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0209	●	●
214	HOSE; PIPE TO RESERVE TANK EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1200 SERVICED BY L=3000	0-03557-300-0	01	1	0210-0308	●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03557-300-0	01	1	0210-0308		●
214	HOSE; PIPE TO RESERVE TANK EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000	0-03557-300-0	01	1	0210-0308	●
214	HOSE; PIPE TO RESERVE TANK L=1300 SERVICED BY L=3000	0-03557-300-0	01	1	0309-	●
220	NUT; CLIP M8	9-09110-408-0	03	1	9601-9606	●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9607-0004	●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	04	1	0005-0308	●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	04	1	0309-0602	●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0603-	●
259	BRACKET; RAD STAY	1-21523-025-0	01	1	9601-0004	●	●
259	BRACKET; RAD STAY	1-21523-025-0	01	1	0005-0007	●
259	BRACKET; RAD STAY	1-21523-025-0	01	1	0008-0308	●	●
259	BRACKET; RAD STAY	1-21523-025-0	01	1	0309-	●
260	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
260	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9607-0004	●	●
260	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0005-0007	●
260	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0008-0308	●	●
260	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0309-0512	●
260	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
261	NUT; BRKT M8	9-09110-408-0	02	1	9601-9606	●	●
261	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●
261	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0007	●
261	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0008-0308	●	●
261	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0309-0602	●
261	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●
279	BELL MOUTH	8-94394-808-2	01	1	9601-0212	●
279	BELL MOUTH	8-94394-174-1	01	1	9601-0212		●
279	BELL MOUTH	8-94394-174-1	01	1	0301-0308	●	●
279	BELL MOUTH	8-94394-174-1	01	1	0309-	●

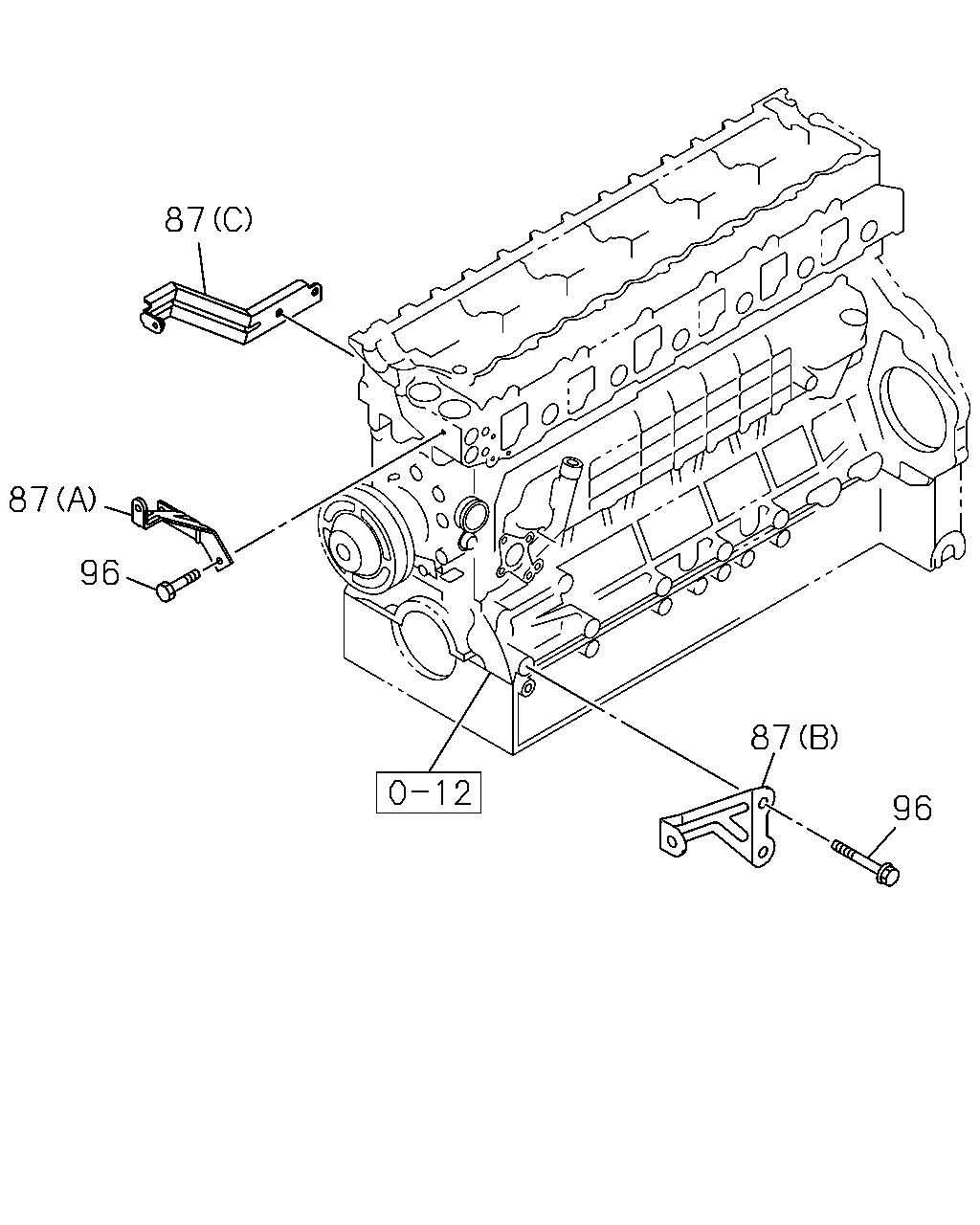

87 87 96 87 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
87	STAY; FAN GUIDE (C)	8-94394-775-0	01	1	9601-0209	●
87	STAY; FAN GUIDE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94394-775-0	01	1	0210-0308	●
87	STAY; FAN GUIDE (A)	8-94396-496-1	01	1	9601-0209	●
87	STAY; FAN GUIDE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94396-496-1	01	1	0210-0308	●
87	STAY; FAN GUIDE (B)	8-94397-395-1	01	1	9601-0209	●
87	STAY; FAN GUIDE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B)	8-94397-395-1	01	1	0210-0308	●
87	STAY; FAN GUIDE ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94393-119-2	01	1	0210-0308	●
87	STAY; FAN GUIDE (C)	8-94393-119-2	01	1	0309-	●
87	STAY; FAN GUIDE ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94393-726-0	01	1	0210-0308	●
87	STAY; FAN GUIDE (A)	8-94393-726-0	01	1	0309-	●
87	STAY; FAN GUIDE ANTI NOISE EQUIPMENT ECE<SLK> (B)	8-97601-016-0	01	1	0210-0308	●
87	STAY; FAN GUIDE (B)	8-97601-016-0	01	1	0309-	●
87	STAY; FAN GUIDE (D)	1-21559-365-0	01	1	9601-9612		●
87	STAY; FAN GUIDE (D)	1-21559-394-0	01	1	9701-0308		●
87	STAY; FAN GUIDE (E)	1-21559-366-0	01	1	9601-9612		●
87	STAY; FAN GUIDE (E)	1-21559-395-0	01	1	9701-0308		●
96	BOLT; STAY FIX M10X16 FLANGE	0-28181-016-0	02	1	9601-0512	●
96	BOLT; STAY FIX M10X16 FLANGE	0-28151-016-0	02	1	0601-	●
96	BOLT; STAY FIX M8X16 FLANGE	0-28080-816-0	02	1	9601-0308		●
96	BOLT; STAY FIX M8X25 FLANGE	0-28080-825-0	02	1	9601-0308		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
