1-01 — ACCELERATOR PEDAL AND CONTROL (#22802) — 183 parça

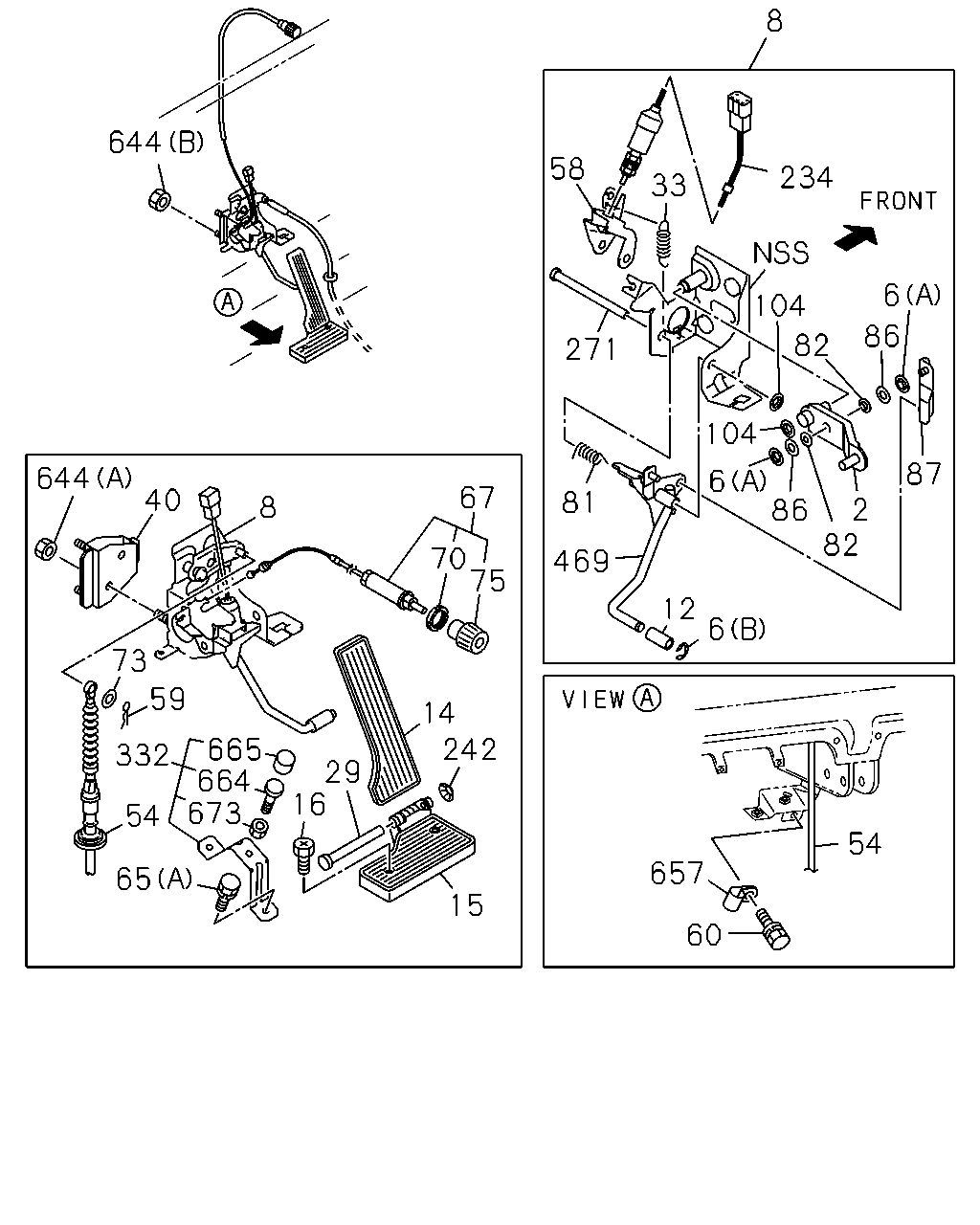

çizim 17861
8 644 58 234 33 6 104 86 82 271 104 86 87 644 40 6 67 81 8 2 82 70 75 469 12 6 73 59 14 242 665 664 673 332 29 16 54 54 657 65 15 60
BalonParca AdiParca NoAdetTipApplied Date A B
2 LEVER; ENG CONT 1-71907-210-2 01 1 9601-0308 ● ●
2 LEVER; ENG CONT 1-71907-210-2 01 1 0309- ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		9-09185-404-0 02 1 9601-0308 ● ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		9-09185-404-0 02 1 0309-0604 ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		0-91805-504-0 02 1 0605- ●
6 RING; SNAP,LINK TO LINK
(B) ID=6 		9-09185-406-0 01 1 9601-9802 ● ●
8 LINK ASM; ENG CONT 1-73996-206-6 01 1 9601-0308 ● ●
8 LINK ASM; ENG CONT 1-73996-206-6 01 1 0309- ●
12 ROLLER; ENG CONT LEVER 1-09989-007-0 01 1 9601-9802 ● ●
14 PAD; PEDAL,ACCEL 1-23241-021-0 01 1 9601-9708 ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 9709-0308 ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 0309- ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-3 01 1 9601-0308 ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-3 01 1 0309- ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X20 W/LK&PL WASHER 		8-94279-202-0 02 1 9601-9902 ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 9903-0308 ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0309- ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 9601-0308 ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 0309- ●
33 SPRING; IDLING CONT LEVER 8-94414-815-0 01 1 9601-0308 ● ●
33 SPRING; IDLING CONT LEVER 8-94414-815-0 01 1 0309- ●
40 BRACKET; ENG CONT CABLE 1-71907-269-0 01 1 9601-0308 ● ●
40 BRACKET; ENG CONT CABLE 1-71907-269-0 01 1 0309- ●
54 CABLE; ENG CONT
L=1674 		1-73996-293-8 01 1 9601- ●
54 CABLE; ENG CONT
L=2246.5 		1-73996-297-6 01 1 9601-0308 ●
58 LEVER; IDLING CONT 1-71907-242-1 01 1 9601-0308 ● ●
58 LEVER; IDLING CONT 1-71907-242-1 01 1 0309- ●
59 PIN; SNAP,ENG CONT CABLE
L=27.7 		1-09747-005-0 01 1 9601-0308 ● ●
59 PIN; SNAP,ENG CONT CABLE
L=27.7 		1-09747-005-0 01 1 0309- ●
60 BOLT; CABLE
M8X20 FLANGE 		0-28080-820-0 01 1 0005-0512 ●
60 BOLT; CABLE
M8X20 FLANGE 		0-28050-820-0 01 1 0601- ●
60 BOLT; CABLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-0308 ● ●
60 BOLT; CABLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0309-0904 ●
60 BOLT; CABLE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
65 BOLT
(C) M10X60 		0-16811-060-0 01 1 9601-0512 ●
65 BOLT
(C) M10X60 		0-16861-060-0 01 1 0601- ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9601-0512 ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ●
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-0308 ● ●
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0309- ●
67 CABLE ASM; IDLE CONT
L=399 		1-73998-912-3 01 1 9601-0204 ● ●
67 CABLE ASM; IDLE CONT
L=315 		1-73908-423-0 01 1 0205-0308 ● ●
67 CABLE ASM; IDLE CONT
L=315 		1-73908-423-1 01 1 0309- ●
70 NUT; CONT CABLE 1-73908-045-1 01 1 9601-0308 ● ●
70 NUT; CONT CABLE 1-73908-045-1 01 1 0309- ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9601-0308 ● ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0309-0605 ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 OD=16 		0-91610-508-0 01 1 0606- ●
75 KNOB ASM; IDLING CONT 8-97066-797-1 01 1 9601-0109 ● ●
75 KNOB ASM; IDLING CONT 8-97137-504-0 01 1 0110-0204 ● ●
75 KNOB ASM; IDLING CONT 1-73908-409-0 01 1 0205-0308 ● ●
75 KNOB ASM; IDLING CONT 1-73908-409-0 01 1 0309- ●
81 SPRING; RETURN,ENG CONT LEVER 8-97853-205-1 01 1 9601-0308 ● ●
81 SPRING; RETURN,ENG CONT LEVER 8-97853-205-1 01 1 0309- ●
82 BUSHING; ENG CONT LVR 1-71907-244-1 02 1 9601-0308 ● ●
82 BUSHING; ENG CONT LVR 1-71907-244-1 02 1 0309- ●
86 WASHER; PL,ENG CONT LEVER
ID=6.4 		9-09160-506-0 02 1 9601-0308 ● ●
86 WASHER; PL,ENG CONT LEVER
ID=6.4 		9-09160-506-0 02 1 0309- ●
87 LINK; ENG CONT 1-71907-211-1 01 1 9601-0308 ● ●
87 LINK; ENG CONT 1-71907-211-1 01 1 0309- ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 9601-0308 ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 0309- ●
234 SWITCH; ACCEL 1-82380-114-2 01 1 9601-0308 ● ●
234 SWITCH; ACCEL 1-82380-114-3 01 1 0309- ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9601-0308 ● ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0309- ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 9601-0308 ● ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 0309- ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 9601-0212 ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73908-428-0 01 1 0301-0308 ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73908-428-0 01 1 0309- ●
469 LEVER ASM 1-71907-209-5 01 1 9601-0308 ● ●
469 LEVER ASM 1-71907-209-5 01 1 0309- ●
644 NUT; LINK,ENG CONT
(A) M8 FLANGE 		0-91150-108-0 02 1 9601-0308 ● ●
644 NUT; LINK,ENG CONT
(A) M8 FLANGE 		0-91150-108-0 02 1 0309-0602 ●
644 NUT; LINK,ENG CONT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
644 NUT; LINK,ENG CONT
(B) M8 FLANGE W/RUBBER 		1-09984-176-0 03 1 9601-0308 ● ●
644 NUT; LINK,ENG CONT
(B) M8 FLANGE W/RUBBER 		1-09984-176-0 03 1 0309- ●
657 CLIP; ENG CONT CABLE
ID=16 L=20 		9-09525-535-0 01 1 9705-9707 ●
657 CLIP; ENG CONT CABLE
ID=7 L=20 		9-09524-635-0 01 1 9708-9712 ●
657 CLIP; ENG CONT CABLE
D=18 H=30 		1-09701-028-0 01 1 9801- ●
657 CLIP; ENG CONT CABLE
ID=11 L=20 		9-09525-035-0 01 1 9601-0308 ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 9601-0308 ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 0309- ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 9601-0212 ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 9601-0308 ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 0309-0512 ●
673 NUT; STOPPER
M8 		0-91111-508-0 01 1 0601- ●

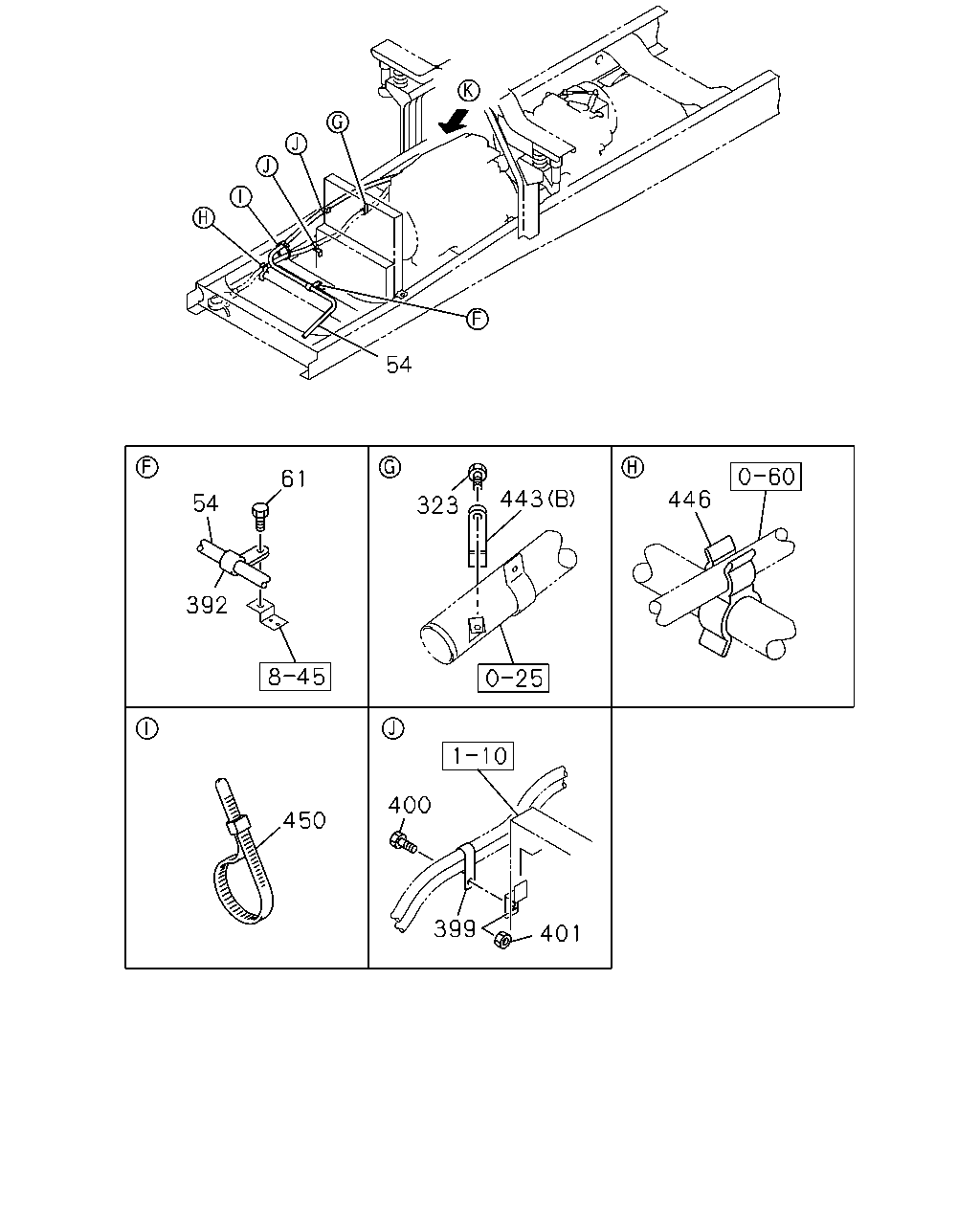

çizim 17956
54 61 443 323 446 54 392 400 450 399 401
BalonParca AdiParca NoAdetTipApplied Date A B
54 CABLE; ENG CONT
L=1674 		1-73996-293-8 01 1 9601- ●
54 CABLE; ENG CONT
L=2246.5 		1-73996-297-6 01 1 9601-0308 ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 01 1 9601-9908 ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 02 1 9909-0308 ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0512 ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0512 ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
392 CLIP; ACCEL CONT CABLE
ID=13 L=32 		9-09525-265-0 01 1 9601-9908 ●
392 CLIP; ACCEL CONT CABLE
ID=13 L=32 		9-09525-265-0 02 1 9909-0308 ●
399 CLIP; CABLE,RAD SIDE
ID=9X2 L=20 		9-09534-835-0 01 1 9601-9704 ● ●
399 CLIP; CABLE,RAD SIDE 1-09701-260-0 01 1 9705-0308 ● ●
399 CLIP; CABLE,RAD SIDE 1-09701-260-0 01 1 0309- ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0308 ● ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28080-816-0 01 1 0309-0512 ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
401 NUT; CLIP,RAD SIDE
M8 		9-09110-408-0 01 1 9601-9606 ● ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91150-108-0 01 1 9607-0308 ● ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91150-108-0 01 1 0309-0602 ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
443 CLIP; CABLE
(A) 		8-94107-647-0 01 1 9601- ●
443 CLIP; CABLE
(B) ID=7 L=20 		9-09524-635-0 01 1 9601-0606 ●
443 CLIP; CABLE
(B) ID=7 L=20 		0-95234-635-0 01 1 0607- ●
446 CLIP; ENG CONT 8-94433-987-0 01 1 9601-0308 ●
450 CLIP; BAND
L=140 		5-09707-031-1 02 1 9601-0308 ● ●
450 CLIP; BAND
L=140 		5-09707-031-1 02 1 0309- ●

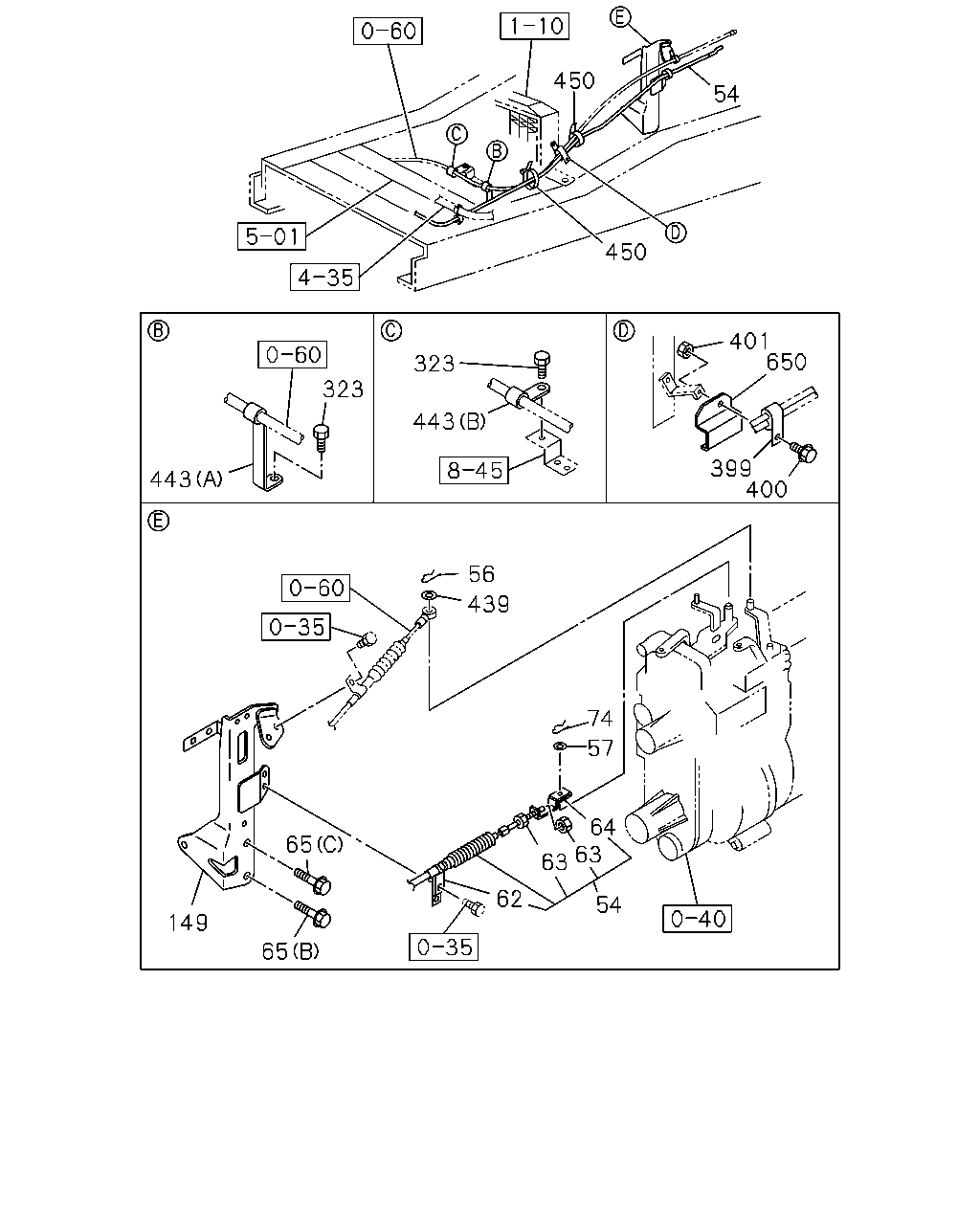

çizim 66479
450 54 450 401 650 323 323 443 399 400 443 56 439 74 57 64 63 63 65 62 54 149 65
BalonParca AdiParca NoAdetTipApplied Date A B
54 CABLE; ENG CONT
L=1674 		1-73996-293-8 01 1 9601- ●
54 CABLE; ENG CONT
L=2246.5 		1-73996-297-6 01 1 9601-0308 ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9601- ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 9601-0308 ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9601-0308 ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0309-0605 ●
57 WASHER; ENG CONT CABLE
ID=8.4 OD=16 		0-91610-508-0 01 1 0606- ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9601-9908 ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9909-9909 ● ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9909-0308 ●
62 CLIP; ENG CONT CABLE
L=30 		1-09701-104-0 01 1 0101- ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9601-0308 ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0309- ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9601-0308 ● ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 0309- ●
65 BOLT
(C) M10X60 		0-16811-060-0 01 1 9601-0512 ●
65 BOLT
(C) M10X60 		0-16861-060-0 01 1 0601- ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9601-0512 ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ●
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-0308 ● ●
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0309- ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 9601-1509 ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09987-141-0 01 1 1510- ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09747-005-0 01 1 9601-0308 ●
149 BRACKET; ENG CONT 8-94390-006-2 01 1 9601- ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0512 ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0512 ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
399 CLIP; CABLE,RAD SIDE
ID=9X2 L=20 		9-09534-835-0 01 1 9601-9704 ● ●
399 CLIP; CABLE,RAD SIDE 1-09701-260-0 01 1 9705-0308 ● ●
399 CLIP; CABLE,RAD SIDE 1-09701-260-0 01 1 0309- ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0308 ● ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28080-816-0 01 1 0309-0512 ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
401 NUT; CLIP,RAD SIDE
M8 		9-09110-408-0 01 1 9601-9606 ● ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91150-108-0 01 1 9607-0308 ● ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91150-108-0 01 1 0309-0602 ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9601-0308 ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0309-0605 ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		0-91610-505-0 01 1 0606- ●
443 CLIP; CABLE
(A) 		8-94107-647-0 01 1 9601- ●
443 CLIP; CABLE
(B) ID=7 L=20 		9-09524-635-0 01 1 9601-0606 ●
443 CLIP; CABLE
(B) ID=7 L=20 		0-95234-635-0 01 1 0607- ●
450 CLIP; BAND
L=140 		5-09707-031-1 02 1 9601-0308 ● ●
450 CLIP; BAND
L=140 		5-09707-031-1 02 1 0309- ●
650 PROTECTOR; ACCEL CABLE 1-47478-691-0 01 1 0005- ●

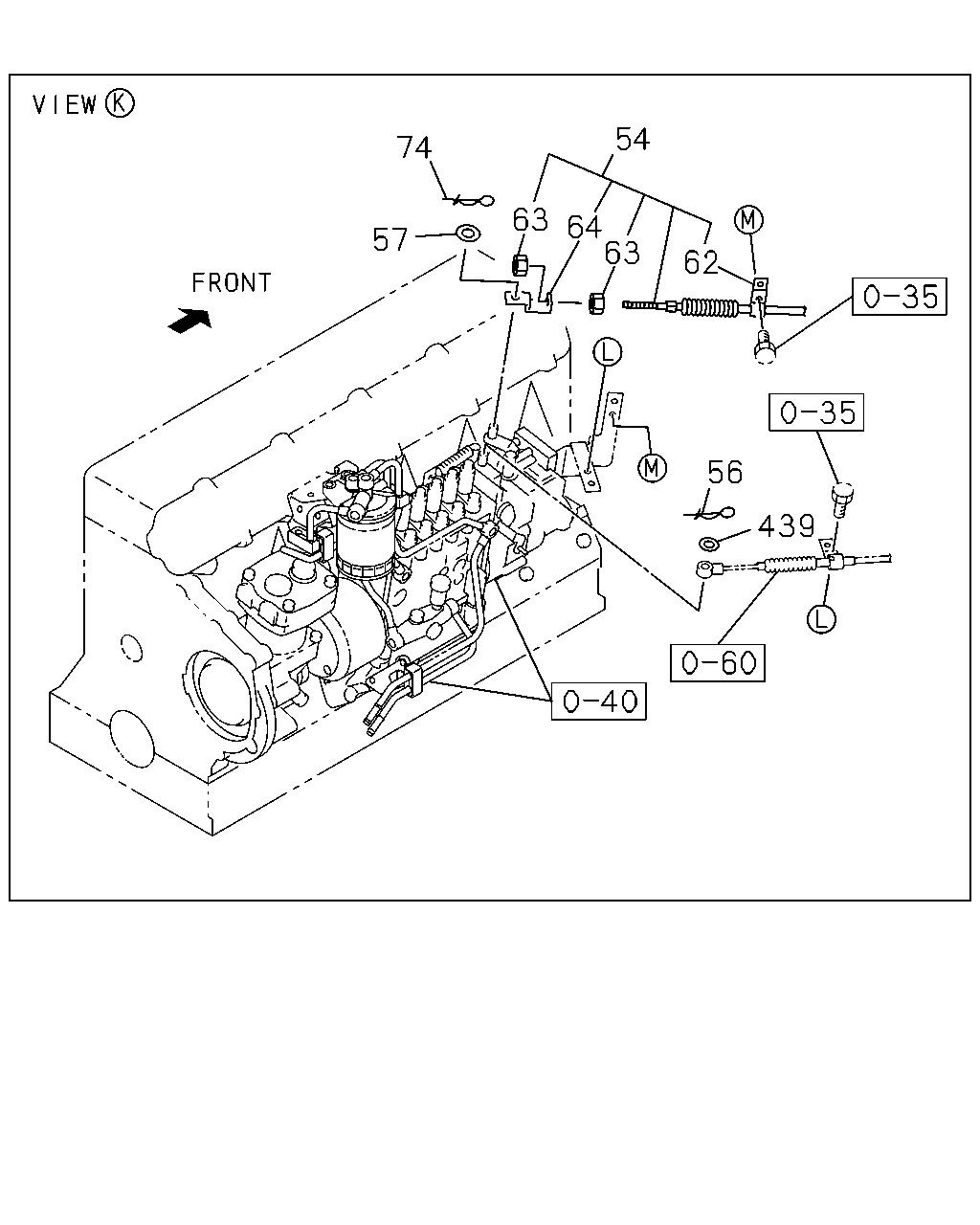

çizim 66581
54 74 63 64 63 57 62 56 439
BalonParca AdiParca NoAdetTipApplied Date A B
54 CABLE; ENG CONT
L=1674 		1-73996-293-8 01 1 9601- ●
54 CABLE; ENG CONT
L=2246.5 		1-73996-297-6 01 1 9601-0308 ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9601- ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 9601-0308 ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9601-0308 ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0309-0605 ●
57 WASHER; ENG CONT CABLE
ID=8.4 OD=16 		0-91610-508-0 01 1 0606- ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9601-9908 ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9909-9909 ● ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9909-0308 ●
62 CLIP; ENG CONT CABLE
L=30 		1-09701-104-0 01 1 0101- ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9601-0308 ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0309- ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9601-0308 ● ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 0309- ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 9601-1509 ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09987-141-0 01 1 1510- ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09747-005-0 01 1 9601-0308 ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9601-0308 ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0309-0605 ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		0-91610-505-0 01 1 0606- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
