0-87 — COUPLING; INJECTION PUMP (#22801) — 101 parça

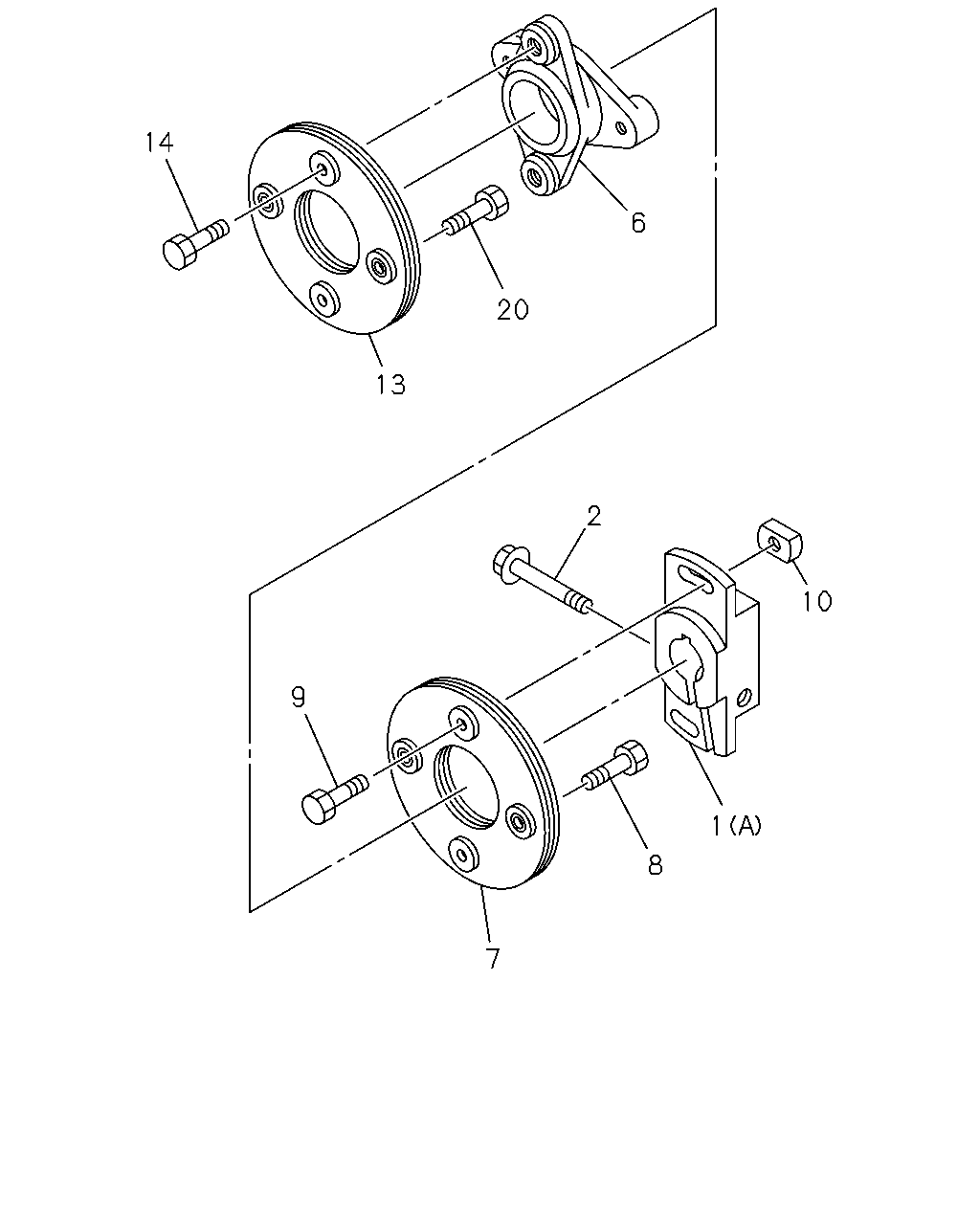

14 6 20 13 2 10 9 1 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COUPLING; INJ PUMP DRIVE (A)	1-15782-014-0	01	1	9601-0209	●
1	COUPLING; INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	1-15782-014-0	01	1	0210-0308	●
1	COUPLING; INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	1-15782-019-0	01	1	0210-0308	●
1	COUPLING; INJ PUMP DRIVE (A)	1-15782-019-0	01	1	0309-	●
1	COUPLING; INJ PUMP DRIVE (B)	1-15781-038-0	01	1	9601-0308		●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-010-0	01	1	9601-0209	●
2	BOLT; COUPLING FIX,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-010-0	01	1	0210-0308	●
2	BOLT; COUPLING FIX,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-170-0	01	1	0210-0308	●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-170-0	01	1	0309-	●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-135-0	01	1	9601-0308		●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-155-0	01	1	9601-0209	●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-155-0	01	1	0210-0308	●
6	COUPLING; CROSS,INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-184-0	01	1	0210-0308	●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-184-0	01	1	0309-	●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-104-0	01	1	9601-0308		●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-194-0	01	1	9601-0209	●
7	PLATE; COUPLING,COUPLING SIDE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-194-0	01	1	0210-0308	●
7	PLATE; COUPLING,COUPLING SIDE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-199-0	01	1	0210-0308	●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-199-0	01	1	0309-	●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-065-0	01	1	9601-0308		●
8	BOLT; PLATE TO CROSS COUPLING	1-15749-501-0	02	1	9601-0209	●
8	BOLT; PLATE TO CROSS COUPLING EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15749-501-0	02	1	0210-0308	●
8	BOLT; PLATE TO CROSS COUPLING EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	0210-0308	●
8	BOLT; PLATE TO CROSS COUPLING	1-15789-183-0	02	1	0309-	●
8	BOLT; PLATE TO CROSS COUPLING	1-15789-120-0	02	1	9601-0308		●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-122-0	02	1	9601-0209	●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-122-0	02	1	0210-0308	●
9	BOLT; PLATE TO COUPLING,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-182-0	02	1	0210-0308	●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-182-0	02	1	0309-	●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15749-488-0	02	1	9601-0308		●
10	NUT; PLATE TO COUPLING,INJ PUMP	1-15789-066-0	02	1	9601-0209	●
10	NUT; PLATE TO COUPLING,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-066-0	02	1	0210-0308	●
10	NUT; PLATE TO COUPLING,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-167-0	02	1	0210-0308	●
10	NUT; PLATE TO COUPLING,INJ PUMP	1-15789-167-0	02	1	0309-	●
10	NUT; PLATE TO COUPLING,INJ PUMP M8	9-09110-508-0	02	1	9601-0308		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-194-0	01	1	9601-0209	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-194-0	01	1	0210-0308	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-199-0	01	1	0210-0308	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-199-0	01	1	0309-	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-065-0	01	1	9601-0308		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	0210-0308	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-183-0	02	1	0309-	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-120-0	02	1	9601-0209	●	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-120-0	02	1	0210-0308	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-120-0	02	1	0210-0308		●
20	BOLT; COUPLING TO INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	0210-0308	●
20	BOLT; COUPLING TO INJ PUMP	1-15789-183-0	02	1	0309-	●
20	BOLT; COUPLING TO INJ PUMP	1-15789-119-0	02	1	9601-0209	●	●
20	BOLT; COUPLING TO INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-119-0	02	1	0210-0308	●
20	BOLT; COUPLING TO INJ PUMP	1-15789-119-0	02	1	0210-0308		●

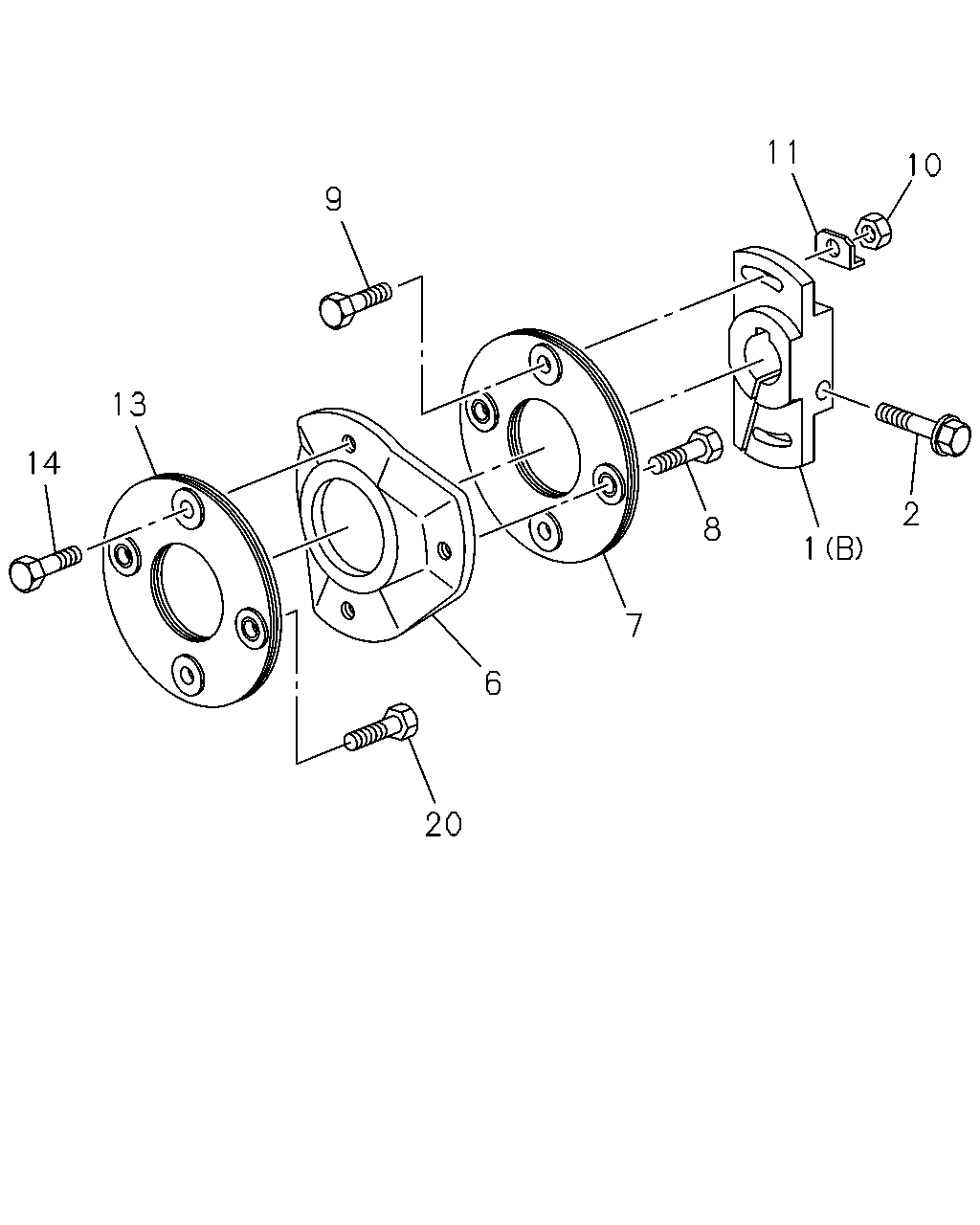

11 10 9 13 14 2 8 1 7 6 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COUPLING; INJ PUMP DRIVE (A)	1-15782-014-0	01	1	9601-0209	●
1	COUPLING; INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	1-15782-014-0	01	1	0210-0308	●
1	COUPLING; INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	1-15782-019-0	01	1	0210-0308	●
1	COUPLING; INJ PUMP DRIVE (A)	1-15782-019-0	01	1	0309-	●
1	COUPLING; INJ PUMP DRIVE (B)	1-15781-038-0	01	1	9601-0308		●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-010-0	01	1	9601-0209	●
2	BOLT; COUPLING FIX,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-010-0	01	1	0210-0308	●
2	BOLT; COUPLING FIX,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-170-0	01	1	0210-0308	●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-170-0	01	1	0309-	●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-135-0	01	1	9601-0308		●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-155-0	01	1	9601-0209	●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-155-0	01	1	0210-0308	●
6	COUPLING; CROSS,INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-184-0	01	1	0210-0308	●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-184-0	01	1	0309-	●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-104-0	01	1	9601-0308		●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-194-0	01	1	9601-0209	●
7	PLATE; COUPLING,COUPLING SIDE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-194-0	01	1	0210-0308	●
7	PLATE; COUPLING,COUPLING SIDE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-199-0	01	1	0210-0308	●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-199-0	01	1	0309-	●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-065-0	01	1	9601-0308		●
8	BOLT; PLATE TO CROSS COUPLING	1-15749-501-0	02	1	9601-0209	●
8	BOLT; PLATE TO CROSS COUPLING EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15749-501-0	02	1	0210-0308	●
8	BOLT; PLATE TO CROSS COUPLING EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	0210-0308	●
8	BOLT; PLATE TO CROSS COUPLING	1-15789-183-0	02	1	0309-	●
8	BOLT; PLATE TO CROSS COUPLING	1-15789-120-0	02	1	9601-0308		●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-122-0	02	1	9601-0209	●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-122-0	02	1	0210-0308	●
9	BOLT; PLATE TO COUPLING,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-182-0	02	1	0210-0308	●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-182-0	02	1	0309-	●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15749-488-0	02	1	9601-0308		●
10	NUT; PLATE TO COUPLING,INJ PUMP	1-15789-066-0	02	1	9601-0209	●
10	NUT; PLATE TO COUPLING,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-066-0	02	1	0210-0308	●
10	NUT; PLATE TO COUPLING,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-167-0	02	1	0210-0308	●
10	NUT; PLATE TO COUPLING,INJ PUMP	1-15789-167-0	02	1	0309-	●
10	NUT; PLATE TO COUPLING,INJ PUMP M8	9-09110-508-0	02	1	9601-0308		●
11	WASHER; PLATE TO COUPLING,INJ PUMP	1-15749-432-0	02	1	9601-0308		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-194-0	01	1	9601-0209	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-194-0	01	1	0210-0308	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-199-0	01	1	0210-0308	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-199-0	01	1	0309-	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-065-0	01	1	9601-0308		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	0210-0308	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-183-0	02	1	0309-	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-120-0	02	1	9601-0209	●	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-120-0	02	1	0210-0308	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-120-0	02	1	0210-0308		●
20	BOLT; COUPLING TO INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	0210-0308	●
20	BOLT; COUPLING TO INJ PUMP	1-15789-183-0	02	1	0309-	●
20	BOLT; COUPLING TO INJ PUMP	1-15789-119-0	02	1	9601-0209	●	●
20	BOLT; COUPLING TO INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-119-0	02	1	0210-0308	●
20	BOLT; COUPLING TO INJ PUMP	1-15789-119-0	02	1	0210-0308		●
