◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10625 - FSR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#228) — 240 parça

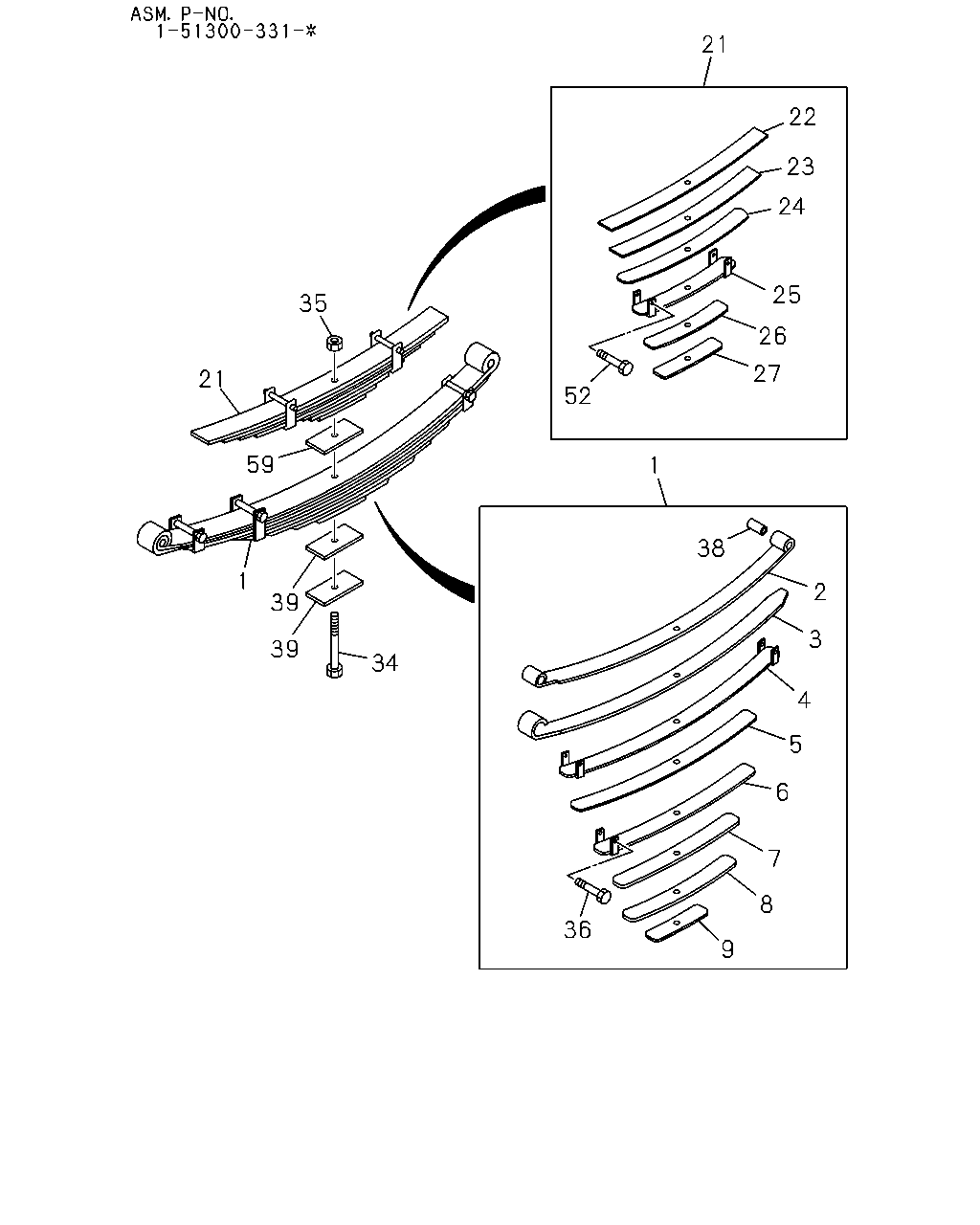

çizim 92686
21 22 23 24 25 35 26 27 21 52 59 1 38 1 2 39 3 39 34 4 5 6 7 8 36 9
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: C = 1-51300-362-2 		1-51310-713-1 01 1 -
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51310-715-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
ASM PART: B = 1-51300-333-2 		1-51310-716-1 01 1 -
1 SPRING ASM; LEAF,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51310-763-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: C = 1-51300-362-2 		1-51311-713-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51311-715-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 1-51300-333-2 		1-51311-716-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51311-763-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: C = 1-51300-362-2 		1-51312-713-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51312-715-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 1-51300-333-2 		1-51312-716-1 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51312-763-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51313-686-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
W/CLIP ASM PART: C = 1-51300-362-2 		1-51313-713-1 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 1-51300-333-2 		1-51313-716-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51313-763-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51314-686-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: C = 1-51300-362-2 		1-51314-713-1 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
W/CLIP ASM PART: B = 1-51300-333-2 		1-51314-716-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51314-763-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51315-686-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
W/CLIP ASM PART: C = 1-51300-362-2 		1-51315-713-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: B = 1-51300-333-2 		1-51315-716-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51315-763-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51316-686-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: C = 1-51300-362-2 		1-51316-713-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: B = 1-51300-333-2 		1-51316-716-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51316-763-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51317-686-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: C = 1-51300-362-2 		1-51317-713-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: B = 1-51300-333-2 		1-51317-716-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51317-763-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51318-686-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: C = 1-51300-362-2 		1-51318-713-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51318-763-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 1-51300-331-1 		1-51340-431-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: B = 1-51300-333-2 		1-51340-444-1 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: C = 1-51300-362-2 		1-51340-457-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: D = 1-51300-364-0 		1-51340-459-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 1-51300-331-1 		1-51341-431-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: B = 1-51300-333-2 		1-51341-444-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: C = 1-51300-362-2 		1-51341-457-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: D = 1-51300-364-0 		1-51341-459-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 1-51300-331-1 		1-51342-431-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: B = 1-51300-333-2 		1-51342-444-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: C = 1-51300-362-2 		1-51342-457-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: D = 1-51300-364-0 		1-51342-459-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 1-51300-331-1 		1-51343-431-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
W/CLIP ASM PART: B = 1-51300-333-2 		1-51343-444-1 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: C = 1-51300-362-2 		1-51343-457-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: D = 1-51300-364-0 		1-51343-459-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
W/CLIP ASM PART: A = 1-51300-331-1 		1-51344-431-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: B = 1-51300-333-2 		1-51344-444-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
W/CLIP ASM PART: C = 1-51300-362-2 		1-51344-457-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: D = 1-51300-364-0 		1-51344-459-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 1-51300-331-1 		1-51345-431-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: B = 1-51300-333-2 		1-51345-444-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: C = 1-51300-362-2 		1-51345-457-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: D = 1-51300-364-0 		1-51345-459-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: A = 1-51300-331-1 		1-51346-431-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: B = 1-51300-333-2 		1-51346-444-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: C = 1-51300-362-2 		1-51346-457-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: D = 1-51300-364-0 		1-51346-459-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=205 ASM PART: A = 1-51300-331-1 		1-51356-187-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=215 ASM PART: B = 1-51300-333-2 		1-51356-190-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=200 ASM PART: D = 1-51300-364-0 		1-51356-215-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: C = 1-51300-362-2 		1-51356-223-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 1-51300-331-1, B = 1-51300-333-2, C = 1-51300-362-2, D = 1-51300-364-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X99 ASM PART: B = 1-51300-333-2 		1-09000-328-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X87 ASM PART: A = 1-51300-331-1 		1-09000-335-0 03 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X85 ASM PART: C = 1-51300-362-2, D = 1-51300-364-0 		1-09000-366-0 03 1 -
38 BUSHING; LEAF SPR,RR
ID=25 ASM PART: A = 1-51300-331-1, C = 1-51300-362-2, D = 1-51300-364-0 		9-51151-032-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: B = 1-51300-333-2 		9-51351-019-0 02 1 -
39 SEAT; LEAF SPR,RR MAIN
T=9 ASM PART: A = 1-51300-331-1 		1-51377-139-0 02 1 -
39 SEAT; LEAF SPR,RR MAIN
T=9 ASM PART: D = 1-51300-364-0 		1-51377-139-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=7 ASM PART: C = 1-51300-362-2 		1-51377-145-0 04 1 -
39 SEAT; LEAF SPR,RR MAIN
T=12 ASM PART: B = 1-51300-333-2 		1-51377-175-0 02 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M8X87 ASM PART: A = 1-51300-331-1 		1-09000-335-0 02 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M8X85 ASM PART: C = 1-51300-362-2, D = 1-51300-364-0 		1-09000-366-0 01 1 -
59 SEAT; RR SPRING,SUB
T=4.5 ASM PART: A = 1-51300-331-1, C = 1-51300-362-2, D = 1-51300-364-0 		1-51377-140-0 01 1 -
59 SEAT; RR SPRING,SUB
T=12 ASM PART: B = 1-51300-333-2 		1-51377-171-0 01 1 -

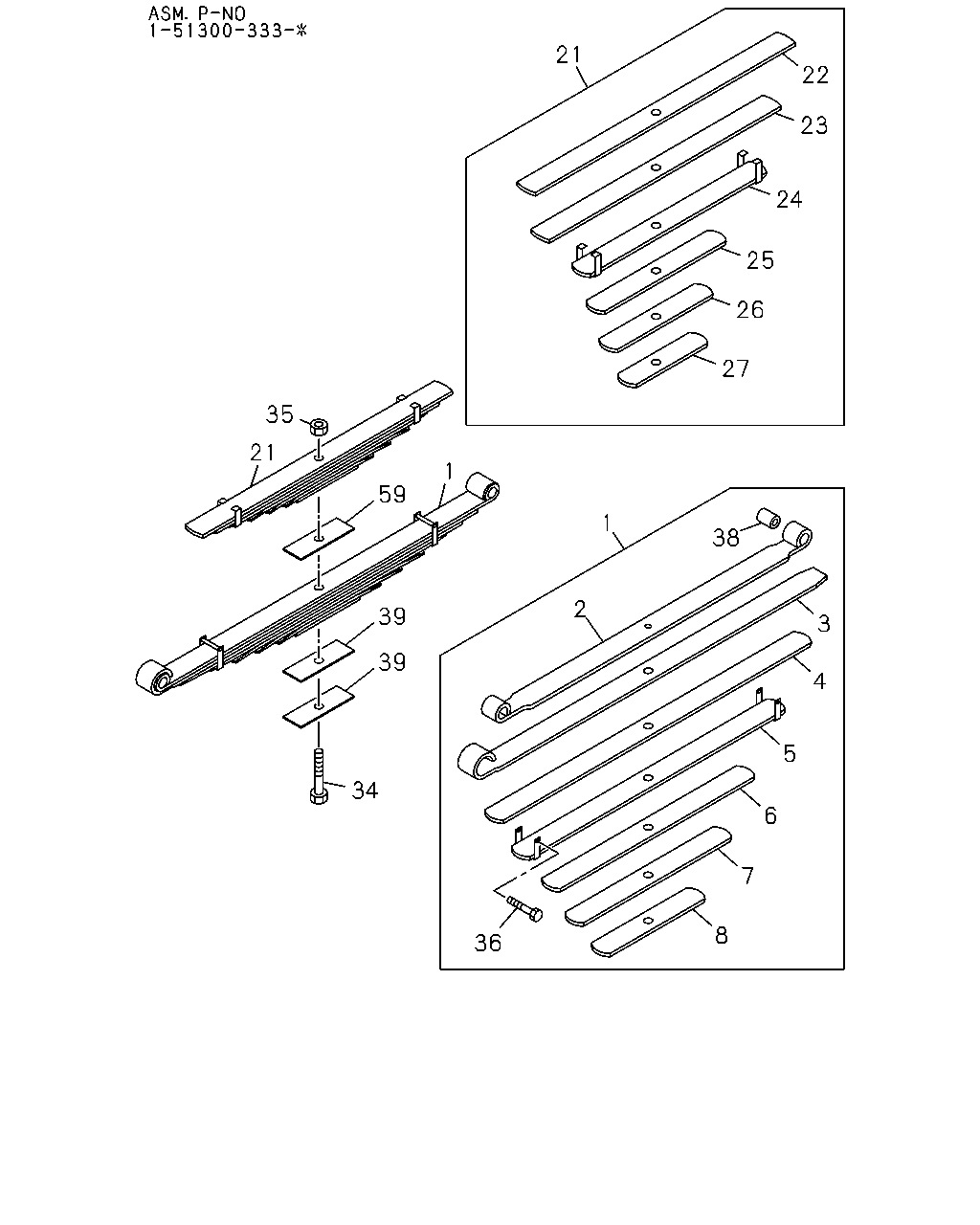

çizim 94071
21 22 23 24 25 26 27 35 21 1 59 1 38 2 39 3 39 4 5 34 6 7 8 36
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: C = 1-51300-362-2 		1-51310-713-1 01 1 -
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51310-715-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
ASM PART: B = 1-51300-333-2 		1-51310-716-1 01 1 -
1 SPRING ASM; LEAF,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51310-763-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: C = 1-51300-362-2 		1-51311-713-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51311-715-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 1-51300-333-2 		1-51311-716-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51311-763-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: C = 1-51300-362-2 		1-51312-713-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51312-715-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 1-51300-333-2 		1-51312-716-1 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51312-763-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51313-686-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
W/CLIP ASM PART: C = 1-51300-362-2 		1-51313-713-1 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 1-51300-333-2 		1-51313-716-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51313-763-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51314-686-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: C = 1-51300-362-2 		1-51314-713-1 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
W/CLIP ASM PART: B = 1-51300-333-2 		1-51314-716-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51314-763-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51315-686-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
W/CLIP ASM PART: C = 1-51300-362-2 		1-51315-713-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: B = 1-51300-333-2 		1-51315-716-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51315-763-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51316-686-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: C = 1-51300-362-2 		1-51316-713-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: B = 1-51300-333-2 		1-51316-716-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51316-763-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51317-686-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: C = 1-51300-362-2 		1-51317-713-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: B = 1-51300-333-2 		1-51317-716-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51317-763-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 1-51300-331-1 		1-51340-431-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: B = 1-51300-333-2 		1-51340-444-1 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: C = 1-51300-362-2 		1-51340-457-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: D = 1-51300-364-0 		1-51340-459-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 1-51300-331-1 		1-51341-431-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: B = 1-51300-333-2 		1-51341-444-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: C = 1-51300-362-2 		1-51341-457-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: D = 1-51300-364-0 		1-51341-459-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 1-51300-331-1 		1-51342-431-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: B = 1-51300-333-2 		1-51342-444-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: C = 1-51300-362-2 		1-51342-457-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: D = 1-51300-364-0 		1-51342-459-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 1-51300-331-1 		1-51343-431-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
W/CLIP ASM PART: B = 1-51300-333-2 		1-51343-444-1 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: C = 1-51300-362-2 		1-51343-457-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: D = 1-51300-364-0 		1-51343-459-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
W/CLIP ASM PART: A = 1-51300-331-1 		1-51344-431-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: B = 1-51300-333-2 		1-51344-444-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
W/CLIP ASM PART: C = 1-51300-362-2 		1-51344-457-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: D = 1-51300-364-0 		1-51344-459-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 1-51300-331-1 		1-51345-431-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: B = 1-51300-333-2 		1-51345-444-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: C = 1-51300-362-2 		1-51345-457-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: D = 1-51300-364-0 		1-51345-459-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: A = 1-51300-331-1 		1-51346-431-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: B = 1-51300-333-2 		1-51346-444-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: C = 1-51300-362-2 		1-51346-457-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: D = 1-51300-364-0 		1-51346-459-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=205 ASM PART: A = 1-51300-331-1 		1-51356-187-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=215 ASM PART: B = 1-51300-333-2 		1-51356-190-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=200 ASM PART: D = 1-51300-364-0 		1-51356-215-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: C = 1-51300-362-2 		1-51356-223-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 1-51300-331-1, B = 1-51300-333-2, C = 1-51300-362-2, D = 1-51300-364-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X99 ASM PART: B = 1-51300-333-2 		1-09000-328-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X87 ASM PART: A = 1-51300-331-1 		1-09000-335-0 03 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X85 ASM PART: C = 1-51300-362-2, D = 1-51300-364-0 		1-09000-366-0 03 1 -
38 BUSHING; LEAF SPR,RR
ID=25 ASM PART: A = 1-51300-331-1, C = 1-51300-362-2, D = 1-51300-364-0 		9-51151-032-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: B = 1-51300-333-2 		9-51351-019-0 02 1 -
39 SEAT; LEAF SPR,RR MAIN
T=9 ASM PART: A = 1-51300-331-1 		1-51377-139-0 02 1 -
39 SEAT; LEAF SPR,RR MAIN
T=9 ASM PART: D = 1-51300-364-0 		1-51377-139-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=7 ASM PART: C = 1-51300-362-2 		1-51377-145-0 04 1 -
39 SEAT; LEAF SPR,RR MAIN
T=12 ASM PART: B = 1-51300-333-2 		1-51377-175-0 02 1 -
59 SEAT; RR SPRING,SUB
T=4.5 ASM PART: A = 1-51300-331-1, C = 1-51300-362-2, D = 1-51300-364-0 		1-51377-140-0 01 1 -
59 SEAT; RR SPRING,SUB
T=12 ASM PART: B = 1-51300-333-2 		1-51377-171-0 01 1 -

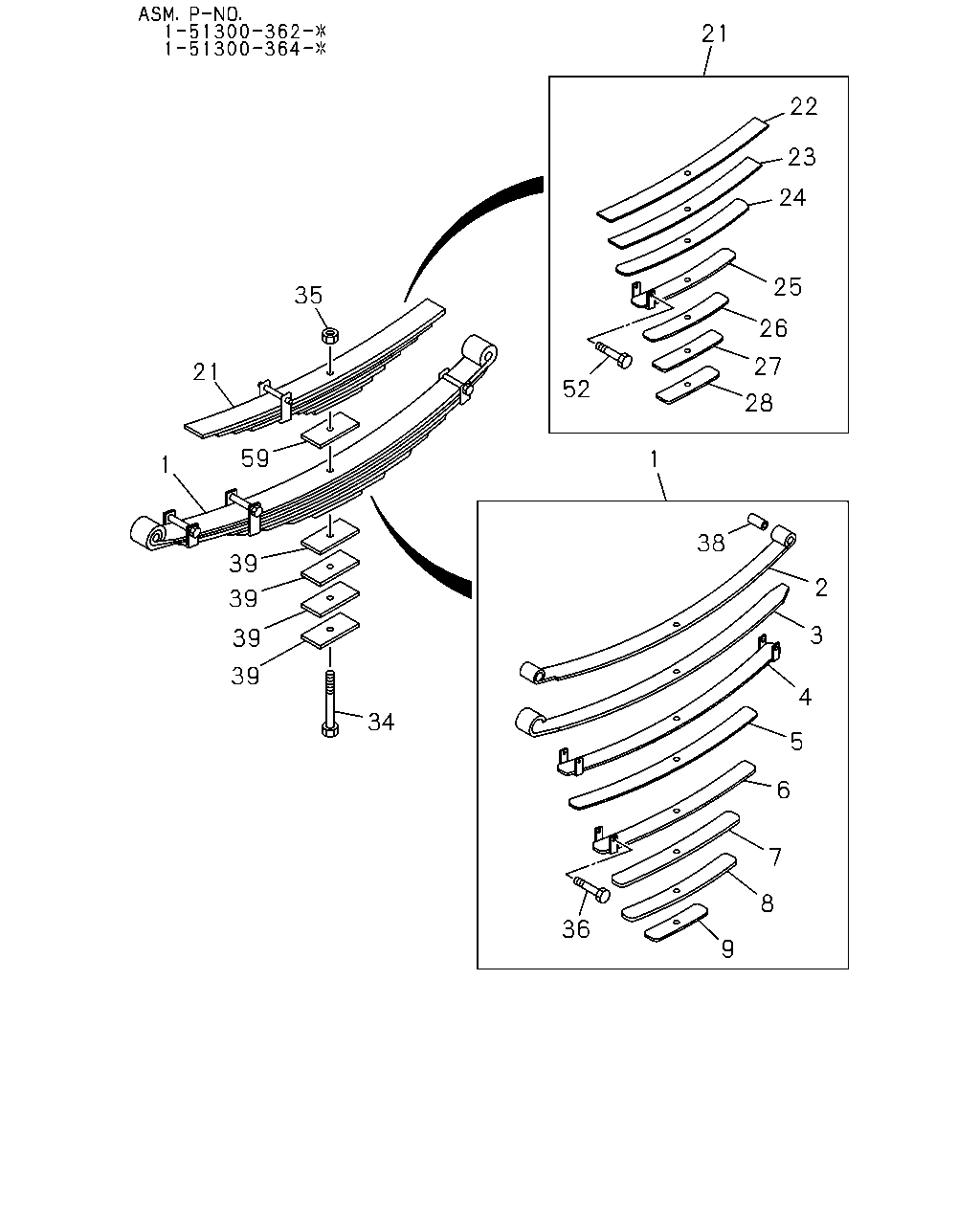

çizim 94534
21 22 23 24 25 35 26 27 21 52 28 59 1 1 38 39 2 39 3 39 39 4 34 5 6 7 8 36 9
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: C = 1-51300-362-2 		1-51310-713-1 01 1 -
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51310-715-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
ASM PART: B = 1-51300-333-2 		1-51310-716-1 01 1 -
1 SPRING ASM; LEAF,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51310-763-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: C = 1-51300-362-2 		1-51311-713-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51311-715-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 1-51300-333-2 		1-51311-716-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51311-763-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: C = 1-51300-362-2 		1-51312-713-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51312-715-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 1-51300-333-2 		1-51312-716-1 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51312-763-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51313-686-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
W/CLIP ASM PART: C = 1-51300-362-2 		1-51313-713-1 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 1-51300-333-2 		1-51313-716-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51313-763-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51314-686-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: C = 1-51300-362-2 		1-51314-713-1 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
W/CLIP ASM PART: B = 1-51300-333-2 		1-51314-716-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51314-763-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51315-686-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
W/CLIP ASM PART: C = 1-51300-362-2 		1-51315-713-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: B = 1-51300-333-2 		1-51315-716-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51315-763-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51316-686-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: C = 1-51300-362-2 		1-51316-713-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: B = 1-51300-333-2 		1-51316-716-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51316-763-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51317-686-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: C = 1-51300-362-2 		1-51317-713-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: B = 1-51300-333-2 		1-51317-716-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51317-763-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: A = 1-51300-331-1 		1-51318-686-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: C = 1-51300-362-2 		1-51318-713-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: D = 1-51300-364-0 		1-51318-763-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 1-51300-331-1 		1-51340-431-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: B = 1-51300-333-2 		1-51340-444-1 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: C = 1-51300-362-2 		1-51340-457-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: D = 1-51300-364-0 		1-51340-459-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 1-51300-331-1 		1-51341-431-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: B = 1-51300-333-2 		1-51341-444-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: C = 1-51300-362-2 		1-51341-457-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: D = 1-51300-364-0 		1-51341-459-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 1-51300-331-1 		1-51342-431-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: B = 1-51300-333-2 		1-51342-444-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: C = 1-51300-362-2 		1-51342-457-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: D = 1-51300-364-0 		1-51342-459-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 1-51300-331-1 		1-51343-431-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
W/CLIP ASM PART: B = 1-51300-333-2 		1-51343-444-1 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: C = 1-51300-362-2 		1-51343-457-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: D = 1-51300-364-0 		1-51343-459-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
W/CLIP ASM PART: A = 1-51300-331-1 		1-51344-431-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: B = 1-51300-333-2 		1-51344-444-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
W/CLIP ASM PART: C = 1-51300-362-2 		1-51344-457-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: D = 1-51300-364-0 		1-51344-459-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 1-51300-331-1 		1-51345-431-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: B = 1-51300-333-2 		1-51345-444-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: C = 1-51300-362-2 		1-51345-457-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: D = 1-51300-364-0 		1-51345-459-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: A = 1-51300-331-1 		1-51346-431-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: B = 1-51300-333-2 		1-51346-444-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: C = 1-51300-362-2 		1-51346-457-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: D = 1-51300-364-0 		1-51346-459-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
ASM PART: C = 1-51300-362-2 		1-51347-457-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
ASM PART: D = 1-51300-364-0 		1-51347-459-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=205 ASM PART: A = 1-51300-331-1 		1-51356-187-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=215 ASM PART: B = 1-51300-333-2 		1-51356-190-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=200 ASM PART: D = 1-51300-364-0 		1-51356-215-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: C = 1-51300-362-2 		1-51356-223-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 1-51300-331-1, B = 1-51300-333-2, C = 1-51300-362-2, D = 1-51300-364-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X99 ASM PART: B = 1-51300-333-2 		1-09000-328-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X87 ASM PART: A = 1-51300-331-1 		1-09000-335-0 03 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X85 ASM PART: C = 1-51300-362-2, D = 1-51300-364-0 		1-09000-366-0 03 1 -
38 BUSHING; LEAF SPR,RR
ID=25 ASM PART: A = 1-51300-331-1, C = 1-51300-362-2, D = 1-51300-364-0 		9-51151-032-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: B = 1-51300-333-2 		9-51351-019-0 02 1 -
39 SEAT; LEAF SPR,RR MAIN
T=9 ASM PART: A = 1-51300-331-1 		1-51377-139-0 02 1 -
39 SEAT; LEAF SPR,RR MAIN
T=9 ASM PART: D = 1-51300-364-0 		1-51377-139-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=7 ASM PART: C = 1-51300-362-2 		1-51377-145-0 04 1 -
39 SEAT; LEAF SPR,RR MAIN
T=12 ASM PART: B = 1-51300-333-2 		1-51377-175-0 02 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M8X87 ASM PART: A = 1-51300-331-1 		1-09000-335-0 02 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M8X85 ASM PART: C = 1-51300-362-2, D = 1-51300-364-0 		1-09000-366-0 01 1 -
59 SEAT; RR SPRING,SUB
T=4.5 ASM PART: A = 1-51300-331-1, C = 1-51300-362-2, D = 1-51300-364-0 		1-51377-140-0 01 1 -
59 SEAT; RR SPRING,SUB
T=12 ASM PART: B = 1-51300-333-2 		1-51377-171-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
