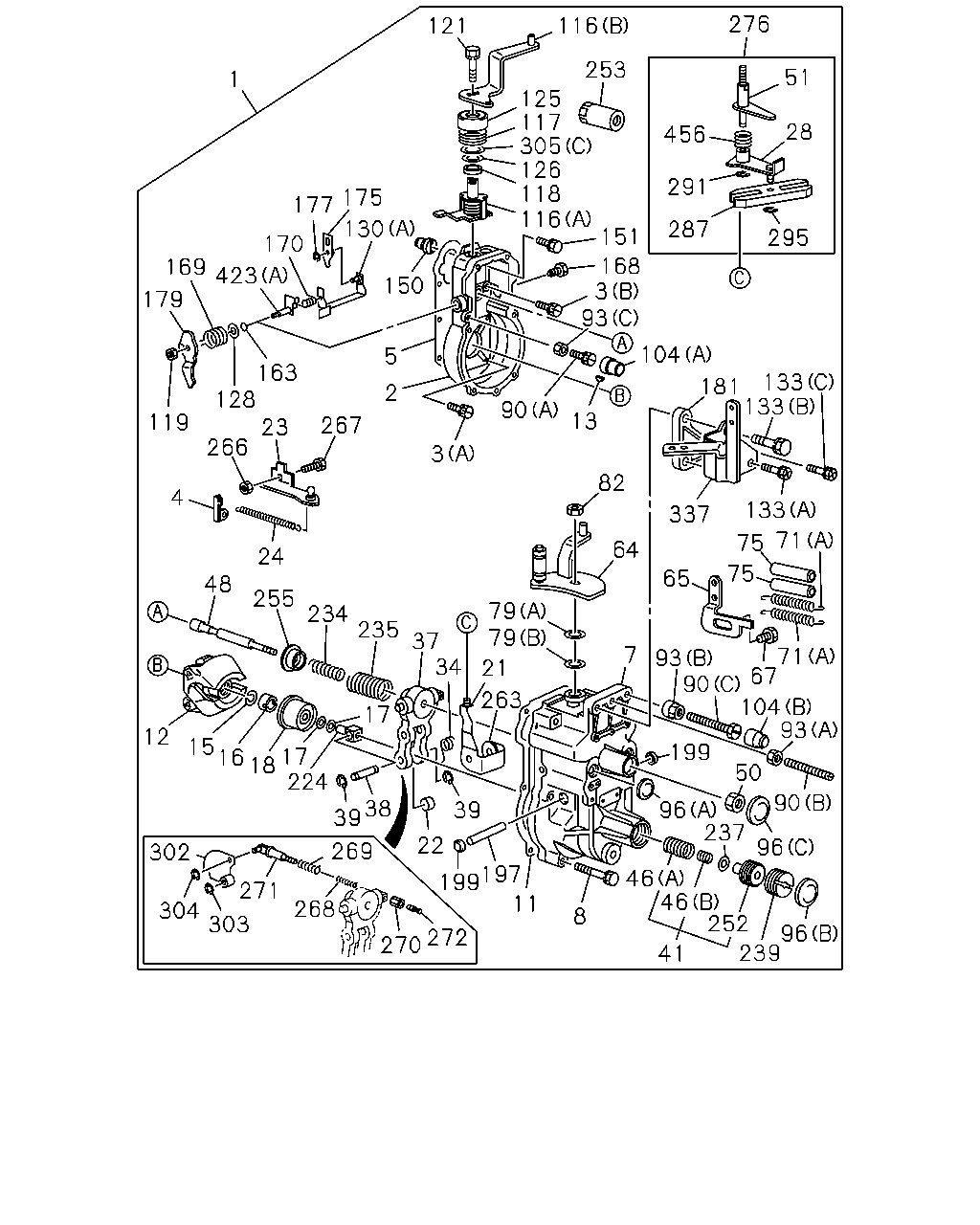

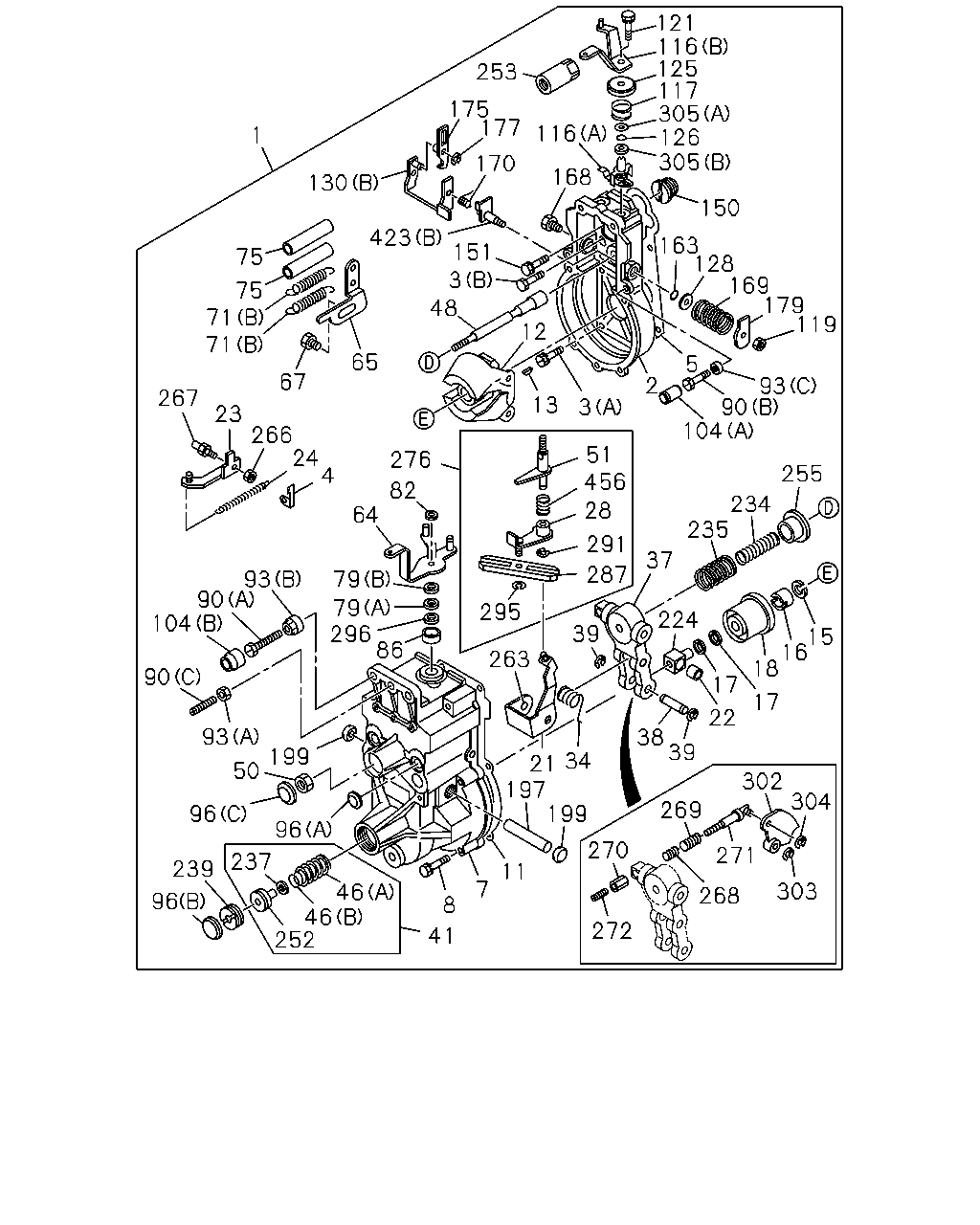

0-81 — GOVERNOR; INJECTION PUMP (#22797) — 440 parça

276 121 116 253 51 1 125 117 305 126 118 116 28 456 291 175 177 130 287 151 295 170 168 3 93 169 423 150 179 104 5 163 128 23 133 133 181 2 90 13 119 267 266 3 82 4 133 337 71 75 64 24 75 65 48 255 79 79 234 235 37 34 7 71 67 93 90 104 93 21 17 263 12 15 16 17 18 224 199 50 96 237 90 38 39 39 22 96 269 302 46 46 252 197 199 272 270 271 11 268 304 303 8 96 239 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: F = 8-94395-901-1	1-15770-819-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: D = 8-94390-081-1	1-15770-850-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-025-1	1-15770-853-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 1-15603-026-1	1-15770-854-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 1-15603-036-0	1-15770-856-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: E = 8-94395-813-1	1-15770-885-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: G = 8-97600-180-0	1-15790-042-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15721-209-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15721-265-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15721-300-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP (A), M6X15 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-027-0	05	1	-
3	BOLT; GOV HSG,INJ PUMP (B), M6X16 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-071-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15729-809-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: G = 8-97600-180-0	1-15779-591-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1	8-94472-265-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15779-093-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15779-106-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	5-15729-000-1	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: C = 1-15603-036-0	1-15721-207-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: D = 8-94390-081-1, F = 8-94395-901-1	1-15721-217-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: E = 8-94395-813-1, G = 8-97600-180-0	1-15721-274-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1	1-15721-323-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-033-0	07	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15729-804-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15779-107-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15722-014-0	01	1	-
13	KEY; FLYWEIGHT,GOV 16MM ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-19619-049-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-034-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-086-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-372-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15725-220-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15725-291-0	01	1	-
22	COLLAR; LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94368-298-1	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15725-521-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: G = 8-97600-180-0	1-15725-928-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1	8-94171-149-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15723-035-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	5-15723-044-0	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15725-523-0	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-152-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-140-1	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15725-515-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15725-520-0	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-370-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-88410-201-0	02	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15723-301-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15723-509-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-94173-991-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15723-497-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	8-97115-984-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97115-987-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97115-988-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	8-97120-735-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-146-1	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-147-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15729-859-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94325-501-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1	1-15725-667-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: G = 8-97600-180-0	1-15725-673-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15725-850-0	01	1	-
65	BRACKET; RETURN SPRING,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15729-805-0	01	1	-
65	BRACKET; RETURN SPRING,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94339-966-0	01	1	-
67	BOLT; SPRING BRKT,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-046-0	01	1	-
71	SPRING; CONT LEVER,GOV (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15723-138-0	02	1	-
71	SPRING; CONT LEVER,GOV (B) ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15723-380-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	5-15729-074-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94433-757-0	02	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.95 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-076-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.20 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-077-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.25 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-078-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.30 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-079-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.35 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-080-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.40 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-081-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.50 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-082-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.70 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-617-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.90 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-618-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.80 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-619-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-822-0	01	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.60 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-896-0	AR	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-236-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M8X62 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15729-642-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M8X65 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-761-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M6X33 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-799-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M6X34 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-800-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M6X35 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-801-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M6X36 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-802-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M6X37 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-803-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M6X31 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-842-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M6X32 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-843-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), L=62 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-123-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-807-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-84410-027-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-076-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-145-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-148-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-97085-021-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-97085-022-0	01	1	-
116	LEVER; ENG STOP,GOV (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15725-217-0	01	1	-
116	LEVER; ENG STOP,GOV (B) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15725-848-0	01	1	-
116	LEVER; ENG STOP,GOV (A) ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15725-063-0	01	1	-
116	LEVER; ENG STOP,GOV (B) ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94396-977-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15723-289-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15723-294-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15723-439-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	5-15729-181-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-236-0	01	1	-
121	BOLT; ENG STOP LEVER,GOV M6X16 W/LK WASHER ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-01900-616-0	01	1	-
125	CAP; STOP LEVER SPRING,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	8-94171-168-0	01	1	-
125	CAP; STOP LEVER SPRING,GOV ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-94336-926-0	01	1	-
126	GASKET; STOP LEVER,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-853-0	01	1	-
126	GASKET; STOP LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	9-81391-906-0	01	1	-
128	SHIM; CONT SHAFT,GOV T=0.60 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.80 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.90 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.50 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.30 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.40 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.25 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.35 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.20 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-88410-421-0	AR	1	-
130	LEVER; CONT,GOV (A) ASM PART: C = 1-15603-036-0	1-15725-463-0	01	1	-
130	LEVER; CONT,GOV (B) ASM PART: E = 8-94395-813-1, G = 8-97600-180-0	1-15725-496-0	01	1	-
130	LEVER; CONT,GOV (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1	1-15725-519-0	01	1	-
130	LEVER; CONT,GOV (B) ASM PART: D = 8-94390-081-1, F = 8-94395-901-1	1-15725-527-0	01	1	-
133	BOLT; BRKT FIX,GOV (A), M6X25 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1	1-15729-242-0	02	1	-
133	BOLT; BRKT FIX,GOV (B), M8X30 W/LK WASHER ASM PART: A = 1-15603-025-1, B = 1-15603-026-1	9-01900-830-0	01	1	-
133	BOLT; BRKT FIX,GOV (C) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1	9-88410-094-0	01	1	-
150	ADAPTER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81315-065-0	01	1	-
151	BOLT; ADAPTER,GOV HSG,INJ PUMP M8X18 W/LK WASHER ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-01900-818-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, G = 8-97600-180-0	1-15629-859-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: F = 8-94395-901-1	1-15729-852-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	8-94171-129-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-796-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15723-131-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15723-032-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15723-132-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15723-033-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15725-514-1	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15725-518-1	01	1	-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-445-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-132-0	01	1	-
181	SPACER; BRKT ASM PART: A = 1-15603-025-1, B = 1-15603-026-1	8-94419-135-1	01	1	-
197	SHAFT; LEVER,GOV COVER ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15725-008-0	01	1	-
199	PLUG; LEVER SHAFT,GOV COVER ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-076-0	02	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-142-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15723-300-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15723-320-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-94372-509-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	1-15723-236-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: F = 8-94395-901-1	5-15723-040-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: E = 8-94395-813-1	5-15723-041-0	01	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-966-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-967-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.80 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-968-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.10 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94472-268-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94472-269-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.25 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94472-270-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94472-271-0	AR	1	-
239	SCREW; GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-144-0	01	1	-
252	SCREW; GUIDE ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15779-003-1	01	1	-
253	LIMITTER; GOV CONT ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-435-0	01	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-173-0	01	1	-
263	COLLAR; GUIDE LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-031-0	02	1	-
266	NUT; PIN TO LINK,CONT RACK,GOV M5 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-99110-405-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-858-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15723-056-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15723-070-1	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-051-0	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15725-009-1	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-138-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15725-522-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94325-500-0	01	1	-
287	LEVER; GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15725-542-0	01	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-445-0	01	1	-
295	RING; SNAP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-445-0	01	1	-
302	PLATE; CAM,GOV ASM PART: F = 8-94395-901-1	1-15779-097-0	01	1	-
302	PLATE; CAM,GOV ASM PART: A = 1-15603-025-1, C = 1-15603-036-0	1-15779-407-0	01	1	-
302	PLATE; CAM,GOV ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15779-408-0	01	1	-
302	PLATE; CAM,GOV ASM PART: B = 1-15603-026-1	1-15779-409-0	01	1	-
302	PLATE; CAM,GOV ASM PART: E = 8-94395-813-1	1-15779-466-0	01	1	-
303	RING; SNAP,CAM PLATE,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-023-0	01	1	-
304	RING; SNAP,LINK TO CAM PLATE,GOV ID=4 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-09185-404-0	01	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.951 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15729-115-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.950 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15729-116-0	AR	1	-
305	SHIM; STOP LEVER,GOV (C), T=0.60 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15729-897-0	AR	1	-
305	SHIM; STOP LEVER,GOV (C), T=0.80 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15729-898-0	AR	1	-
305	SHIM; STOP LEVER,GOV (C), T=0.90 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15729-899-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.70 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15779-068-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.20 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97089-308-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.30 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97089-309-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.40 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97089-310-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.60 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97089-311-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.80 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97089-312-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.50 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	9-81325-268-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.40 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	9-81325-269-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.30 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	9-81325-270-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.25 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	9-81325-271-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=1.00 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	9-81325-272-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=1.10 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	9-81325-310-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=2.00 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	9-81325-447-0	AR	1	-
305	SHIM; STOP LEVER,GOV (B), T=1.00 ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-553-0	01	1	-
305	SHIM; STOP LEVER,GOV (C), T=0.50 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	9-81325-556-0	AR	1	-
305	SHIM; STOP LEVER,GOV (C), T=0.30 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	9-81325-557-0	AR	1	-
305	SHIM; STOP LEVER,GOV (C), T=0.40 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	9-81325-558-0	AR	1	-
305	SHIM; STOP LEVER,GOV (C), T=0.25 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	9-81325-559-0	AR	1	-
305	SHIM; STOP LEVER,GOV (C), T=0.35 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	9-81325-560-0	AR	1	-
305	SHIM; STOP LEVER,GOV (C), T=0.20 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	9-88410-421-0	AR	1	-
337	BRACKET; SPACER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15729-717-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15725-500-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-820-0	01	1	-
456	SPRING; LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15723-292-0	01	1	-
456	SPRING; LEVER,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94413-728-0	01	1	-

121 116 125 117 305 126 305 253 175 177 116 1 170 168 130 150 423 163 128 169 179 119 151 3 48 75 75 71 71 12 65 5 67 2 93 90 104 267 13 3 23 266 24 4 51 456 276 255 82 234 235 28 64 291 37 287 93 79 90 104 224 79 296 86 295 39 15 16 18 263 90 17 17 22 93 38 39 21 197 199 199 34 50 302 304 269 96 96 270 271 237 239 11 7 303 46 46 252 268 96 8 272 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: F = 8-94395-901-1	1-15770-819-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: D = 8-94390-081-1	1-15770-850-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-025-1	1-15770-853-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 1-15603-026-1	1-15770-854-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 1-15603-036-0	1-15770-856-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: E = 8-94395-813-1	1-15770-885-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: G = 8-97600-180-0	1-15790-042-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15721-209-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15721-265-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15721-300-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP (A), M6X15 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-027-0	05	1	-
3	BOLT; GOV HSG,INJ PUMP (B), M6X16 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-071-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15729-809-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: G = 8-97600-180-0	1-15779-591-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1	8-94472-265-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15779-093-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15779-106-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	5-15729-000-1	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: C = 1-15603-036-0	1-15721-207-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: D = 8-94390-081-1, F = 8-94395-901-1	1-15721-217-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: E = 8-94395-813-1, G = 8-97600-180-0	1-15721-274-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1	1-15721-323-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-033-0	07	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15729-804-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15779-107-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15722-014-0	01	1	-
13	KEY; FLYWEIGHT,GOV 16MM ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-19619-049-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-034-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-086-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-372-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15725-220-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15725-291-0	01	1	-
22	COLLAR; LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94368-298-1	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15725-521-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: G = 8-97600-180-0	1-15725-928-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1	8-94171-149-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15723-035-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	5-15723-044-0	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15725-523-0	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-152-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-140-1	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15725-515-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15725-520-0	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-370-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-88410-201-0	02	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15723-301-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15723-509-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-94173-991-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15723-497-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	8-97115-984-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97115-987-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97115-988-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	8-97120-735-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-146-1	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-147-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15729-859-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94325-501-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1	1-15725-667-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: G = 8-97600-180-0	1-15725-673-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15725-850-0	01	1	-
65	BRACKET; RETURN SPRING,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15729-805-0	01	1	-
65	BRACKET; RETURN SPRING,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94339-966-0	01	1	-
67	BOLT; SPRING BRKT,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-046-0	01	1	-
71	SPRING; CONT LEVER,GOV (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15723-138-0	02	1	-
71	SPRING; CONT LEVER,GOV (B) ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15723-380-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	5-15729-074-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94433-757-0	02	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.95 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-076-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.20 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-077-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.25 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-078-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.30 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-079-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.35 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-080-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.40 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-081-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.50 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-082-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.70 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-617-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.90 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-618-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.80 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-619-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-822-0	01	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.60 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-896-0	AR	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-236-0	01	1	-
86	BUSHING; CONT SHAFT,GOV COVER ASM PART: G = 8-97600-180-0	1-15729-831-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M8X62 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15729-642-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M8X65 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-761-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M6X33 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-799-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M6X34 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-800-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M6X35 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-801-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M6X36 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-802-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M6X37 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-803-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M6X31 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-842-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M6X32 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-843-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), L=62 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-123-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-807-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-84410-027-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-076-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-145-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-148-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-97085-021-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-97085-022-0	01	1	-
116	LEVER; ENG STOP,GOV (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15725-217-0	01	1	-
116	LEVER; ENG STOP,GOV (B) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15725-848-0	01	1	-
116	LEVER; ENG STOP,GOV (A) ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15725-063-0	01	1	-
116	LEVER; ENG STOP,GOV (B) ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94396-977-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15723-289-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15723-294-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15723-439-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-236-0	01	1	-
121	BOLT; ENG STOP LEVER,GOV M6X16 W/LK WASHER ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-01900-616-0	01	1	-
125	CAP; STOP LEVER SPRING,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	8-94171-168-0	01	1	-
125	CAP; STOP LEVER SPRING,GOV ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-94336-926-0	01	1	-
126	GASKET; STOP LEVER,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-853-0	01	1	-
126	GASKET; STOP LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	9-81391-906-0	01	1	-
128	SHIM; CONT SHAFT,GOV T=0.60 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.80 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.90 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.50 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.30 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.40 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.25 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.35 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.20 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-88410-421-0	AR	1	-
130	LEVER; CONT,GOV (A) ASM PART: C = 1-15603-036-0	1-15725-463-0	01	1	-
130	LEVER; CONT,GOV (B) ASM PART: E = 8-94395-813-1, G = 8-97600-180-0	1-15725-496-0	01	1	-
130	LEVER; CONT,GOV (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1	1-15725-519-0	01	1	-
130	LEVER; CONT,GOV (B) ASM PART: D = 8-94390-081-1, F = 8-94395-901-1	1-15725-527-0	01	1	-
150	ADAPTER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81315-065-0	01	1	-
151	BOLT; ADAPTER,GOV HSG,INJ PUMP M8X18 W/LK WASHER ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-01900-818-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, G = 8-97600-180-0	1-15629-859-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: F = 8-94395-901-1	1-15729-852-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	8-94171-129-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-796-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15723-131-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15723-032-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15723-132-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15723-033-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15725-514-1	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15725-518-1	01	1	-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-445-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-132-0	01	1	-
197	SHAFT; LEVER,GOV COVER ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15725-008-0	01	1	-
199	PLUG; LEVER SHAFT,GOV COVER ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-076-0	02	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-142-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15723-300-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15723-320-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-94372-509-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	1-15723-236-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: F = 8-94395-901-1	5-15723-040-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: E = 8-94395-813-1	5-15723-041-0	01	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-966-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-967-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.80 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-968-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.10 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94472-268-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94472-269-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.25 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94472-270-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94472-271-0	AR	1	-
239	SCREW; GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-144-0	01	1	-
252	SCREW; GUIDE ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15779-003-1	01	1	-
253	LIMITTER; GOV CONT ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-435-0	01	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-173-0	01	1	-
263	COLLAR; GUIDE LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-031-0	02	1	-
266	NUT; PIN TO LINK,CONT RACK,GOV M5 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-99110-405-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-858-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15723-056-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15723-070-1	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-051-0	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15725-009-1	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-138-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15725-522-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94325-500-0	01	1	-
287	LEVER; GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15725-542-0	01	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-445-0	01	1	-
295	RING; SNAP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-445-0	01	1	-
296	SEAL; OIL,CONT SHAFT,GOV ASM PART: E = 8-94395-813-1, G = 8-97600-180-0	1-15729-855-0	01	1	-
302	PLATE; CAM,GOV ASM PART: F = 8-94395-901-1	1-15779-097-0	01	1	-
302	PLATE; CAM,GOV ASM PART: A = 1-15603-025-1, C = 1-15603-036-0	1-15779-407-0	01	1	-
302	PLATE; CAM,GOV ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15779-408-0	01	1	-
302	PLATE; CAM,GOV ASM PART: B = 1-15603-026-1	1-15779-409-0	01	1	-
302	PLATE; CAM,GOV ASM PART: E = 8-94395-813-1	1-15779-466-0	01	1	-
303	RING; SNAP,CAM PLATE,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15729-023-0	01	1	-
304	RING; SNAP,LINK TO CAM PLATE,GOV ID=4 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-09185-404-0	01	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.951 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15729-115-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.950 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15729-116-0	AR	1	-
305	SHIM; STOP LEVER,GOV (C), T=0.60 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15729-897-0	AR	1	-
305	SHIM; STOP LEVER,GOV (C), T=0.80 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15729-898-0	AR	1	-
305	SHIM; STOP LEVER,GOV (C), T=0.90 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15729-899-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.70 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15779-068-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.20 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97089-308-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.30 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97089-309-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.40 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97089-310-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.60 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97089-311-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.80 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97089-312-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.50 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	9-81325-268-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.40 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	9-81325-269-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.30 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	9-81325-270-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=0.25 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	9-81325-271-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=1.00 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	9-81325-272-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=1.10 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	9-81325-310-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=2.00 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	9-81325-447-0	AR	1	-
305	SHIM; STOP LEVER,GOV (B), T=1.00 ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81325-553-0	01	1	-
305	SHIM; STOP LEVER,GOV (C), T=0.50 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	9-81325-556-0	AR	1	-
305	SHIM; STOP LEVER,GOV (C), T=0.30 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	9-81325-557-0	AR	1	-
305	SHIM; STOP LEVER,GOV (C), T=0.40 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	9-81325-558-0	AR	1	-
305	SHIM; STOP LEVER,GOV (C), T=0.25 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	9-81325-559-0	AR	1	-
305	SHIM; STOP LEVER,GOV (C), T=0.35 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	9-81325-560-0	AR	1	-
305	SHIM; STOP LEVER,GOV (C), T=0.20 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	9-88410-421-0	AR	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15725-500-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-820-0	01	1	-
456	SPRING; LEVER,GOV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15723-292-0	01	1	-
456	SPRING; LEVER,GOV ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94413-728-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
