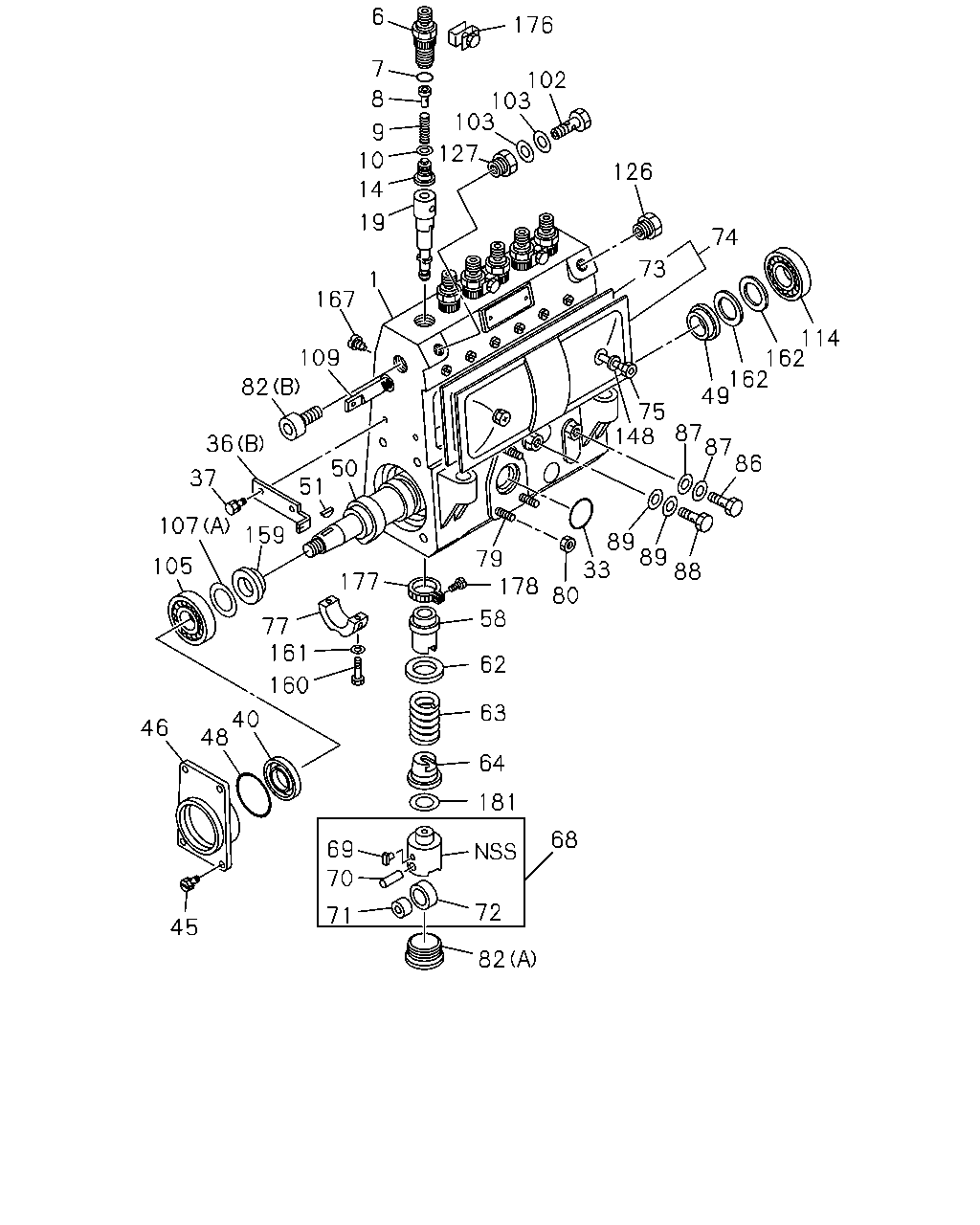

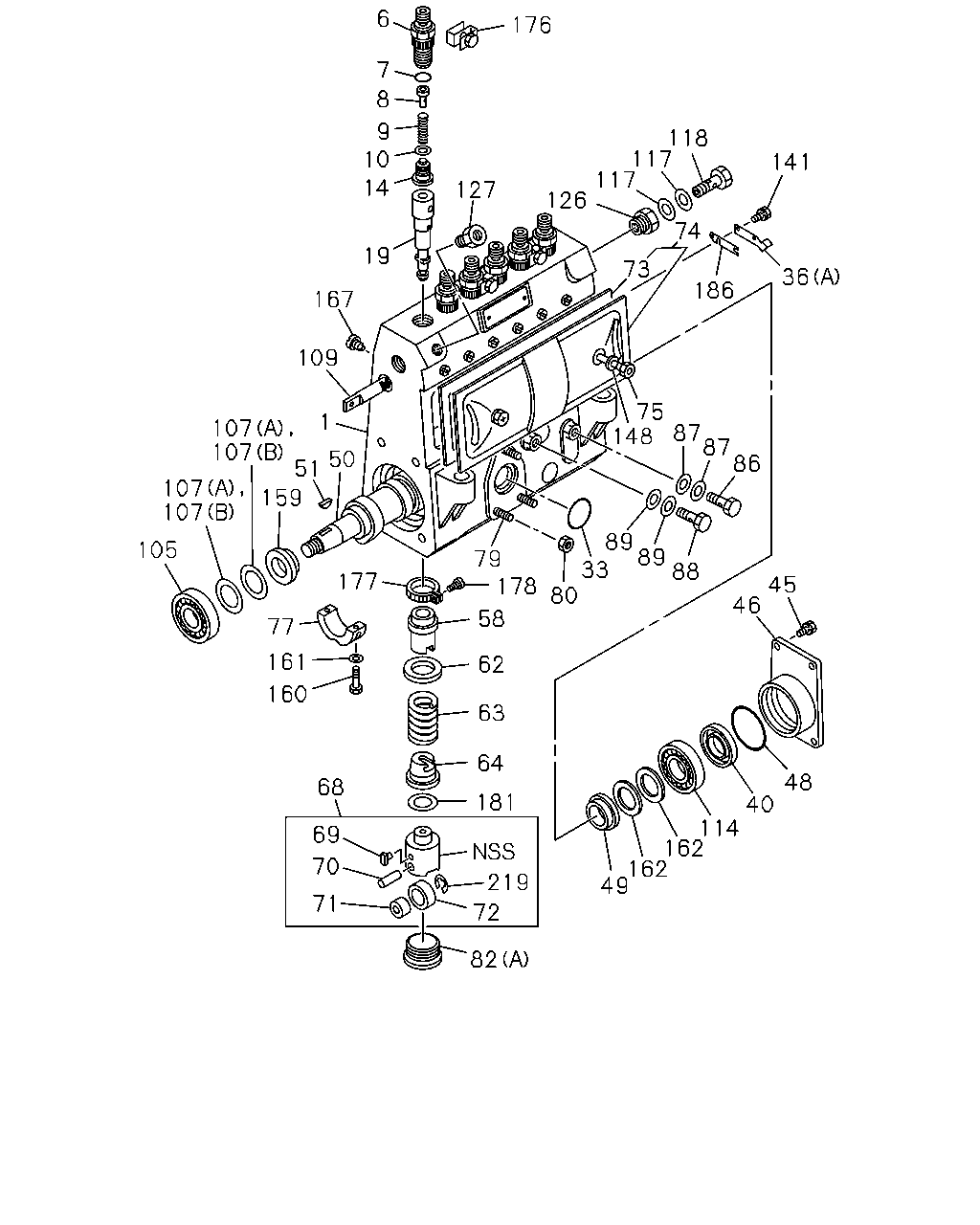

0-80 — INJECTION PUMP (#22796) — 345 parça

6 176 7 102 103 103 8 127 9 10 126 14 19 74 73 1 167 114 162 162 49 109 82 75 148 87 87 86 36 50 37 51 107 159 89 89 33 88 80 79 178 105 177 58 77 161 62 160 63 40 48 46 64 181 68 69 70 72 71 45 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15611-068-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15611-120-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15611-181-0	01	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15644-009-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15644-017-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97084-986-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-09623-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	9-81235-046-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15649-005-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15629-045-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97084-987-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	1-15643-003-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15643-010-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15619-103-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15649-001-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	9-81245-018-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15619-406-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15641-021-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15641-031-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15631-043-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15631-139-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15632-030-0	06	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-09623-013-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15629-058-0	01	1	-
36	POINTER; TIMING,INJ PUMP (B) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15619-188-0	01	1	-
36	POINTER; TIMING,INJ PUMP (A) ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15619-304-0	01	1	-
36	POINTER; TIMING,INJ PUMP (A) ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15619-402-0	01	1	-
37	BOLT; POINTER FIX,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15619-034-0	02	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81225-071-0	01	1	-
45	BOLT; FRT COVER TO HSG M6X14 W/LK WASHER ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-01900-614-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15629-034-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-09623-053-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15629-059-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	1-15629-004-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15629-024-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15621-059-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15621-080-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15621-109-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	9-81225-058-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	9-81231-523-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	1-15639-022-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	9-81235-015-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	1-15634-007-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	8-94387-977-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-125-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15639-023-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	9-81235-021-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15622-006-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15622-011-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15622-009-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	1-15629-018-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15619-041-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-123-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15622-006-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	9-81215-185-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15619-162-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15629-001-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-122-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15622-003-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15629-010-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-121-0	06	1	-
73	GASKET; COVER TO HSG ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-960-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15612-050-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15619-003-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15619-237-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15619-264-0	03	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15629-014-0	01	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15619-073-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	1-15619-160-0	06	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15619-136-0	06	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15619-091-0	01	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP L=96 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-066-0	02	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15719-093-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15759-011-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15759-012-0	02	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-002-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-003-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NTN ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	5-09800-038-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	9-00090-677-0	01	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.30 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-007-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=1.00 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-008-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.70 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-105-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=2.40 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	1-15639-088-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.70 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	5-15619-039-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.10 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	5-15629-015-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.12 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	5-15629-016-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.14 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	5-15629-017-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.16 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	5-15629-018-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.18 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	5-15629-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.50 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	5-15629-020-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=1.00 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	5-15629-038-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=1.40 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	5-15629-090-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.30 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	9-81225-033-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.10 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	9-81225-049-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.12 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	9-81225-050-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.14 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	9-81225-051-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.16 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	9-81225-052-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.18 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	9-81225-053-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.50 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	9-81225-054-0	AR	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15637-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP NSK ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15629-002-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP TOYO ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15629-003-0	01	1	-
126	ADAPTER; EYE BOLT,PUMP HSG ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15619-262-0	01	1	-
126	ADAPTER; EYE BOLT,PUMP HSG ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81235-017-0	01	1	-
127	ADAPTER; FUEL PIPE ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	1-15619-190-0	01	1	-
127	ADAPTER; FUEL PIPE ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15629-057-0	01	1	-
148	GASKET; COVER FIX BOLT ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81215-144-0	02	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-004-0	01	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15629-023-0	01	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	9-81225-059-0	01	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-017-0	06	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15629-017-0	02	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	9-88410-066-0	02	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	9-81225-043-0	02	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	9-81225-043-0	06	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	1-15629-007-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	1-15629-008-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-105-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15629-025-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15629-026-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15629-027-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15629-028-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15629-029-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15629-030-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15629-031-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15629-032-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	9-81225-049-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	9-81225-050-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	9-81225-051-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	9-81225-052-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	9-81225-053-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	9-81225-054-0	AR	1	-
167	BOLT; CONT RACK,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15639-003-0	01	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15649-034-0	03	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	5-15625-001-0	03	1	-
177	PINION; CONT SLEEVE,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81225-057-0	06	1	-
178	SCREW; PINION,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81235-003-0	06	1	-
181	SHIM; TAPPET,INJ PUMP T=0.60 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-001-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.70 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-002-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.80 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-003-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.90 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-004-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.00 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-005-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.10 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-007-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.20 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-008-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.30 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-009-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.40 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-010-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.55 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-011-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.65 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-012-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.75 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-013-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.85 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-015-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.20 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-025-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.25 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-026-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.35 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-027-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.30 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-034-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.40 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-035-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.50 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-036-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.45 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-037-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.50 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.60 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.35 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.45 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.55 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.95 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81235-042-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.05 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81235-043-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.15 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81235-044-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.25 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81235-045-0	AR	1	-

6 176 7 8 9 10 118 117 117 141 14 127 74 126 19 73 36 186 167 109 75 148 1 107 107 87 87 86 50 51 107 107 159 89 89 33 88 80 105 79 178 177 45 46 58 77 161 62 160 63 64 48 68 181 40 114 162 162 49 69 70 219 71 72 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15611-068-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15611-120-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15611-181-0	01	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15644-009-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15644-017-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97084-986-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-09623-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	9-81235-046-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15649-005-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15629-045-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97084-987-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	1-15643-003-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15643-010-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15619-103-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15649-001-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	9-81245-018-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15619-406-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15641-021-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15641-031-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15631-043-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15631-139-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15632-030-0	06	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-09623-013-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15629-058-0	01	1	-
36	POINTER; TIMING,INJ PUMP (B) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15619-188-0	01	1	-
36	POINTER; TIMING,INJ PUMP (A) ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15619-304-0	01	1	-
36	POINTER; TIMING,INJ PUMP (A) ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15619-402-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81225-071-0	01	1	-
45	BOLT; FRT COVER TO HSG M6X14 W/LK WASHER ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-01900-614-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15629-034-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-09623-053-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15629-059-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	1-15629-004-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15629-024-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15621-059-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15621-080-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15621-109-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	9-81225-058-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	9-81231-523-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	1-15639-022-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	9-81235-015-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	1-15634-007-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	8-94387-977-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-125-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15639-023-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	9-81235-021-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15622-006-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15622-011-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15622-009-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	1-15629-018-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15619-041-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-123-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15622-006-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	9-81215-185-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15619-162-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15629-001-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-122-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15622-003-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15629-010-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-121-0	06	1	-
73	GASKET; COVER TO HSG ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-960-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15612-050-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15619-003-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15619-237-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15619-264-0	03	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15629-014-0	01	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15619-073-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	1-15619-160-0	06	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15619-136-0	06	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15619-091-0	01	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP L=96 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-066-0	02	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15719-093-0	02	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-002-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-003-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NTN ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	5-09800-038-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	9-00090-677-0	01	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.30 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-007-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=1.00 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-008-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.70 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-105-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=2.40 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	1-15639-088-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.70 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	5-15619-039-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.10 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	5-15629-015-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.12 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	5-15629-016-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.14 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	5-15629-017-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.16 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	5-15629-018-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.18 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	5-15629-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.50 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	5-15629-020-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=1.00 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	5-15629-038-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=1.40 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	5-15629-090-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.30 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	9-81225-033-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.10 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	9-81225-049-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.12 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	9-81225-050-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.14 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	9-81225-051-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.16 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	9-81225-052-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.18 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	9-81225-053-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.50 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	9-81225-054-0	AR	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15637-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP NSK ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15629-002-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP TOYO ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15629-003-0	01	1	-
117	GASKET; EYE BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-09630-085-0	02	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15759-011-0	01	1	-
126	ADAPTER; EYE BOLT,PUMP HSG ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15619-262-0	01	1	-
126	ADAPTER; EYE BOLT,PUMP HSG ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81235-017-0	01	1	-
127	ADAPTER; FUEL PIPE ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	1-15619-190-0	01	1	-
127	ADAPTER; FUEL PIPE ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	1-15629-057-0	01	1	-
141	BOLT; POINTER ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15729-758-0	02	1	-
148	GASKET; COVER FIX BOLT ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81215-144-0	02	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-004-0	01	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15629-023-0	01	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	9-81225-059-0	01	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-017-0	06	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0	1-15629-017-0	02	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	9-88410-066-0	02	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	9-81225-043-0	02	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	9-81225-043-0	06	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	1-15629-007-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	1-15629-008-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-105-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15629-025-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15629-026-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15629-027-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15629-028-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15629-029-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15629-030-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15629-031-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: E = 8-94395-813-1, F = 8-94395-901-1	5-15629-032-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	9-81225-049-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	9-81225-050-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	9-81225-051-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	9-81225-052-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	9-81225-053-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, G = 8-97600-180-0	9-81225-054-0	AR	1	-
167	BOLT; CONT RACK,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15639-003-0	01	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15649-034-0	03	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, E = 8-94395-813-1, F = 8-94395-901-1	5-15625-001-0	03	1	-
177	PINION; CONT SLEEVE,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81225-057-0	06	1	-
178	SCREW; PINION,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81235-003-0	06	1	-
181	SHIM; TAPPET,INJ PUMP T=0.60 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-001-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.70 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-002-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.80 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-003-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.90 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-004-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.00 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-005-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.10 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-007-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.20 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-008-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.30 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-009-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.40 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-010-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.55 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-011-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.65 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-012-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.75 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-013-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.85 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-015-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.20 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-025-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.25 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-026-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.35 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-027-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.30 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-034-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.40 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-035-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.50 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-036-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.45 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-037-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.50 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.60 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.35 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.45 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.55 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	5-15619-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.95 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81235-042-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.05 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81235-043-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.15 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81235-044-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.25 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-036-0, D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	9-81235-045-0	AR	1	-
186	SHIM; POINTER T=0.20 ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15639-093-0	AR	1	-
186	SHIM; POINTER T=0.30 ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15639-094-0	AR	1	-
186	SHIM; POINTER T=0.50 ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15639-095-0	AR	1	-
186	SHIM; POINTER T=1.00 ASM PART: D = 8-94390-081-1, E = 8-94395-813-1, F = 8-94395-901-1, G = 8-97600-180-0	1-15639-096-0	AR	1	-
219	RING; SNAP,ROLLER ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-124-0	06	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
