1 |
CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=450
|
9-82932-417-1 |
01 |
1 |
9601-9803 |
● |
● |
| |
1 |
CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=450
|
1-82650-281-2 |
01 |
1 |
9804-0308 |
● |
● |
| |
1 |
CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=450
|
1-82650-281-2 |
01 |
1 |
0309-0711 |
|
● |
| |
1 |
CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=500
|
8-97623-077-0 |
01 |
1 |
0712- |
|
● |
| |
1 |
CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=180
|
1-82650-265-0 |
01 |
1 |
9601-0308 |
● |
● |
| |
1 |
CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=180
|
1-82650-265-0 |
01 |
1 |
0309-0712 |
|
● |
| |
1 |
CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=280
|
8-97230-719-2 |
01 |
1 |
0801- |
|
● |
| |
2 |
CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=380
|
9-82932-713-3 |
01 |
1 |
9601-0308 |
● |
● |
| |
2 |
CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=380
|
9-82932-713-3 |
01 |
1 |
0309-0508 |
|
● |
| |
2 |
CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=380
|
8-97604-629-1 |
01 |
1 |
0509- |
|
● |
| |
2 |
CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=185
|
1-82650-067-3 |
01 |
1 |
9601-0308 |
● |
● |
| |
2 |
CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=185
|
1-82650-067-3 |
01 |
1 |
0309-0711 |
|
● |
| |
2 |
CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=185
|
8-97623-075-0 |
01 |
1 |
0712- |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
6HH1 STD ENG(65L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=2300
|
1-82650-212-1 |
01 |
1 |
9601-9601 |
● |
● |
| |
8 |
CABLE; BATTERY,STARTER
6HH1 STD ENG(65L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=2300
|
1-82650-212-1 |
01 |
1 |
9601-0308 |
● |
● |
| |
8 |
CABLE; BATTERY,STARTER
6HH1 STD ENG(65L)
WHEEL BASE 3900MM(39W)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=2300
|
1-82650-212-1 |
01 |
1 |
9601-0308 |
● |
|
| |
8 |
CABLE; BATTERY,STARTER
6HH1 STD ENG(65L)
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=2300
|
1-82650-212-1 |
01 |
1 |
9601-0308 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
6HH1 STD ENG(65L)
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=2300
|
1-82650-212-1 |
01 |
1 |
0309-0706 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
6HH1 STD ENG(65L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=2300
|
1-82650-212-1 |
01 |
1 |
0309-0706 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
6HH1 STD ENG(65L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=2300
|
1-82650-212-1 |
01 |
1 |
0707- |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
6HH1 STD ENG(65L)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=2250
|
1-82650-261-1 |
01 |
1 |
9601-9601 |
● |
● |
| |
8 |
CABLE; BATTERY,STARTER
6SD1 STD ENG(37L)
MAL6S M/T(Y1V)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=2250
|
1-82650-261-1 |
01 |
1 |
9601-9601 |
● |
● |
| |
8 |
CABLE; BATTERY,STARTER
6SD1 STD ENG(37L)
MAL6S M/T(Y1V)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=2250
|
1-82650-261-1 |
01 |
1 |
9601-0308 |
● |
● |
| |
8 |
CABLE; BATTERY,STARTER
6HH1 STD ENG(65L)
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=2250
|
1-82650-261-1 |
01 |
1 |
9601-0308 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
6SD1 STD ENG(37L)
MAL6S M/T(Y1V)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=1700
|
1-82650-209-1 |
01 |
1 |
9601-9605 |
● |
● |
| |
8 |
CABLE; BATTERY,STARTER
6SD1 STD ENG(37L)
MAL6S M/T(Y1V)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=1600
|
1-82650-298-0 |
01 |
1 |
9606-0308 |
● |
● |
| |
8 |
CABLE; BATTERY,STARTER
6HH1 STD ENG(65L)
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=2350
|
1-82650-342-0 |
01 |
1 |
0707- |
|
● |
| |
9 |
CLIP; BATTERY CABLE
6HH1 STD ENG(65L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9601-0308 |
● |
● |
| |
9 |
CLIP; BATTERY CABLE
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
0309- |
|
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
M10X30 W/LK&PL WASHER
|
8-97087-206-0 |
01 |
1 |
9601-9903 |
● |
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER
|
8-97087-205-0 |
01 |
1 |
9904-0308 |
● |
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER
|
8-97087-205-0 |
01 |
1 |
0309- |
|
● |
| |
11 |
WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22
|
9-09160-610-0 |
01 |
1 |
9601-9903 |
● |
● |
| |
11 |
WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0
|
1-09503-265-0 |
01 |
1 |
9904-0308 |
● |
● |
| |
11 |
WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0
|
1-09503-265-0 |
01 |
1 |
0309- |
|
● |
| |
13 |
GROMMET; BATTERY CABLE
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
9601-0308 |
● |
● |
| |
13 |
GROMMET; BATTERY CABLE
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
0309- |
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
6HH1 STD ENG(65L)
(B)
L=145
|
1-47475-655-0 |
01 |
1 |
9601-0004 |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
6HH1 STD ENG(65L)
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
(B)
L=145
|
1-47475-655-0 |
01 |
1 |
9601-0004 |
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
6HH1 STD ENG(65L)
(B)
L=145
|
1-47475-655-0 |
01 |
1 |
0005-0308 |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
6HH1 STD ENG(65L)
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
(B)
L=145
|
1-47475-655-0 |
01 |
1 |
0005-0308 |
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(B)
L=145
|
1-47475-655-0 |
01 |
1 |
0309- |
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
6HH1 STD ENG(65L)
(A)
L=95
|
1-82699-085-0 |
03 |
1 |
9601-0308 |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(A)
L=95
|
1-82699-085-0 |
03 |
1 |
0309- |
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
6HH1 STD ENG(65L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
(A)
L=95
|
1-82699-085-0 |
01 |
1 |
9601-0308 |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
6SD1 STD ENG(37L)
(A)
L=95
|
1-82699-085-0 |
01 |
1 |
9601-0308 |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
6HH1 STD ENG(65L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
(A)
L=95
|
1-82699-085-0 |
01 |
1 |
0309- |
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
6SD1 STD ENG(37L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
(C)
L=55
|
1-47475-304-0 |
01 |
1 |
9601-0004 |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
6HH1 STD ENG(65L)
WHEEL BASE 3900MM(39W)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
(C)
L=55
|
1-47475-304-0 |
01 |
1 |
9601-0004 |
● |
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
6HH1 STD ENG(65L)
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
(C)
L=55
|
1-47475-304-0 |
01 |
1 |
9601-0004 |
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
6SD1 STD ENG(37L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
(C)
L=55
|
1-47475-304-0 |
01 |
1 |
0005-0308 |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
6HH1 STD ENG(65L)
WHEEL BASE 3900MM(39W)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
(C)
L=55
|
1-47475-304-0 |
01 |
1 |
0005-0308 |
● |
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
6HH1 STD ENG(65L)
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
(C)
L=55
|
1-47475-304-0 |
01 |
1 |
0005-0308 |
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
6HH1 STD ENG(65L)
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
(C)
L=55
|
1-47475-304-0 |
01 |
1 |
0309- |
|
● |
| |
24 |
BOLT; BRKT TO FRAME
6HH1 STD ENG(65L)
M8X30 FLANGE
|
0-28080-830-0 |
05 |
1 |
9601-9606 |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
6HH1 STD ENG(65L)
M8X35 FLANGE
|
0-28680-835-0 |
05 |
1 |
9607-0308 |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
M8X35 FLANGE
|
0-28680-835-0 |
05 |
1 |
0309-0512 |
|
● |
| |
24 |
BOLT; BRKT TO FRAME
M8X35 FLANGE
|
0-28650-835-0 |
05 |
1 |
0601- |
|
● |
| |
24 |
BOLT; BRKT TO FRAME
6SD1 STD ENG(37L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8X30 FLANGE
|
0-28080-830-0 |
01 |
1 |
9601-9606 |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
6SD1 STD ENG(37L)
M8X30 FLANGE
|
0-28080-830-0 |
01 |
1 |
9601-9606 |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
6SD1 STD ENG(37L)
M8X35 FLANGE
|
0-28680-835-0 |
01 |
1 |
9607-0308 |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
6SD1 STD ENG(37L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8X35 FLANGE
|
0-28680-835-0 |
01 |
1 |
9607-0308 |
● |
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
6HH1 STD ENG(65L)
WHEEL BASE 3900MM(39W)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
ID=15 L=22 H=30
|
1-09701-215-1 |
01 |
1 |
9601-0004 |
● |
|
| |
25 |
CLIP; BATTERY CABLE TO BRKT
6HH1 STD ENG(65L)
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
ID=15 L=22 H=30
|
1-09701-215-1 |
01 |
1 |
9601-0004 |
|
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
6HH1 STD ENG(65L)
WHEEL BASE 3900MM(39W)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
ID=15 L=22 H=30
|
1-09701-215-1 |
01 |
1 |
0005-0308 |
● |
|
| |
25 |
CLIP; BATTERY CABLE TO BRKT
6HH1 STD ENG(65L)
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
ID=15 L=22 H=30
|
1-09701-215-1 |
01 |
1 |
0005-0308 |
|
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
6HH1 STD ENG(65L)
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
ID=15 L=22 H=30
|
1-09701-215-1 |
01 |
1 |
0309- |
|
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
6HH1 STD ENG(65L)
ID=15 L=28
|
1-09701-216-0 |
04 |
1 |
9601-0308 |
● |
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
ID=15 L=28
|
1-09701-216-0 |
04 |
1 |
0309- |
|
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
9601-0004 |
● |
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
6SD1 STD ENG(37L)
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
9601-0004 |
● |
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
9601-0004 |
● |
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
6HH1 STD ENG(65L)
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)

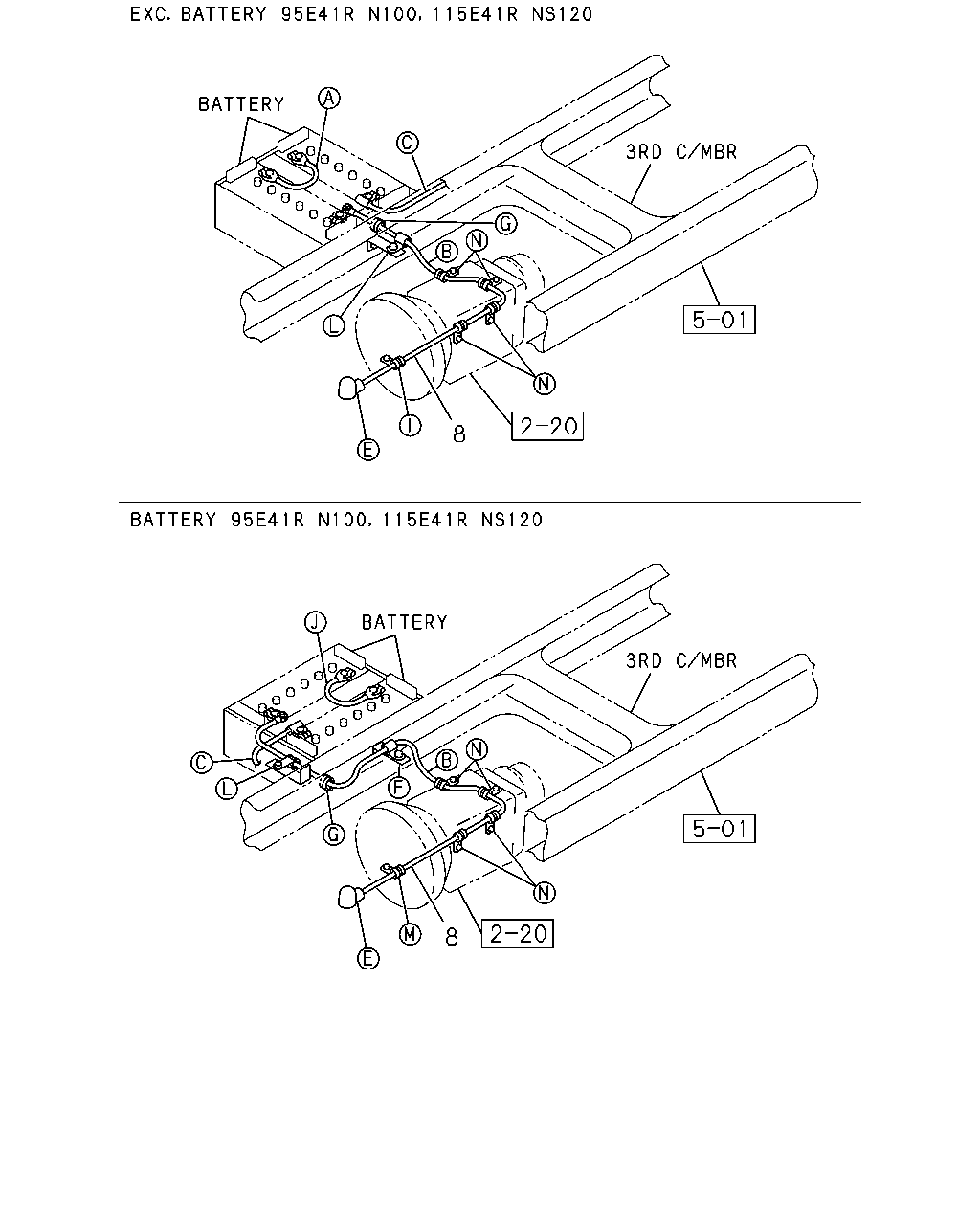

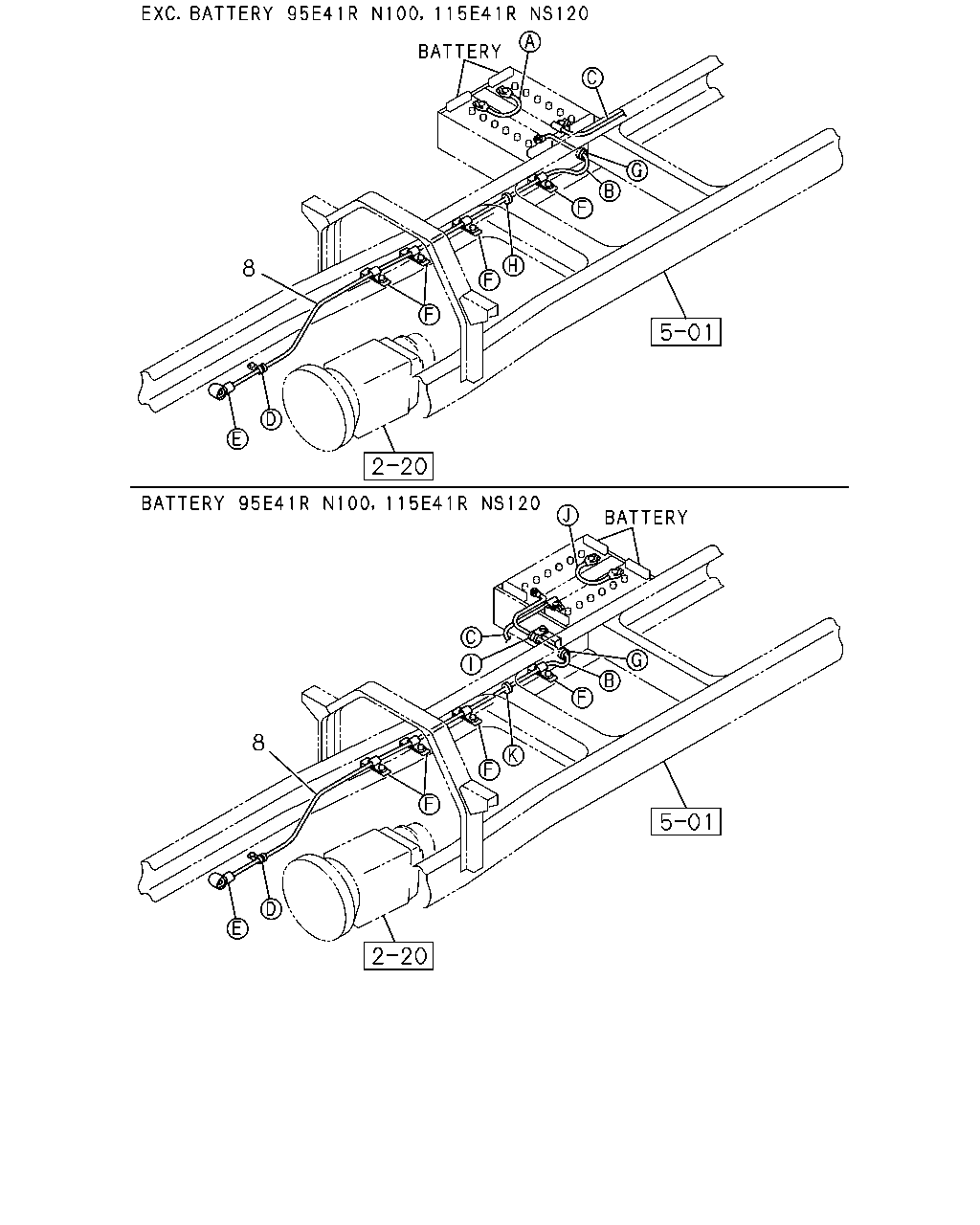

EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
9601-0004 |
|
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
6SD1 STD ENG(37L)
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
0005-0308 |
● |
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
0005-0308 |
● |
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
0005-0308 |
● |
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
6HH1 STD ENG(65L)
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
0005-0308 |
|
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
6HH1 STD ENG(65L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
0309-0507 |
|
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
0309-0507 |
|
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
6HH1 STD ENG(65L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
0508- |
|
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
6HH1 STD ENG(65L)
M8X25 FLANGE
|
0-28080-825-0 |
05 |
1 |
9601-9606 |
● |
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
6HH1 STD ENG(65L)
M8X20 FLANGE
|
0-28680-820-0 |
05 |
1 |
9607-9801 |
● |
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
6HH1 STD ENG(65L)
M8X25 FLANGE
|
0-28680-825-0 |
05 |
1 |
9802-0308 |
● |
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE
|
0-28680-825-0 |
05 |
1 |
0309-0512 |
|
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE
|
0-28650-825-0 |
05 |
1 |
0601- |
|
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
6SD1 STD ENG(37L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
9601-9606 |
● |
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
6SD1 STD ENG(37L)
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
9601-9606 |
● |
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
6SD1 STD ENG(37L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9607-9801 |
● |
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
6SD1 STD ENG(37L)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9607-9801 |
● |
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
6SD1 STD ENG(37L)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9802-0308 |
● |
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
6SD1 STD ENG(37L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9802-0308 |
● |
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
6HH1 STD ENG(65L)
M8
|
9-09110-408-0 |
05 |
1 |
9601-9606 |
● |
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
6HH1 STD ENG(65L)
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
9607-0308 |
● |
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
0309-0602 |
|
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE
|
0-91180-108-0 |
05 |
1 |
0603- |
|
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
6SD1 STD ENG(37L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8
|
9-09110-408-0 |
01 |
1 |
9601-9606 |
● |
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
6SD1 STD ENG(37L)
M8
|
9-09110-408-0 |
01 |
1 |
9601-9606 |
● |
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
6SD1 STD ENG(37L)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-0308 |
● |
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
6SD1 STD ENG(37L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-0308 |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
6HH1 STD ENG(65L)
M8
|
9-09110-408-0 |
05 |
1 |
9601-9606 |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
6HH1 STD ENG(65L)
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
9607-0308 |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
0309-0602 |
|
● |
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91180-108-0 |
05 |
1 |
0603- |
|
● |
| |
28 |
NUT; BRKT TO FRAME
6SD1 STD ENG(37L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8
|
9-09110-408-0 |
01 |
1 |
9601-9606 |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
6SD1 STD ENG(37L)
M8
|
9-09110-408-0 |
01 |
1 |
9601-9606 |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
6SD1 STD ENG(37L)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-0308 |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
6SD1 STD ENG(37L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-0308 |
● |
● |
| |
33 |
CAP; INSULATOR
|
1-82699-431-0 |
01 |
1 |
9601-0308 |
● |
● |
| |
33 |
CAP; INSULATOR
|
1-82699-431-0 |
01 |
1 |
0309- |
|
● |
| |
71 |
BOLT; BATTERY CABLE
6HH1 STD ENG(65L)
M10X20 FLANGE
|
0-28081-020-0 |
01 |
1 |
9601-0308 |
● |
● |
| |
71 |
BOLT; BATTERY CABLE
M10X20 FLANGE
|
0-28081-020-0 |
01 |
1 |
0309-0512 |
|
● |
| |
71 |
BOLT; BATTERY CABLE
M10X20 FLANGE
|
0-28051-020-0 |
01 |
1 |
0601- |
|
● |
| |
79 |
CLIP; BATTERY CABLE
(A)
ID=16 L=28
|
1-09700-872-0 |
01 |
1 |
9601-0308 |
● |
● |
| |
79 |
CLIP; BATTERY CABLE
(A)
ID=16 L=28
|
1-09700-872-0 |
01 |
1 |
0309- |
|
● |
| |
79 |
CLIP; BATTERY CABLE
MAL6S M/T(Y1V)
(B)
ID=15 L=28
|
1-09701-216-0 |
04 |
1 |
9601-9605 |
● |
● |
| |
79 |
CLIP; BATTERY CABLE
MAL6S M/T(Y1V)
(B)
ID=15 L=28
|
1-09701-216-0 |
03 |
1 |
9606-0308 |
● |
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
(A)
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9601-0308 |
● |
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
(A)
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
0309-0512 |
|
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
(A)
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0601- |
|
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
MAL6S M/T(Y1V)
(B)
M8X20 FLANGE
|
0-28080-820-0 |
04 |
1 |
9601-9605 |
● |
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
MAL6S M/T(Y1V)
(B)
M8X20 FLANGE
|
0-28080-820-0 |
03 |
1 |
9606-9608 |
● |
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
MAL6S M/T(Y1V)
(B)
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
9607-0004 |
● |
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
MAL6S M/T(Y1V)
(B)
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
0005-0308 |
● |
● |
| |
112 |
TERMINAL; BATTERY
<+>
|
1-82695-003-0 |
01 |
1 |
9601-0308 |
● |
● |
| |
112 |
TERMINAL; BATTERY
<+>
|
1-82695-003-0 |
01 |
1 |
0309-0403 |
|
● |
| |
112 |
TERMINAL; BATTERY
<+>
|
1-82695-175-0 |
01 |
1 |
0404- |
|
● |
| |
114 |
NUT; CABLE,BATTERY TERMINAL
M10
|
9-09110-510-0 |
01 |
1 |
9601-0308 |
● |
● |
| |
114 |
NUT; CABLE,BATTERY TERMINAL
M10
|
9-09110-510-0 |
01 |
1 |
0309-0512 |
|
● |
| |
114 |
NUT; CABLE,BATTERY TERMINAL
M10
|
0-91110-510-0 |
01 |
1 |
0601- |
|
● |
| |
115 |
WASHER; LK,CABLE,BATTERY
ID=10.2
|
9-09150-510-0 |
01 |
1 |
9601-0308 |
● |
● |
| |
115 |
WASHER; LK,CABLE,BATTERY
ID=10.2
|
9-09150-510-0 |
01 |
1 |
0309-0603 |
|
● |
| |
115 |
WASHER; LK,CABLE,BATTERY
ID=10.2
|
0-91510-510-0 |
01 |
1 |
0604- |
|
● |
