0-60 — ENGINE ELECTRICAL CONTROL PARTS (#22792) — 147 parça

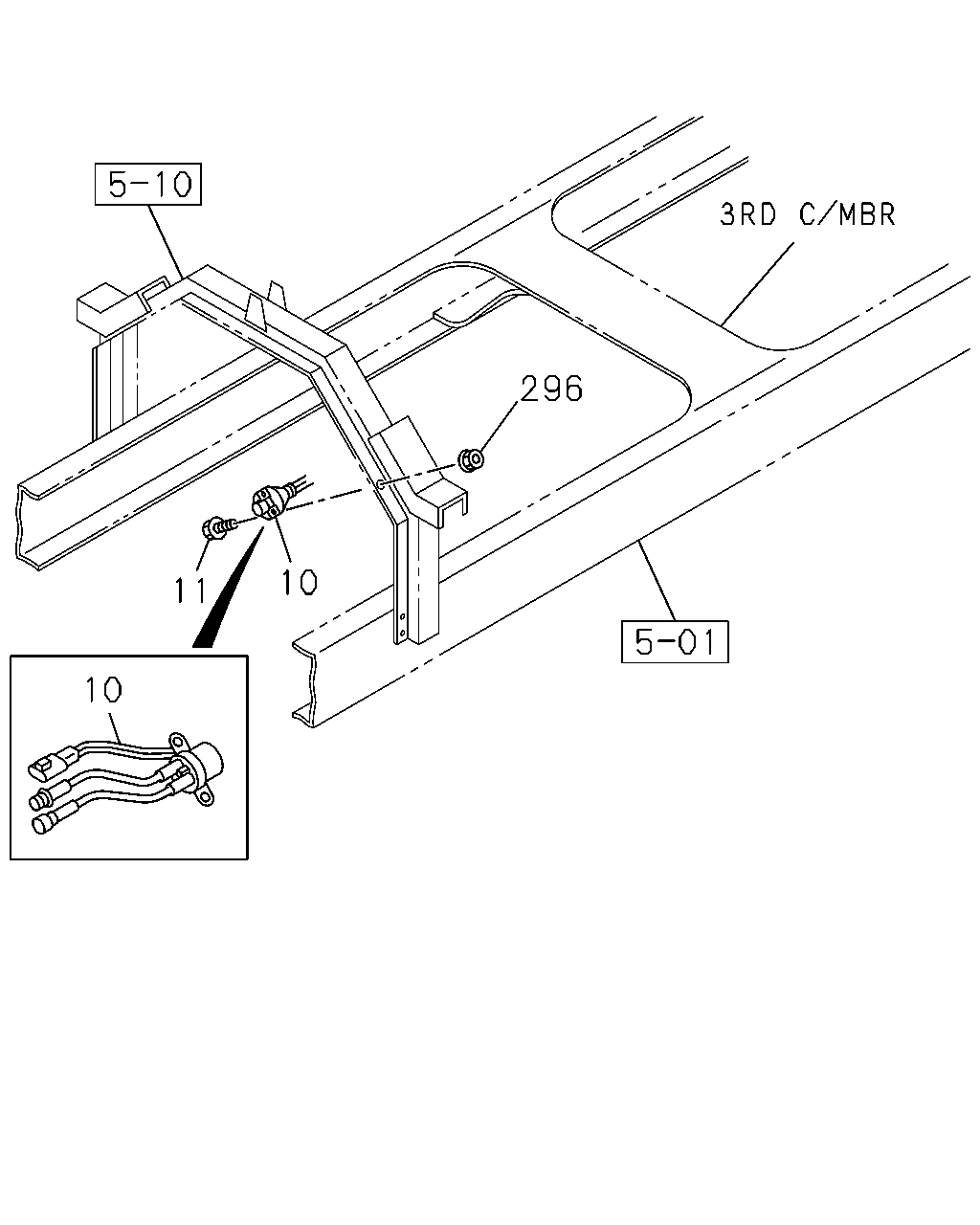

296 10 11 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER STARTER DENSO(RC6) DENSO	1-81171-070-0	01	1	9601-0308	●	●
10	RELAY; STARTER EXC. STARTER DENSO(RC6) NIKKO	1-81171-067-0	01	1	9601-9608	●	●
10	RELAY; STARTER EXC. STARTER DENSO(RC6) NIKKO	1-81171-075-0	01	1	9609-0004	●	●
10	RELAY; STARTER EXC. STARTER DENSO(RC6) HITACHI	1-81171-087-0	01	1	0005-0303	●	●
10	RELAY; STARTER EXC. STARTER DENSO(RC6) NIKKO	1-81171-075-1	01	1	0304-0308	●	●
10	RELAY; STARTER NIKKO	1-81171-075-1	01	1	0309-		●
10	RELAY; STARTER EXC. STARTER DENSO(RC6) HITACHI	1-81171-087-0	01	1	9904-9907	●	●
10	RELAY; STARTER EXC. NIKKO<Y70> EXC. STARTER DENSO(RC6) HITACHI	1-81171-087-0	01	1	9908-0004	●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	9607-9801	●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28680-820-0	02	1	9802-0308	●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28680-820-0	02	1	0309-0512		●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
296	NUT; RELAY,STARTER M8	9-09110-408-0	02	1	9601-9606	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9607-0308	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	0309-0602		●
296	NUT; RELAY,STARTER M8 FLANGE	0-91180-108-0	02	1	0603-		●

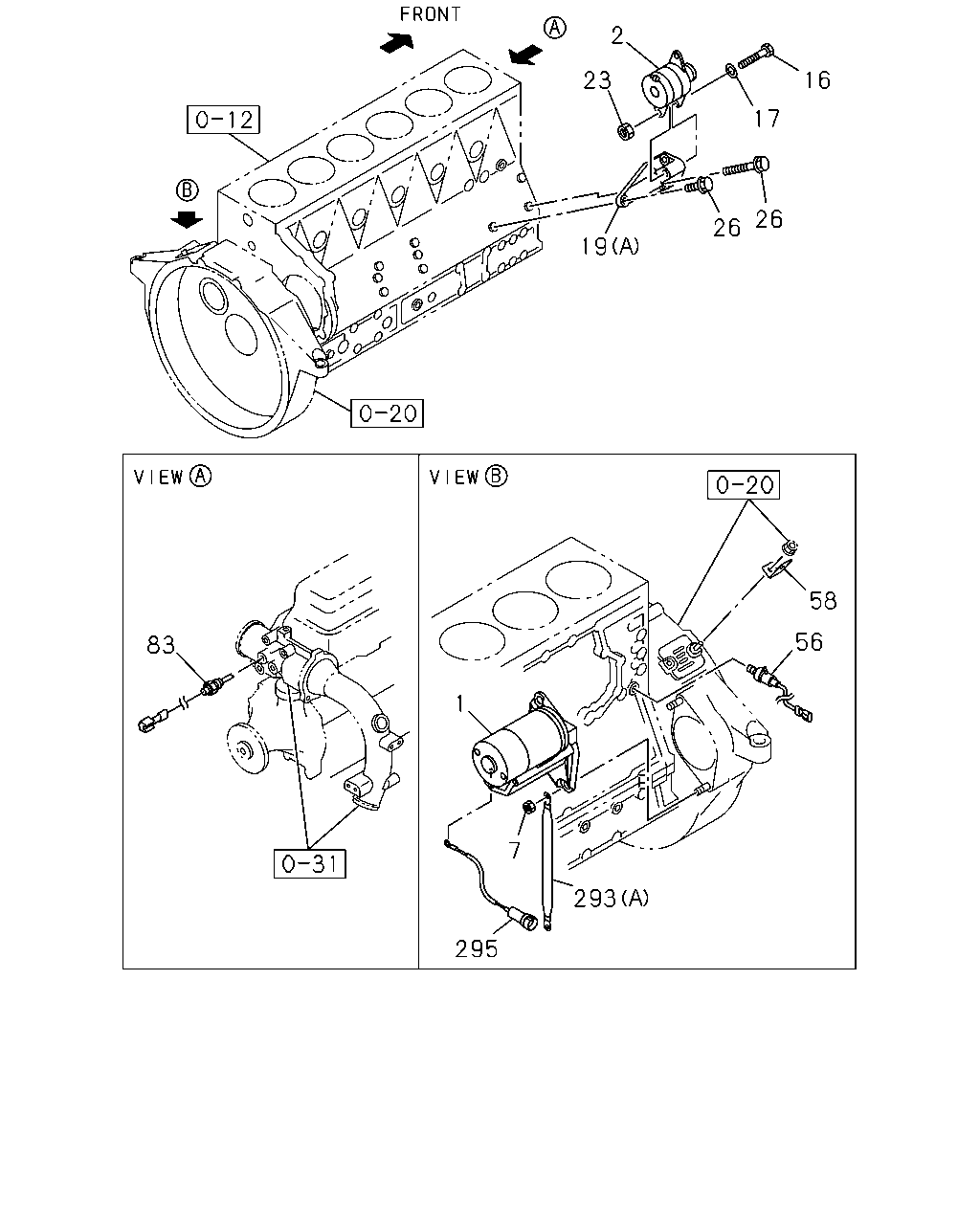

2 23 16 17 26 26 19 58 56 83 1 7 293 295

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HH1 STD ENG(65L) 24V 4.5KW NIKKO	1-81100-308-0	01	1	9601-9708	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HH1 STD ENG(65L) 24V 4.5KW NIKKO	1-81100-324-1	01	1	9709-0308	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO	1-81100-324-1	01	1	0309-		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HH1 STD ENG(65L) 24V 4.5KW DENSO	8-94394-151-2	01	1	9905-9907	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6SD1 STD ENG(37L) 24V 5.5KW DENSO	1-81100-230-2	01	1	9601-0108	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6SD1 STD ENG(37L) 24V 5.5KW DENSO	1-81100-422-0	01	1	0109-0308	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HH1 STD ENG(65L) 24V 40A NIKKO	1-81200-416-4	01	1	9601-0308	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-5	01	1	0309-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HH1 STD ENG(65L) 24V 40A MITSUBISHI	1-81200-521-0	01	1	9904-9905	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HH1 STD ENG(65L) 24V 40A MITSUBISHI	1-81200-577-0	01	1	9906-9907	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6SD1 STD ENG(37L) 24V 40A DENSO	8-94399-157-1	01	1	9601-0308	●	●
7	NUT; STARTER 6HH1 STD ENG(65L) M14	9-99110-414-0	02	1	9601-0308	●	●
7	NUT; STARTER M14	9-99110-414-0	02	1	0309-0512		●
7	NUT; STARTER M14	0-91110-514-0	02	1	0601-		●
7	NUT; STARTER 6SD1 STD ENG(37L) M14 FLANGE	0-91150-114-0	02	1	9601-0308	●	●
16	BOLT; GEN 6HH1 STD ENG(65L) M14X135	1-09000-133-1	01	1	9601-0308	●	●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	0309-		●
16	BOLT; GEN 6SD1 STD ENG(37L) M14X128	9-09801-203-0	01	1	9601-9611	●	●
16	BOLT; GEN 6SD1 STD ENG(37L) M14X123	9-09801-204-1	01	1	9612-0308	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9601-0308	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	0309-0605		●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0606-		●
19	BRACKET; GEN 6HH1 STD ENG(65L) (B)	8-94396-297-0	01	1	9601-0112	●	●
19	BRACKET; GEN 6HH1 STD ENG(65L) (A)	8-97602-318-0	01	1	0201-0308	●	●
19	BRACKET; GEN (A)	8-97602-318-0	01	1	0309-		●
19	BRACKET; GEN 6SD1 STD ENG(37L) (A)	1-19711-038-0	01	1	9601-0308	●	●
23	NUT; GEN 6HH1 STD ENG(65L) M14	9-99110-414-0	01	1	9601-0308	●	●
23	NUT; GEN M14	9-99110-414-0	01	1	0309-0512		●
23	NUT; GEN M14	0-91110-514-0	01	1	0601-		●
23	NUT; GEN 6SD1 STD ENG(37L) M14 FLANGE	0-91150-114-0	01	1	9601-0308	●	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	9601-0308	●	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	0309-0512		●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28151-040-0	01	1	0601-		●
26	BOLT; GEN BRKT 6HH1 STD ENG(65L) M10X80 FLANGE	0-28181-080-0	02	1	9601-0308	●	●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	0309-0512		●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28151-080-0	02	1	0601-		●
26	BOLT; GEN BRKT 6SD1 STD ENG(37L) M10X70 FLANGE	0-28181-070-0	02	1	9601-0308	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	9601-0308	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-1	01	1	0309-		●
58	BRACKET; CLIP 6SD1 STD ENG(37L) L=55	1-47475-304-0	01	1	9601-0308	●	●
83	THERMOMETER UNIT	1-83161-031-1	01	1	9601-0308	●	●
83	THERMOMETER UNIT	1-83161-031-1	01	1	0309-		●
293	CABLE; STARTER EARTH 6HH1 STD ENG(65L) (B) L=350	1-82650-266-0	01	1	9601-9904	●	●
293	CABLE; STARTER EARTH 6HH1 STD ENG(65L) (B) L=350	1-82650-266-0	02	1	9905-9907	●	●
293	CABLE; STARTER EARTH 6HH1 STD ENG(65L) (B) L=350	1-82650-266-0	01	1	9908-0005	●	●
293	CABLE; STARTER EARTH 6HH1 STD ENG(65L) (B) L=320	1-82650-324-0	01	1	0006-0308	●	●
293	CABLE; STARTER EARTH (B) L=320	1-82650-324-0	01	1	0309-		●
293	CABLE; STARTER EARTH 6SD1 STD ENG(37L) (A) L=550	1-82650-239-0	01	1	9601-0308	●	●
295	HARNESS; STARTER 6SD1 STD ENG(37L)	1-82640-527-0	01	1	9601-0308	●	●

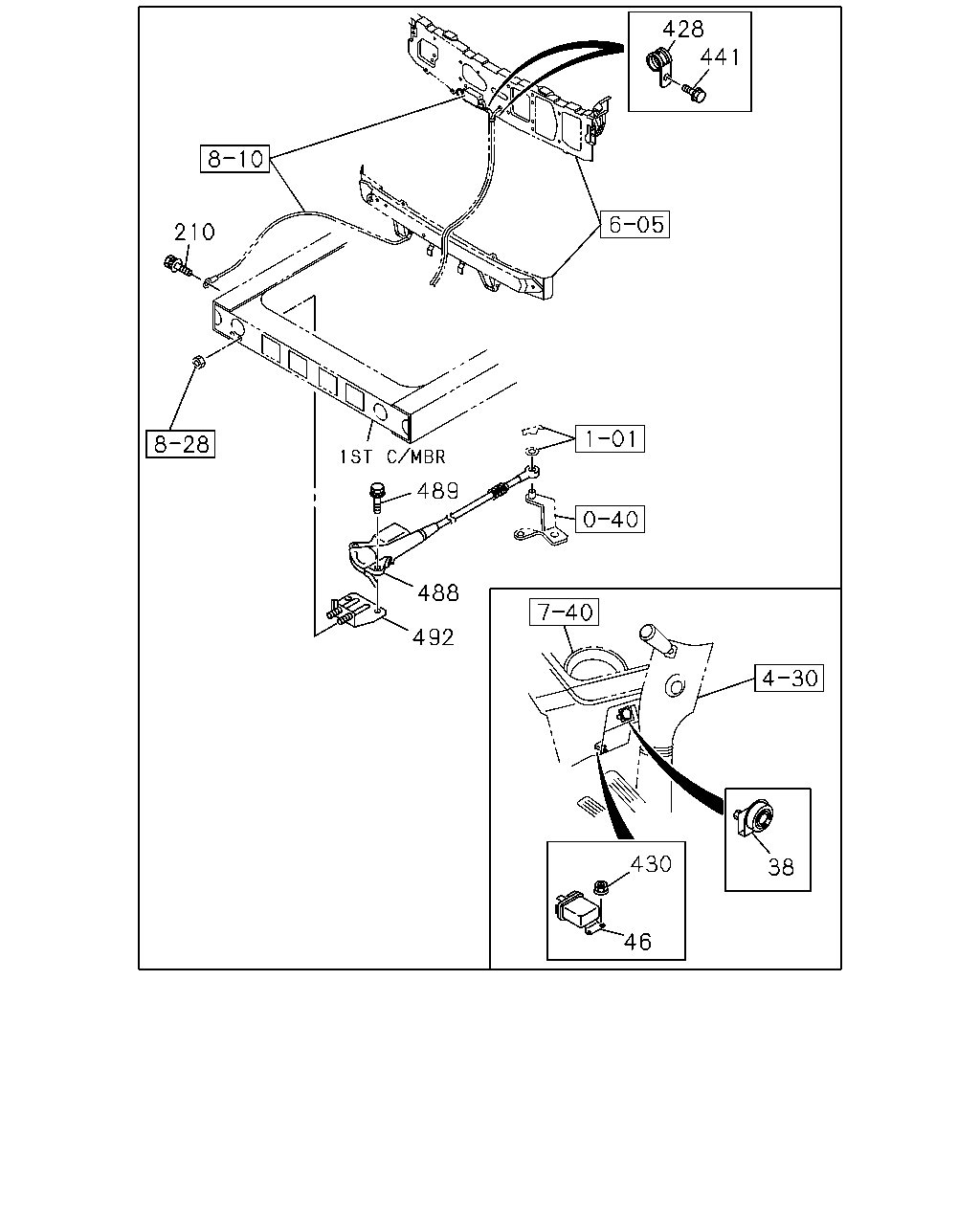

428 441 489 488 492 430 38 46 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	9601-0308	●	●
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	0309-0403		●
38	RESISTOR; CONT,GLOW PLUG 6HH1 STD ENG(65L)	1-81402-008-0	01	1	0404-		●
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	9601-0308	●	●
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	0309-		●
210	BOLT; CABLE FIX M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9601-9903	●	●
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9904-0004	●	●
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0005-0308	●	●
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0309-1201		●
210	BOLT; CABLE FIX M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-		●
428	CLIP; HARNESS ID=35 L=50	1-09701-214-0	02	1	9601-0308	●	●
428	CLIP; HARNESS ID=35 L=50	1-09701-214-0	02	1	0309-		●
430	NUT; RELAY FIX M6 FLANGE	0-91150-106-0	02	1	9601-9601	●	●
430	NUT; RELAY FIX M6 FLANGE	0-91150-106-0	01	1	9602-0308	●	●
430	NUT; RELAY FIX M6 FLANGE	0-91150-106-0	01	1	0309-0602		●
430	NUT; RELAY FIX M6 FLANGE	0-91180-106-0	01	1	0603-		●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-0308	●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	0309-0512		●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
488	STOPPER; ENG 6HH1 STD ENG(65L)	1-82840-128-3	01	1	9601-0308	●	●
488	STOPPER; ENG 6HH1 STD ENG(65L)	1-82840-128-3	01	1	0309-		●
488	STOPPER; ENG 6SD1 STD ENG(37L)	1-82840-142-2	01	1	9601-0308	●	●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9601-0308	●	●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	0309-0403		●
489	BOLT; ENG STOPPER 6HH1 STD ENG(65L) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	0404-0512		●
489	BOLT; ENG STOPPER 6HH1 STD ENG(65L) M8X25 W/LK&PL WASHER	0-50640-825-0	02	1	0601-		●
492	BRACKET; ENG STOPPER	1-82849-089-1	01	1	9601-0308	●	●
492	BRACKET; ENG STOPPER	1-82849-089-1	01	1	0309-0403		●
492	BRACKET; ENG STOPPER 6HH1 STD ENG(65L)	1-82849-089-1	01	1	0404-		●

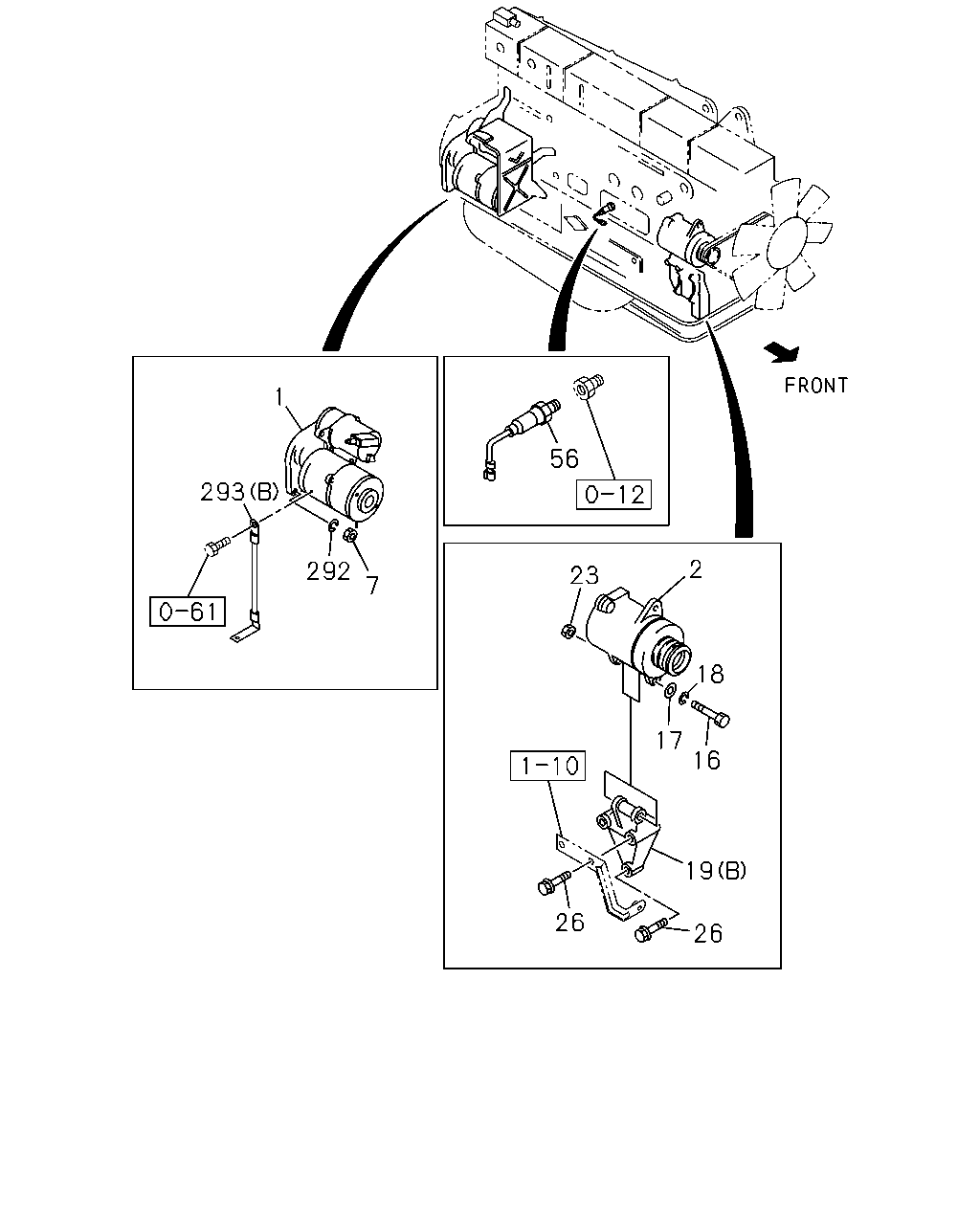

1 56 293 2 292 23 7 18 17 16 19 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HH1 STD ENG(65L) 24V 4.5KW NIKKO	1-81100-308-0	01	1	9601-9708	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HH1 STD ENG(65L) 24V 4.5KW NIKKO	1-81100-324-1	01	1	9709-0308	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO	1-81100-324-1	01	1	0309-		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HH1 STD ENG(65L) 24V 4.5KW DENSO	8-94394-151-2	01	1	9905-9907	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6SD1 STD ENG(37L) 24V 5.5KW DENSO	1-81100-230-2	01	1	9601-0108	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6SD1 STD ENG(37L) 24V 5.5KW DENSO	1-81100-422-0	01	1	0109-0308	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HH1 STD ENG(65L) 24V 40A NIKKO	1-81200-416-4	01	1	9601-0308	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-5	01	1	0309-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HH1 STD ENG(65L) 24V 40A MITSUBISHI	1-81200-521-0	01	1	9904-9905	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HH1 STD ENG(65L) 24V 40A MITSUBISHI	1-81200-577-0	01	1	9906-9907	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6SD1 STD ENG(37L) 24V 40A DENSO	8-94399-157-1	01	1	9601-0308	●	●
7	NUT; STARTER 6HH1 STD ENG(65L) M14	9-99110-414-0	02	1	9601-0308	●	●
7	NUT; STARTER M14	9-99110-414-0	02	1	0309-0512		●
7	NUT; STARTER M14	0-91110-514-0	02	1	0601-		●
7	NUT; STARTER 6SD1 STD ENG(37L) M14 FLANGE	0-91150-114-0	02	1	9601-0308	●	●
16	BOLT; GEN 6HH1 STD ENG(65L) M14X135	1-09000-133-1	01	1	9601-0308	●	●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	0309-		●
16	BOLT; GEN 6SD1 STD ENG(37L) M14X128	9-09801-203-0	01	1	9601-9611	●	●
16	BOLT; GEN 6SD1 STD ENG(37L) M14X123	9-09801-204-1	01	1	9612-0308	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9601-0308	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	0309-0605		●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0606-		●
18	WASHER; LK,GEN 6HH1 STD ENG(65L) ID=14.2	9-09150-514-0	01	1	9601-0308	●	●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	0309-0603		●
18	WASHER; LK,GEN ID=14.2	0-91510-514-0	01	1	0604-		●
19	BRACKET; GEN 6HH1 STD ENG(65L) (B)	8-94396-297-0	01	1	9601-0112	●	●
19	BRACKET; GEN 6HH1 STD ENG(65L) (A)	8-97602-318-0	01	1	0201-0308	●	●
19	BRACKET; GEN (A)	8-97602-318-0	01	1	0309-		●
19	BRACKET; GEN 6SD1 STD ENG(37L) (A)	1-19711-038-0	01	1	9601-0308	●	●
23	NUT; GEN 6HH1 STD ENG(65L) M14	9-99110-414-0	01	1	9601-0308	●	●
23	NUT; GEN M14	9-99110-414-0	01	1	0309-0512		●
23	NUT; GEN M14	0-91110-514-0	01	1	0601-		●
23	NUT; GEN 6SD1 STD ENG(37L) M14 FLANGE	0-91150-114-0	01	1	9601-0308	●	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	9601-0308	●	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	0309-0512		●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28151-040-0	01	1	0601-		●
26	BOLT; GEN BRKT 6HH1 STD ENG(65L) M10X80 FLANGE	0-28181-080-0	02	1	9601-0308	●	●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	0309-0512		●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28151-080-0	02	1	0601-		●
26	BOLT; GEN BRKT 6SD1 STD ENG(37L) M10X70 FLANGE	0-28181-070-0	02	1	9601-0308	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	9601-0308	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-1	01	1	0309-		●
292	WASHER; LK,STARTER 6HH1 STD ENG(65L) ID=14.2	9-09150-514-0	02	1	9601-0308	●	●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	0309-0603		●
292	WASHER; LK,STARTER ID=14.2	0-91510-514-0	02	1	0604-		●
293	CABLE; STARTER EARTH 6HH1 STD ENG(65L) (B) L=350	1-82650-266-0	01	1	9601-9904	●	●
293	CABLE; STARTER EARTH 6HH1 STD ENG(65L) (B) L=350	1-82650-266-0	02	1	9905-9907	●	●
293	CABLE; STARTER EARTH 6HH1 STD ENG(65L) (B) L=350	1-82650-266-0	01	1	9908-0005	●	●
293	CABLE; STARTER EARTH 6HH1 STD ENG(65L) (B) L=320	1-82650-324-0	01	1	0006-0308	●	●
293	CABLE; STARTER EARTH (B) L=320	1-82650-324-0	01	1	0309-		●
293	CABLE; STARTER EARTH 6SD1 STD ENG(37L) (A) L=550	1-82650-239-0	01	1	9601-0308	●	●
