Sayfa 0-12B - Isuzu EPC

0-12B — CYLINDER BLOCK (#2279) — 260 parça

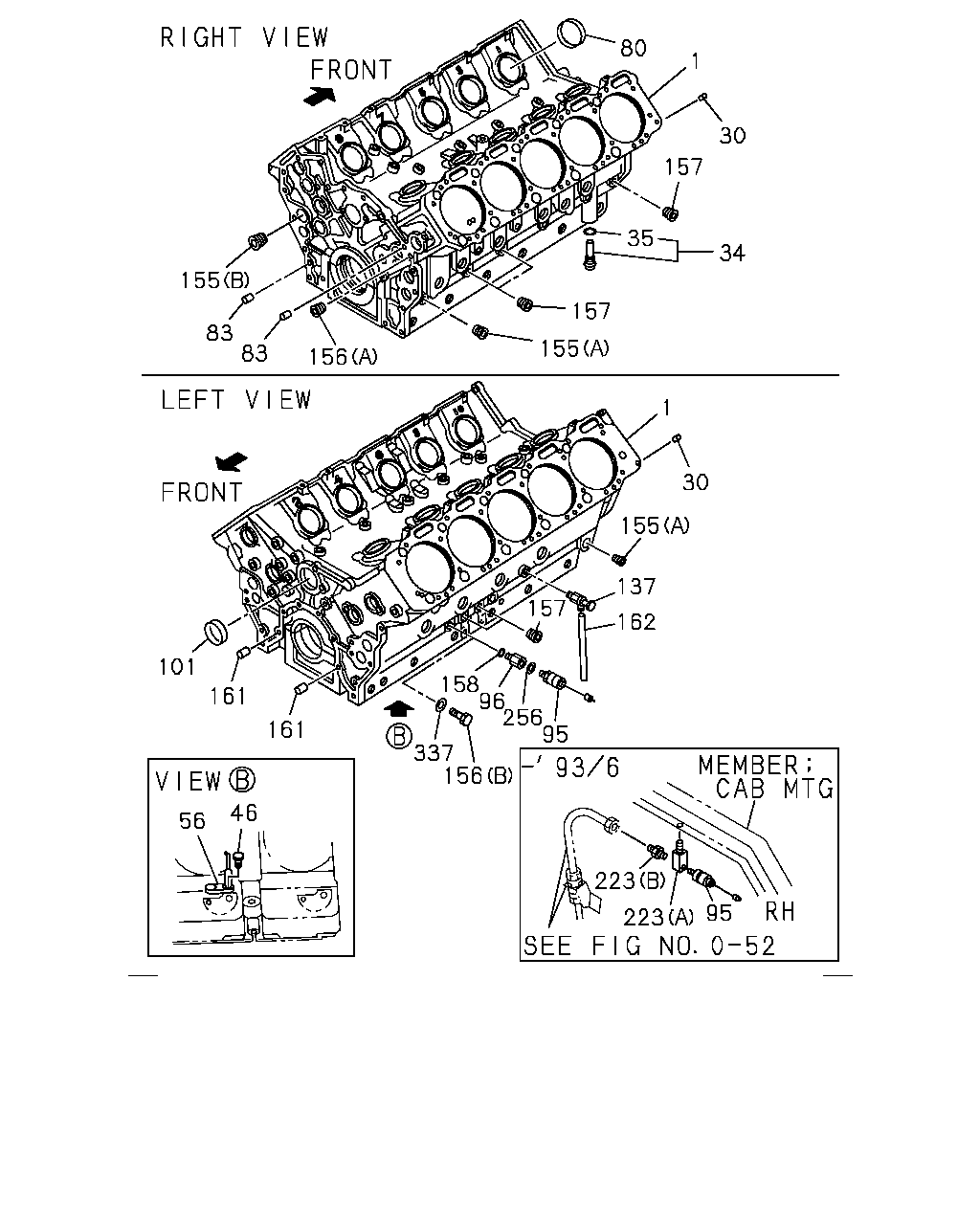

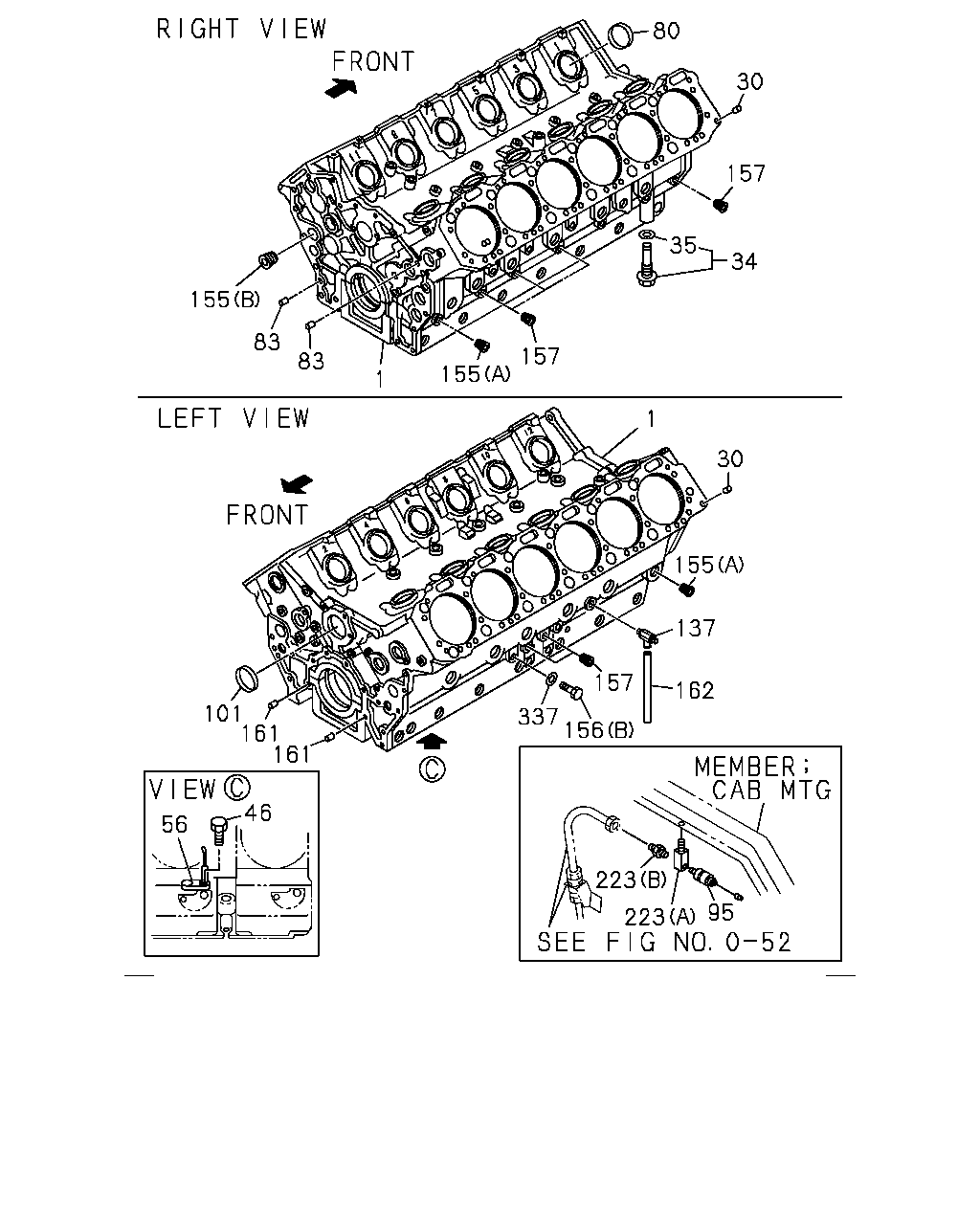

80 1 30 157 35 34 157 155 156 83 83 155 101 161 161 337 158 96 256 95 162 137 157 155 30 1 156 56 46 223 223 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	1-11210-523-4	01	1	9002-9306	●
1	BLOCK ASM; CYL	1-11210-502-4	01	1	9002-		●
1	BLOCK ASM; CYL	1-11210-503-4	01	1	9307-			●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	04	1	9002-	●	●	●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9002-	●	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9002-	●	●	●
46	BOLT; JOINT,OIL JET,PISTON COOLING M14X25	1-13349-033-0	12	1	9002-9306	●
46	BOLT; JOINT,OIL JET,PISTON COOLING M14X25	1-13349-033-0	08	1	9307-			●
46	BOLT; JOINT,OIL JET,PISTON COOLING M14X25	1-13349-033-0	10	1	9002-		●
56	JET; OIL,PISTON COOLING	1-13342-113-0	12	1	9002-9306	●
56	JET; OIL,PISTON COOLING	1-13342-113-0	08	1	9307-			●
56	JET; OIL,PISTON COOLING	1-13342-113-0	10	1	9002-		●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	12	1	9002-9306	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	08	1	9307-			●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	10	1	9002-		●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9002-	●	●	●
95	PRESSURE UNIT; OIL	1-83151-035-0	01	1	9002-9306	●	●
95	PRESSURE UNIT; OIL	1-83151-041-0	01	1	9307-		●	●
96	ADAPTER; PRESS UNIT & SW	1-09669-115-0	01	1	9307-9508		●	●
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9509-		●	●
101	CUP; SEALING CAM END	1-09600-022-0	01	1	9002-	●	●	●
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9002-	●	●	●
155	PLUG; OIL GALLERY END (A) PT3/4	1-09605-020-0	02	1	9002-	●	●	●
155	PLUG; OIL GALLERY END (B) PT1	1-09605-021-0	04	1	9002-	●	●	●
156	PLUG; IDLE GEAR (B) M14X9	9-99202-314-0	01	1	9002-9306	●	●
156	PLUG; IDLE GEAR (A) PT1/4	1-09605-019-0	02	1	9002-		●	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	10	1	9002-9306	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	07	1	9002-		●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	06	1	9307-			●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	01	1	9307-9508		●	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9509-		●	●
161	DOWEL; FRT COVER	9-11229-032-0	02	1	9002-9406	●	●	●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●	●
223	CONNECTOR; OIL PRESSURE (A) M10	1-09664-168-1	01	1	9002-9306	●	●
223	CONNECTOR; OIL PRESSURE (B) M20	9-99220-610-0	01	1	9002-9306	●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9307-		●	●
337	GASKET; PLUG ID=14.2 OD=19.2	1-09630-085-0	01	1	9002-9306	●	●

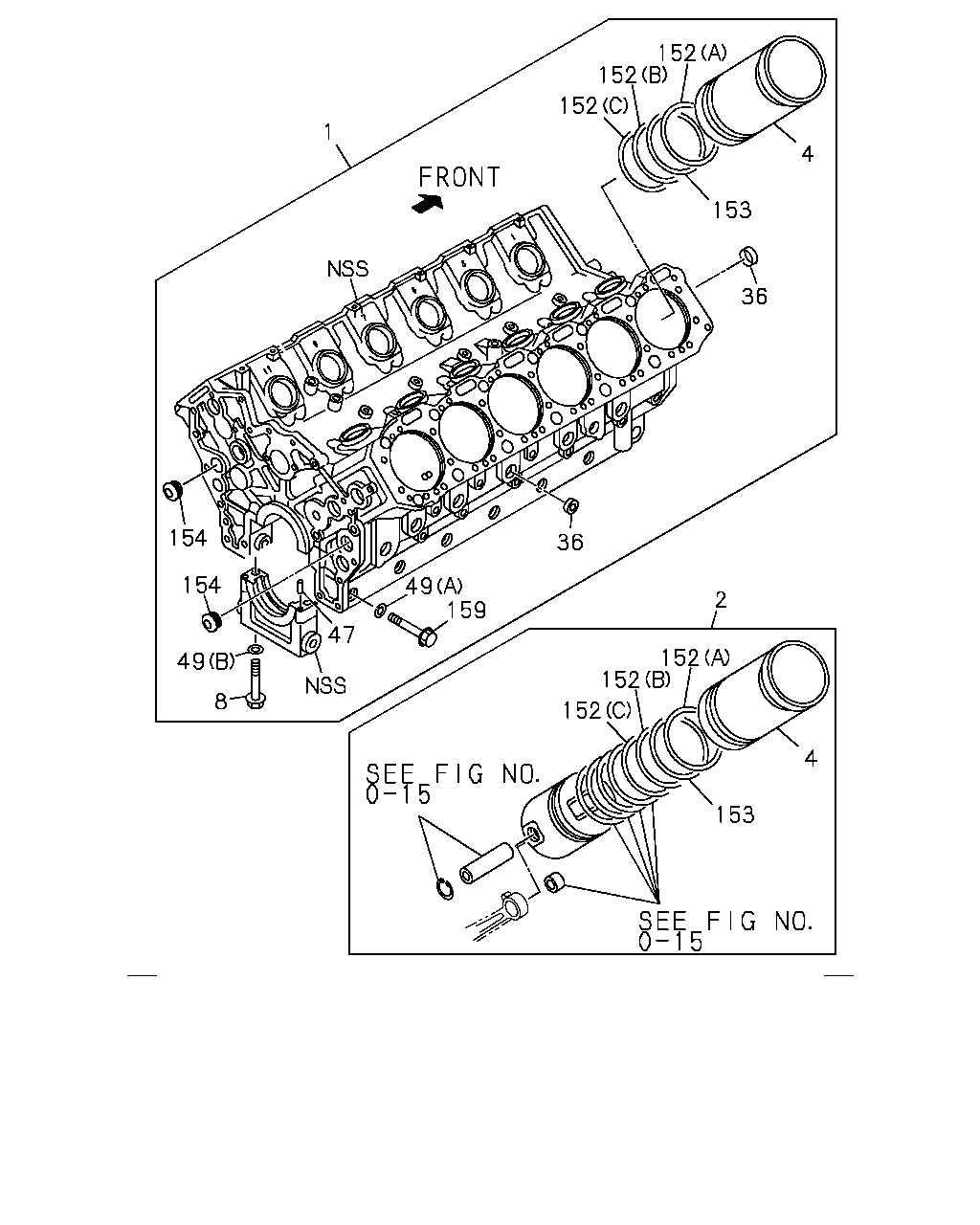

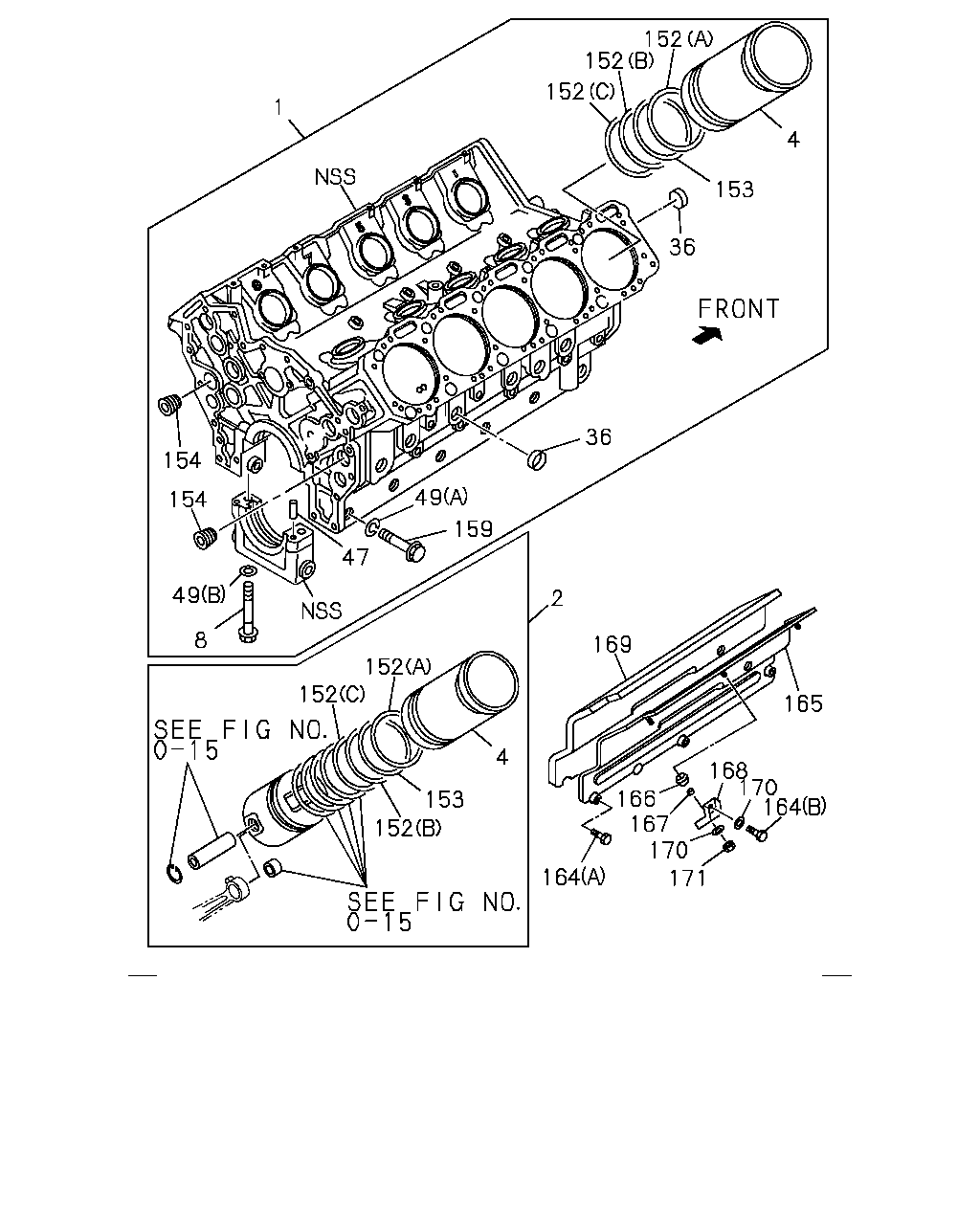

152 153 4 152 152 8 47 49 159 49 154 154 2 169 165 168 170 164 171 170 167 166 36 153 4 152 152 152 1 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	1-11210-523-4	01	1	9002-9306	●
1	BLOCK ASM; CYL	1-11210-502-4	01	1	9002-		●
1	BLOCK ASM; CYL	1-11210-503-4	01	1	9307-			●
2	LINER SET; ENG CYL NON GRADE	1-87811-396-0	12	1	9002-9306	●
2	LINER SET; ENG CYL ANTI NOISE EQUIPMENT<SV9> NON GRADE	1-87811-390-0	10	1	9411-		●
2	LINER SET; ENG CYL TAIWAN EQUIPMENT(WW5) NON GRADE	1-87811-390-0	10	1	9002-9306		●
2	LINER SET; ENG CYL EXC. TAIWAN EQUIPMENT(WW5) NON GRADE	1-87811-396-0	10	1	9002-9306		●
2	LINER SET; ENG CYL NON GRADE	1-87811-396-0	10	1	9307-9410		●
2	LINER SET; ENG CYL EXC. ANTI NOISE EQUIPMENT<SV9> NON GRADE	1-87811-396-0	10	1	9411-		●
2	LINER SET; ENG CYL NON GRADE	1-87811-396-0	08	1	9307-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-282-0	12	1	9002-9306	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-283-0	12	1	9002-9306	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-282-0	10	1	9002-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-283-0	10	1	9002-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-282-0	08	1	9307-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-283-0	08	1	9307-			●
8	BOLT; BRG CAP M16X138	1-09070-040-0	14	1	9002-9306	●
8	BOLT; BRG CAP M16X138	1-09070-040-1	10	1	9307-			●
8	BOLT; BRG CAP M16X138	1-09070-040-1	12	1	9002-		●
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	10	1	9002-9306	●
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	07	1	9307-			●
36	CUP; SEALING,WATER JACKET OD=45	1-09600-005-1	01	1	9002-	●	●	●
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	09	1	9002-		●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9002-	●	●	●
49	WASHER; BRG CAP (A) OD=23.8	1-09503-050-0	14	1	9002-9306	●
49	WASHER; BRG CAP (A) OD=23.8	1-09503-050-0	10	1	9307-			●
49	WASHER; BRG CAP (B) OD=28.0	9-09851-672-2	14	1	9002-9306	●
49	WASHER; BRG CAP (B) OD=28.0	9-09851-672-2	10	1	9307-			●
49	WASHER; BRG CAP (A) OD=23.8	1-09503-050-0	12	1	9002-		●
49	WASHER; BRG CAP (B) OD=28.0	9-09851-672-2	12	1	9002-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-409-0	12	1	9002-9306	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B) ID=132.5 LINE OD=4.3	1-09623-410-0	12	1	9002-9306	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (C) ID=132.5 LINE OD=4.3	1-09623-538-0	12	1	9002-9306	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-409-0	10	1	9002-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B) ID=132.5 LINE OD=4.3	1-09623-410-0	10	1	9002-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (C) ID=132.5 LINE OD=4.3	1-09623-538-0	10	1	9002-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-409-0	08	1	9307-			●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B) ID=132.5 LINE OD=4.3	1-09623-410-0	08	1	9307-			●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (C) ID=132.5 LINE OD=4.3	1-09623-538-0	08	1	9307-			●
153	GASKET; CREVICE,CYL LINER ALSO INCLUDED IN LINER SET.	1-09623-432-0	12	1	9002-9306	●
153	GASKET; CREVICE,CYL LINER ALSO INCLUDED IN LINER SET.	1-09623-432-0	10	1	9002-		●
153	GASKET; CREVICE,CYL LINER ALSO INCLUDED IN LINER SET.	1-09623-432-0	08	1	9307-			●
154	PLUG; WATER DUCT	1-09605-022-0	02	1	9002-	●	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-0	14	1	9002-9306	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	12	1	9002-		●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	10	1	9307-			●
164	BOLT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT<SV9> (A) M10X28 FLANGE	0-28181-028-0	03	1	9411-		●
164	BOLT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT<SV9> (B) M10X16 W/LK WASHER	1-09033-012-0	03	1	9411-		●
164	BOLT; COVER BLOCK SKIRT TAIWAN EQUIPMENT(WW5) (A) M10X28 FLANGE	0-28181-028-0	03	1	9002-9306		●
164	BOLT; COVER BLOCK SKIRT TAIWAN EQUIPMENT(WW5) (B) M10X16 W/LK WASHER	9-01931-016-0	03	1	9002-9004		●
164	BOLT; COVER BLOCK SKIRT TAIWAN EQUIPMENT(WW5) (B) M10X16 W/LK WASHER	1-09033-012-0	03	1	9005-9306		●
165	COVER; C/BL SKIRT ANTI NOISE EQUIPMENT<SV9>	1-19381-226-1	01	1	9411-		●
165	COVER; C/BL SKIRT TAIWAN EQUIPMENT(WW5)	1-19381-226-1	01	1	9002-9306		●
166	MOUNT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT<SV9>	1-09337-020-0	06	1	9411-		●
166	MOUNT; COVER BLOCK SKIRT TAIWAN EQUIPMENT(WW5)	1-09337-020-0	06	1	9002-9306		●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT<SV9>	5-23332-003-0	06	1	9411-		●
167	TUBE; DIST,SIDE COVER TAIWAN EQUIPMENT(WW5)	5-23332-003-0	06	1	9002-9306		●
168	BRACKET; SIDE COVER ANTI NOISE EQUIPMENT<SV9>	1-19386-012-3	03	1	9411-		●
168	BRACKET; SIDE COVER TAIWAN EQUIPMENT(WW5)	1-19386-012-2	03	1	9002-9306		●
169	INSULATOR; SIDE COVER ANTI NOISE EQUIPMENT<SV9>	1-19389-066-3	01	1	9411-		●
169	INSULATOR; SIDE COVER TAIWAN EQUIPMENT(WW5)	1-19389-066-3	01	1	9002-9306		●
170	WASHER; COVER ANTI NOISE EQUIPMENT<SV9> ID=10.5 OD=26	9-09160-710-0	06	1	9411-		●
170	WASHER; COVER TAIWAN EQUIPMENT(WW5) ID=10.5 OD=26	9-09160-710-0	06	1	9002-9306		●
171	NUT; COVER & BRKT ANTI NOISE EQUIPMENT<SV9> M10	9-09110-410-0	03	1	9411-		●
171	NUT; COVER & BRKT TAIWAN EQUIPMENT(WW5) M10	9-09110-410-0	03	1	9002-9306		●

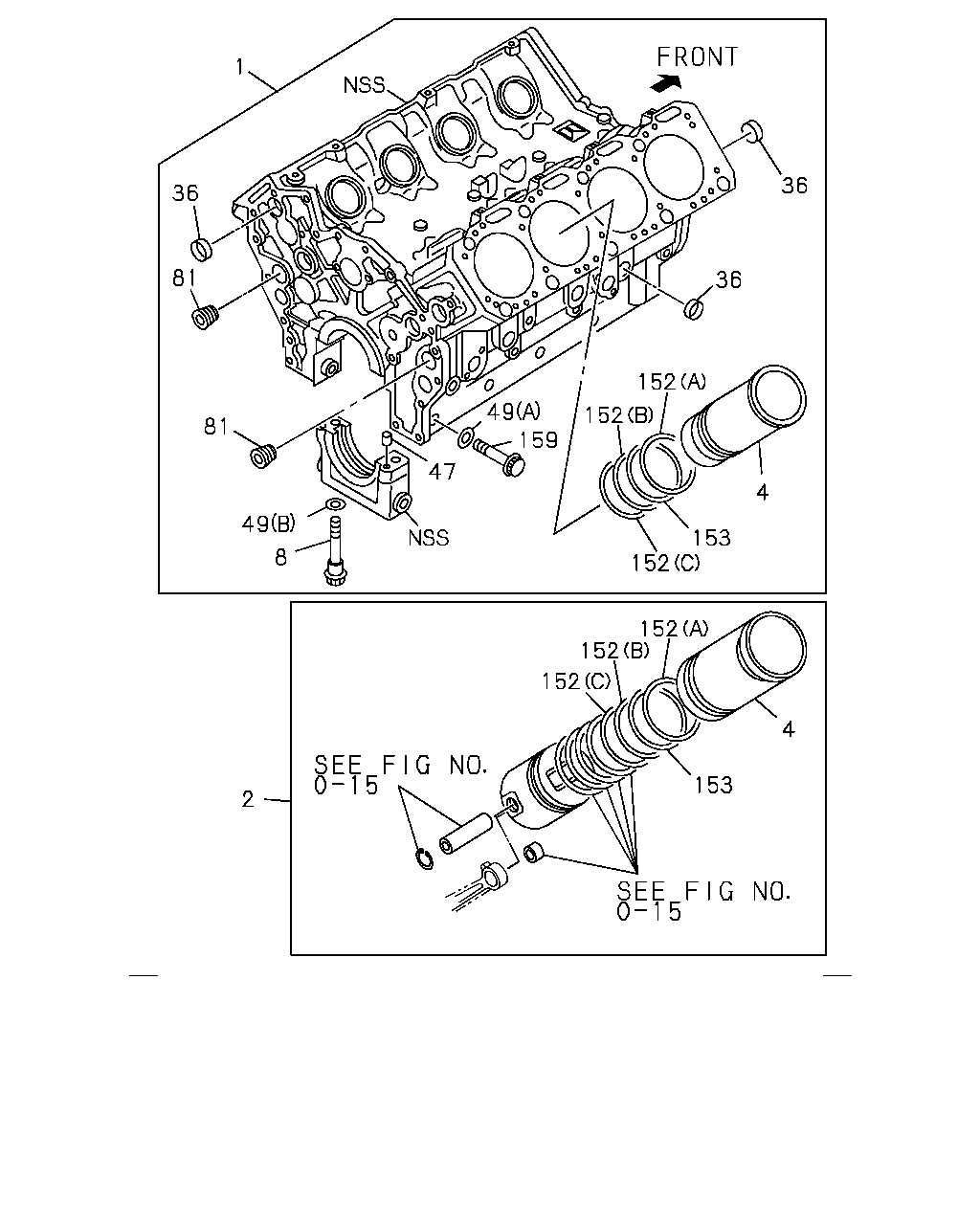

2 153 4 152 152 152 152 153 4 47 8 49 49 159 152 152 36 36 1 36 81 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	1-11210-523-4	01	1	9002-9306	●
1	BLOCK ASM; CYL	1-11210-502-4	01	1	9002-		●
1	BLOCK ASM; CYL	1-11210-503-4	01	1	9307-			●
2	LINER SET; ENG CYL NON GRADE	1-87811-396-0	12	1	9002-9306	●
2	LINER SET; ENG CYL ANTI NOISE EQUIPMENT<SV9> NON GRADE	1-87811-390-0	10	1	9411-		●
2	LINER SET; ENG CYL TAIWAN EQUIPMENT(WW5) NON GRADE	1-87811-390-0	10	1	9002-9306		●
2	LINER SET; ENG CYL EXC. TAIWAN EQUIPMENT(WW5) NON GRADE	1-87811-396-0	10	1	9002-9306		●
2	LINER SET; ENG CYL NON GRADE	1-87811-396-0	10	1	9307-9410		●
2	LINER SET; ENG CYL EXC. ANTI NOISE EQUIPMENT<SV9> NON GRADE	1-87811-396-0	10	1	9411-		●
2	LINER SET; ENG CYL NON GRADE	1-87811-396-0	08	1	9307-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-282-0	12	1	9002-9306	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-283-0	12	1	9002-9306	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-282-0	10	1	9002-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-283-0	10	1	9002-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-282-0	08	1	9307-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-283-0	08	1	9307-			●
8	BOLT; BRG CAP M16X138	1-09070-040-0	14	1	9002-9306	●
8	BOLT; BRG CAP M16X138	1-09070-040-1	10	1	9307-			●
8	BOLT; BRG CAP M16X138	1-09070-040-1	12	1	9002-		●
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	10	1	9002-9306	●
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	07	1	9307-			●
36	CUP; SEALING,WATER JACKET OD=45	1-09600-005-1	01	1	9002-	●	●	●
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	09	1	9002-		●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9002-	●	●	●
49	WASHER; BRG CAP (A) OD=23.8	1-09503-050-0	14	1	9002-9306	●
49	WASHER; BRG CAP (A) OD=23.8	1-09503-050-0	10	1	9307-			●
49	WASHER; BRG CAP (B) OD=28.0	9-09851-672-2	14	1	9002-9306	●
49	WASHER; BRG CAP (B) OD=28.0	9-09851-672-2	10	1	9307-			●
49	WASHER; BRG CAP (A) OD=23.8	1-09503-050-0	12	1	9002-		●
49	WASHER; BRG CAP (B) OD=28.0	9-09851-672-2	12	1	9002-		●
81	PLUG; WATER JACKET	1-09605-022-0	02	1	9307-			●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-409-0	12	1	9002-9306	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B) ID=132.5 LINE OD=4.3	1-09623-410-0	12	1	9002-9306	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (C) ID=132.5 LINE OD=4.3	1-09623-538-0	12	1	9002-9306	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-409-0	10	1	9002-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B) ID=132.5 LINE OD=4.3	1-09623-410-0	10	1	9002-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (C) ID=132.5 LINE OD=4.3	1-09623-538-0	10	1	9002-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-409-0	08	1	9307-			●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B) ID=132.5 LINE OD=4.3	1-09623-410-0	08	1	9307-			●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (C) ID=132.5 LINE OD=4.3	1-09623-538-0	08	1	9307-			●
153	GASKET; CREVICE,CYL LINER ALSO INCLUDED IN LINER SET.	1-09623-432-0	12	1	9002-9306	●
153	GASKET; CREVICE,CYL LINER ALSO INCLUDED IN LINER SET.	1-09623-432-0	10	1	9002-		●
153	GASKET; CREVICE,CYL LINER ALSO INCLUDED IN LINER SET.	1-09623-432-0	08	1	9307-			●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-0	14	1	9002-9306	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	12	1	9002-		●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	10	1	9307-			●

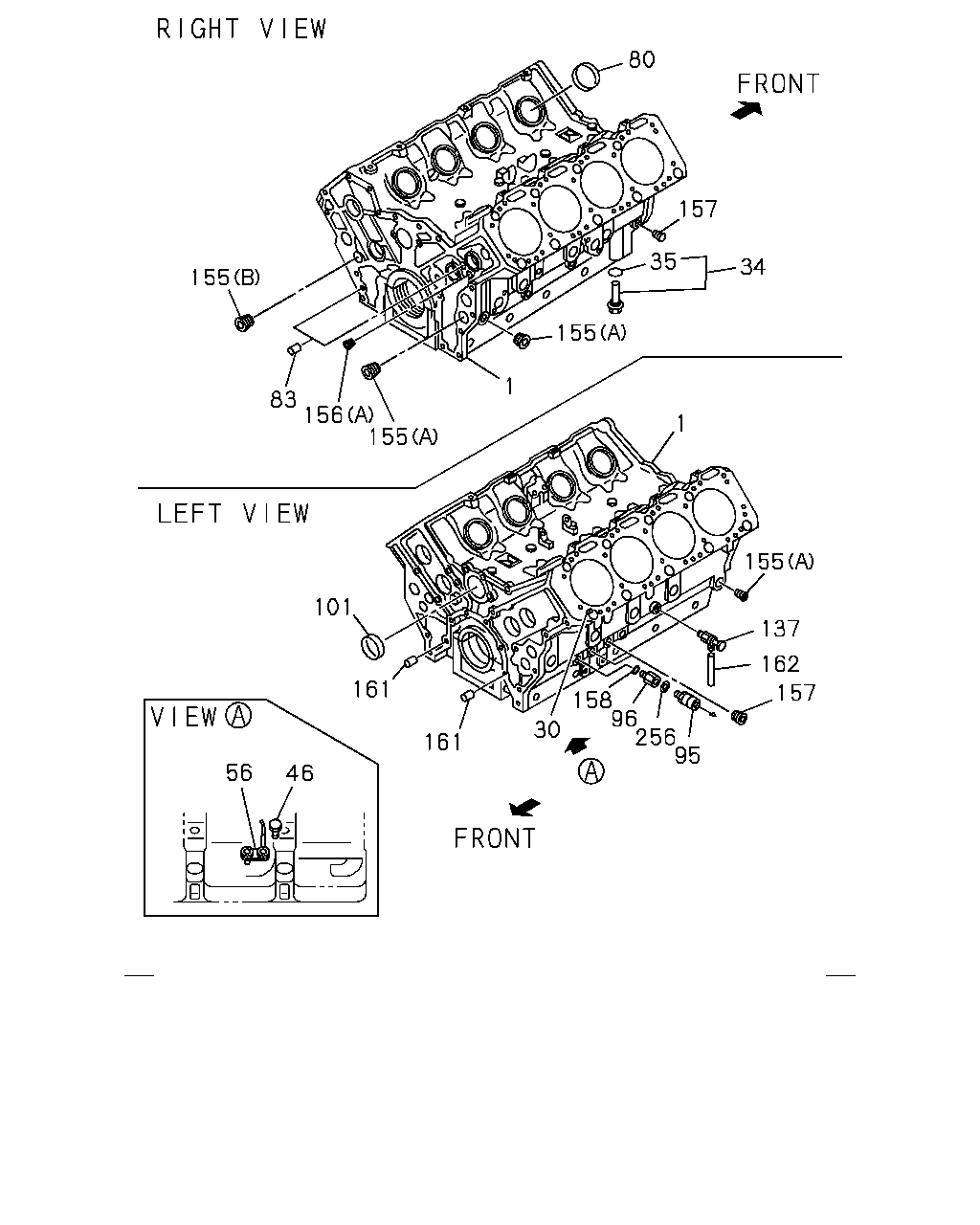

80 30 157 34 35 157 155 1 83 83 155 101 161 161 337 157 156 162 137 155 30 1 223 223 95 46 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	1-11210-523-4	01	1	9002-9306	●
1	BLOCK ASM; CYL	1-11210-502-4	01	1	9002-		●
1	BLOCK ASM; CYL	1-11210-503-4	01	1	9307-			●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	04	1	9002-	●	●	●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9002-	●	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9002-	●	●	●
46	BOLT; JOINT,OIL JET,PISTON COOLING M14X25	1-13349-033-0	12	1	9002-9306	●
46	BOLT; JOINT,OIL JET,PISTON COOLING M14X25	1-13349-033-0	08	1	9307-			●
46	BOLT; JOINT,OIL JET,PISTON COOLING M14X25	1-13349-033-0	10	1	9002-		●
56	JET; OIL,PISTON COOLING	1-13342-113-0	12	1	9002-9306	●
56	JET; OIL,PISTON COOLING	1-13342-113-0	08	1	9307-			●
56	JET; OIL,PISTON COOLING	1-13342-113-0	10	1	9002-		●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	12	1	9002-9306	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	08	1	9307-			●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	10	1	9002-		●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9002-	●	●	●
95	PRESSURE UNIT; OIL	1-83151-035-0	01	1	9002-9306	●	●
95	PRESSURE UNIT; OIL	1-83151-041-0	01	1	9307-		●	●
101	CUP; SEALING CAM END	1-09600-022-0	01	1	9002-	●	●	●
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9002-	●	●	●
155	PLUG; OIL GALLERY END (A) PT3/4	1-09605-020-0	02	1	9002-	●	●	●
155	PLUG; OIL GALLERY END (B) PT1	1-09605-021-0	04	1	9002-	●	●	●
156	PLUG; IDLE GEAR (B) M14X9	9-99202-314-0	01	1	9002-9306	●	●
156	PLUG; IDLE GEAR (A) PT1/4	1-09605-019-0	02	1	9002-		●	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	10	1	9002-9306	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	07	1	9002-		●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	06	1	9307-			●
161	DOWEL; FRT COVER	9-11229-032-0	02	1	9002-9406	●	●	●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●	●
223	CONNECTOR; OIL PRESSURE (A) M10	1-09664-168-1	01	1	9002-9306	●	●
223	CONNECTOR; OIL PRESSURE (B) M20	9-99220-610-0	01	1	9002-9306	●	●
337	GASKET; PLUG ID=14.2 OD=19.2	1-09630-085-0	01	1	9002-9306	●	●

152 152 152 2 4 153 8 47 49 159 36 154 49 154 36 153 4 152 152 152 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	1-11210-523-4	01	1	9002-9306	●
1	BLOCK ASM; CYL	1-11210-502-4	01	1	9002-		●
1	BLOCK ASM; CYL	1-11210-503-4	01	1	9307-			●
2	LINER SET; ENG CYL NON GRADE	1-87811-396-0	12	1	9002-9306	●
2	LINER SET; ENG CYL ANTI NOISE EQUIPMENT<SV9> NON GRADE	1-87811-390-0	10	1	9411-		●
2	LINER SET; ENG CYL TAIWAN EQUIPMENT(WW5) NON GRADE	1-87811-390-0	10	1	9002-9306		●
2	LINER SET; ENG CYL EXC. TAIWAN EQUIPMENT(WW5) NON GRADE	1-87811-396-0	10	1	9002-9306		●
2	LINER SET; ENG CYL NON GRADE	1-87811-396-0	10	1	9307-9410		●
2	LINER SET; ENG CYL EXC. ANTI NOISE EQUIPMENT<SV9> NON GRADE	1-87811-396-0	10	1	9411-		●
2	LINER SET; ENG CYL NON GRADE	1-87811-396-0	08	1	9307-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-282-0	12	1	9002-9306	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-283-0	12	1	9002-9306	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-282-0	10	1	9002-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-283-0	10	1	9002-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-282-0	08	1	9307-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-283-0	08	1	9307-			●
8	BOLT; BRG CAP M16X138	1-09070-040-0	14	1	9002-9306	●
8	BOLT; BRG CAP M16X138	1-09070-040-1	10	1	9307-			●
8	BOLT; BRG CAP M16X138	1-09070-040-1	12	1	9002-		●
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	10	1	9002-9306	●
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	07	1	9307-			●
36	CUP; SEALING,WATER JACKET OD=45	1-09600-005-1	01	1	9002-	●	●	●
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	09	1	9002-		●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9002-	●	●	●
49	WASHER; BRG CAP (A) OD=23.8	1-09503-050-0	14	1	9002-9306	●
49	WASHER; BRG CAP (A) OD=23.8	1-09503-050-0	10	1	9307-			●
49	WASHER; BRG CAP (B) OD=28.0	9-09851-672-2	14	1	9002-9306	●
49	WASHER; BRG CAP (B) OD=28.0	9-09851-672-2	10	1	9307-			●
49	WASHER; BRG CAP (A) OD=23.8	1-09503-050-0	12	1	9002-		●
49	WASHER; BRG CAP (B) OD=28.0	9-09851-672-2	12	1	9002-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-409-0	12	1	9002-9306	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B) ID=132.5 LINE OD=4.3	1-09623-410-0	12	1	9002-9306	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (C) ID=132.5 LINE OD=4.3	1-09623-538-0	12	1	9002-9306	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-409-0	10	1	9002-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B) ID=132.5 LINE OD=4.3	1-09623-410-0	10	1	9002-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (C) ID=132.5 LINE OD=4.3	1-09623-538-0	10	1	9002-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-409-0	08	1	9307-			●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B) ID=132.5 LINE OD=4.3	1-09623-410-0	08	1	9307-			●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (C) ID=132.5 LINE OD=4.3	1-09623-538-0	08	1	9307-			●
153	GASKET; CREVICE,CYL LINER ALSO INCLUDED IN LINER SET.	1-09623-432-0	12	1	9002-9306	●
153	GASKET; CREVICE,CYL LINER ALSO INCLUDED IN LINER SET.	1-09623-432-0	10	1	9002-		●
153	GASKET; CREVICE,CYL LINER ALSO INCLUDED IN LINER SET.	1-09623-432-0	08	1	9307-			●
154	PLUG; WATER DUCT	1-09605-022-0	02	1	9002-	●	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-0	14	1	9002-9306	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	12	1	9002-		●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	10	1	9307-			●

155 83 156 155 1 155 35 34 157 80 1 155 137 162 157 95 256 96 158 30 161 101 46 56 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	1-11210-523-4	01	1	9002-9306	●
1	BLOCK ASM; CYL	1-11210-502-4	01	1	9002-		●
1	BLOCK ASM; CYL	1-11210-503-4	01	1	9307-			●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	04	1	9002-	●	●	●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9002-	●	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9002-	●	●	●
46	BOLT; JOINT,OIL JET,PISTON COOLING M14X25	1-13349-033-0	12	1	9002-9306	●
46	BOLT; JOINT,OIL JET,PISTON COOLING M14X25	1-13349-033-0	08	1	9307-			●
46	BOLT; JOINT,OIL JET,PISTON COOLING M14X25	1-13349-033-0	10	1	9002-		●
56	JET; OIL,PISTON COOLING	1-13342-113-0	12	1	9002-9306	●
56	JET; OIL,PISTON COOLING	1-13342-113-0	08	1	9307-			●
56	JET; OIL,PISTON COOLING	1-13342-113-0	10	1	9002-		●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	12	1	9002-9306	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	08	1	9307-			●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	10	1	9002-		●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9002-	●	●	●
95	PRESSURE UNIT; OIL	1-83151-035-0	01	1	9002-9306	●	●
95	PRESSURE UNIT; OIL	1-83151-041-0	01	1	9307-		●	●
96	ADAPTER; PRESS UNIT & SW	1-09669-115-0	01	1	9307-9508		●	●
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9509-		●	●
101	CUP; SEALING CAM END	1-09600-022-0	01	1	9002-	●	●	●
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9002-	●	●	●
155	PLUG; OIL GALLERY END (A) PT3/4	1-09605-020-0	02	1	9002-	●	●	●
155	PLUG; OIL GALLERY END (B) PT1	1-09605-021-0	04	1	9002-	●	●	●
156	PLUG; IDLE GEAR (B) M14X9	9-99202-314-0	01	1	9002-9306	●	●
156	PLUG; IDLE GEAR (A) PT1/4	1-09605-019-0	02	1	9002-		●	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	10	1	9002-9306	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	07	1	9002-		●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	06	1	9307-			●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	01	1	9307-9508		●	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9509-		●	●
161	DOWEL; FRT COVER	9-11229-032-0	02	1	9002-9406	●	●	●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9307-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
