Sayfa 0-50 - Isuzu EPC

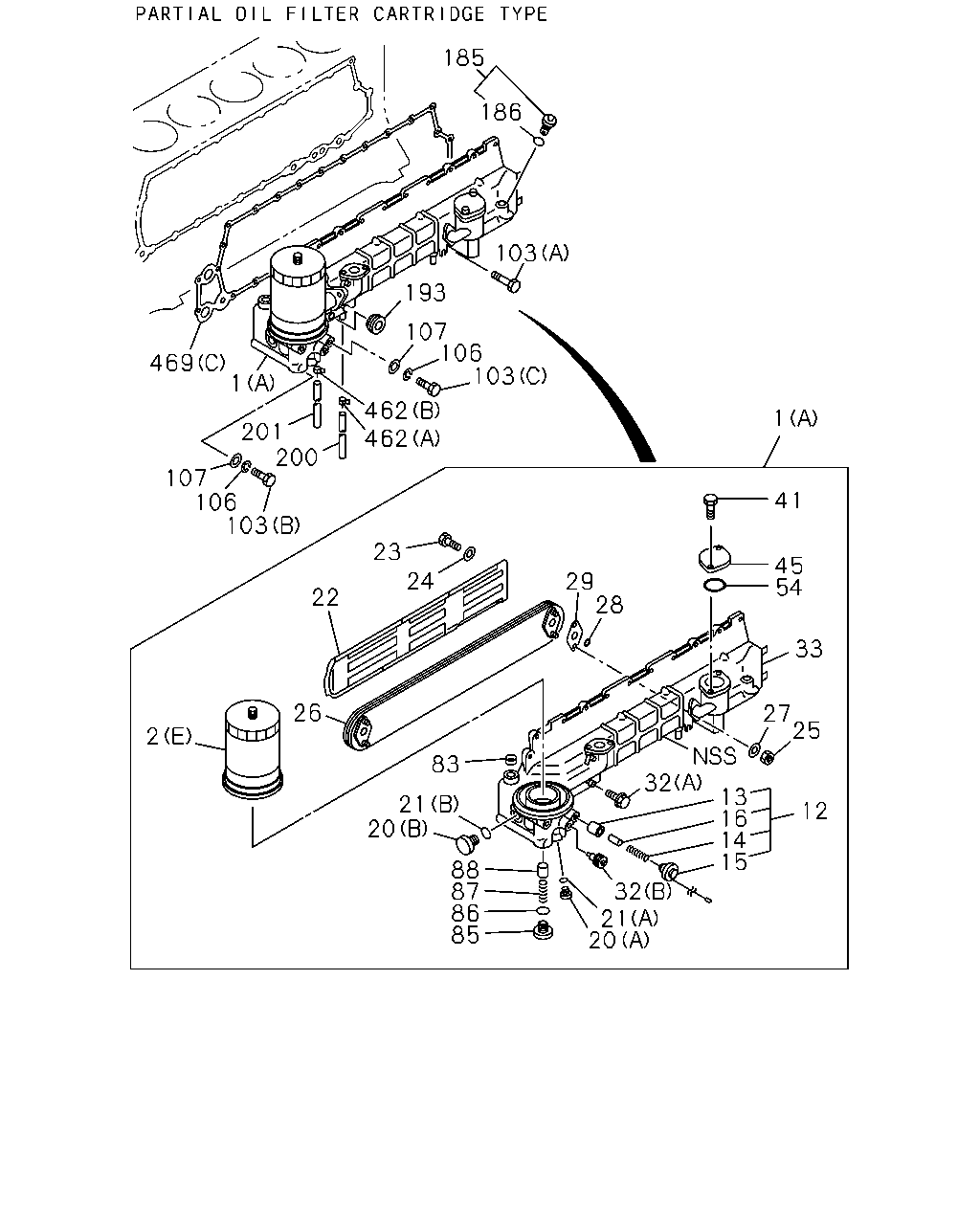

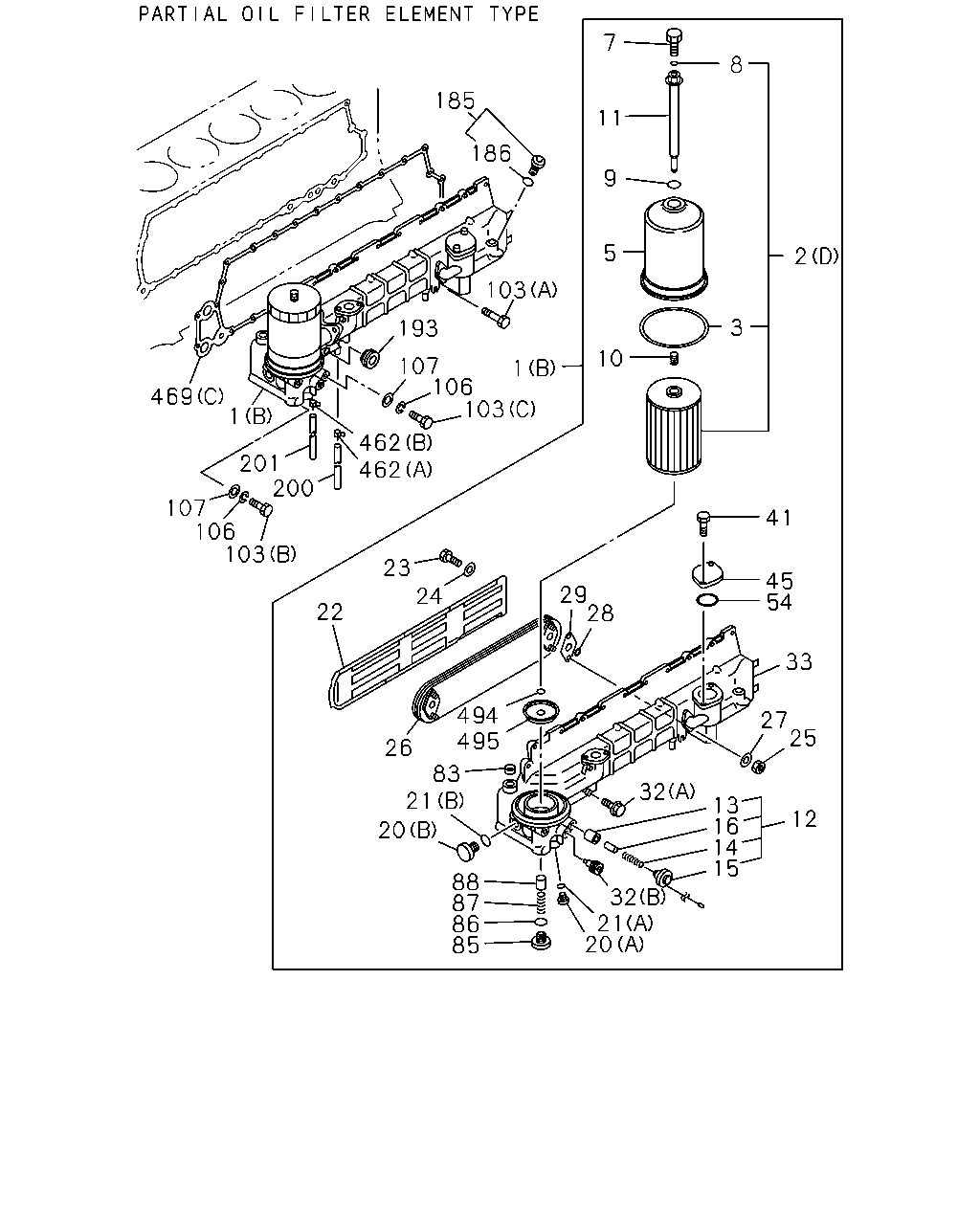

0-50 — OIL COOLER AND OIL FILTER (#22789) — 461 parça

7 8 185 11 186 9 5 2 103 3 193 10 107 106 103 1 469 1 462 462 201 200 107 106 103 41 23 24 45 54 29 28 22 33 494 495 27 25 26 83 21 32 13 16 14 15 12 20 88 87 86 85 32 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER & COOLER ASM; OIL (A)	1-13200-935-1	01	1	9601-9803	●
1	FILTER & COOLER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A)	1-13200-935-2	01	1	9804-0209	●
1	FILTER & COOLER ASM; OIL HEATER & DEFROSTER(C41) (A)	1-13200-935-2	01	1	0210-0308	●
1	FILTER & COOLER ASM; OIL PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-13200-955-3	01	1	9809-0209	●
1	FILTER & COOLER ASM; OIL EXC. HEATER & DEFROSTER(C41) (B)	1-13200-955-3	01	1	0210-0308	●
2	ELEMENT; OIL FILTER (C)	8-94396-375-4	01	1	9601-9609		●
2	ELEMENT; OIL FILTER (C)	8-94391-049-0	01	1	9610-9803		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C)	8-94391-049-0	01	1	9804-0004		●
2	ELEMENT; OIL FILTER (C)	8-94391-049-4	01	1	0005-		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	1-13240-132-0	01	1	9909-0004		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-87810-372-1	01	1	9909-0004		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	1-13240-132-0	01	1	0303-0308		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-87810-372-1	01	1	0303-0308		●
2	ELEMENT; OIL FILTER (E)	1-13240-168-1	01	1	9601-9803	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (E)	1-13240-168-1	01	1	9804-0209	●
2	ELEMENT; OIL FILTER HEATER & DEFROSTER(C41) (E)	1-13240-168-1	01	1	0210-0308	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D)	1-13240-116-0	01	1	9809-0206	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D)	1-13240-217-1	01	1	0207-0209	●
2	ELEMENT; OIL FILTER EXC. HEATER & DEFROSTER(C41) (D)	1-13240-217-1	01	1	0210-0308	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D) BEST VALUE PARTS	1-87610-015-0	01	1	0207-0209	●
2	ELEMENT; OIL FILTER EXC. HEATER & DEFROSTER(C41) (D) BEST VALUE PARTS	1-87610-015-0	01	1	0210-0308	●
2	ELEMENT; OIL FILTER (C) BEST VALUE PARTS	1-87610-064-0	01	1	0005-		●
3	GASKET PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13213-010-1	01	1	9809-0209	●
3	GASKET EXC. HEATER & DEFROSTER(C41)	1-13213-010-1	01	1	0210-0308	●
5	CASE; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13211-256-0	01	1	9809-0209	●
5	CASE; OIL FILTER EXC. HEATER & DEFROSTER(C41)	1-13211-256-0	01	1	0210-0308	●
7	PLUG; CENTER BOLT PARTIAL OIL FILTER ELEMENT TYPE<KC1> M10	1-09000-105-0	01	1	9809-0209	●
7	PLUG; CENTER BOLT EXC. HEATER & DEFROSTER(C41) M10	1-09000-105-0	01	1	0210-0308	●
8	GASKET; PLUG PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=9.8	1-09623-055-0	01	1	9809-0209	●
8	GASKET; PLUG EXC. HEATER & DEFROSTER(C41) ID=9.8	1-09623-055-0	01	1	0210-0308	●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-09623-499-0	01	1	9809-0209	●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HEATER & DEFROSTER(C41)	1-09623-499-0	01	1	0210-0308	●
10	SPRING; ELEMENT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13219-263-0	01	1	9809-0209	●
10	SPRING; ELEMENT EXC. HEATER & DEFROSTER(C41)	1-13219-263-0	01	1	0210-0308	●
11	BOLT; CENTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13231-076-0	01	1	9809-0209	●
11	BOLT; CENTER EXC. HEATER & DEFROSTER(C41)	1-13231-076-0	01	1	0210-0308	●
12	VALVE ASM; BYPASS	1-13260-096-0	01	1	9601-9605	●
12	VALVE ASM; BYPASS	1-13260-110-0	01	1	9606-0308	●
13	VALVE; RELIEF	9-13262-010-0	01	1	9601-0308	●
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	9601-0308	●
15	PLUG; RELIEF VLV	1-13265-023-0	01	1	9601-9605	●
15	PLUG; RELIEF VLV	1-13219-322-0	01	1	9606-0308	●
16	VALVE ASM; RELIEF	1-13269-002-0	01	1	9601-9605	●
20	PLUG; COOLER BODY (C)	8-94396-753-0	01	1	9601-		●
20	PLUG; COOLER BODY (A) M20	1-13219-152-0	03	1	9601-9906	●
20	PLUG; COOLER BODY (A) M24	1-13219-356-0	01	1	9907-0308	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	02	1	9601-9906	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	04	1	9907-0308	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9601-9906		●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9907-0308	●	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0309-		●
21	GASKET; PLUG (A) M20	1-13219-158-0	03	1	9601-9906	●
21	GASKET; PLUG (B) M26	1-13219-159-0	02	1	9601-9906	●
21	GASKET; PLUG (B) M26	1-13219-159-0	04	1	9907-0308	●
22	GUIDE; WATER	1-13219-155-1	01	1	9601-0308	●
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	9601-0308	●
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	9601-0308	●
25	NUT; CORE TO BODY M10	9-09111-410-0	04	1	9601-0512		●
25	NUT; CORE TO BODY M10	0-91111-510-0	04	1	0601-		●
25	NUT; CORE TO BODY	1-21729-074-0	04	1	9601-9906	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	9907-0308	●
26	CORE ASM; OIL COOLER	8-94395-711-0	01	1	9601-		●
26	CORE ASM; OIL COOLER	1-21723-049-0	01	1	9601-9906	●
26	CORE ASM; OIL COOLER	1-21723-058-0	01	1	9907-0308	●
27	WASHER; PL,CORE TO BODY ID=10.5	9-09164-510-0	04	1	9601-		●
27	WASHER; PL,CORE TO BODY	1-21729-075-0	04	1	9601-9906	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	9601-		●
28	GASKET; CORE TO BODY	1-21729-076-0	02	1	9601-9906	●
28	GASKET; CORE TO BODY	8-94396-810-0	02	1	9907-0308	●
29	GASKET; CORE TO BODY	1-21729-077-0	02	1	9601-9906	●
29	GASKET; CORE TO BODY	8-94394-930-0	02	1	9907-0308	●
32	PLUG; DRAIN (A)	1-13219-151-0	01	1	9601-9803	●
32	PLUG; DRAIN PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A)	1-13219-151-0	01	1	9804-9906	●
32	PLUG; DRAIN (B)	1-13219-295-1	01	1	9601-0308	●
32	PLUG; DRAIN PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	1-13219-276-0	01	1	9809-9906	●
32	PLUG; DRAIN (A)	1-13219-276-0	01	1	9907-0308	●
33	HOUSING ASM; COOLER	1-13211-248-0	01	1	9601-9803	●
33	HOUSING ASM; COOLER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	1-13211-248-0	01	1	9804-9906	●
33	HOUSING ASM; COOLER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	1-13211-307-0	01	1	9907-0209	●
33	HOUSING ASM; COOLER HEATER & DEFROSTER(C41)	1-13211-307-0	01	1	0210-0308	●
33	HOUSING ASM; COOLER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13211-252-0	01	1	9809-9906	●
33	HOUSING ASM; COOLER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13211-309-0	01	1	9907-0209	●
33	HOUSING ASM; COOLER EXC. HEATER & DEFROSTER(C41)	1-13211-309-0	01	1	0210-0308	●
41	BOLT; COVER FIX M10X25 FLANGE	8-98272-067-0	02	1	0005-0308	●
41	BOLT; COVER FIX	1-13219-161-0	02	1	9601-9906	●
41	BOLT; COVER FIX M8X25 FLANGE	0-28680-825-0	02	1	9907-0004	●
45	COVER; OIL PORT	1-13219-172-0	01	1	9601-9803	●
45	COVER; OIL PORT PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	1-13219-172-0	01	1	9804-0209	●
45	COVER; OIL PORT HEATER & DEFROSTER(C41)	1-13219-172-0	01	1	0210-0308	●
45	COVER; OIL PORT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13210-172-0	01	1	9809-0209	●
45	COVER; OIL PORT EXC. HEATER & DEFROSTER(C41)	1-13210-172-0	01	1	0210-0308	●
54	GASKET; OIL PIPE	1-13219-162-0	01	1	9601-0308	●
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	9601-0308	●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-146-0	01	1	9601-0308	●
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	9601-0308	●
87	SPRING; DRAIN UNIT,OIL FILTER	1-13219-148-0	01	1	9601-0308	●
88	VALVE; DRAIN UNIT,OIL FILTER	9-13262-009-0	01	1	9601-0308	●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	25	1	9601-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28080-835-0	02	1	9601-0512		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	02	1	0601-		●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	9601-0308	●
103	BOLT; OIL COOLER (B) M8X138	5-09000-031-1	02	1	9601-0308	●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	9601-0308	●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9601-0308	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9601-0308	●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-017-1	01	1	9601-0308	●
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	9601-0308	●
193	PLUG; TAPER EXC. HEATER & DEFROSTER(C41) PT3/8 T=8.0	1-09605-066-0	01	1	9601-0308	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03157-300-0	01	1	9601-0206	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03457-300-0	01	1	0207-0308	●
201	PIPE; VINYL,OIL DRAIN L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9601-0308	●
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	9601-0308	●
462	CLIP; HOSE,DRAIN (B) ID=13.5	8-97015-754-1	01	1	9601-0308	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9601-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9601-0606		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0607-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-177-1	01	1	9601-0308	●
494	RING; SNAP,OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13219-307-0	01	1	9809-0209	●
494	RING; SNAP,OIL FILTER EXC. HEATER & DEFROSTER(C41)	1-13219-307-0	01	1	0210-0308	●
495	PLATE; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13219-306-0	01	1	9809-0209	●
495	PLATE; OIL FILTER EXC. HEATER & DEFROSTER(C41)	1-13219-306-0	01	1	0210-0308	●

185 186 103 193 107 106 103 469 1 462 462 1 201 200 107 106 103 41 23 24 45 54 29 28 22 3 26 27 25 2 83 32 13 16 14 15 21 20 12 88 87 86 85 32 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER & COOLER ASM; OIL (A)	1-13200-935-1	01	1	9601-9803	●
1	FILTER & COOLER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A)	1-13200-935-2	01	1	9804-0209	●
1	FILTER & COOLER ASM; OIL HEATER & DEFROSTER(C41) (A)	1-13200-935-2	01	1	0210-0308	●
1	FILTER & COOLER ASM; OIL PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-13200-955-3	01	1	9809-0209	●
1	FILTER & COOLER ASM; OIL EXC. HEATER & DEFROSTER(C41) (B)	1-13200-955-3	01	1	0210-0308	●
2	ELEMENT; OIL FILTER (C)	8-94396-375-4	01	1	9601-9609		●
2	ELEMENT; OIL FILTER (C)	8-94391-049-0	01	1	9610-9803		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C)	8-94391-049-0	01	1	9804-0004		●
2	ELEMENT; OIL FILTER (C)	8-94391-049-4	01	1	0005-		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	1-13240-132-0	01	1	9909-0004		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-87810-372-1	01	1	9909-0004		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	1-13240-132-0	01	1	0303-0308		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-87810-372-1	01	1	0303-0308		●
2	ELEMENT; OIL FILTER (E)	1-13240-168-1	01	1	9601-9803	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (E)	1-13240-168-1	01	1	9804-0209	●
2	ELEMENT; OIL FILTER HEATER & DEFROSTER(C41) (E)	1-13240-168-1	01	1	0210-0308	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D)	1-13240-116-0	01	1	9809-0206	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D)	1-13240-217-1	01	1	0207-0209	●
2	ELEMENT; OIL FILTER EXC. HEATER & DEFROSTER(C41) (D)	1-13240-217-1	01	1	0210-0308	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D) BEST VALUE PARTS	1-87610-015-0	01	1	0207-0209	●
2	ELEMENT; OIL FILTER EXC. HEATER & DEFROSTER(C41) (D) BEST VALUE PARTS	1-87610-015-0	01	1	0210-0308	●
2	ELEMENT; OIL FILTER (C) BEST VALUE PARTS	1-87610-064-0	01	1	0005-		●
3	GASKET PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13213-010-1	01	1	9809-0209	●
3	GASKET EXC. HEATER & DEFROSTER(C41)	1-13213-010-1	01	1	0210-0308	●
12	VALVE ASM; BYPASS	1-13260-096-0	01	1	9601-9605	●
12	VALVE ASM; BYPASS	1-13260-110-0	01	1	9606-0308	●
13	VALVE; RELIEF	9-13262-010-0	01	1	9601-0308	●
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	9601-0308	●
15	PLUG; RELIEF VLV	1-13265-023-0	01	1	9601-9605	●
15	PLUG; RELIEF VLV	1-13219-322-0	01	1	9606-0308	●
16	VALVE ASM; RELIEF	1-13269-002-0	01	1	9601-9605	●
20	PLUG; COOLER BODY (C)	8-94396-753-0	01	1	9601-		●
20	PLUG; COOLER BODY (A) M20	1-13219-152-0	03	1	9601-9906	●
20	PLUG; COOLER BODY (A) M24	1-13219-356-0	01	1	9907-0308	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	02	1	9601-9906	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	04	1	9907-0308	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9601-9906		●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9907-0308	●	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0309-		●
21	GASKET; PLUG (A) M20	1-13219-158-0	03	1	9601-9906	●
21	GASKET; PLUG (B) M26	1-13219-159-0	02	1	9601-9906	●
21	GASKET; PLUG (B) M26	1-13219-159-0	04	1	9907-0308	●
22	GUIDE; WATER	1-13219-155-1	01	1	9601-0308	●
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	9601-0308	●
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	9601-0308	●
25	NUT; CORE TO BODY M10	9-09111-410-0	04	1	9601-0512		●
25	NUT; CORE TO BODY M10	0-91111-510-0	04	1	0601-		●
25	NUT; CORE TO BODY	1-21729-074-0	04	1	9601-9906	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	9907-0308	●
26	CORE ASM; OIL COOLER	8-94395-711-0	01	1	9601-		●
26	CORE ASM; OIL COOLER	1-21723-049-0	01	1	9601-9906	●
26	CORE ASM; OIL COOLER	1-21723-058-0	01	1	9907-0308	●
27	WASHER; PL,CORE TO BODY ID=10.5	9-09164-510-0	04	1	9601-		●
27	WASHER; PL,CORE TO BODY	1-21729-075-0	04	1	9601-9906	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	9601-		●
28	GASKET; CORE TO BODY	1-21729-076-0	02	1	9601-9906	●
28	GASKET; CORE TO BODY	8-94396-810-0	02	1	9907-0308	●
29	GASKET; CORE TO BODY	1-21729-077-0	02	1	9601-9906	●
29	GASKET; CORE TO BODY	8-94394-930-0	02	1	9907-0308	●
32	PLUG; DRAIN (A)	1-13219-151-0	01	1	9601-9803	●
32	PLUG; DRAIN PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A)	1-13219-151-0	01	1	9804-9906	●
32	PLUG; DRAIN (B)	1-13219-295-1	01	1	9601-0308	●
32	PLUG; DRAIN PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	1-13219-276-0	01	1	9809-9906	●
32	PLUG; DRAIN (A)	1-13219-276-0	01	1	9907-0308	●
41	BOLT; COVER FIX M10X25 FLANGE	8-98272-067-0	02	1	0005-0308	●
41	BOLT; COVER FIX	1-13219-161-0	02	1	9601-9906	●
41	BOLT; COVER FIX M8X25 FLANGE	0-28680-825-0	02	1	9907-0004	●
45	COVER; OIL PORT	1-13219-172-0	01	1	9601-9803	●
45	COVER; OIL PORT PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	1-13219-172-0	01	1	9804-0209	●
45	COVER; OIL PORT HEATER & DEFROSTER(C41)	1-13219-172-0	01	1	0210-0308	●
45	COVER; OIL PORT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13210-172-0	01	1	9809-0209	●
45	COVER; OIL PORT EXC. HEATER & DEFROSTER(C41)	1-13210-172-0	01	1	0210-0308	●
54	GASKET; OIL PIPE	1-13219-162-0	01	1	9601-0308	●
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	9601-0308	●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-146-0	01	1	9601-0308	●
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	9601-0308	●
87	SPRING; DRAIN UNIT,OIL FILTER	1-13219-148-0	01	1	9601-0308	●
88	VALVE; DRAIN UNIT,OIL FILTER	9-13262-009-0	01	1	9601-0308	●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	25	1	9601-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28080-835-0	02	1	9601-0512		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	02	1	0601-		●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	9601-0308	●
103	BOLT; OIL COOLER (B) M8X138	5-09000-031-1	02	1	9601-0308	●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	9601-0308	●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9601-0308	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9601-0308	●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-017-1	01	1	9601-0308	●
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	9601-0308	●
193	PLUG; TAPER EXC. HEATER & DEFROSTER(C41) PT3/8 T=8.0	1-09605-066-0	01	1	9601-0308	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03157-300-0	01	1	9601-0206	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03457-300-0	01	1	0207-0308	●
201	PIPE; VINYL,OIL DRAIN L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9601-0308	●
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	9601-0308	●
462	CLIP; HOSE,DRAIN (B) ID=13.5	8-97015-754-1	01	1	9601-0308	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9601-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9601-0606		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0607-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-177-1	01	1	9601-0308	●

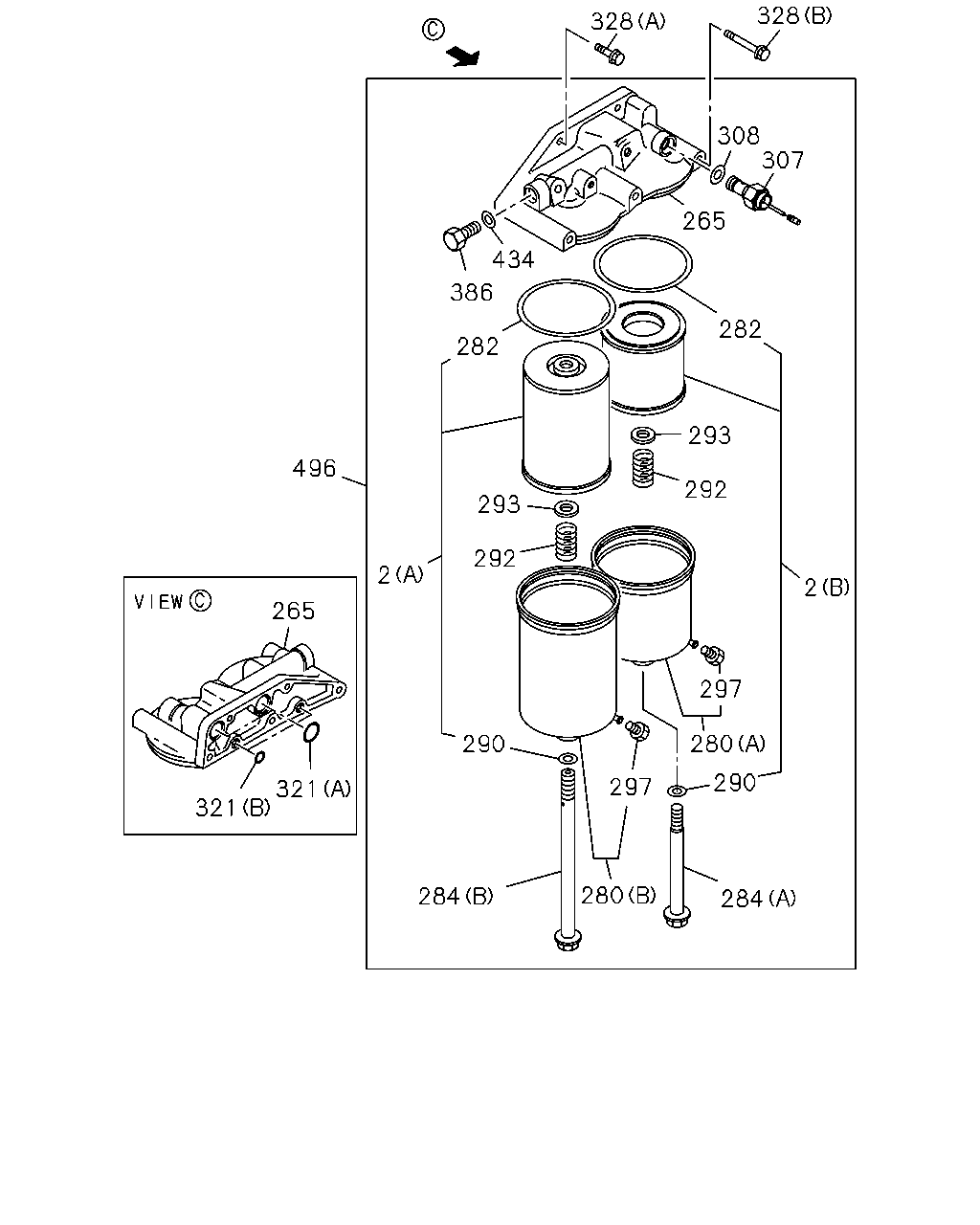

328 328 308 307 265 434 386 282 282 293 496 292 293 292 2 2 265 297 280 290 290 297 321 321 280 284 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER (C)	8-94396-375-4	01	1	9601-9609		●
2	ELEMENT; OIL FILTER (C)	8-94391-049-0	01	1	9610-9803		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C)	8-94391-049-0	01	1	9804-0004		●
2	ELEMENT; OIL FILTER (C)	8-94391-049-4	01	1	0005-		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	1-13240-132-0	01	1	9909-0004		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-87810-372-1	01	1	9909-0004		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	1-13240-132-0	01	1	0303-0308		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-87810-372-1	01	1	0303-0308		●
2	ELEMENT; OIL FILTER (E)	1-13240-168-1	01	1	9601-9803	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (E)	1-13240-168-1	01	1	9804-0209	●
2	ELEMENT; OIL FILTER HEATER & DEFROSTER(C41) (E)	1-13240-168-1	01	1	0210-0308	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D)	1-13240-116-0	01	1	9809-0206	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D)	1-13240-217-1	01	1	0207-0209	●
2	ELEMENT; OIL FILTER EXC. HEATER & DEFROSTER(C41) (D)	1-13240-217-1	01	1	0210-0308	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D) BEST VALUE PARTS	1-87610-015-0	01	1	0207-0209	●
2	ELEMENT; OIL FILTER EXC. HEATER & DEFROSTER(C41) (D) BEST VALUE PARTS	1-87610-015-0	01	1	0210-0308	●
2	ELEMENT; OIL FILTER (C) BEST VALUE PARTS	1-87610-064-0	01	1	0005-		●
265	BODY; OIL FILTER	8-94395-701-0	01	1	9601-9609		●
265	BODY; OIL FILTER	8-94391-016-0	01	1	9610-9803		●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-016-2	01	1	9804-0004		●
265	BODY; OIL FILTER	8-94391-016-4	01	1	0005-		●
265	BODY; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94393-503-0	01	1	9909-0004		●
265	BODY; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94393-503-0	01	1	0303-0308		●
280	CASE ASM; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	8-94393-504-1	01	1	9909-0004		●
280	CASE ASM; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	8-94393-505-1	01	1	9909-0004		●
280	CASE ASM; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	8-94393-504-1	01	1	0303-0308		●
280	CASE ASM; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	8-94393-505-1	01	1	0303-0308		●
280	CASE ASM; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (C)	1-13212-150-0	01	1	9809-0209	●
280	CASE ASM; OIL FILTER EXC. HEATER & DEFROSTER(C41) (C)	1-13212-150-0	01	1	0210-0308	●
282	GASKET; BODY TO CASE PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09920-311-0	02	1	9909-0004		●
282	GASKET; BODY TO CASE PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09920-311-0	02	1	0303-0308		●
282	GASKET; BODY TO CASE PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=27.7	1-09623-170-0	01	1	9809-0209	●
282	GASKET; BODY TO CASE EXC. HEATER & DEFROSTER(C41) ID=27.7	1-09623-170-0	01	1	0210-0308	●
284	BOLT; CENTER,OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	1-13231-069-0	01	1	9909-0004		●
284	BOLT; CENTER,OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-13231-070-1	01	1	9909-0004		●
284	BOLT; CENTER,OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	1-13231-069-0	01	1	0303-0308		●
284	BOLT; CENTER,OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-13231-070-1	01	1	0303-0308		●
284	BOLT; CENTER,OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (C)	1-13212-064-1	01	1	9809-0209	●
284	BOLT; CENTER,OIL FILTER EXC. HEATER & DEFROSTER(C41) (C)	1-13212-064-1	01	1	0210-0308	●
290	GASKET; PLUG,OIL DRAIN PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=15.5	9-09920-694-0	02	1	9909-0004		●
290	GASKET; PLUG,OIL DRAIN PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=15.5	9-09920-694-0	02	1	0303-0308		●
290	GASKET; PLUG,OIL DRAIN PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=9.8	1-09623-055-0	01	1	9809-0209	●
290	GASKET; PLUG,OIL DRAIN EXC. HEATER & DEFROSTER(C41) ID=9.8	1-09623-055-0	01	1	0210-0308	●
292	SPRING; ELEMENT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09941-283-0	02	1	9909-0004		●
292	SPRING; ELEMENT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09941-283-0	02	1	0303-0308		●
292	SPRING; ELEMENT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09941-283-0	01	1	9809-0209	●
292	SPRING; ELEMENT EXC. HEATER & DEFROSTER(C41)	9-09941-283-0	01	1	0210-0308	●
293	SEAT; SPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-13239-025-0	02	1	9909-0004		●
293	SEAT; SPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-13239-025-0	02	1	0303-0308		●
293	SEAT; SPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13219-173-0	01	1	9809-0209	●
293	SEAT; SPR EXC. HEATER & DEFROSTER(C41)	1-13219-173-0	01	1	0210-0308	●
297	PLUG; COVER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13219-275-0	02	1	9909-0004		●
297	PLUG; COVER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13219-275-0	02	1	0303-0308		●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	9601-9803		●
307	VALVE; OVERFLOW PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94395-700-0	01	1	9804-0004		●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	0005-		●
307	VALVE; OVERFLOW PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-97015-672-0	01	1	9909-0004		●
307	VALVE; OVERFLOW PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-97015-672-0	01	1	0303-0308		●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9601-		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9601-9908		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94399-339-0	01	1	9909-0004		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=9.8	8-94399-339-0	01	1	9909-0004		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0005-0302		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94399-339-0	01	1	0303-0308		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=9.8	8-94399-339-0	01	1	0303-0308		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0309-		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9601-		●
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28181-030-0	02	1	9601-0512		●
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
328	BOLT; OIL FILTER (A) M10X90 FLANGE	0-28181-090-0	02	1	9601-9803		●
328	BOLT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M10X90 FLANGE	0-28181-090-0	02	1	9804-0004		●
328	BOLT; OIL FILTER (A) M10X90 FLANGE	0-28181-090-0	02	1	0005-0512		●
328	BOLT; OIL FILTER (A) M10X90 FLANGE	0-28151-090-0	02	1	0601-		●
328	BOLT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) M10X135	8-94397-139-1	03	1	9909-0004		●
328	BOLT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) M10X135	8-94397-139-1	03	1	0303-0308		●
386	PLUG; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> M16X9	9-13226-011-0	01	1	9909-0004		●
386	PLUG; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> M16X9	9-13226-011-0	01	1	0303-0308		●
434	GASKET; PLUG,OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09920-526-0	01	1	9909-0004		●
434	GASKET; PLUG,OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09920-526-0	01	1	0303-0308		●
496	FILTER ASM; OIL	8-94395-686-0	01	1	9601-9609		●
496	FILTER ASM; OIL	8-94391-015-1	01	1	9610-9803		●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-015-2	01	1	9804-0004		●
496	FILTER ASM; OIL	8-94391-015-5	01	1	0005-0302		●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-015-5	01	1	0303-0308		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	0309-		●
496	FILTER ASM; OIL PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94392-898-0	01	1	9909-0004		●
496	FILTER ASM; OIL PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94392-898-1	01	1	0303-0308		●

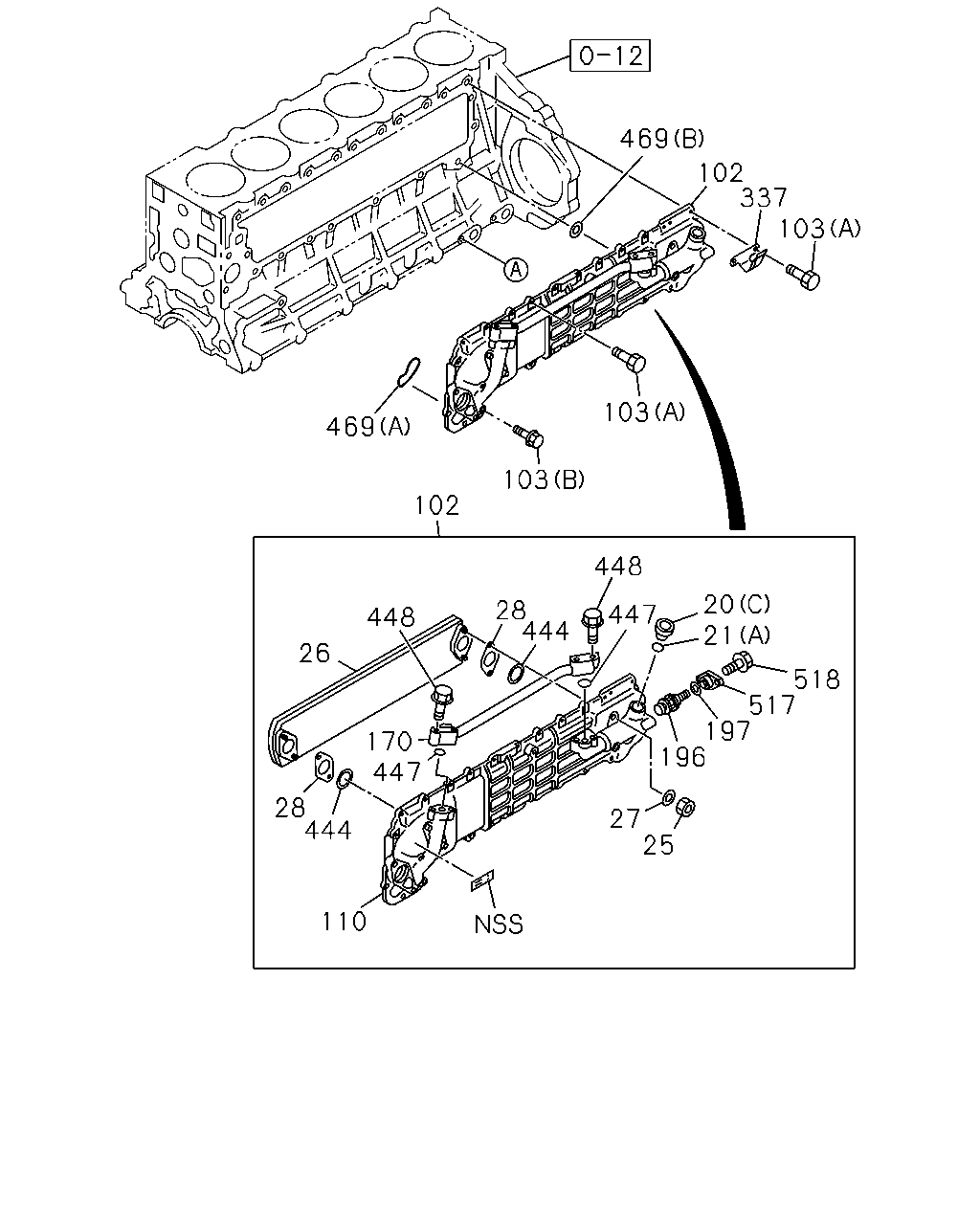

469 102 337 103 103 469 103 102 448 20 21 28 444 447 448 26 518 517 197 196 170 447 28 444 27 25 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	PLUG; COOLER BODY (C)	8-94396-753-0	01	1	9601-		●
20	PLUG; COOLER BODY (A) M20	1-13219-152-0	03	1	9601-9906	●
20	PLUG; COOLER BODY (A) M24	1-13219-356-0	01	1	9907-0308	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	02	1	9601-9906	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	04	1	9907-0308	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9601-9906		●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9907-0308	●	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0309-		●
21	GASKET; PLUG (A) M20	1-13219-158-0	03	1	9601-9906	●
21	GASKET; PLUG (B) M26	1-13219-159-0	02	1	9601-9906	●
21	GASKET; PLUG (B) M26	1-13219-159-0	04	1	9907-0308	●
25	NUT; CORE TO BODY M10	9-09111-410-0	04	1	9601-0512		●
25	NUT; CORE TO BODY M10	0-91111-510-0	04	1	0601-		●
25	NUT; CORE TO BODY	1-21729-074-0	04	1	9601-9906	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	9907-0308	●
26	CORE ASM; OIL COOLER	8-94395-711-0	01	1	9601-		●
26	CORE ASM; OIL COOLER	1-21723-049-0	01	1	9601-9906	●
26	CORE ASM; OIL COOLER	1-21723-058-0	01	1	9907-0308	●
27	WASHER; PL,CORE TO BODY ID=10.5	9-09164-510-0	04	1	9601-		●
27	WASHER; PL,CORE TO BODY	1-21729-075-0	04	1	9601-9906	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	9601-		●
28	GASKET; CORE TO BODY	1-21729-076-0	02	1	9601-9906	●
28	GASKET; CORE TO BODY	8-94396-810-0	02	1	9907-0308	●
102	COOLER ASM; OIL	8-94390-074-4	01	1	9601-		●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	25	1	9601-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28080-835-0	02	1	9601-0512		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	02	1	0601-		●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	9601-0308	●
103	BOLT; OIL COOLER (B) M8X138	5-09000-031-1	02	1	9601-0308	●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	9601-0308	●
110	BODY; CASE,OIL COOLER	8-94390-027-2	01	1	9601-0004		●
170	PIPE; BYPASS	8-94390-078-2	01	1	9601-		●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	9601-0111		●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0112-		●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	9601-		●
337	BRACKET; FUEL PIPE	8-94396-688-1	01	1	9601-		●
444	GASKET; ELEMENT TO BODY	8-94396-810-0	02	1	9601-		●
447	GASKET; BYPASS PIPE ID=17.8	1-09623-588-0	02	1	9601-		●
448	BOLT; BYPASS PIPE M8X30 FLANGE	0-28080-830-0	04	1	9601-0512		●
448	BOLT; BYPASS PIPE M8X30 FLANGE	0-28050-830-0	04	1	0601-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9601-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9601-0606		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0607-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-177-1	01	1	9601-0308	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94395-191-0	01	1	9601-		●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28080-816-0	02	1	9601-0512		●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	0601-		●

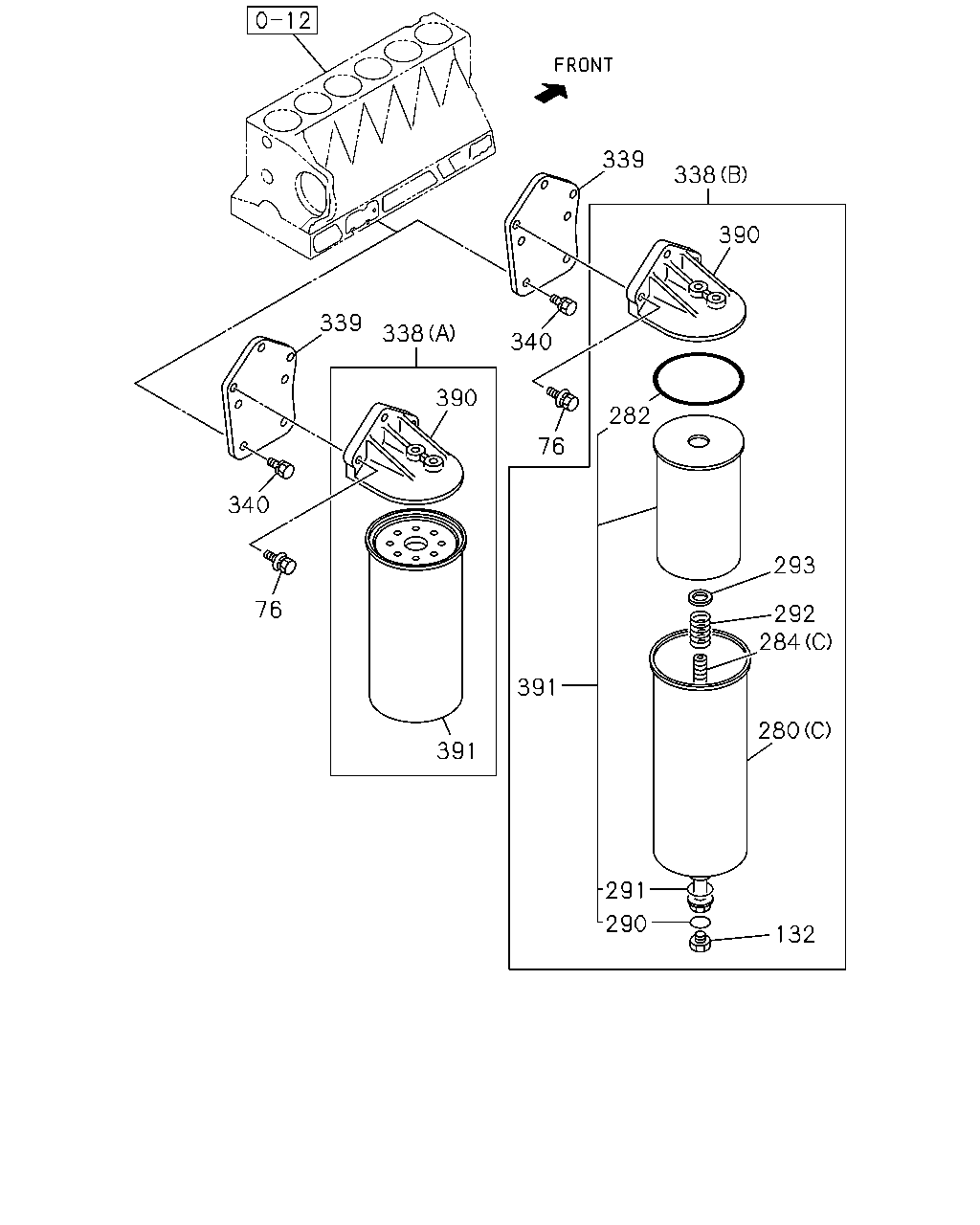

339 338 390 339 338 340 390 282 76 340 293 76 292 284 391 280 391 291 290 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
76	BOLT; OIL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	03	1	9601-0308	●
132	PLUG; PARTIAL OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> M10	1-09000-105-0	01	1	9809-0209	●
132	PLUG; PARTIAL OIL FILTER EXC. HEATER & DEFROSTER(C41) M10	1-09000-105-0	01	1	0210-0308	●
280	CASE ASM; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	8-94393-504-1	01	1	9909-0004		●
280	CASE ASM; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	8-94393-505-1	01	1	9909-0004		●
280	CASE ASM; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	8-94393-504-1	01	1	0303-0308		●
280	CASE ASM; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	8-94393-505-1	01	1	0303-0308		●
280	CASE ASM; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (C)	1-13212-150-0	01	1	9809-0209	●
280	CASE ASM; OIL FILTER EXC. HEATER & DEFROSTER(C41) (C)	1-13212-150-0	01	1	0210-0308	●
282	GASKET; BODY TO CASE PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09920-311-0	02	1	9909-0004		●
282	GASKET; BODY TO CASE PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09920-311-0	02	1	0303-0308		●
282	GASKET; BODY TO CASE PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=27.7	1-09623-170-0	01	1	9809-0209	●
282	GASKET; BODY TO CASE EXC. HEATER & DEFROSTER(C41) ID=27.7	1-09623-170-0	01	1	0210-0308	●
284	BOLT; CENTER,OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	1-13231-069-0	01	1	9909-0004		●
284	BOLT; CENTER,OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-13231-070-1	01	1	9909-0004		●
284	BOLT; CENTER,OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	1-13231-069-0	01	1	0303-0308		●
284	BOLT; CENTER,OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-13231-070-1	01	1	0303-0308		●
284	BOLT; CENTER,OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (C)	1-13212-064-1	01	1	9809-0209	●
284	BOLT; CENTER,OIL FILTER EXC. HEATER & DEFROSTER(C41) (C)	1-13212-064-1	01	1	0210-0308	●
290	GASKET; PLUG,OIL DRAIN PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=15.5	9-09920-694-0	02	1	9909-0004		●
290	GASKET; PLUG,OIL DRAIN PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=15.5	9-09920-694-0	02	1	0303-0308		●
290	GASKET; PLUG,OIL DRAIN PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=9.8	1-09623-055-0	01	1	9809-0209	●
290	GASKET; PLUG,OIL DRAIN EXC. HEATER & DEFROSTER(C41) ID=9.8	1-09623-055-0	01	1	0210-0308	●
291	GASKET; OIL DRAIN,CENTER BOLT PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=15.5	9-09920-694-0	01	1	9809-0209	●
291	GASKET; OIL DRAIN,CENTER BOLT EXC. HEATER & DEFROSTER(C41) ID=15.5	9-09920-694-0	01	1	0210-0308	●
292	SPRING; ELEMENT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09941-283-0	02	1	9909-0004		●
292	SPRING; ELEMENT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09941-283-0	02	1	0303-0308		●
292	SPRING; ELEMENT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09941-283-0	01	1	9809-0209	●
292	SPRING; ELEMENT EXC. HEATER & DEFROSTER(C41)	9-09941-283-0	01	1	0210-0308	●
293	SEAT; SPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-13239-025-0	02	1	9909-0004		●
293	SEAT; SPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-13239-025-0	02	1	0303-0308		●
293	SEAT; SPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13219-173-0	01	1	9809-0209	●
293	SEAT; SPR EXC. HEATER & DEFROSTER(C41)	1-13219-173-0	01	1	0210-0308	●
338	FILTER ASM; OIL PARTIAL (A)	1-13200-744-0	01	1	9601-9803	●
338	FILTER ASM; OIL PARTIAL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A)	1-13200-744-0	01	1	9804-0209	●
338	FILTER ASM; OIL PARTIAL HEATER & DEFROSTER(C41) (A)	1-13200-744-0	01	1	0210-0308	●
338	FILTER ASM; OIL PARTIAL PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-13200-704-1	01	1	9809-0209	●
338	FILTER ASM; OIL PARTIAL EXC. HEATER & DEFROSTER(C41) (B)	1-13200-704-1	01	1	0210-0308	●
339	BRACKET; PARTIAL OIL FILTER	1-19755-062-1	01	1	9601-0308	●
340	BOLT; BRKT M10X25 W/LK WASHER	0-50051-025-0	04	1	9601-0308	●
390	BODY; OIL FILTER,PARTIAL	1-13212-089-2	01	1	9601-9803	●
390	BODY; OIL FILTER,PARTIAL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	1-13212-089-2	01	1	9804-0209	●
390	BODY; OIL FILTER,PARTIAL HEATER & DEFROSTER(C41)	1-13212-089-2	01	1	0210-0308	●
390	BODY; OIL FILTER,PARTIAL PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13212-141-0	01	1	9809-0209	●
390	BODY; OIL FILTER,PARTIAL EXC. HEATER & DEFROSTER(C41)	1-13212-141-0	01	1	0210-0308	●
391	CARTRIDGE; OIL FILTER,PARTIAL	1-13240-163-2	01	1	9601-9803	●
391	CARTRIDGE; OIL FILTER,PARTIAL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	1-13240-163-2	01	1	9804-0209	●
391	CARTRIDGE; OIL FILTER,PARTIAL HEATER & DEFROSTER(C41)	1-13240-163-2	01	1	0210-0308	●
391	CARTRIDGE; OIL FILTER,PARTIAL PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13240-077-1	01	1	9809-0209	●
391	CARTRIDGE; OIL FILTER,PARTIAL EXC. HEATER & DEFROSTER(C41)	1-13240-077-1	01	1	0210-0308	●
391	CARTRIDGE; OIL FILTER,PARTIAL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> BEST VALUE PARTS	1-87610-065-0	01	1	9804-0209	●
391	CARTRIDGE; OIL FILTER,PARTIAL HEATER & DEFROSTER(C41) BEST VALUE PARTS	1-87610-065-0	01	1	0210-0308	●
391	CARTRIDGE; OIL FILTER,PARTIAL BEST VALUE PARTS	1-87610-065-0	01	1	9601-9803	●

496 307 308 265 328 2 516 328 265 321 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER (C)	8-94396-375-4	01	1	9601-9609		●
2	ELEMENT; OIL FILTER (C)	8-94391-049-0	01	1	9610-9803		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C)	8-94391-049-0	01	1	9804-0004		●
2	ELEMENT; OIL FILTER (C)	8-94391-049-4	01	1	0005-		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	1-13240-132-0	01	1	9909-0004		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-87810-372-1	01	1	9909-0004		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	1-13240-132-0	01	1	0303-0308		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-87810-372-1	01	1	0303-0308		●
2	ELEMENT; OIL FILTER (E)	1-13240-168-1	01	1	9601-9803	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (E)	1-13240-168-1	01	1	9804-0209	●
2	ELEMENT; OIL FILTER HEATER & DEFROSTER(C41) (E)	1-13240-168-1	01	1	0210-0308	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D)	1-13240-116-0	01	1	9809-0206	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D)	1-13240-217-1	01	1	0207-0209	●
2	ELEMENT; OIL FILTER EXC. HEATER & DEFROSTER(C41) (D)	1-13240-217-1	01	1	0210-0308	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D) BEST VALUE PARTS	1-87610-015-0	01	1	0207-0209	●
2	ELEMENT; OIL FILTER EXC. HEATER & DEFROSTER(C41) (D) BEST VALUE PARTS	1-87610-015-0	01	1	0210-0308	●
2	ELEMENT; OIL FILTER (C) BEST VALUE PARTS	1-87610-064-0	01	1	0005-		●
265	BODY; OIL FILTER	8-94395-701-0	01	1	9601-9609		●
265	BODY; OIL FILTER	8-94391-016-0	01	1	9610-9803		●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-016-2	01	1	9804-0004		●
265	BODY; OIL FILTER	8-94391-016-4	01	1	0005-		●
265	BODY; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94393-503-0	01	1	9909-0004		●
265	BODY; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94393-503-0	01	1	0303-0308		●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	9601-9803		●
307	VALVE; OVERFLOW PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94395-700-0	01	1	9804-0004		●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	0005-		●
307	VALVE; OVERFLOW PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-97015-672-0	01	1	9909-0004		●
307	VALVE; OVERFLOW PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-97015-672-0	01	1	0303-0308		●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9601-		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9601-9908		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94399-339-0	01	1	9909-0004		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=9.8	8-94399-339-0	01	1	9909-0004		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0005-0302		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94399-339-0	01	1	0303-0308		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=9.8	8-94399-339-0	01	1	0303-0308		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0309-		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9601-		●
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28181-030-0	02	1	9601-0512		●
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
328	BOLT; OIL FILTER (A) M10X90 FLANGE	0-28181-090-0	02	1	9601-9803		●
328	BOLT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M10X90 FLANGE	0-28181-090-0	02	1	9804-0004		●
328	BOLT; OIL FILTER (A) M10X90 FLANGE	0-28181-090-0	02	1	0005-0512		●
328	BOLT; OIL FILTER (A) M10X90 FLANGE	0-28151-090-0	02	1	0601-		●
328	BOLT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) M10X135	8-94397-139-1	03	1	9909-0004		●
328	BOLT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) M10X135	8-94397-139-1	03	1	0303-0308		●
496	FILTER ASM; OIL	8-94395-686-0	01	1	9601-9609		●
496	FILTER ASM; OIL	8-94391-015-1	01	1	9610-9803		●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-015-2	01	1	9804-0004		●
496	FILTER ASM; OIL	8-94391-015-5	01	1	0005-0302		●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-015-5	01	1	0303-0308		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	0309-		●
496	FILTER ASM; OIL PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94392-898-0	01	1	9909-0004		●
496	FILTER ASM; OIL PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94392-898-1	01	1	0303-0308		●
516	BRACKET; COVER ANTI NOISE EQUIPMENT ECE<SLK>	8-94394-986-2	01	1	0210-0308		●
516	BRACKET; COVER	8-94394-986-2	01	1	0309-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
