Sayfa 0-41 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶

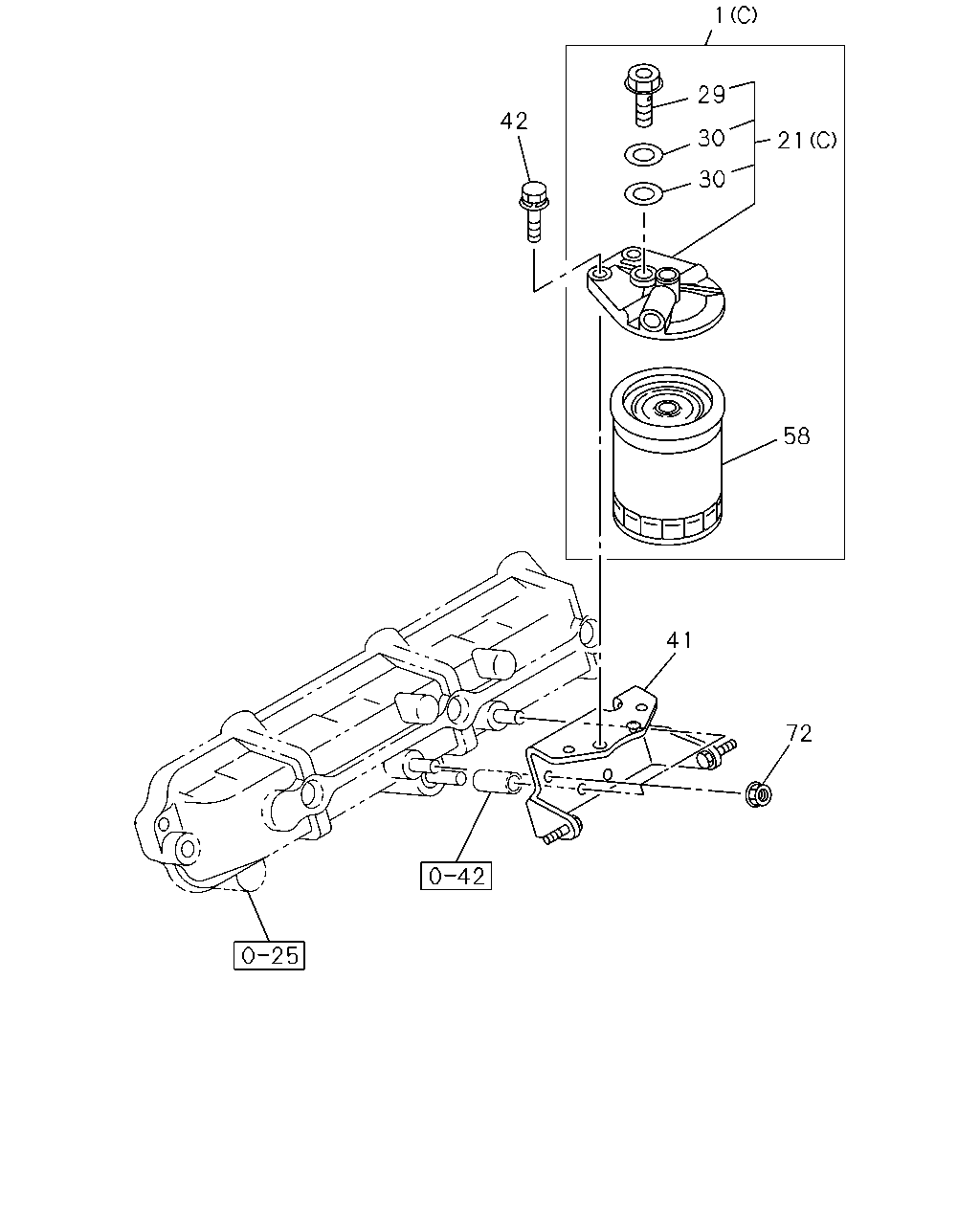

0-41 — FUEL FILTER AND BRACKET (#22787) — 79 parça

1 29 42 30 21 30 58 41 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER ASM; FUEL (B)	8-94393-449-1	01	1	9601-9803	●
1	FILTER ASM; FUEL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B)	8-94393-449-1	01	1	9804-0004	●
1	FILTER ASM; FUEL (B)	8-94393-449-2	01	1	0005-0302	●
1	FILTER ASM; FUEL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B)	8-94393-449-3	01	1	0303-0308	●
1	FILTER ASM; FUEL (B)	8-94393-449-3	01	1	0309-	●
1	FILTER ASM; FUEL PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	8-94397-113-3	01	1	9909-0004	●
1	FILTER ASM; FUEL PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	8-94397-113-3	01	1	0303-0308	●
1	FILTER ASM; FUEL (C)	1-13200-701-2	01	1	9601-0308		●
21	COVER; UPR,FUEL FILTER (B)	8-94396-669-0	01	1	9601-9803	●
21	COVER; UPR,FUEL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B)	8-94396-669-0	01	1	9804-0004	●
21	COVER; UPR,FUEL FILTER (B)	8-94396-669-1	01	1	0005-	●
21	COVER; UPR,FUEL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	9-13212-804-0	01	1	9909-0004	●
21	COVER; UPR,FUEL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	9-13212-804-0	01	1	0303-0308	●
21	COVER; UPR,FUEL FILTER (C)	1-13212-087-1	01	1	9601-0308		●
29	VALVE; OVERFLOW	8-94399-170-0	01	1	9601-	●
29	VALVE; OVERFLOW	1-13260-047-0	01	1	9601-0308		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-0308	●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0309-1312	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
41	BRACKET; FUEL FILTER	8-94399-441-0	01	1	9601-	●
41	BRACKET; FUEL FILTER	1-13219-312-2	01	1	9601-0308		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28081-035-0	02	1	9601-9709	●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	02	1	9710-0512	●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28651-035-0	02	1	0601-	●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9601-0308		●
58	ELEMENT; FUEL FILTER BEST VALUE PARTS	1-87610-054-1	01	1	0005-	●
58	ELEMENT; FUEL FILTER	8-94394-079-1	01	1	9601-9803	●
58	ELEMENT; FUEL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94394-079-1	01	1	9804-0004	●
58	ELEMENT; FUEL FILTER	8-94394-079-2	01	1	0005-	●
58	ELEMENT; FUEL FILTER	1-13240-079-1	01	1	9601-0308		●
72	NUT; BRKT,FUEL FILTER M8 FLANGE	0-91150-108-0	03	1	9601-0308		●

1 42 29 30 21 30 58 41 42 29 30 26 21 27 61 1 27 2 14 75 38 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER ASM; FUEL (B)	8-94393-449-1	01	1	9601-9803	●
1	FILTER ASM; FUEL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B)	8-94393-449-1	01	1	9804-0004	●
1	FILTER ASM; FUEL (B)	8-94393-449-2	01	1	0005-0302	●
1	FILTER ASM; FUEL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B)	8-94393-449-3	01	1	0303-0308	●
1	FILTER ASM; FUEL (B)	8-94393-449-3	01	1	0309-	●
1	FILTER ASM; FUEL PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	8-94397-113-3	01	1	9909-0004	●
1	FILTER ASM; FUEL PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	8-94397-113-3	01	1	0303-0308	●
1	FILTER ASM; FUEL (C)	1-13200-701-2	01	1	9601-0308		●
2	ELEMENT KIT; FUEL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-88511-191-1	01	1	9909-0004	●
2	ELEMENT KIT; FUEL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-88511-191-1	01	1	0303-0308	●
12	BOLT; CENTER,FUEL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13231-053-0	01	1	9909-0004	●
12	BOLT; CENTER,FUEL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13231-053-0	01	1	0303-0308	●
13	GASKET; CENTER BOLT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09720-541-0	01	1	9909-0004	●
13	GASKET; CENTER BOLT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09720-541-0	01	1	0303-0308	●
14	SPRING; ELEMENT SUPPORT,FUEL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09742-109-0	01	1	9909-0004	●
14	SPRING; ELEMENT SUPPORT,FUEL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09742-109-0	01	1	0303-0308	●
21	COVER; UPR,FUEL FILTER (B)	8-94396-669-0	01	1	9601-9803	●
21	COVER; UPR,FUEL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B)	8-94396-669-0	01	1	9804-0004	●
21	COVER; UPR,FUEL FILTER (B)	8-94396-669-1	01	1	0005-	●
21	COVER; UPR,FUEL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	9-13212-804-0	01	1	9909-0004	●
21	COVER; UPR,FUEL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	9-13212-804-0	01	1	0303-0308	●
21	COVER; UPR,FUEL FILTER (C)	1-13212-087-1	01	1	9601-0308		●
26	GASKET; COVER TO BODY PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-13213-601-0	01	1	9909-0004	●
26	GASKET; COVER TO BODY PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-13213-601-0	01	1	0303-0308	●
27	GASKET; ELEMENT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09720-542-0	02	1	9909-0004	●
27	GASKET; ELEMENT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09720-542-0	02	1	0303-0308	●
29	VALVE; OVERFLOW	8-94399-170-0	01	1	9601-	●
29	VALVE; OVERFLOW	1-13260-047-0	01	1	9601-0308		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-0308	●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0309-1312	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
38	PLUG; DRAIN PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13219-052-0	01	1	9909-0004	●
38	PLUG; DRAIN PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13219-052-0	01	1	0303-0308	●
41	BRACKET; FUEL FILTER	8-94399-441-0	01	1	9601-	●
41	BRACKET; FUEL FILTER	1-13219-312-2	01	1	9601-0308		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28081-035-0	02	1	9601-9709	●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	02	1	9710-0512	●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28651-035-0	02	1	0601-	●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9601-0308		●
58	ELEMENT; FUEL FILTER BEST VALUE PARTS	1-87610-054-1	01	1	0005-	●
58	ELEMENT; FUEL FILTER	8-94394-079-1	01	1	9601-9803	●
58	ELEMENT; FUEL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94394-079-1	01	1	9804-0004	●
58	ELEMENT; FUEL FILTER	8-94394-079-2	01	1	0005-	●
58	ELEMENT; FUEL FILTER	1-13240-079-1	01	1	9601-0308		●
61	SEAT; SPR ELEMENT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09651-068-0	01	1	9909-0004	●
61	SEAT; SPR ELEMENT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09651-068-0	01	1	0303-0308	●
75	BODY; FUEL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94393-518-1	01	1	9909-0004	●
75	BODY; FUEL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94393-518-1	01	1	0303-0308	●
