Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#22786) — 357 parça

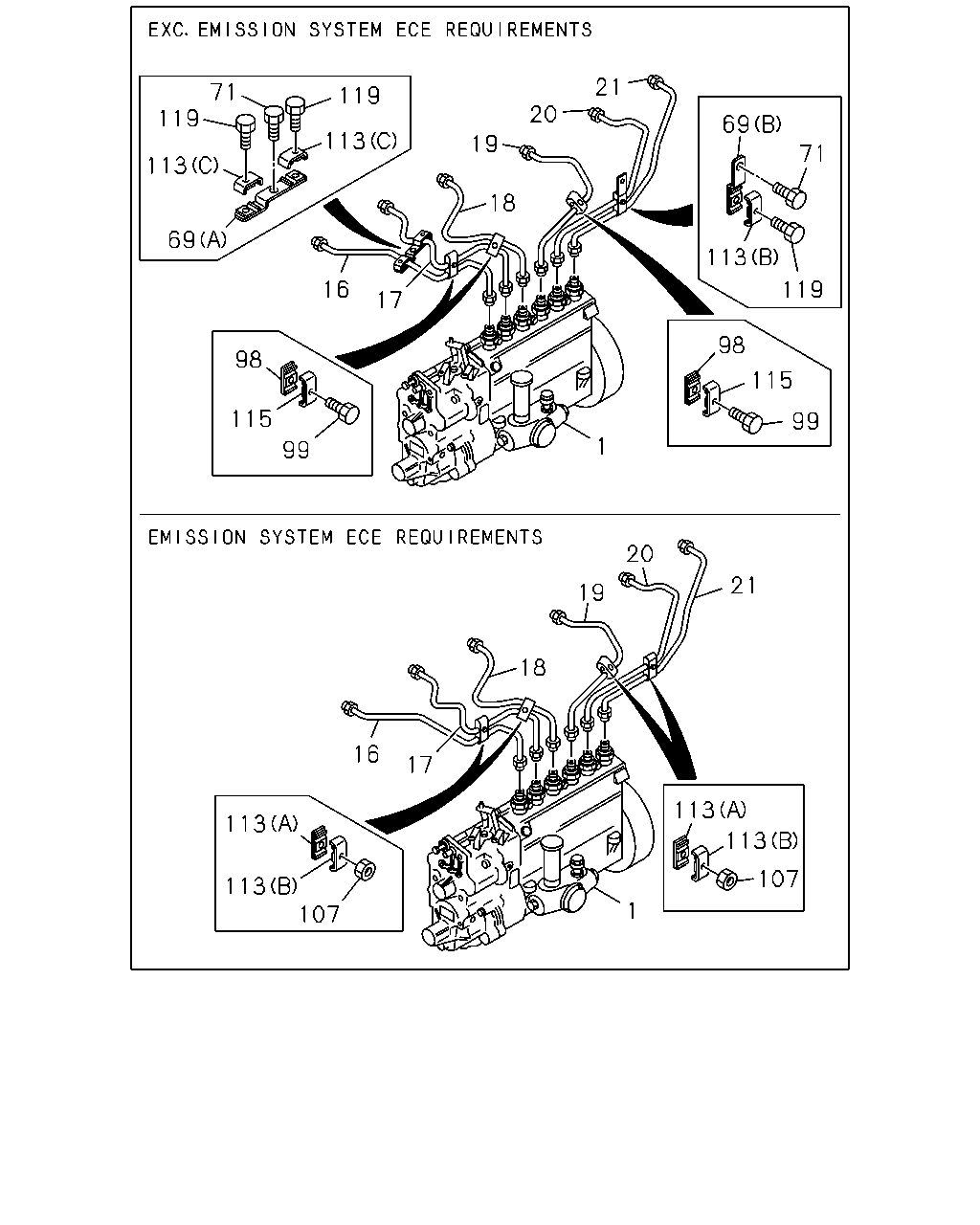

21 71 119 20 119 69 113 19 71 113 18 69 113 16 119 17 98 98 115 115 99 1 99 20 21 19 18 16 17 113 113 113 107 113 107 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-901-1	01	1	9601-0209	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-901-1	01	1	0210-0308	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	8-97600-180-0	01	1	0210-0308	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-813-1	01	1	0303-0308	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENT<TDZ>	1-15603-026-1	01	1	9601-0209		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ANTI NOISE EQUIPMENT ECE<SLK>	8-94390-081-1	01	1	0210-0308	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94390-081-1	01	1	0309-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EMISSION SYSTEM ECE REQUIREMENT<TDZ>,INJ PUMPHIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-025-1	01	1	9603-0308		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-036-0	01	1	9601-0308		●
16	PIPE; INJ NO.1	8-94396-007-2	01	1	9601-0209	●
16	PIPE; INJ NO.1 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-007-2	01	1	0210-0308	●
16	PIPE; INJ NO.1 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-546-0	01	1	0210-0308	●
16	PIPE; INJ NO.1	8-94394-546-0	01	1	0309-	●
16	PIPE; INJ NO.1	1-15414-242-0	01	1	9601-9607		●
16	PIPE; INJ NO.1	1-15416-112-0	01	1	9608-0308		●
17	PIPE; INJ NO.2	8-94396-008-3	01	1	9601-0209	●
17	PIPE; INJ NO.2 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-008-3	01	1	0210-0308	●
17	PIPE; INJ NO.2 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-547-0	01	1	0210-0308	●
17	PIPE; INJ NO.2	8-94394-547-0	01	1	0309-	●
17	PIPE; INJ NO.2	1-15414-243-0	01	1	9601-0308		●
18	PIPE; INJ NO.3	8-94396-009-3	01	1	9601-0209	●
18	PIPE; INJ NO.3 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-009-3	01	1	0210-0308	●
18	PIPE; INJ NO.3 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-548-0	01	1	0210-0308	●
18	PIPE; INJ NO.3	8-94394-548-0	01	1	0309-	●
18	PIPE; INJ NO.3	1-15414-244-0	01	1	9601-9607		●
18	PIPE; INJ NO.3	1-15416-133-0	01	1	9608-0308		●
19	PIPE; INJ NO.4	8-94396-010-4	01	1	9601-0209	●
19	PIPE; INJ NO.4 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-010-4	01	1	0210-0308	●
19	PIPE; INJ NO.4 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-549-0	01	1	0210-0308	●
19	PIPE; INJ NO.4	8-94394-549-0	01	1	0309-	●
19	PIPE; INJ NO.4	1-15415-772-0	01	1	9601-0308		●
20	PIPE; INJ NO.5	8-94396-011-2	01	1	9601-0209	●
20	PIPE; INJ NO.5 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-011-2	01	1	0210-0308	●
20	PIPE; INJ NO.5 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-550-0	01	1	0210-0308	●
20	PIPE; INJ NO.5	8-94394-550-0	01	1	0309-	●
20	PIPE; INJ NO.5	1-15415-773-0	01	1	9601-0308		●
21	PIPE; INJ NO.6	8-94396-494-3	01	1	9601-0209	●
21	PIPE; INJ NO.6 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-494-3	01	1	0210-0308	●
21	PIPE; INJ NO.6 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-551-0	01	1	0210-0308	●
21	PIPE; INJ NO.6	8-94394-551-0	01	1	0309-	●
21	PIPE; INJ NO.6	1-15415-774-0	01	1	9601-0308		●
69	BRACKET; INJ PIPE CLIP (A)	8-94396-086-0	01	1	9601-0209	●
69	BRACKET; INJ PIPE CLIP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94396-086-0	01	1	0210-0308	●
69	BRACKET; INJ PIPE CLIP (B)	8-94396-087-0	01	1	9601-0209	●
69	BRACKET; INJ PIPE CLIP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-94396-087-0	01	1	0210-0308	●
71	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	9601-0209	●
71	BOLT; BRKT EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X12 FLANGE	0-28080-812-0	02	1	0210-0308	●
71	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9601-0308		●
98	CLIP; "A",INJ PIPE	8-94397-445-0	03	1	9601-0209	●
98	CLIP; "A",INJ PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94397-445-0	03	1	0210-0308	●
99	BOLT; CLIP,INJ,PIPE	8-94365-129-0	03	1	9601-0209	●
99	BOLT; CLIP,INJ,PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94365-129-0	03	1	0210-0308	●
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28080-630-0	03	1	9601-0308		●
107	NUT; INJ PIPE CLIP EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6 FLANGE	0-91150-106-0	04	1	0210-0308	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	04	1	0309-0602	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91180-106-0	04	1	0603-	●
113	CLIP; INJ PIPE (C)	1-09701-091-0	02	1	9601-0209	●
113	CLIP; INJ PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	1-09701-091-0	02	1	0210-0308	●
113	CLIP; INJ PIPE (B)	8-94397-444-0	01	1	9601-0209	●
113	CLIP; INJ PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-94397-444-0	01	1	0210-0308	●
113	CLIP; INJ PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94396-793-0	04	1	0210-0308	●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	0309-	●
113	CLIP; INJ PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-94397-444-0	04	1	0210-0308	●
113	CLIP; INJ PIPE (B)	8-94397-444-0	04	1	0309-	●
113	CLIP; INJ PIPE (A)	1-09701-132-1	13	1	9601-0308		●
113	CLIP; INJ PIPE (B)	1-09701-213-0	03	1	9601-0308		●
115	CLIP; "B",INJ PIPE	8-94397-444-0	03	1	9601-0209	●
115	CLIP; "B",INJ PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94397-444-0	03	1	0210-0308	●
119	BOLT; CLIP,INJ PIPE M6X22 FLANGE	0-28080-622-0	03	1	9601-0209	●
119	BOLT; CLIP,INJ PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X22 FLANGE	0-28080-622-0	03	1	0210-0308	●

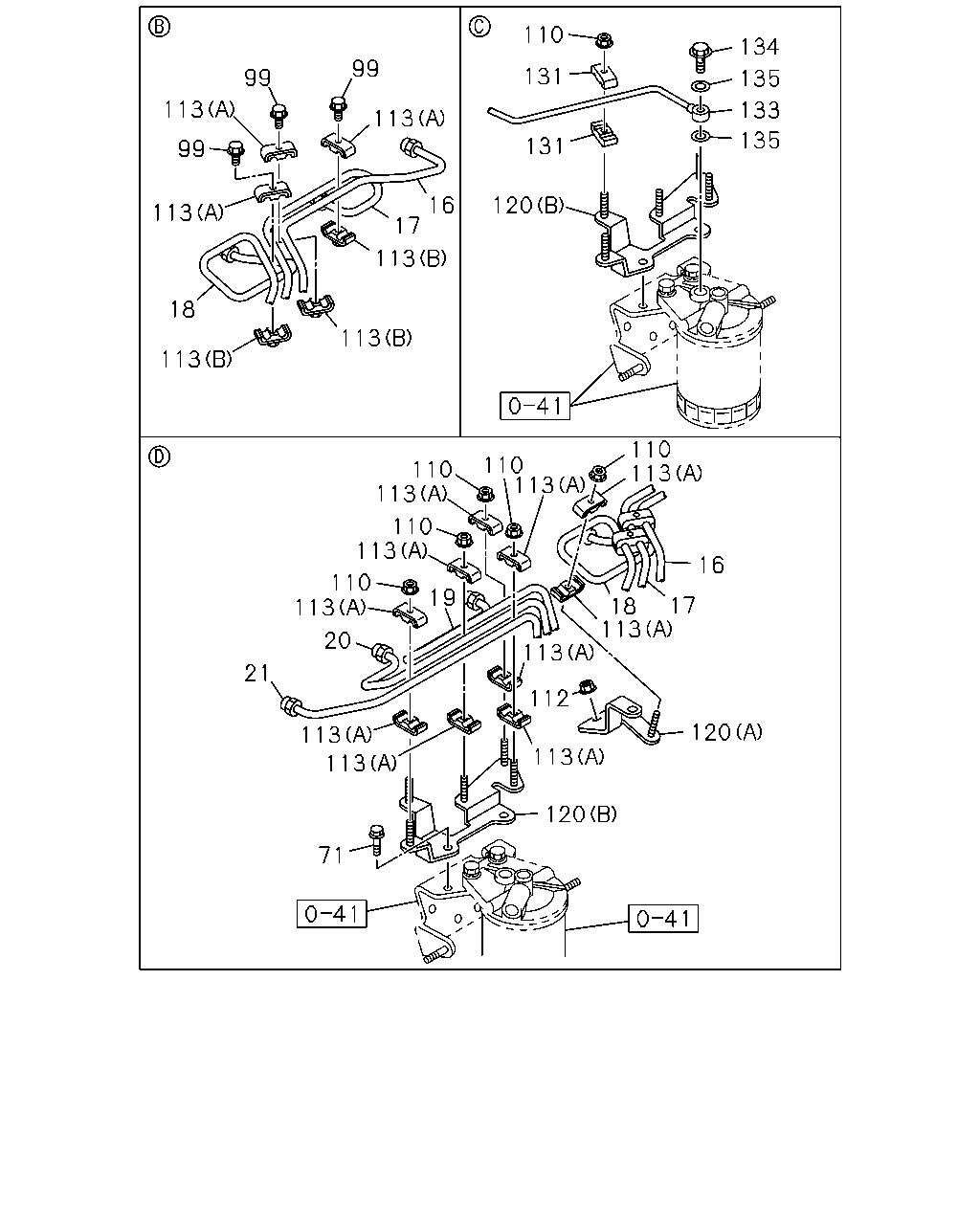

110 134 99 131 99 135 113 133 113 135 131 99 16 120 113 17 113 18 113 113 110 113 110 113 110 113 110 113 16 110 113 19 17 18 113 20 113 21 112 120 113 113 113 120 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; INJ NO.1	8-94396-007-2	01	1	9601-0209	●
16	PIPE; INJ NO.1 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-007-2	01	1	0210-0308	●
16	PIPE; INJ NO.1 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-546-0	01	1	0210-0308	●
16	PIPE; INJ NO.1	8-94394-546-0	01	1	0309-	●
16	PIPE; INJ NO.1	1-15414-242-0	01	1	9601-9607		●
16	PIPE; INJ NO.1	1-15416-112-0	01	1	9608-0308		●
17	PIPE; INJ NO.2	8-94396-008-3	01	1	9601-0209	●
17	PIPE; INJ NO.2 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-008-3	01	1	0210-0308	●
17	PIPE; INJ NO.2 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-547-0	01	1	0210-0308	●
17	PIPE; INJ NO.2	8-94394-547-0	01	1	0309-	●
17	PIPE; INJ NO.2	1-15414-243-0	01	1	9601-0308		●
18	PIPE; INJ NO.3	8-94396-009-3	01	1	9601-0209	●
18	PIPE; INJ NO.3 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-009-3	01	1	0210-0308	●
18	PIPE; INJ NO.3 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-548-0	01	1	0210-0308	●
18	PIPE; INJ NO.3	8-94394-548-0	01	1	0309-	●
18	PIPE; INJ NO.3	1-15414-244-0	01	1	9601-9607		●
18	PIPE; INJ NO.3	1-15416-133-0	01	1	9608-0308		●
19	PIPE; INJ NO.4	8-94396-010-4	01	1	9601-0209	●
19	PIPE; INJ NO.4 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-010-4	01	1	0210-0308	●
19	PIPE; INJ NO.4 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-549-0	01	1	0210-0308	●
19	PIPE; INJ NO.4	8-94394-549-0	01	1	0309-	●
19	PIPE; INJ NO.4	1-15415-772-0	01	1	9601-0308		●
20	PIPE; INJ NO.5	8-94396-011-2	01	1	9601-0209	●
20	PIPE; INJ NO.5 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-011-2	01	1	0210-0308	●
20	PIPE; INJ NO.5 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-550-0	01	1	0210-0308	●
20	PIPE; INJ NO.5	8-94394-550-0	01	1	0309-	●
20	PIPE; INJ NO.5	1-15415-773-0	01	1	9601-0308		●
21	PIPE; INJ NO.6	8-94396-494-3	01	1	9601-0209	●
21	PIPE; INJ NO.6 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-494-3	01	1	0210-0308	●
21	PIPE; INJ NO.6 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-551-0	01	1	0210-0308	●
21	PIPE; INJ NO.6	8-94394-551-0	01	1	0309-	●
21	PIPE; INJ NO.6	1-15415-774-0	01	1	9601-0308		●
71	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	9601-0209	●
71	BOLT; BRKT EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X12 FLANGE	0-28080-812-0	02	1	0210-0308	●
71	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9601-0308		●
99	BOLT; CLIP,INJ,PIPE	8-94365-129-0	03	1	9601-0209	●
99	BOLT; CLIP,INJ,PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94365-129-0	03	1	0210-0308	●
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28080-630-0	03	1	9601-0308		●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	06	1	9601-0308		●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9601-0308		●
113	CLIP; INJ PIPE (C)	1-09701-091-0	02	1	9601-0209	●
113	CLIP; INJ PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	1-09701-091-0	02	1	0210-0308	●
113	CLIP; INJ PIPE (B)	8-94397-444-0	01	1	9601-0209	●
113	CLIP; INJ PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-94397-444-0	01	1	0210-0308	●
113	CLIP; INJ PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94396-793-0	04	1	0210-0308	●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	0309-	●
113	CLIP; INJ PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-94397-444-0	04	1	0210-0308	●
113	CLIP; INJ PIPE (B)	8-94397-444-0	04	1	0309-	●
113	CLIP; INJ PIPE (A)	1-09701-132-1	13	1	9601-0308		●
113	CLIP; INJ PIPE (B)	1-09701-213-0	03	1	9601-0308		●
120	BRACKET; INJ PIPE (B)	1-15419-431-0	01	1	9601-0308		●
120	BRACKET; INJ PIPE (A)	1-15419-435-1	01	1	9601-0308		●
131	CLIP; OVERFLOW LEAK OFF	1-09701-132-1	02	1	9601-0308		●
133	PIPE; INJ NOZZLE LEAK OFF	8-94395-805-0	01	1	9601-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-782-0	01	1	9601-0308		●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	9601-0308	●	●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	0309-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	14	1	0005-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	9601-0004	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	0005-0308		●

34 36 124 36 135 37 135 38 31 39 32 44 45 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ (A)	8-94395-511-2	06	1	9601-0209	●
31	NOZZLE ASM; INJ EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-511-2	06	1	0210-0308	●
31	NOZZLE ASM; INJ EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-498-2	06	1	0210-0308	●
31	NOZZLE ASM; INJ (A)	8-94395-498-2	06	1	0309-	●
31	NOZZLE ASM; INJ (B)	1-15300-263-1	06	1	9601-0308		●
32	HOLDER ASM; NOZZLE	8-94390-384-0	06	1	9601-	●
32	HOLDER ASM; NOZZLE	1-15330-088-1	06	1	9601-0308		●
33	NOZZLE; INJ	8-94390-383-0	06	1	9601-0209	●
33	NOZZLE; INJ EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94390-383-0	06	1	0210-0308	●
33	NOZZLE; INJ EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94390-382-0	06	1	0210-0308	●
33	NOZZLE; INJ	8-94390-382-0	06	1	0309-	●
33	NOZZLE; INJ	1-15311-216-0	06	1	9601-0308		●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9601-9901	●	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9902-0308		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-135-0	06	1	9601-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-014-0	06	1	9601-0308		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9601-9901	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	06	1	9601-0308		●
37	NUT; CAP,NOZZLE HOLDER	1-15349-136-0	06	1	9601-	●
37	NUT; CAP,NOZZLE HOLDER	5-15332-006-0	06	1	9601-0308		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	9601-0308	●	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	0309-	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	8-94169-503-0	06	1	9601-0308	●	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	8-94169-503-0	06	1	0309-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	9601-0308	●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	0309-	●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	06	1	9601-0308	●	●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	06	1	0309-	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	06	1	0005-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	14	1	0005-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	9601-0004	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	0005-0308		●

34 36 37 38 31 39 32 44 45 42 41 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ (A)	8-94395-511-2	06	1	9601-0209	●
31	NOZZLE ASM; INJ EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-511-2	06	1	0210-0308	●
31	NOZZLE ASM; INJ EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-498-2	06	1	0210-0308	●
31	NOZZLE ASM; INJ (A)	8-94395-498-2	06	1	0309-	●
31	NOZZLE ASM; INJ (B)	1-15300-263-1	06	1	9601-0308		●
32	HOLDER ASM; NOZZLE	8-94390-384-0	06	1	9601-	●
32	HOLDER ASM; NOZZLE	1-15330-088-1	06	1	9601-0308		●
33	NOZZLE; INJ	8-94390-383-0	06	1	9601-0209	●
33	NOZZLE; INJ EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94390-383-0	06	1	0210-0308	●
33	NOZZLE; INJ EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94390-382-0	06	1	0210-0308	●
33	NOZZLE; INJ	8-94390-382-0	06	1	0309-	●
33	NOZZLE; INJ	1-15311-216-0	06	1	9601-0308		●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9601-9901	●	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9902-0308		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-135-0	06	1	9601-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-014-0	06	1	9601-0308		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9601-9901	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	06	1	9601-0308		●
37	NUT; CAP,NOZZLE HOLDER	1-15349-136-0	06	1	9601-	●
37	NUT; CAP,NOZZLE HOLDER	5-15332-006-0	06	1	9601-0308		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	9601-0308	●	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	0309-	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	8-94169-503-0	06	1	9601-0308	●	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	8-94169-503-0	06	1	0309-	●
41	CONNECTOR; FUEL INL,NOZZLE HOLDER	5-15351-001-0	06	1	9601-0308		●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	5-15339-003-0	06	1	9601-0308		●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	9601-0308	●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	0309-	●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	06	1	9601-0308	●	●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	06	1	0309-	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	9601-0308		●

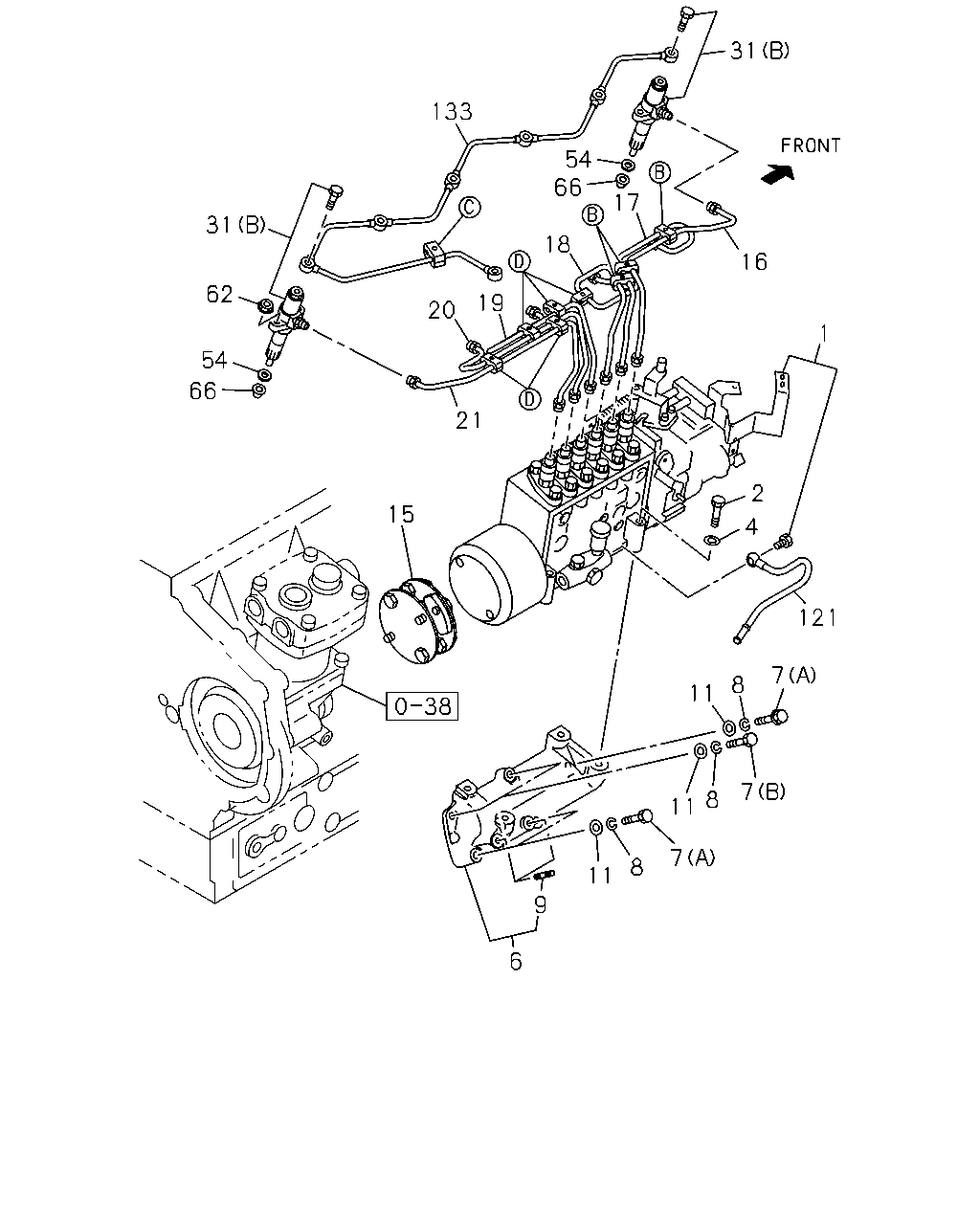

31 133 54 66 17 31 18 16 62 19 20 1 54 66 21 2 15 4 121 7 8 11 7 8 11 7 8 11 9 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-901-1	01	1	9601-0209	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-901-1	01	1	0210-0308	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	8-97600-180-0	01	1	0210-0308	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-813-1	01	1	0303-0308	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENT<TDZ>	1-15603-026-1	01	1	9601-0209		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ANTI NOISE EQUIPMENT ECE<SLK>	8-94390-081-1	01	1	0210-0308	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94390-081-1	01	1	0309-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EMISSION SYSTEM ECE REQUIREMENT<TDZ>,INJ PUMPHIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-025-1	01	1	9603-0308		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-036-0	01	1	9601-0308		●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9601-0308	●	●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	0309-	●
4	WASHER; INJ PUMP OR ID=8.5 MITSUBISHI	9-09851-934-0	04	1	9601-0308	●	●
4	WASHER; INJ PUMP OR ID=8.5 MITSUBISHI	9-09851-934-0	04	1	0309-	●
4	WASHER; INJ PUMP ID=8.5 KAWASAKI	9-09851-983-0	04	1	9601-0308	●	●
4	WASHER; INJ PUMP ID=8.5 KAWASAKI	9-09851-983-0	04	1	0309-	●
6	BRACKET; INJ PUMP TO C/BL	8-94393-689-2	01	1	9601-	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-087-0	01	1	9601-0308		●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28181-080-0	02	1	9601-0512	●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28151-080-0	02	1	0601-	●
7	BOLT; INJ PUMP BRKT (B) M10X75 FLANGE	8-94399-669-1	01	1	9601-	●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-94399-863-1	01	1	9601-0805	●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-97365-449-0	01	1	0806-	●
7	BOLT; INJ PUMP BRKT (B) M10X50	0-16806-050-0	03	1	9601-0308		●
7	BOLT; INJ PUMP BRKT (A) M10X65	0-16806-065-0	02	1	9601-0308		●
8	WASHER; LK,INJ PUMP BRKT ID=10.2	9-09150-510-0	05	1	9601-0002		●
9	STUD; CLIP	9-04010-612-0	02	1	9601-0308		●
11	WASHER; INJ PUMP BRKT ID=10.5 OD=18	9-09160-510-0	05	1	9601-0002		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94395-308-0	01	1	9601-0209	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-308-0	01	1	0210-0308	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94393-962-2	01	1	0210-0308	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94393-962-2	01	1	0309-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-167-0	01	1	9601-0308		●
16	PIPE; INJ NO.1	8-94396-007-2	01	1	9601-0209	●
16	PIPE; INJ NO.1 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-007-2	01	1	0210-0308	●
16	PIPE; INJ NO.1 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-546-0	01	1	0210-0308	●
16	PIPE; INJ NO.1	8-94394-546-0	01	1	0309-	●
16	PIPE; INJ NO.1	1-15414-242-0	01	1	9601-9607		●
16	PIPE; INJ NO.1	1-15416-112-0	01	1	9608-0308		●
17	PIPE; INJ NO.2	8-94396-008-3	01	1	9601-0209	●
17	PIPE; INJ NO.2 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-008-3	01	1	0210-0308	●
17	PIPE; INJ NO.2 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-547-0	01	1	0210-0308	●
17	PIPE; INJ NO.2	8-94394-547-0	01	1	0309-	●
17	PIPE; INJ NO.2	1-15414-243-0	01	1	9601-0308		●
18	PIPE; INJ NO.3	8-94396-009-3	01	1	9601-0209	●
18	PIPE; INJ NO.3 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-009-3	01	1	0210-0308	●
18	PIPE; INJ NO.3 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-548-0	01	1	0210-0308	●
18	PIPE; INJ NO.3	8-94394-548-0	01	1	0309-	●
18	PIPE; INJ NO.3	1-15414-244-0	01	1	9601-9607		●
18	PIPE; INJ NO.3	1-15416-133-0	01	1	9608-0308		●
19	PIPE; INJ NO.4	8-94396-010-4	01	1	9601-0209	●
19	PIPE; INJ NO.4 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-010-4	01	1	0210-0308	●
19	PIPE; INJ NO.4 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-549-0	01	1	0210-0308	●
19	PIPE; INJ NO.4	8-94394-549-0	01	1	0309-	●
19	PIPE; INJ NO.4	1-15415-772-0	01	1	9601-0308		●
20	PIPE; INJ NO.5	8-94396-011-2	01	1	9601-0209	●
20	PIPE; INJ NO.5 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-011-2	01	1	0210-0308	●
20	PIPE; INJ NO.5 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-550-0	01	1	0210-0308	●
20	PIPE; INJ NO.5	8-94394-550-0	01	1	0309-	●
20	PIPE; INJ NO.5	1-15415-773-0	01	1	9601-0308		●
21	PIPE; INJ NO.6	8-94396-494-3	01	1	9601-0209	●
21	PIPE; INJ NO.6 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-494-3	01	1	0210-0308	●
21	PIPE; INJ NO.6 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-551-0	01	1	0210-0308	●
21	PIPE; INJ NO.6	8-94394-551-0	01	1	0309-	●
21	PIPE; INJ NO.6	1-15415-774-0	01	1	9601-0308		●
31	NOZZLE ASM; INJ (A)	8-94395-511-2	06	1	9601-0209	●
31	NOZZLE ASM; INJ EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-511-2	06	1	0210-0308	●
31	NOZZLE ASM; INJ EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-498-2	06	1	0210-0308	●
31	NOZZLE ASM; INJ (A)	8-94395-498-2	06	1	0309-	●
31	NOZZLE ASM; INJ (B)	1-15300-263-1	06	1	9601-0308		●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9601-0308	●	●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	0309-	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	9601-0308		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0007-0909	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-98079-248-0	06	1	0910-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	9601-0006	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	0007-0308		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94394-408-0	01	1	9601-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-783-0	01	1	9601-0308		●
133	PIPE; INJ NOZZLE LEAK OFF	8-94395-805-0	01	1	9601-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-782-0	01	1	9601-0308		●

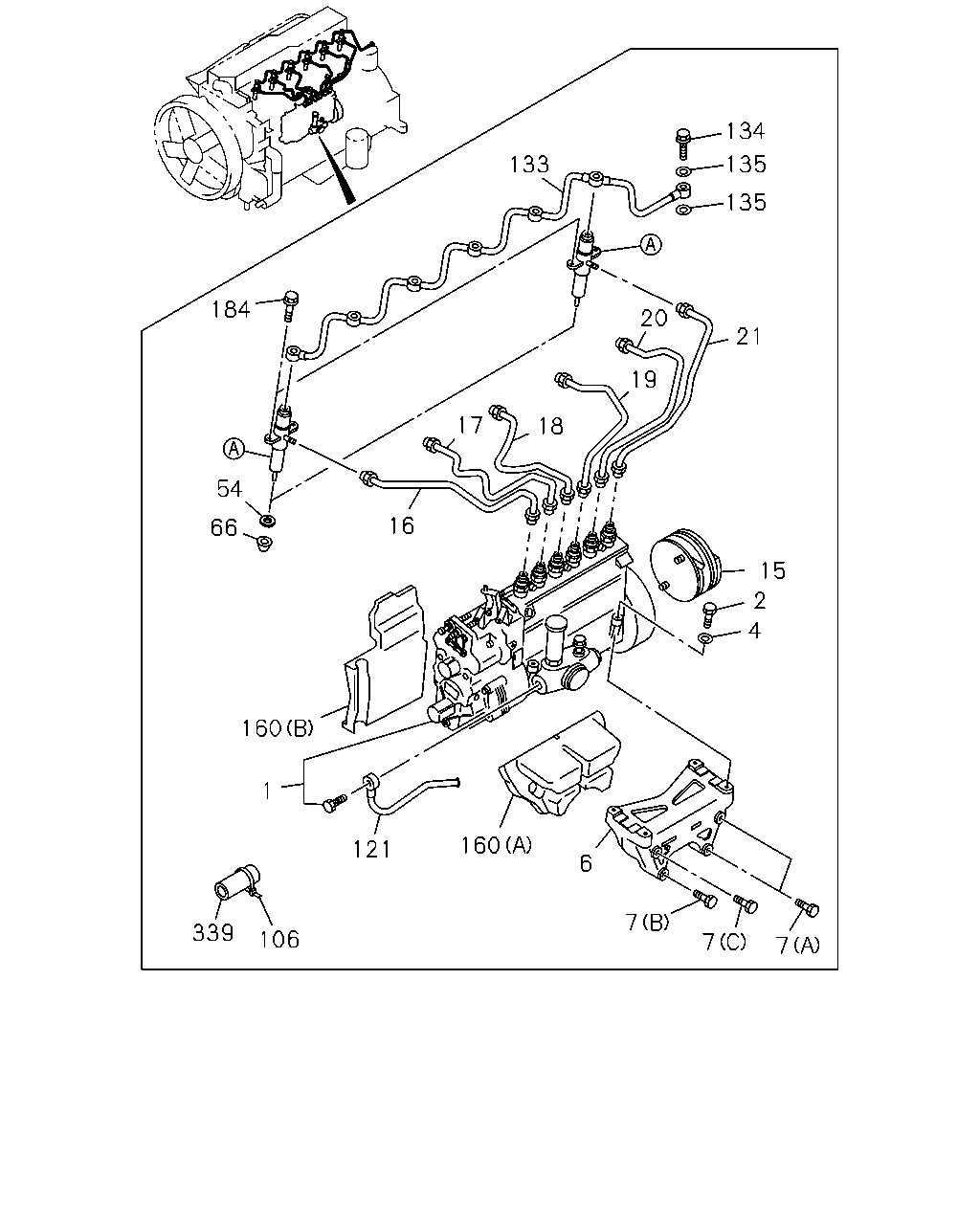

134 135 133 135 184 20 21 19 17 18 54 16 66 15 2 4 160 1 160 121 6 7 339 106 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-901-1	01	1	9601-0209	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-901-1	01	1	0210-0308	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	8-97600-180-0	01	1	0210-0308	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-813-1	01	1	0303-0308	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENT<TDZ>	1-15603-026-1	01	1	9601-0209		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ANTI NOISE EQUIPMENT ECE<SLK>	8-94390-081-1	01	1	0210-0308	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94390-081-1	01	1	0309-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EMISSION SYSTEM ECE REQUIREMENT<TDZ>,INJ PUMPHIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-025-1	01	1	9603-0308		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-036-0	01	1	9601-0308		●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9601-0308	●	●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	0309-	●
4	WASHER; INJ PUMP OR ID=8.5 MITSUBISHI	9-09851-934-0	04	1	9601-0308	●	●
4	WASHER; INJ PUMP OR ID=8.5 MITSUBISHI	9-09851-934-0	04	1	0309-	●
4	WASHER; INJ PUMP ID=8.5 KAWASAKI	9-09851-983-0	04	1	9601-0308	●	●
4	WASHER; INJ PUMP ID=8.5 KAWASAKI	9-09851-983-0	04	1	0309-	●
6	BRACKET; INJ PUMP TO C/BL	8-94393-689-2	01	1	9601-	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-087-0	01	1	9601-0308		●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28181-080-0	02	1	9601-0512	●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28151-080-0	02	1	0601-	●
7	BOLT; INJ PUMP BRKT (B) M10X75 FLANGE	8-94399-669-1	01	1	9601-	●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-94399-863-1	01	1	9601-0805	●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-97365-449-0	01	1	0806-	●
7	BOLT; INJ PUMP BRKT (B) M10X50	0-16806-050-0	03	1	9601-0308		●
7	BOLT; INJ PUMP BRKT (A) M10X65	0-16806-065-0	02	1	9601-0308		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94395-308-0	01	1	9601-0209	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-308-0	01	1	0210-0308	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94393-962-2	01	1	0210-0308	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94393-962-2	01	1	0309-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-167-0	01	1	9601-0308		●
16	PIPE; INJ NO.1	8-94396-007-2	01	1	9601-0209	●
16	PIPE; INJ NO.1 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-007-2	01	1	0210-0308	●
16	PIPE; INJ NO.1 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-546-0	01	1	0210-0308	●
16	PIPE; INJ NO.1	8-94394-546-0	01	1	0309-	●
16	PIPE; INJ NO.1	1-15414-242-0	01	1	9601-9607		●
16	PIPE; INJ NO.1	1-15416-112-0	01	1	9608-0308		●
17	PIPE; INJ NO.2	8-94396-008-3	01	1	9601-0209	●
17	PIPE; INJ NO.2 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-008-3	01	1	0210-0308	●
17	PIPE; INJ NO.2 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-547-0	01	1	0210-0308	●
17	PIPE; INJ NO.2	8-94394-547-0	01	1	0309-	●
17	PIPE; INJ NO.2	1-15414-243-0	01	1	9601-0308		●
18	PIPE; INJ NO.3	8-94396-009-3	01	1	9601-0209	●
18	PIPE; INJ NO.3 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-009-3	01	1	0210-0308	●
18	PIPE; INJ NO.3 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-548-0	01	1	0210-0308	●
18	PIPE; INJ NO.3	8-94394-548-0	01	1	0309-	●
18	PIPE; INJ NO.3	1-15414-244-0	01	1	9601-9607		●
18	PIPE; INJ NO.3	1-15416-133-0	01	1	9608-0308		●
19	PIPE; INJ NO.4	8-94396-010-4	01	1	9601-0209	●
19	PIPE; INJ NO.4 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-010-4	01	1	0210-0308	●
19	PIPE; INJ NO.4 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-549-0	01	1	0210-0308	●
19	PIPE; INJ NO.4	8-94394-549-0	01	1	0309-	●
19	PIPE; INJ NO.4	1-15415-772-0	01	1	9601-0308		●
20	PIPE; INJ NO.5	8-94396-011-2	01	1	9601-0209	●
20	PIPE; INJ NO.5 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-011-2	01	1	0210-0308	●
20	PIPE; INJ NO.5 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-550-0	01	1	0210-0308	●
20	PIPE; INJ NO.5	8-94394-550-0	01	1	0309-	●
20	PIPE; INJ NO.5	1-15415-773-0	01	1	9601-0308		●
21	PIPE; INJ NO.6	8-94396-494-3	01	1	9601-0209	●
21	PIPE; INJ NO.6 EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-494-3	01	1	0210-0308	●
21	PIPE; INJ NO.6 EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94394-551-0	01	1	0210-0308	●
21	PIPE; INJ NO.6	8-94394-551-0	01	1	0309-	●
21	PIPE; INJ NO.6	1-15415-774-0	01	1	9601-0308		●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9601-0308	●	●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	0309-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0007-0909	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-98079-248-0	06	1	0910-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	9601-0006	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	0007-0308		●
106	CLIP; INJ PIPE L=140	5-09707-031-1	01	1	0002-0106	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94394-408-0	01	1	9601-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-783-0	01	1	9601-0308		●
133	PIPE; INJ NOZZLE LEAK OFF	8-94395-805-0	01	1	9601-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-782-0	01	1	9601-0308		●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	9601-0308	●	●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	0309-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	14	1	0005-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	9601-0004	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	0005-0308		●
160	SPACER; INJ PUMP ANTI NOISE EQUIPMENT ECE<SLK> (B)	8-94390-169-0	01	1	0210-0308	●
160	SPACER; INJ PUMP (B)	8-94390-169-0	01	1	0309-	●
160	SPACER; INJ PUMP ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94395-673-1	01	1	0210-0308	●
160	SPACER; INJ PUMP (A)	8-94395-673-1	01	1	0309-	●
184	BOLT; NOZZLE HOLDER M8X40 FLANGE	0-28080-840-0	12	1	9601-0512	●
184	BOLT; NOZZLE HOLDER M8X40 FLANGE	0-28050-840-0	12	1	0601-	●
339	RUBBER; COVER ID=6 OD=10 L=70	1-09376-512-0	01	1	0002-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
