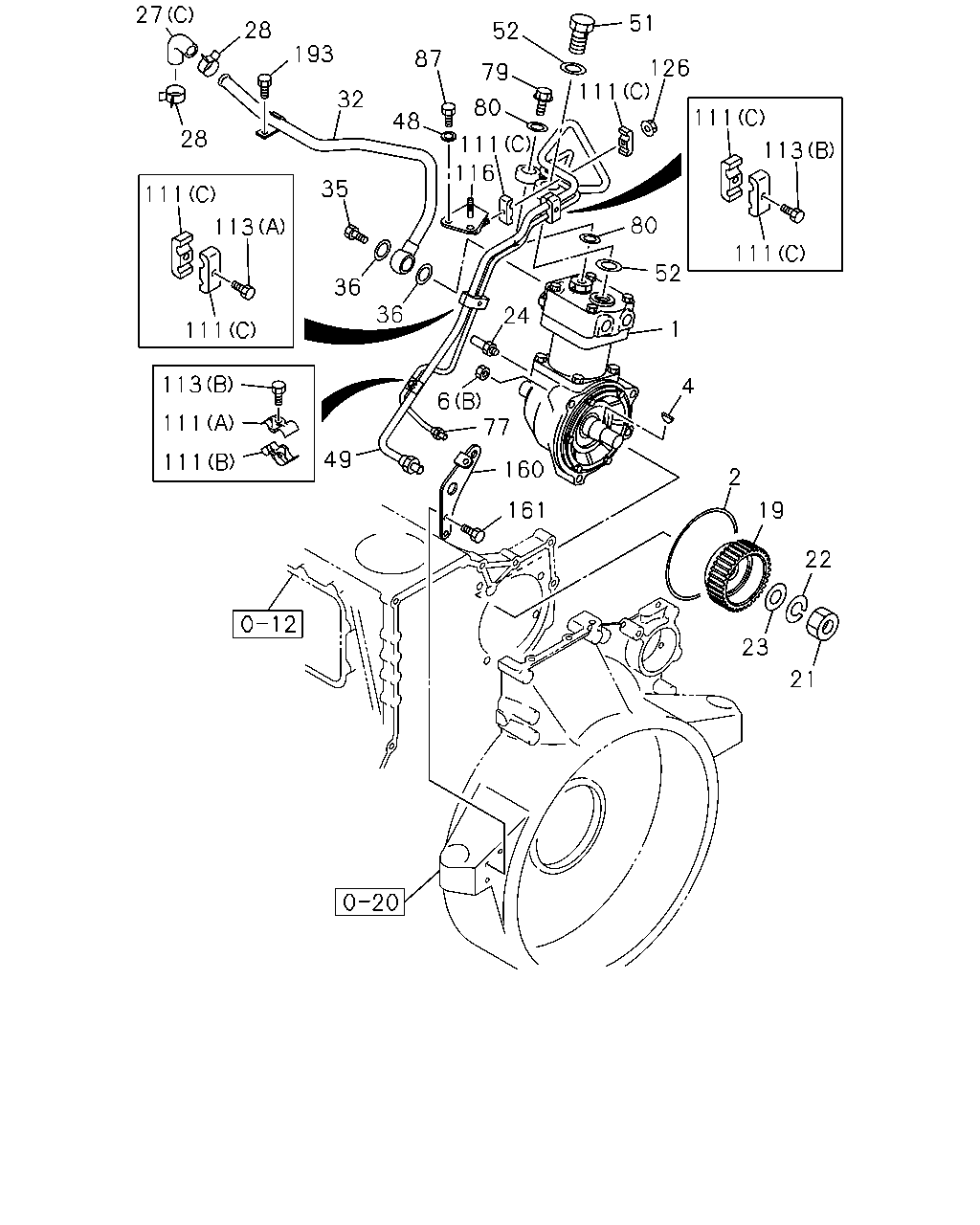

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#22784) — 129 parça

27 51 28 52 193 87 126 111 79 32 80 111 48 28 111 113 116 35 111 80 113 111 52 36 36 24 1 111 113 4 6 77 111 49 111 160 2 161 19 22 23 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-9	01	1	9601-1107	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-310-1	01	1	1108-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-253-5	01	1	9601-0308		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9601-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	9601-0308		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9601-	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	9601-0308		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9601-0602	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9601-0602	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	04	1	9601-0308		●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9601-	●
19	GEAR; INJ PUMP Z=36	1-12524-100-1	01	1	9601-0308		●
21	NUT; PUMP GEAR M24	9-99111-524-0	01	1	9601-0308		●
22	WASHER; LK,INJ PUMP GEAR FIX ID=24.5	9-09150-524-0	01	1	9601-0308		●
23	WASHER; PL,PUMP GEAR ID=25	9-09160-524-0	01	1	9601-0308		●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9601-	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	9601-0308		●
27	HOSE; AIR CMPR,SUCTION (A)	8-94395-083-0	01	1	9601-0209	●
27	HOSE; AIR CMPR,SUCTION EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-083-0	01	1	0210-0308	●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-94394-967-0	01	1	0210-0308	●
27	HOSE; AIR CMPR,SUCTION (B)	8-94394-967-0	01	1	0309-	●
27	HOSE; AIR CMPR,SUCTION (C)	1-09360-916-0	01	1	9601-0308		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9601-	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9601-0308		●
32	PIPE; AIR,AIR CMPR	1-19192-908-0	01	1	9601-0308		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-1	01	1	9601-0308		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-0308		●
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0004-0308		●
49	PIPE; AIR,CHARGE	8-94395-087-2	01	1	9601-	●
49	PIPE; AIR,CHARGE	1-19192-963-0	01	1	9601-0308		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	9601-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9601-0308		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-0308	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0309-	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	9601-0308		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9601-0308	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0309-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-0308	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0309-1312	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
87	BOLT; BRKT FIX M10X25 FLANGE	0-28081-025-0	02	1	9601-0003		●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0004-0308		●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	01	1	9601-0308		●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	01	1	9601-0308		●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	9601-0308		●
113	BOLT; CLIP,AIR PIPE (B) M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9601-9709	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	01	1	9710-0512	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	01	1	0601-	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	9601-0308		●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	9601-0308		●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	9601-0308		●
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	9601-0308		●
160	BRACKET; AIR PIPE	8-94394-569-0	01	1	9601-	●
160	BRACKET; AIR PIPE	1-19199-120-0	01	1	9601-0308		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9601-0308	●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0309-0512	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
193	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	9601-0308		●

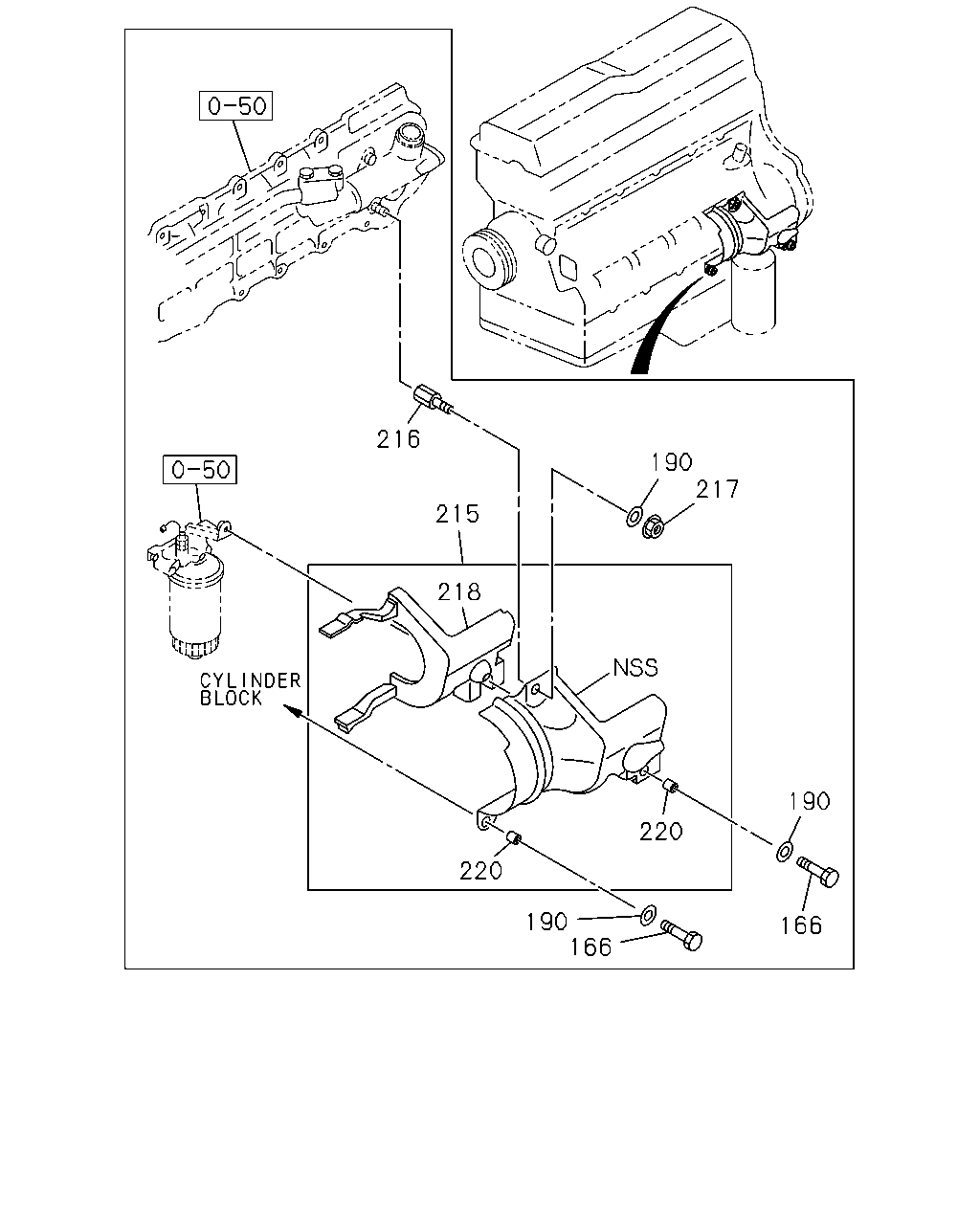

216 190 217 215 218 190 220 220 190 166 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
166	BOLT; COVER FIX ANTI NOISE EQUIPMENT ECE<SLK> M10X25 FLANGE	0-28781-025-0	02	1	0210-0308	●
166	BOLT; COVER FIX M10X25 FLANGE	0-28781-025-0	02	1	0309-0512	●
166	BOLT; COVER FIX M10X25 FLANGE	0-28751-025-0	02	1	0601-	●
190	WASHER; PL,COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=10.5 OD=26	9-09160-710-0	03	1	0210-0308	●
190	WASHER; PL,COVER ID=10.5 OD=26	9-09160-710-0	03	1	0309-	●
215	COVER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94390-408-0	01	1	0210-0308	●
215	COVER; AIR CMPR	8-94390-408-0	01	1	0309-	●
216	SPACER; COVER ANTI NOISE EQUIPMENT ECE<SLK>	8-94394-990-1	01	1	0210-0308	●
216	SPACER; COVER	8-94394-990-1	01	1	0309-	●
217	NUT; COVER ANTI NOISE EQUIPMENT ECE<SLK> M10	9-09110-410-0	01	1	0210-0308	●
217	NUT; COVER M10	9-09110-410-0	01	1	0309-0512	●
217	NUT; COVER M10	0-91110-510-0	01	1	0601-	●
218	INSULATOR; COVER ANTI NOISE EQUIPMENT ECE<SLK>	8-94394-995-2	01	1	0210-0308	●
218	INSULATOR; COVER	8-94394-995-2	01	1	0309-	●
220	TUBE; DIST ANTI NOISE EQUIPMENT ECE<SLK> OD=13 T=9.5	8-94140-427-1	03	1	0210-0308	●
220	TUBE; DIST OD=13 T=9.5	8-94140-427-1	03	1	0309-	●

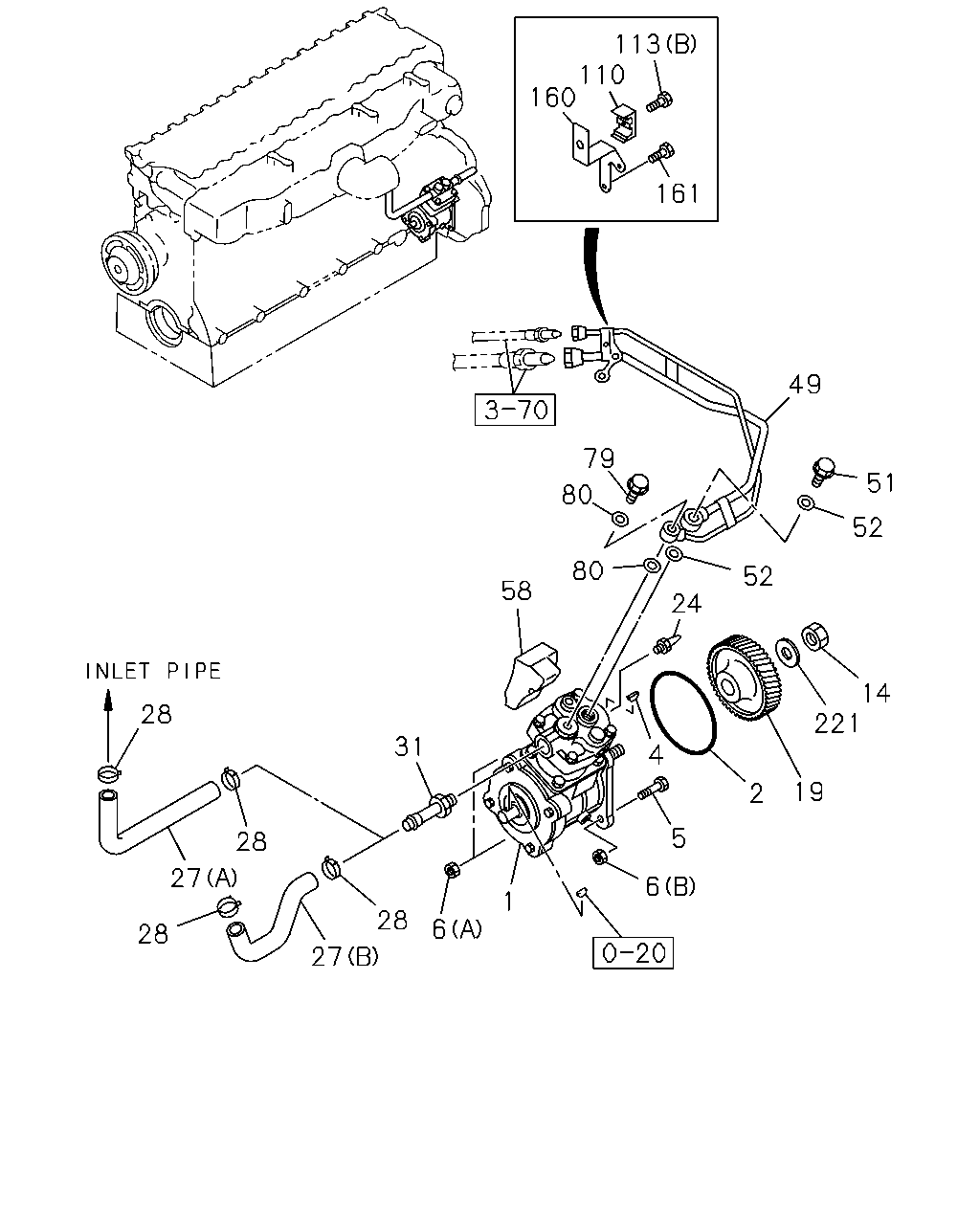

113 110 160 161 49 79 51 80 52 80 52 58 24 14 221 28 31 19 2 5 28 27 6 1 28 6 28 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-9	01	1	9601-1107	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-310-1	01	1	1108-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-253-5	01	1	9601-0308		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9601-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	9601-0308		●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9601-	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9601-0602	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9601-0602	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	04	1	9601-0308		●
14	NUT; GEAR M20	9-99110-520-0	01	1	9601-0512	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9601-	●
19	GEAR; INJ PUMP Z=36	1-12524-100-1	01	1	9601-0308		●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9601-	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	9601-0308		●
27	HOSE; AIR CMPR,SUCTION (A)	8-94395-083-0	01	1	9601-0209	●
27	HOSE; AIR CMPR,SUCTION EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-083-0	01	1	0210-0308	●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-94394-967-0	01	1	0210-0308	●
27	HOSE; AIR CMPR,SUCTION (B)	8-94394-967-0	01	1	0309-	●
27	HOSE; AIR CMPR,SUCTION (C)	1-09360-916-0	01	1	9601-0308		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9601-	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9601-0308		●
31	PIPE; AIR,AIR CMPR SUCTION	8-94399-954-0	01	1	9601-	●
49	PIPE; AIR,CHARGE	8-94395-087-2	01	1	9601-	●
49	PIPE; AIR,CHARGE	1-19192-963-0	01	1	9601-0308		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	9601-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9601-0308		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-0308	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0309-	●
58	SPACER; AIR CMPR ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-675-1	01	1	0210-0308	●
58	SPACER; AIR CMPR	8-94395-675-1	01	1	0309-	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9601-0308	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0309-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-0308	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0309-1312	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9601-	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9601-9709	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	01	1	9710-0512	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	01	1	0601-	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	9601-0308		●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	9601-0308		●
160	BRACKET; AIR PIPE	8-94394-569-0	01	1	9601-	●
160	BRACKET; AIR PIPE	1-19199-120-0	01	1	9601-0308		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9601-0308	●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0309-0512	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9601-0605	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-	●
