0-30 — WATER PUMP AND CORROSION RESISTOR (#22779) — 190 parça

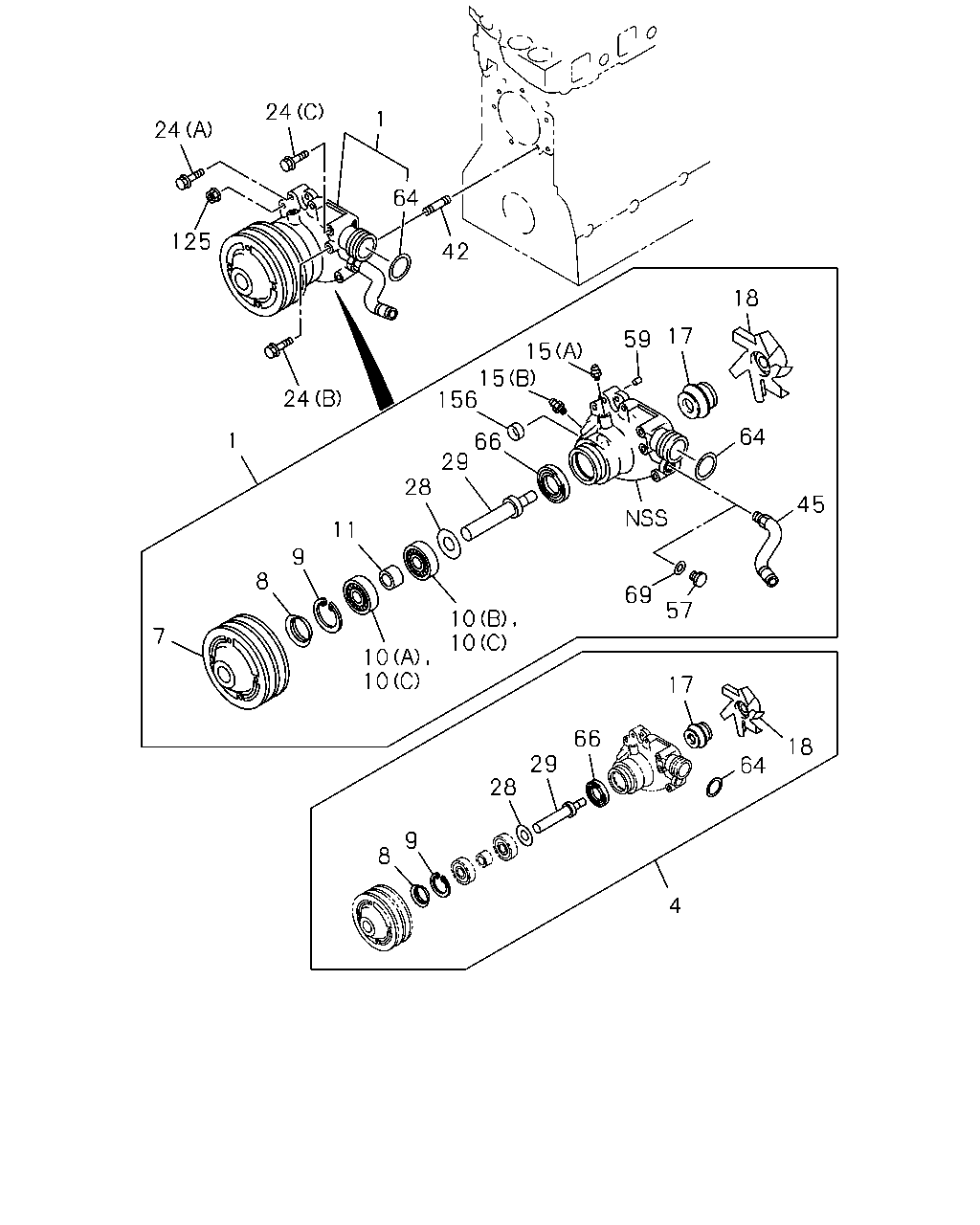

24 1 24 64 125 42 18 17 59 15 15 156 24 64 1 66 29 28 45 11 9 8 69 57 10 10 7 10 10 17 66 18 29 64 28 9 8 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; WATER,W/GASKET ANTI NOISE EQUIPMENT ECE<SLK>	8-97602-781-2	01	1	0302-0308	●
1	PUMP ASM; WATER,W/GASKET	8-97602-781-2	01	1	0309-1208	●
1	PUMP ASM; WATER,W/GASKET	1-87310-839-0	01	1	1209-1312	●
1	PUMP ASM; WATER,W/GASKET	1-87310-911-0	01	1	1401-1405	●
1	PUMP ASM; WATER,W/GASKET	1-87310-983-0	01	1	1406-	●
1	PUMP ASM; WATER,W/GASKET HEATER & DEFROSTER(C41)	8-94395-657-6	01	1	9601-0301	●
1	PUMP ASM; WATER,W/GASKET EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-97602-775-0	01	1	0302-0308	●
1	PUMP ASM; WATER,W/GASKET EXC. HEATER & DEFROSTER(C41)	8-94390-601-5	01	1	9601-0209	●
1	PUMP ASM; WATER,W/GASKET EXC. HEATER & DEFROSTER(C41),ANTI NOISE EQUIPMENT ECE<SLK>	8-94390-601-5	01	1	0210-0301	●
1	PUMP ASM; WATER,W/GASKET	1-13650-003-2	01	1	9601-0308		●
4	REPAIR KIT; WATER PUMP	1-87811-051-0	01	1	9601-9911	●
4	REPAIR KIT; WATER PUMP	1-87812-027-0	01	1	9912-0209	●
4	REPAIR KIT; WATER PUMP EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-87812-027-1	01	1	0210-0308	●
4	REPAIR KIT; WATER PUMP ANTI NOISE EQUIPMENT ECE<SLK>	1-87812-029-0	01	1	0210-0301	●
4	REPAIR KIT; WATER PUMP ANTI NOISE EQUIPMENT ECE<SLK>	1-87812-028-1	01	1	0302-0308	●
4	REPAIR KIT; WATER PUMP	1-87812-028-1	01	1	0309-1208	●
4	REPAIR KIT; WATER PUMP	1-87813-946-0	01	1	1209-1312	●
4	REPAIR KIT; WATER PUMP	1-87814-172-0	01	1	1401-1405	●
4	REPAIR KIT; WATER PUMP	1-87814-612-0	01	1	1406-	●
4	REPAIR KIT; WATER PUMP	1-87811-181-0	01	1	9601-9807		●
4	REPAIR KIT; WATER PUMP	1-87811-936-0	01	1	9808-9911		●
4	REPAIR KIT; WATER PUMP	1-87812-019-1	01	1	9912-0308		●
7	PULLEY; WATER PUMP 2-GROOVE	8-94394-826-0	01	1	9601-0209	●
7	PULLEY; WATER PUMP EXC. ANTI NOISE EQUIPMENT ECE<SLK> 2-GROOVE	8-94394-826-0	01	1	0210-0308	●
7	PULLEY; WATER PUMP ANTI NOISE EQUIPMENT ECE<SLK> 4-GROOVE	8-94394-927-0	01	1	0210-0308	●
7	PULLEY; WATER PUMP 4-GROOVE	8-94394-927-0	01	1	0309-	●
7	PULLEY; WATER PUMP 2-GROOVE	1-13641-173-0	01	1	9601-0308		●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	9601-0209	●
8	THROWER; DUST,WATER PUMP EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94399-457-0	01	1	0210-0301	●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	0302-	●
8	THROWER; DUST,WATER PUMP ANTI NOISE EQUIPMENT ECE<SLK>	8-94399-457-0	02	1	0210-0301	●
9	RING; SNAP,WATER PUMP EXC. ANTI NOISE EQUIPMENT ECE<SLK> ID=57.9	9-09180-162-0	01	1	0210-0301	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0210-0301		●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	9601-0209	●	●
9	RING; SNAP,WATER PUMP ANTI NOISE EQUIPMENT ECE<SLK> ID=57.9	9-09180-162-0	02	1	0210-0301	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0302-0308	●	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0309-	●
10	BEARING; WATER PUMP (C)	1-09800-011-0	02	1	9601-0209	●
10	BEARING; WATER PUMP EXC. ANTI NOISE EQUIPMENT ECE<SLK> (C)	1-09800-011-0	02	1	0210-0308	●
10	BEARING; WATER PUMP (B)	1-09800-155-0	02	1	9601-0308		●
10	BEARING; WATER PUMP (A)	1-09800-196-0	01	1	9601-0308		●
11	SPACER; BRG,WATER PUMP	1-13634-025-0	01	1	9601-0209	●
11	SPACER; BRG,WATER PUMP EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-13634-025-0	01	1	0210-0308	●
11	SPACER; BRG,WATER PUMP ANTI NOISE EQUIPMENT ECE<SLK>	1-13634-040-0	01	1	0210-0308	●
11	SPACER; BRG,WATER PUMP	1-13634-040-0	01	1	0309-	●
11	SPACER; BRG,WATER PUMP	1-13634-029-0	01	1	9601-0308		●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	9601-0209	●
15	NIPPLE; GREASE,WATER PUMP EXC. ANTI NOISE EQUIPMENT ECE<SLK> (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	0210-0301	●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	0302-	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	9601-0209	●
15	NIPPLE; GREASE,WATER PUMP EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	0210-0301	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	0302-0512	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●
15	NIPPLE; GREASE,WATER PUMP ANTI NOISE EQUIPMENT ECE<SLK> (A) PT1/8 STRAIGHT	1-09380-002-0	02	1	0210-0301	●
15	NIPPLE; GREASE,WATER PUMP ANTI NOISE EQUIPMENT ECE<SLK> (B) PT1/8 STRAIGHT	9-09031-010-0	02	1	0210-0301	●
17	SEAL UNIT; WATER PUMP EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94392-090-0	01	1	0210-0301	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0210-0301		●
17	SEAL UNIT; WATER PUMP	8-94395-036-0	01	1	9601-9807	●	●
17	SEAL UNIT; WATER PUMP	8-94395-036-0	01	1	9808-9912	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	9808-9912		●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0001-0209	●	●
17	SEAL UNIT; WATER PUMP ANTI NOISE EQUIPMENT ECE<SLK>	8-94392-090-0	02	1	0210-0301	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0302-0308	●	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0309-1208	●
17	SEAL UNIT; WATER PUMP	8-98221-159-0	01	1	1209-1312	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	1401-1405	●
17	SEAL UNIT; WATER PUMP	8-98272-791-0	01	1	1406-	●
18	IMPELLER; WATER PUMP	8-94397-375-0	01	1	9601-	●
18	IMPELLER; WATER PUMP ANTI NOISE EQUIPMENT ECE<SLK>	8-94392-922-0	01	1	0210-0301	●
18	IMPELLER; WATER PUMP	1-13621-052-0	01	1	9601-0308		●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	9601-	●
24	BOLT; WATER PUMP (B) M8X79 FLANGE	8-94311-617-1	01	1	9601-9611	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28080-880-0	01	1	9612-0512	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28050-880-0	01	1	0601-	●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	9601-	●
24	BOLT; WATER PUMP (A) M10X70	0-16806-070-0	02	1	9601-0308		●
24	BOLT; WATER PUMP (B) M8X45 W/LK&PL WASHER	0-50140-845-0	07	1	9601-0308		●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	9601-0209	●
28	WASHER; WATER PUMP EXC. ANTI NOISE EQUIPMENT ECE<SLK> ID=25.5 OD=50	8-94397-097-0	01	1	0210-0301	●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	0302-	●
28	WASHER; WATER PUMP ANTI NOISE EQUIPMENT ECE<SLK> ID=25.5 OD=50	8-94397-097-0	02	1	0210-0301	●
29	SHAFT; WATER PUMP	8-94397-374-0	01	1	9601-0209	●
29	SHAFT; WATER PUMP EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94397-374-0	01	1	0210-0308	●
29	SHAFT; WATER PUMP ANTI NOISE EQUIPMENT ECE<SLK>	8-94396-130-1	01	1	0210-0308	●
29	SHAFT; WATER PUMP	8-94396-130-1	01	1	0309-	●
29	SHAFT; WATER PUMP	1-13631-079-0	01	1	9601-0308		●
42	STUD; WATER PUMP M8X30 L=46	9-04010-830-0	01	1	9601-0604	●
42	STUD; WATER PUMP M8X30 L=46	0-40110-830-0	01	1	0605-	●
45	JOINT; HTR HOSE,WATER PUMP HEATER & DEFROSTER(C41)	8-94397-377-2	01	1	9601-0308	●
45	JOINT; HTR HOSE,WATER PUMP HEATER & DEFROSTER(C41) PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9601-0308		●
57	PLUG; HTR,WATER PUMP EXC. HEATER & DEFROSTER(C41) M20	9-99202-320-0	01	1	0302-0308	●
57	PLUG; HTR,WATER PUMP M20	9-99202-320-0	01	1	0309-	●
59	DOWEL; WATER PUMP	9-13119-022-0	02	1	9601-0209	●
59	DOWEL; WATER PUMP EXC. ANTI NOISE EQUIPMENT ECE<SLK>	9-13119-022-0	02	1	0210-0308	●
59	DOWEL; WATER PUMP ANTI NOISE EQUIPMENT ECE<SLK> OD=12 L=9	1-13119-003-0	02	1	0210-0308	●
59	DOWEL; WATER PUMP OD=12 L=9	1-13119-003-0	02	1	0309-	●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7	1-09623-383-0	01	1	9601-	●
66	SEAL; SECONDARY	1-09625-437-0	01	1	9601-0209	●
66	SEAL; SECONDARY EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-09625-437-0	01	1	0210-0308	●
69	GASKET; PLUG,HTR EXC. HEATER & DEFROSTER(C41) ID=20.5 OD=28.0	9-09571-420-0	01	1	0302-0308	●
69	GASKET; PLUG,HTR ID=20.5 OD=28.0	9-09571-420-0	01	1	0309-	●
125	NUT; WATER PUMP M8 FLANGE	0-91150-108-0	04	1	9601-0602	●
125	NUT; WATER PUMP M8 FLANGE	0-91180-108-0	04	1	0603-	●
156	CUP; SEALING OD=25	1-09600-016-0	01	1	0004-0209	●
156	CUP; SEALING EXC. ANTI NOISE EQUIPMENT ECE<SLK> OD=25	1-09600-016-0	01	1	0210-0301	●
156	CUP; SEALING OD=25	1-09600-016-0	01	1	0302-	●
156	CUP; SEALING ANTI NOISE EQUIPMENT ECE<SLK> OD=25	1-09600-016-0	02	1	0210-0301	●

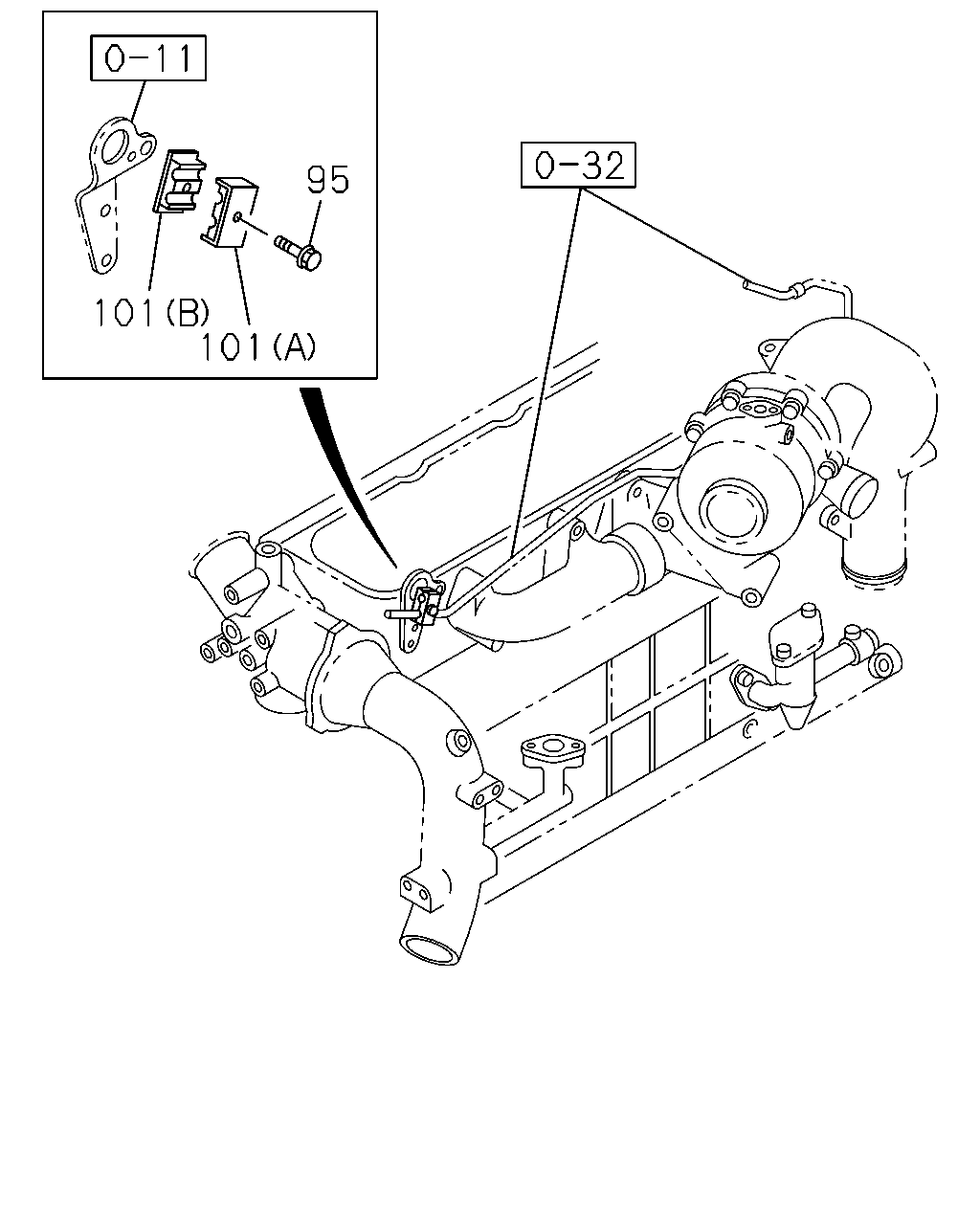

95 101 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
95	BOLT; BRKT M6X35 FLANGE	0-28080-635-0	01	1	9601-0308	●
101	CLIP; WATER PIPE (A)	1-09701-172-2	01	1	9601-0308	●
101	CLIP; WATER PIPE (B)	1-09701-173-1	01	1	9601-0308	●

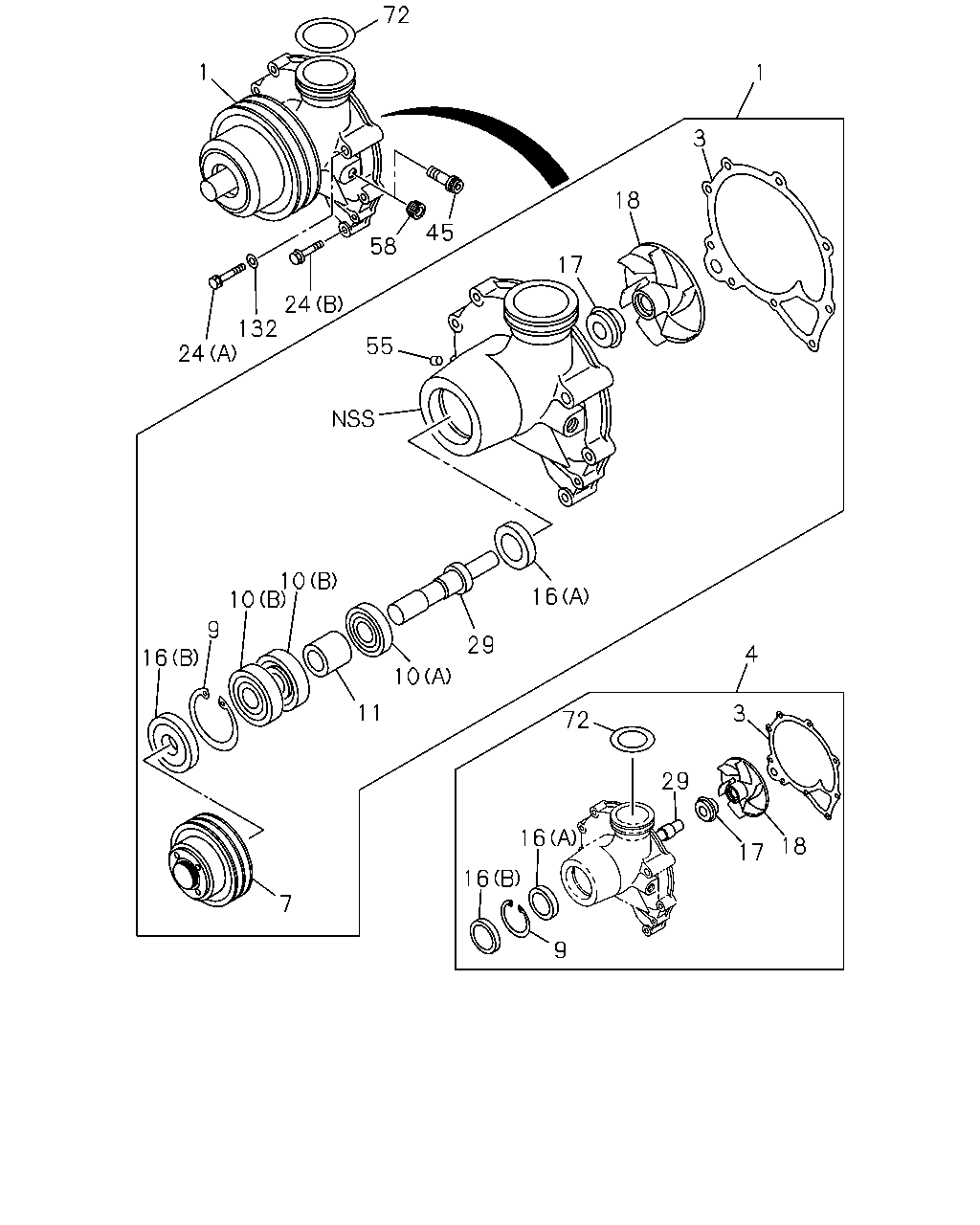

72 1 1 3 18 58 45 17 24 132 55 24 10 10 16 9 16 29 4 10 11 3 72 29 16 18 17 16 7 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; WATER,W/GASKET ANTI NOISE EQUIPMENT ECE<SLK>	8-97602-781-2	01	1	0302-0308	●
1	PUMP ASM; WATER,W/GASKET	8-97602-781-2	01	1	0309-1208	●
1	PUMP ASM; WATER,W/GASKET	1-87310-839-0	01	1	1209-1312	●
1	PUMP ASM; WATER,W/GASKET	1-87310-911-0	01	1	1401-1405	●
1	PUMP ASM; WATER,W/GASKET	1-87310-983-0	01	1	1406-	●
1	PUMP ASM; WATER,W/GASKET HEATER & DEFROSTER(C41)	8-94395-657-6	01	1	9601-0301	●
1	PUMP ASM; WATER,W/GASKET EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-97602-775-0	01	1	0302-0308	●
1	PUMP ASM; WATER,W/GASKET EXC. HEATER & DEFROSTER(C41)	8-94390-601-5	01	1	9601-0209	●
1	PUMP ASM; WATER,W/GASKET EXC. HEATER & DEFROSTER(C41),ANTI NOISE EQUIPMENT ECE<SLK>	8-94390-601-5	01	1	0210-0301	●
1	PUMP ASM; WATER,W/GASKET	1-13650-003-2	01	1	9601-0308		●
3	GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-13614-018-1	01	1	9601-0308		●
4	REPAIR KIT; WATER PUMP	1-87811-051-0	01	1	9601-9911	●
4	REPAIR KIT; WATER PUMP	1-87812-027-0	01	1	9912-0209	●
4	REPAIR KIT; WATER PUMP EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-87812-027-1	01	1	0210-0308	●
4	REPAIR KIT; WATER PUMP ANTI NOISE EQUIPMENT ECE<SLK>	1-87812-029-0	01	1	0210-0301	●
4	REPAIR KIT; WATER PUMP ANTI NOISE EQUIPMENT ECE<SLK>	1-87812-028-1	01	1	0302-0308	●
4	REPAIR KIT; WATER PUMP	1-87812-028-1	01	1	0309-1208	●
4	REPAIR KIT; WATER PUMP	1-87813-946-0	01	1	1209-1312	●
4	REPAIR KIT; WATER PUMP	1-87814-172-0	01	1	1401-1405	●
4	REPAIR KIT; WATER PUMP	1-87814-612-0	01	1	1406-	●
4	REPAIR KIT; WATER PUMP	1-87811-181-0	01	1	9601-9807		●
4	REPAIR KIT; WATER PUMP	1-87811-936-0	01	1	9808-9911		●
4	REPAIR KIT; WATER PUMP	1-87812-019-1	01	1	9912-0308		●
7	PULLEY; WATER PUMP 2-GROOVE	8-94394-826-0	01	1	9601-0209	●
7	PULLEY; WATER PUMP EXC. ANTI NOISE EQUIPMENT ECE<SLK> 2-GROOVE	8-94394-826-0	01	1	0210-0308	●
7	PULLEY; WATER PUMP ANTI NOISE EQUIPMENT ECE<SLK> 4-GROOVE	8-94394-927-0	01	1	0210-0308	●
7	PULLEY; WATER PUMP 4-GROOVE	8-94394-927-0	01	1	0309-	●
7	PULLEY; WATER PUMP 2-GROOVE	1-13641-173-0	01	1	9601-0308		●
9	RING; SNAP,WATER PUMP EXC. ANTI NOISE EQUIPMENT ECE<SLK> ID=57.9	9-09180-162-0	01	1	0210-0301	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0210-0301		●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	9601-0209	●	●
9	RING; SNAP,WATER PUMP ANTI NOISE EQUIPMENT ECE<SLK> ID=57.9	9-09180-162-0	02	1	0210-0301	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0302-0308	●	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0309-	●
10	BEARING; WATER PUMP (C)	1-09800-011-0	02	1	9601-0209	●
10	BEARING; WATER PUMP EXC. ANTI NOISE EQUIPMENT ECE<SLK> (C)	1-09800-011-0	02	1	0210-0308	●
10	BEARING; WATER PUMP (B)	1-09800-155-0	02	1	9601-0308		●
10	BEARING; WATER PUMP (A)	1-09800-196-0	01	1	9601-0308		●
11	SPACER; BRG,WATER PUMP	1-13634-025-0	01	1	9601-0209	●
11	SPACER; BRG,WATER PUMP EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-13634-025-0	01	1	0210-0308	●
11	SPACER; BRG,WATER PUMP ANTI NOISE EQUIPMENT ECE<SLK>	1-13634-040-0	01	1	0210-0308	●
11	SPACER; BRG,WATER PUMP	1-13634-040-0	01	1	0309-	●
11	SPACER; BRG,WATER PUMP	1-13634-029-0	01	1	9601-0308		●
16	SEAL; OIL,WATER PUMP (B)	1-09625-381-0	01	1	9601-9911		●
16	SEAL; OIL,WATER PUMP (B)	1-09625-388-0	01	1	9912-0308		●
16	SEAL; OIL,WATER PUMP (A)	1-09625-382-0	01	1	9601-9911		●
16	SEAL; OIL,WATER PUMP (A)	1-09625-389-0	01	1	9912-0308		●
17	SEAL UNIT; WATER PUMP EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94392-090-0	01	1	0210-0301	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0210-0301		●
17	SEAL UNIT; WATER PUMP	8-94395-036-0	01	1	9601-9807	●	●
17	SEAL UNIT; WATER PUMP	8-94395-036-0	01	1	9808-9912	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	9808-9912		●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0001-0209	●	●
17	SEAL UNIT; WATER PUMP ANTI NOISE EQUIPMENT ECE<SLK>	8-94392-090-0	02	1	0210-0301	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0302-0308	●	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0309-1208	●
17	SEAL UNIT; WATER PUMP	8-98221-159-0	01	1	1209-1312	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	1401-1405	●
17	SEAL UNIT; WATER PUMP	8-98272-791-0	01	1	1406-	●
18	IMPELLER; WATER PUMP	8-94397-375-0	01	1	9601-	●
18	IMPELLER; WATER PUMP ANTI NOISE EQUIPMENT ECE<SLK>	8-94392-922-0	01	1	0210-0301	●
18	IMPELLER; WATER PUMP	1-13621-052-0	01	1	9601-0308		●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	9601-	●
24	BOLT; WATER PUMP (B) M8X79 FLANGE	8-94311-617-1	01	1	9601-9611	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28080-880-0	01	1	9612-0512	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28050-880-0	01	1	0601-	●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	9601-	●
24	BOLT; WATER PUMP (A) M10X70	0-16806-070-0	02	1	9601-0308		●
24	BOLT; WATER PUMP (B) M8X45 W/LK&PL WASHER	0-50140-845-0	07	1	9601-0308		●
29	SHAFT; WATER PUMP	8-94397-374-0	01	1	9601-0209	●
29	SHAFT; WATER PUMP EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94397-374-0	01	1	0210-0308	●
29	SHAFT; WATER PUMP ANTI NOISE EQUIPMENT ECE<SLK>	8-94396-130-1	01	1	0210-0308	●
29	SHAFT; WATER PUMP	8-94396-130-1	01	1	0309-	●
29	SHAFT; WATER PUMP	1-13631-079-0	01	1	9601-0308		●
45	JOINT; HTR HOSE,WATER PUMP HEATER & DEFROSTER(C41)	8-94397-377-2	01	1	9601-0308	●
45	JOINT; HTR HOSE,WATER PUMP HEATER & DEFROSTER(C41) PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9601-0308		●
55	NOZZLE; OIL FEED,WATER PUMP	1-13619-046-0	01	1	9601-0308		●
58	PLUG; HTR EXC. HEATER & DEFROSTER(C41) PT3/8 T=8.0	1-09605-066-0	01	1	9601-0308		●
72	GASKET; PUMP TO THERMO HSG ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6	1-09623-307-0	01	1	9601-0308		●
132	WASHER; PL,WATER PUMP ID=10.5 OD=18	9-09160-510-0	02	1	9601-0308		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
