Isuzu WW
▶
TRUCKS
▶
FVR
▶
11352 - FVR(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶
0-28 — VENTILATION SYSTEM
(#22778) — 19 parça
Tümü
A - 6SD1 STD ENG
B - 6HH1 STD ENG
◀

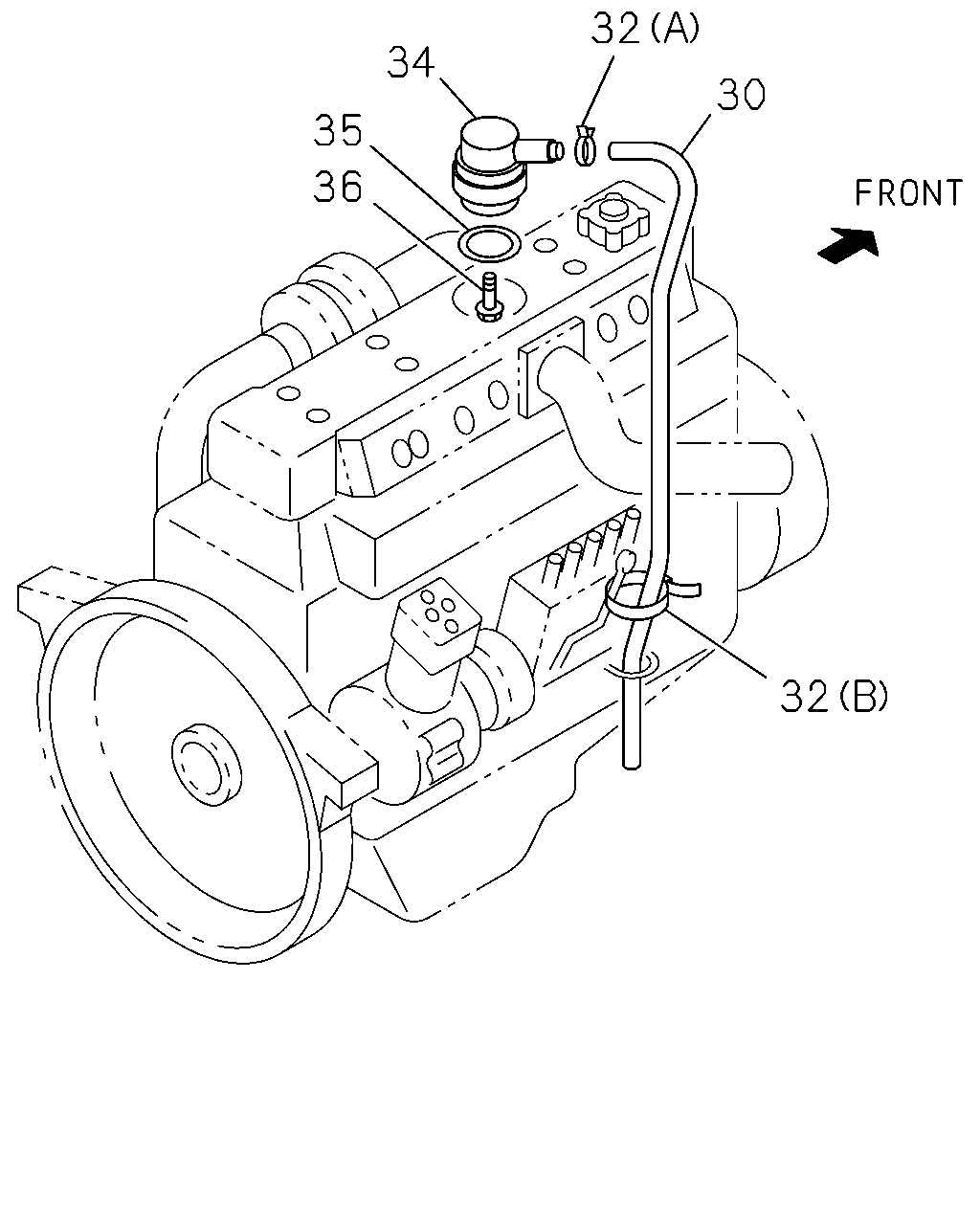

[028A] 6SD1 (7 parça)
[028A] 6HH1 (12 parça)
▶
32
34
30
35
36
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
30
HOSE; VENTILATOR,CYL HD COVER
1-09360-730-0
01
1
9601-0308
●
32
CLIP; VENT HOSE
(A) ID=20
1-09707-084-1
01
1
9601-0308
●
32
CLIP; VENT HOSE
(B) L=140
5-09707-031-1
01
1
9601-0106
●
32
CLIP; VENT HOSE
(B) L=140
5-09707-031-1
02
1
0107-0308
●
34
VENTILATOR
1-11740-172-2
01
1
9601-0308
●
35
GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09623-209-0
01
1
9601-0308
●
36
BOLT; VENTILATOR
M10X25 W/LK WASHER
0-50051-025-0
01
1
9601-0308
●
90
63
18
1
94
24
24
189
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BREATHER; AIR
8-94394-859-4
01
1
9601-
●
18
CLIP; RUBBER HOSE,AIR BREATHER
ID=33.6
8-94362-518-0
01
1
9601-
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
02
1
9601-1205
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
8-98216-430-0
02
1
1206-
●
63
HOSE; RUBBER,AIR BREATHER
L=70
0-02728-070-0
01
1
9601-9809
●
63
HOSE; RUBBER,AIR BREATHER
L=70
0-02828-070-0
01
1
0704-1005
●
63
HOSE; RUBBER,AIR BREATHER
L=70
0-02728-070-0
01
1
1006-
●
90
CLIP; RUBBER HOSE
ID=33.6
8-94362-518-0
01
1
9601-
●
94
HOSE; BREATHER TO PIPE
L=1100
8-94394-785-1
01
1
9601-
●
189
SLEEVE; RUBBER
ID=10 OD=14 L=30
9-09956-682-0
02
1
0002-0106
●
189
SLEEVE; RUBBER
ID=10 OD=14 L=30
9-09956-682-0
02
1
0107-0308
●
●
189
SLEEVE; RUBBER
ID=10 OD=14 L=30
9-09956-682-0
02
1
0309-
●
