0-27 — EXHAUST MANIFOLD (#22777) — 72 parça

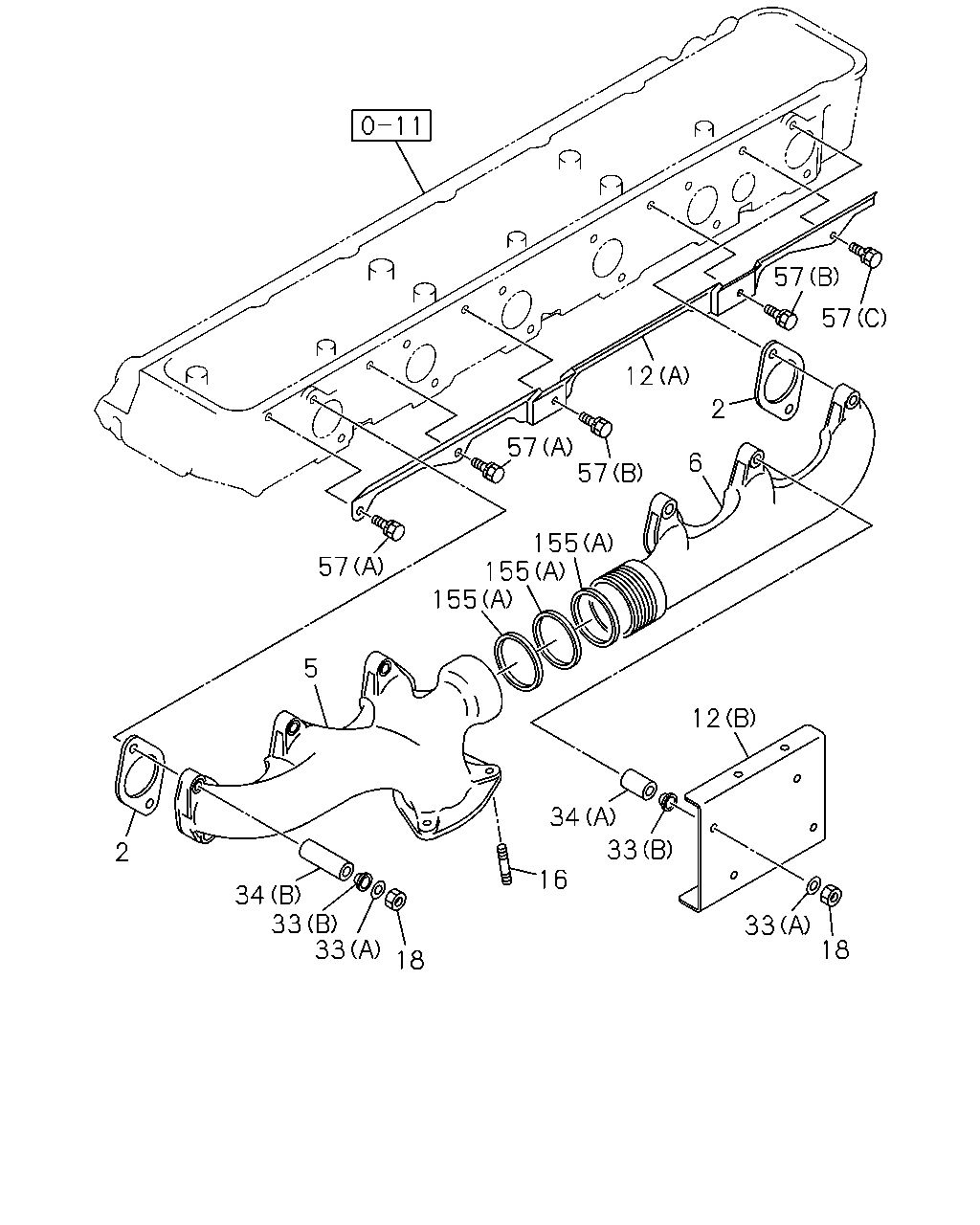

57 57 12 2 57 57 6 155 155 155 57 5 12 34 33 2 16 34 33 33 33 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	9601-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-0	06	1	9601-0308		●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	9601-	●
5	MANIFOLD; EXH,FRT	1-14141-784-0	01	1	9601-0308		●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	9601-	●
6	MANIFOLD; EXH,RR	1-14141-785-0	01	1	9601-0308		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-204-0	01	1	9601-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94395-413-1	01	1	9601-9609	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94391-040-0	01	1	9610-9809	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94392-947-0	01	1	9810-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14181-236-0	01	1	9601-0308		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14181-285-0	01	1	9601-0308		●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	9601-	●
16	STUD; EXH PIPE TO MANIF M12X100 L=120	8-94397-322-0	03	1	9601-0308		●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	9601-0308	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	0309-0602	●
18	NUT; EXH MANIF M10 FLANGE	0-91180-210-0	12	1	0603-	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9601-0308	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0309-	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	06	1	9601-0308		●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	9601-0209	●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-97250-073-1	12	1	0210-	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	06	1	9601-0308		●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	06	1	9601-0308		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28080-812-0	02	1	9601-0512	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-94312-699-1	04	1	9601-9803	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-94312-699-1	05	1	9804-0408	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-97378-075-0	05	1	0409-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X14 W/LK WASHER	0-50040-814-0	02	1	9601-0308		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	9601-0308		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M10X16 W/LK WASHER	1-09033-012-0	01	1	9601-0308		●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	9601-	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	9601-	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	03	1	9601-0308		●

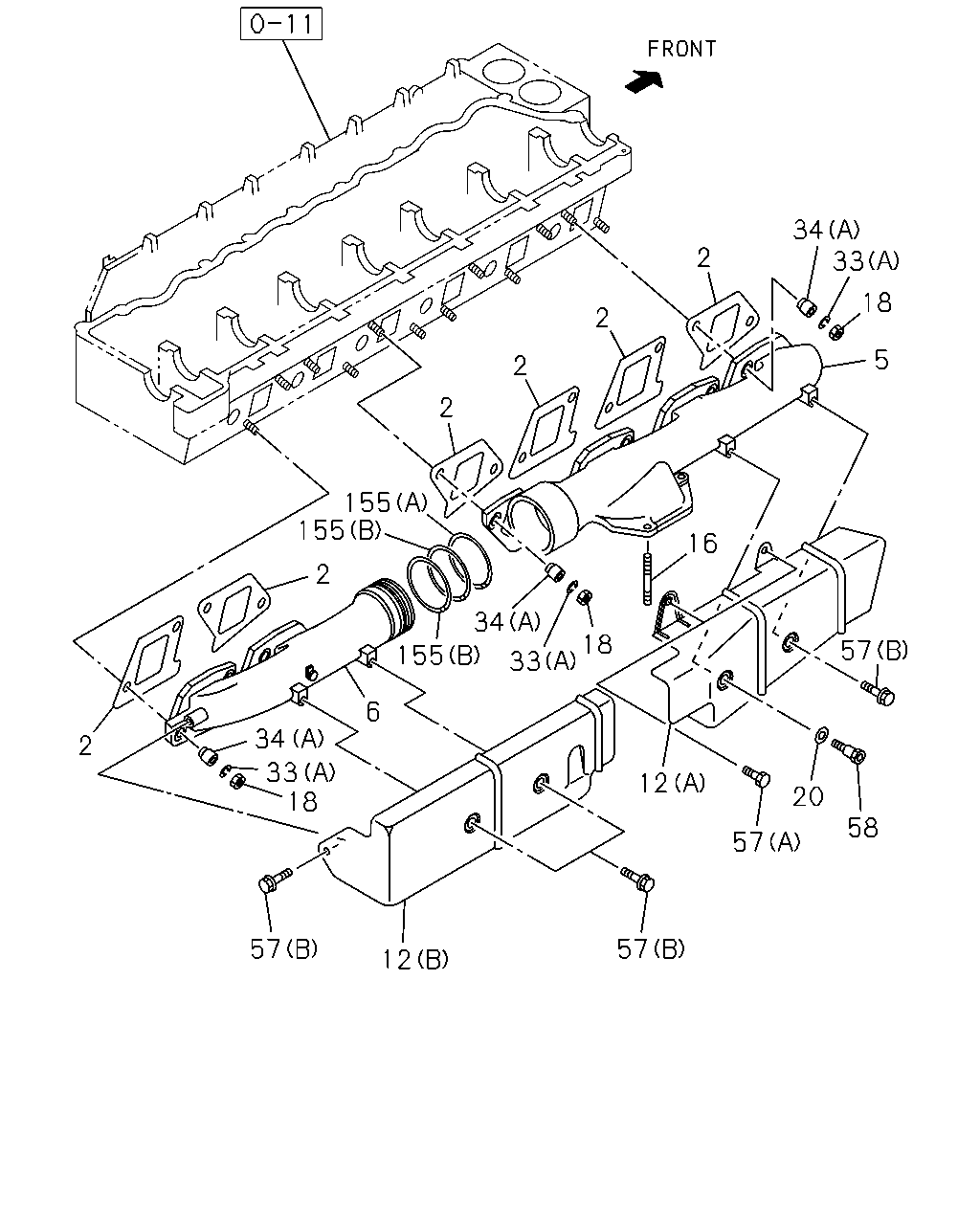

34 33 2 18 2 5 2 2 155 155 16 2 34 155 18 57 33 6 34 2 33 18 12 20 58 57 57 57 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	9601-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-0	06	1	9601-0308		●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	9601-	●
5	MANIFOLD; EXH,FRT	1-14141-784-0	01	1	9601-0308		●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	9601-	●
6	MANIFOLD; EXH,RR	1-14141-785-0	01	1	9601-0308		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-204-0	01	1	9601-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94395-413-1	01	1	9601-9609	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94391-040-0	01	1	9610-9809	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94392-947-0	01	1	9810-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14181-236-0	01	1	9601-0308		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14181-285-0	01	1	9601-0308		●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	9601-	●
16	STUD; EXH PIPE TO MANIF M12X100 L=120	8-94397-322-0	03	1	9601-0308		●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	9601-0308	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	0309-0602	●
18	NUT; EXH MANIF M10 FLANGE	0-91180-210-0	12	1	0603-	●
20	WASHER; PL,HEAT PROTECTOR ID=8.4 OD=18	9-09160-608-0	01	1	9601-9803	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9601-0308	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0309-	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	06	1	9601-0308		●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	9601-0209	●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-97250-073-1	12	1	0210-	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	06	1	9601-0308		●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	06	1	9601-0308		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28080-812-0	02	1	9601-0512	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-94312-699-1	04	1	9601-9803	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-94312-699-1	05	1	9804-0408	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-97378-075-0	05	1	0409-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X14 W/LK WASHER	0-50040-814-0	02	1	9601-0308		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	9601-0308		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M10X16 W/LK WASHER	1-09033-012-0	01	1	9601-0308		●
58	STUD; HEAT PROTECTOR	8-94396-828-2	01	1	9601-9803	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	9601-	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	9601-	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	03	1	9601-0308		●
