0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#22774) — 174 parça

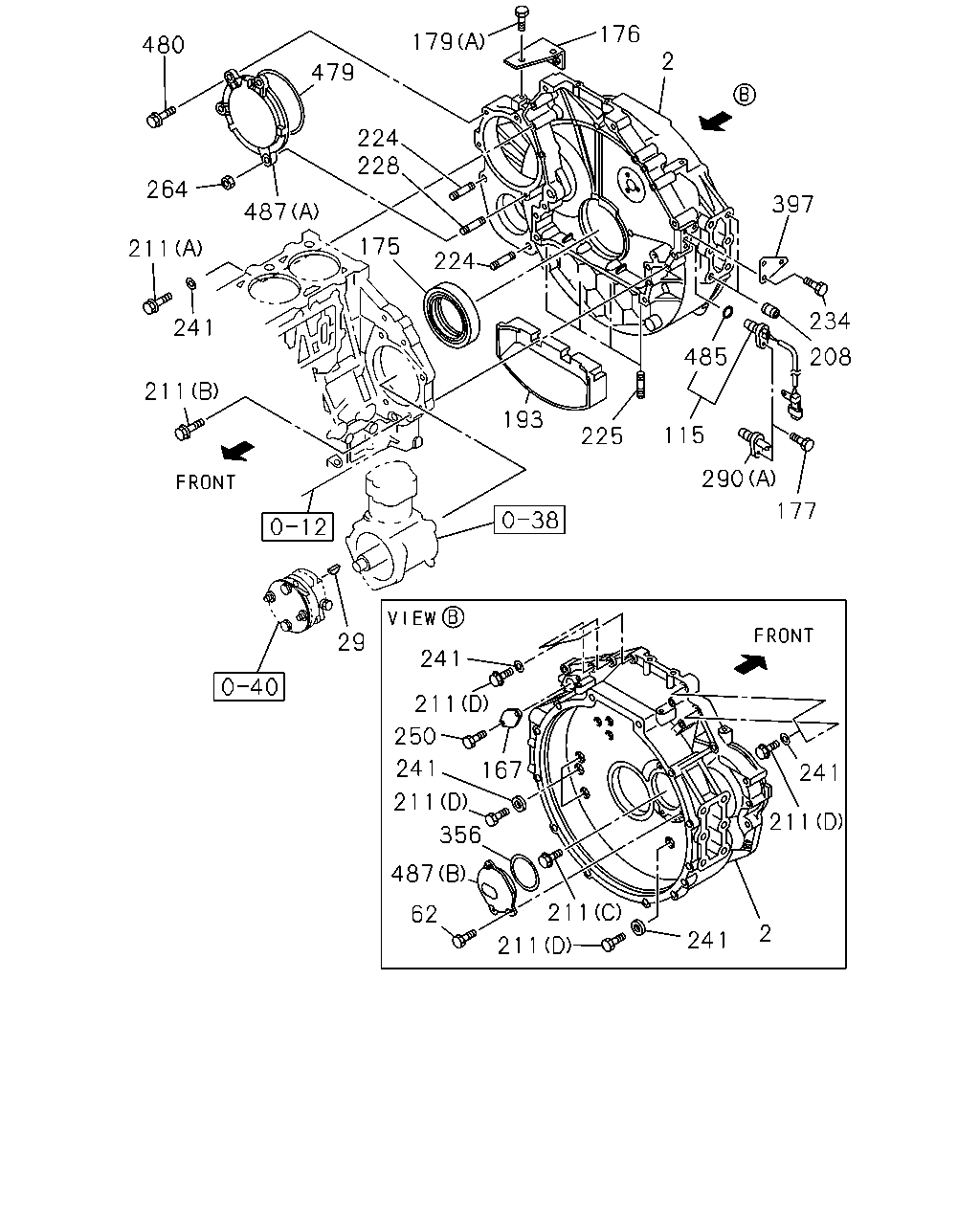

176 179 480 2 479 224 228 264 397 487 175 211 224 234 241 485 208 211 193 115 225 290 177 29 241 211 250 241 167 241 211 211 356 487 211 62 2 241 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL	8-94395-972-9	01	1	9601-1112	●
2	HOUSING; FLYWHEEL	8-98202-582-1	01	1	1201-	●
2	HOUSING; FLYWHEEL	1-11341-498-5	01	1	9601-0308		●
29	KEY; COUPLING	9-08055-416-0	01	1	9601-	●
62	BOLT; COVER M8X14 FLANGE	0-28080-814-0	03	1	9601-0308	●	●
62	BOLT; COVER M8X14 FLANGE	0-28080-814-0	03	1	0309-	●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7>	1-81510-561-0	01	1	9601-	●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7>	1-81510-343-2	01	1	9601-0308		●
167	COVER; OIL	1-11219-163-0	01	1	9601-	●
167	COVER; OIL	1-11749-103-0	01	1	9601-0308		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	9601-0112	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0201-	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=150	1-09625-541-2	01	1	9601-0308		●
176	BRACKET; HARNESS	1-82699-828-1	01	1	9601-	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	9601-0512	●
177	BOLT; SENSOR M6X16 FLANGE	0-28050-616-0	01	1	0601-	●
177	BOLT; SENSOR M6X18 W/LK WASHER	0-50040-618-0	01	1	9601-0308		●
179	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	9601-0512	●
179	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
179	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-0512	●
179	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	0601-	●
193	SPACER; STAY TO OIL,PAN ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-674-0	01	1	0210-0308	●
193	SPACER; STAY TO OIL,PAN	8-94395-674-0	01	1	0309-0504	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9601-	●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9601-9607	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9601-0512	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	01	1	0601-	●
211	BOLT; HSG (A) M14X40 FLANGE	0-28791-440-0	01	1	9601-0512	●
211	BOLT; HSG (A) M14X40 FLANGE	0-28761-440-0	01	1	0601-	●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9601-	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9601-0512	●
211	BOLT; HSG (D) M12X70	0-16956-270-0	11	1	0601-	●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9704-0512	●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-	●
211	BOLT; HSG (A) M12X100	0-16806-200-0	02	1	9601-0308		●
211	BOLT; HSG (B) M12X60	0-16806-260-0	09	1	9601-0308		●
211	BOLT; HSG (C) M12X90	0-16806-290-0	01	1	9601-0308		●
211	BOLT; HSG (D) M12X173	1-09020-057-1	01	1	9601-0308		●
211	BOLT; HSG (E) M12X75	9-01666-275-0	05	1	9601-0308		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9601-0604	●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-	●
224	STUD; STARTER M14X40 L=61	9-04411-440-0	02	1	9601-0308		●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9601-	●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	9601-0604	●
228	STUD; AIR CMPR M12X60 L=78	0-44011-260-0	01	1	0605-	●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	9702-0604	●
228	STUD; AIR CMPR M12X35 L=53	0-44011-235-0	01	1	0605-	●
234	BOLT; BRKT TACHOMETER<UD7> M8X12 FLANGE	0-28080-812-0	02	1	9601-0512	●
234	BOLT; BRKT TACHOMETER<UD7> M8X12 FLANGE	0-28050-812-0	02	1	0601-	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9601-	●
241	WASHER; PL,HSG ID=12.2	9-09851-933-0	19	1	9601-0308		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9601-	●
250	BOLT; COVER,OIL M8X16 FLANGE	0-28080-816-0	02	1	9601-0308		●
264	NUT; COVER M12 FLANGE	0-91150-212-0	01	1	9601-0602	●
264	NUT; COVER M12 FLANGE	0-91180-212-0	01	1	0603-	●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7> (A)	1-11349-157-0	01	1	9601-0205	●	●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7> (A)	8-97101-974-0	01	1	0206-0308	●	●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7> (A)	8-97101-974-0	01	1	0309-	●
290	PLUG; SENSOR HOLE (B) M16X12	9-99202-316-0	01	1	9601-0308		●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	9601-	●
397	BRACKET; CONNECTOR TACHOMETER<UD7>	8-94394-411-1	01	1	9601-	●
479	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	9601-	●
480	BOLT; COVER M12X70 FLANGE	0-28181-270-0	03	1	9601-0512	●
480	BOLT; COVER M12X70 FLANGE	0-28151-270-0	03	1	0601-	●
485	GASKET; SENSOR TACHOMETER<UD7>	9-09565-212-0	01	1	9601-0308	●	●
485	GASKET; SENSOR TACHOMETER<UD7>	9-09565-212-0	01	1	0309-	●
487	COVER; HOLE (A)	8-94394-381-1	01	1	9601-	●
487	COVER; HOLE (B)	8-94394-513-1	01	1	9601-0805	●
487	COVER; HOLE (B)	8-98023-824-1	01	1	0806-	●

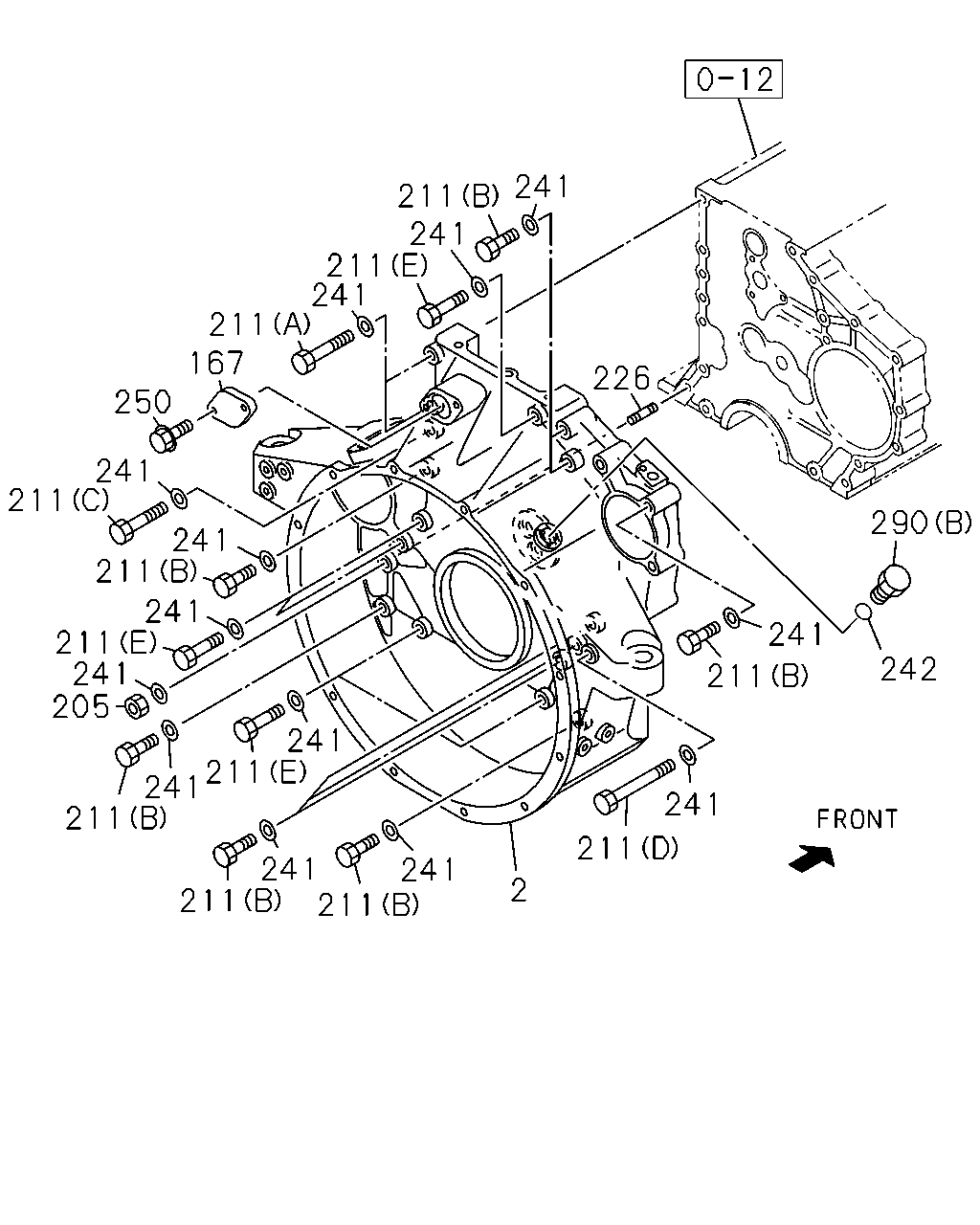

241 211 241 211 241 211 167 226 250 241 211 290 241 211 241 211 241 205 241 242 211 241 211 241 211 241 211 241 241 211 211 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL	8-94395-972-9	01	1	9601-1112	●
2	HOUSING; FLYWHEEL	8-98202-582-1	01	1	1201-	●
2	HOUSING; FLYWHEEL	1-11341-498-5	01	1	9601-0308		●
167	COVER; OIL	1-11219-163-0	01	1	9601-	●
167	COVER; OIL	1-11749-103-0	01	1	9601-0308		●
205	NUT; HSG M12	9-99110-412-0	01	1	9601-0308		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9601-9607	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9601-0512	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	01	1	0601-	●
211	BOLT; HSG (A) M14X40 FLANGE	0-28791-440-0	01	1	9601-0512	●
211	BOLT; HSG (A) M14X40 FLANGE	0-28761-440-0	01	1	0601-	●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9601-	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9601-0512	●
211	BOLT; HSG (D) M12X70	0-16956-270-0	11	1	0601-	●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9704-0512	●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-	●
211	BOLT; HSG (A) M12X100	0-16806-200-0	02	1	9601-0308		●
211	BOLT; HSG (B) M12X60	0-16806-260-0	09	1	9601-0308		●
211	BOLT; HSG (C) M12X90	0-16806-290-0	01	1	9601-0308		●
211	BOLT; HSG (D) M12X173	1-09020-057-1	01	1	9601-0308		●
211	BOLT; HSG (E) M12X75	9-01666-275-0	05	1	9601-0308		●
226	STUD; HSG M12X60 L=78	9-94411-260-0	01	1	9601-0308		●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9601-	●
241	WASHER; PL,HSG ID=12.2	9-09851-933-0	19	1	9601-0308		●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 OD=24	9-09571-416-0	01	1	9601-0308		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9601-	●
250	BOLT; COVER,OIL M8X16 FLANGE	0-28080-816-0	02	1	9601-0308		●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7> (A)	1-11349-157-0	01	1	9601-0205	●	●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7> (A)	8-97101-974-0	01	1	0206-0308	●	●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7> (A)	8-97101-974-0	01	1	0309-	●
290	PLUG; SENSOR HOLE (B) M16X12	9-99202-316-0	01	1	9601-0308		●

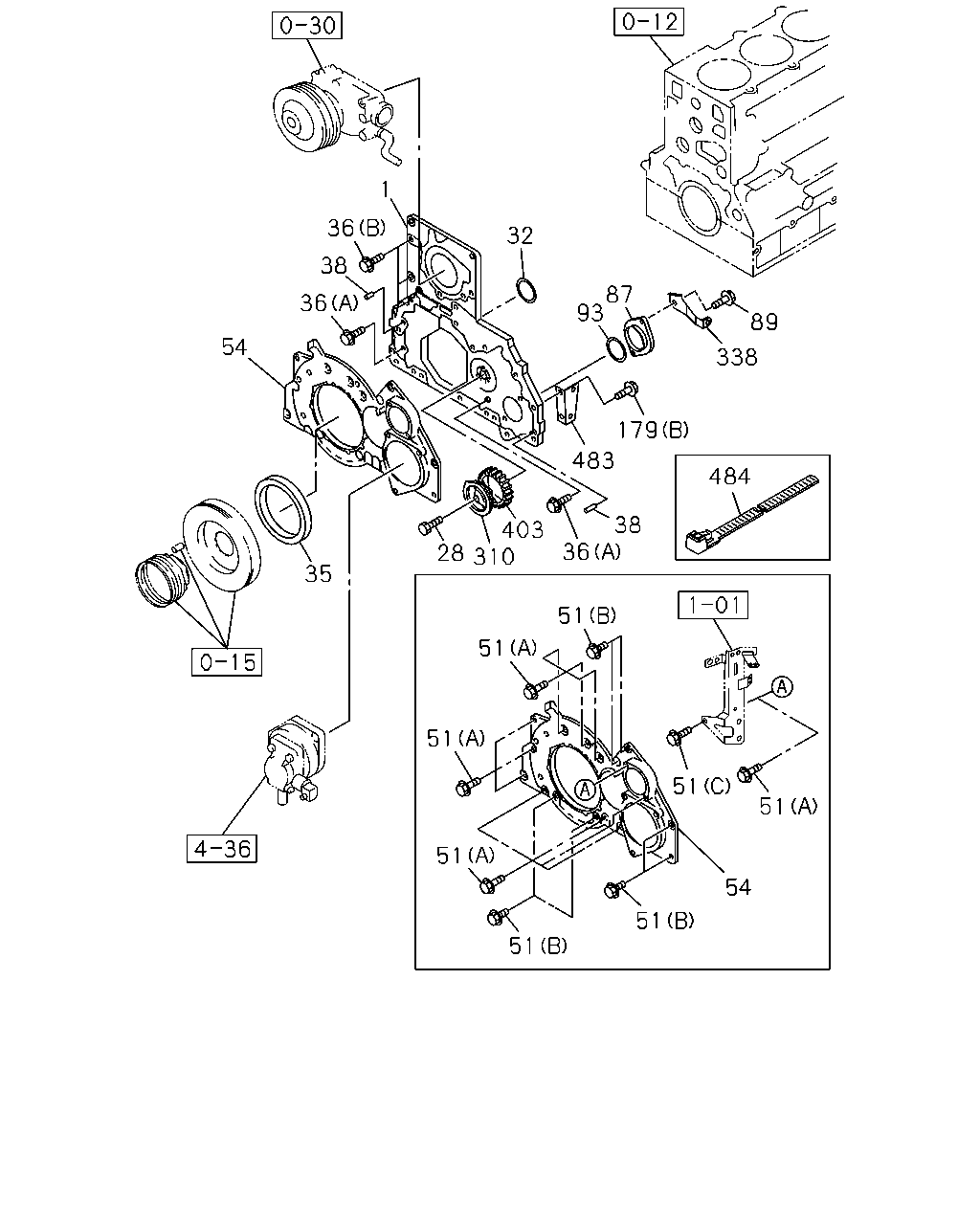

1 36 32 38 87 93 36 89 54 338 179 483 484 38 403 28 310 36 35 51 51 51 51 51 51 54 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE; TIMING GEAR	8-94393-110-2	01	1	9601-9802	●
1	CASE; TIMING GEAR	8-94396-434-6	01	1	9803-	●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	9601-	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	8-94397-364-0	01	1	9601-9805	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	9806-	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	9601-0112	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-97602-378-3	01	1	0201-	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=153	1-09625-540-3	01	1	9601-0308		●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	9601-0801	●
36	BOLT; GEAR CASE (A) M8X30 FLANGE	0-28650-830-0	02	1	0802-	●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	9601-0801	●
36	BOLT; GEAR CASE (B) M8X35 FLANGE	0-28050-835-0	04	1	0802-	●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	9601-	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	10	1	9601-0512	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28050-840-0	10	1	0601-	●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28080-845-0	01	1	9601-0512	●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	9601-0512	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28650-820-0	06	1	0601-	●
51	BOLT; GEAR CASE COVER (D) M8X45 W/LK&PL WASHER	0-50140-845-0	08	1	9601-0308		●
54	COVER; GEAR CASE	8-94393-304-1	01	1	9601-	●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	9601-	●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	9601-	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	9601-	●
179	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	9601-0512	●
179	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
179	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-0512	●
179	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	0601-	●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	9601-	●
338	BRACKET; CLIP,HARNESS	1-82699-889-0	01	1	9601-	●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	9601-	●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	9601-	●
484	CLIP; BAND TACHOMETER<UD7> L=250	5-09707-030-1	01	1	1201-1205	●
484	CLIP; BAND TACHOMETER<UD7> L=250	8-98216-430-0	01	1	1206-	●

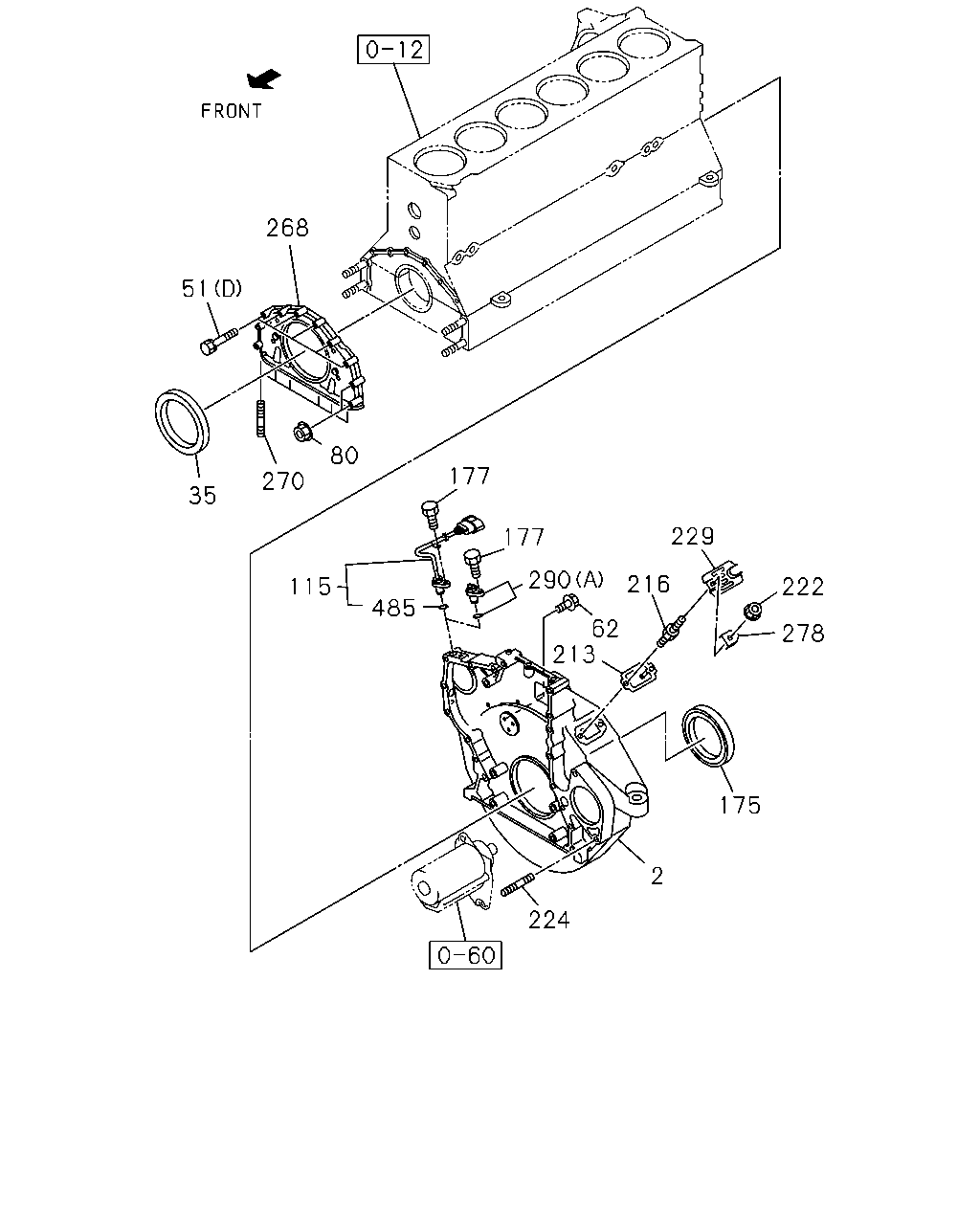

268 51 80 177 270 35 229 177 290 216 115 222 485 62 213 278 175 2 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL	8-94395-972-9	01	1	9601-1112	●
2	HOUSING; FLYWHEEL	8-98202-582-1	01	1	1201-	●
2	HOUSING; FLYWHEEL	1-11341-498-5	01	1	9601-0308		●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	9601-0112	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-97602-378-3	01	1	0201-	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=153	1-09625-540-3	01	1	9601-0308		●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	10	1	9601-0512	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28050-840-0	10	1	0601-	●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28080-845-0	01	1	9601-0512	●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	9601-0512	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28650-820-0	06	1	0601-	●
51	BOLT; GEAR CASE COVER (D) M8X45 W/LK&PL WASHER	0-50140-845-0	08	1	9601-0308		●
62	BOLT; COVER M8X14 FLANGE	0-28080-814-0	03	1	9601-0308	●	●
62	BOLT; COVER M8X14 FLANGE	0-28080-814-0	03	1	0309-	●
80	NUT; COVER M10 FLANGE	0-91150-110-0	04	1	9601-0308		●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7>	1-81510-561-0	01	1	9601-	●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7>	1-81510-343-2	01	1	9601-0308		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	9601-0112	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0201-	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=150	1-09625-541-2	01	1	9601-0308		●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	9601-0512	●
177	BOLT; SENSOR M6X16 FLANGE	0-28050-616-0	01	1	0601-	●
177	BOLT; SENSOR M6X18 W/LK WASHER	0-50040-618-0	01	1	9601-0308		●
213	POINTER; FLYWHEEL HSG	1-11342-018-0	01	1	9601-0308		●
216	STUD; COVER,TIMING CHECK HOLE M8X14,M8X14 L=33	1-09300-058-1	02	1	9601-0308		●
222	NUT; COVER,TIMING CHECK HOLE M8 FLANGE	0-91150-108-0	02	1	9601-0308		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9601-0604	●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-	●
224	STUD; STARTER M14X40 L=61	9-04411-440-0	02	1	9601-0308		●
229	COVER; TIMING CHECK HOLE	1-11349-126-0	01	1	9601-0308		●
268	COVER; FRT	1-11321-085-3	01	1	9601-0308		●
270	STUD; FRT COVER M8X20	9-04010-820-0	06	1	9601-0308		●
278	WASHER; COVER FIX	1-11349-127-0	01	1	9601-0308		●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7> (A)	1-11349-157-0	01	1	9601-0205	●	●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7> (A)	8-97101-974-0	01	1	0206-0308	●	●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7> (A)	8-97101-974-0	01	1	0309-	●
290	PLUG; SENSOR HOLE (B) M16X12	9-99202-316-0	01	1	9601-0308		●
485	GASKET; SENSOR TACHOMETER<UD7>	9-09565-212-0	01	1	9601-0308	●	●
485	GASKET; SENSOR TACHOMETER<UD7>	9-09565-212-0	01	1	0309-	●
