0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#22773) — 160 parça

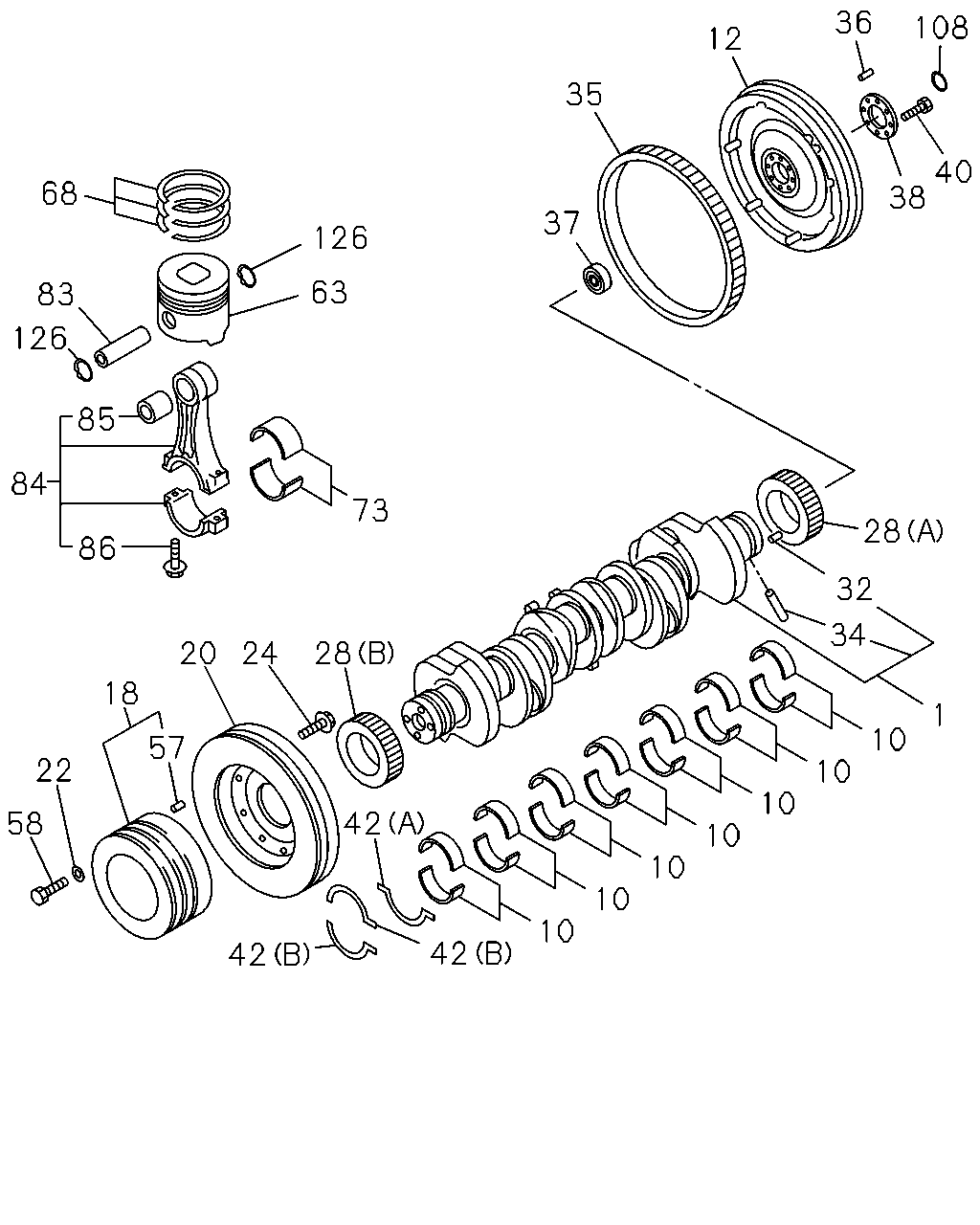

36 108 12 35 40 38 68 37 126 63 83 126 85 84 73 28 86 32 34 20 24 28 18 1 10 57 22 10 10 42 58 10 10 10 10 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-94393-291-4	01	1	9601-0305	●
1	CRANKSHAFT	8-97603-003-1	01	1	0306-	●
1	CRANKSHAFT	1-12310-671-0	01	1	9601-0308		●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	9601-0308	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	9601-0308	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	9601-0308	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0309-	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0309-	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0309-	●
12	FLYWHEEL	8-94393-849-2	01	1	9601-	●
12	FLYWHEEL	1-12331-162-4	01	1	9601-0308		●
18	PULLEY; CR/SHF 3-GROOVE	8-94395-286-3	01	1	9601-0209	●
18	PULLEY; CR/SHF EXC. ANTI NOISE EQUIPMENT ECE<SLK> 3-GROOVE	8-94395-286-3	01	1	0210-0308	●
18	PULLEY; CR/SHF ANTI NOISE EQUIPMENT ECE<SLK> 3-GROOVE	8-94394-296-3	01	1	0210-0308	●
18	PULLEY; CR/SHF 3-GROOVE	8-94394-296-3	01	1	0309-	●
18	PULLEY; CR/SHF 3-GROOVE	1-12371-414-1	01	1	9601-0308		●
20	DAMPER; CR/SHF	8-94395-314-2	01	1	9601-0209	●
20	DAMPER; CR/SHF EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-314-2	01	1	0210-0308	●
20	DAMPER; CR/SHF ANTI NOISE EQUIPMENT ECE<SLK>	8-94394-354-7	01	1	0210-0308	●
20	DAMPER; CR/SHF	8-94394-354-7	01	1	0309-1110	●
20	DAMPER; CR/SHF	8-94392-276-3	01	1	1111-	●
20	DAMPER; CR/SHF	1-12375-131-0	01	1	9601-0308		●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9601-0308	●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0309-	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9601-0512	●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0601-	●
24	BOLT; DAMPER	9-02361-220-0	06	1	9601-0308		●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9601-	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9601-	●
28	GEAR; CR/SHF (A) Z=53	1-12521-027-1	01	1	9601-0308		●
28	GEAR; CR/SHF (B) Z=46	1-12521-053-1	01	1	9601-0308		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9601-	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	01	1	9601-0308		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9601-0308	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0309-	●
35	GEAR; RING Z=140	8-94396-784-1	01	1	9601-	●
35	GEAR; RING Z=140	1-12333-016-0	01	1	9601-0308		●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9601-0308	●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0309-	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	9902-	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9601-9901	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9902-0308		●
37	BEARING; PILOT,TOP GEAR SHAFT BEST VALUE PARTS	1-87610-157-0	01	1	9902-	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9601-	●
38	WASHER; FLYWHEEL	1-12336-005-1	01	1	9601-0308		●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	9601-	●
40	BOLT; FLYWHEEL	1-09000-183-1	08	1	9601-0308		●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9601-0703	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9601-0703	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-	●
42	WASHER; THRUST,CR/SHF (C)	1-11599-007-0	02	1	9601-0308		●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	01	1	9601-9612	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	9701-	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9601-0512	●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0601-	●
58	BOLT; CR/SHF PULLEY M16X60	9-91066-660-0	04	1	9601-0308		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-599-0	06	1	9601-9608	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-1	06	1	9609-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-840-1	06	1	9601-0308		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-841-1	06	1	9601-0308		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-468-2	06	1	9601-9606	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94390-799-2	06	1	9607-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-088-1	06	1	9601-0308		●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	9710-	●
73	METAL SET; CONN ROD,STANDARD	1-12271-068-0	06	1	9601-0211		●
73	METAL SET; CONN ROD,STANDARD	1-12271-084-0	06	1	0212-0308		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	9601-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-022-0	06	1	9601-0308		●
84	ROD ASM; CONN	8-94396-394-8	06	1	9601-	●
84	ROD ASM; CONN	1-12230-097-0	06	1	9601-0308		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	9601-0805	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98075-233-0	06	1	0806-0905	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	06	1	0906-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-021-1	06	1	9601-0308		●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9601-1004	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-	●
86	BOLT; CONNROD	1-12235-025-1	12	1	9601-0308		●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9601-0308	●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0309-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	12	1	9601-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	12	1	9601-0308		●

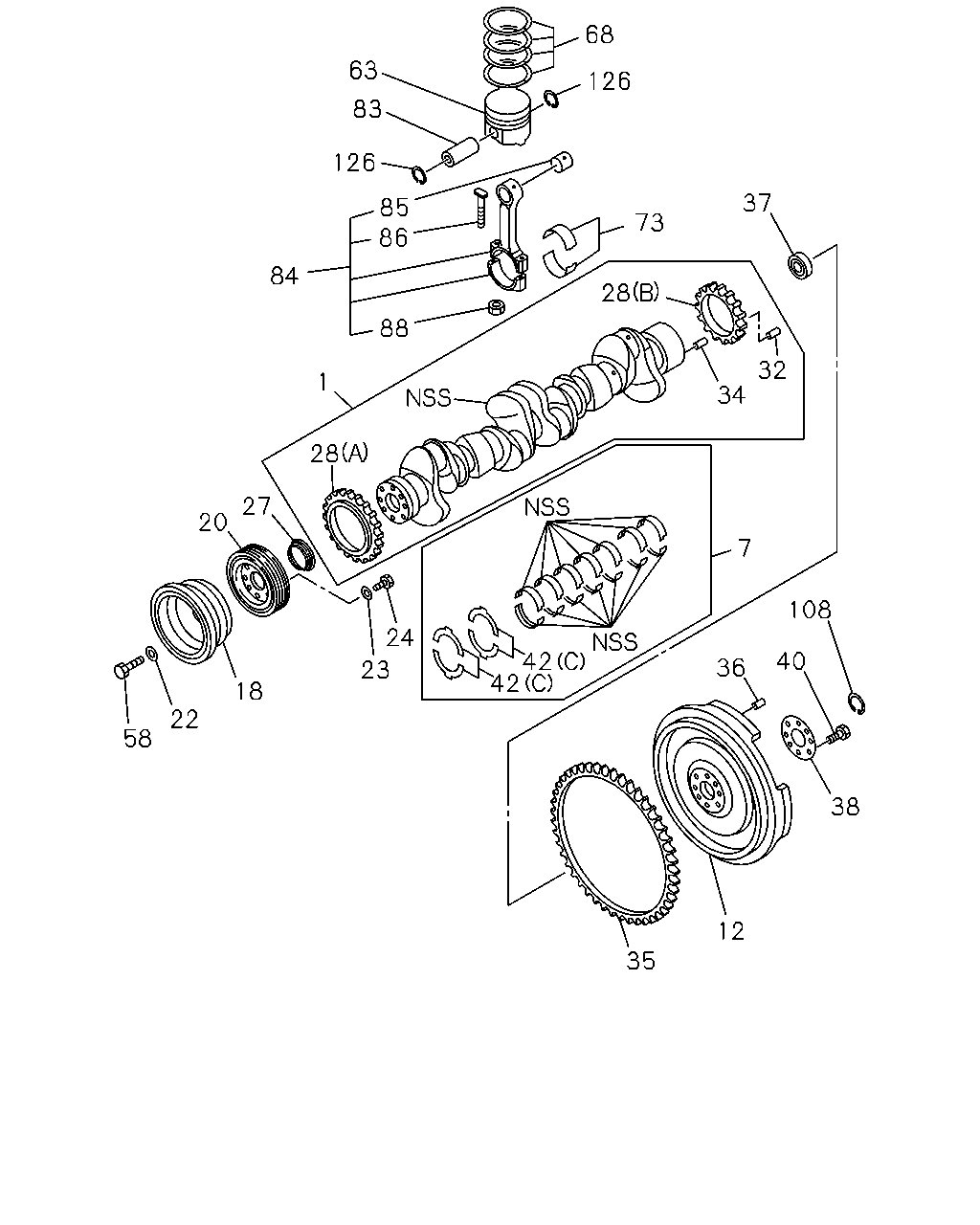

68 63 126 83 126 37 85 86 73 84 28 88 32 1 34 28 27 20 7 108 24 42 42 40 36 23 18 22 58 38 12 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-94393-291-4	01	1	9601-0305	●
1	CRANKSHAFT	8-97603-003-1	01	1	0306-	●
1	CRANKSHAFT	1-12310-671-0	01	1	9601-0308		●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-087-0	01	1	9601-0308		●
12	FLYWHEEL	8-94393-849-2	01	1	9601-	●
12	FLYWHEEL	1-12331-162-4	01	1	9601-0308		●
18	PULLEY; CR/SHF 3-GROOVE	8-94395-286-3	01	1	9601-0209	●
18	PULLEY; CR/SHF EXC. ANTI NOISE EQUIPMENT ECE<SLK> 3-GROOVE	8-94395-286-3	01	1	0210-0308	●
18	PULLEY; CR/SHF ANTI NOISE EQUIPMENT ECE<SLK> 3-GROOVE	8-94394-296-3	01	1	0210-0308	●
18	PULLEY; CR/SHF 3-GROOVE	8-94394-296-3	01	1	0309-	●
18	PULLEY; CR/SHF 3-GROOVE	1-12371-414-1	01	1	9601-0308		●
20	DAMPER; CR/SHF	8-94395-314-2	01	1	9601-0209	●
20	DAMPER; CR/SHF EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-314-2	01	1	0210-0308	●
20	DAMPER; CR/SHF ANTI NOISE EQUIPMENT ECE<SLK>	8-94394-354-7	01	1	0210-0308	●
20	DAMPER; CR/SHF	8-94394-354-7	01	1	0309-1110	●
20	DAMPER; CR/SHF	8-94392-276-3	01	1	1111-	●
20	DAMPER; CR/SHF	1-12375-131-0	01	1	9601-0308		●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9601-0308	●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0309-	●
23	WASHER; DAMPER ID=12.5	9-09851-682-0	06	1	9601-0308		●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9601-0512	●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0601-	●
24	BOLT; DAMPER	9-02361-220-0	06	1	9601-0308		●
27	THROWER; DUST	1-12362-004-0	01	1	9601-0308		●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9601-	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9601-	●
28	GEAR; CR/SHF (A) Z=53	1-12521-027-1	01	1	9601-0308		●
28	GEAR; CR/SHF (B) Z=46	1-12521-053-1	01	1	9601-0308		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9601-	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	01	1	9601-0308		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9601-0308	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0309-	●
35	GEAR; RING Z=140	8-94396-784-1	01	1	9601-	●
35	GEAR; RING Z=140	1-12333-016-0	01	1	9601-0308		●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9601-0308	●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0309-	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	9902-	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9601-9901	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9902-0308		●
37	BEARING; PILOT,TOP GEAR SHAFT BEST VALUE PARTS	1-87610-157-0	01	1	9902-	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9601-	●
38	WASHER; FLYWHEEL	1-12336-005-1	01	1	9601-0308		●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	9601-	●
40	BOLT; FLYWHEEL	1-09000-183-1	08	1	9601-0308		●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9601-0703	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9601-0703	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-	●
42	WASHER; THRUST,CR/SHF (C)	1-11599-007-0	02	1	9601-0308		●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9601-0512	●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0601-	●
58	BOLT; CR/SHF PULLEY M16X60	9-91066-660-0	04	1	9601-0308		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-599-0	06	1	9601-9608	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-1	06	1	9609-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-840-1	06	1	9601-0308		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-841-1	06	1	9601-0308		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-468-2	06	1	9601-9606	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94390-799-2	06	1	9607-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-088-1	06	1	9601-0308		●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	9710-	●
73	METAL SET; CONN ROD,STANDARD	1-12271-068-0	06	1	9601-0211		●
73	METAL SET; CONN ROD,STANDARD	1-12271-084-0	06	1	0212-0308		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	9601-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-022-0	06	1	9601-0308		●
84	ROD ASM; CONN	8-94396-394-8	06	1	9601-	●
84	ROD ASM; CONN	1-12230-097-0	06	1	9601-0308		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	9601-0805	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98075-233-0	06	1	0806-0905	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	06	1	0906-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-021-1	06	1	9601-0308		●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9601-1004	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-	●
86	BOLT; CONNROD	1-12235-025-1	12	1	9601-0308		●
88	NUT; CONNROD	1-09840-003-1	12	1	9601-0308		●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9601-0308	●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0309-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	12	1	9601-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	12	1	9601-0308		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
