◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-14 - CAMSHAFT AND VALVE ▶
0-14 — CAMSHAFT AND VALVE (#22772) — 179 parça

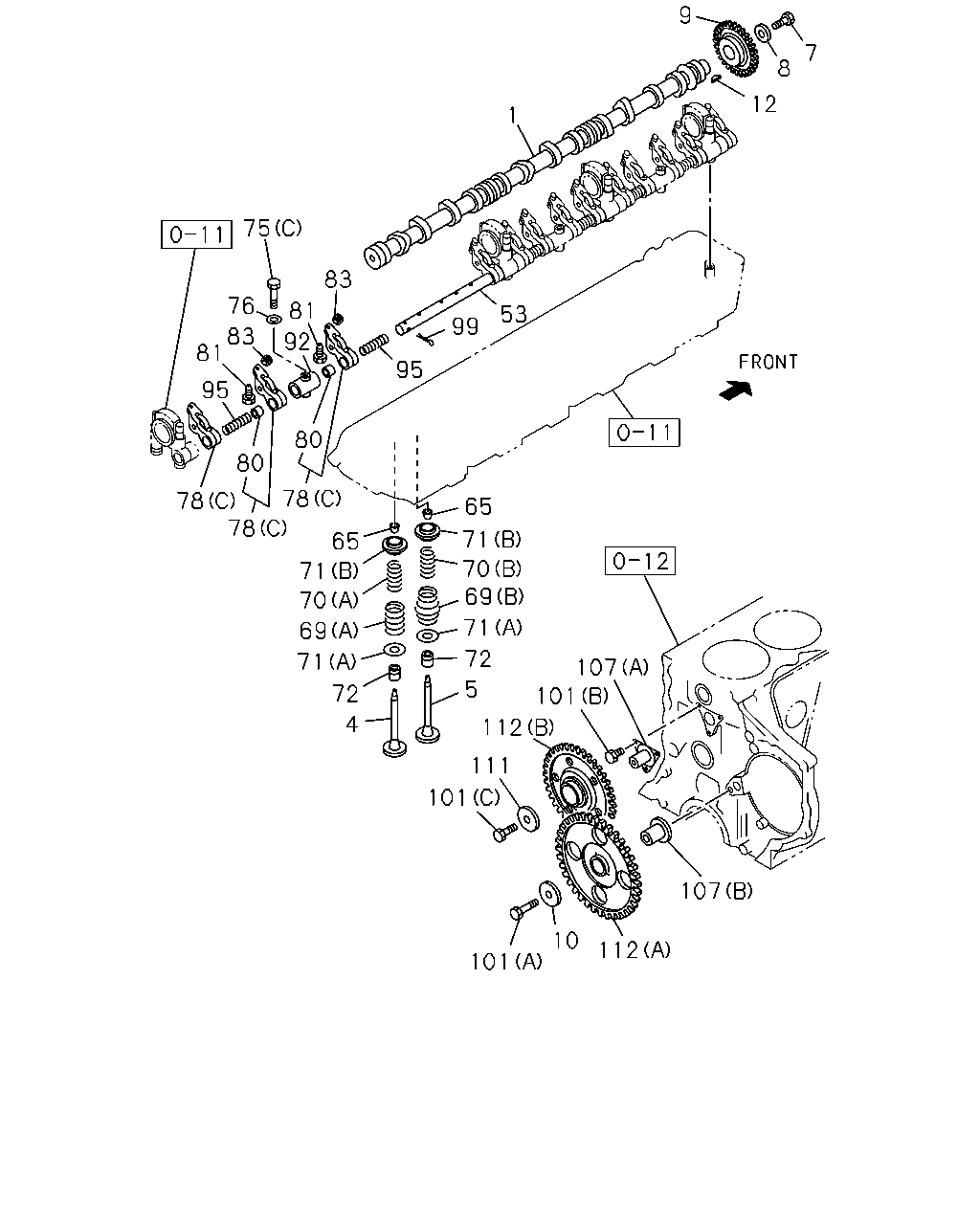

çizim 15778
9 7 8 12 1 75 83 76 81 92 53 99 83 81 95 95 80 80 78 78 78 65 71 65 70 69 71 70 71 69 72 71 107 101 5 72 4 112 111 101 107 10 112 101
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAMSHAFT 8-94395-576-2 01 1 9601-1311 ●
1 CAMSHAFT 8-98227-259-1 01 1 1312- ●
1 CAMSHAFT 1-12511-254-1 01 1 9601-0308 ●
4 VALVE; INL 8-94394-160-2 06 1 9601- ●
4 VALVE; INL 1-12551-158-1 06 1 9601-0308 ●
5 VALVE; EXH 8-94395-462-2 06 1 9601- ●
5 VALVE; EXH 1-12552-085-0 06 1 9601-9902 ●
5 VALVE; EXH 1-12552-108-2 06 1 9903-0308 ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 9601- ●
7 BOLT; CM/SHF GEAR
M14X28 		9-92061-428-0 01 1 9601-0308 ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 9601-0308 ● ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0309- ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 9601- ●
9 GEAR; CM/SHF
Z=36 		1-12522-037-2 01 1 9601-0308 ●
10 PLATE; THRUST
ID=24.5 OD=62 		1-12535-021-0 01 1 9601-0308 ●
12 KEY; CAM GEAR SET 9-08055-516-0 01 1 9601-0308 ●
53 SHAFT; ROCKER ARM 8-94393-984-4 01 1 9601- ●
53 SHAFT; ROCKER ARM 1-12621-084-1 01 1 9601-0308 ●
65 COLLAR; SPLIT 5-12565-006-0 24 1 9601- ●
65 COLLAR; SPLIT 1-12565-007-0 24 1 9601-0308 ●
69 SPRING; VLV,OUTER
(B) MARK YELLOW 		8-94393-310-0 06 1 9601- ●
69 SPRING; VLV,OUTER
(A) 		8-94394-996-0 06 1 9601-0111 ●
69 SPRING; VLV,OUTER
(A) MARK PINK 		8-97120-912-0 06 1 0112- ●
69 SPRING; VLV,OUTER
(A) 		1-12561-051-0 06 1 9601-0308 ●
69 SPRING; VLV,OUTER
(B) EXHAUST 		1-12561-052-0 06 1 9601-0308 ●
70 SPRING; VLV,INNER
(A) 		8-94395-266-0 06 1 9601-0111 ●
70 SPRING; VLV,INNER
(A) MARK PINK 		8-97120-911-0 06 1 0112- ●
70 SPRING; VLV,INNER
(B) MARK YELLOW 		8-94397-500-0 06 1 9601- ●
70 SPRING; VLV,INNER
(A) 		1-12562-032-0 06 1 9601-0308 ●
70 SPRING; VLV,INNER
(B) EXHAUST 		1-12562-033-0 06 1 9601-0308 ●
71 SEAT; SPR
(A) OD=38 		8-94385-029-2 12 1 9601- ●
71 SEAT; SPR
(B) ID=14.3 T=0.5 		8-94396-014-0 12 1 9601- ●
71 SEAT; SPR
(B) 		1-12563-033-1 12 1 9601-0009 ●
71 SEAT; SPR
(B) 		1-12563-059-1 12 1 0010-0308 ●
71 SEAT; SPR
(A) 		9-12563-231-0 12 1 9601-0308 ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-609-2 12 1 9601- ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-12569-017-0 12 1 9601-0308 ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28080-835-0 02 1 9601-0512 ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28050-835-0 02 1 0601- ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 9601- ●
75 BOLT; BRKT
(C) M8X55 		9-01065-855-0 03 1 9601-0308 ●
76 WASHER; PL,BRKT 9-09851-430-0 03 1 9601-0308 ●
78 ARM; ROCKER
(A) JBK 		8-97074-614-1 06 1 9601- ●
78 ARM; ROCKER
(B) JBK 		8-97014-258-2 06 1 9601- ●
78 ARM; ROCKER
(C) 		1-12610-045-2 12 1 9601-0308 ●
80 BUSHING; ROCKER ARM 1-12615-013-1 12 1 9601-0308 ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 9601- ●
81 SCREW; ADJ,ROCKER ARM 1-12616-038-0 12 1 9601-0308 ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-510-0 12 1 9601-9705 ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 9706-0512 ●
83 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 12 1 0601- ●
83 NUT; ADJ SCREW,LK
M8 FLANGE 		9-09844-574-0 12 1 9601-0308 ●
92 BRACKET; ROCKER ARM 1-12628-045-0 03 1 9601-0308 ●
95 SPRING; ROCKER SHAFT
JBK 		8-94397-263-0 06 1 9601- ●
95 SPRING; ROCKER SHAFT 1-09580-335-0 06 1 9601-0308 ●
99 PIN; SPLIT,ROCKER ARM SHAFT
OD=1.8 L=25 		9-08112-025-0 02 1 9601-0308 ●
101 BOLT; THRUST COLLAR
(B) M8X14 		8-97073-782-0 03 1 9601-9611 ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 9612-0512 ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28060-816-0 03 1 0601- ●
101 BOLT; THRUST COLLAR
(A) M14X60 		9-91666-460-0 01 1 9601-0512 ●
101 BOLT; THRUST COLLAR
(A) M14X60 		0-16956-460-0 01 1 0601- ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 9601-0512 ●
101 BOLT; THRUST COLLAR
(C) M14X30 		0-23951-430-0 01 1 0601- ●
101 BOLT; THRUST COLLAR
(B) M8X14 FLANGE 		0-28080-814-0 03 1 9601-0308 ●
101 BOLT; THRUST COLLAR
(C) M14X16 		1-09000-284-0 01 1 9601-0308 ●
101 BOLT; THRUST COLLAR
(A) M12X57 		1-09070-127-0 01 1 9601-0308 ●
107 SHAFT; IDLE GEAR
(A) 		8-97073-938-1 01 1 9601-9805 ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-1 01 1 9806-0204 ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0205- ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 9601-0609 ●
107 SHAFT; IDLE GEAR
(B) 		8-98060-780-0 01 1 0610- ●
107 SHAFT; IDLE GEAR
(A) 		1-12531-054-1 01 1 9601-0011 ●
107 SHAFT; IDLE GEAR
(A) 		1-12531-097-2 01 1 0012-0308 ●
107 SHAFT; IDLE GEAR
(B) 		1-12531-064-0 01 1 9601-0011 ●
107 SHAFT; IDLE GEAR
(B) 		1-12531-099-0 01 1 0012-0308 ●
111 COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 02 1 9601-0306 ●
111 COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 02 1 0307- ●
111 COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 9601-0306 ●
111 COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-1 01 1 0307-0308 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 9601-0609 ●
112 GEAR; IDLE
(B) Z=72-30 		8-97227-074-0 01 1 0610- ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-2 01 1 9601- ●
112 GEAR; IDLE
(A) Z=69-27 		1-12523-241-0 01 1 9601-0011 ●
112 GEAR; IDLE
(A) Z=69-27 		1-12523-346-0 01 1 0012-0308 ●
112 GEAR; IDLE
(B) Z=62 		1-12523-242-0 01 1 9601-0011 ●
112 GEAR; IDLE
(B) Z=62 		1-12523-347-0 01 1 0012-0308 ●

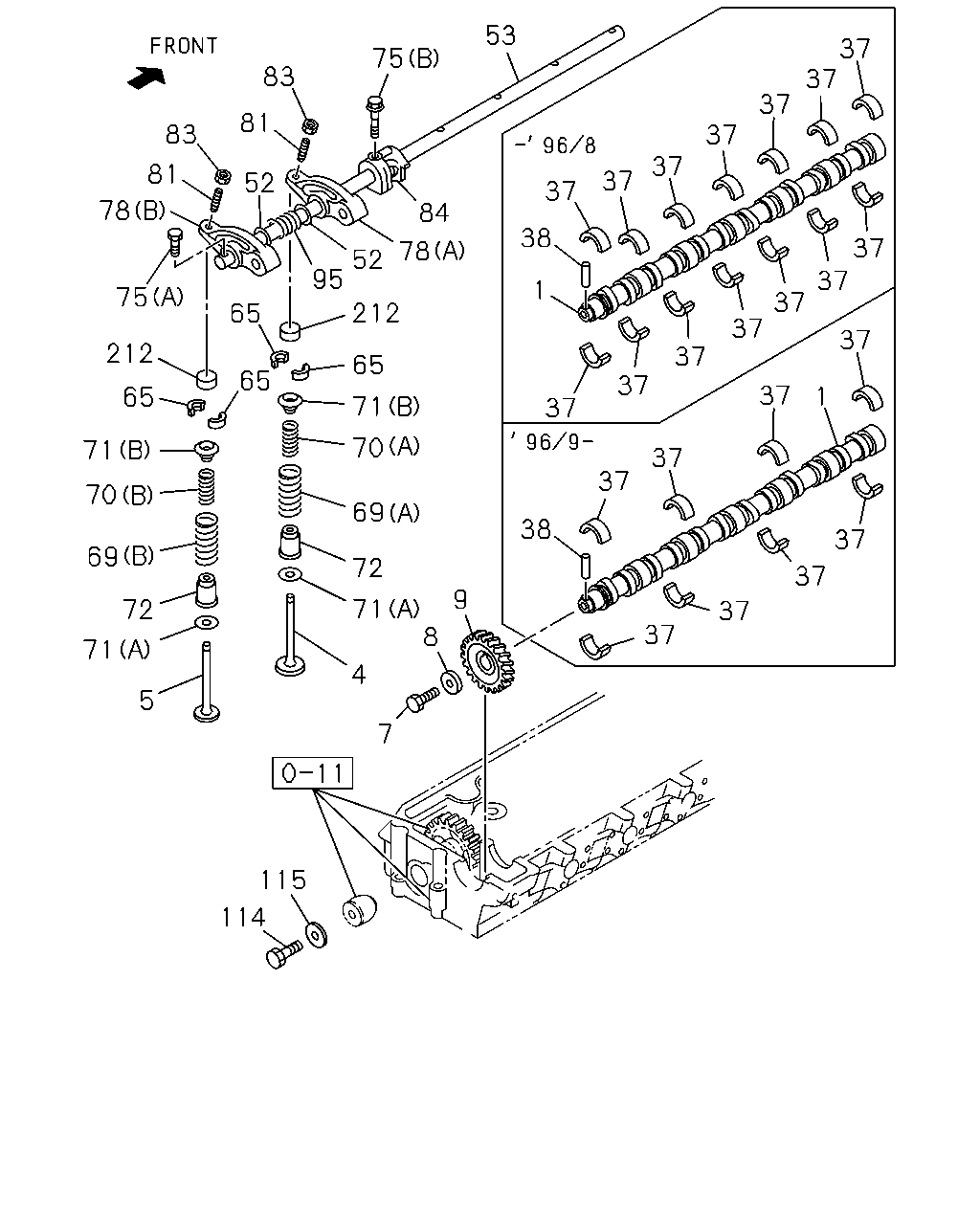

çizim 17862
53 37 37 75 83 37 81 83 37 37 81 37 52 37 84 38 37 37 78 52 95 1 75 37 37 212 65 37 212 37 65 65 37 37 1 65 71 37 71 37 37 38 37 72 37 9 71 8 72 37 37 71 4 5 7 115 114 78 70 69 70 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAMSHAFT 8-94395-576-2 01 1 9601-1311 ●
1 CAMSHAFT 8-98227-259-1 01 1 1312- ●
1 CAMSHAFT 1-12511-254-1 01 1 9601-0308 ●
4 VALVE; INL 8-94394-160-2 06 1 9601- ●
4 VALVE; INL 1-12551-158-1 06 1 9601-0308 ●
5 VALVE; EXH 8-94395-462-2 06 1 9601- ●
5 VALVE; EXH 1-12552-085-0 06 1 9601-9902 ●
5 VALVE; EXH 1-12552-108-2 06 1 9903-0308 ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 9601- ●
7 BOLT; CM/SHF GEAR
M14X28 		9-92061-428-0 01 1 9601-0308 ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 9601-0308 ● ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0309- ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 9601- ●
9 GEAR; CM/SHF
Z=36 		1-12522-037-2 01 1 9601-0308 ●
37 METAL; CM/SHF 8-94393-380-0 14 1 9601-9608 ●
37 METAL; CM/SHF 8-94363-100-1 08 1 9609-0206 ●
37 METAL; CM/SHF
B=22 		8-97602-698-0 08 1 0207-0312 ●
37 METAL; CM/SHF
LOWER B=22 		8-97602-698-0 04 1 0401- ●
37 METAL; CM/SHF
UPPER B=16 		8-97356-939-0 04 1 0401-0706 ●
37 METAL; CM/SHF
UPPER B=16 		8-97386-189-0 04 1 0707- ●
38 PIN; CAM BRG SET
OD=7 L=7.5 		8-94399-487-0 01 1 9601- ●
52 WASHER; ROCKER ARM SHAFT 8-94362-105-0 12 1 9601- ●
53 SHAFT; ROCKER ARM 8-94393-984-4 01 1 9601- ●
53 SHAFT; ROCKER ARM 1-12621-084-1 01 1 9601-0308 ●
65 COLLAR; SPLIT 5-12565-006-0 24 1 9601- ●
65 COLLAR; SPLIT 1-12565-007-0 24 1 9601-0308 ●
69 SPRING; VLV,OUTER
(B) MARK YELLOW 		8-94393-310-0 06 1 9601- ●
69 SPRING; VLV,OUTER
(A) 		8-94394-996-0 06 1 9601-0111 ●
69 SPRING; VLV,OUTER
(A) MARK PINK 		8-97120-912-0 06 1 0112- ●
69 SPRING; VLV,OUTER
(A) 		1-12561-051-0 06 1 9601-0308 ●
69 SPRING; VLV,OUTER
(B) EXHAUST 		1-12561-052-0 06 1 9601-0308 ●
70 SPRING; VLV,INNER
(A) 		8-94395-266-0 06 1 9601-0111 ●
70 SPRING; VLV,INNER
(A) MARK PINK 		8-97120-911-0 06 1 0112- ●
70 SPRING; VLV,INNER
(B) MARK YELLOW 		8-94397-500-0 06 1 9601- ●
70 SPRING; VLV,INNER
(A) 		1-12562-032-0 06 1 9601-0308 ●
70 SPRING; VLV,INNER
(B) EXHAUST 		1-12562-033-0 06 1 9601-0308 ●
71 SEAT; SPR
(A) OD=38 		8-94385-029-2 12 1 9601- ●
71 SEAT; SPR
(B) ID=14.3 T=0.5 		8-94396-014-0 12 1 9601- ●
71 SEAT; SPR
(B) 		1-12563-033-1 12 1 9601-0009 ●
71 SEAT; SPR
(B) 		1-12563-059-1 12 1 0010-0308 ●
71 SEAT; SPR
(A) 		9-12563-231-0 12 1 9601-0308 ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-609-2 12 1 9601- ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-12569-017-0 12 1 9601-0308 ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28080-835-0 02 1 9601-0512 ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28050-835-0 02 1 0601- ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 9601- ●
75 BOLT; BRKT
(C) M8X55 		9-01065-855-0 03 1 9601-0308 ●
78 ARM; ROCKER
(A) JBK 		8-97074-614-1 06 1 9601- ●
78 ARM; ROCKER
(B) JBK 		8-97014-258-2 06 1 9601- ●
78 ARM; ROCKER
(C) 		1-12610-045-2 12 1 9601-0308 ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 9601- ●
81 SCREW; ADJ,ROCKER ARM 1-12616-038-0 12 1 9601-0308 ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-510-0 12 1 9601-9705 ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 9706-0512 ●
83 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 12 1 0601- ●
83 NUT; ADJ SCREW,LK
M8 FLANGE 		9-09844-574-0 12 1 9601-0308 ●
84 BRACKET; ROCKER SHAFT,INTER
JBK 		8-94388-109-3 05 1 9601- ●
95 SPRING; ROCKER SHAFT
JBK 		8-94397-263-0 06 1 9601- ●
95 SPRING; ROCKER SHAFT 1-09580-335-0 06 1 9601-0308 ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 9601- ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 9601-0306 ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 01 1 0307- ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 9601- ●

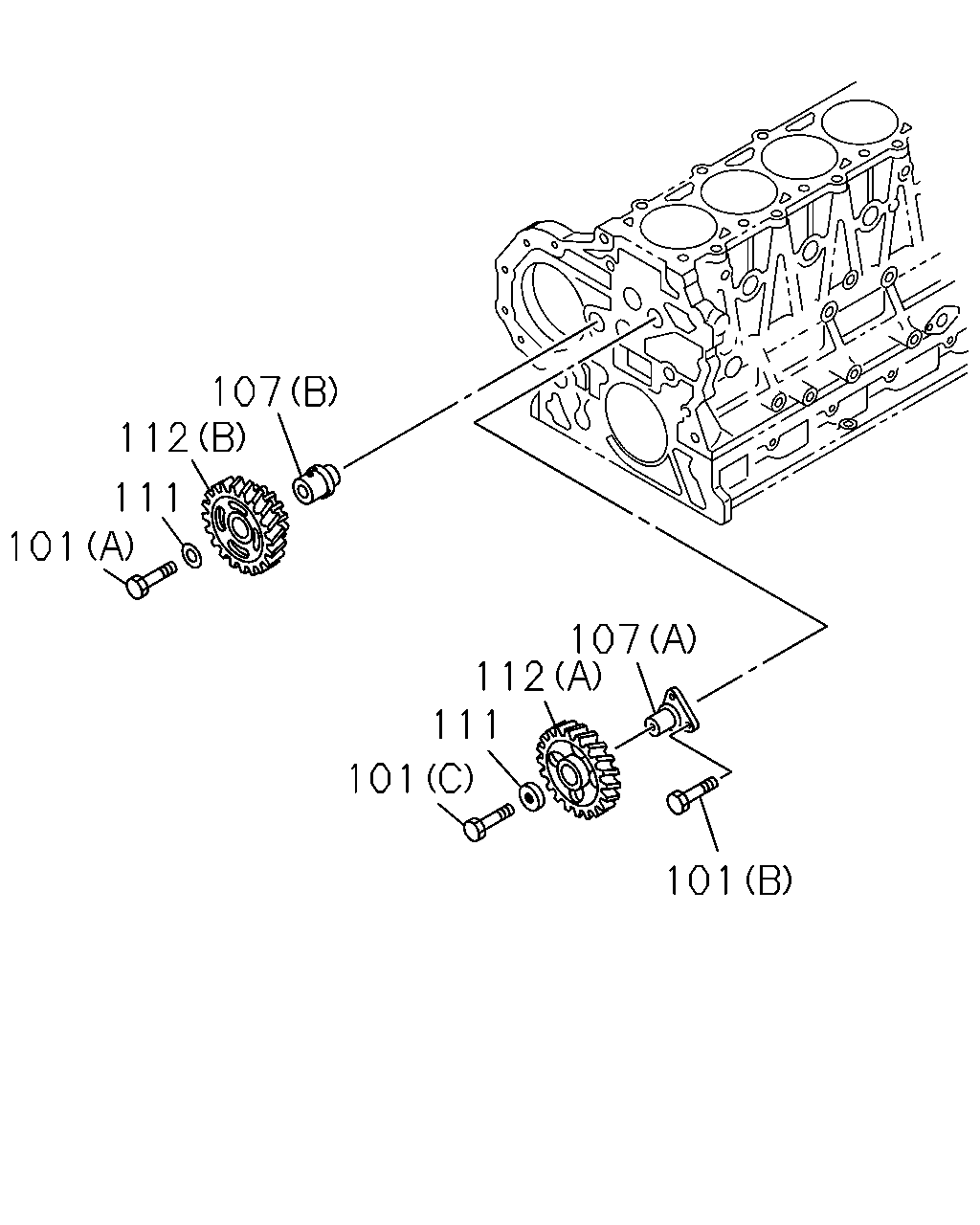

çizim 66073
107 112 111 101 107 112 111 101 101
BalonParca AdiParca NoAdetTipApplied Date A B
101 BOLT; THRUST COLLAR
(B) M8X14 		8-97073-782-0 03 1 9601-9611 ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 9612-0512 ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28060-816-0 03 1 0601- ●
101 BOLT; THRUST COLLAR
(A) M14X60 		9-91666-460-0 01 1 9601-0512 ●
101 BOLT; THRUST COLLAR
(A) M14X60 		0-16956-460-0 01 1 0601- ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 9601-0512 ●
101 BOLT; THRUST COLLAR
(C) M14X30 		0-23951-430-0 01 1 0601- ●
101 BOLT; THRUST COLLAR
(B) M8X14 FLANGE 		0-28080-814-0 03 1 9601-0308 ●
101 BOLT; THRUST COLLAR
(C) M14X16 		1-09000-284-0 01 1 9601-0308 ●
101 BOLT; THRUST COLLAR
(A) M12X57 		1-09070-127-0 01 1 9601-0308 ●
107 SHAFT; IDLE GEAR
(A) 		8-97073-938-1 01 1 9601-9805 ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-1 01 1 9806-0204 ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0205- ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 9601-0609 ●
107 SHAFT; IDLE GEAR
(B) 		8-98060-780-0 01 1 0610- ●
107 SHAFT; IDLE GEAR
(A) 		1-12531-054-1 01 1 9601-0011 ●
107 SHAFT; IDLE GEAR
(A) 		1-12531-097-2 01 1 0012-0308 ●
107 SHAFT; IDLE GEAR
(B) 		1-12531-064-0 01 1 9601-0011 ●
107 SHAFT; IDLE GEAR
(B) 		1-12531-099-0 01 1 0012-0308 ●
111 COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 02 1 9601-0306 ●
111 COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 02 1 0307- ●
111 COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 9601-0306 ●
111 COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-1 01 1 0307-0308 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 9601-0609 ●
112 GEAR; IDLE
(B) Z=72-30 		8-97227-074-0 01 1 0610- ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-2 01 1 9601- ●
112 GEAR; IDLE
(A) Z=69-27 		1-12523-241-0 01 1 9601-0011 ●
112 GEAR; IDLE
(A) Z=69-27 		1-12523-346-0 01 1 0012-0308 ●
112 GEAR; IDLE
(B) Z=62 		1-12523-242-0 01 1 9601-0011 ●
112 GEAR; IDLE
(B) Z=62 		1-12523-347-0 01 1 0012-0308 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
