0-13 — OIL PAN AND LEVEL GAUGE (#22771) — 109 parça

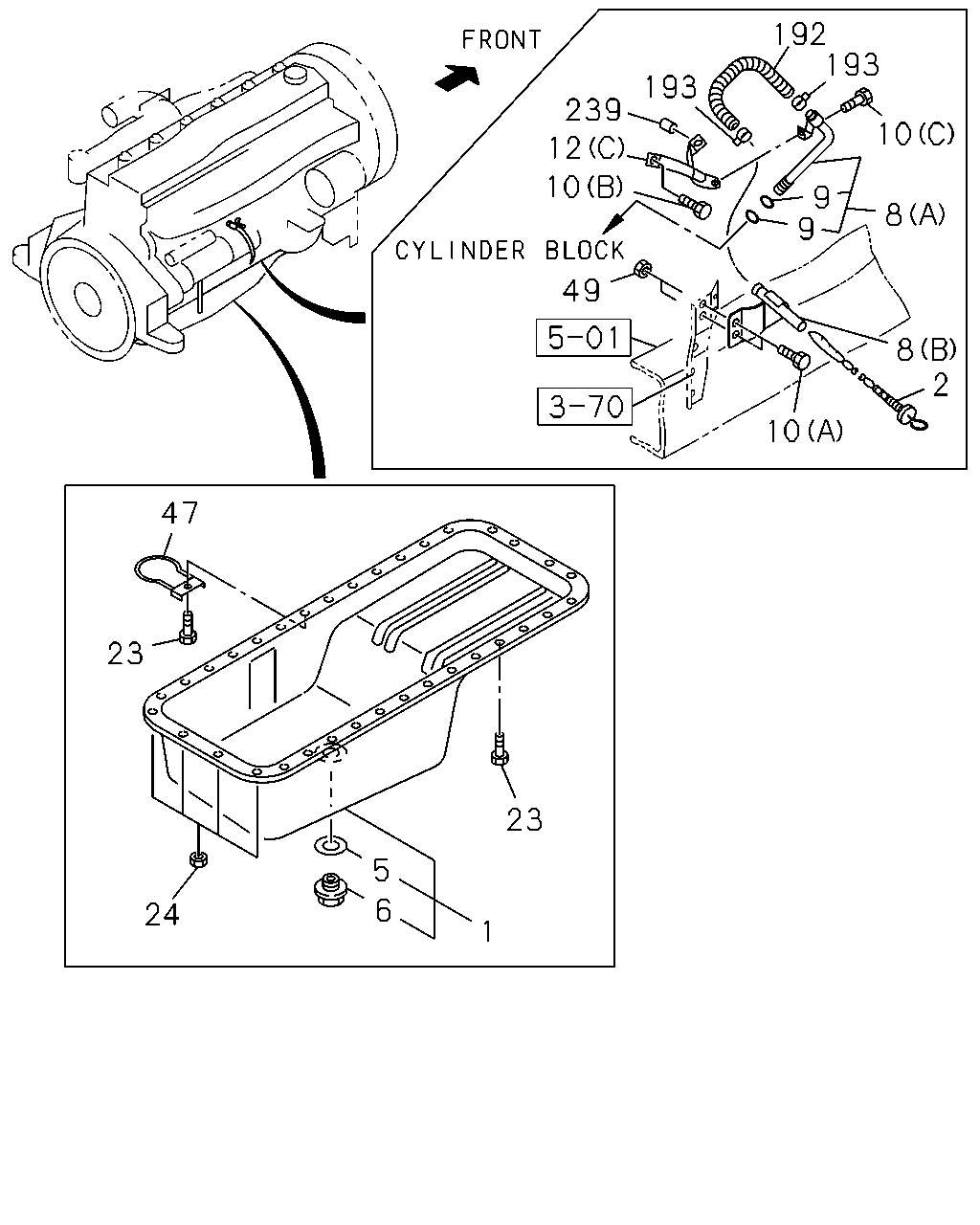

192 193 193 239 12 10 10 9 9 8 49 8 2 10 47 23 23 5 6 24 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL	8-94395-861-1	01	1	9601-0209	●
1	PAN ASM; OIL EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-861-1	01	1	0210-0308	●
1	PAN ASM; OIL ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-608-2	01	1	0210-0308	●
1	PAN ASM; OIL	8-94395-608-2	01	1	0309-	●
1	PAN ASM; OIL	1-11360-708-3	01	1	9601-0308		●
2	GAUGE; OIL LEVEL	1-11760-396-1	01	1	9601-	●
2	GAUGE; OIL LEVEL	1-11760-395-0	01	1	9601-0308		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	9601-	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-058-0	01	1	9601-0308		●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	9601-	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	9601-0111		●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-022-0	01	1	0112-0308		●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	1-11766-453-0	01	1	9601-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94395-114-3	01	1	9601-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (C)	1-11766-483-0	01	1	9601-0308		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9601-0112	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0201-	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	9601-0308		●
10	BOLT; GUIDE TUBE (C) M8X12 FLANGE	0-28080-812-0	01	1	9601-0209	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (C) M8X12 FLANGE	0-28080-812-0	01	1	0210-0308	●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	9601-0512	●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
10	BOLT; GUIDE TUBE (A) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●
10	BOLT; GUIDE TUBE (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9612	●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28680-820-0	02	1	9701-0512	●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
10	BOLT; GUIDE TUBE (B) M8X30 FLANGE	0-28080-830-0	01	1	9601-0209	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28080-830-0	01	1	0210-0308	●
10	BOLT; GUIDE TUBE ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28080-830-0	02	1	0210-0308	●
10	BOLT; GUIDE TUBE (B) M8X30 FLANGE	0-28080-830-0	02	1	0309-0512	●
10	BOLT; GUIDE TUBE (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-	●
10	BOLT; GUIDE TUBE (A) M6X40 FLANGE	0-28080-640-0	01	1	9601-0308		●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28080-820-0	01	1	9601-0308		●
12	BRACKET; TUBE,OIL LEVEL GAUGE (C)	8-94395-150-0	01	1	9601-0209	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94395-150-0	01	1	0210-0308	●
12	BRACKET; TUBE,OIL LEVEL GAUGE ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94394-903-0	01	1	0210-0308	●
12	BRACKET; TUBE,OIL LEVEL GAUGE (C)	8-94394-903-0	01	1	0309-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE (A)	1-11769-167-0	01	1	9601-0308		●
12	BRACKET; TUBE,OIL LEVEL GAUGE (B)	1-11769-168-0	01	1	9601-0308		●
23	BOLT; OIL PAN M8X18 FLANGE	0-28080-818-0	30	1	9601-	●
23	BOLT; OIL PAN M8X22 W/LK&PL WASHER	0-50140-822-0	30	1	9601-0308		●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	9601-0602	●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0603-	●
24	NUT; OIL PAN M8	9-09110-408-0	06	1	9601-0308		●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	9601-1506	●
47	CLIP; HOSE,AIR BREATHER	8-98303-447-0	01	1	1507-	●
47	CLIP; HOSE,AIR BREATHER	1-11229-014-0	01	1	9601-0308		●
49	NUT; GUIDE TUBE M8	9-09110-408-0	02	1	9601-9606	●
49	NUT; GUIDE TUBE M8 FLANGE	0-91150-108-0	02	1	9607-0602	●
49	NUT; GUIDE TUBE M8 FLANGE	0-91180-108-0	02	1	0603-	●
192	HOSE; GUIDE TUBE L=300	1-09360-945-1	01	1	9601-0305	●
192	HOSE; GUIDE TUBE L=300	1-09360-978-0	01	1	0306-	●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	9601-	●
239	SPACER; BRKT	8-94313-327-0	01	1	9601-0209	●
239	SPACER; BRKT EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94313-327-0	01	1	0210-0308	●

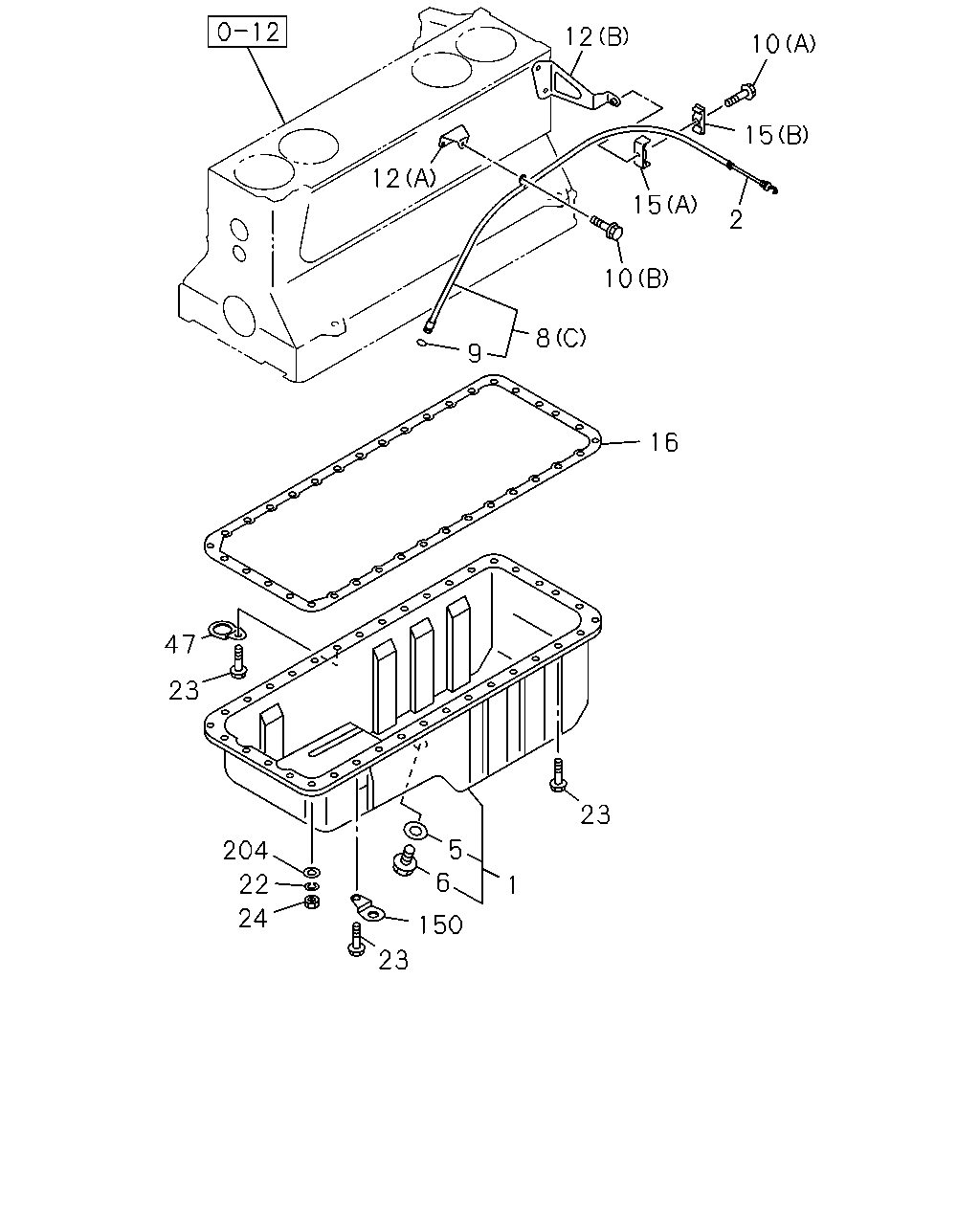

12 10 15 12 15 2 10 8 9 16 47 23 23 5 204 6 22 1 24 150 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL	8-94395-861-1	01	1	9601-0209	●
1	PAN ASM; OIL EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-861-1	01	1	0210-0308	●
1	PAN ASM; OIL ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-608-2	01	1	0210-0308	●
1	PAN ASM; OIL	8-94395-608-2	01	1	0309-	●
1	PAN ASM; OIL	1-11360-708-3	01	1	9601-0308		●
2	GAUGE; OIL LEVEL	1-11760-396-1	01	1	9601-	●
2	GAUGE; OIL LEVEL	1-11760-395-0	01	1	9601-0308		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	9601-	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-058-0	01	1	9601-0308		●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	9601-	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	9601-0111		●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-022-0	01	1	0112-0308		●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	1-11766-453-0	01	1	9601-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94395-114-3	01	1	9601-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (C)	1-11766-483-0	01	1	9601-0308		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9601-0112	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0201-	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	9601-0308		●
10	BOLT; GUIDE TUBE (C) M8X12 FLANGE	0-28080-812-0	01	1	9601-0209	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (C) M8X12 FLANGE	0-28080-812-0	01	1	0210-0308	●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	9601-0512	●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
10	BOLT; GUIDE TUBE (A) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●
10	BOLT; GUIDE TUBE (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9612	●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28680-820-0	02	1	9701-0512	●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
10	BOLT; GUIDE TUBE (B) M8X30 FLANGE	0-28080-830-0	01	1	9601-0209	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28080-830-0	01	1	0210-0308	●
10	BOLT; GUIDE TUBE ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28080-830-0	02	1	0210-0308	●
10	BOLT; GUIDE TUBE (B) M8X30 FLANGE	0-28080-830-0	02	1	0309-0512	●
10	BOLT; GUIDE TUBE (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-	●
10	BOLT; GUIDE TUBE (A) M6X40 FLANGE	0-28080-640-0	01	1	9601-0308		●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28080-820-0	01	1	9601-0308		●
12	BRACKET; TUBE,OIL LEVEL GAUGE (C)	8-94395-150-0	01	1	9601-0209	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94395-150-0	01	1	0210-0308	●
12	BRACKET; TUBE,OIL LEVEL GAUGE ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94394-903-0	01	1	0210-0308	●
12	BRACKET; TUBE,OIL LEVEL GAUGE (C)	8-94394-903-0	01	1	0309-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE (A)	1-11769-167-0	01	1	9601-0308		●
12	BRACKET; TUBE,OIL LEVEL GAUGE (B)	1-11769-168-0	01	1	9601-0308		●
15	CLIP; GUIDE TUBE (B) ID=9 & 11 L=28	1-09701-193-1	01	1	9601-0308		●
15	CLIP; GUIDE TUBE (A) ID=9 & 11 L=28	1-09701-194-1	01	1	9601-0308		●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-113-0	01	1	9601-0205		●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-129-1	01	1	0206-0308		●
22	WASHER; LK,OIL PAN ID=8.2	9-09150-508-0	06	1	9601-0308		●
23	BOLT; OIL PAN M8X18 FLANGE	0-28080-818-0	30	1	9601-	●
23	BOLT; OIL PAN M8X22 W/LK&PL WASHER	0-50140-822-0	30	1	9601-0308		●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	9601-0602	●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0603-	●
24	NUT; OIL PAN M8	9-09110-408-0	06	1	9601-0308		●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	9601-1506	●
47	CLIP; HOSE,AIR BREATHER	8-98303-447-0	01	1	1507-	●
47	CLIP; HOSE,AIR BREATHER	1-11229-014-0	01	1	9601-0308		●
150	CLIP; WATER,OIL DRAIN	9-11229-070-0	02	1	9601-0308		●
204	WASHER; PL,OIL PAN ID=8.4	9-09160-508-0	06	1	9601-0308		●
