Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#22770) — 220 parça

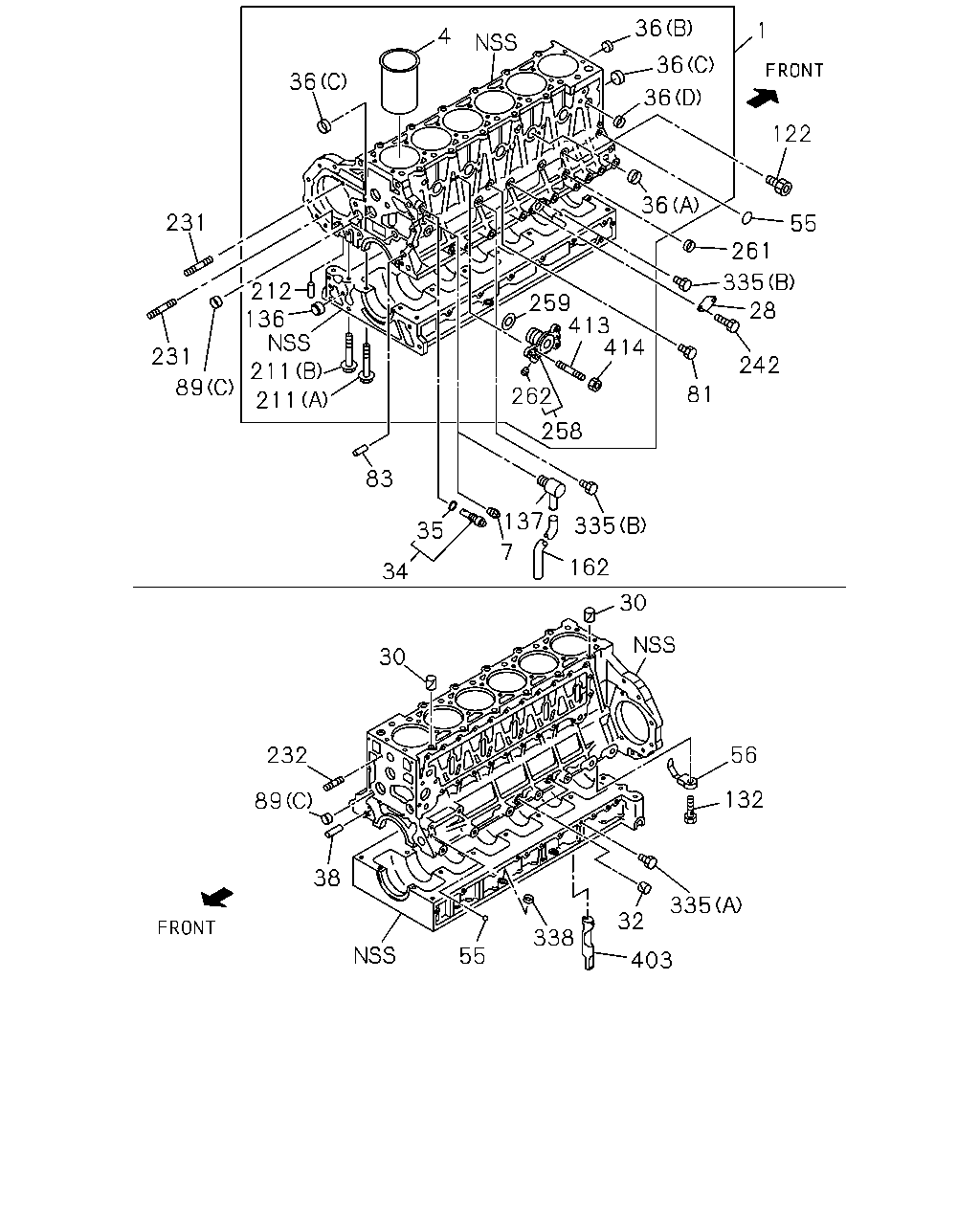

36 1 4 36 36 36 122 36 231 55 212 136 211 261 335 259 413 414 28 231 242 89 81 262 211 258 83 137 335 35 7 162 34 30 30 56 232 132 89 38 335 338 32 55 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-94394-057-9	01	1	9601-9807	●
1	BLOCK ASM; CYL	8-94392-491-2	01	1	9808-0001	●
1	BLOCK ASM; CYL	8-97600-415-2	01	1	0002-0504	●
1	BLOCK ASM; CYL	8-98005-414-2	01	1	0505-1012	●
1	BLOCK ASM; CYL	8-98180-710-0	01	1	1101-1209	●
1	BLOCK ASM; CYL	8-98206-961-0	01	1	1210-	●
1	BLOCK ASM; CYL	1-11210-620-4	01	1	9601-0308		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	9601-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	9601-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	9601-0308		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	9601-0308		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	9601-0308		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	9601-0308		●
7	PLUG; WATER DRAIN PT3/8	8-94397-338-0	01	1	1101-	●
28	COVER; OIL PORT	1-11219-163-0	01	1	9601-	●
28	COVER; OIL PORT	1-11749-103-0	01	1	9601-0308		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9601-	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	9601-0308		●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9601-	●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	9601-0308		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9601-	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9601-	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	9601-	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9601-	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9601-	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9601-0502	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-	●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	9601-0308		●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-0	07	1	9601-0308		●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-0	02	1	9601-0308		●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9601-	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9601-	●
56	JET; OIL,PISTON COOLING	8-94399-187-1	06	1	9601-	●
56	JET; OIL,PISTON COOLING	1-13342-127-0	06	1	9601-0308		●
81	PLUG; WATER JACKET M14	8-94399-225-0	01	1	9601-0703	●
81	PLUG; WATER JACKET M14X16.5	8-97329-617-0	01	1	0704-	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9601-0306	●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-	●
83	PIN; FLYWHEEL HSG OD=10 L=25	9-08151-025-0	02	1	9601-0308		●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	03	1	9601-0908	●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11129-128-0	03	1	0909-	●
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	9601-0301		●
89	CUP; SEALING,OIL GALLERY (A) OD=16	5-11129-006-0	01	1	0302-0308		●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	9601-0308		●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	9601-	●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	9601-0704	●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	06	1	0705-	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	9601-0812	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-	●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	9601-1012	●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9601-0206	●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03559-300-0	01	1	0207-1012	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9601-0905	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9601-	●
211	BOLT; CRANKCASE (B) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	9601-0308		●
211	BOLT; CRANKCASE (A) M10X98 FLANGE W/PL WASHER	1-09070-061-0	14	1	9601-0308		●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9601-0306	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-	●
212	PIN; CRANKCASE OD=12 L=28	1-09740-031-0	02	1	9601-0308		●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9601-0301	●
231	STUD; AIR CMPR M10X25 L=40	0-49841-025-0	02	1	0302-0512	●
231	STUD; AIR CMPR M10X25 L=48.5	0-49241-025-0	02	1	0601-	●
231	STUD; AIR CMPR M12X67 L=82	1-09302-112-0	04	1	9601-0308		●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9601-0604	●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-	●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	9601-0308	●	●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	0309-0512	●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
258	ADAPTER; BLOCK HTR	8-94395-868-0	01	1	0505-0507	●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0505-0507	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9601-0307	●
262	PLUG; ADAPTER	1-13163-002-0	01	1	0505-0507	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9601-0703	●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	04	1	0704-	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9601-9803	●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X6	8-94399-421-0	01	1	9804-0004	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0005-0501	●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	07	1	9601-0308		●
335	PLUG; C/BL,SIDE (A) PT1/8	1-09605-050-0	02	1	9601-0308		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9601-0607	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0608-	●
403	GUIDE; GALLERY	8-94395-351-1	01	1	9601-	●
413	STUD; ADAPTER M8X30 L=41	9-04110-830-0	02	1	0505-0507	●
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	02	1	0505-0507	●

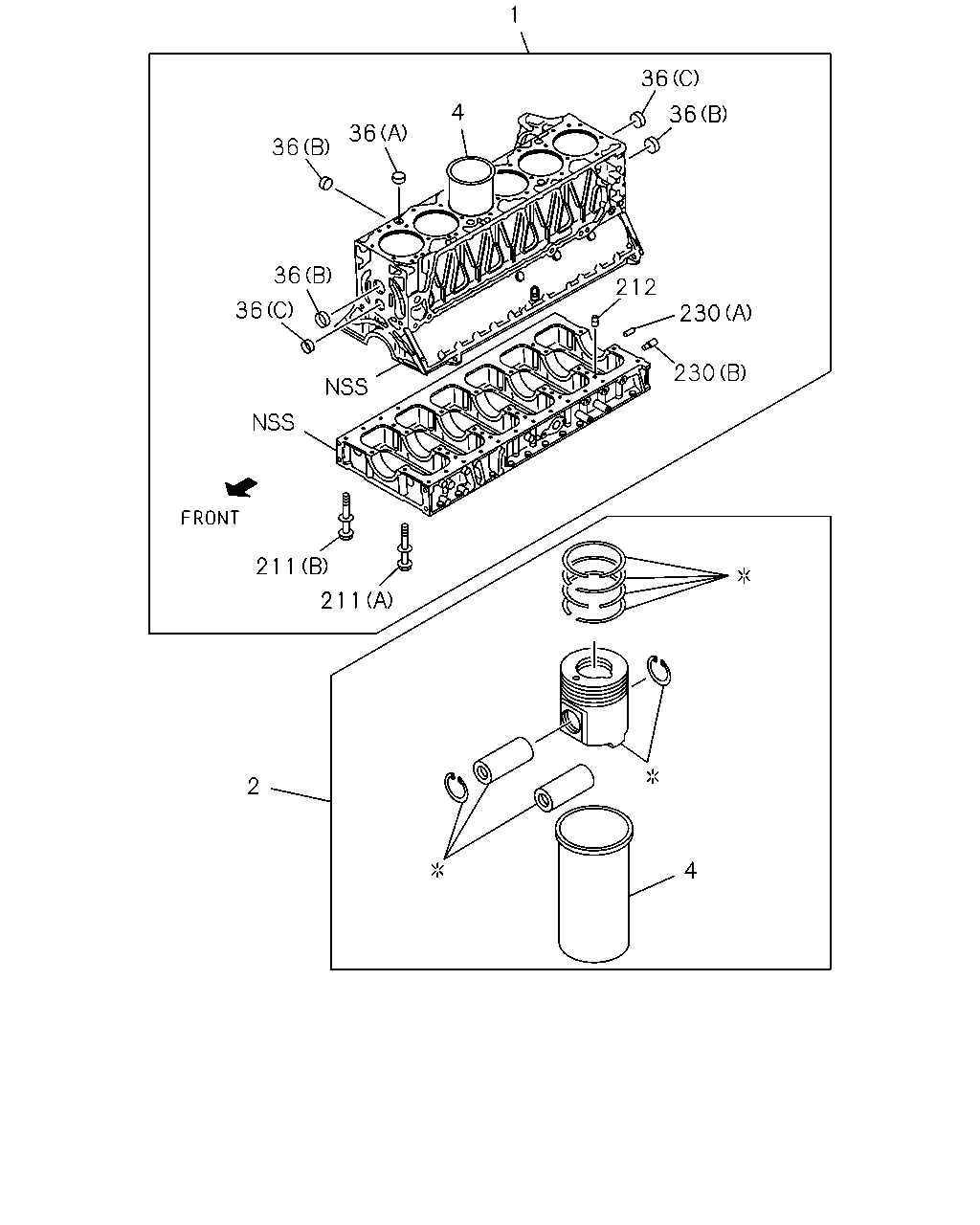

343 308 343 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINER SET; ENG CYL GRADE=1X	1-87811-436-0	06	1	9601-9608	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-665-9	06	1	9609-	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-437-0	06	1	9601-9608	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-666-9	06	1	9609-	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-453-1	06	1	9601-0308		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-454-1	06	1	9601-0308		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	9601-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	9601-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	9601-0308		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	9601-0308		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	9601-0308		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	9601-0308		●
308	PROTECTOR; HEAT,HD COVER	8-94395-205-0	01	1	9601-9603	●
308	PROTECTOR; HEAT,HD COVER	8-94390-548-0	01	1	9604-9901	●
308	PROTECTOR; HEAT,HD COVER	8-94391-759-2	01	1	9902-	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	9601-0512	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28050-812-0	05	1	0601-	●

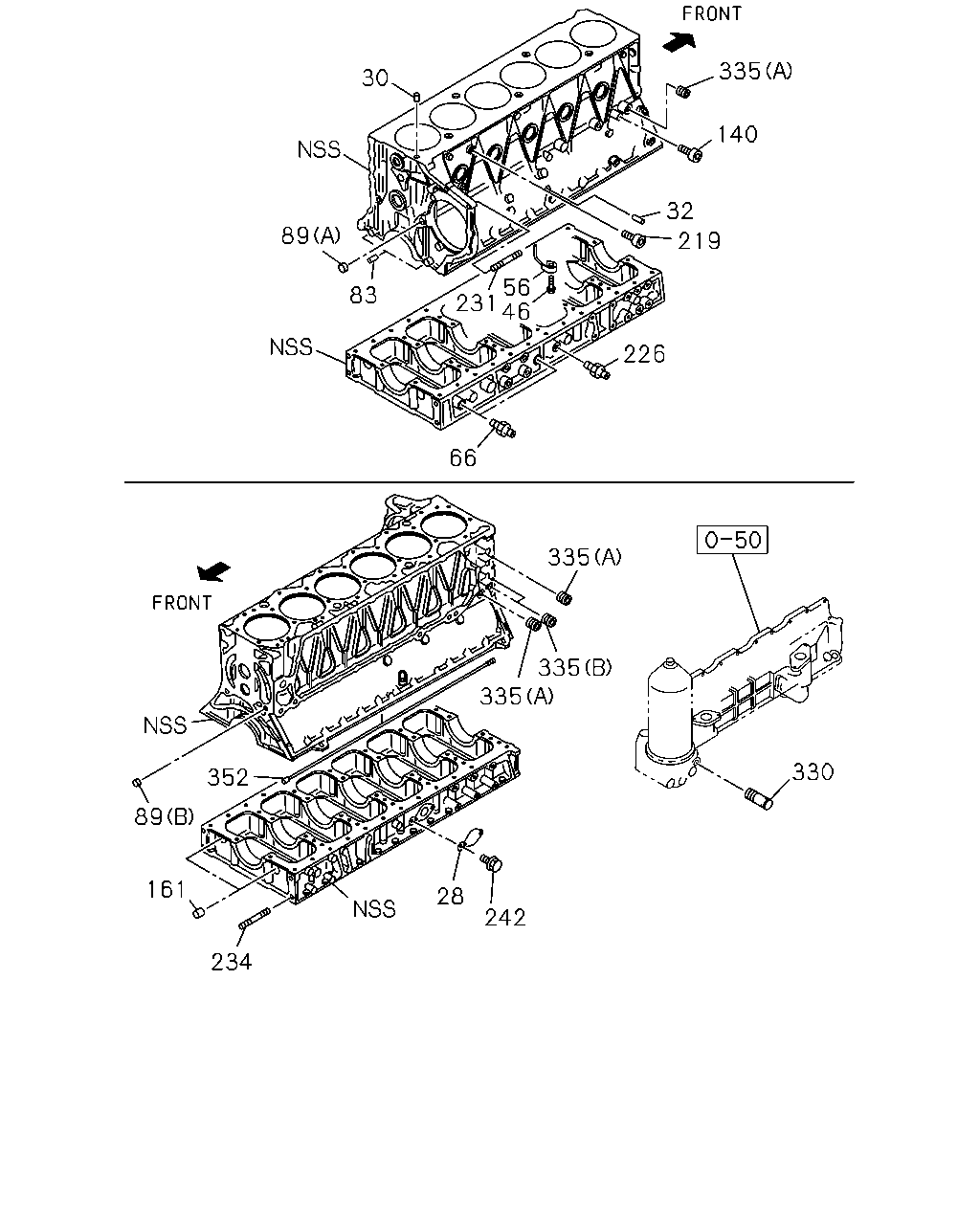

335 30 140 32 89 219 56 231 46 83 226 66 335 335 335 330 352 89 161 28 242 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	COVER; OIL PORT	1-11219-163-0	01	1	9601-	●
28	COVER; OIL PORT	1-11749-103-0	01	1	9601-0308		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9601-	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	9601-0308		●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9601-	●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	9601-0308		●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-09675-105-1	06	1	9601-0308		●
56	JET; OIL,PISTON COOLING	8-94399-187-1	06	1	9601-	●
56	JET; OIL,PISTON COOLING	1-13342-127-0	06	1	9601-0308		●
66	CONNECTOR; PARTIAL FILTER M16 & PT1/4 STRAIGHT	1-09650-210-1	01	1	9601-0308		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9601-0306	●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-	●
83	PIN; FLYWHEEL HSG OD=10 L=25	9-08151-025-0	02	1	9601-0308		●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	03	1	9601-0908	●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11129-128-0	03	1	0909-	●
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	9601-0301		●
89	CUP; SEALING,OIL GALLERY (A) OD=16	5-11129-006-0	01	1	0302-0308		●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	9601-0308		●
140	NIPPLE; INJ PUMP	1-09660-155-0	01	1	9601-0308		●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9601-0308		●
219	NIPPLE; AIR CMPR,WATER	1-09660-408-0	01	1	9601-0308		●
226	CONNECTOR; INJ PUMP,RETURN M20 & PT3/8 STRAIGHT	1-09650-211-1	01	1	9601-0308		●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9601-0301	●
231	STUD; AIR CMPR M10X25 L=40	0-49841-025-0	02	1	0302-0512	●
231	STUD; AIR CMPR M10X25 L=48.5	0-49241-025-0	02	1	0601-	●
231	STUD; AIR CMPR M12X67 L=82	1-09302-112-0	04	1	9601-0308		●
234	STUD; FRT COVER M10X50 L=65	1-09302-105-0	04	1	9601-0308		●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	9601-0308	●	●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	0309-0512	●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
330	JOINT; HTR HEATER & DEFROSTER(C41)	1-09660-504-1	01	1	9601-9611		●
330	JOINT; HTR HEATER & DEFROSTER(C41) PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9612-0308		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9601-0703	●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	04	1	0704-	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9601-9803	●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X6	8-94399-421-0	01	1	9804-0004	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0005-0501	●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	07	1	9601-0308		●
335	PLUG; C/BL,SIDE (A) PT1/8	1-09605-050-0	02	1	9601-0308		●
352	GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-166-0	02	1	9601-0308		●

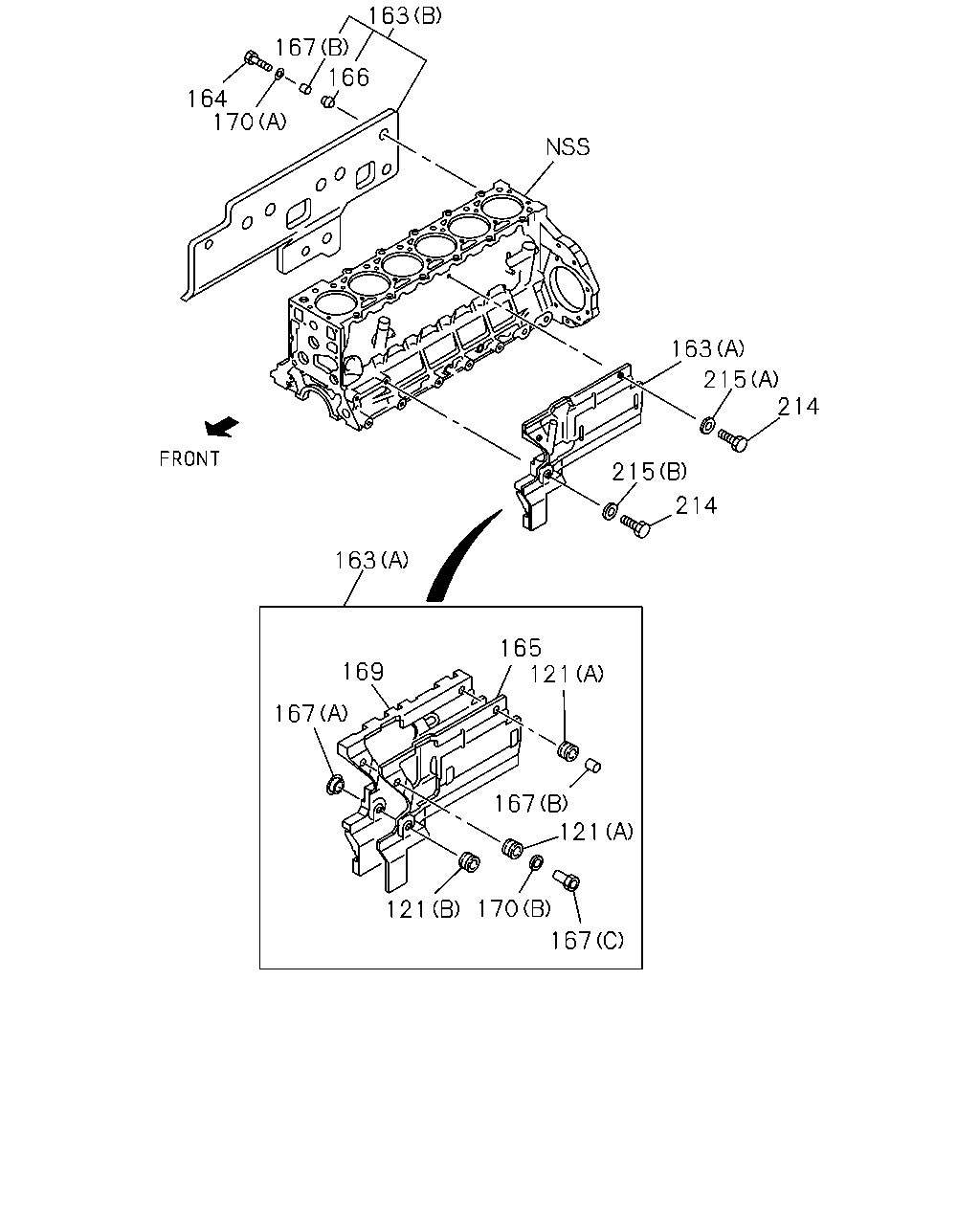

163 167 166 164 170 163 215 214 215 214 163 165 121 169 167 167 121 170 121 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
121	RUBBER; MTG,COVER ANTI NOISE EQUIPMENT ECE<SLK> (A) OD=22	8-94140-428-1	02	1	0210-0308	●
121	RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	02	1	0309-	●
121	RUBBER; MTG,COVER ANTI NOISE EQUIPMENT ECE<SLK> (B) OD=32	8-94396-221-0	01	1	0210-0308	●
121	RUBBER; MTG,COVER (B) OD=32	8-94396-221-0	01	1	0309-	●
163	COVER ASM; C/BL SKIRT ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94390-172-0	01	1	0210-0308	●
163	COVER ASM; C/BL SKIRT (A)	8-94390-172-0	01	1	0309-	●
163	COVER ASM; C/BL SKIRT ANTI NOISE EQUIPMENT ECE<SLK> (B)	8-94395-894-0	01	1	0210-0308	●
163	COVER ASM; C/BL SKIRT (B)	8-94395-894-0	01	1	0309-	●
164	BOLT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE	0-28680-825-0	04	1	0210-0308	●
164	BOLT; COVER BLOCK SKIRT M8X25 FLANGE	0-28680-825-0	04	1	0309-0512	●
164	BOLT; COVER BLOCK SKIRT M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
165	COVER; C/BL SKIRT ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-694-1	01	1	0210-0308	●
165	COVER; C/BL SKIRT	8-94395-694-1	01	1	0309-	●
166	MOUNT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT ECE<SLK> OD=22	8-94140-428-1	04	1	0210-0308	●
166	MOUNT; COVER BLOCK SKIRT OD=22	8-94140-428-1	04	1	0309-	●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK> (B) OD=13 T=9.5	8-94140-427-1	05	1	0210-0308	●
167	TUBE; DIST,SIDE COVER (B) OD=13 T=9.5	8-94140-427-1	05	1	0309-	●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK> (C) M10	8-94393-791-2	01	1	0210-0308	●
167	TUBE; DIST,SIDE COVER (C) M10	8-94393-791-2	01	1	0309-	●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK> (A) OD=32 W/FLANGE	8-94397-356-1	01	1	0210-0308	●
167	TUBE; DIST,SIDE COVER (A) OD=32 W/FLANGE	8-94397-356-1	01	1	0309-	●
169	INSULATOR; SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK>	8-94390-173-0	01	1	0210-0308	●
169	INSULATOR; SIDE COVER	8-94390-173-0	01	1	0309-	●
170	WASHER; COVER ANTI NOISE EQUIPMENT ECE<SLK> (A) ID=8.4 OD=22	9-09160-708-0	04	1	0210-0308	●
170	WASHER; COVER (A) ID=8.4 OD=22	9-09160-708-0	04	1	0309-0605	●
170	WASHER; COVER (A) ID=8.4 OD=22	0-91610-708-0	04	1	0606-	●
170	WASHER; COVER ANTI NOISE EQUIPMENT ECE<SLK> (B) ID=14 OD=22	9-47515-014-0	01	1	0210-0308	●
170	WASHER; COVER (B) ID=14 OD=22	9-47515-014-0	01	1	0309-	●
214	BOLT; NOISE COVER ANTI NOISE EQUIPMENT ECE<SLK> M10X25 FLANGE	0-28181-025-0	02	1	0210-0308	●
214	BOLT; NOISE COVER M10X25 FLANGE	0-28181-025-0	02	1	0309-0512	●
214	BOLT; NOISE COVER M10X25 FLANGE	0-28151-025-0	02	1	0601-	●
215	WASHER; PL,NOISE COVER ANTI NOISE EQUIPMENT ECE<SLK> (A) ID=10.5 OD=22	9-09164-610-0	01	1	0210-0308	●
215	WASHER; PL,NOISE COVER (A) ID=10.5 OD=22	9-09164-610-0	01	1	0309-0605	●
215	WASHER; PL,NOISE COVER (A) ID=10.5 OD=22	0-91614-610-0	01	1	0606-	●
215	WASHER; PL,NOISE COVER ANTI NOISE EQUIPMENT ECE<SLK> (B) ID=10.5 OD=32	9-09164-810-0	01	1	0210-0308	●
215	WASHER; PL,NOISE COVER (B) ID=10.5 OD=32	9-09164-810-0	01	1	0309-0605	●
215	WASHER; PL,NOISE COVER (B) ID=10.5 OD=32	0-91614-810-0	01	1	0606-	●

1 36 4 36 36 36 36 212 36 230 230 211 211 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-94394-057-9	01	1	9601-9807	●
1	BLOCK ASM; CYL	8-94392-491-2	01	1	9808-0001	●
1	BLOCK ASM; CYL	8-97600-415-2	01	1	0002-0504	●
1	BLOCK ASM; CYL	8-98005-414-2	01	1	0505-1012	●
1	BLOCK ASM; CYL	8-98180-710-0	01	1	1101-1209	●
1	BLOCK ASM; CYL	8-98206-961-0	01	1	1210-	●
1	BLOCK ASM; CYL	1-11210-620-4	01	1	9601-0308		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-436-0	06	1	9601-9608	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-665-9	06	1	9609-	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-437-0	06	1	9601-9608	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-666-9	06	1	9609-	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-453-1	06	1	9601-0308		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-454-1	06	1	9601-0308		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	9601-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	9601-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	9601-0308		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	9601-0308		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	9601-0308		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	9601-0308		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	9601-	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9601-	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9601-	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9601-0502	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-	●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	9601-0308		●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-0	07	1	9601-0308		●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-0	02	1	9601-0308		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9601-0905	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9601-	●
211	BOLT; CRANKCASE (B) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	9601-0308		●
211	BOLT; CRANKCASE (A) M10X98 FLANGE W/PL WASHER	1-09070-061-0	14	1	9601-0308		●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9601-0306	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-	●
212	PIN; CRANKCASE OD=12 L=28	1-09740-031-0	02	1	9601-0308		●
230	PIN; THRUST METAL,CR/SHF (B) L=25	1-09749-025-1	02	1	9601-0308		●
230	PIN; THRUST METAL,CR/SHF (A) OD=5 L=10	9-08160-510-0	02	1	9601-0308		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
