0-11B — CYLINDER HEAD (#2277) — 198 parça

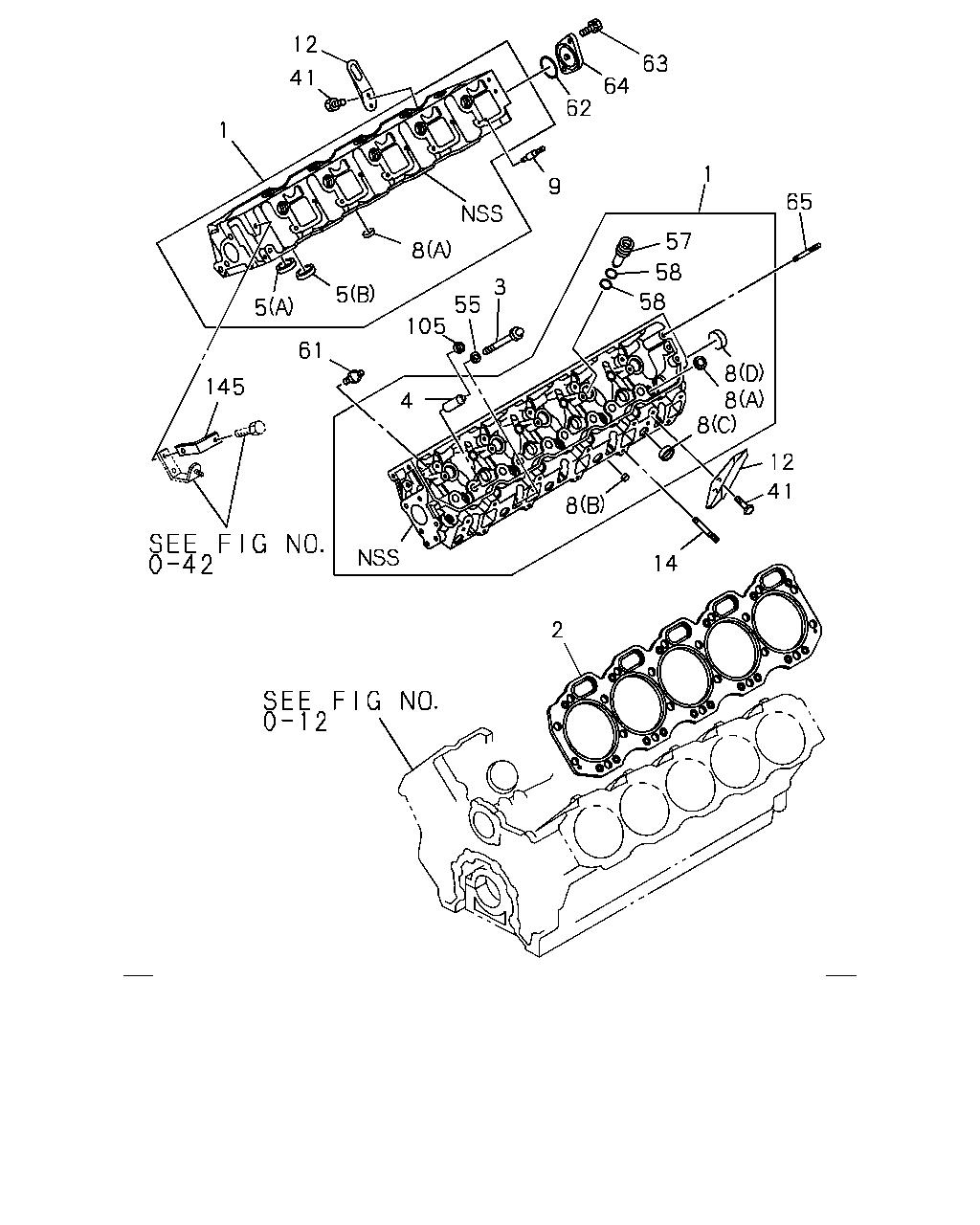

1 41 12 9 9 63 64 62 105 65 3 55 8 8 8 55 3 14 12 14 41 2 5 5 8 57 58 58 4 61 1 5 8 145 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HEAD ASM; CYL LH BANK	1-11110-691-1	01	1	9002-9306	●
1	HEAD ASM; CYL RH BANK	1-11110-690-1	01	1	9002-9306	●
1	HEAD ASM; CYL LH BANK	1-11110-687-3	01	1	9002-		●
1	HEAD ASM; CYL RH BANK	1-11110-686-3	01	1	9002-		●
1	HEAD ASM; CYL LH BANK	1-11110-689-3	01	1	9307-			●
1	HEAD ASM; CYL RH BANK	1-11110-688-3	01	1	9307-			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-191-1	02	1	9002-9306	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-189-1	02	1	9307-			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-190-1	02	1	9002-		●
3	BOLT; CYL HD TO BLOCK M14X90	1-09029-026-0	24	1	9002-9306	●
3	BOLT; CYL HD TO BLOCK M14X90	1-09029-026-1	16	1	9307-			●
3	BOLT; CYL HD TO BLOCK M14X150	1-09029-027-0	28	1	9002-9306	●
3	BOLT; CYL HD TO BLOCK M14X150	1-09029-027-1	20	1	9307-			●
3	BOLT; CYL HD TO BLOCK M14X90	1-09029-026-1	20	1	9002-		●
3	BOLT; CYL HD TO BLOCK M14X150	1-09029-027-1	24	1	9002-		●
4	GUIDE; VLV	1-11721-004-0	24	1	9002-9306	●
4	GUIDE; VLV	1-11721-004-0	16	1	9307-			●
4	GUIDE; VLV	1-11721-004-0	20	1	9002-		●
5	SEAT; VLV INSERT (A) EXHAUST ID=40	1-11711-024-0	12	1	9002-9306	●
5	SEAT; VLV INSERT (A) EXHAUST ID=40	1-11711-024-0	08	1	9307-9503			●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-054-0	08	1	9504-			●
5	SEAT; VLV INSERT (B) INLET	1-11715-078-0	12	1	9002-9306	●
5	SEAT; VLV INSERT (B) INLET	1-11715-078-0	10	1	9002-		●
5	SEAT; VLV INSERT (A) EXHAUST ID=40	1-11711-024-0	10	1	9002-9503		●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-054-0	10	1	9504-		●
5	SEAT; VLV INSERT (B) INLET	1-11715-078-0	08	1	9307-			●
8	CUP; SEALING,WATER JACKET (B) OD=12	1-09600-010-1	24	1	9002-9306	●
8	CUP; SEALING,WATER JACKET (B) OD=12	1-09600-010-1	16	1	9307-			●
8	CUP; SEALING,WATER JACKET (A) OD=22	1-09600-011-2	46	1	9002-9306	●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-1	12	1	9002-9306	●
8	CUP; SEALING,WATER JACKET (D) OD=45	1-09600-005-1	01	1	9002-	●	●	●
8	CUP; SEALING,WATER JACKET (B) OD=12	1-09600-010-1	20	1	9002-		●
8	CUP; SEALING,WATER JACKET (A) OD=22	1-09600-011-2	28	1	9002-		●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-1	10	1	9002-		●
8	CUP; SEALING,WATER JACKET (A) OD=22	1-09600-011-2	22	1	9307-			●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-1	08	1	9307-			●
9	STUD; INL MANIF	1-09309-008-0	24	1	9002-9306	●
9	STUD; INL MANIF	1-09309-008-0	16	1	9307-			●
9	STUD; INL MANIF	1-09309-008-0	20	1	9002-		●
12	HANGER; ENG,RR	1-11777-164-0	02	1	9002-	●	●	●
14	STUD; EXH MANIF M10X95 L=110	1-09302-063-0	24	1	9002-9306	●
14	STUD; EXH MANIF M10X95 L=110	1-09302-063-0	16	1	9307-			●
14	STUD; EXH MANIF M10X95 L=110	1-09302-063-0	20	1	9002-		●
41	BOLT; ENG HANGER M12X26	1-09000-535-0	04	1	9002-	●	●	●
55	WASHER; PL,CYL HD TO BLOCK ID=14.2	1-09503-050-0	52	1	9002-9306	●
55	WASHER; PL,CYL HD TO BLOCK ID=14.2	1-09503-050-0	36	1	9307-			●
55	WASHER; PL,CYL HD TO BLOCK ID=14.2	1-09503-050-0	44	1	9002-		●
57	SLEEVE; NOZZLE HOLDER	1-11129-017-0	12	1	9002-9306	●
57	SLEEVE; NOZZLE HOLDER	1-11129-017-0	08	1	9307-			●
57	SLEEVE; NOZZLE HOLDER	1-11129-017-0	10	1	9002-		●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09920-757-0	24	1	9002-9306	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09920-757-0	16	1	9307-			●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09920-757-0	20	1	9002-		●
61	CONNECTOR; LEAK OFF PIPE	1-09669-015-0	02	1	9002-	●	●	●
62	GASKET; COVER,WATER JACKET ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-425-0	01	1	9002-	●	●	●
63	BOLT; CVR,WATER JACKET M10X28	0-50051-028-0	02	1	9002-9306	●
63	BOLT; CVR,WATER JACKET M10X25 FLANGE	0-28181-025-0	02	1	9002-		●	●
64	COVER; WATER JACKET	1-11119-003-0	01	1	9002-9306	●
64	COVER; WATER JACKET	1-11119-013-1	01	1	9002-		●	●
65	STUD; ROCKER OIL FEED M10X88 L=103	1-09300-025-0	02	1	9002-	●	●	●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-009-1	24	1	9002-9106	●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	24	1	9107-9306	●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	16	1	9307-			●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-009-1	20	1	9002-9106		●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	20	1	9107-		●
145	BRACKET	1-09709-072-0	01	1	9002-	●	●	●

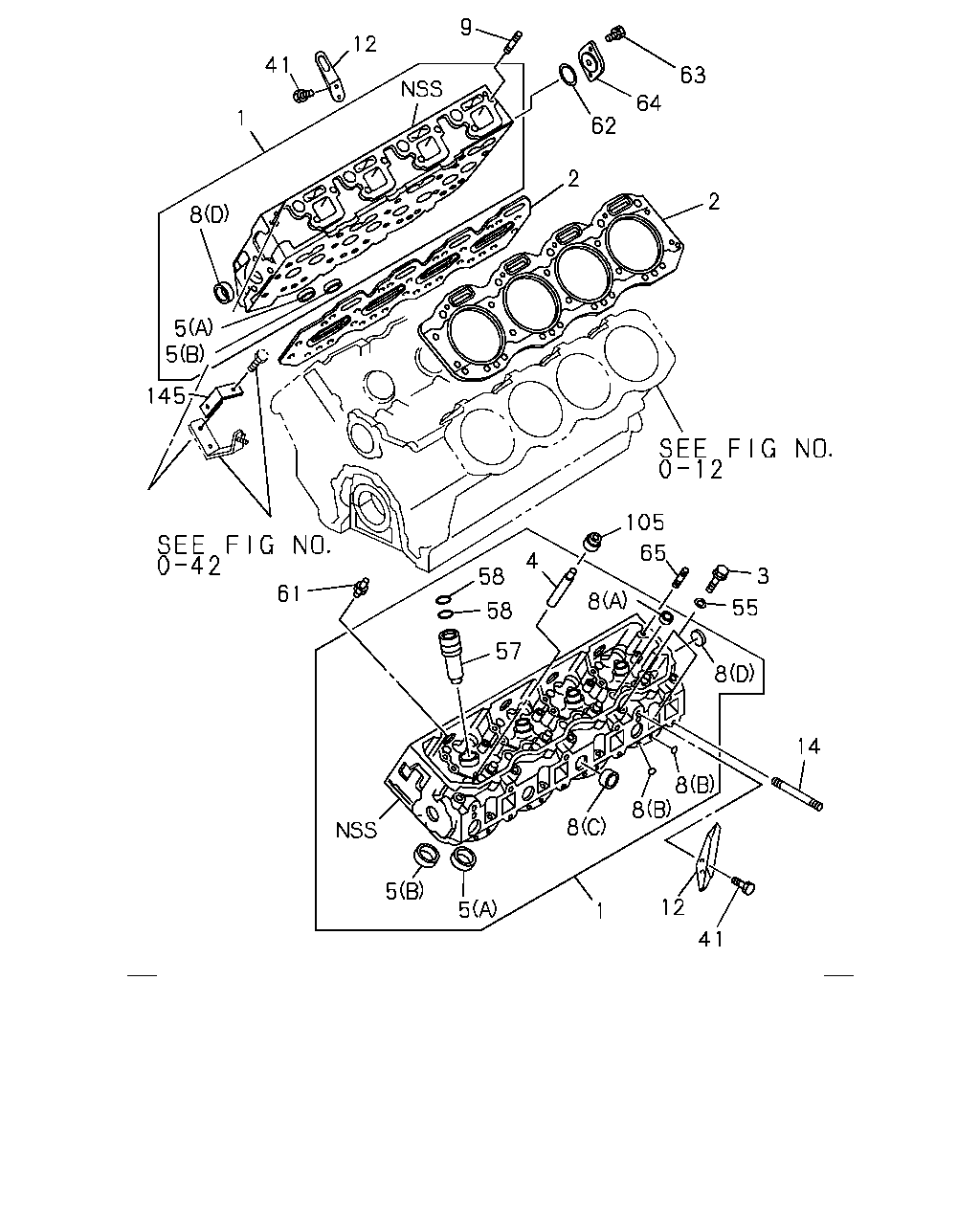

2 14 41 12 8 8 8 8 4 61 105 55 3 58 58 57 8 5 5 145 65 1 9 62 64 63 12 41 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HEAD ASM; CYL LH BANK	1-11110-691-1	01	1	9002-9306	●
1	HEAD ASM; CYL RH BANK	1-11110-690-1	01	1	9002-9306	●
1	HEAD ASM; CYL LH BANK	1-11110-687-3	01	1	9002-		●
1	HEAD ASM; CYL RH BANK	1-11110-686-3	01	1	9002-		●
1	HEAD ASM; CYL LH BANK	1-11110-689-3	01	1	9307-			●
1	HEAD ASM; CYL RH BANK	1-11110-688-3	01	1	9307-			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-191-1	02	1	9002-9306	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-189-1	02	1	9307-			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-190-1	02	1	9002-		●
3	BOLT; CYL HD TO BLOCK M14X90	1-09029-026-0	24	1	9002-9306	●
3	BOLT; CYL HD TO BLOCK M14X90	1-09029-026-1	16	1	9307-			●
3	BOLT; CYL HD TO BLOCK M14X150	1-09029-027-0	28	1	9002-9306	●
3	BOLT; CYL HD TO BLOCK M14X150	1-09029-027-1	20	1	9307-			●
3	BOLT; CYL HD TO BLOCK M14X90	1-09029-026-1	20	1	9002-		●
3	BOLT; CYL HD TO BLOCK M14X150	1-09029-027-1	24	1	9002-		●
4	GUIDE; VLV	1-11721-004-0	24	1	9002-9306	●
4	GUIDE; VLV	1-11721-004-0	16	1	9307-			●
4	GUIDE; VLV	1-11721-004-0	20	1	9002-		●
5	SEAT; VLV INSERT (A) EXHAUST ID=40	1-11711-024-0	12	1	9002-9306	●
5	SEAT; VLV INSERT (A) EXHAUST ID=40	1-11711-024-0	08	1	9307-9503			●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-054-0	08	1	9504-			●
5	SEAT; VLV INSERT (B) INLET	1-11715-078-0	12	1	9002-9306	●
5	SEAT; VLV INSERT (B) INLET	1-11715-078-0	10	1	9002-		●
5	SEAT; VLV INSERT (A) EXHAUST ID=40	1-11711-024-0	10	1	9002-9503		●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-054-0	10	1	9504-		●
5	SEAT; VLV INSERT (B) INLET	1-11715-078-0	08	1	9307-			●
8	CUP; SEALING,WATER JACKET (B) OD=12	1-09600-010-1	24	1	9002-9306	●
8	CUP; SEALING,WATER JACKET (B) OD=12	1-09600-010-1	16	1	9307-			●
8	CUP; SEALING,WATER JACKET (A) OD=22	1-09600-011-2	46	1	9002-9306	●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-1	12	1	9002-9306	●
8	CUP; SEALING,WATER JACKET (D) OD=45	1-09600-005-1	01	1	9002-	●	●	●
8	CUP; SEALING,WATER JACKET (B) OD=12	1-09600-010-1	20	1	9002-		●
8	CUP; SEALING,WATER JACKET (A) OD=22	1-09600-011-2	28	1	9002-		●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-1	10	1	9002-		●
8	CUP; SEALING,WATER JACKET (A) OD=22	1-09600-011-2	22	1	9307-			●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-1	08	1	9307-			●
9	STUD; INL MANIF	1-09309-008-0	24	1	9002-9306	●
9	STUD; INL MANIF	1-09309-008-0	16	1	9307-			●
9	STUD; INL MANIF	1-09309-008-0	20	1	9002-		●
12	HANGER; ENG,RR	1-11777-164-0	02	1	9002-	●	●	●
14	STUD; EXH MANIF M10X95 L=110	1-09302-063-0	24	1	9002-9306	●
14	STUD; EXH MANIF M10X95 L=110	1-09302-063-0	16	1	9307-			●
14	STUD; EXH MANIF M10X95 L=110	1-09302-063-0	20	1	9002-		●
41	BOLT; ENG HANGER M12X26	1-09000-535-0	04	1	9002-	●	●	●
55	WASHER; PL,CYL HD TO BLOCK ID=14.2	1-09503-050-0	52	1	9002-9306	●
55	WASHER; PL,CYL HD TO BLOCK ID=14.2	1-09503-050-0	36	1	9307-			●
55	WASHER; PL,CYL HD TO BLOCK ID=14.2	1-09503-050-0	44	1	9002-		●
57	SLEEVE; NOZZLE HOLDER	1-11129-017-0	12	1	9002-9306	●
57	SLEEVE; NOZZLE HOLDER	1-11129-017-0	08	1	9307-			●
57	SLEEVE; NOZZLE HOLDER	1-11129-017-0	10	1	9002-		●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09920-757-0	24	1	9002-9306	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09920-757-0	16	1	9307-			●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09920-757-0	20	1	9002-		●
61	CONNECTOR; LEAK OFF PIPE	1-09669-015-0	02	1	9002-	●	●	●
62	GASKET; COVER,WATER JACKET ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-425-0	01	1	9002-	●	●	●
63	BOLT; CVR,WATER JACKET M10X28	0-50051-028-0	02	1	9002-9306	●
63	BOLT; CVR,WATER JACKET M10X25 FLANGE	0-28181-025-0	02	1	9002-		●	●
64	COVER; WATER JACKET	1-11119-003-0	01	1	9002-9306	●
64	COVER; WATER JACKET	1-11119-013-1	01	1	9002-		●	●
65	STUD; ROCKER OIL FEED M10X88 L=103	1-09300-025-0	02	1	9002-	●	●	●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-009-1	24	1	9002-9106	●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	24	1	9107-9306	●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	16	1	9307-			●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-009-1	20	1	9002-9106		●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	20	1	9107-		●
145	BRACKET	1-09709-072-0	01	1	9002-	●	●	●

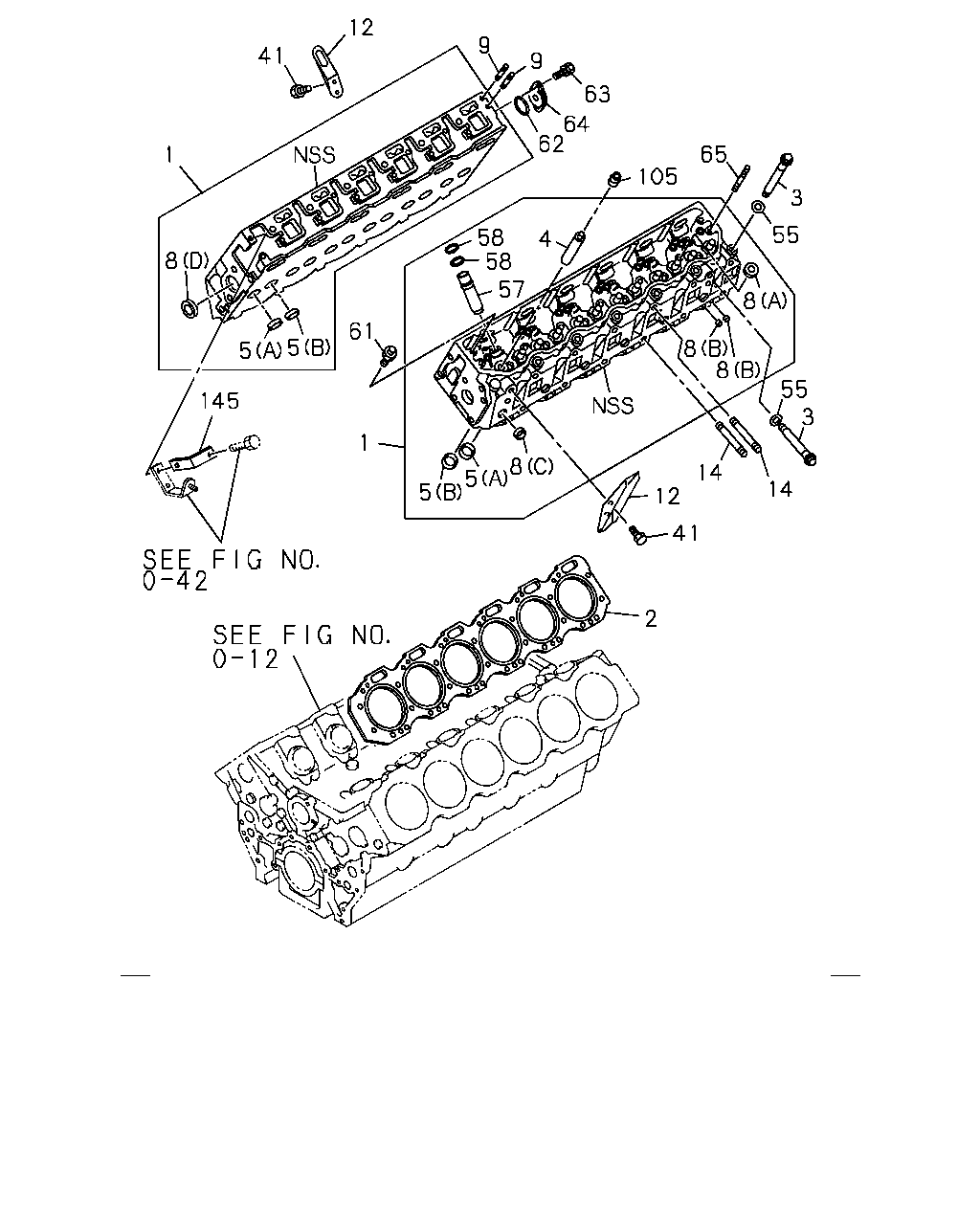

1 41 12 9 62 64 63 2 2 105 65 3 55 8 8 4 58 58 57 61 145 5 5 8 14 8 8 8 5 5 1 12 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HEAD ASM; CYL LH BANK	1-11110-691-1	01	1	9002-9306	●
1	HEAD ASM; CYL RH BANK	1-11110-690-1	01	1	9002-9306	●
1	HEAD ASM; CYL LH BANK	1-11110-687-3	01	1	9002-		●
1	HEAD ASM; CYL RH BANK	1-11110-686-3	01	1	9002-		●
1	HEAD ASM; CYL LH BANK	1-11110-689-3	01	1	9307-			●
1	HEAD ASM; CYL RH BANK	1-11110-688-3	01	1	9307-			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-191-1	02	1	9002-9306	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-189-1	02	1	9307-			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-190-1	02	1	9002-		●
3	BOLT; CYL HD TO BLOCK M14X90	1-09029-026-0	24	1	9002-9306	●
3	BOLT; CYL HD TO BLOCK M14X90	1-09029-026-1	16	1	9307-			●
3	BOLT; CYL HD TO BLOCK M14X150	1-09029-027-0	28	1	9002-9306	●
3	BOLT; CYL HD TO BLOCK M14X150	1-09029-027-1	20	1	9307-			●
3	BOLT; CYL HD TO BLOCK M14X90	1-09029-026-1	20	1	9002-		●
3	BOLT; CYL HD TO BLOCK M14X150	1-09029-027-1	24	1	9002-		●
4	GUIDE; VLV	1-11721-004-0	24	1	9002-9306	●
4	GUIDE; VLV	1-11721-004-0	16	1	9307-			●
4	GUIDE; VLV	1-11721-004-0	20	1	9002-		●
5	SEAT; VLV INSERT (A) EXHAUST ID=40	1-11711-024-0	12	1	9002-9306	●
5	SEAT; VLV INSERT (A) EXHAUST ID=40	1-11711-024-0	08	1	9307-9503			●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-054-0	08	1	9504-			●
5	SEAT; VLV INSERT (B) INLET	1-11715-078-0	12	1	9002-9306	●
5	SEAT; VLV INSERT (B) INLET	1-11715-078-0	10	1	9002-		●
5	SEAT; VLV INSERT (A) EXHAUST ID=40	1-11711-024-0	10	1	9002-9503		●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-054-0	10	1	9504-		●
5	SEAT; VLV INSERT (B) INLET	1-11715-078-0	08	1	9307-			●
8	CUP; SEALING,WATER JACKET (B) OD=12	1-09600-010-1	24	1	9002-9306	●
8	CUP; SEALING,WATER JACKET (B) OD=12	1-09600-010-1	16	1	9307-			●
8	CUP; SEALING,WATER JACKET (A) OD=22	1-09600-011-2	46	1	9002-9306	●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-1	12	1	9002-9306	●
8	CUP; SEALING,WATER JACKET (D) OD=45	1-09600-005-1	01	1	9002-	●	●	●
8	CUP; SEALING,WATER JACKET (B) OD=12	1-09600-010-1	20	1	9002-		●
8	CUP; SEALING,WATER JACKET (A) OD=22	1-09600-011-2	28	1	9002-		●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-1	10	1	9002-		●
8	CUP; SEALING,WATER JACKET (A) OD=22	1-09600-011-2	22	1	9307-			●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-1	08	1	9307-			●
9	STUD; INL MANIF	1-09309-008-0	24	1	9002-9306	●
9	STUD; INL MANIF	1-09309-008-0	16	1	9307-			●
9	STUD; INL MANIF	1-09309-008-0	20	1	9002-		●
12	HANGER; ENG,RR	1-11777-164-0	02	1	9002-	●	●	●
14	STUD; EXH MANIF M10X95 L=110	1-09302-063-0	24	1	9002-9306	●
14	STUD; EXH MANIF M10X95 L=110	1-09302-063-0	16	1	9307-			●
14	STUD; EXH MANIF M10X95 L=110	1-09302-063-0	20	1	9002-		●
41	BOLT; ENG HANGER M12X26	1-09000-535-0	04	1	9002-	●	●	●
55	WASHER; PL,CYL HD TO BLOCK ID=14.2	1-09503-050-0	52	1	9002-9306	●
55	WASHER; PL,CYL HD TO BLOCK ID=14.2	1-09503-050-0	36	1	9307-			●
55	WASHER; PL,CYL HD TO BLOCK ID=14.2	1-09503-050-0	44	1	9002-		●
57	SLEEVE; NOZZLE HOLDER	1-11129-017-0	12	1	9002-9306	●
57	SLEEVE; NOZZLE HOLDER	1-11129-017-0	08	1	9307-			●
57	SLEEVE; NOZZLE HOLDER	1-11129-017-0	10	1	9002-		●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09920-757-0	24	1	9002-9306	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09920-757-0	16	1	9307-			●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09920-757-0	20	1	9002-		●
61	CONNECTOR; LEAK OFF PIPE	1-09669-015-0	02	1	9002-	●	●	●
62	GASKET; COVER,WATER JACKET ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-425-0	01	1	9002-	●	●	●
63	BOLT; CVR,WATER JACKET M10X28	0-50051-028-0	02	1	9002-9306	●
63	BOLT; CVR,WATER JACKET M10X25 FLANGE	0-28181-025-0	02	1	9002-		●	●
64	COVER; WATER JACKET	1-11119-003-0	01	1	9002-9306	●
64	COVER; WATER JACKET	1-11119-013-1	01	1	9002-		●	●
65	STUD; ROCKER OIL FEED M10X88 L=103	1-09300-025-0	02	1	9002-	●	●	●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-009-1	24	1	9002-9106	●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	24	1	9107-9306	●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	16	1	9307-			●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-009-1	20	1	9002-9106		●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	20	1	9107-		●
145	BRACKET	1-09709-072-0	01	1	9002-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
