◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#22769) — 150 parça

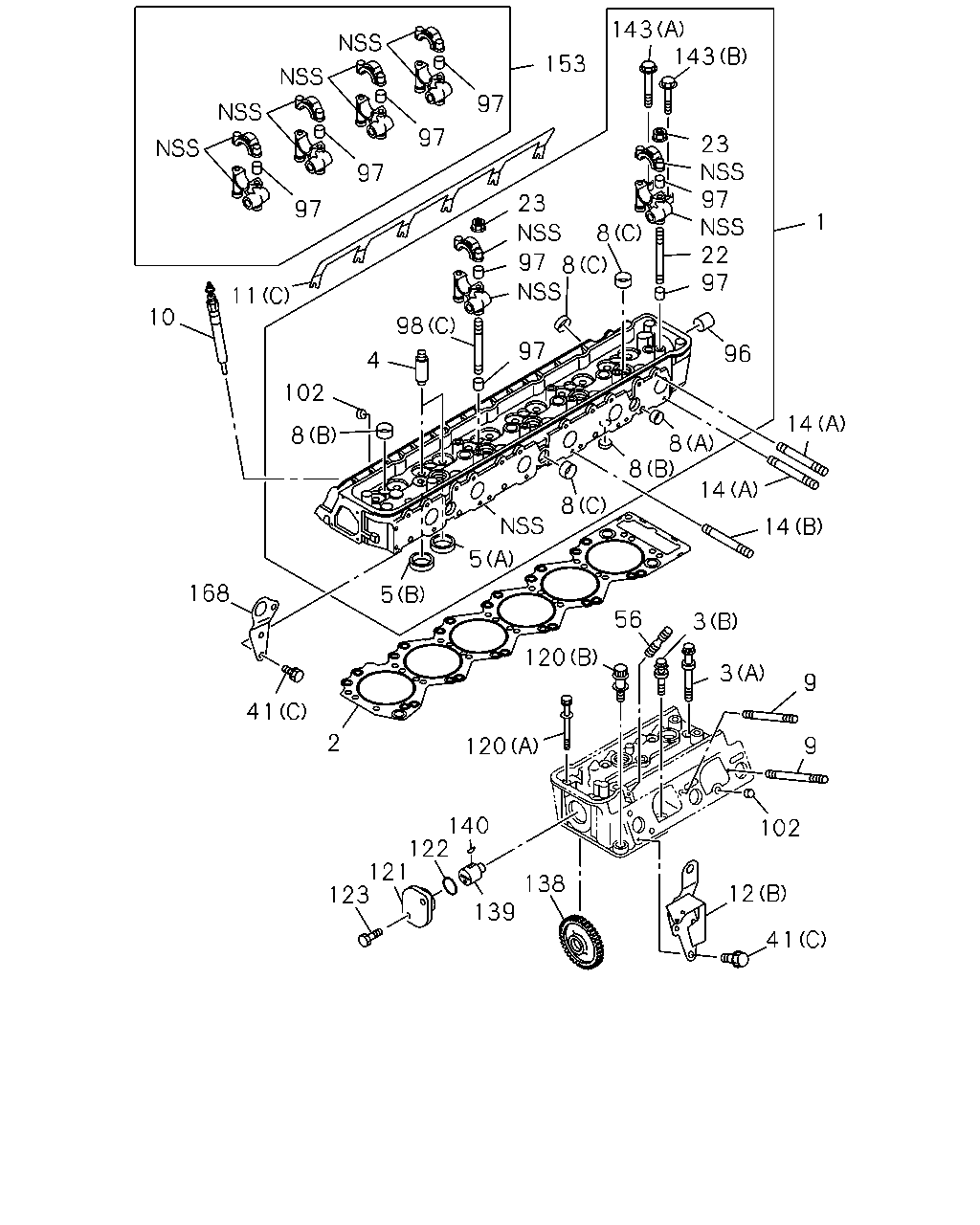

çizim 15567
143 143 153 97 97 23 97 22 97 97 23 8 97 1 97 8 98 11 10 97 96 4 102 4 8 8 8 14 8 14 5 168 5 56 3 120 3 9 41 2 9 120 140 122 121 123 102 138 12 139 41
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-94393-375-2 01 1 9601-9608 ●
1 HEAD ASM; CYL 8-94390-082-7 01 1 9609-1012 ●
1 HEAD ASM; CYL 8-98180-572-1 01 1 1101- ●
1 HEAD ASM; CYL 1-11110-816-6 01 1 9601-0308 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-3 01 1 9601- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-216-3 01 1 9601-0308 ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-94396-207-3 26 1 9601-0901 ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 26 1 0902-1407 ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 26 1 1408- ●
3 BOLT; CYL HD TO BLOCK
(A) M14X125 FLANGE W/PL WASHER 		1-09070-043-1 20 1 9601-0308 ●
3 BOLT; CYL HD TO BLOCK
(B) M14X67 FLANGE W/PL WASHER 		1-09070-044-1 06 1 9601-0308 ●
4 GUIDE; VLV 8-94396-598-0 12 1 9601- ●
4 GUIDE; VLV 1-11721-008-0 12 1 9601-0308 ●
5 SEAT; VLV INSERT
(B) OD=52 		8-94394-127-0 06 1 9601- ●
5 SEAT; VLV INSERT
(A) OD=43 		8-94396-172-0 06 1 9601- ●
5 SEAT; VLV INSERT
(A) 		1-11711-060-1 06 1 9601-0004 ●
5 SEAT; VLV INSERT
(A) 		1-11711-051-0 06 1 0005-0308 ●
5 SEAT; VLV INSERT
(B) 		1-11715-100-0 06 1 9601-0004 ●
5 SEAT; VLV INSERT
(B) 		1-11715-121-0 06 1 0005-0308 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 17 1 9601- ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9601- ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9601- ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-1 06 1 9601-0308 ●
8 CUP; SEALING,WATER JACKET
(B) OD=22 		1-09600-011-2 11 1 9601-0308 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 14 1 9601-0105 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 09 1 0106-0308 ●
8 CUP; SEALING,WATER JACKET
(C) OD=30 		8-94241-638-0 05 1 0106-0308 ●
9 STUD; INL MANIF
M8X86 L=99 		9-09630-026-0 04 1 9601-0308 ●
10 PLUG; GLOW 9-82513-928-9 06 1 9601-9809 ● ●
10 PLUG; GLOW 1-82513-043-1 06 1 9810-0308 ● ●
10 PLUG; GLOW 1-82513-043-2 06 1 0309- ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9601-0206 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-97136-565-0 01 1 0207- ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-3 01 1 9601- ●
11 CONNECTOR; GLOW PLUG
(C) 		1-19732-011-0 01 1 9601-0308 ●
12 HANGER; ENG,RR
(A) 		8-94399-405-0 01 1 9601- ●
12 HANGER; ENG,RR
(B) 		1-11777-099-0 01 1 9601-0308 ●
14 STUD; EXH MANIF
(C) M10X60 L=75 		8-94397-286-0 12 1 9601- ●
14 STUD; EXH MANIF
(B) M10X104 L=119 		1-09302-104-1 06 1 9601-0308 ●
14 STUD; EXH MANIF
(A) M10X130 L=145 		1-09302-107-0 06 1 9601-0308 ●
22 STUD; CAM BRKT
M8X124 L=142 		1-09300-033-1 02 1 9601-0308 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 14 1 9601-9608 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9609-0602 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0603- ●
23 NUT; CAM BRKT
M8 FLANGE 		9-09844-190-0 08 1 9601-0308 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 9601-0512 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0601- ●
41 BOLT; ENG HANGER
(D) M12X22 FLANGE 		0-28181-222-0 01 1 9601- ●
41 BOLT; ENG HANGER
(B) M12X28 FLANGE 		0-28181-228-0 02 1 9601- ●
41 BOLT; ENG HANGER
(C) M10X20 W/LK WASHER 		0-50051-020-0 05 1 9601-0308 ●
56 STUD; NOZZLE HOLDER
M8X40 L=58 		1-09300-018-0 12 1 9601-0308 ●
96 BUSHING; IDLE SHAFT 1-12528-007-0 01 1 9601-0308 ●
97 DOWEL; CAM BRKT SET 1-11229-012-1 16 1 9601-0308 ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9601- ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 12 1 9601-9608 ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9609- ●
98 STUD; CAM BRKT
(C) M8X114 L=132 		1-09300-028-1 06 1 9601-0308 ●
102 SEAT; VLV 1-11119-021-0 06 1 9601-0308 ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9601- ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9601- ●
120 BOLT; CYL HD TO HSG
(B) M10X34 FLANGE W/PL WASHER 		1-09070-059-0 01 1 9601-0308 ●
120 BOLT; CYL HD TO HSG
(A) M10X122 FLANGE W/PL WASHER 		1-09070-060-0 02 1 9601-0308 ●
121 COVER; IDLE GEAR,CYL HD 1-11321-100-0 01 1 9601-0308 ●
122 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-208-0 01 1 9601-0308 ●
123 BOLT; COVER
M8X16 FLANGE 		0-28080-816-0 02 1 9601-0308 ●
138 GEAR; IDLE
Z=41 		8-97112-607-1 01 1 9601- ●
138 GEAR; IDLE
Z=48 		1-12523-246-1 01 1 9601-0308 ●
139 SHAFT; IDLE GEAR 8-97065-555-1 01 1 9601-9711 ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 9712- ●
139 SHAFT; IDLE GEAR 1-12531-014-2 01 1 9601-0011 ●
139 SHAFT; IDLE GEAR 1-12531-098-0 01 1 0012-0308 ●
140 KEY; IDLE GEAR 9-08055-522-0 01 1 9601-0308 ●
143 BOLT; FIX
(A) M8X100 FLANGE 		0-28080-800-0 01 1 9601-0308 ●
143 BOLT; FIX
(B) M8X60 FLANGE 		0-28090-860-0 01 1 9601-0308 ●
153 BRACKET KIT; CAM,CYL HD 1-12516-178-0 AR 1 9609-9709 ●
153 BRACKET KIT; CAM,CYL HD 1-12516-180-0 AR 1 9710-0308 ●
168 HANGER; ENG,FRT 8-94399-403-1 01 1 9601- ●
168 HANGER; ENG,FRT 1-11777-207-0 01 1 9601-0308 ●

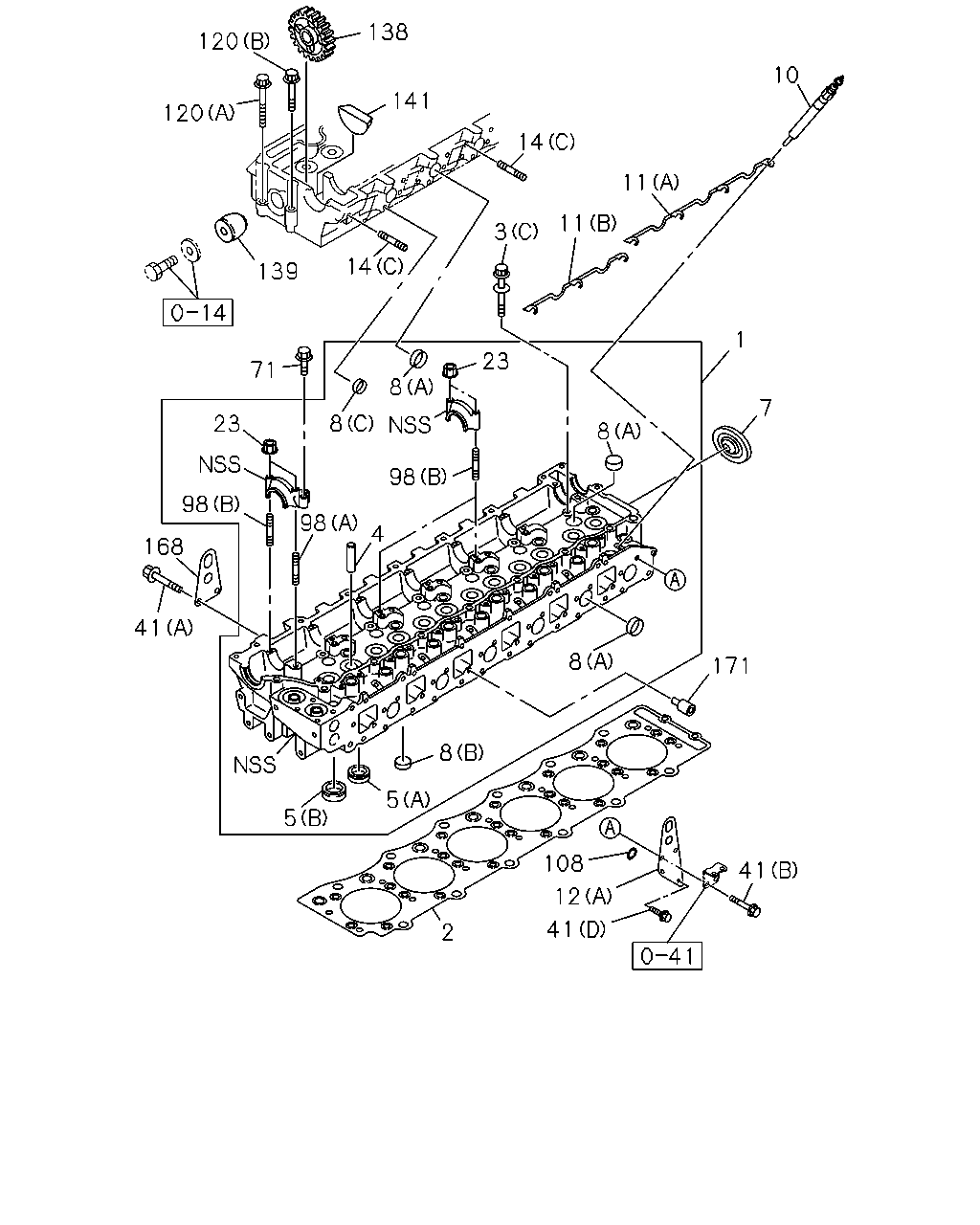

çizim 15742
138 120 10 141 120 14 11 11 3 14 139 1 23 71 8 7 8 23 8 98 98 98 4 168 41 8 171 8 5 5 108 41 12 41 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-94393-375-2 01 1 9601-9608 ●
1 HEAD ASM; CYL 8-94390-082-7 01 1 9609-1012 ●
1 HEAD ASM; CYL 8-98180-572-1 01 1 1101- ●
1 HEAD ASM; CYL 1-11110-816-6 01 1 9601-0308 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-3 01 1 9601- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-216-3 01 1 9601-0308 ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-94396-207-3 26 1 9601-0901 ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 26 1 0902-1407 ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 26 1 1408- ●
3 BOLT; CYL HD TO BLOCK
(A) M14X125 FLANGE W/PL WASHER 		1-09070-043-1 20 1 9601-0308 ●
3 BOLT; CYL HD TO BLOCK
(B) M14X67 FLANGE W/PL WASHER 		1-09070-044-1 06 1 9601-0308 ●
4 GUIDE; VLV 8-94396-598-0 12 1 9601- ●
4 GUIDE; VLV 1-11721-008-0 12 1 9601-0308 ●
5 SEAT; VLV INSERT
(B) OD=52 		8-94394-127-0 06 1 9601- ●
5 SEAT; VLV INSERT
(A) OD=43 		8-94396-172-0 06 1 9601- ●
5 SEAT; VLV INSERT
(A) 		1-11711-060-1 06 1 9601-0004 ●
5 SEAT; VLV INSERT
(A) 		1-11711-051-0 06 1 0005-0308 ●
5 SEAT; VLV INSERT
(B) 		1-11715-100-0 06 1 9601-0004 ●
5 SEAT; VLV INSERT
(B) 		1-11715-121-0 06 1 0005-0308 ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9601-0303 ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0304- ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 17 1 9601- ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9601- ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9601- ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-1 06 1 9601-0308 ●
8 CUP; SEALING,WATER JACKET
(B) OD=22 		1-09600-011-2 11 1 9601-0308 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 14 1 9601-0105 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 09 1 0106-0308 ●
8 CUP; SEALING,WATER JACKET
(C) OD=30 		8-94241-638-0 05 1 0106-0308 ●
10 PLUG; GLOW 9-82513-928-9 06 1 9601-9809 ● ●
10 PLUG; GLOW 1-82513-043-1 06 1 9810-0308 ● ●
10 PLUG; GLOW 1-82513-043-2 06 1 0309- ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9601-0206 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-97136-565-0 01 1 0207- ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-3 01 1 9601- ●
11 CONNECTOR; GLOW PLUG
(C) 		1-19732-011-0 01 1 9601-0308 ●
12 HANGER; ENG,RR
(A) 		8-94399-405-0 01 1 9601- ●
12 HANGER; ENG,RR
(B) 		1-11777-099-0 01 1 9601-0308 ●
14 STUD; EXH MANIF
(C) M10X60 L=75 		8-94397-286-0 12 1 9601- ●
14 STUD; EXH MANIF
(B) M10X104 L=119 		1-09302-104-1 06 1 9601-0308 ●
14 STUD; EXH MANIF
(A) M10X130 L=145 		1-09302-107-0 06 1 9601-0308 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 14 1 9601-9608 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9609-0602 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0603- ●
23 NUT; CAM BRKT
M8 FLANGE 		9-09844-190-0 08 1 9601-0308 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 9601-0512 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0601- ●
41 BOLT; ENG HANGER
(D) M12X22 FLANGE 		0-28181-222-0 01 1 9601- ●
41 BOLT; ENG HANGER
(B) M12X28 FLANGE 		0-28181-228-0 02 1 9601- ●
41 BOLT; ENG HANGER
(C) M10X20 W/LK WASHER 		0-50051-020-0 05 1 9601-0308 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9601-0512 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601- ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9601- ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 12 1 9601-9608 ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9609- ●
98 STUD; CAM BRKT
(C) M8X114 L=132 		1-09300-028-1 06 1 9601-0308 ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 9601- ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9601- ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9601- ●
120 BOLT; CYL HD TO HSG
(B) M10X34 FLANGE W/PL WASHER 		1-09070-059-0 01 1 9601-0308 ●
120 BOLT; CYL HD TO HSG
(A) M10X122 FLANGE W/PL WASHER 		1-09070-060-0 02 1 9601-0308 ●
138 GEAR; IDLE
Z=41 		8-97112-607-1 01 1 9601- ●
138 GEAR; IDLE
Z=48 		1-12523-246-1 01 1 9601-0308 ●
139 SHAFT; IDLE GEAR 8-97065-555-1 01 1 9601-9711 ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 9712- ●
139 SHAFT; IDLE GEAR 1-12531-014-2 01 1 9601-0011 ●
139 SHAFT; IDLE GEAR 1-12531-098-0 01 1 0012-0308 ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9601-1005 ●
141 PLUG; RUBBER,CYL HD 8-98163-813-0 02 1 1006- ●
168 HANGER; ENG,FRT 8-94399-403-1 01 1 9601- ●
168 HANGER; ENG,FRT 1-11777-207-0 01 1 9601-0308 ●
171 SEAT; VLV 8-94395-571-1 06 1 9601- ●
