◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶
0-10 — CYLINDER HEAD COVER (#22768) — 28 parça

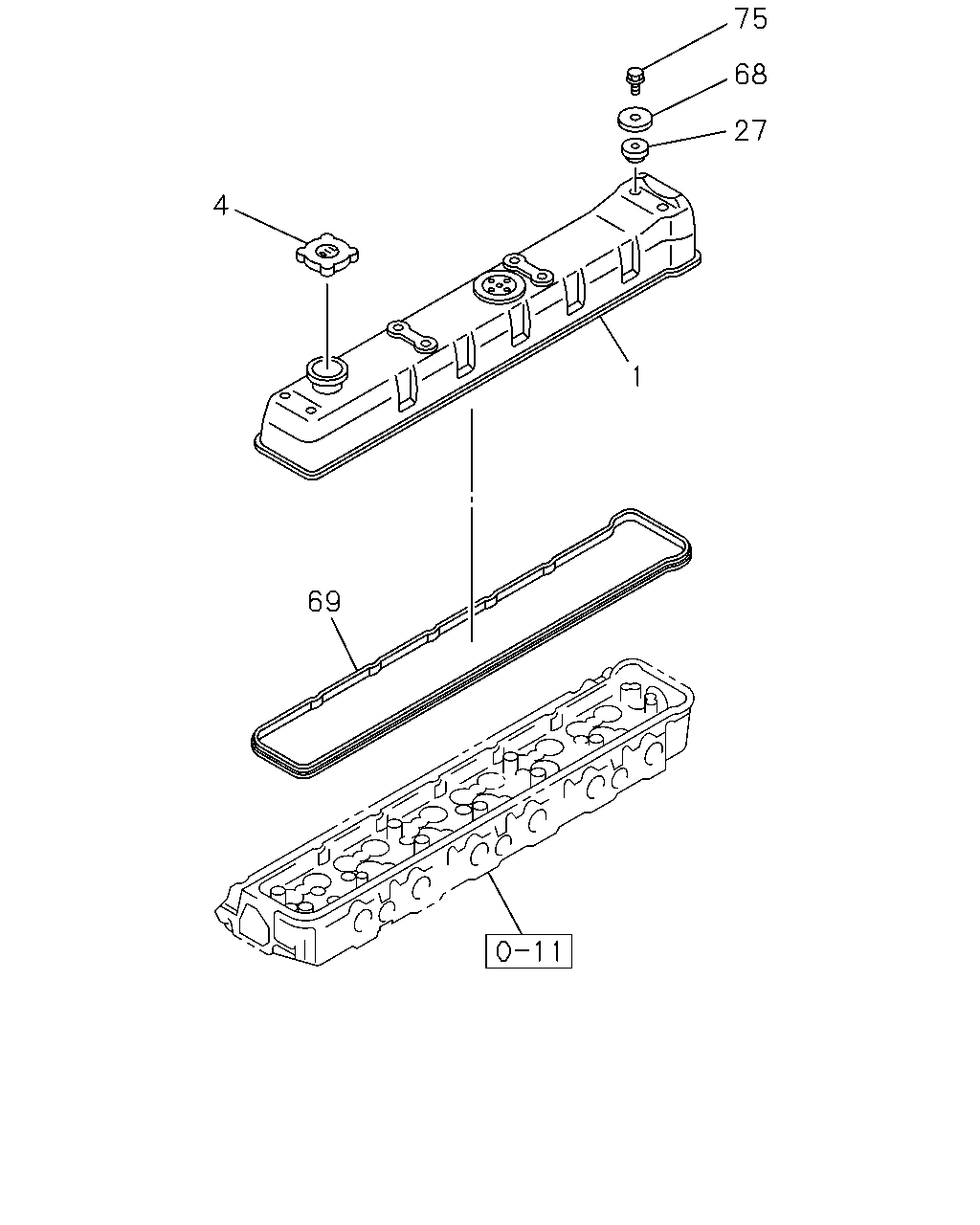

çizim 17860
75 68 27 4 1 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 COVER; CYL HD 8-94394-862-2 01 1 9601- ●
1 COVER; CYL HD 1-11171-392-0 01 1 9601-0206 ●
1 COVER; CYL HD 1-11171-411-1 01 1 0207-0308 ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9601- ●
4 CAP; OIL FILLER 1-11750-020-0 01 1 9601-0308 ●
27 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09639-032-0 08 1 9601-0308 ●
68 WASHER; CAP NUT,HD COVER 9-11179-105-0 08 1 9601-0308 ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-383-0 01 1 9601- ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11173-085-0 01 1 9601-0308 ●
75 NUT; CAP,HD COVER
M8 CAP NUT OD=22 		8-94340-192-0 08 1 9601-0308 ●

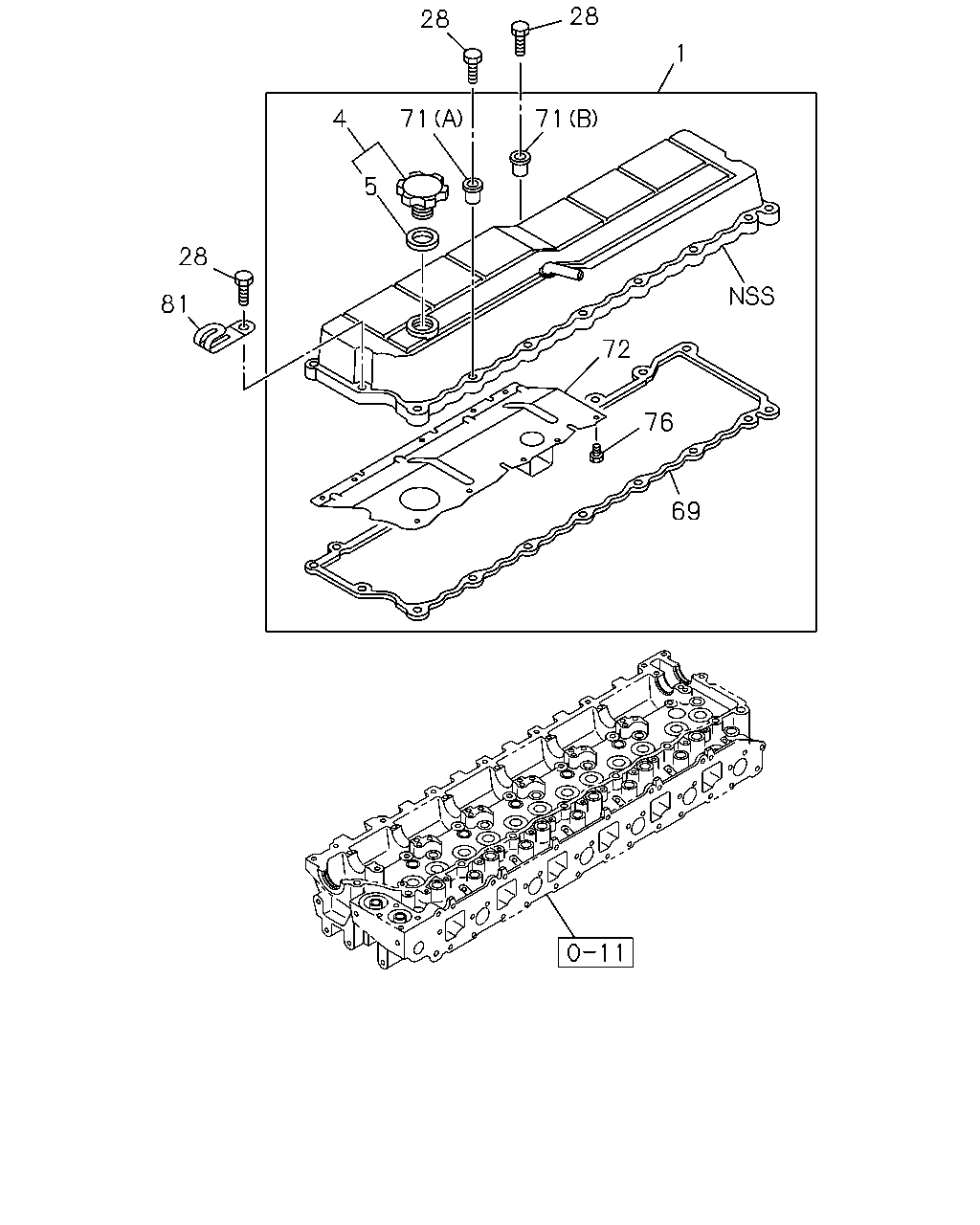

çizim 66563
28 28 1 71 71 4 5 28 81 72 76 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 COVER; CYL HD 8-94394-862-2 01 1 9601- ●
1 COVER; CYL HD 1-11171-392-0 01 1 9601-0206 ●
1 COVER; CYL HD 1-11171-411-1 01 1 0207-0308 ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9601- ●
4 CAP; OIL FILLER 1-11750-020-0 01 1 9601-0308 ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 9601- ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28280-835-0 19 1 9601-9812 ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28680-835-0 19 1 9901-0512 ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28650-835-0 19 1 0601- ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-383-0 01 1 9601- ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11173-085-0 01 1 9601-0308 ●
71 COLLAR; HD COVER
(A) OD=12.3 		8-94396-971-1 18 1 9601- ●
71 COLLAR; HD COVER
(B) OD=11 		8-94396-972-1 01 1 9601- ●
72 PLATE; INNER HD COVER 8-94393-609-1 01 1 9601- ●
76 SCREW; INNER PLATE
M4X12 TAPPING 		0-71180-412-0 07 1 9601-0603 ●
76 SCREW; INNER PLATE
M4X12 TAPPING 		0-71240-412-0 07 1 0604- ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 9601-0801 ●
81 CLIP; HARNESS
ID=18 L=44 		8-97367-985-1 01 1 0802- ●
