3-11 — PARKING BRAKE CONTROL (#22743) — 49 parça
çizim 108494
97
BalonParca AdiParca NoAdetTipApplied Date
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98029-219-1 01 1 1105-
97 GROMMET; PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35 		8-94122-971-0 01 1 1105-

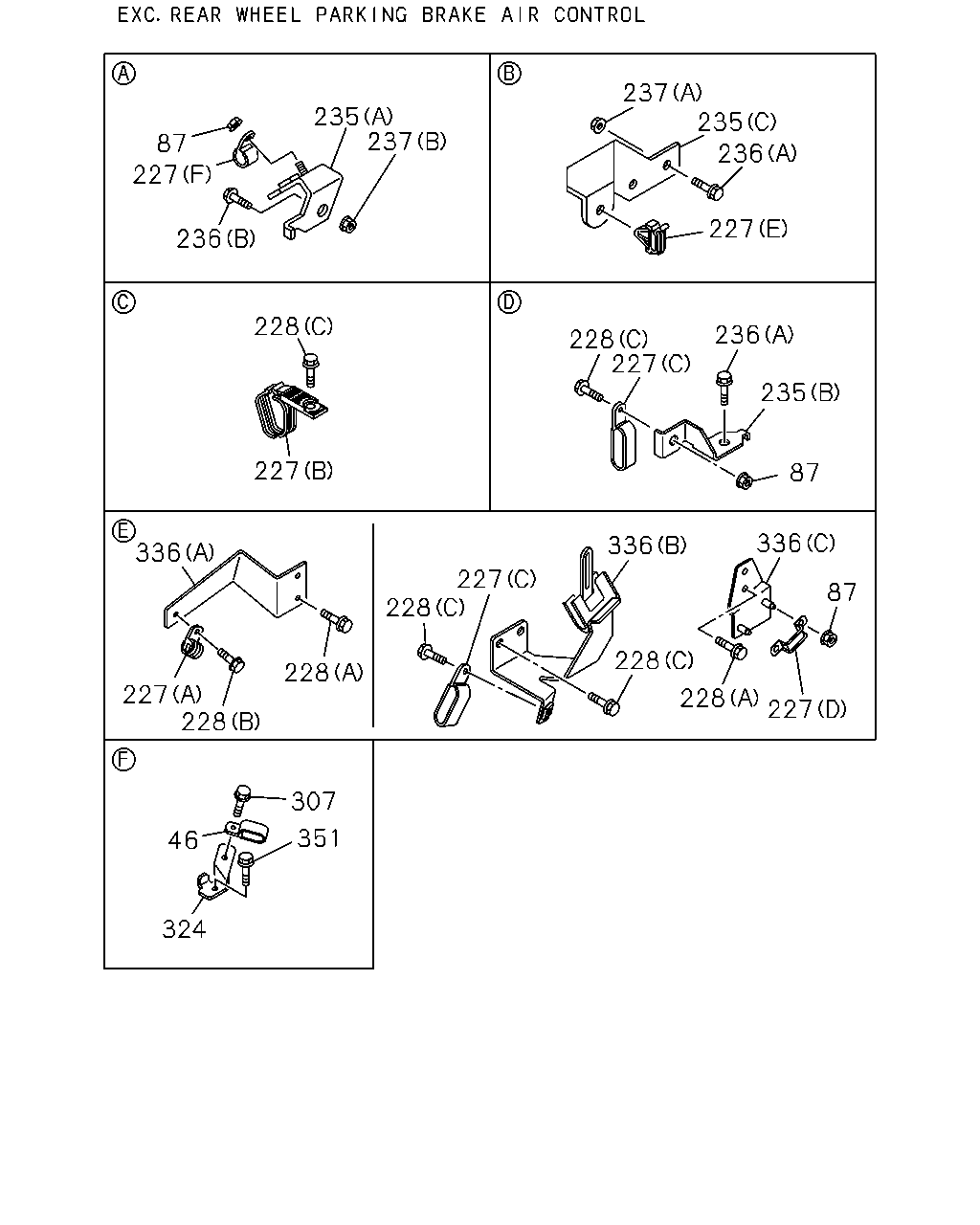

çizim 108498
237 235 235 237 87 236 227 227 236 228 236 228 227 235 227 87 336 336 336 227 228 87 228 228 227 228 228 227 307 351 46 324
BalonParca AdiParca NoAdetTipApplied Date
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		0-95235-535-0 01 1 1105-
87 NUT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 1105-
87 NUT
GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 1105-
227 CLIP; RAD
GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=13 & 13 L=32 		8-97389-264-0 01 1 1105-
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=13 & 13 L=32 		8-97389-264-0 01 1 1105-
227 CLIP; RAD
GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98080-966-0 01 1 1105-
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) ID=16 L=20 		0-95235-535-0 01 1 1105-
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=9.5 		5-09709-020-0 01 1 1105-
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1105-1504
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 & 10 & 10 L=43.5 		8-98292-921-0 01 1 1505-
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (A) ID=26 L=26 		1-09701-236-0 01 1 1105-
228 BOLT; CLIP RAD MTG
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1105-
228 BOLT; CLIP RAD MTG
GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE 		0-28650-825-0 01 1 1105-
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE 		0-28650-825-0 02 1 1105-
228 BOLT; CLIP RAD MTG
GENERATOR 24V90A(K44) (C) M8X25 FLANGE 		0-28650-825-0 02 1 1105-
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (B) M8X16 FLANGE 		0-28050-816-0 01 1 1105-
235 BRACKET; CONT CABLE TO FRAME
(B) 		8-98126-426-0 01 1 1105-
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98077-903-2 01 1 1105-
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		8-98100-152-0 01 1 1105-
236 BOLT; BRKT TO FRAME
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1105-
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE 		0-28650-825-0 03 1 1105-
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1105-1504
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE 		0-28051-030-0 01 1 1505-
237 NUT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE 		0-91180-108-0 02 1 1105-
237 NUT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE 		0-91180-210-0 01 1 1105-
307 BOLT; BRKT,PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER 		0-51640-825-0 01 1 1105-
324 BRACKET
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98067-482-1 01 1 1105-
336 BRACKET; RADIATOR
GENERATOR 24V90A(K44) (B) 		8-98080-965-0 01 1 1105-1309
336 BRACKET; RADIATOR
GENERATOR 24V90A(K44) (B) 		8-98251-969-0 01 1 1310-
336 BRACKET; RADIATOR
GENERATOR 24V90A(K44) (C) 		8-98139-517-0 01 1 1105-
336 BRACKET; RADIATOR
EXC. GENERATOR 24V90A(K44) (A) 		8-98065-276-0 01 1 1105-
351 BOLT; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER 		0-51640-825-0 03 1 1105-

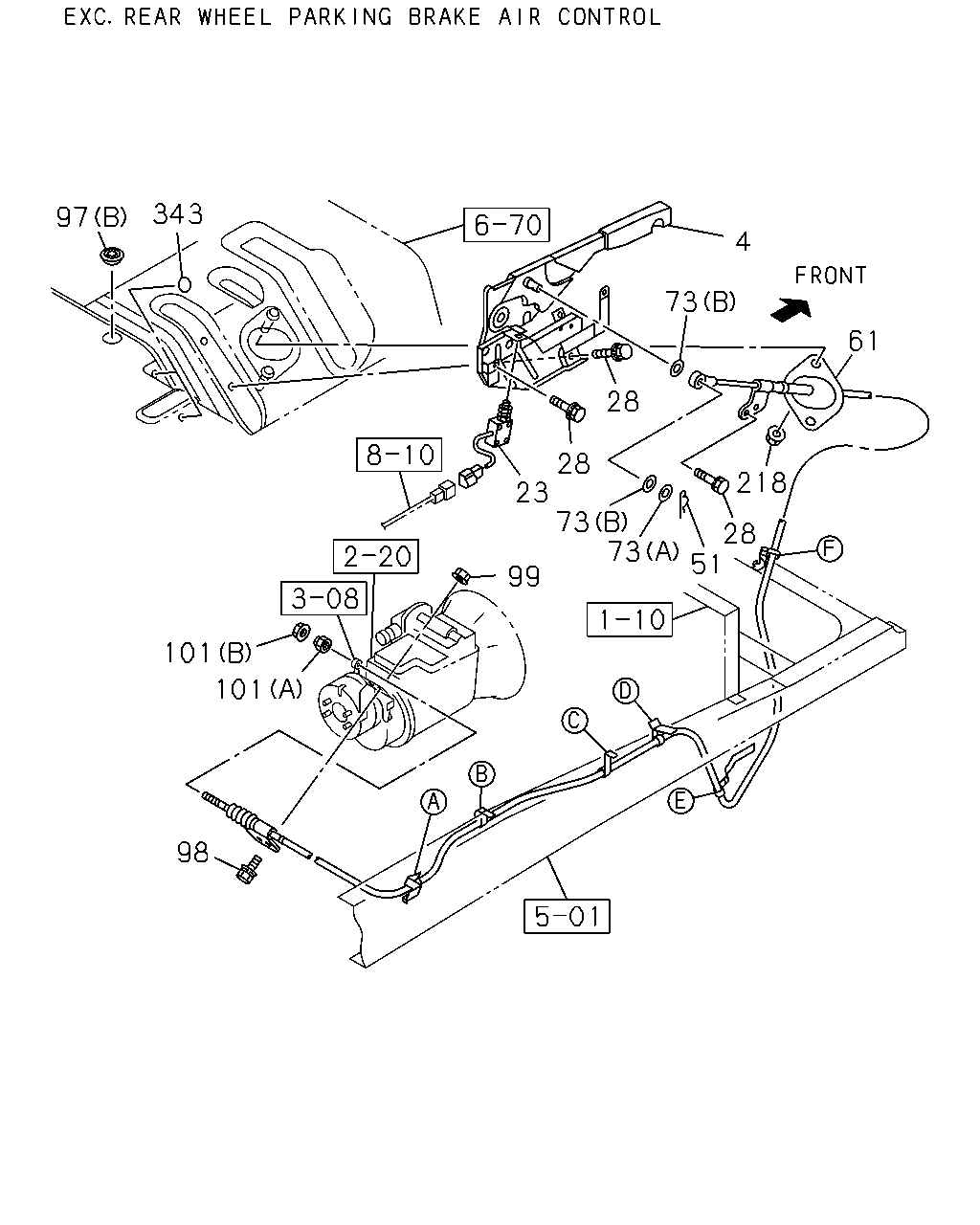

çizim 108504
343 97 4 73 61 28 28 23 73 73 218 28 51 99 101 101 98
BalonParca AdiParca NoAdetTipApplied Date
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-548-0 01 1 1105-
23 SWITCH; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82440-100-0 01 1 1105-
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1105-
51 PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09987-243-1 01 1 1105-
61 CABLE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4263 		8-98102-305-4 01 1 1105-
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30 		0-91610-516-0 01 1 1105-
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19 		8-94206-429-1 02 1 1105-
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98029-219-1 01 1 1105-
97 GROMMET; PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35 		8-94122-971-0 01 1 1105-
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 1105-
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 1105-
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE 		0-91180-108-0 01 1 1105-
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 		1-46259-007-0 01 1 1105-
218 NUT; BRKT,PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 1105-
343 SEAL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 05 1 1105-
