Isuzu WW
▶
TRUCKS
▶
FRR
▶
11414 - FRR RHD EURO5 SPACECAB
▶
2 - Clutch, Transmission, Trans Axle
▶
2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶

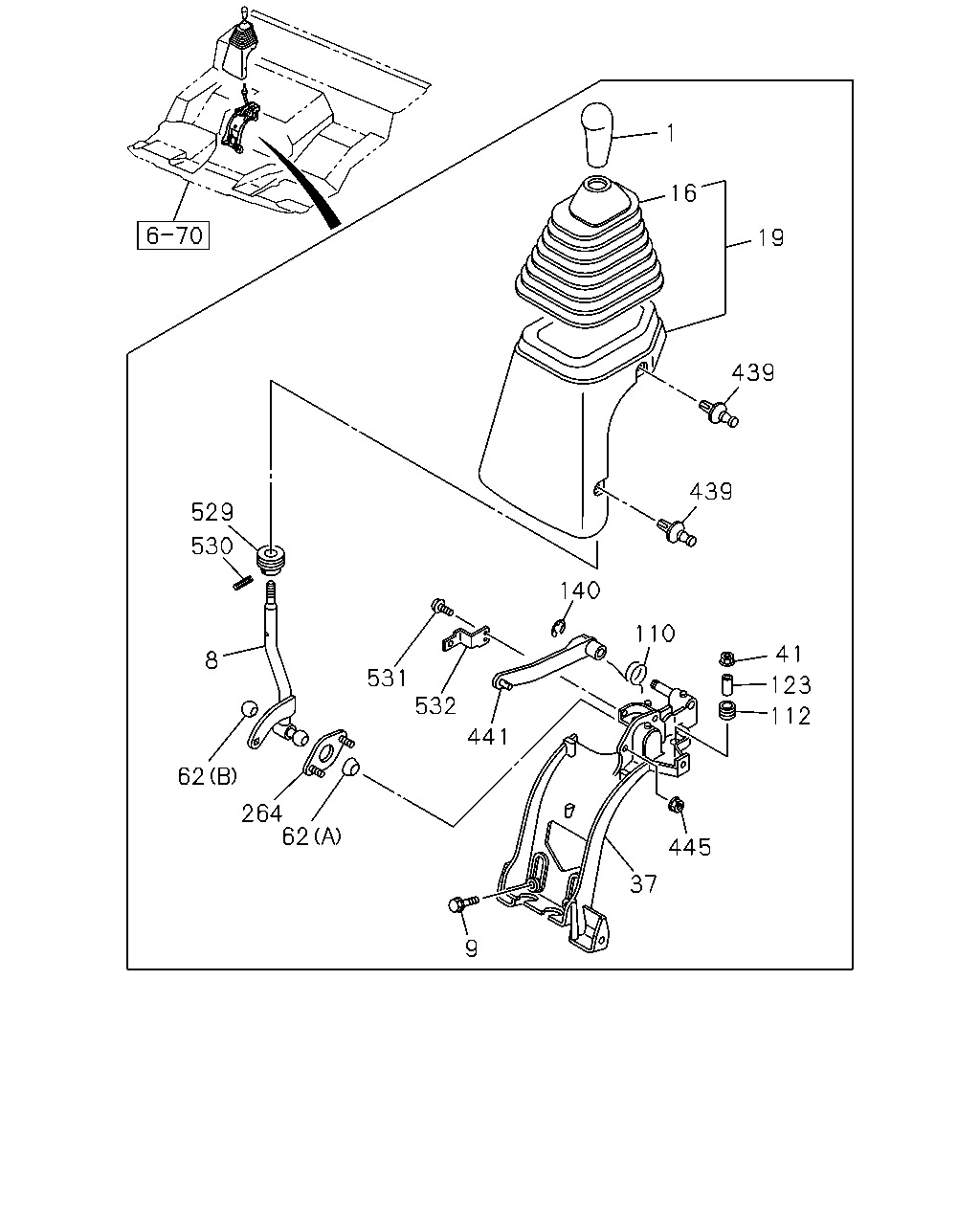

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#22733) — 21 parça
1
16
19
439
439
529
530
140
110
41
8
531
123
532
112
441
62
264
62
445
37
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
KNOB; CHANGE LEVER
1-33611-070-1
01
1
1105-
8
LEVER; CHANGE
8-98071-282-0
01
1
1105-
9
BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER
8-94412-342-0
02
1
1105-
16
BOOT; CHANGE LEVER
1-79998-751-4
01
1
1105-
19
COVER; CHANGE LEVER
GRAY
8-97407-953-0
01
1
1105-
37
BRACKET; CHANGE LEVER SUPPORT
8-98071-281-0
01
1
1105-
41
NUT; CHANGE LEVER
M8 W/DISHED WASHER
8-97329-625-0
02
1
1105-
62
SEAT; BALL,CHANGE LEVER
(A)
1-33619-427-0
01
1
1105-
62
SEAT; BALL,CHANGE LEVER
(B)
8-97049-147-0
01
1
1105-
110
SPRING; RETURN,CHANGE LEVER
1-33619-586-0
01
1
1105-
112
RUBBER; CUSHION
8-97091-426-0
04
1
1105-
123
COLLAR; DIST,CHANGE LEVER
8-97091-427-0
04
1
1105-
140
RING; SNAP
ID=10
0-91805-510-0
01
1
1105-
264
PLATE; COVER
1-33619-430-0
01
1
1105-
439
FASTENER; COVER
GRAY
8-97407-955-0
04
1
1105-
441
LEVER; SELECT
8-98071-283-0
01
1
1105-
445
NUT; PLATE
M6 FLANGE
0-91180-106-0
02
1
1105-
529
RING; BOOT
1-33619-504-0
01
1
1105-
530
PIN; SPRING
1-33619-505-0
01
1
1105-
531
SCREW; STAY
M5X10 W/PL WASHER
9-03900-510-0
01
1
1105-
532
STAY
8-98071-284-0
01
1
1105-
