3-55 — BRAKE PIPING; OIL,REAR (#22726) — 63 parça

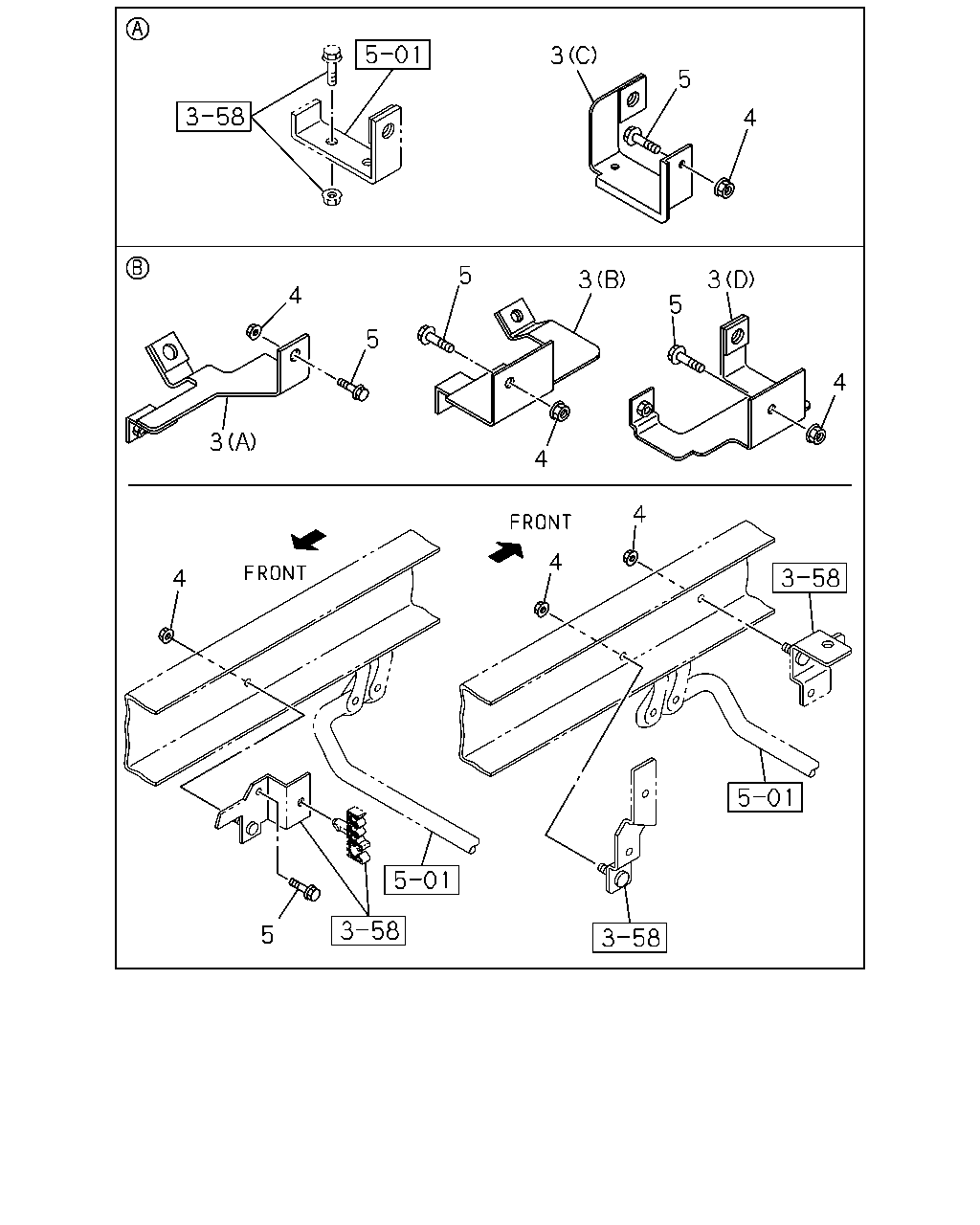

3 5 4 5 3 3 4 5 5 4 3 4 4 4 4 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-97300-282-0	01	1	0607-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97264-189-0	01	1	0302-0506	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97264-189-0	01	1	0507-0606	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97251-436-0	01	1	0607-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97251-441-0	01	1	0607-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97046-936-0	01	1	0302-		●	●
4	04.686 NUT; BRKT,FLEX HOSE,RR BRK 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●
4	04.686 NUT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●
4	04.686 NUT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 04.785 M10 FLANGE	0-91150-110-0	01	1	0302-0602	●	●	●
4	04.686 NUT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0606	●	●	●
4	04.686 NUT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M10 FLANGE	0-91180-110-0	01	1	0607-		●	●
4	04.686 NUT; BRKT,FLEX HOSE,RR BRK 4JH1 ENG(RJX) 04.594 M6 FLANGE	0-91150-106-0	01	1	0302-0506		●	●
4	04.686 NUT; BRKT,FLEX HOSE,RR BRK 4JH1-TC ENG(RDM) 04.594 M6 FLANGE	0-91150-106-0	01	1	0507-0602		●	●
4	04.686 NUT; BRKT,FLEX HOSE,RR BRK 4JH1-TC ENG(RDM) 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0606		●	●
4	04.686 NUT; BRKT,FLEX HOSE,RR BRK 4JJ1 ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	03	1	0607-		●	●
5	04.681 BOLT; BRKT,FLEX HOSE,RR BRK 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0607-	●
5	04.681 BOLT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0607-	●
5	04.681 BOLT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0302-0512	●	●	●
5	04.681 BOLT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0601-0606	●	●	●
5	04.681 BOLT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0607-0611		●	●
5	04.681 BOLT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0612-		●	●
5	04.681 BOLT; BRKT,FLEX HOSE,RR BRK 4JH1 ENG(RJX) 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0302-0506		●	●
5	04.681 BOLT; BRKT,FLEX HOSE,RR BRK 4JH1-TC ENG(RDM) 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0507-0512		●	●
5	04.681 BOLT; BRKT,FLEX HOSE,RR BRK 4JH1-TC ENG(RDM) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0601-0606		●	●
5	04.681 BOLT; BRKT,FLEX HOSE,RR BRK 4JJ1 ENG(LFB) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0607-		●	●

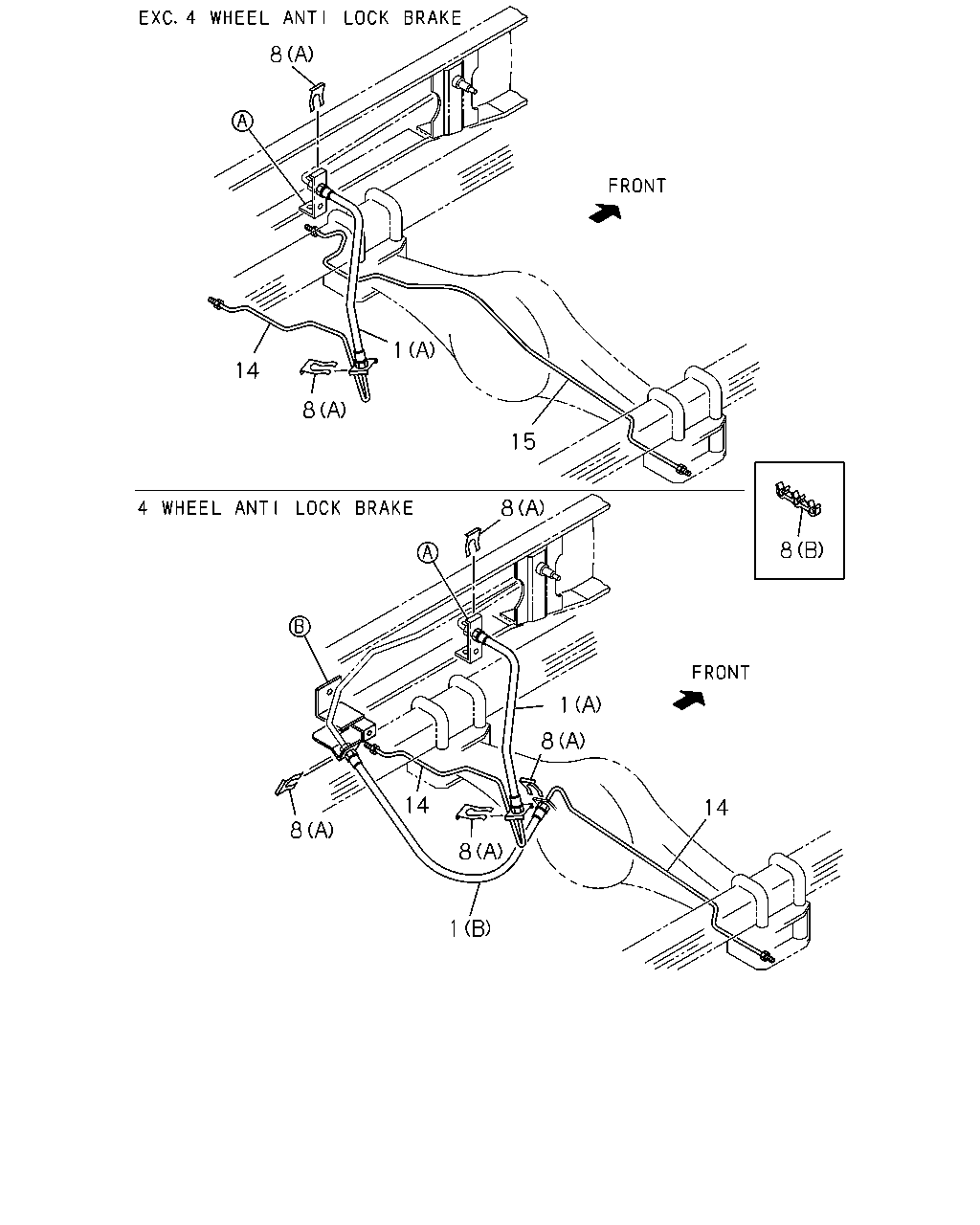

8 1 14 8 15 8 8 1 8 14 14 8 8 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.680 HOSE; FLEX,RR BRK 4JH1 ENG(RJX) (A) L=405	8-97089-061-0	01	1	0302-0506	●
1	04.680 HOSE; FLEX,RR BRK 4JH1-TC ENG(RDM) (A) L=405	8-97089-061-0	01	1	0507-0606	●
1	04.680 HOSE; FLEX,RR BRK 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=345	8-97230-284-1	01	1	0302-0506	●
1	04.680 HOSE; FLEX,RR BRK 4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=345	8-97230-284-1	01	1	0507-0606	●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=345	8-97230-284-1	01	1	0607-	●
1	04.680 HOSE; FLEX,RR BRK (A) L=370	8-97035-574-0	01	1	0302-0606		●	●
1	04.680 HOSE; FLEX,RR BRK (A) L=370	8-97035-574-0	01	1	0607-	●	●	●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=430	8-97077-458-0	01	1	0302-		●	●
8	04.686 CLIP; RR BRK (B)	8-97076-471-0	01	1	0302-	●	●	●
8	04.686 CLIP; RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 (A)	8-94137-662-0	04	1	0302-0610	●	●	●
8	04.686 CLIP; RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97360-054-0	04	1	0611-	●	●	●
8	04.686 CLIP; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 (A)	8-94137-662-0	02	1	0302-0610	●	●	●
8	04.686 CLIP; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97360-054-0	02	1	0611-	●	●	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97260-318-1	01	1	0302-0606	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97239-139-1	01	1	0607-0610	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98021-862-0	01	1	0611-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97239-140-1	01	1	0302-0610	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98021-877-0	01	1	0611-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97304-924-0	01	1	0302-0606	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97162-841-0	01	1	0607-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97082-923-0	01	1	0302-0606		●	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T)	8-97082-923-0	01	1	0607-0610		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97082-923-0	01	1	0607-0610			●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T)	8-98021-879-0	01	1	0611-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98021-879-0	01	1	0611-			●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97042-077-2	01	1	0302-0606		●	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T)	8-97042-077-2	01	1	0607-0610		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97042-077-2	01	1	0607-0610			●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T)	8-98021-871-0	01	1	0611-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98021-871-0	01	1	0611-			●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97070-590-0	01	1	0302-0606		●	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97070-590-0	01	1	0607-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97070-590-0	01	1	0607-			●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97162-846-0	01	1	0302-	●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97070-591-0	01	1	0302-0506		●	●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97070-591-0	01	1	0507-0606		●	●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97070-591-0	01	1	0607-		●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97070-591-0	01	1	0607-			●
