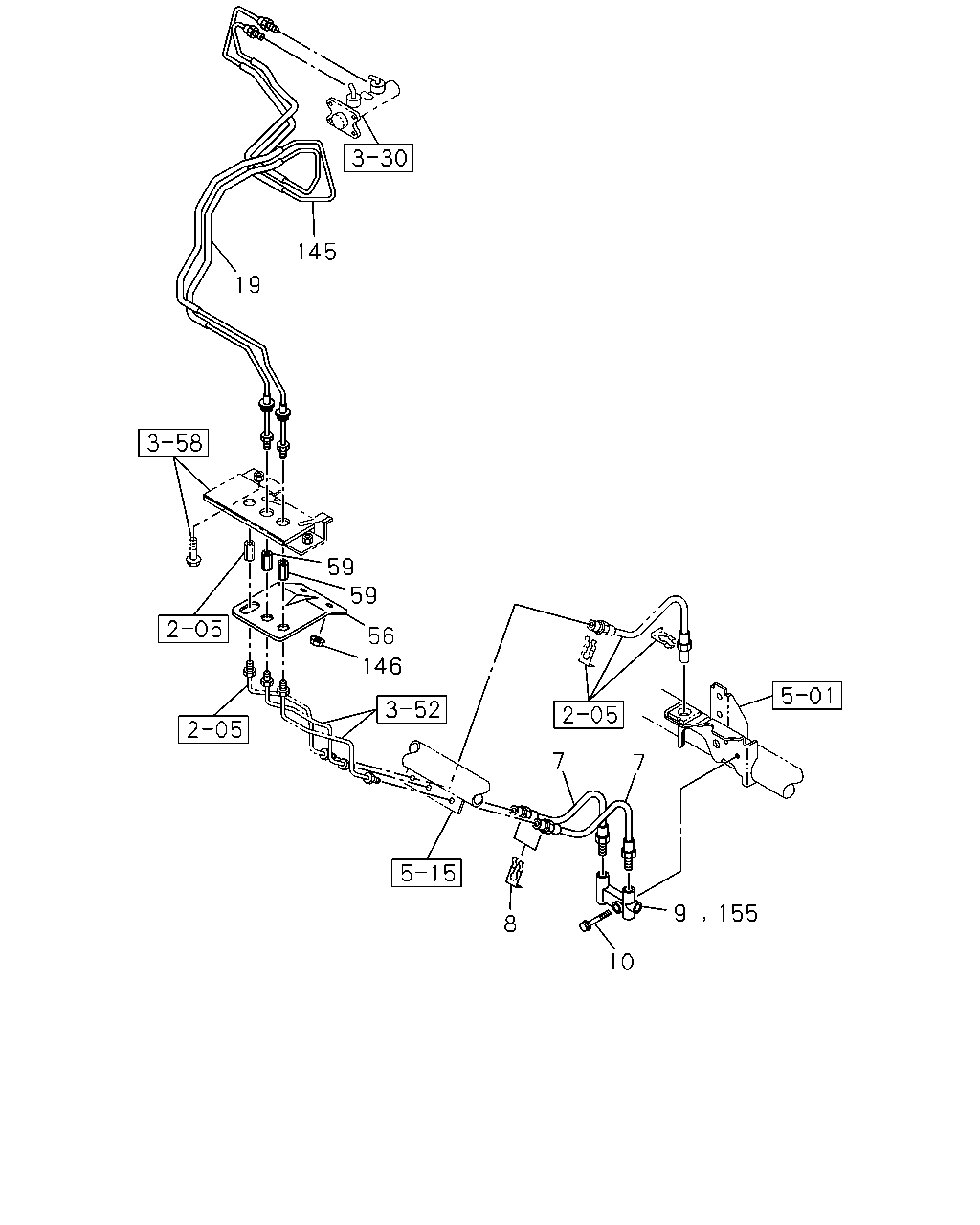

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#22724) — 98 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
35	04.685 PIPE; BRK,VLV TO RR AXLE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-946-0	01	1	0302-0506	●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-946-0	01	1	0507-0606	●
35	04.685 PIPE; BRK,VLV TO RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97166-212-3	01	1	0607-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-948-0	01	1	0302-0506		●	●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-948-0	01	1	0507-0606		●	●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4JJ1 ENG(LFB) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-948-0	01	1	0607-		●	●

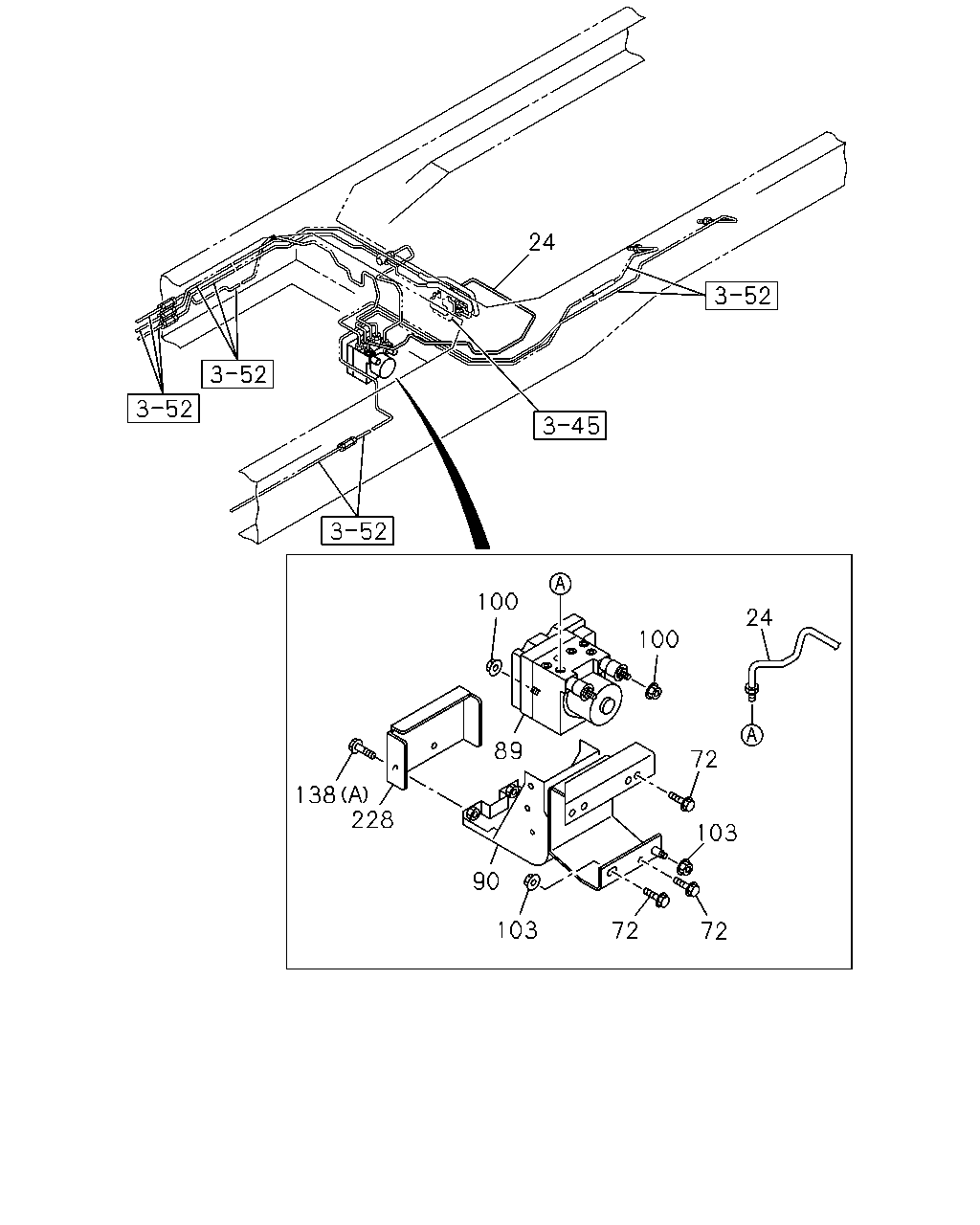

24 100 24 100 89 72 138 228 103 90 103 72 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	04.685 PIPE; BRK,PROPORTIONING VLV 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-953-0	01	1	0302-0506	●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-953-0	01	1	0507-0606	●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97351-679-0	01	1	0607-	●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-954-0	01	1	0302-0506		●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-954-0	01	1	0507-0606		●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-954-0	01	1	0607-		●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-955-0	01	1	0302-0506			●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-955-0	01	1	0507-0606			●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-955-0	01	1	0607-			●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 03.405 M10X25 FLANGE	0-28681-025-0	03	1	0302-0512	●	●	●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X25 FLANGE	0-28651-025-0	03	1	0601-0606	●	●	●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0607-	●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X25 FLANGE	0-28651-025-0	03	1	0607-		●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-075-2	01	1	0302-0606	●	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98042-501-1	01	1	0607-1006	●	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98157-963-1	01	1	1007-	●	●	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97245-502-2	01	1	0607-	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97245-501-0	01	1	0302-0606	●	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97245-501-0	01	1	0607-		●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97245-498-2	01	1	0302-			●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	03	1	0302-0602	●	●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0602	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.785 M10 FLANGE	0-91150-110-0	03	1	0302-0602			●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M10 FLANGE	0-91180-110-0	03	1	0603-			●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0512	●	●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●	●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 04.640 (B) M10X12 FLANGE	0-28081-012-0	02	1	0302-0512		●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 06.225 (B) M10X12 FLANGE	0-28051-012-0	02	1	0601-		●	●
228	04.730 COVER; ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97233-083-0	01	1	0302-0611	●	●	●
228	04.730 COVER; ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97359-760-0	01	1	0612-	●	●	●

145 19 59 59 56 146 7 7 9 155 8 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	0302-	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 00.785	8-94167-006-0	02	1	0302-0610	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE	8-97365-304-0	02	1	0611-	●	●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97139-922-1	01	1	0302-	●	●	●
10	04.686 BOLT; JOINT 03.163 M6X40 FLANGE	0-28680-640-0	01	1	0302-0512	●	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0601-	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION REAR	8-97314-590-0	01	1	0302-0606	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) REAR	8-97314-590-0	01	1	0607-	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) REAR	8-97363-367-1	01	1	0607-	●	●	●
56	04.686 BRACKET; UNION,BRK	8-97078-564-1	01	1	0302-	●	●	●
59	04.686 UNION; BRK PIPE 08.963 M10 STRAIGHT	9-09227-005-0	02	1	0302-0607	●	●	●
59	04.686 UNION; BRK PIPE M10 STRAIGHT	0-92107-005-0	02	1	0608-	●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION FRONT	8-97314-583-0	01	1	0302-0606	●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) FRONT	8-97314-583-0	01	1	0607-	●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) FRONT	8-97363-369-1	01	1	0607-	●	●	●
146	04.685 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0602	●	●	●
146	04.685 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
155	04.686 JOINT; 6WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97120-033-2	01	1	0302-	●	●	●

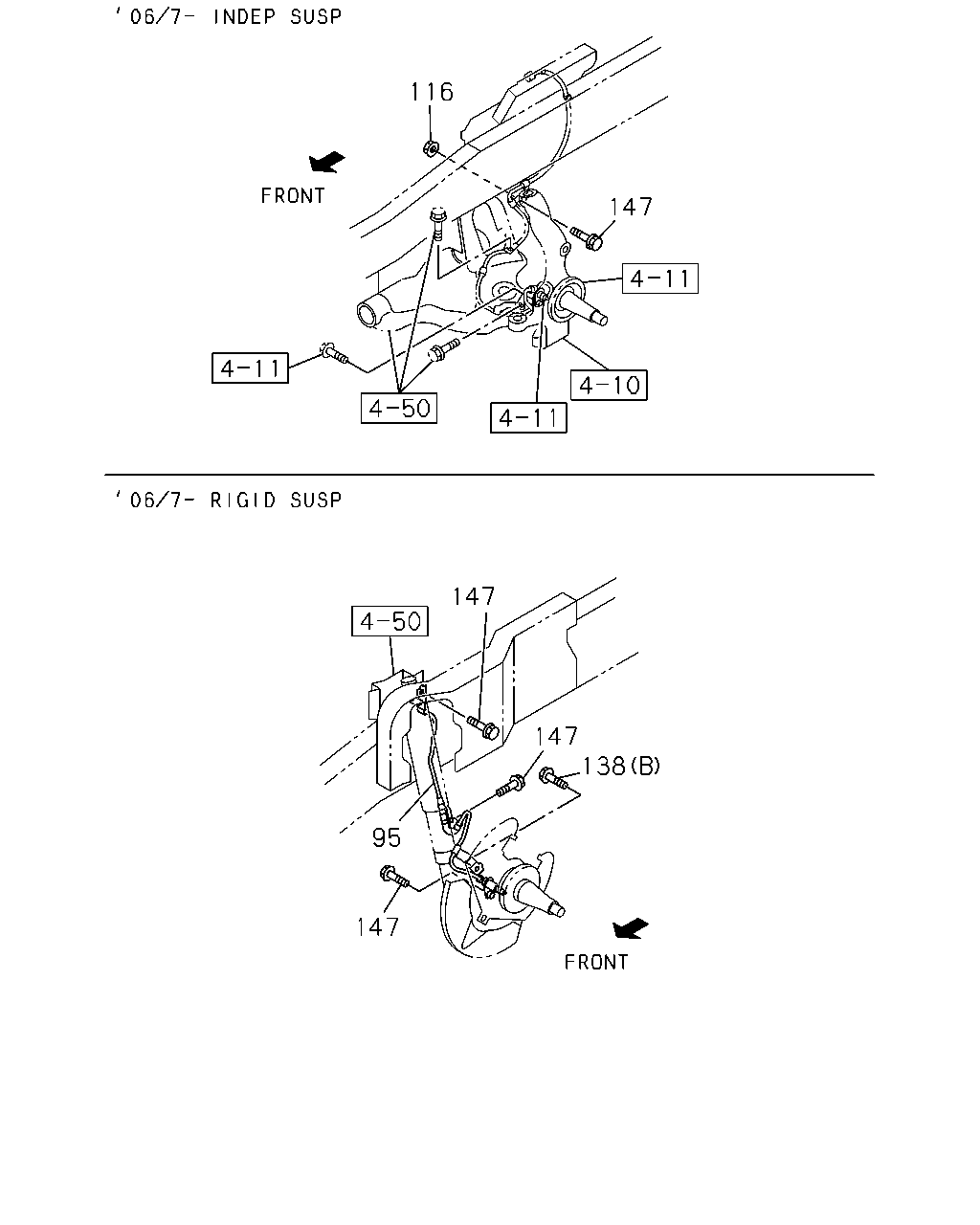

116 147 147 147 138 95 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97258-317-2	01	1	0302-0606		●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97308-202-4	01	1	0607-		●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97258-316-2	01	1	0302-0606		●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97308-201-4	01	1	0607-		●	●
116	04.686 NUT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0512	●	●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●	●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 04.640 (B) M10X12 FLANGE	0-28081-012-0	02	1	0302-0512		●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 06.225 (B) M10X12 FLANGE	0-28051-012-0	02	1	0601-		●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0302-0512	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0601-0606	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0607-	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE	0-28080-812-0	04	1	0302-0512		●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	04	1	0601-		●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0302-0512		●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0606		●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-		●	●

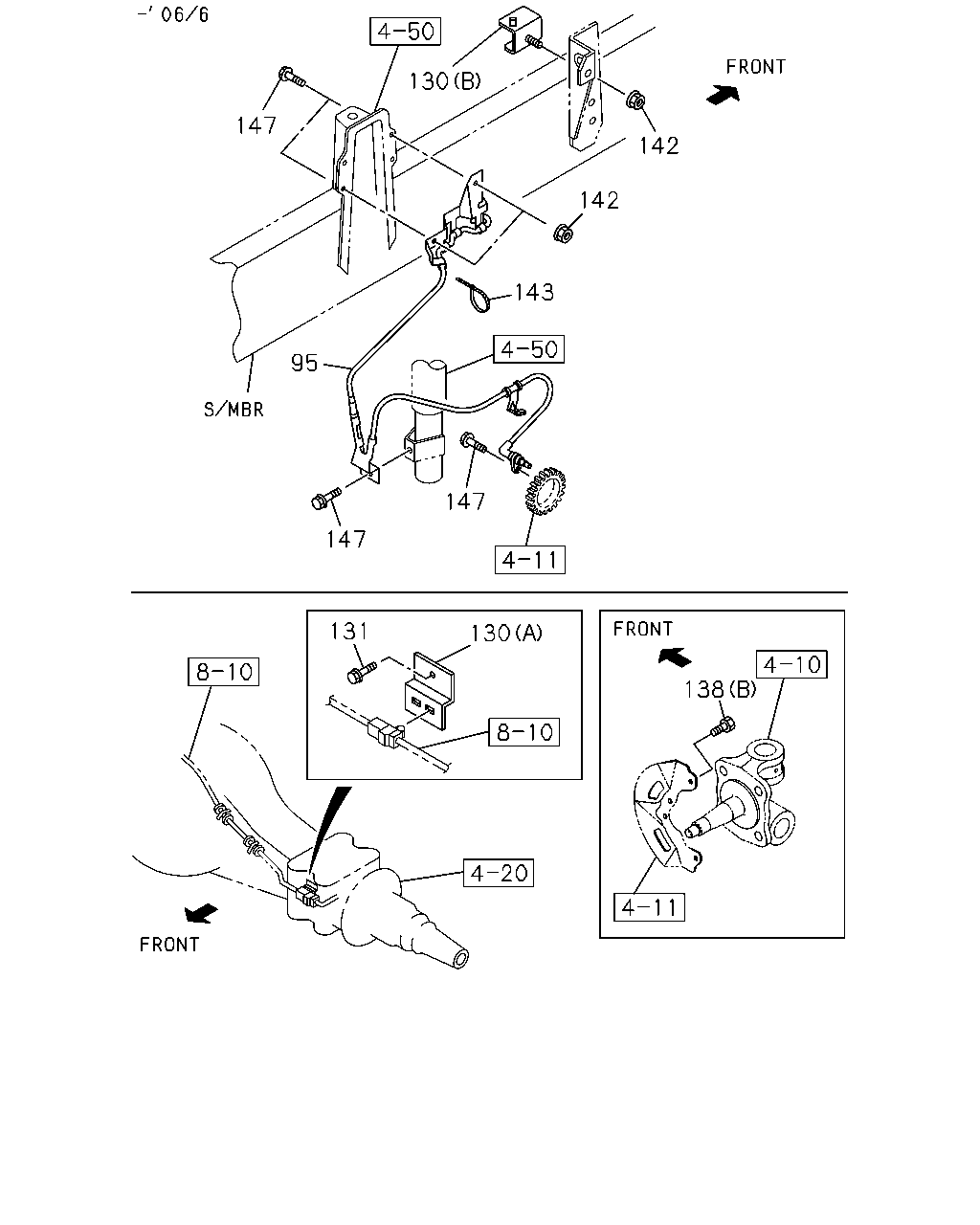

130 147 142 142 143 95 147 147 131 130 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97258-317-2	01	1	0302-0606		●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97308-202-4	01	1	0607-		●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97258-316-2	01	1	0302-0606		●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97308-201-4	01	1	0607-		●	●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97080-060-2	02	1	0302-	●	●	●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97254-466-0	01	1	0302-0606	●	●	●
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0302-0512	●	●	●
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-	●	●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0512	●	●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●	●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 04.640 (B) M10X12 FLANGE	0-28081-012-0	02	1	0302-0512		●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 06.225 (B) M10X12 FLANGE	0-28051-012-0	02	1	0601-		●	●
142	04.710 NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 M6 FLANGE	0-91150-106-0	01	1	0302-0602	●	●	●
142	04.710 NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0606	●	●	●
142	04.710 NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0602		●	●
142	04.710 NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●
143	04.710 CLIP; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 L=140	5-09707-031-1	01	1	0302-0606	●	●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0302-0512	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0601-0606	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0607-	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE	0-28080-812-0	04	1	0302-0512		●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	04	1	0601-		●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0302-0512		●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0606		●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-		●	●
