◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50946 - NKR(EUROPE)-RHD ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#22721) — 39 parça

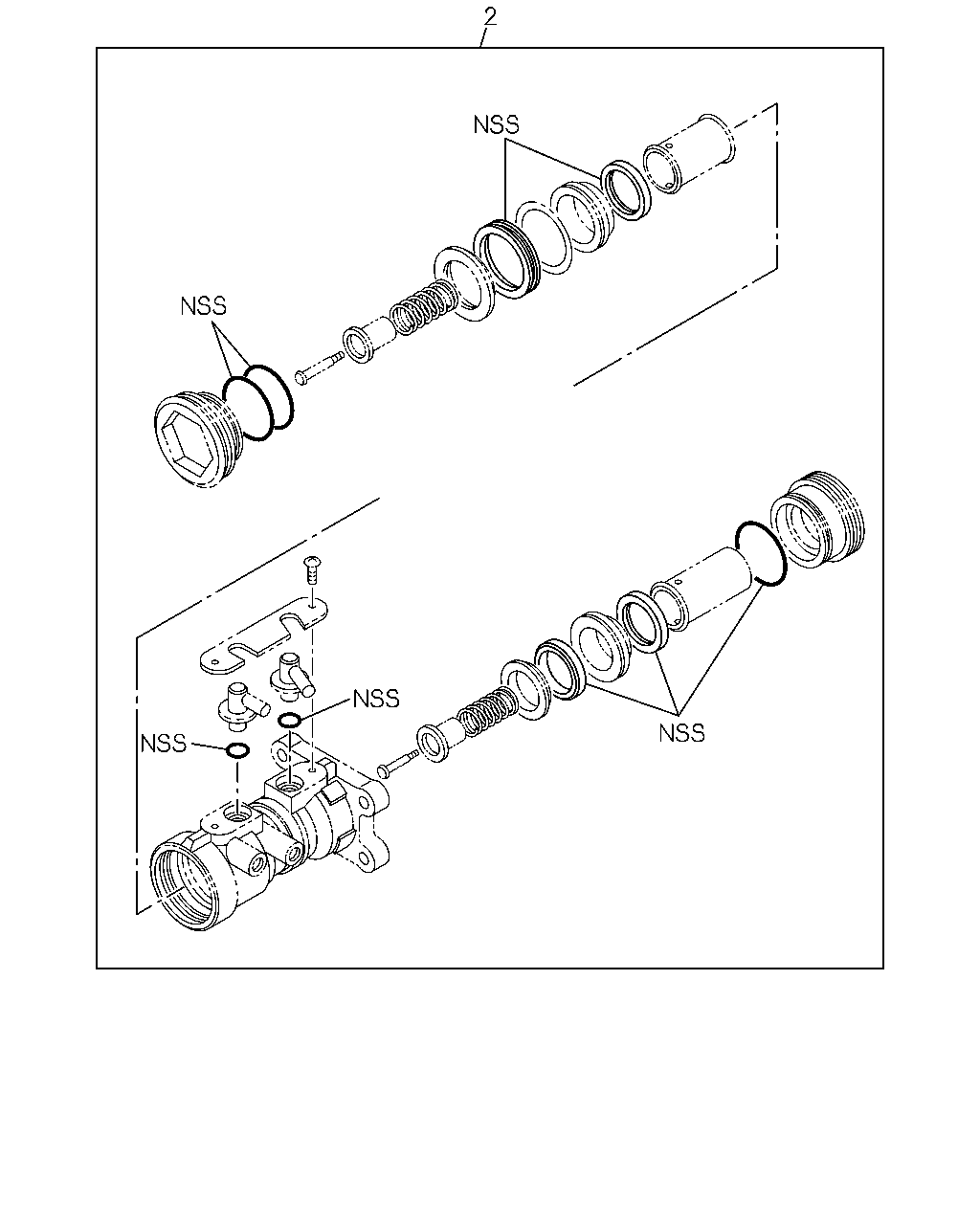

çizim 9186
2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 04.649 REPAIR KIT; BRK,M/CYL
FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-470-0 01 1 0302-0606 ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-470-0 01 1 0607- ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97141-423-0 01 1 0302- ● ●

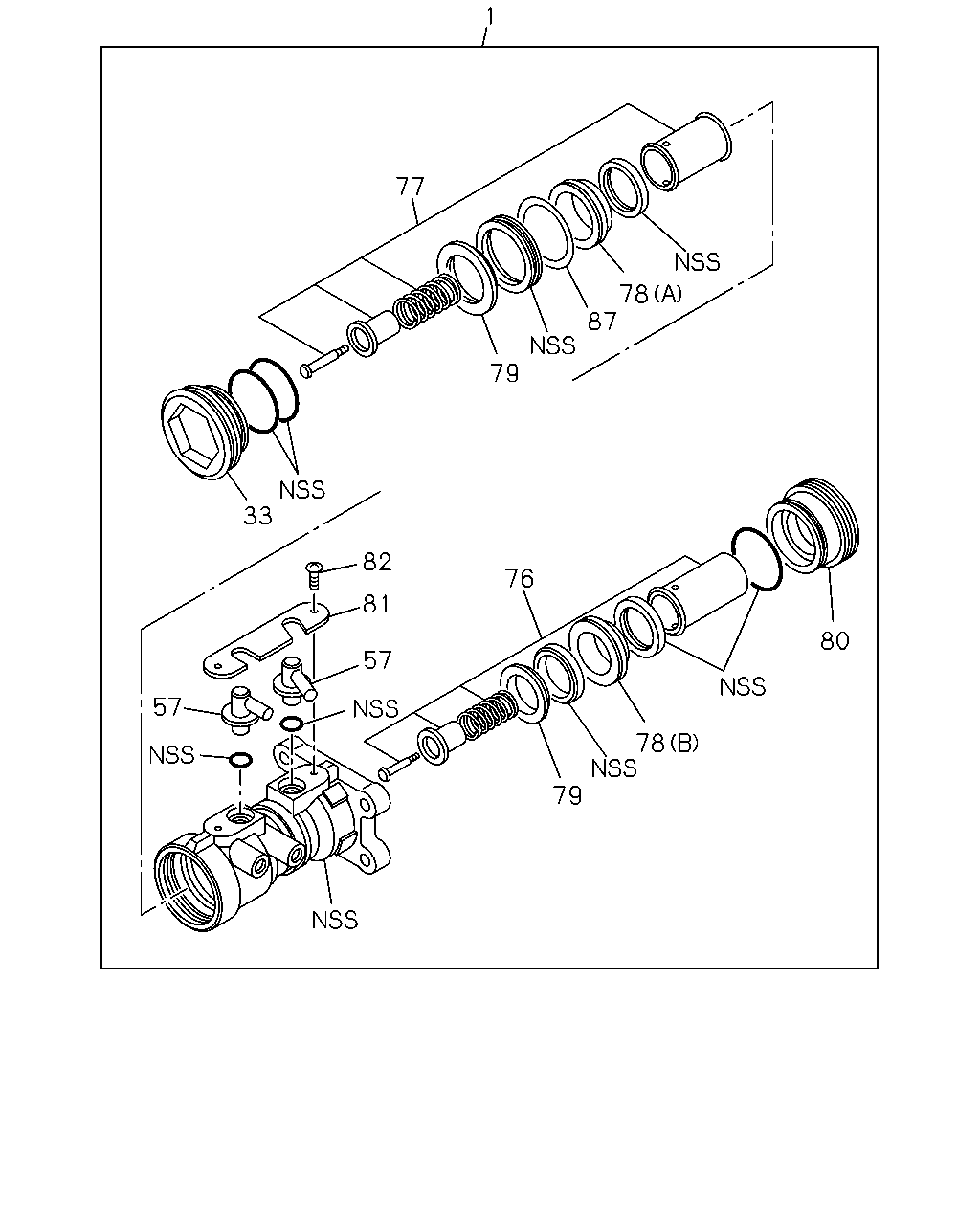

çizim 11116
1 77 78 87 79 33 82 76 81 80 57 57 78 79
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.650 CYLINDER ASM; BRK MASTER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97224-373-0 01 1 0302-0606 ●
1 04.650 CYLINDER ASM; BRK MASTER 8-97224-373-0 01 1 0607- ●
1 04.650 CYLINDER ASM; BRK MASTER 8-97224-368-0 01 1 0302- ● ●
33 04.661 PLUG; END,M/CYL
FRT INDEPENDENT SUSPENSION(6PP) 		8-97186-696-0 01 1 0302-0606 ●
33 04.661 PLUG; END,M/CYL 8-97186-696-0 01 1 0607- ●
33 04.661 PLUG; END,M/CYL 8-97186-698-0 01 1 0302- ● ●
57 04.651 NIPPLE; BRK M/CYL
FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-442-0 02 1 0302-0606 ●
57 04.651 NIPPLE; BRK M/CYL 8-97130-442-0 02 1 0302-0606 ● ●
57 04.651 NIPPLE; BRK M/CYL 8-97130-442-0 02 1 0607- ● ● ●
76 04.653 PISTON ASM; PRIMARY
FRT INDEPENDENT SUSPENSION(6PP) 		8-97224-636-0 01 1 0302-0606 ●
76 04.653 PISTON ASM; PRIMARY 8-97224-636-0 01 1 0607- ●
76 04.653 PISTON ASM; PRIMARY 8-97224-639-0 01 1 0302- ● ●
77 04.653 PISTON ASM; SECONDARY
FRT INDEPENDENT SUSPENSION(6PP) 		8-97224-635-0 01 1 0302-0606 ●
77 04.653 PISTON ASM; SECONDARY 8-97224-635-0 01 1 0607- ●
77 04.653 PISTON ASM; SECONDARY 8-97224-637-0 01 1 0302- ● ●
78 04.651 BUSHING; MASTER CYL
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97130-454-0 01 1 0302-0606 ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-454-0 01 1 0607- ●
78 04.651 BUSHING; MASTER CYL
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97217-310-0 01 1 0302-0606 ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-310-0 01 1 0607- ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97141-410-0 01 1 0302- ● ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-830-0 01 1 0302- ● ●
79 04.651 SUPPORTER; CUP
FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-462-0 02 1 0302-0606 ●
79 04.651 SUPPORTER; CUP 8-97130-462-0 02 1 0607- ●
79 04.651 SUPPORTER; CUP 8-97141-417-0 02 1 0302- ● ●
80 04.651 COVER; MASTER CYL
FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-448-0 01 1 0302-0606 ●
80 04.651 COVER; MASTER CYL 8-97130-448-0 01 1 0607- ●
80 04.651 COVER; MASTER CYL 8-97141-404-0 01 1 0302- ● ●
81 04.651 HOLDER; NIPPLE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-445-0 01 1 0302-0606 ●
81 04.651 HOLDER; NIPPLE 8-97130-445-0 01 1 0302-0606 ● ●
81 04.651 HOLDER; NIPPLE 8-97130-445-0 01 1 0607- ● ● ●
82 04.651 SCREW; HOLDER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-446-0 02 1 0302-0606 ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 0302-0606 ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 0607- ● ● ●
87 04.662 SPACER; CUP
FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-458-0 01 1 0302-0606 ●
87 04.662 SPACER; CUP 8-97130-458-0 01 1 0607- ●
87 04.662 SPACER; CUP 8-97141-413-0 01 1 0302- ● ●
