◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50946 - NKR(EUROPE)-RHD ▶ 3 - Brakes, Brake System ▶ 3-15 - ANTILOCK BRAKE SYSTEM(A.B.S.) ▶
3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#22719) — 33 parça

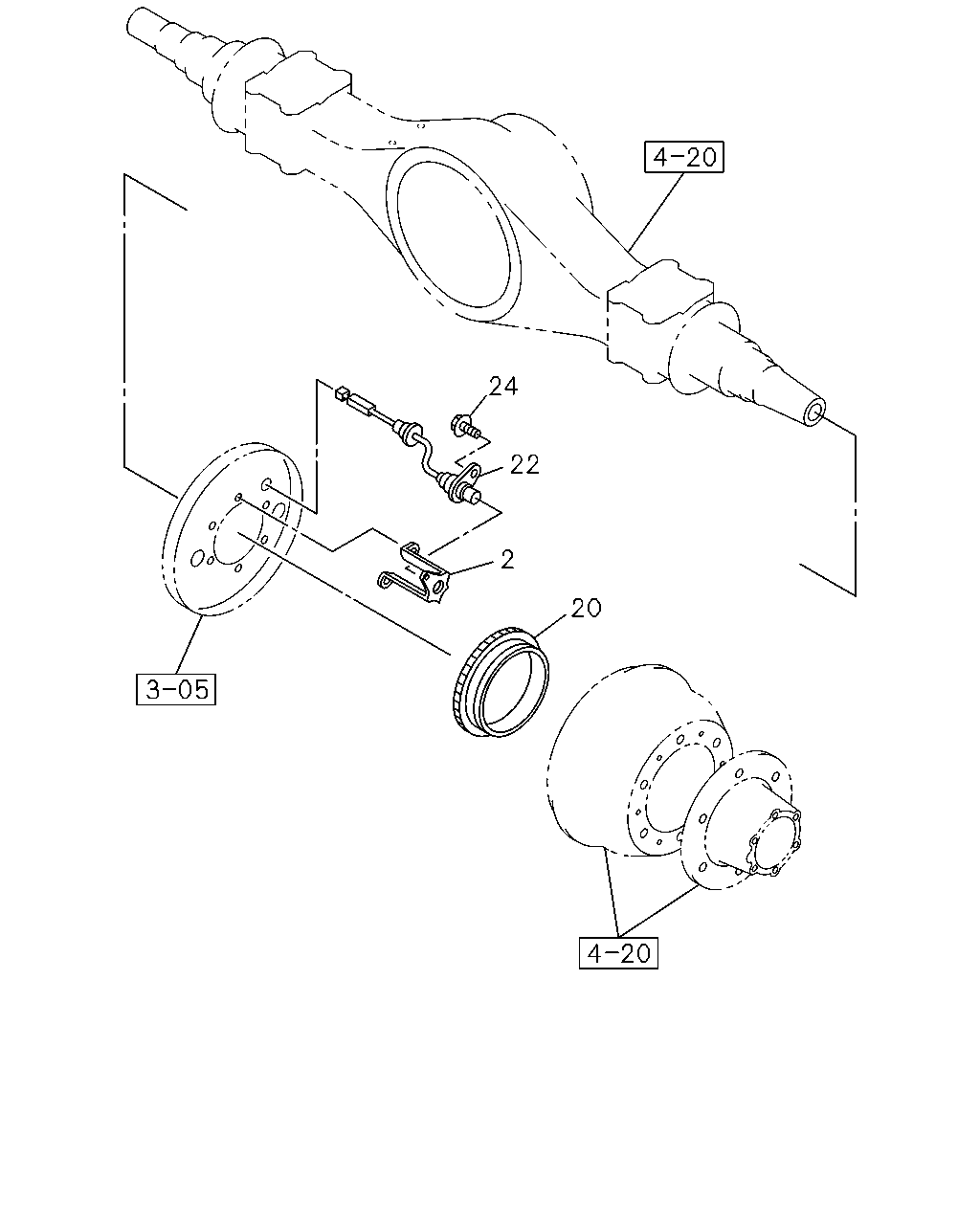

çizim 9185
24 22 2 20
BalonParca AdiParca NoAdetTipApplied Date A B C
2 04.730 BRACKET; SENSOR
4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 		8-97239-529-0 02 1 0302-0303 ●
2 04.730 BRACKET; SENSOR
4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 		8-97239-529-0 02 1 0304-0506 ●
2 04.730 BRACKET; SENSOR
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 		8-97239-529-0 02 1 0507-0606 ●
2 04.730 BRACKET; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97239-529-0 02 1 0607- ●
2 04.730 BRACKET; SENSOR
4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97314-120-0 02 1 0302-0506 ● ●
2 04.730 BRACKET; SENSOR
4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97314-120-0 02 1 0507-0606 ● ●
2 04.730 BRACKET; SENSOR
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97314-120-0 02 1 0607- ● ●
20 04.710 ROTOR; SENSOR
4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 		8-97239-527-0 02 1 0302-0303 ●
20 04.710 ROTOR; SENSOR
4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 		8-97239-527-0 02 1 0304-0506 ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 		8-97239-527-0 02 1 0507-0606 ●
20 04.710 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97239-527-0 02 1 0607-0911 ●
20 04.710 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98113-174-0 02 1 0912- ●
20 04.710 ROTOR; SENSOR
4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97234-459-2 02 1 0302-0506 ● ●
20 04.710 ROTOR; SENSOR
4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97234-459-2 02 1 0507-0606 ● ●
20 04.710 ROTOR; SENSOR
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97234-459-3 02 1 0607- ● ●
22 04.710 SENSOR; SPEED
4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 		8-97184-314-3 02 1 0302-0303 ●
22 04.710 SENSOR; SPEED
4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97184-314-3 02 1 0302-0303 ● ●
22 04.710 SENSOR; SPEED
4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 		8-97184-314-3 02 1 0304-0506 ●
22 04.710 SENSOR; SPEED
4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97184-314-3 02 1 0304-0506 ● ●
22 04.710 SENSOR; SPEED
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 		8-97184-314-3 02 1 0507-0606 ●
22 04.710 SENSOR; SPEED
4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97184-314-3 02 1 0507-0606 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97184-314-4 02 1 0607- ●
22 04.710 SENSOR; SPEED
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97184-314-4 02 1 0607- ● ●
24 04.730 BOLT; SENSOR
4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0302-0303 ●
24 04.730 BOLT; SENSOR
4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0302-0303 ● ●
24 04.730 BOLT; SENSOR
4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0304-0506 ●
24 04.730 BOLT; SENSOR
4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0304-0506 ● ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0507-0512 ●
24 04.730 BOLT; SENSOR
4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0507-0512 ● ●
24 04.730 BOLT; SENSOR
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-0606 ●
24 04.730 BOLT; SENSOR
4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-0606 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0607- ●
24 04.730 BOLT; SENSOR
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0607- ● ●
